mp-556798/AgHg2PO4/anharm

Space group: Pbam (55)
Link: Materials Project
Download: mp-556798.tar.gz

Harmonic properties

../../_images/fig_bandos_pr8296.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo8296.png — (b) Thermodynamic properties

Grüneisen parameters

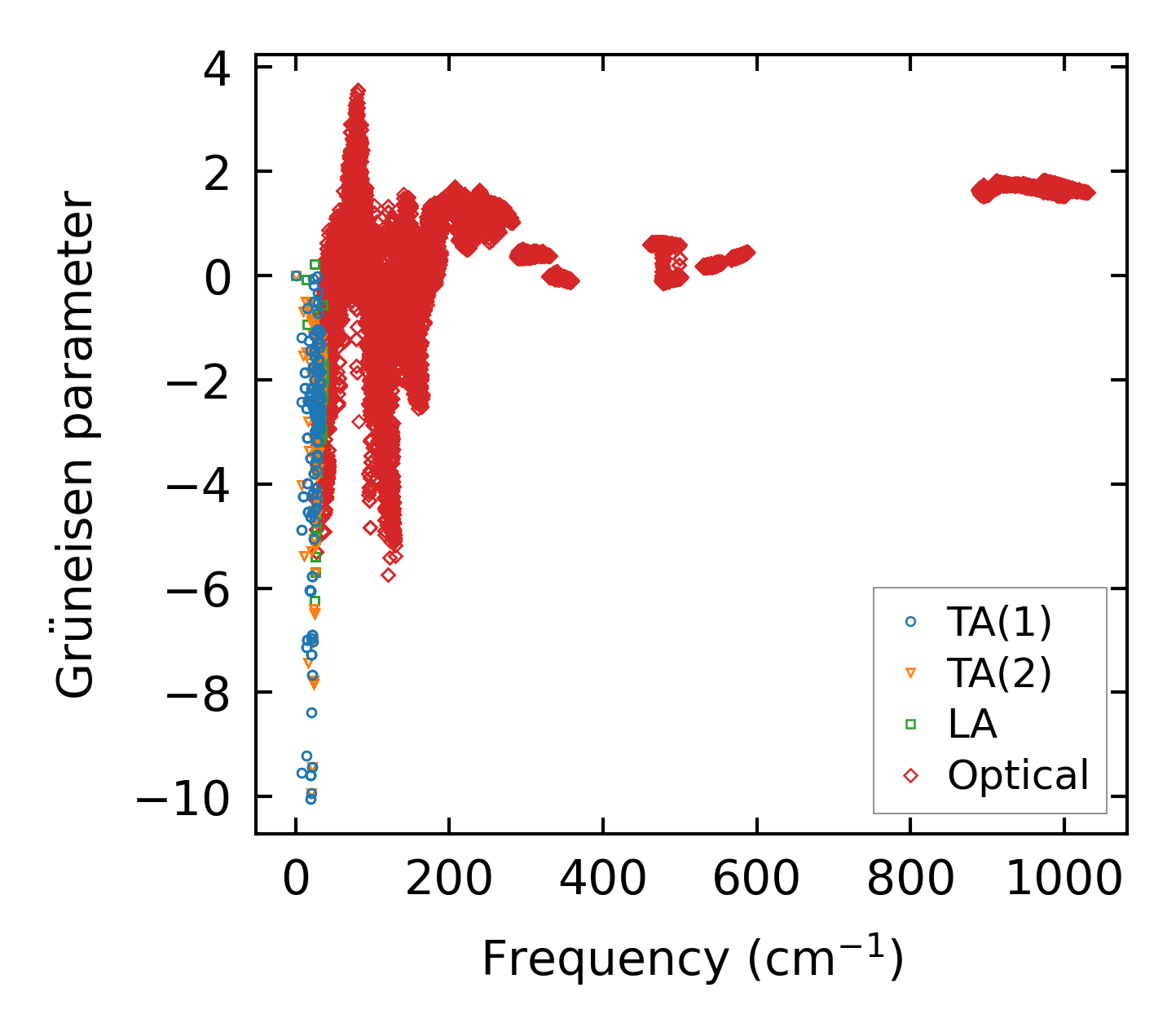

../../_images/fig_gru_all3386.png — (a) Grüneisen parameters

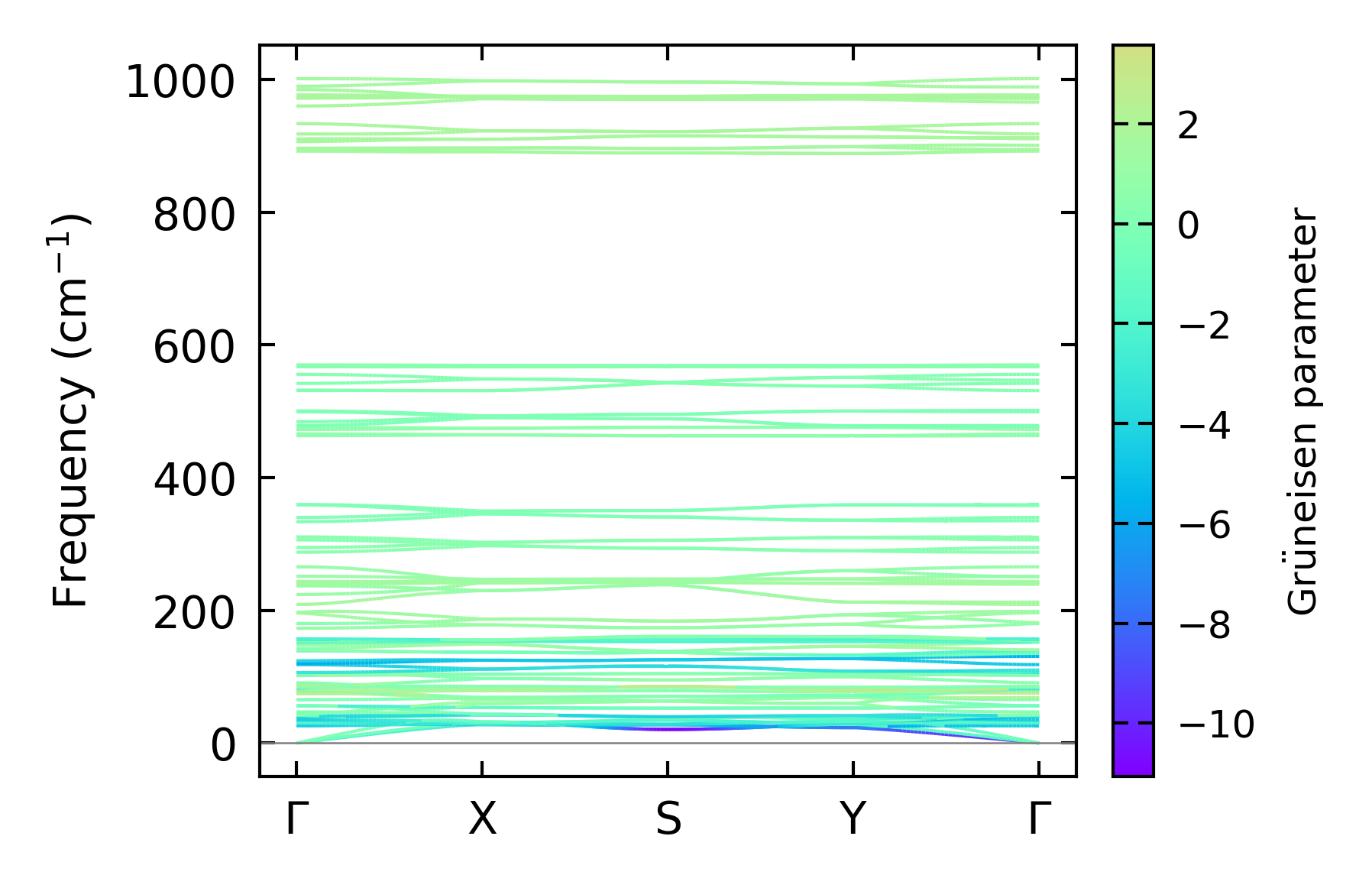

../../_images/fig_gruneisen3386.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x7x11, supercell: 2x1x2

../../_images/fig_kappa6405.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size3430.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

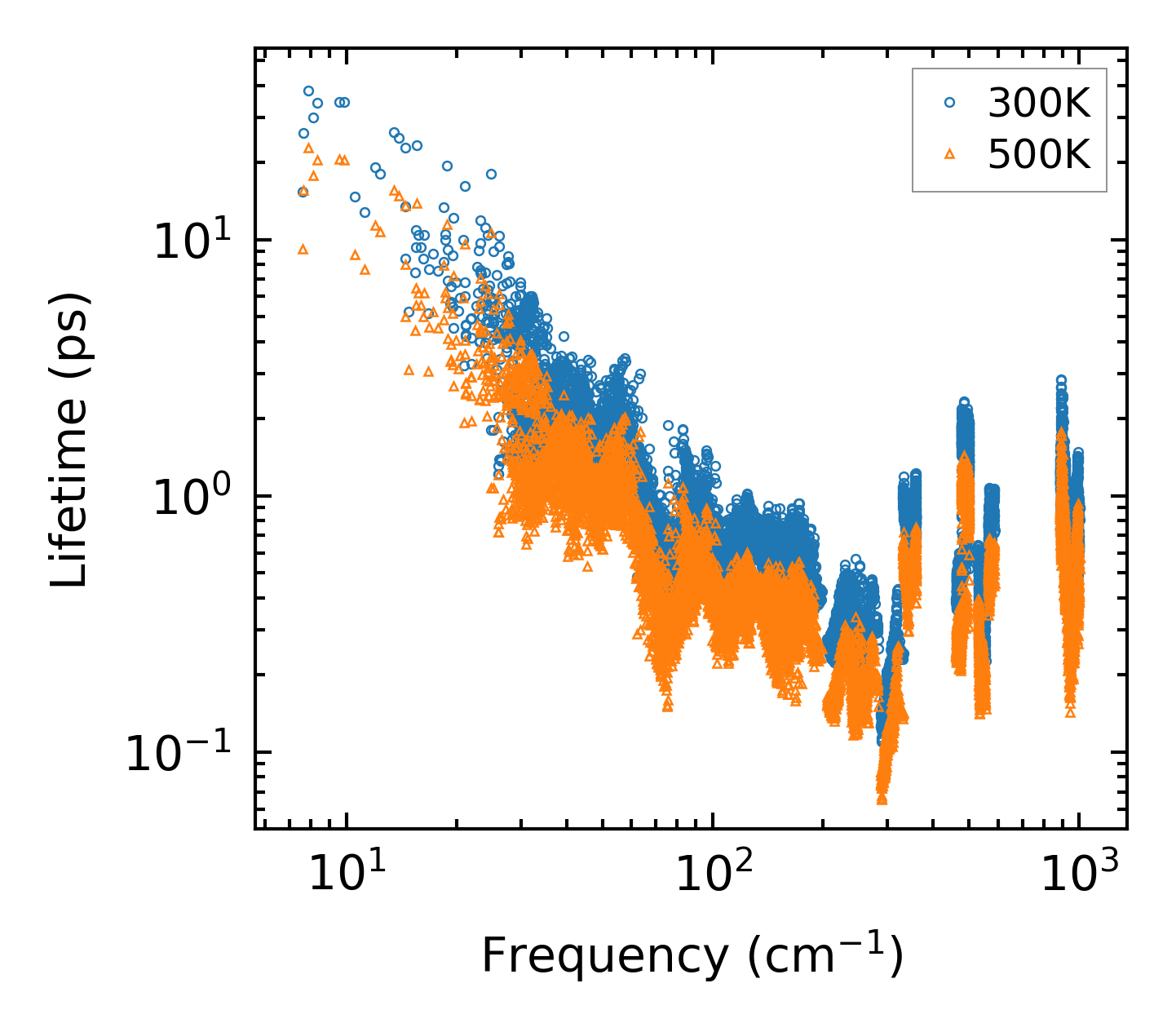

../../_images/fig_lifetime3355.png — (a) Phonon lifetime due to phonon-phonon scattering

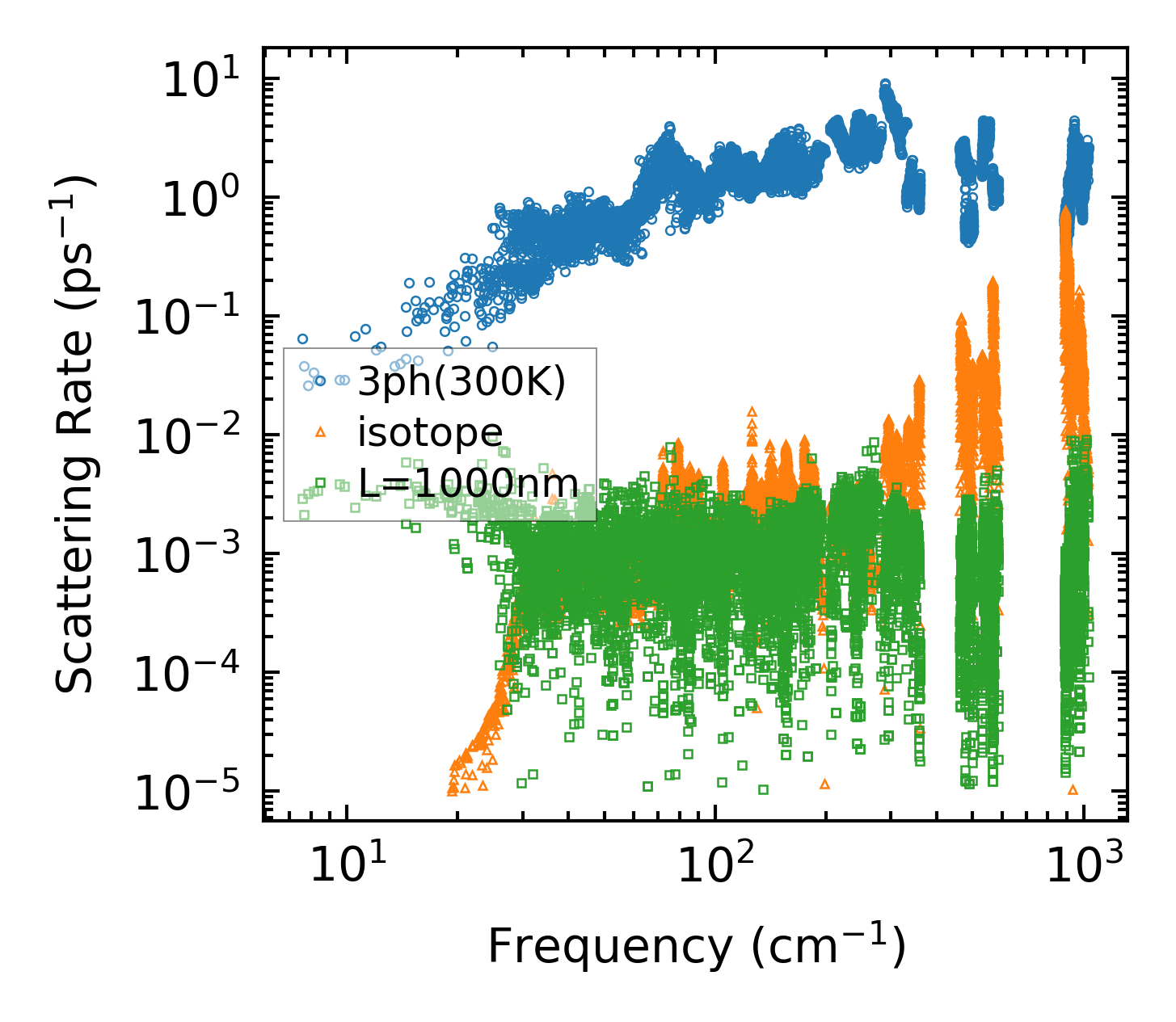

../../_images/fig_scat_rates3354.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

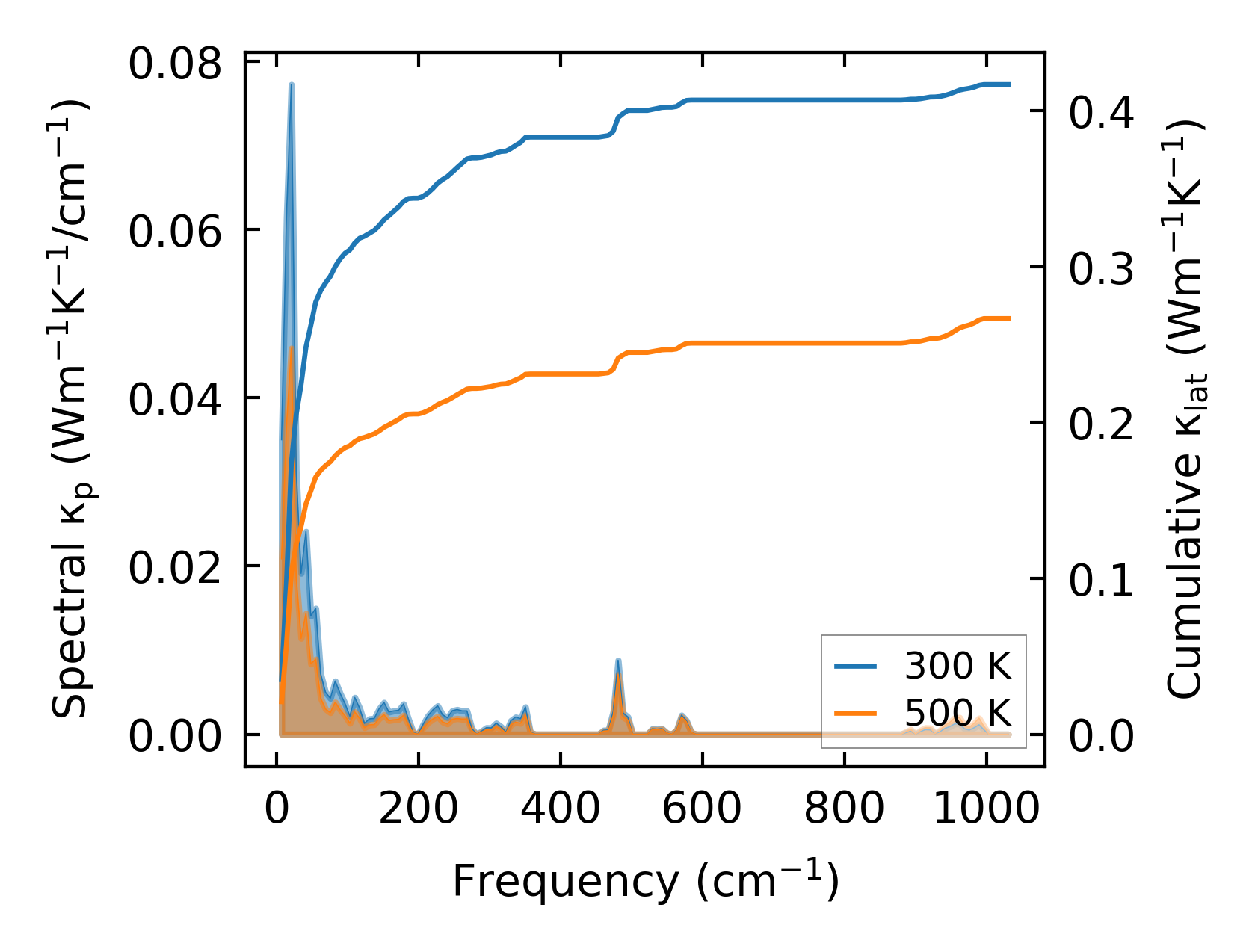

../../_images/fig_cumu_frequency3355.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

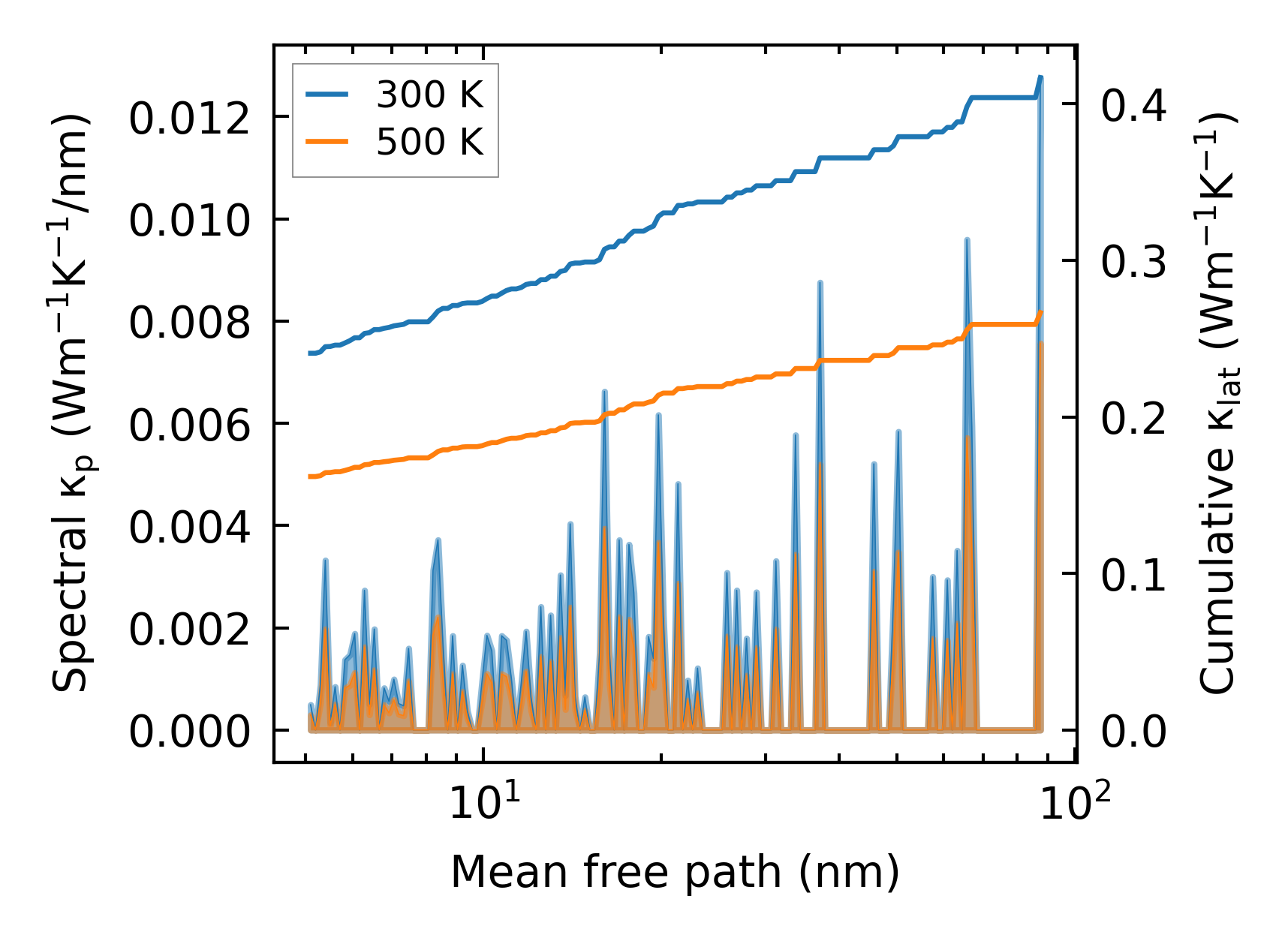

../../_images/fig_cumu_mfp3354.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

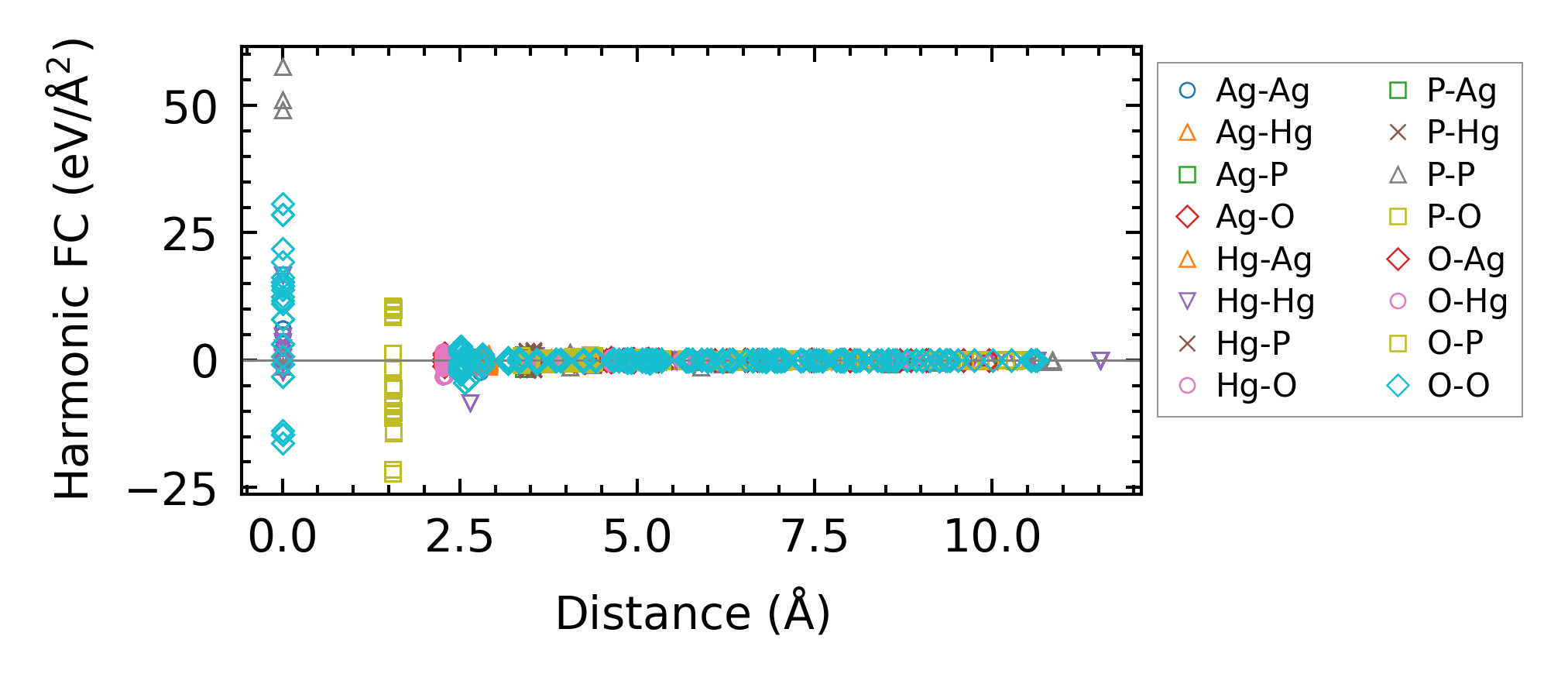

../../_images/fig_fc28058.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa6406.png — (a) Temperature-dependent lattice thermal conductivity

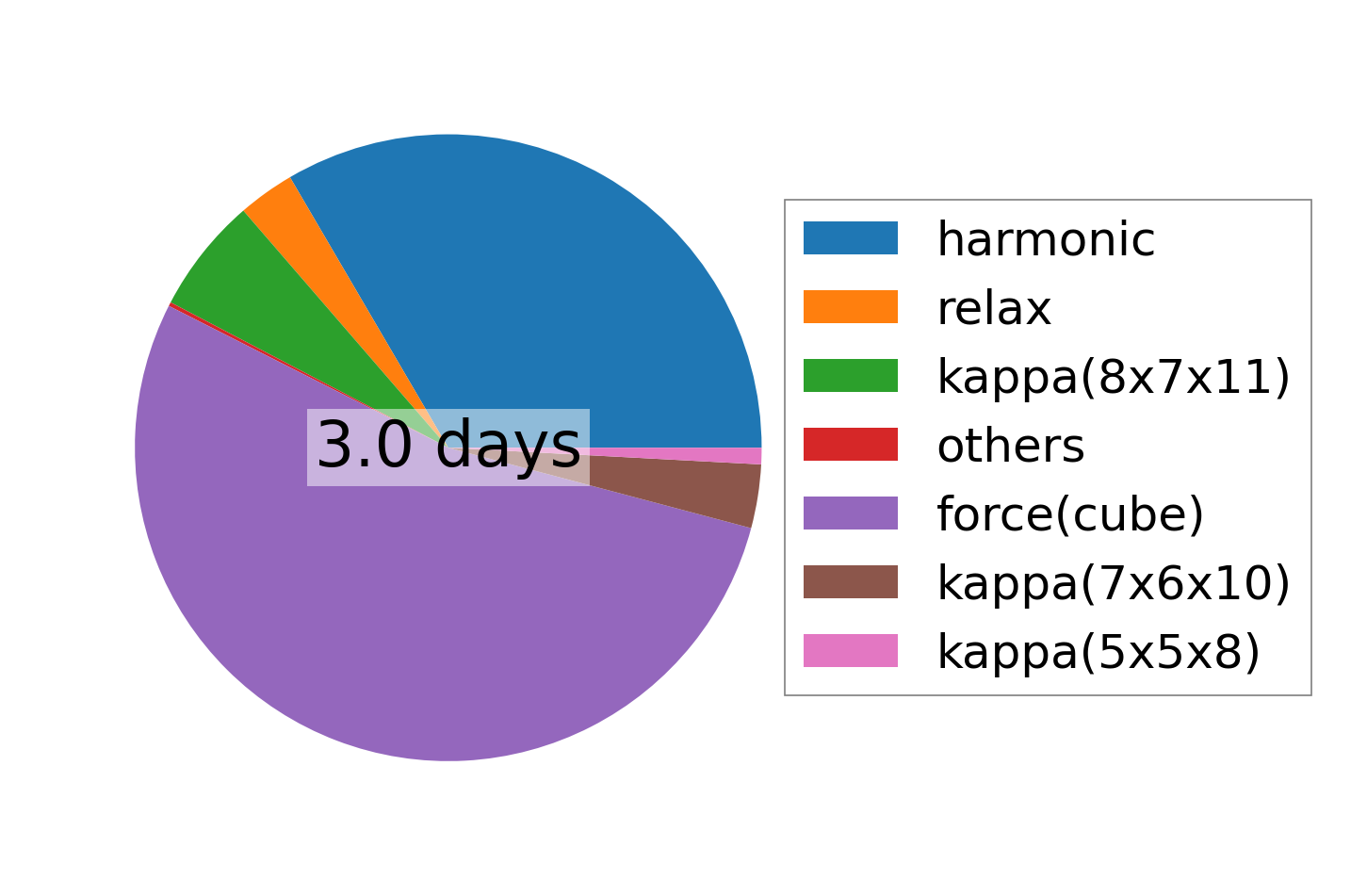

../../_images/fig_times14585.png — (b) Computation time
