mp-556837-2/AgAsS16F6/anharm

Space group: C2/c (15)
Link: Materials Project
Download: mp-556837-2.tar.gz

Equation of state

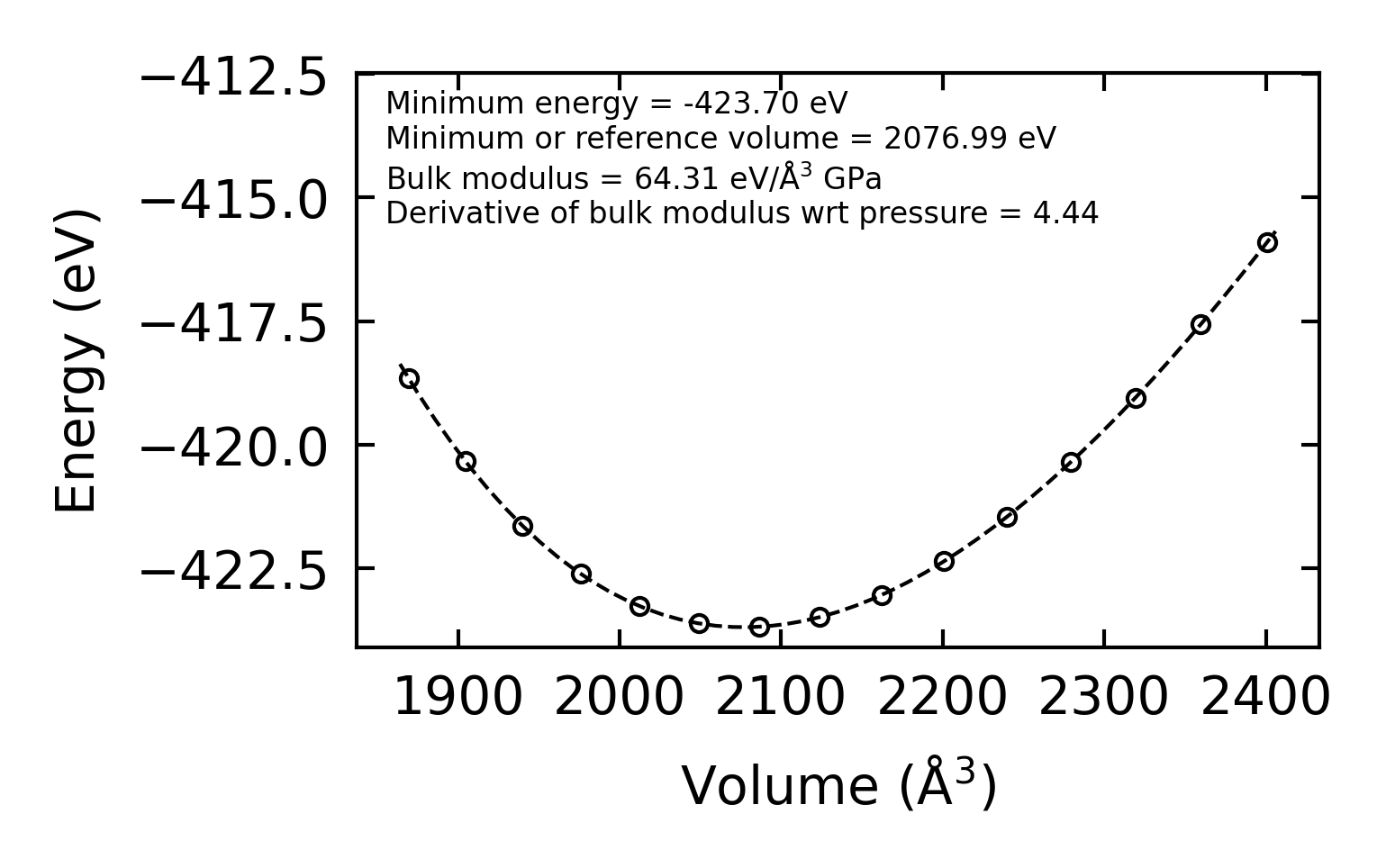

../../_images/fig_bm4235.png — (a) Equation of state

Harmonic properties

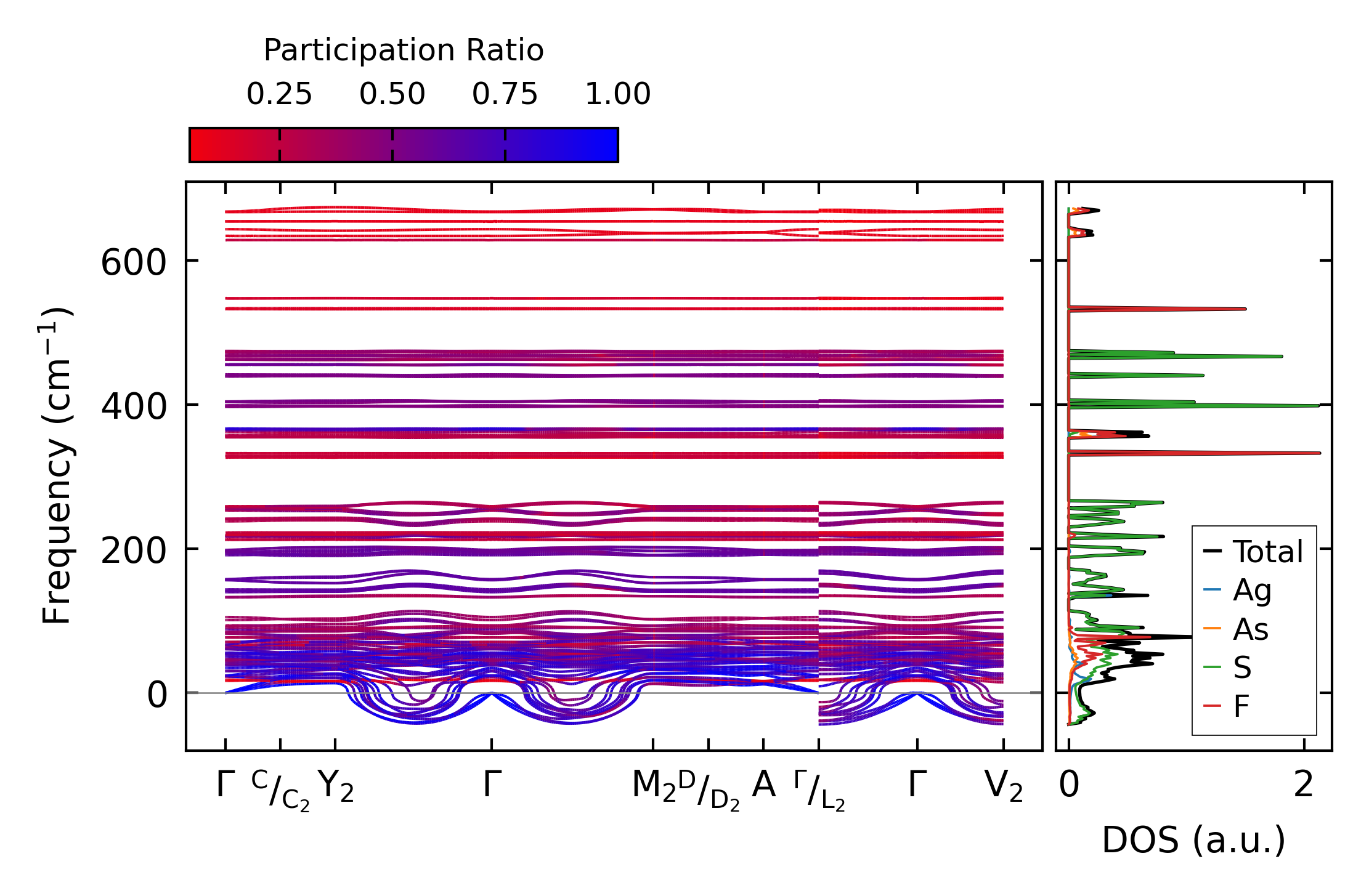

../../_images/fig_bandos_pr8306.png — (a) Phonon dispersion with participation ratio and DOS

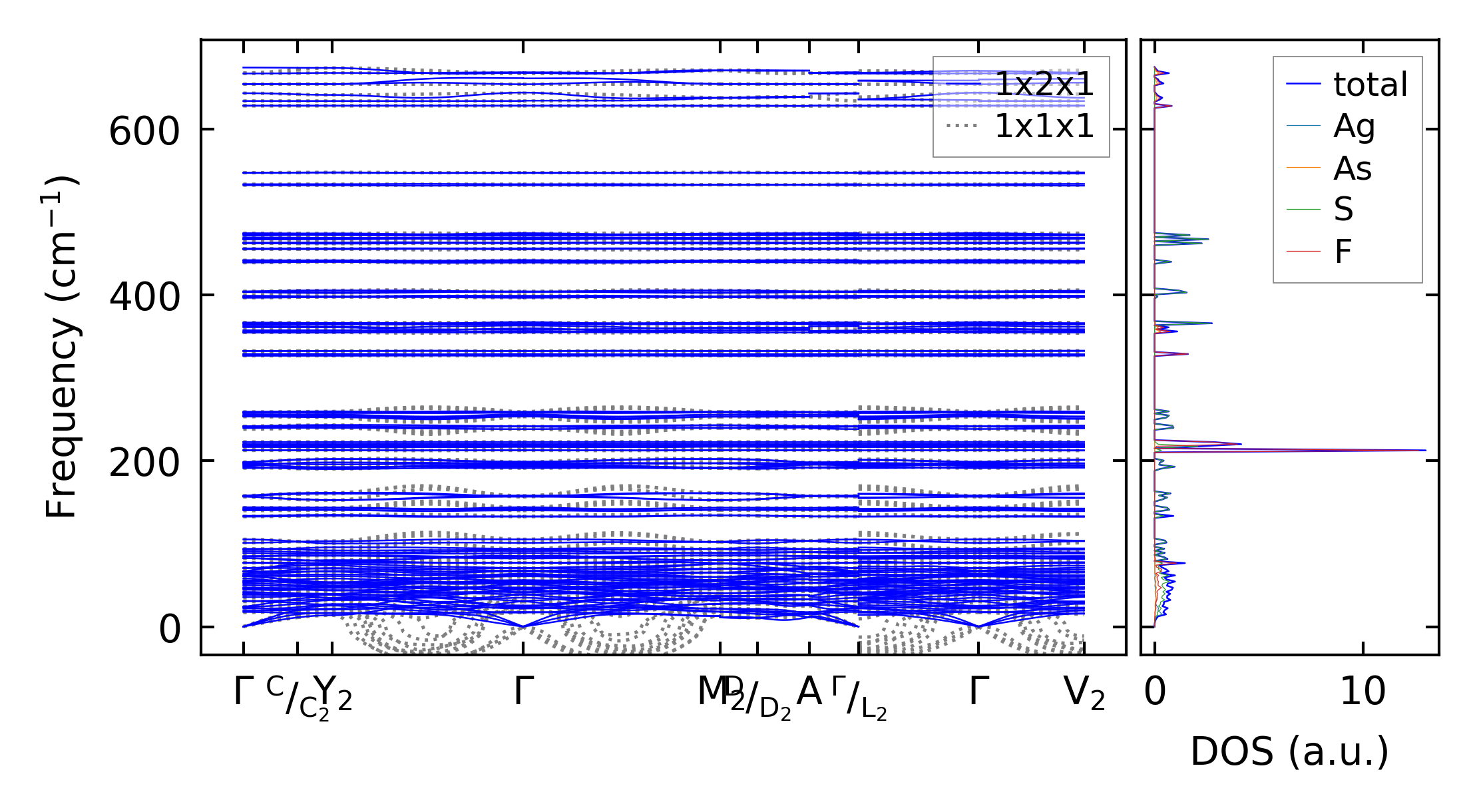

../../_images/fig_bandos11683.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo8306.png — (c) Thermodynamic properties

Thermal conductivity

Force constants

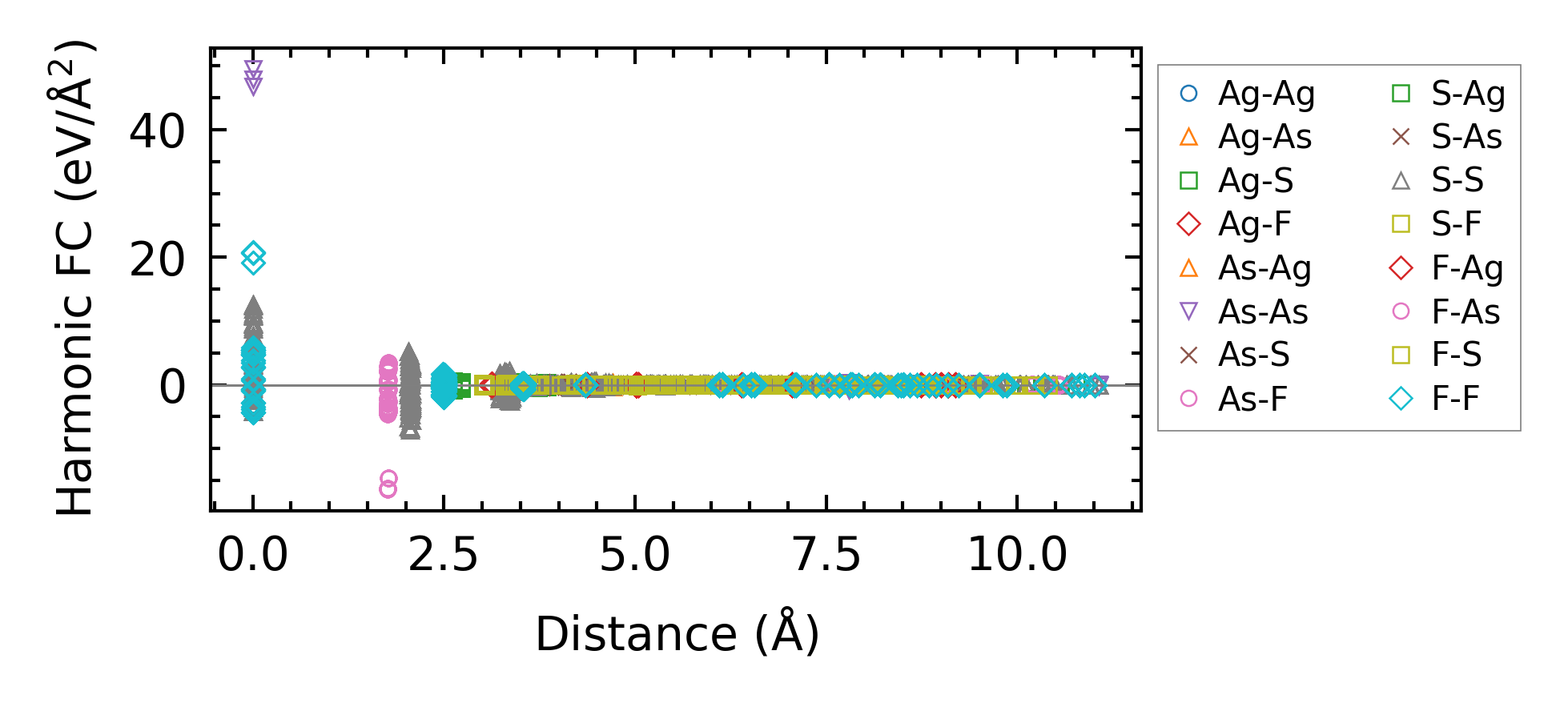

../../_images/fig_fc28068.png — (a) Force constants w.r.t atomic distance

Summary

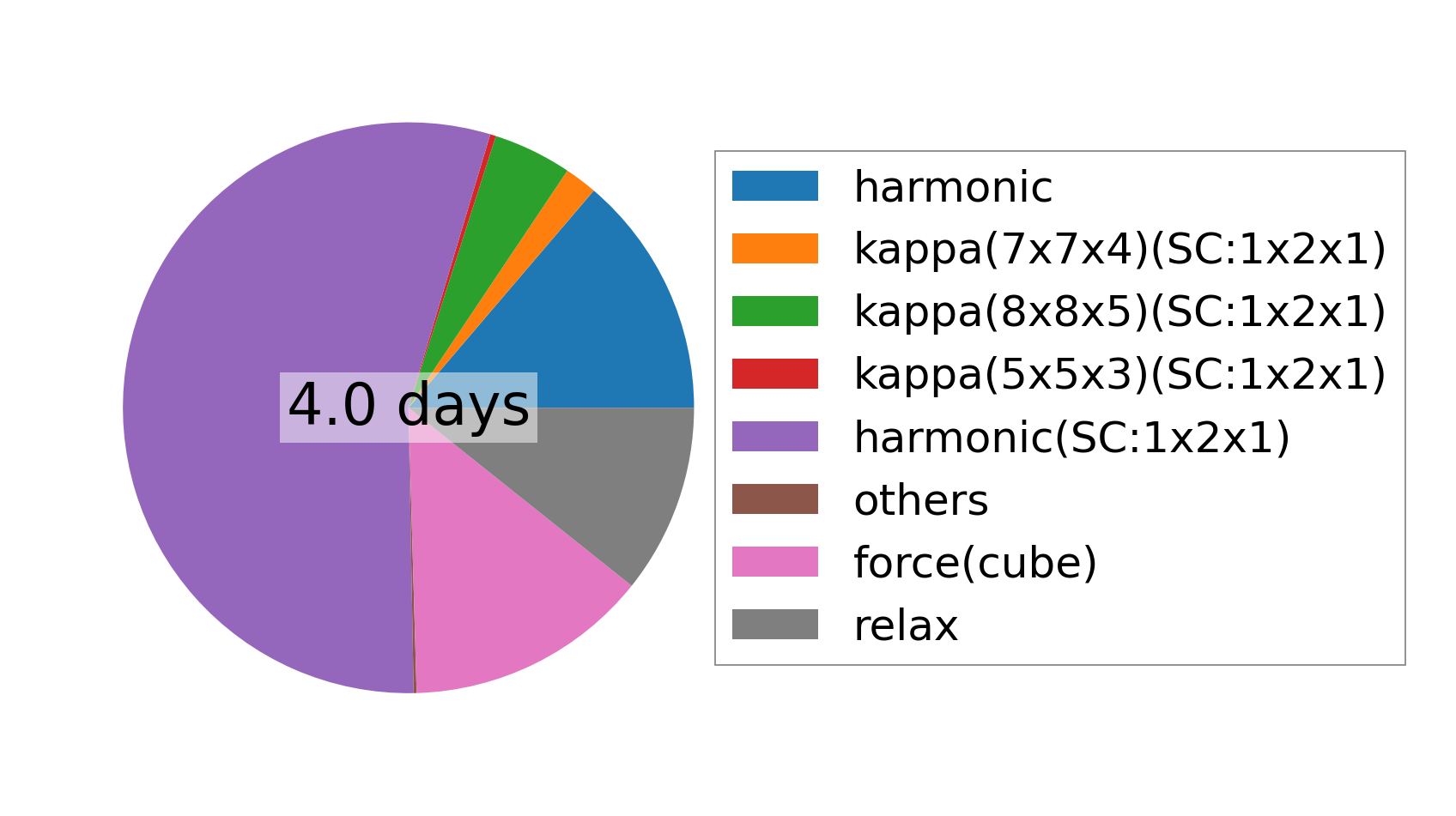

../../_images/fig_times14597.png — (a) Computation time
