mp-556896/Ba4AgAuO6/anharm

Space group: Cmcm (63)
Link: Materials Project
Download: mp-556896.tar.gz

Harmonic properties

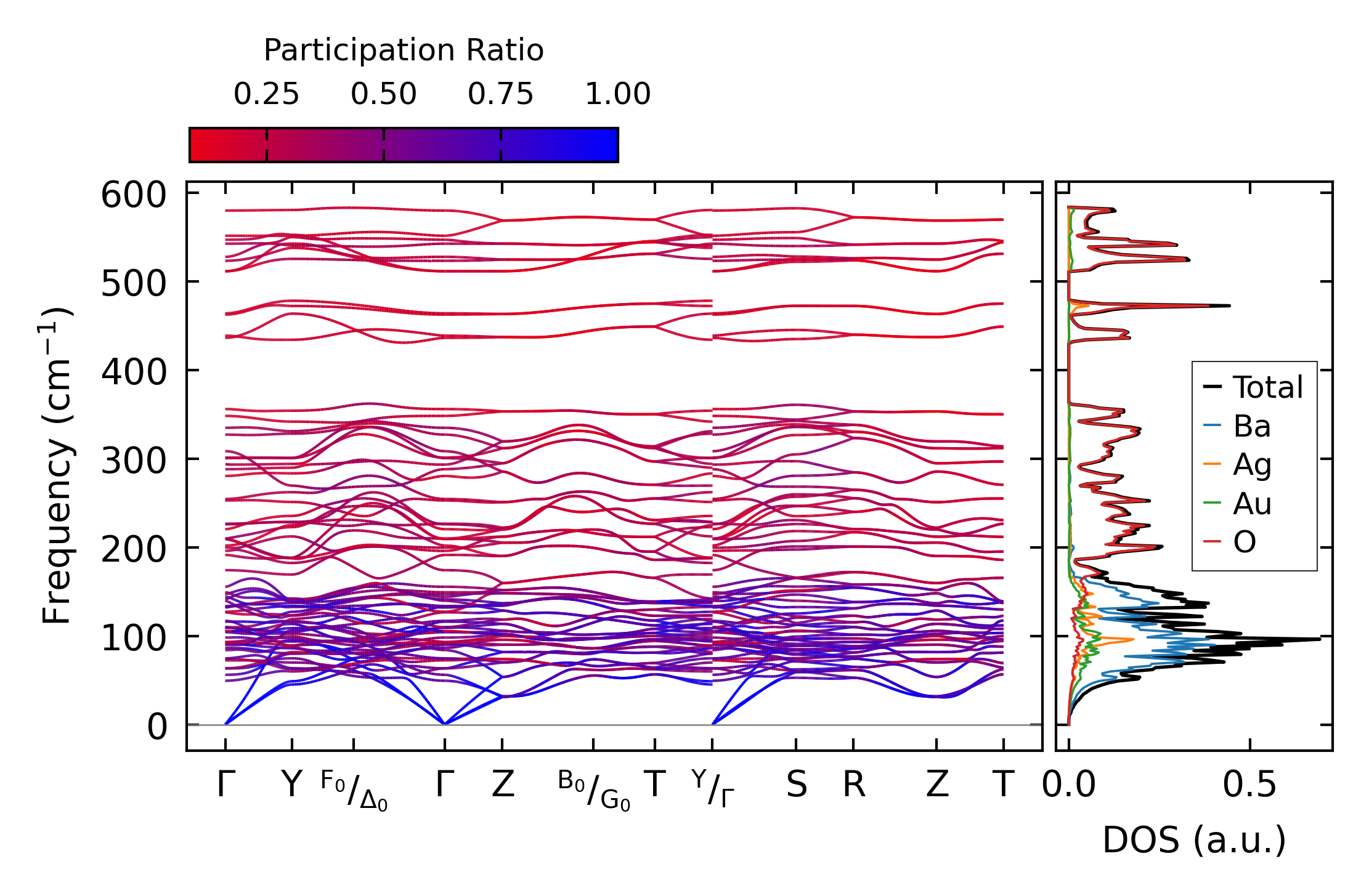

../../_images/fig_bandos_pr8326.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo8326.png — (b) Thermodynamic properties

Grüneisen parameters

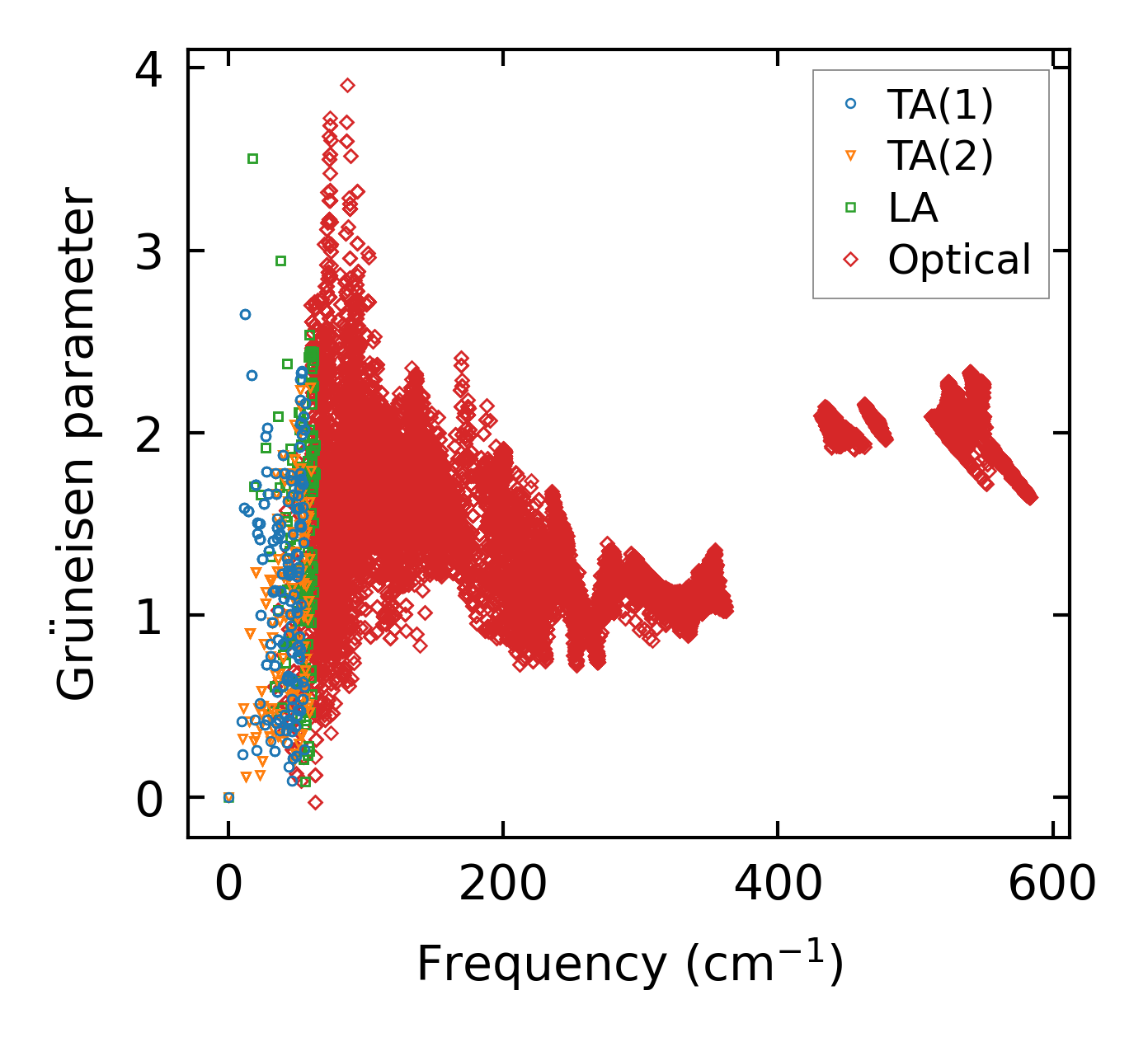

../../_images/fig_gru_all3393.png — (a) Grüneisen parameters

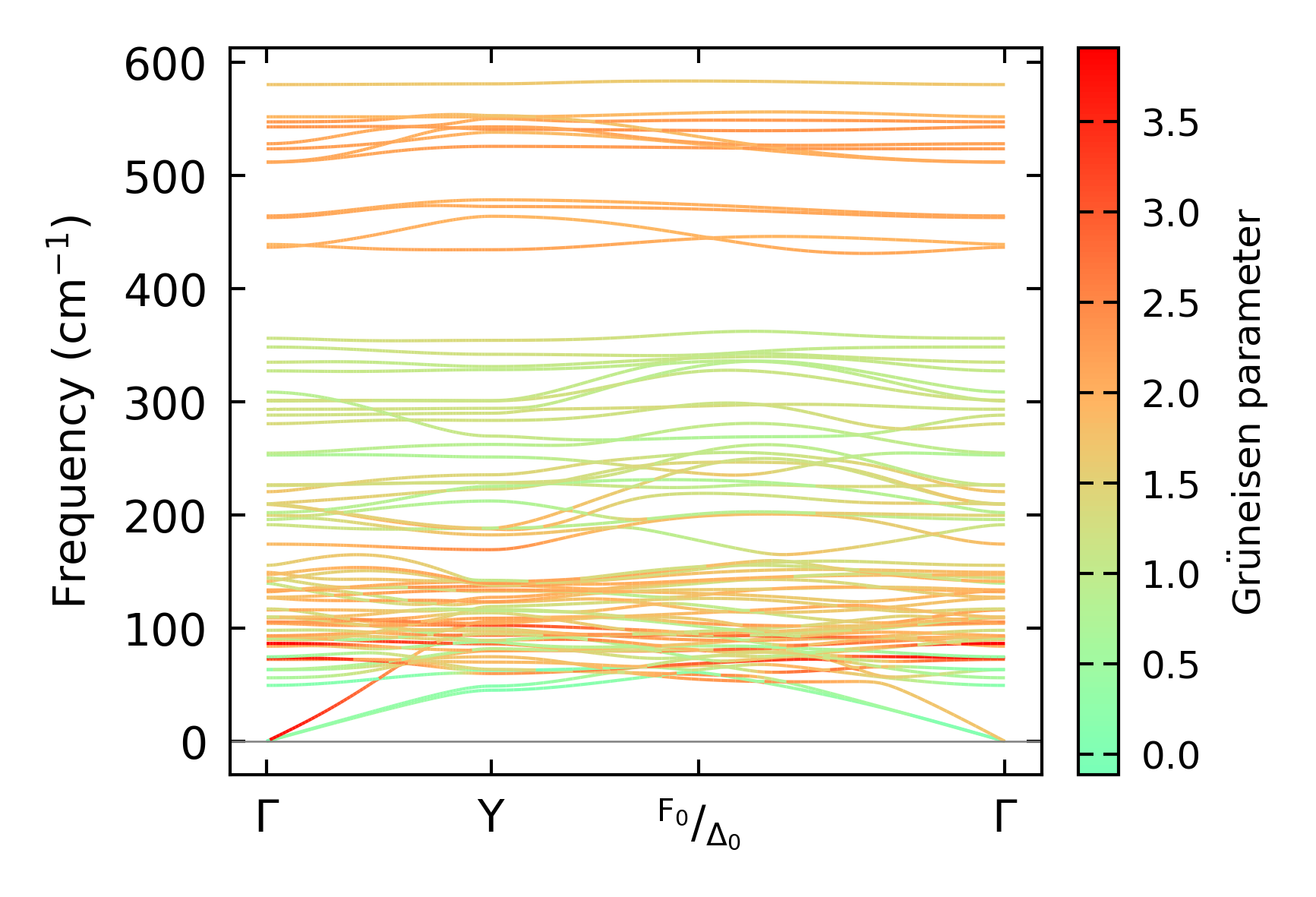

../../_images/fig_gruneisen3393.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x11x6, supercell: 1x2x1

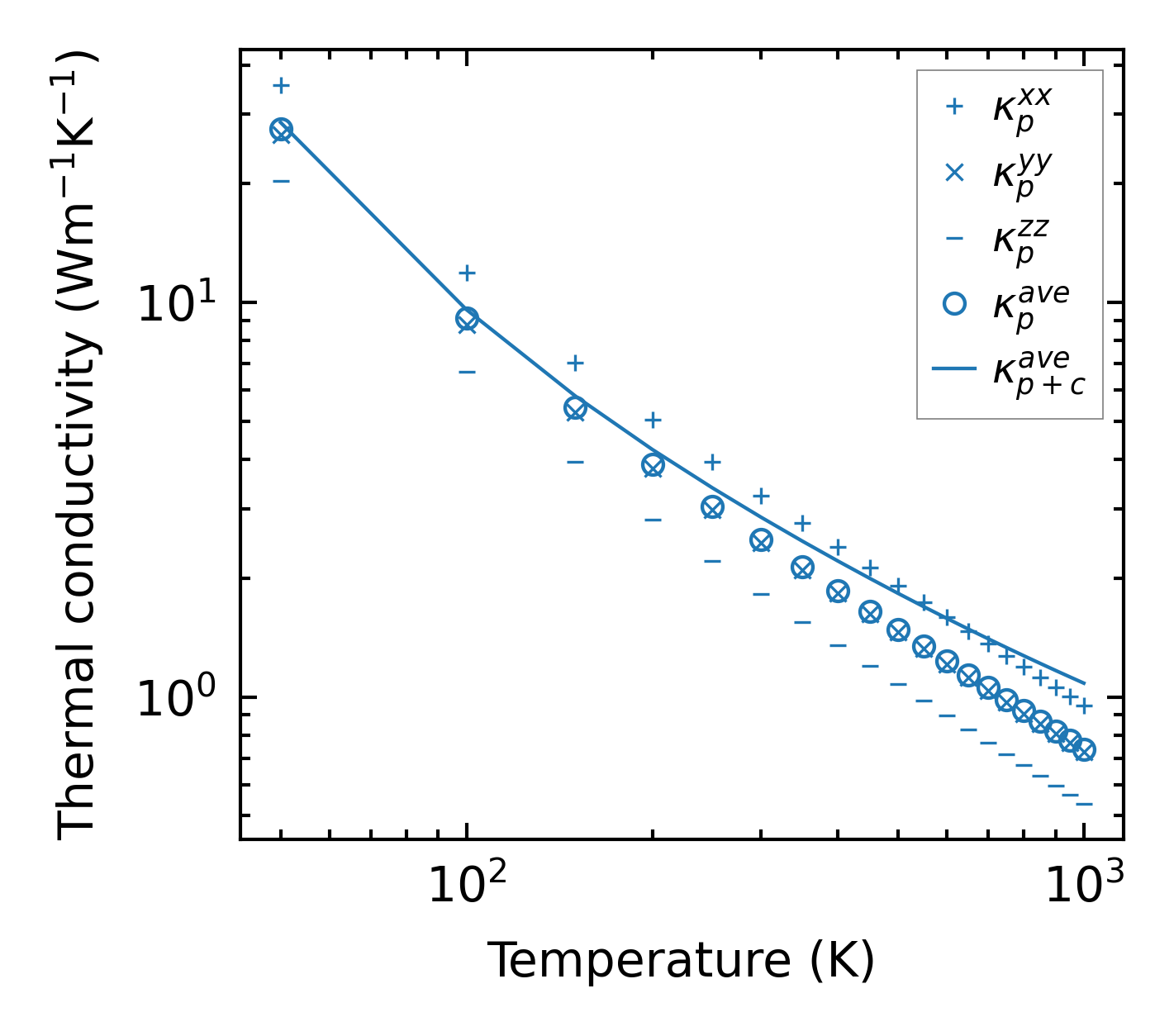

../../_images/fig_kappa6419.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size3437.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime3362.png — (a) Phonon lifetime due to phonon-phonon scattering

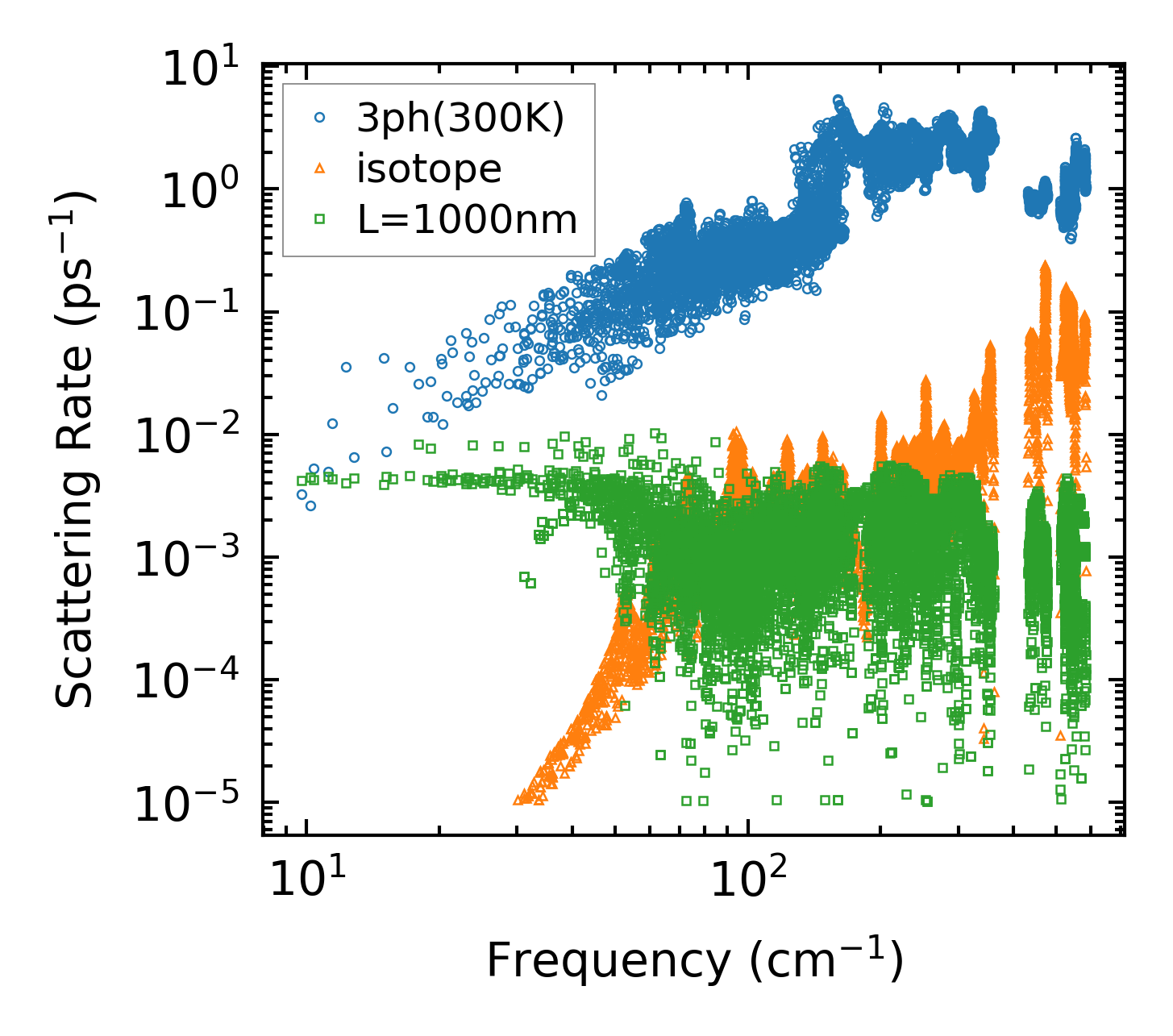

../../_images/fig_scat_rates3361.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

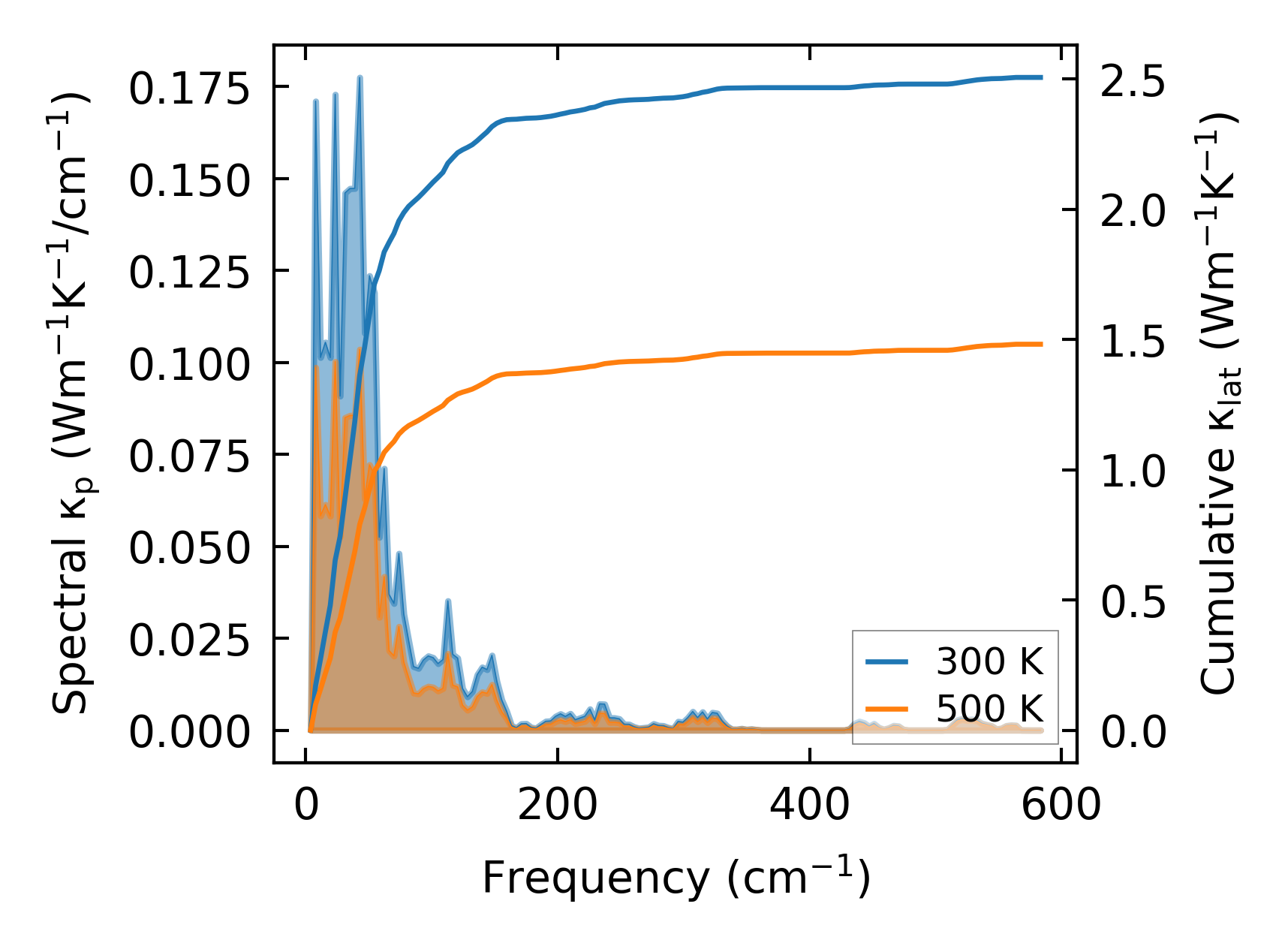

../../_images/fig_cumu_frequency3362.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

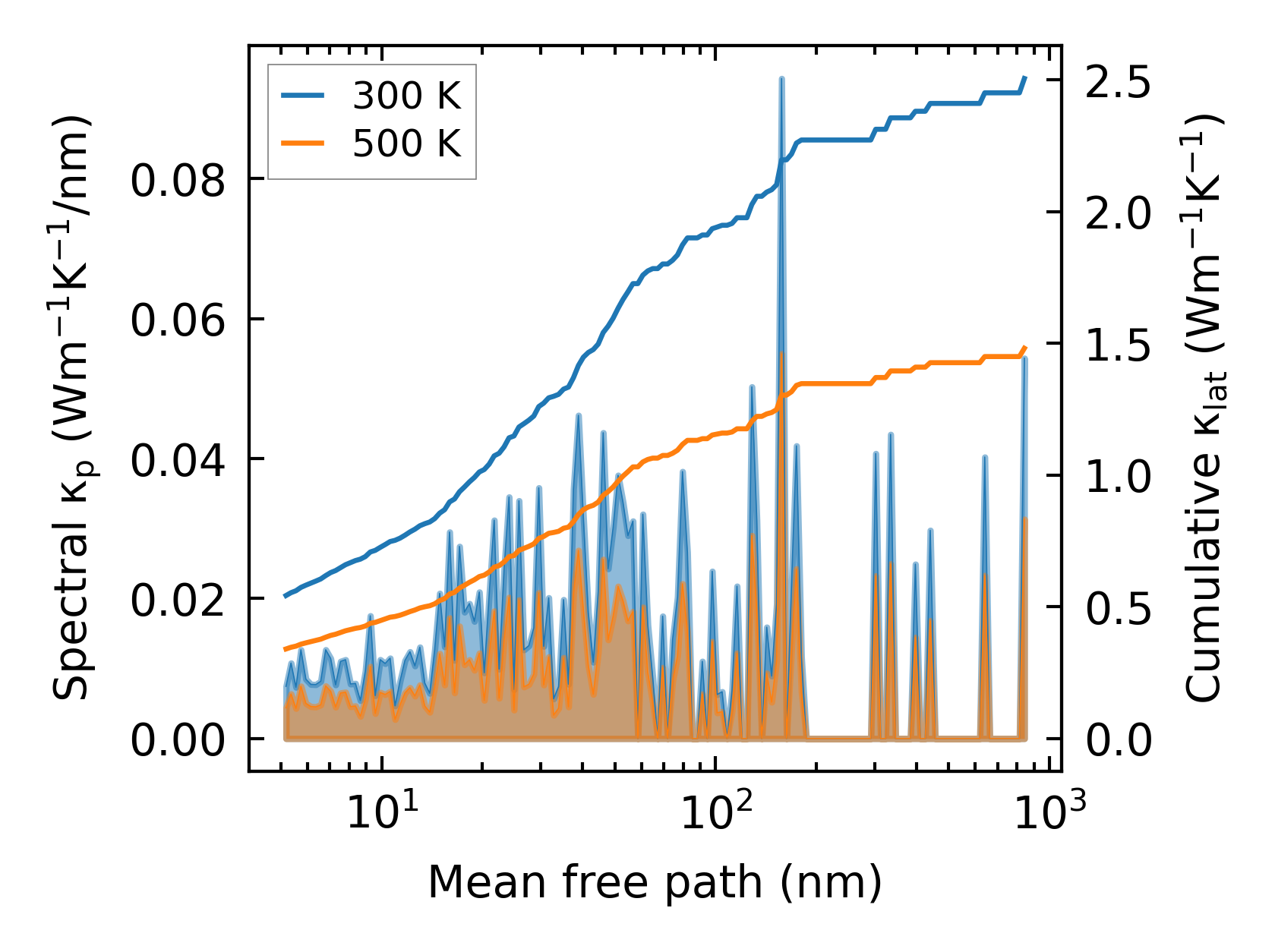

../../_images/fig_cumu_mfp3361.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

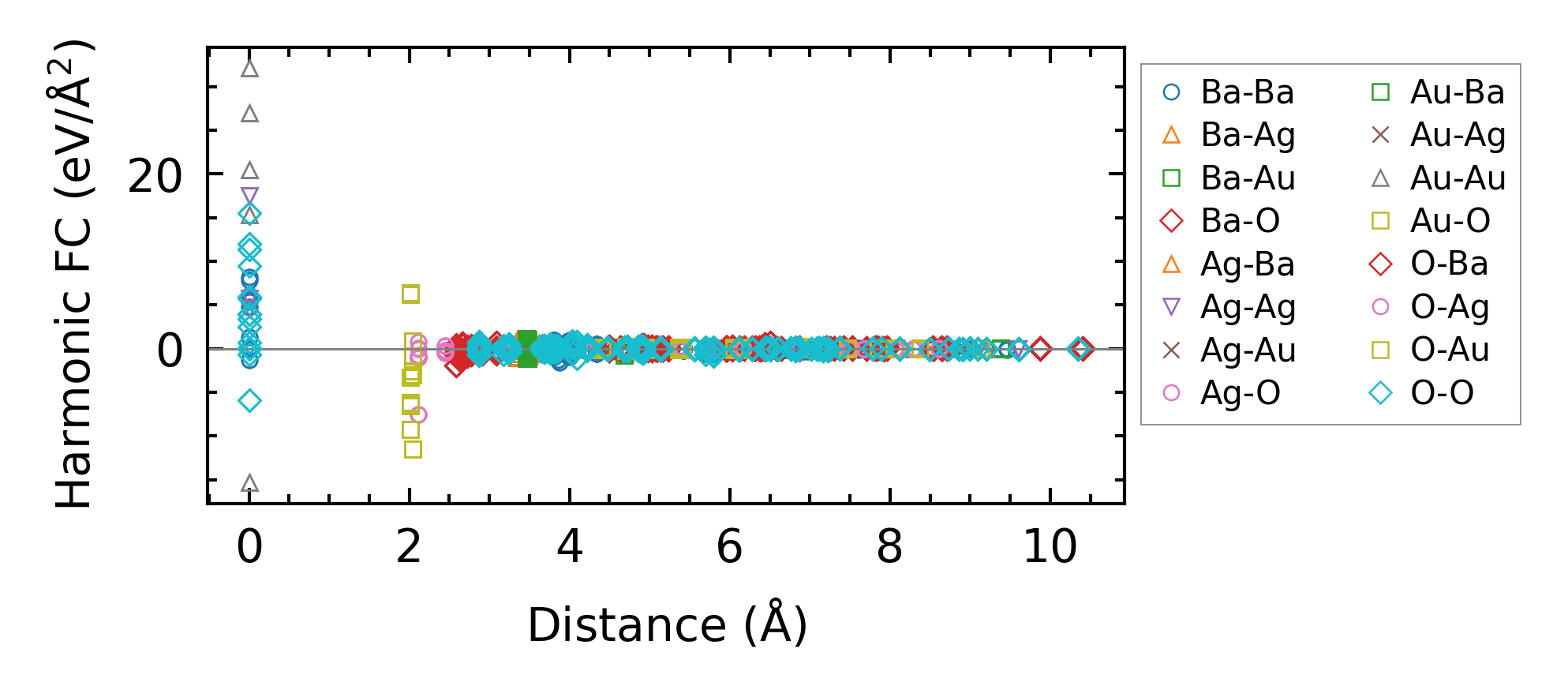

../../_images/fig_fc28088.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa6420.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times14632.png — (b) Computation time
