mp-2973-2/Pr3Sb5O12/anharm

Space group: I-43m (217)
Link: Materials Project
Download: mp-2973-2.tar.gz

Equation of state

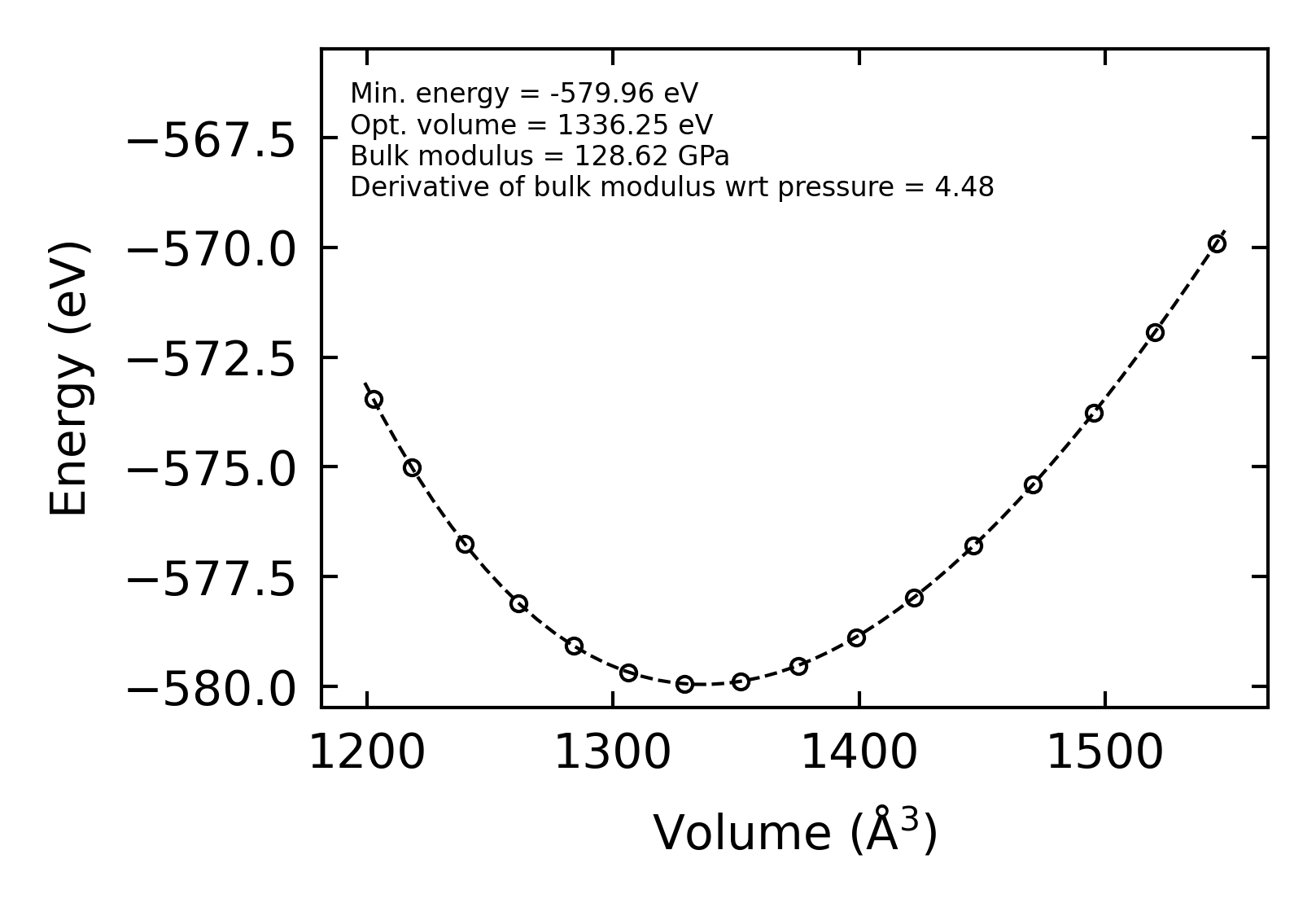

../../_images/fig_bm6639.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr13295.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo13295.png — (b) Thermodynamic properties

Grüneisen parameters

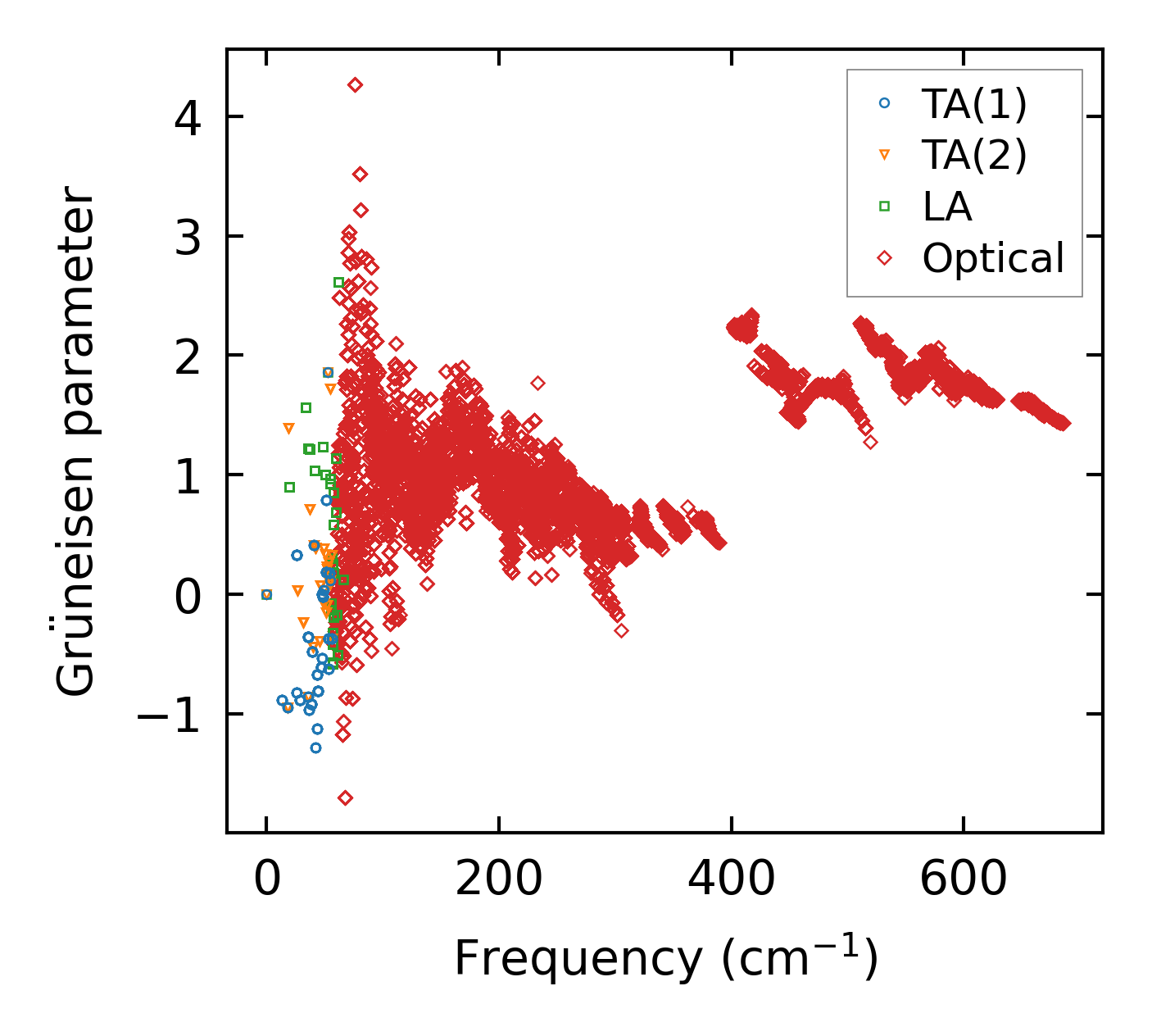

../../_images/fig_gru_all5597.png — (a) Grüneisen parameters

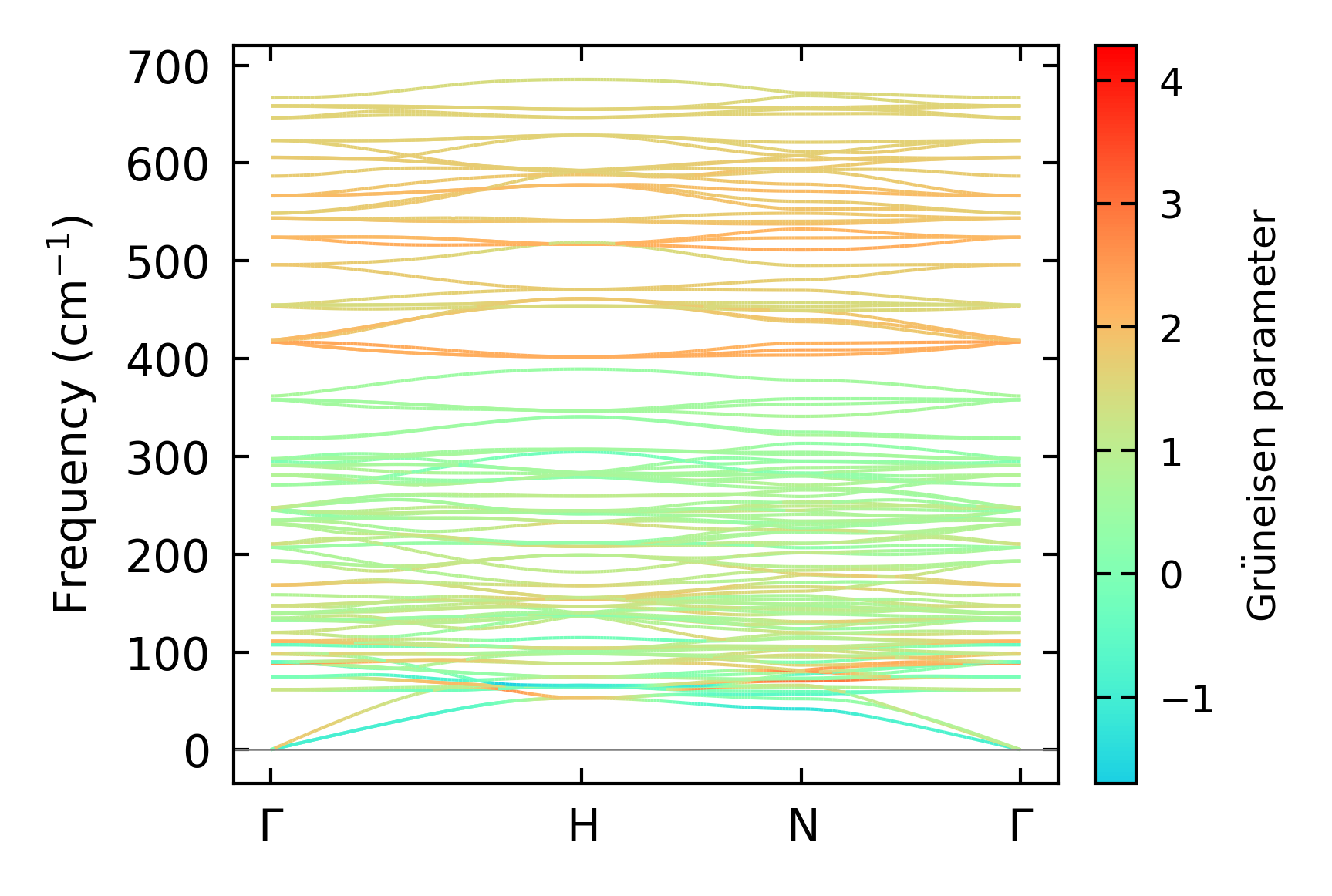

../../_images/fig_gruneisen5597.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x8x8, supercell: 1x1x1

../../_images/fig_kappa10515.png — (a) Temperature-dependent lattice thermal conductivity

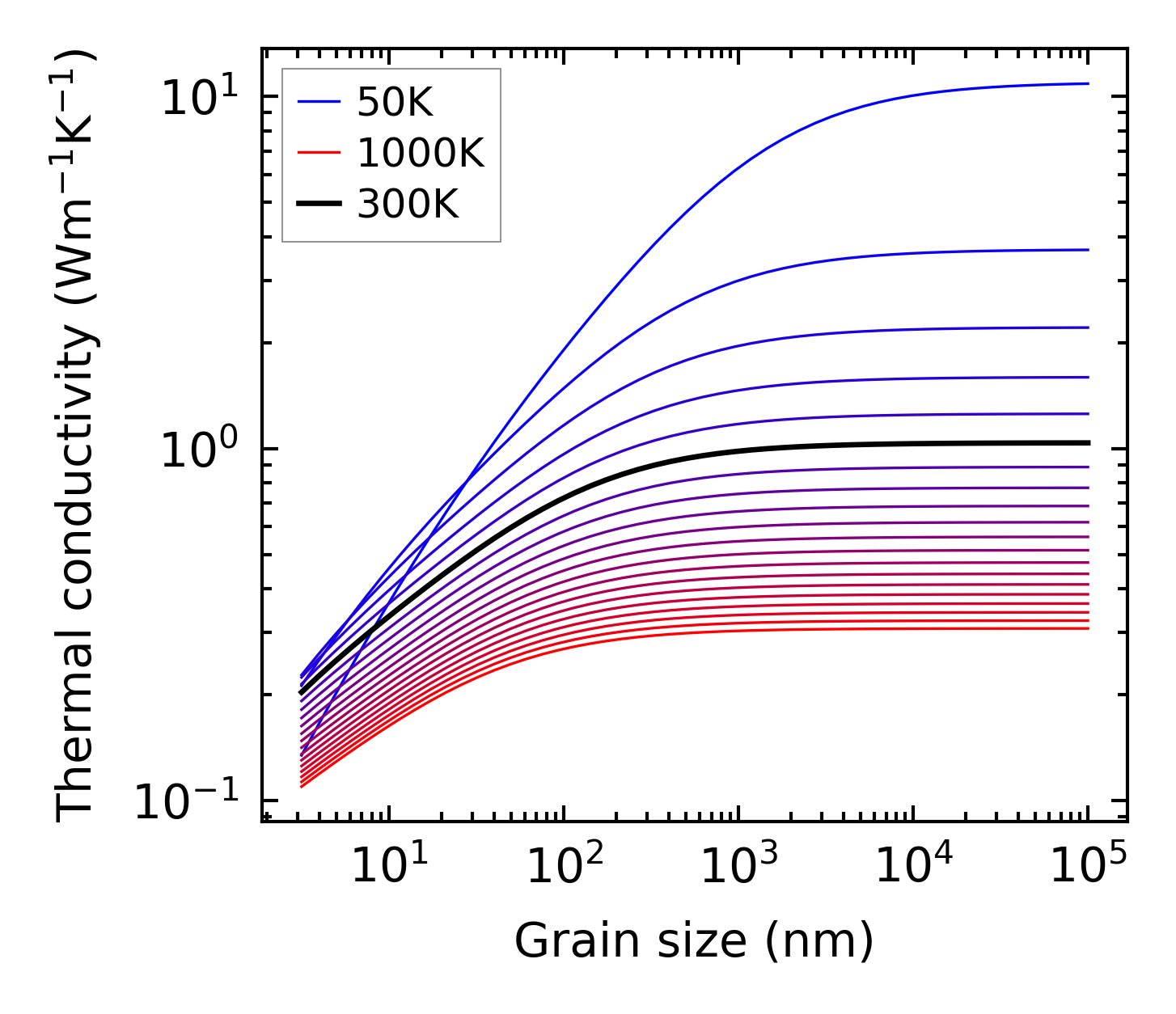

../../_images/fig_kappa_vs_grain_size5661.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

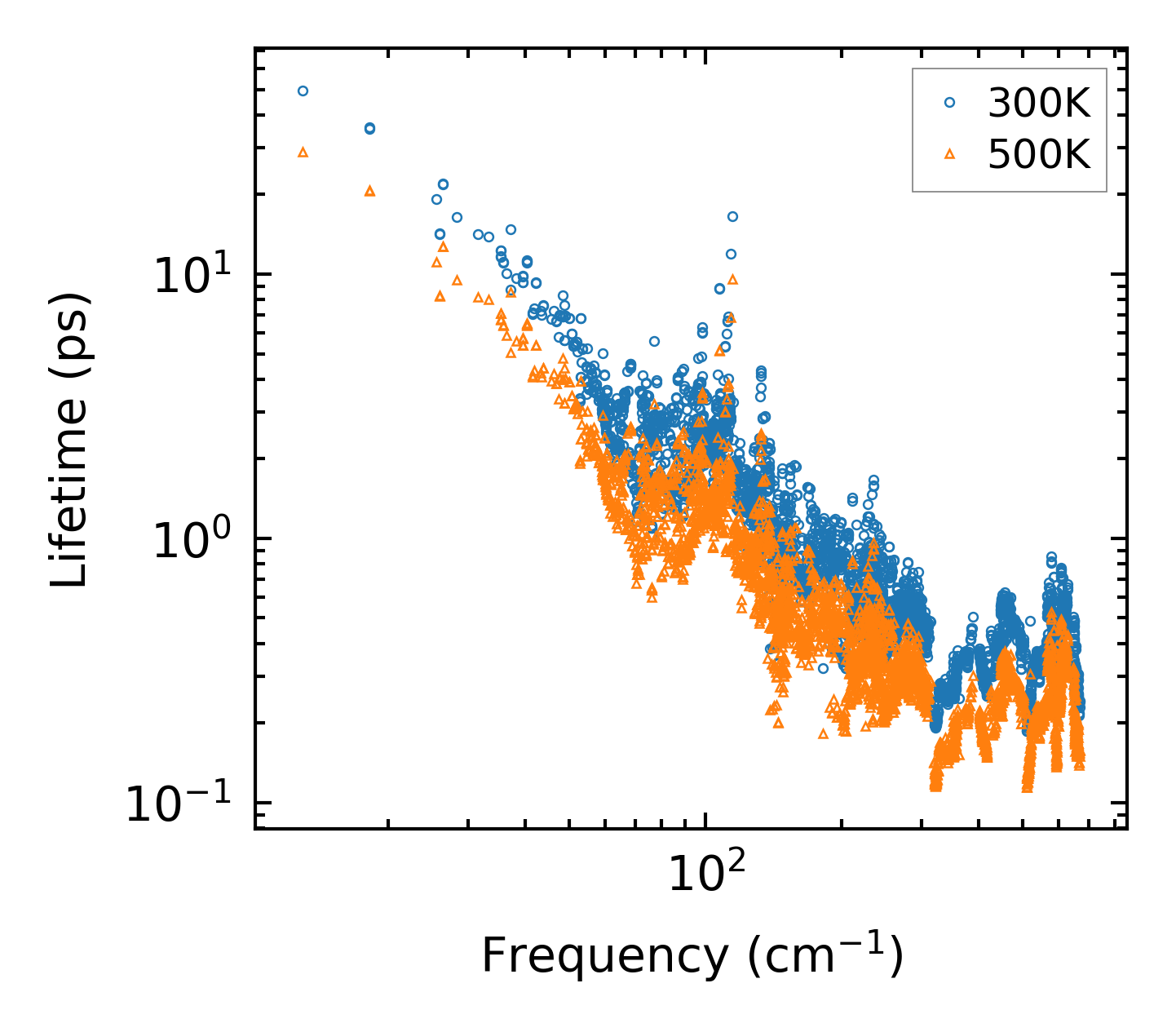

../../_images/fig_lifetime5542.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates5541.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

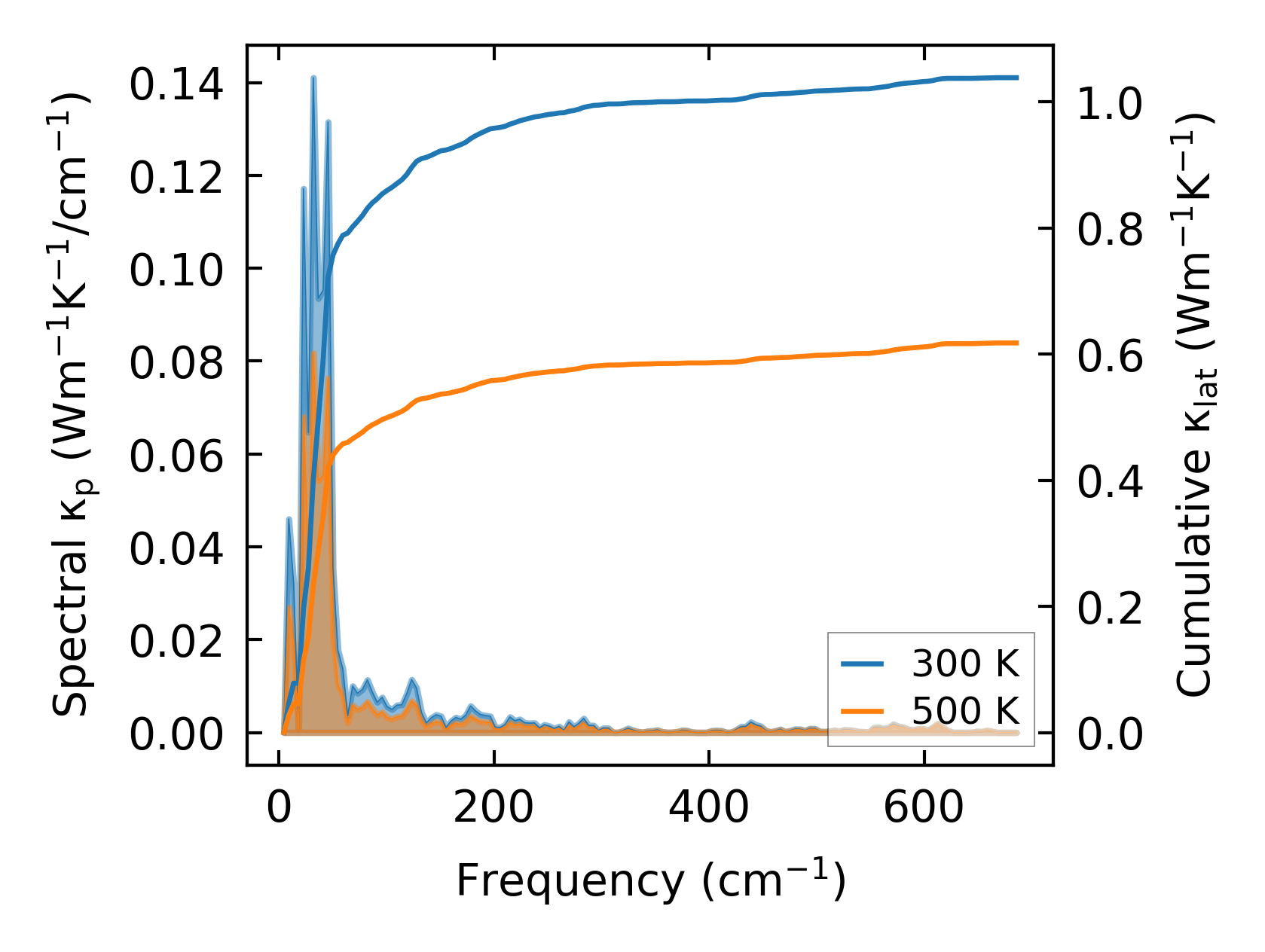

../../_images/fig_cumu_frequency5542.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

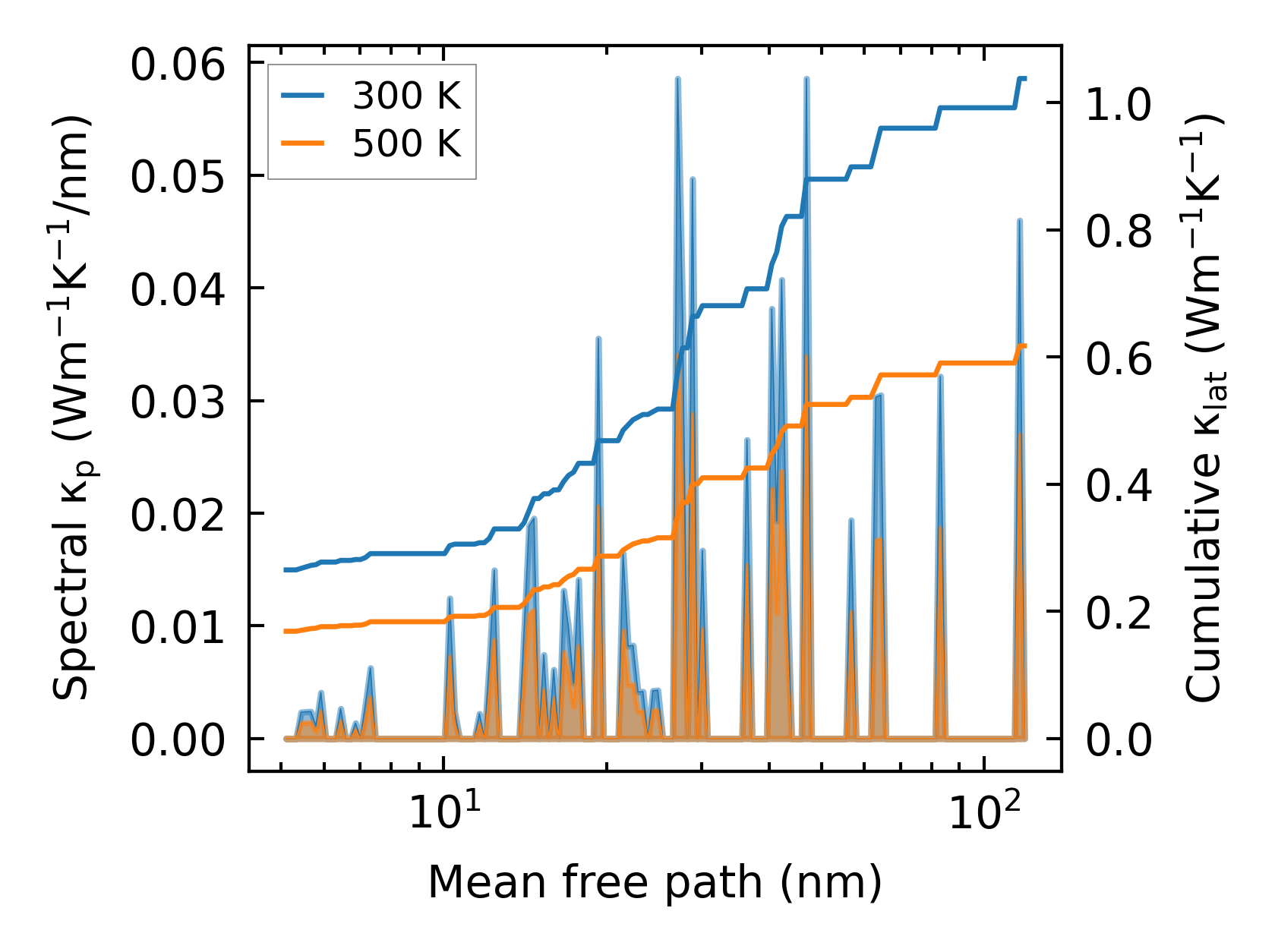

../../_images/fig_cumu_mfp5541.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc212937.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa10516.png — (a) Temperature-dependent lattice thermal conductivity

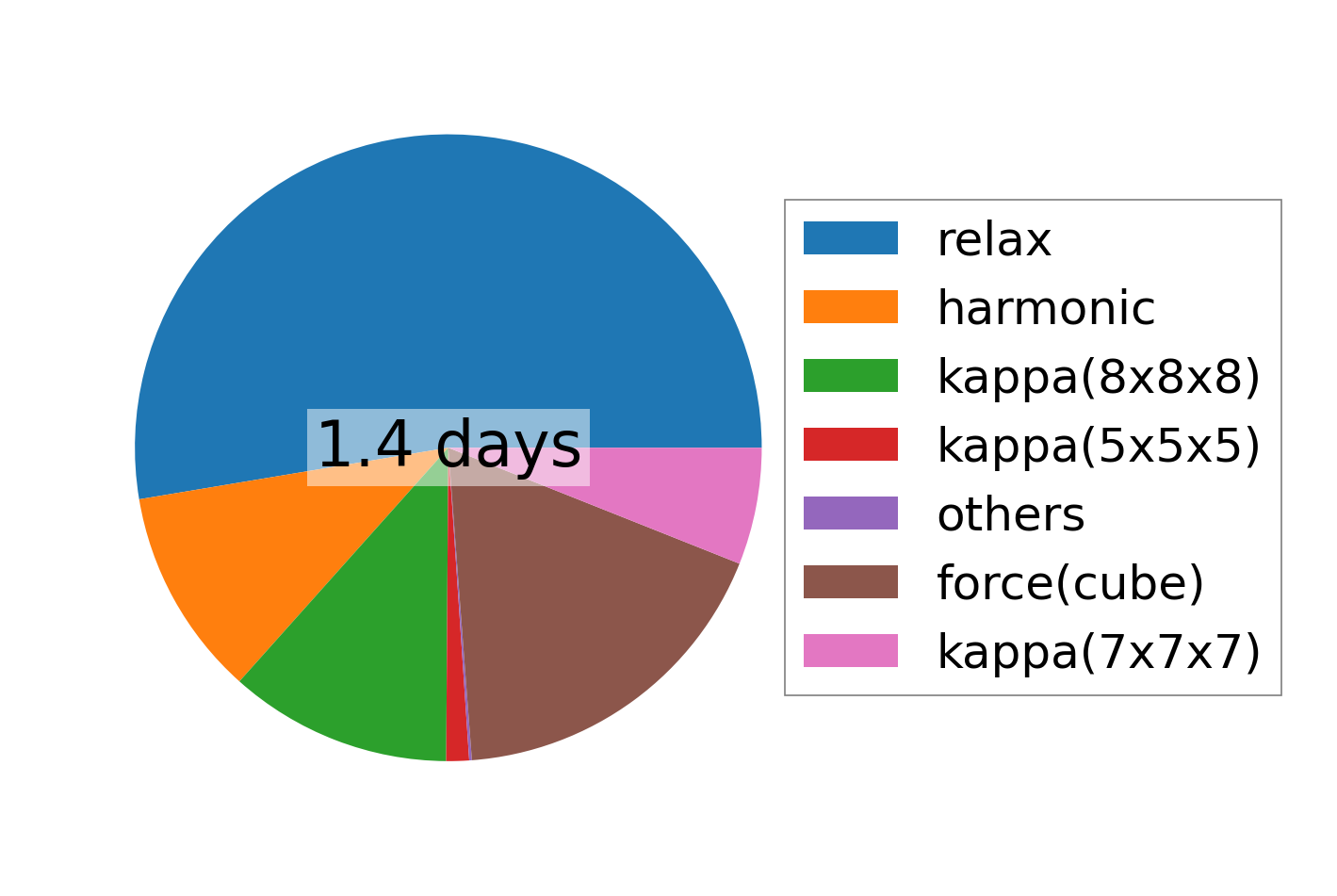

../../_images/fig_times22414.png — (b) Computation time
