mp-2064-2/RbF/anharm

Space group: Pm-3m (221)
Link: Materials Project
Download: mp-2064-2.tar.gz

Equation of state

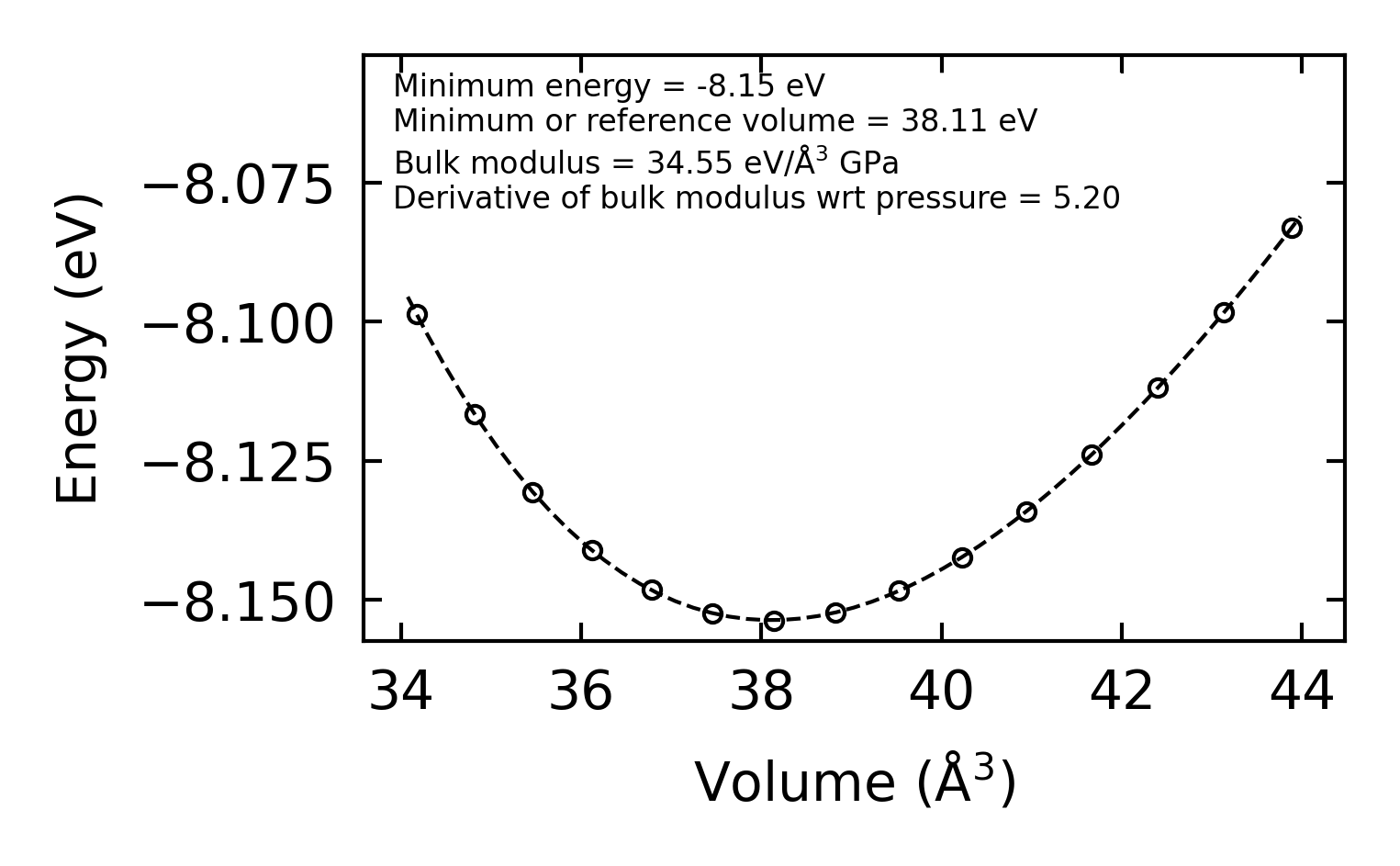

../../_images/fig_bm6752.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr13521.png — (a) Phonon dispersion with participation ratio and DOS

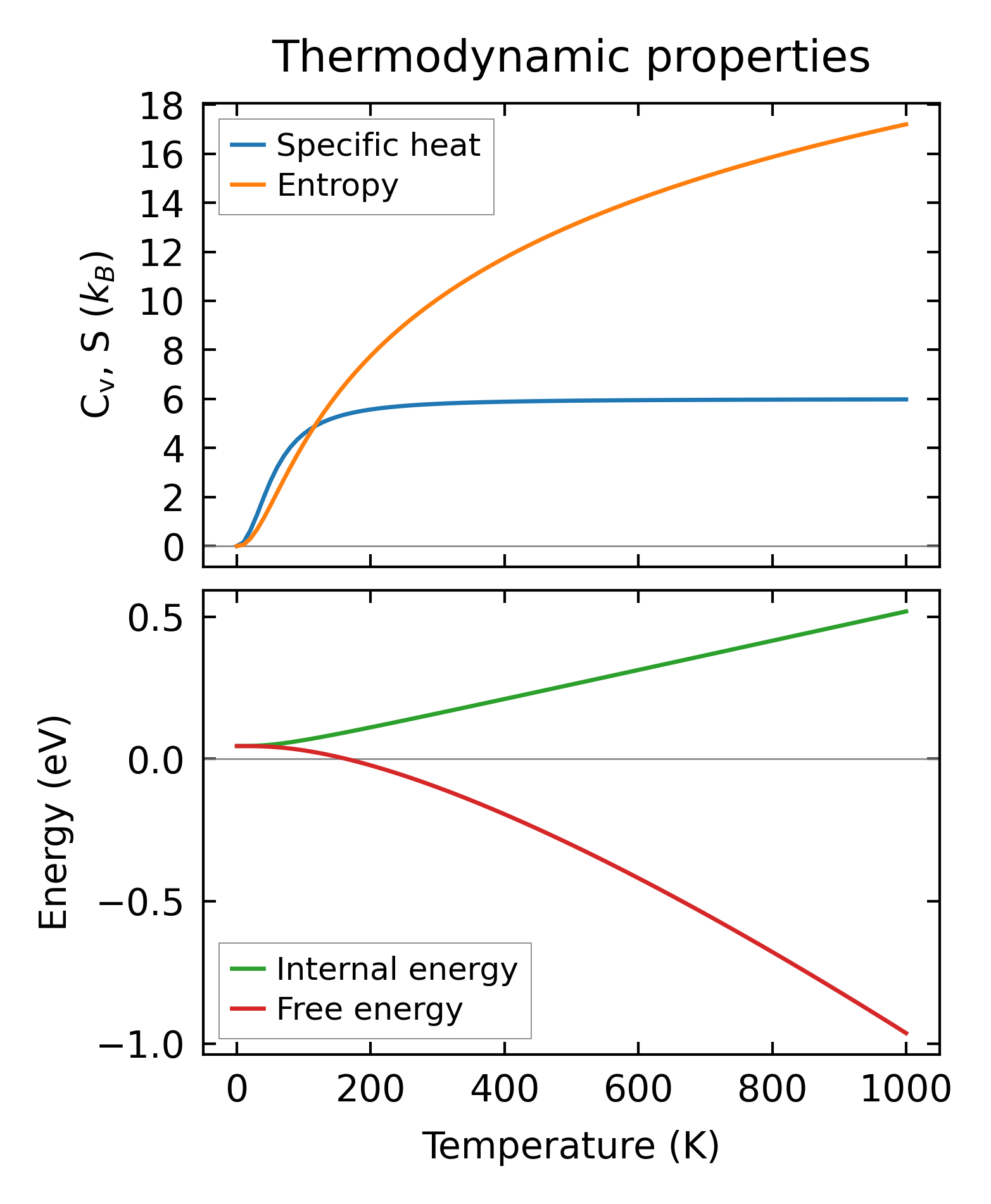

../../_images/fig_thermo13521.png — (b) Thermodynamic properties

Grüneisen parameters

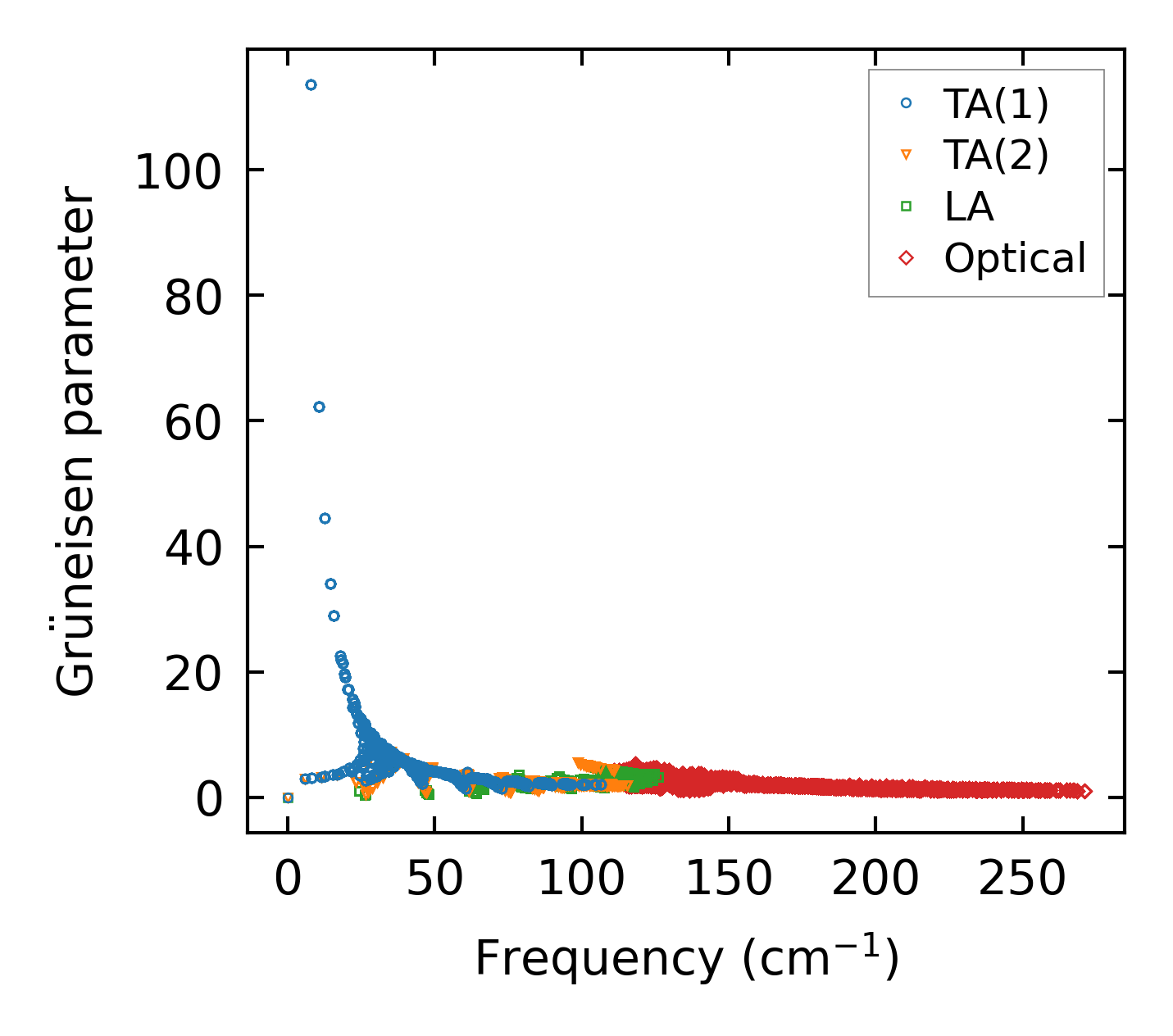

../../_images/fig_gru_all5718.png — (a) Grüneisen parameters

../../_images/fig_gruneisen5718.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon — q-mesh: 21x21x21, supercell: 4x4x4

../../_images/fig_kappa10749.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size5786.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

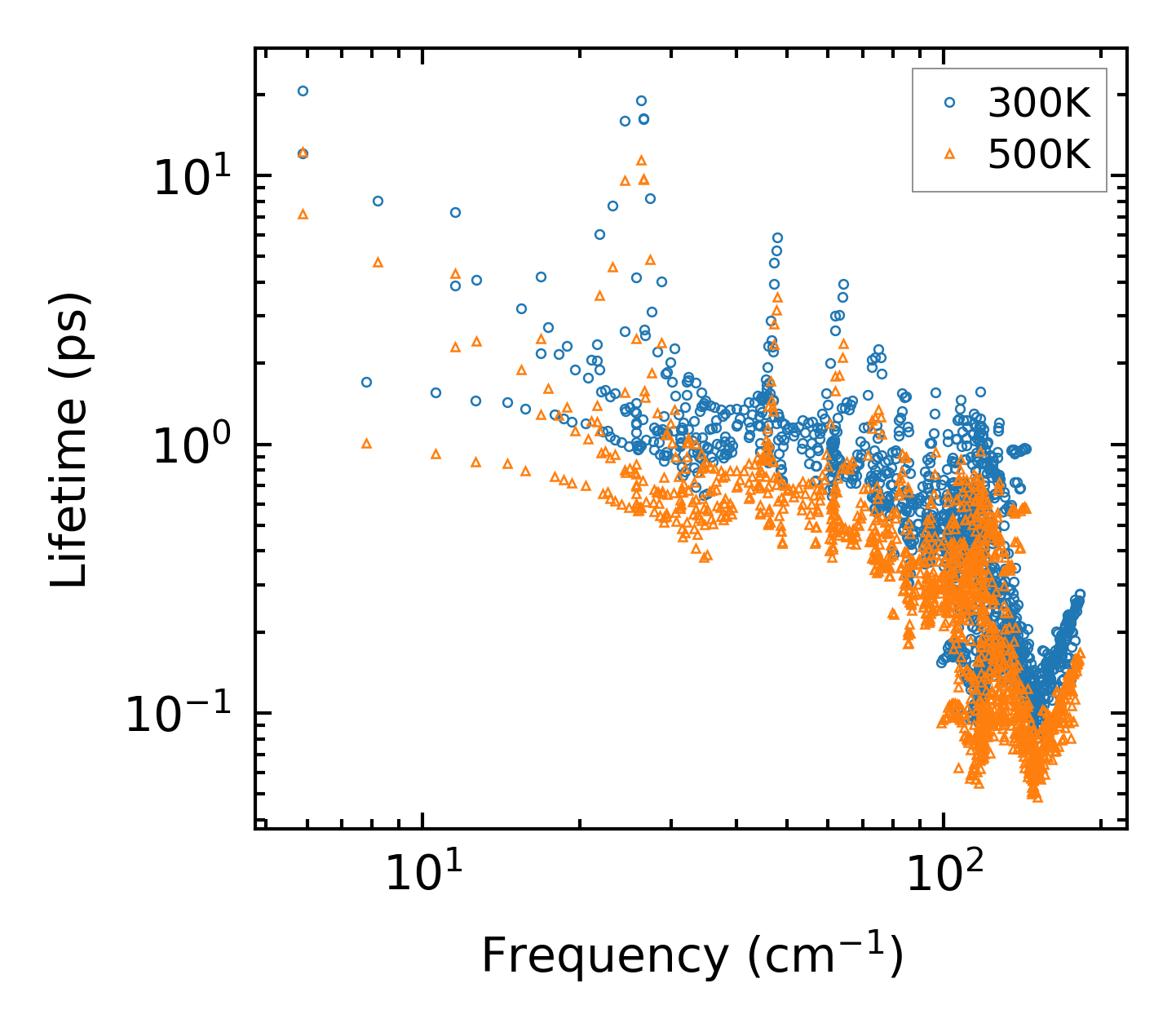

../../_images/fig_lifetime5663.png — (a) Phonon lifetime due to phonon-phonon scattering

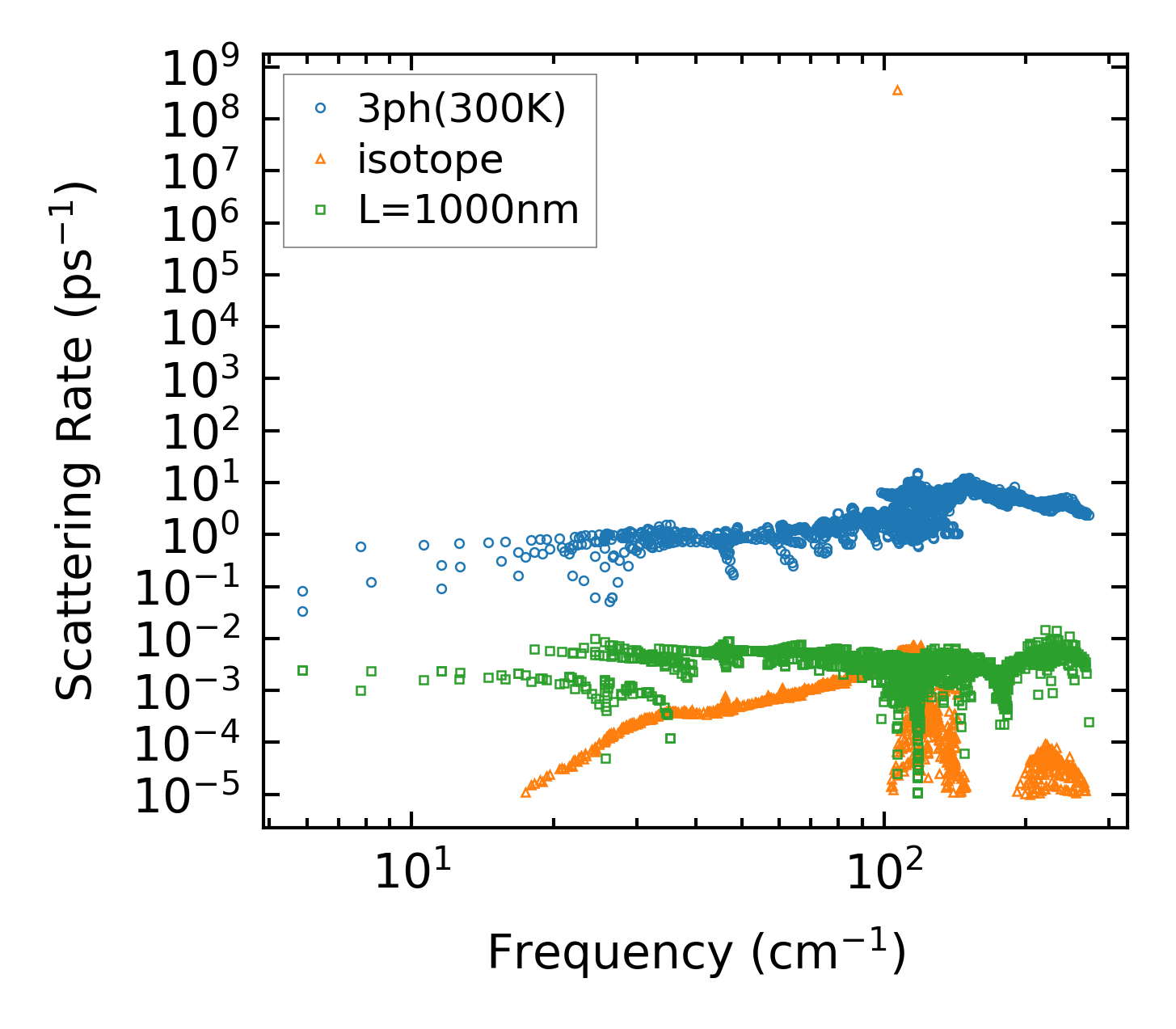

../../_images/fig_scat_rates5662.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

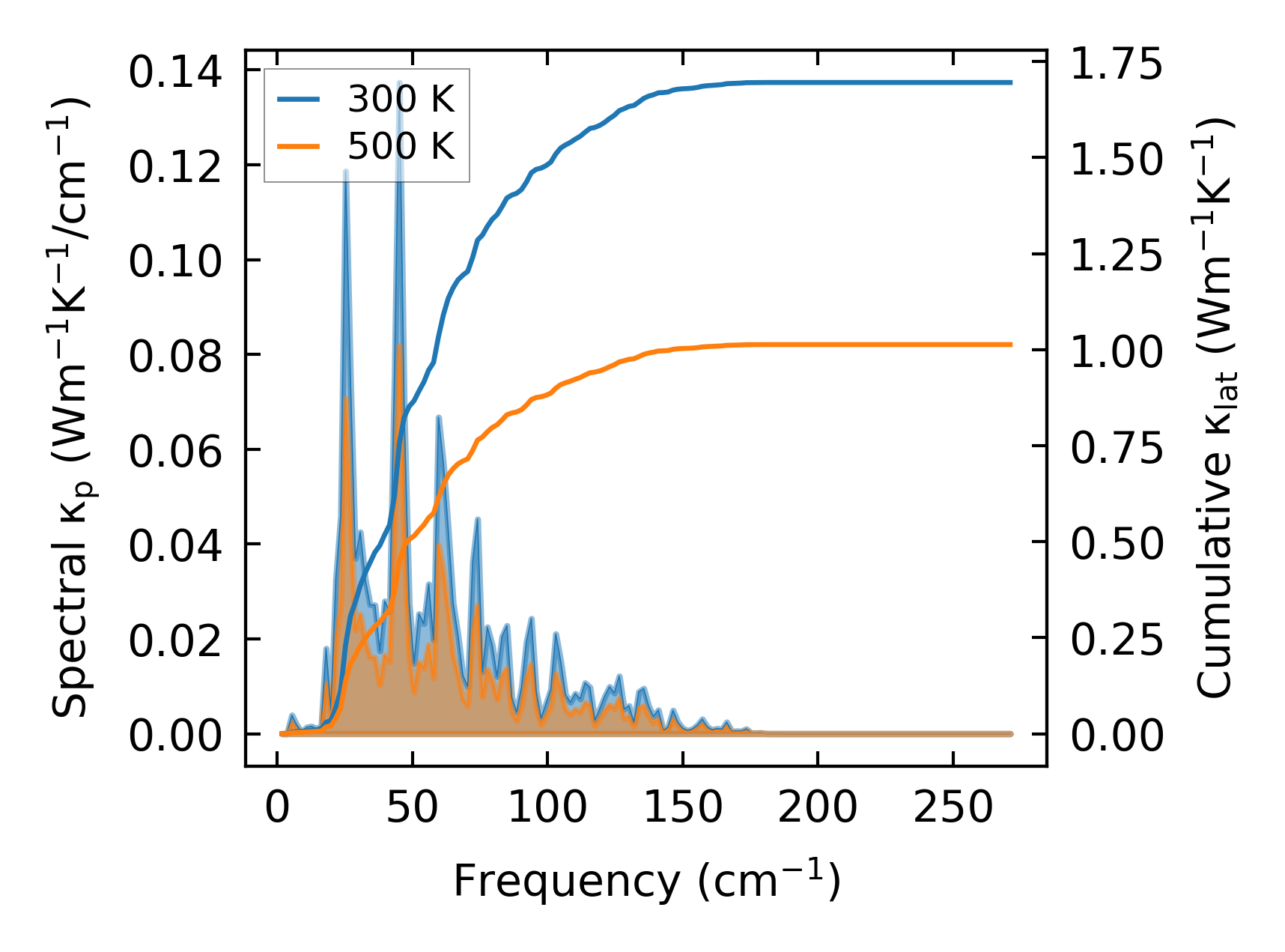

../../_images/fig_cumu_frequency5663.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

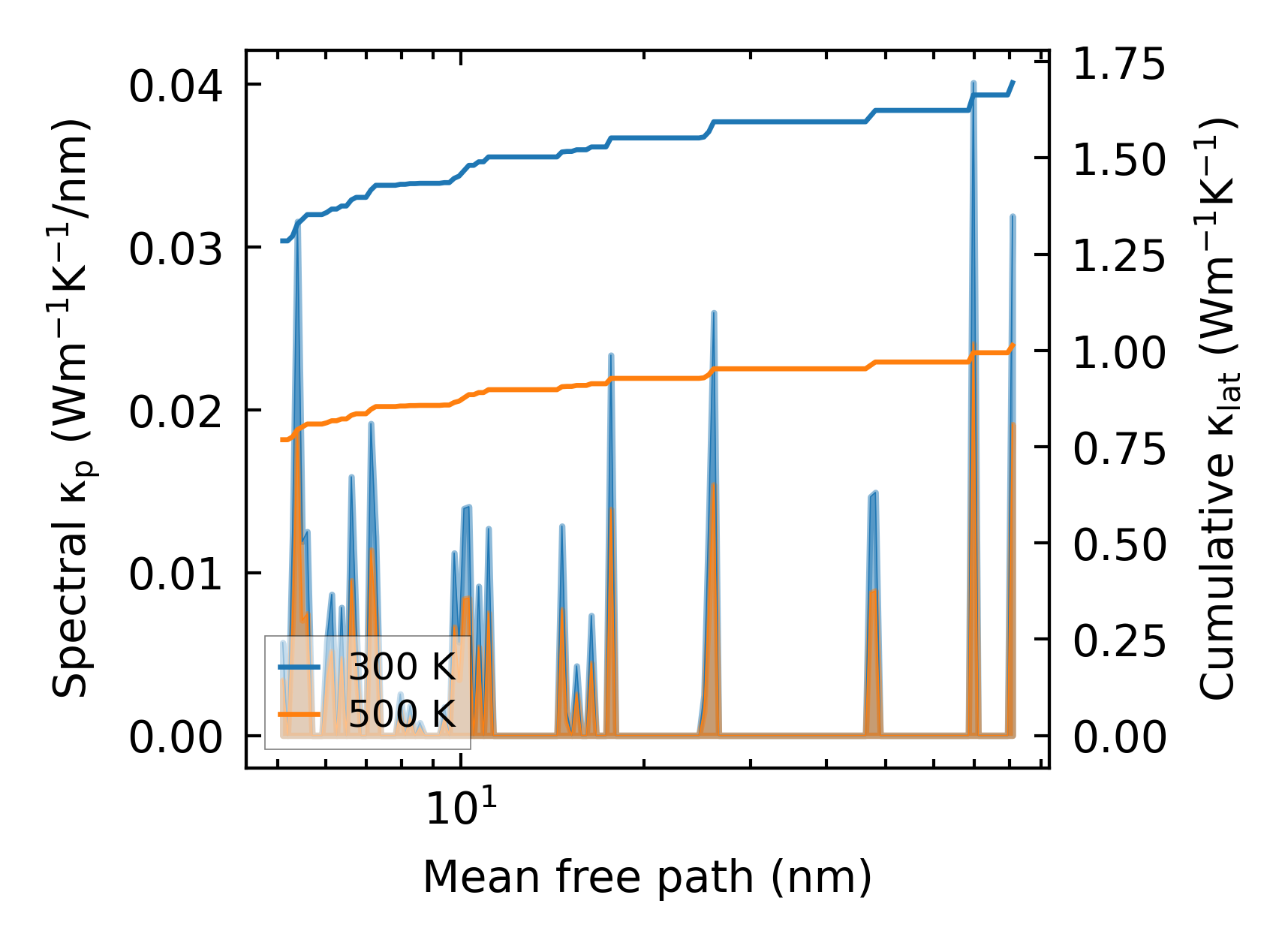

../../_images/fig_cumu_mfp5662.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc3367.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa10750.png — (a) Temperature-dependent lattice thermal conductivity

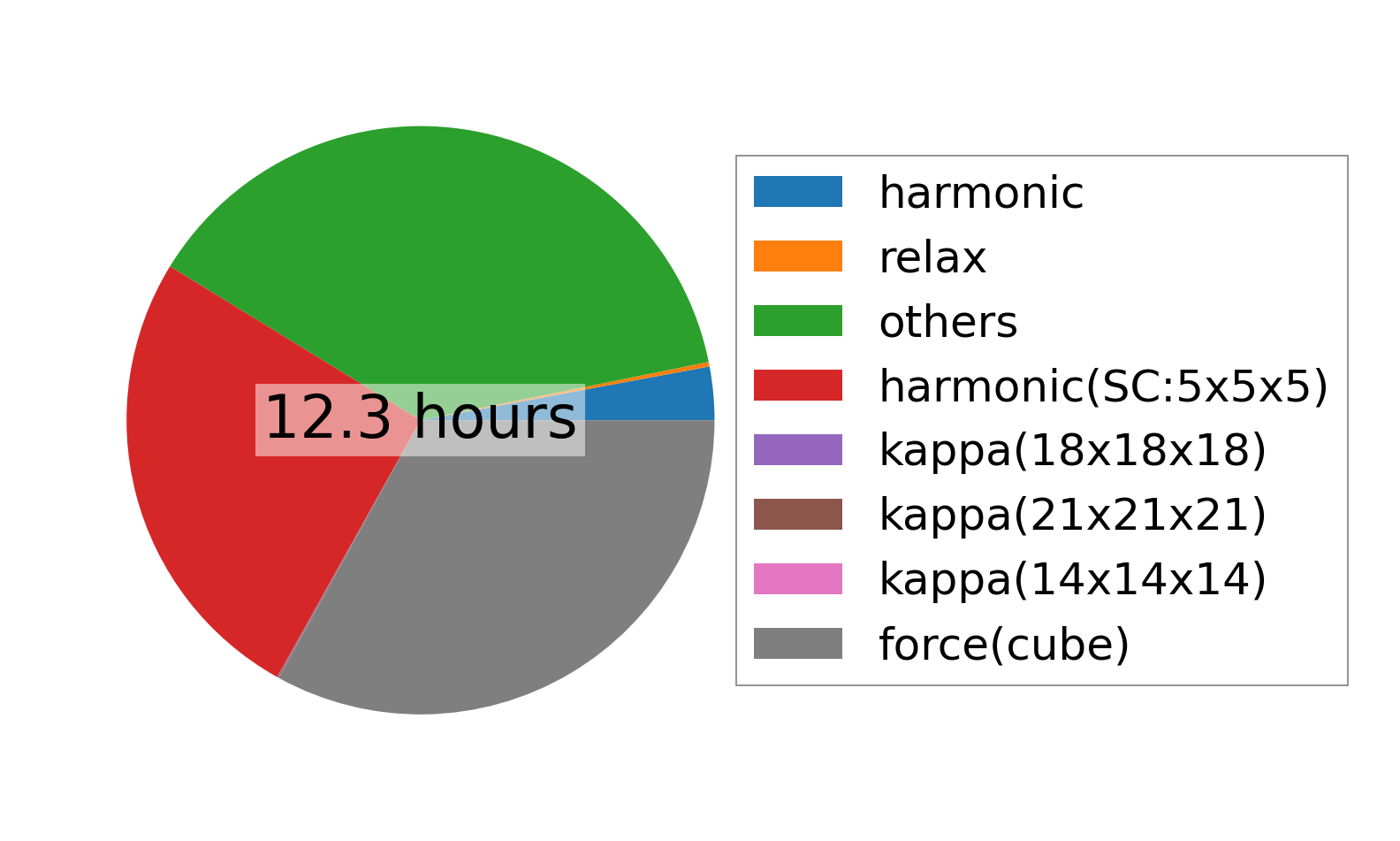

../../_images/fig_times22743.png — (b) Computation time
