mp-2008/FeAs2/anharm

Space group: Pnnm (58)
Link: Materials Project
Download: mp-2008.tar.gz

Harmonic properties

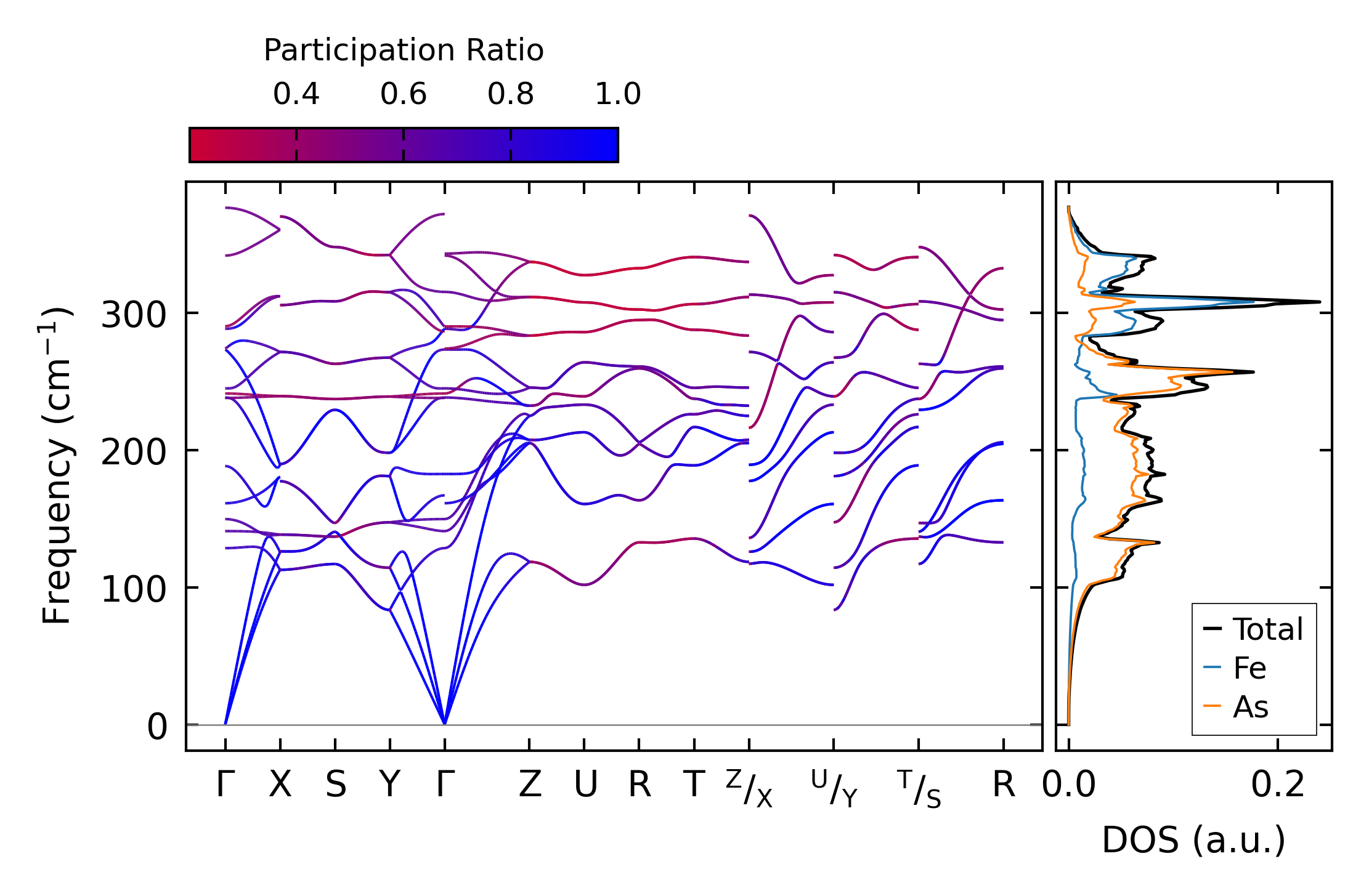

../../_images/fig_bandos_pr13517.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo13517.png — (b) Thermodynamic properties

Grüneisen parameters

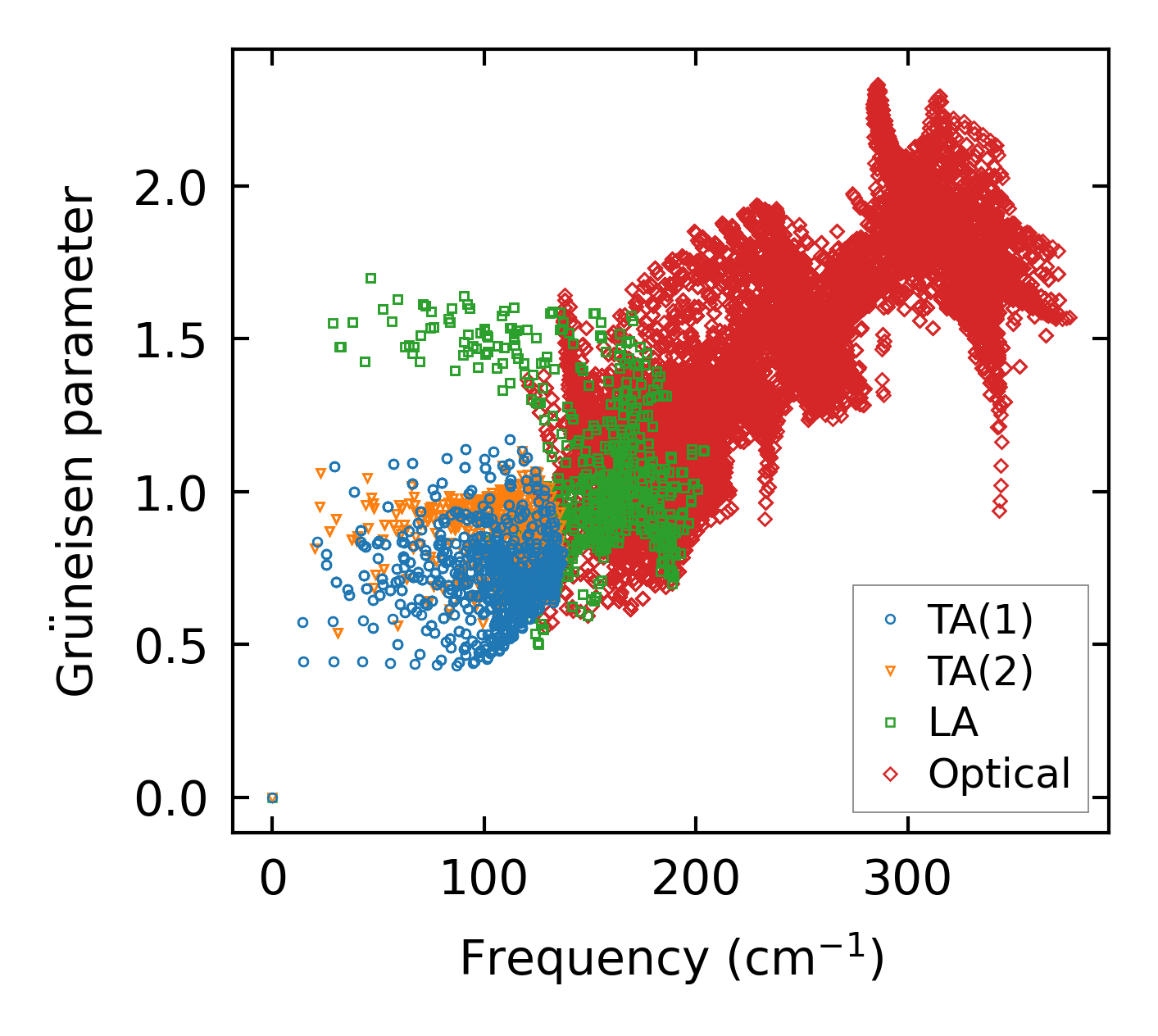

../../_images/fig_gru_all5714.png — (a) Grüneisen parameters

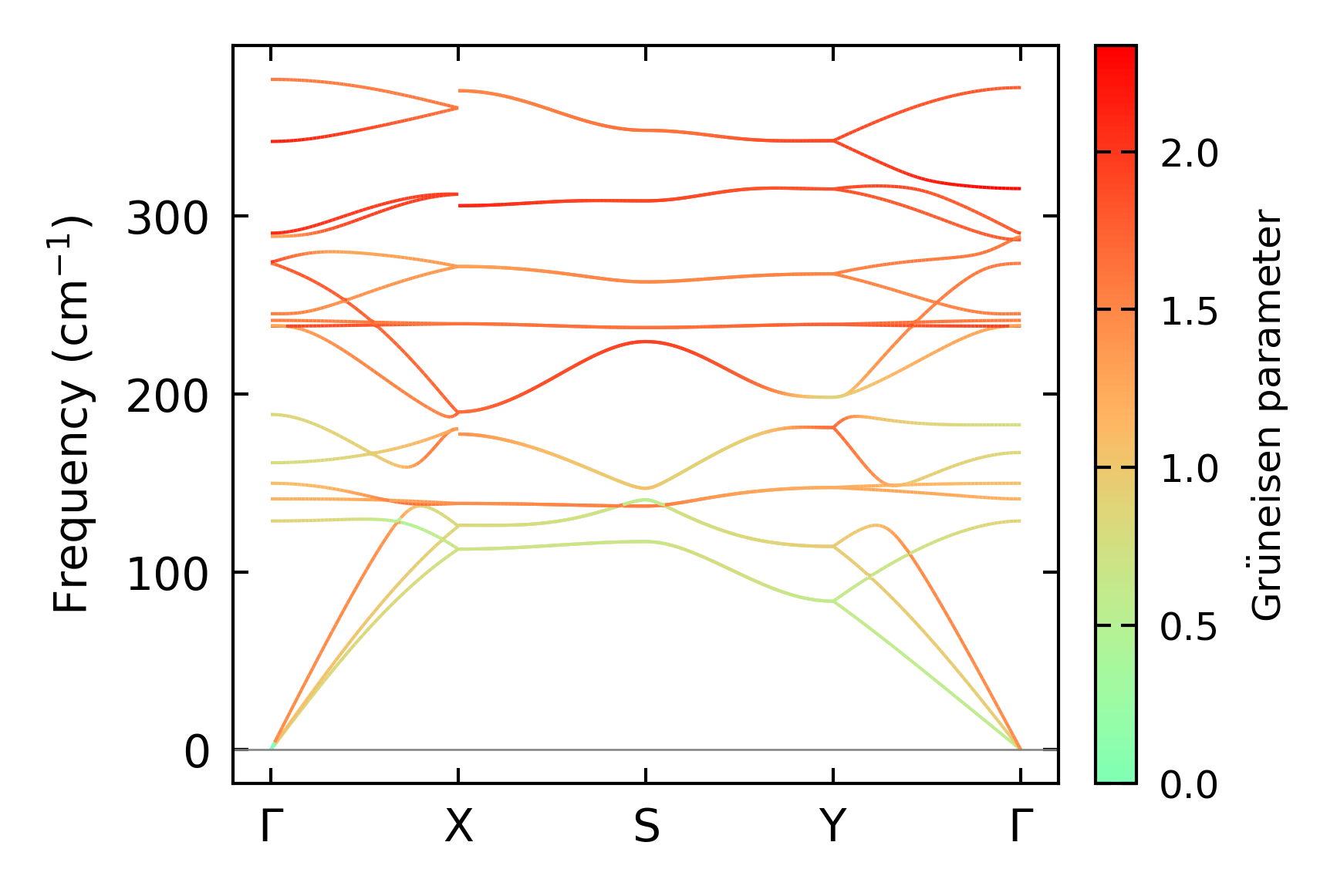

../../_images/fig_gruneisen5714.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x12x25, supercell: 3x2x4

../../_images/fig_kappa10741.png — (a) Temperature-dependent lattice thermal conductivity

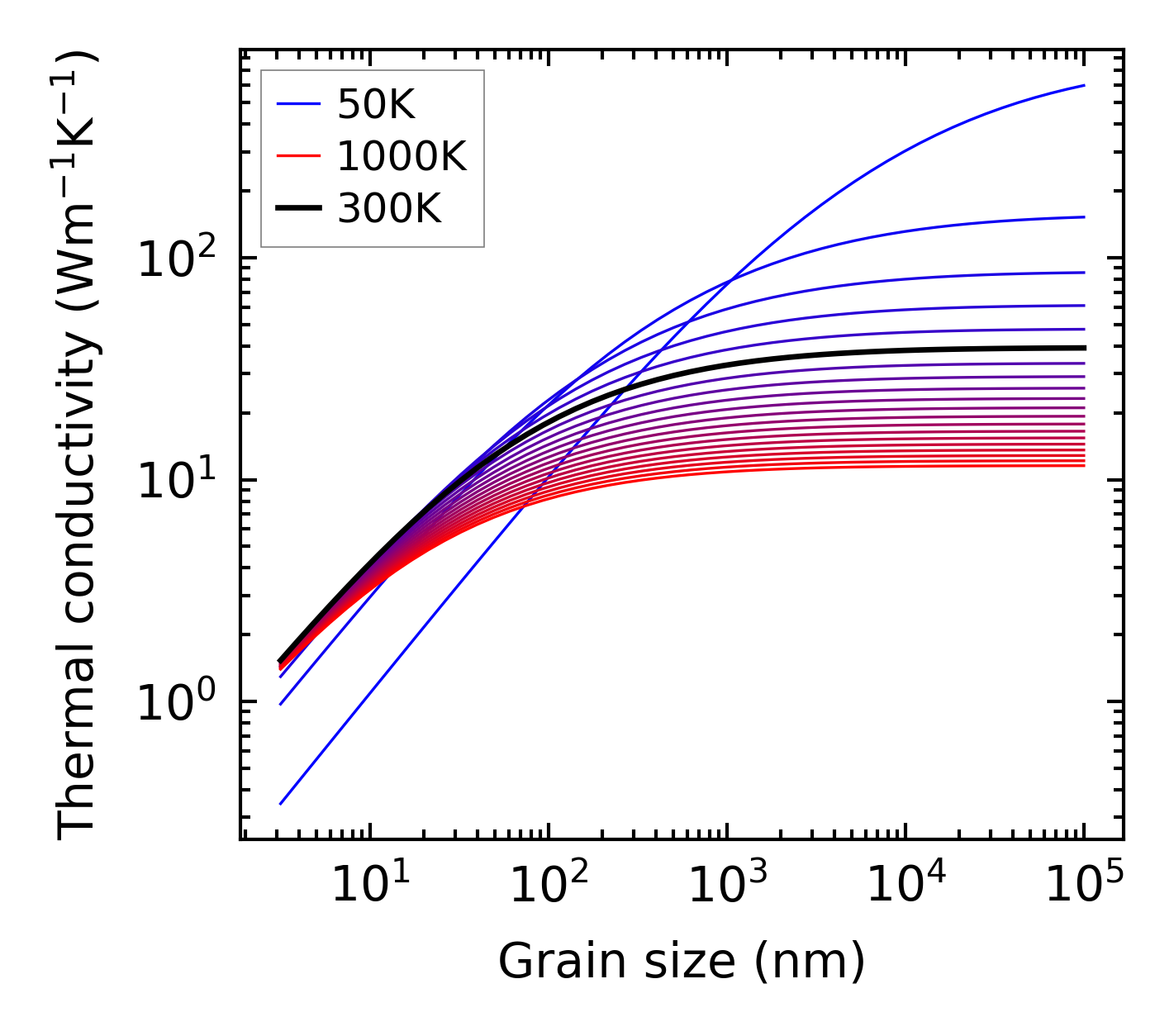

../../_images/fig_kappa_vs_grain_size5782.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime5659.png — (a) Phonon lifetime due to phonon-phonon scattering

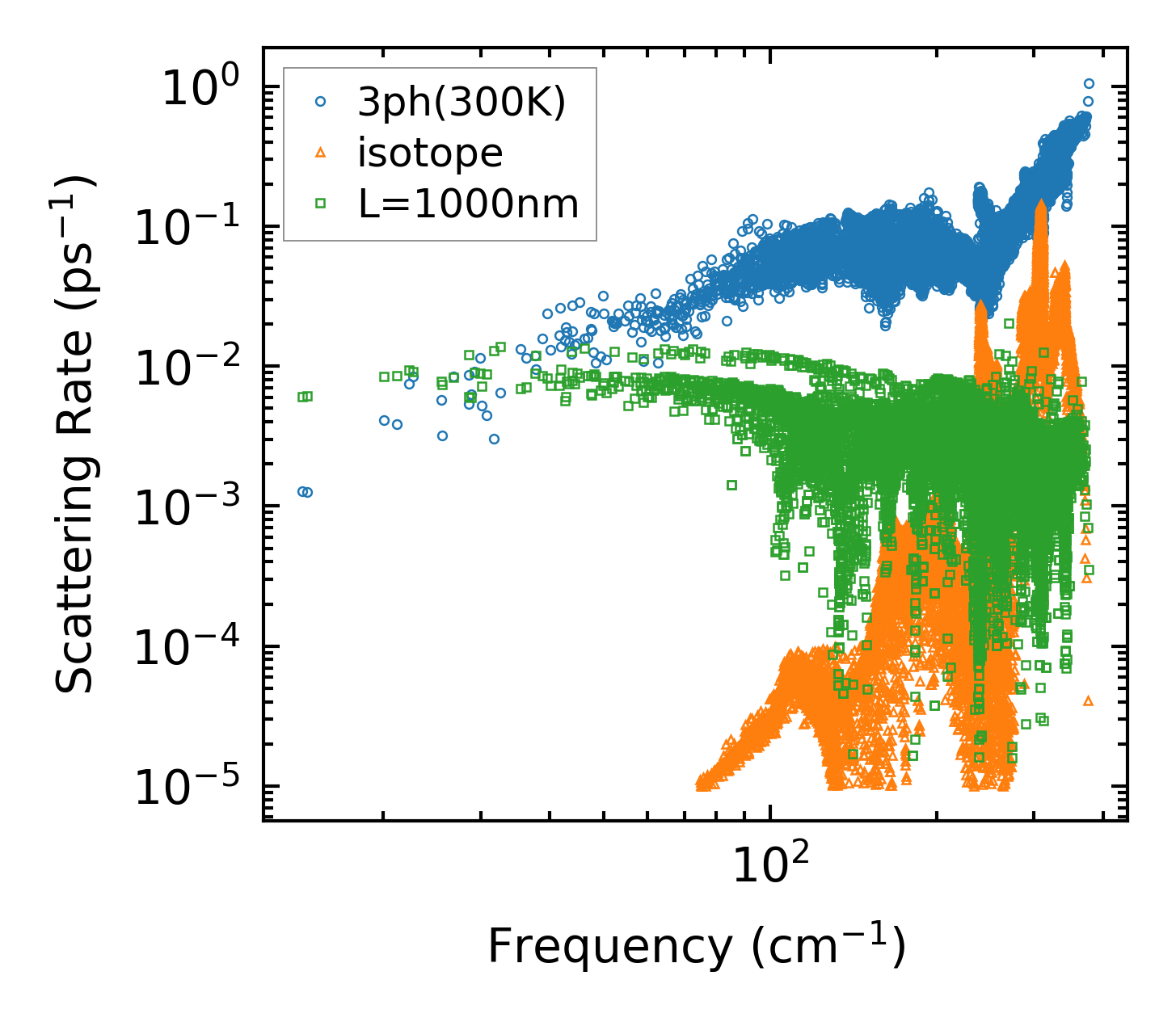

../../_images/fig_scat_rates5658.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency5659.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

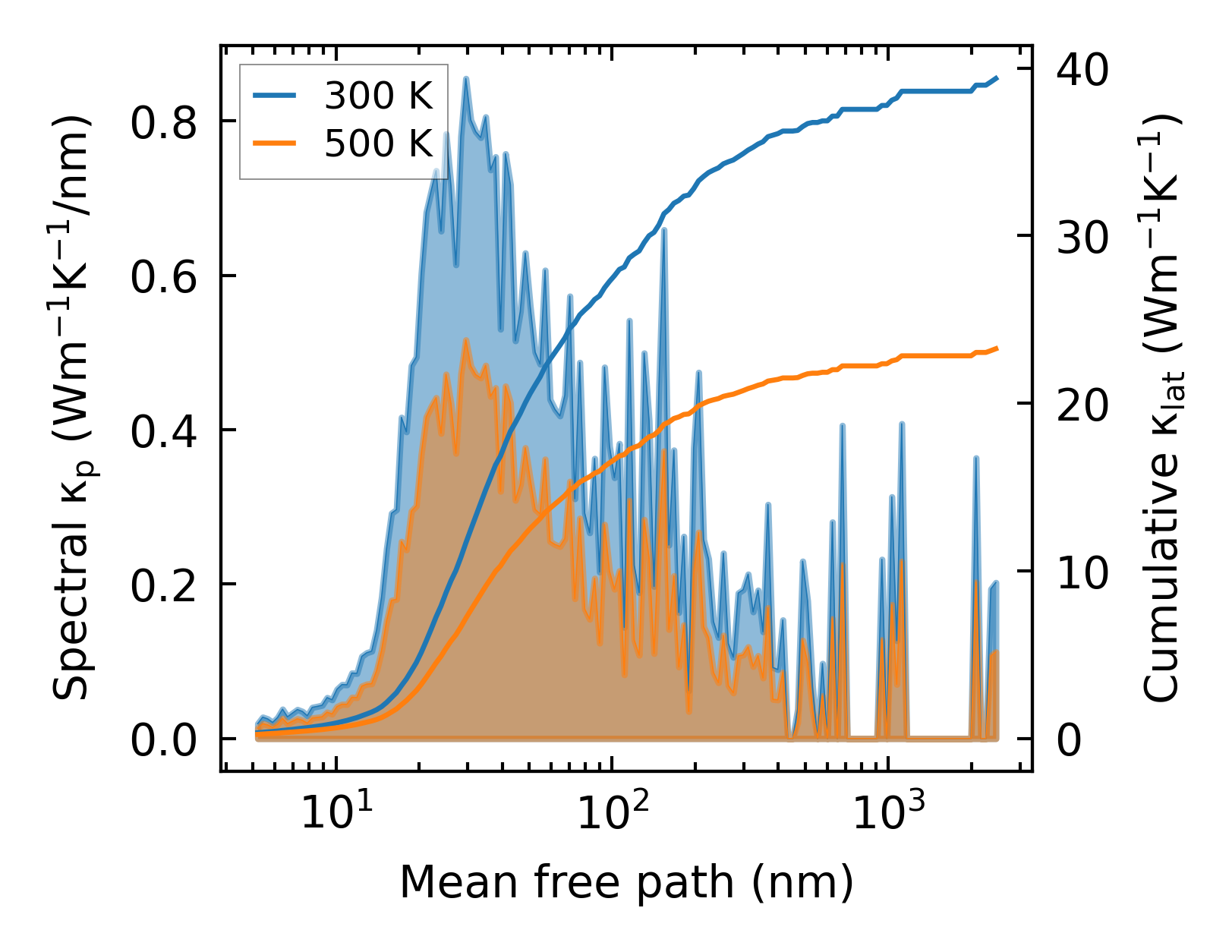

../../_images/fig_cumu_mfp5658.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

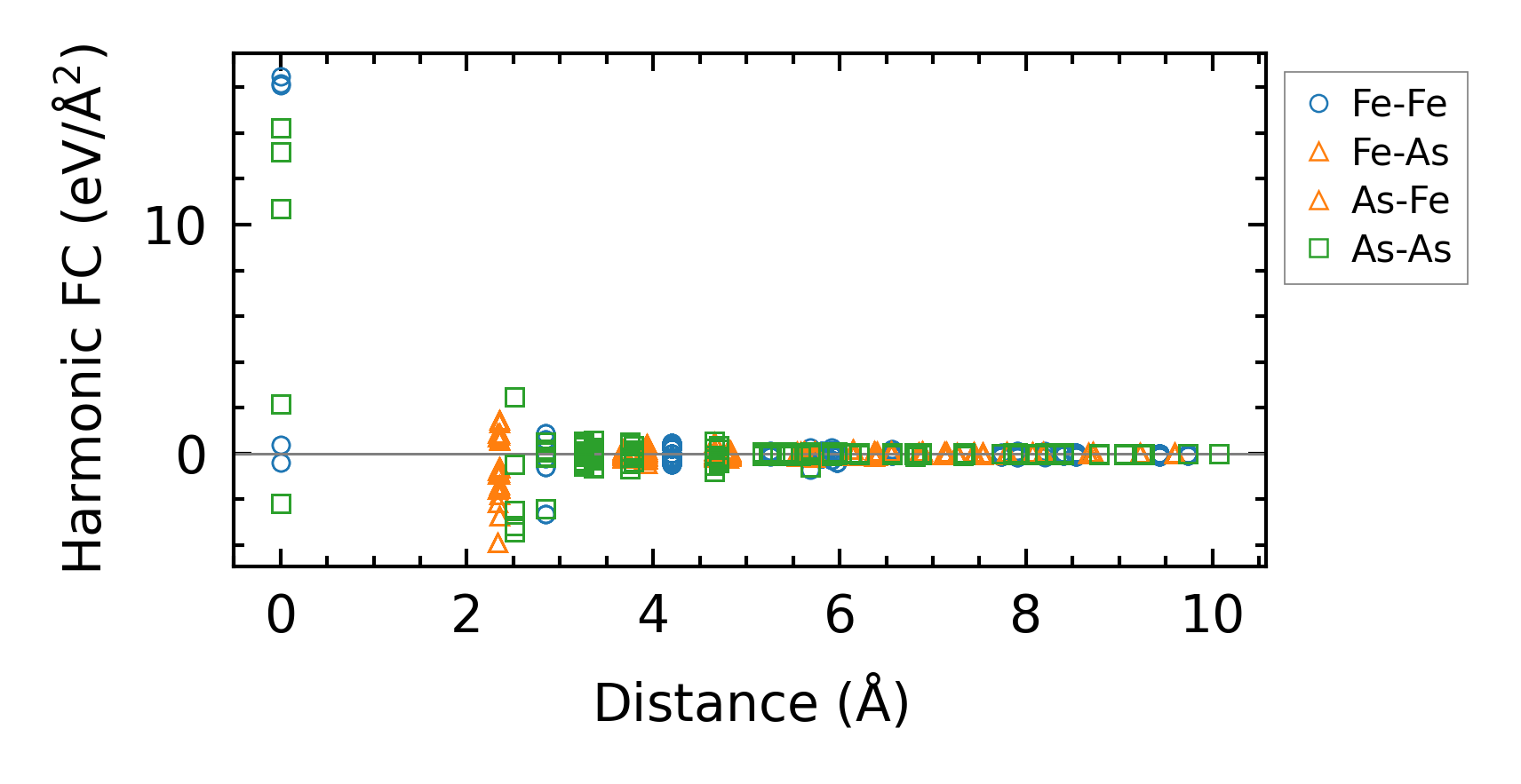

../../_images/fig_fc213152.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa10742.png — (a) Temperature-dependent lattice thermal conductivity

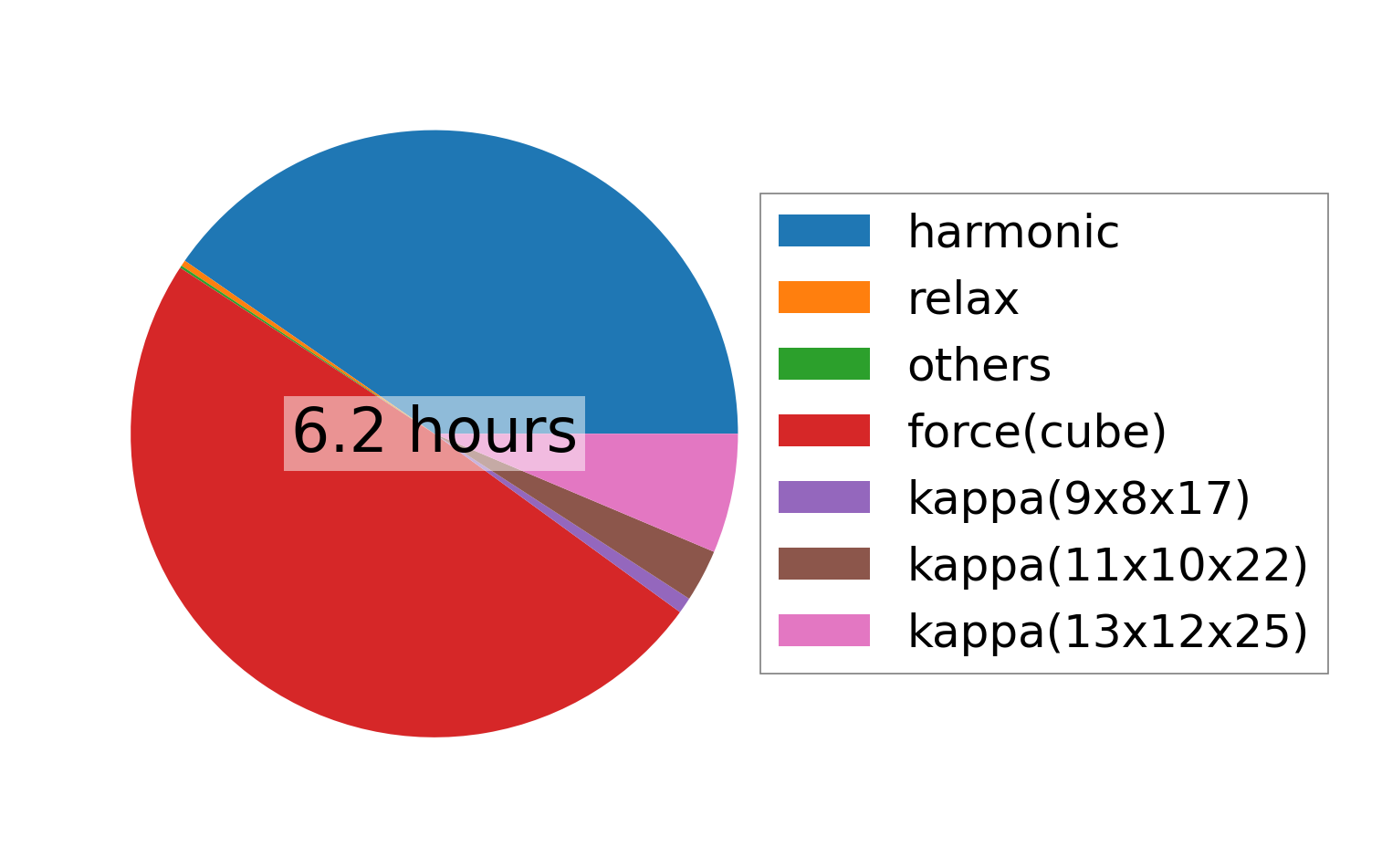

../../_images/fig_times22739.png — (b) Computation time
