mp-2146/KGe/anharm

Space group: P-43n (218)
Link: Materials Project
Download: mp-2146.tar.gz

Harmonic properties

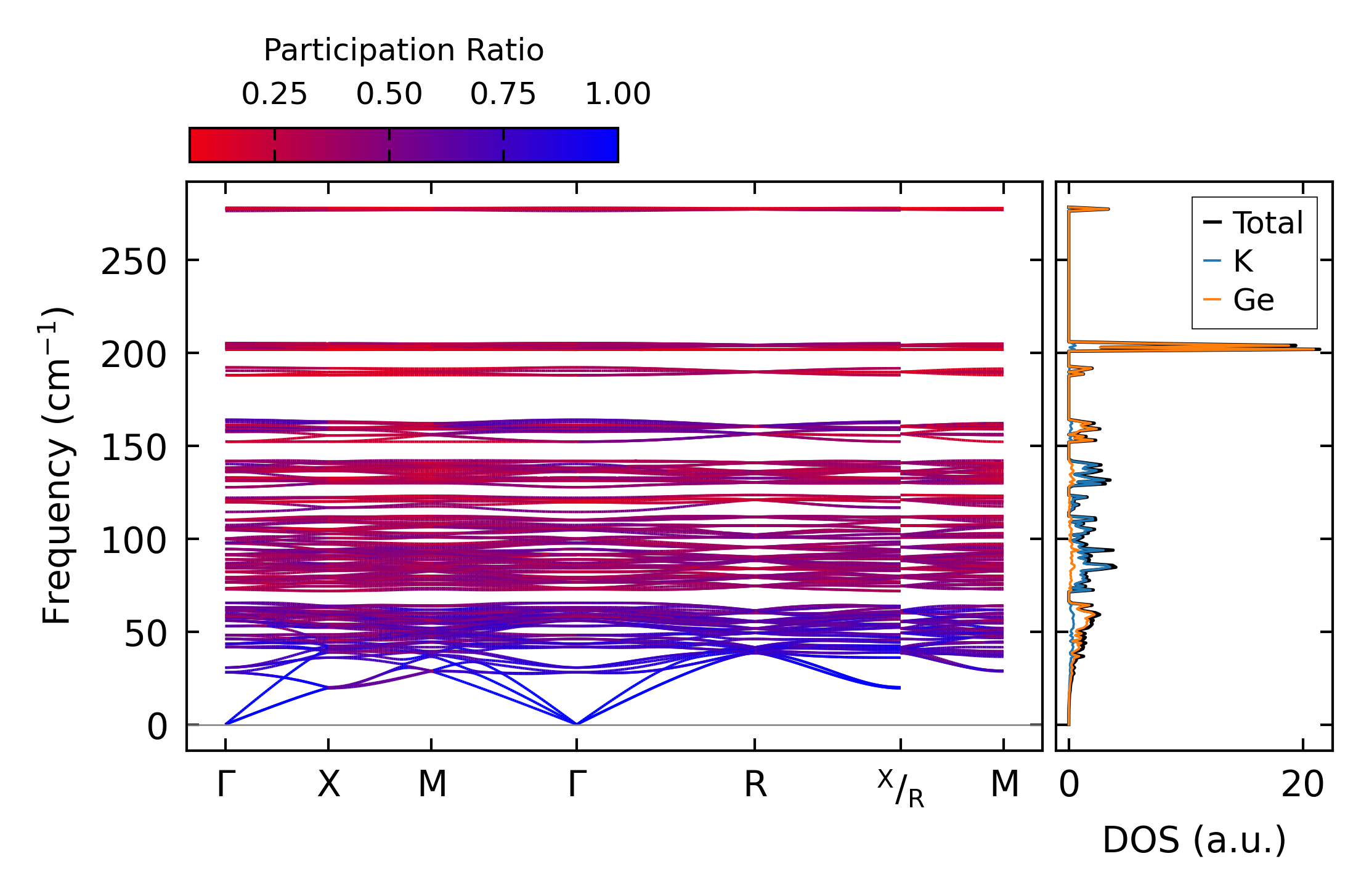

../../_images/fig_bandos_pr13532.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo13532.png — (b) Thermodynamic properties

Grüneisen parameters

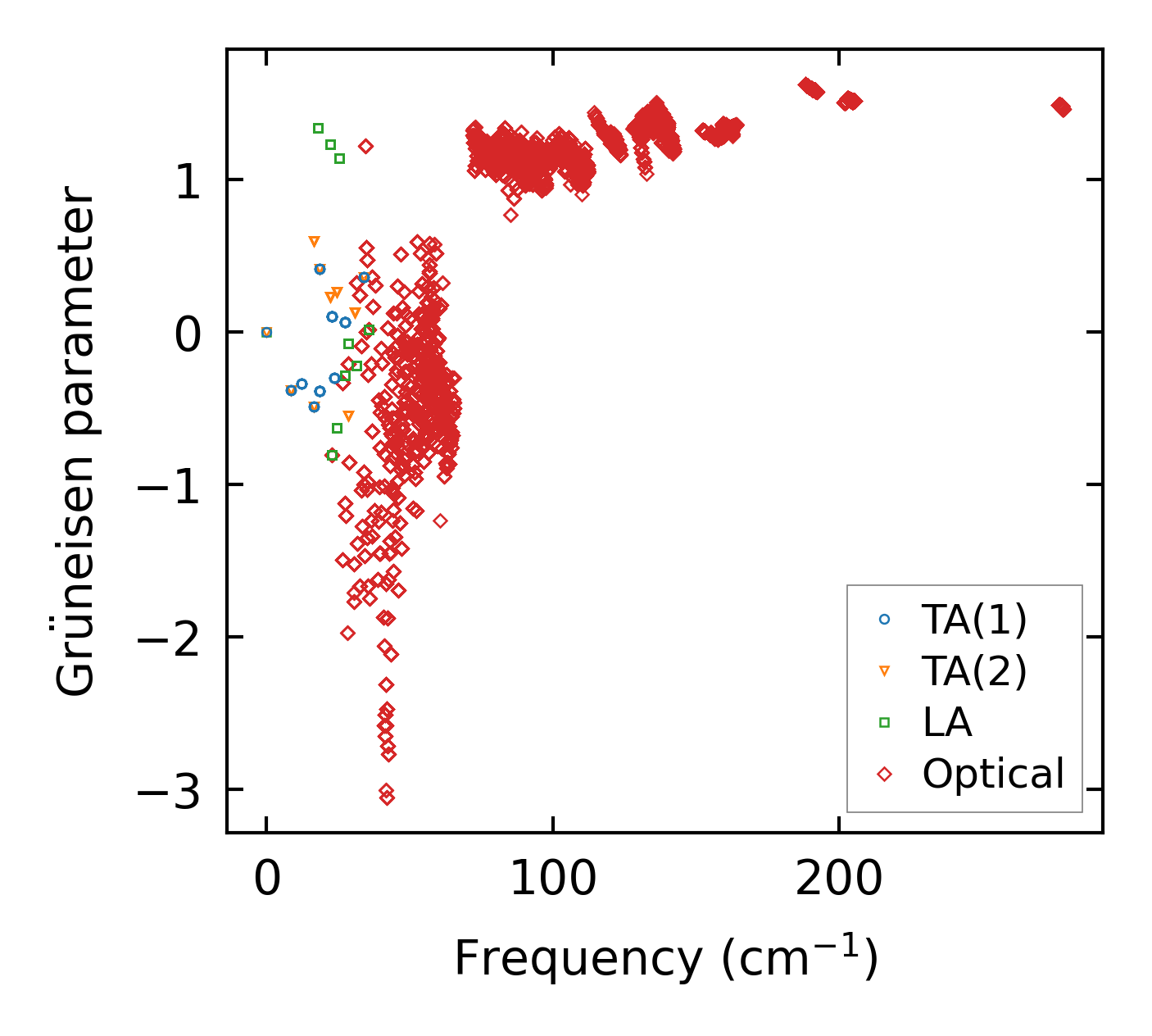

../../_images/fig_gru_all5729.png — (a) Grüneisen parameters

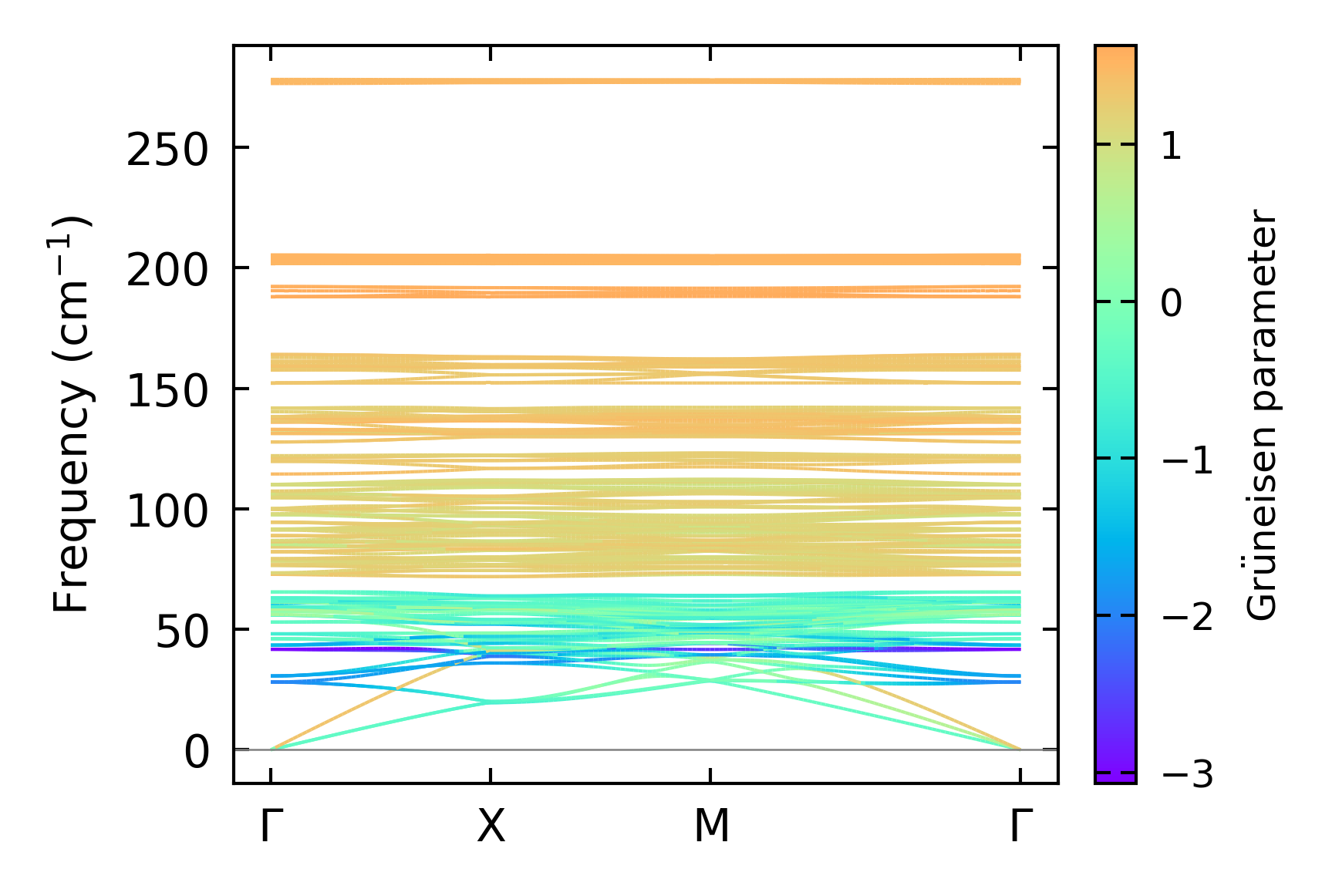

../../_images/fig_gruneisen5729.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 5x5x5, supercell: 1x1x1

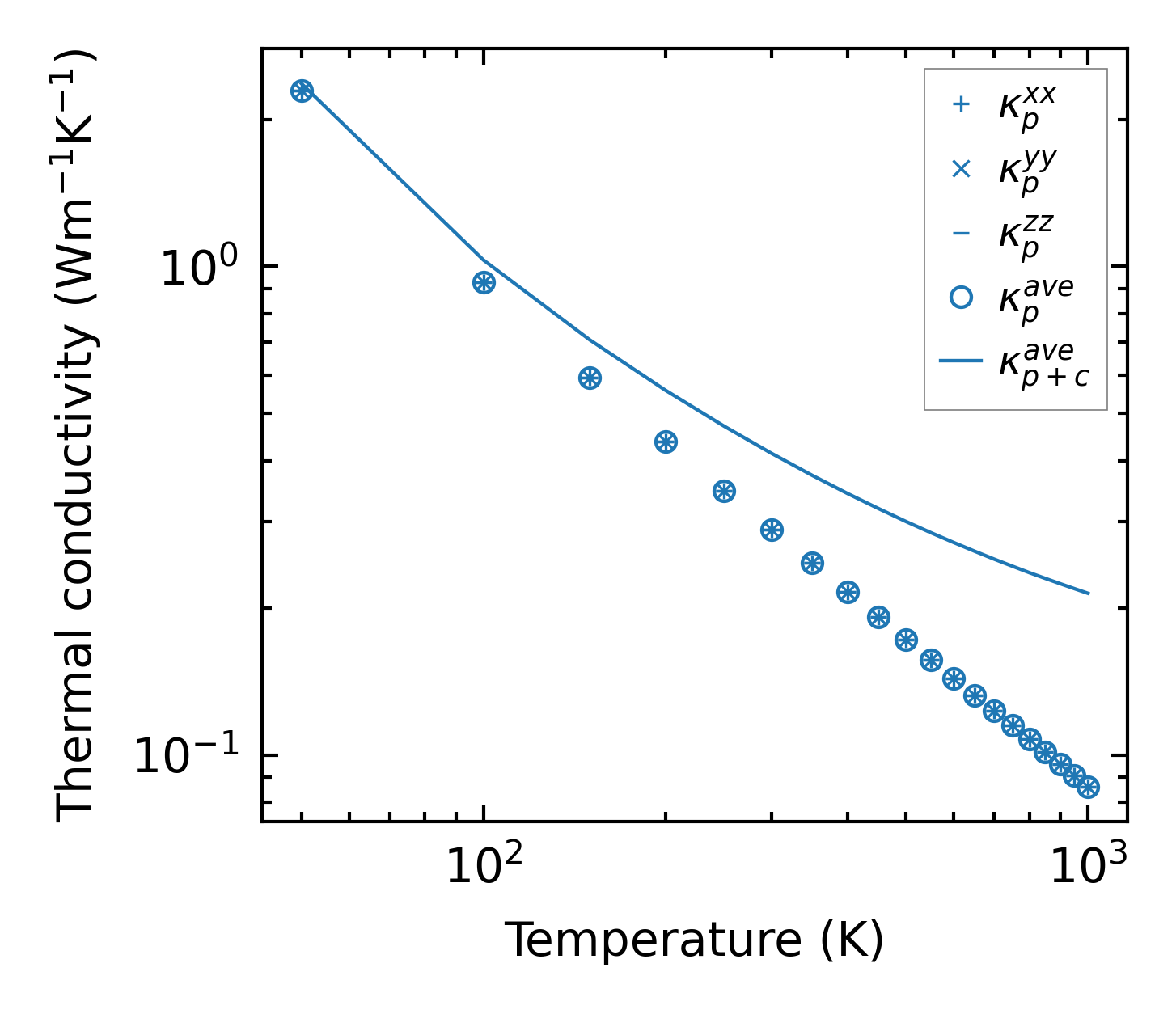

../../_images/fig_kappa10770.png — (a) Temperature-dependent lattice thermal conductivity

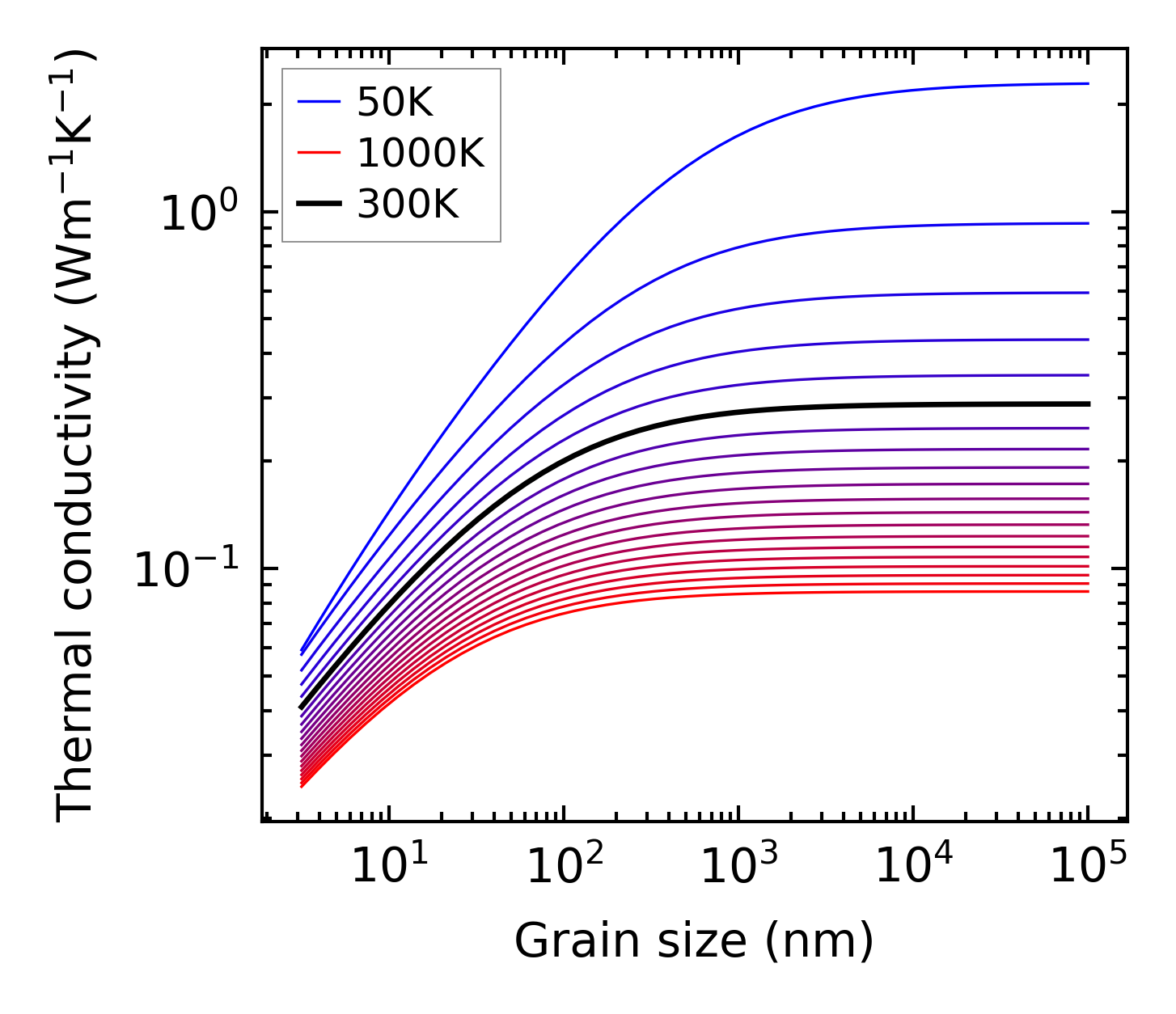

../../_images/fig_kappa_vs_grain_size5797.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

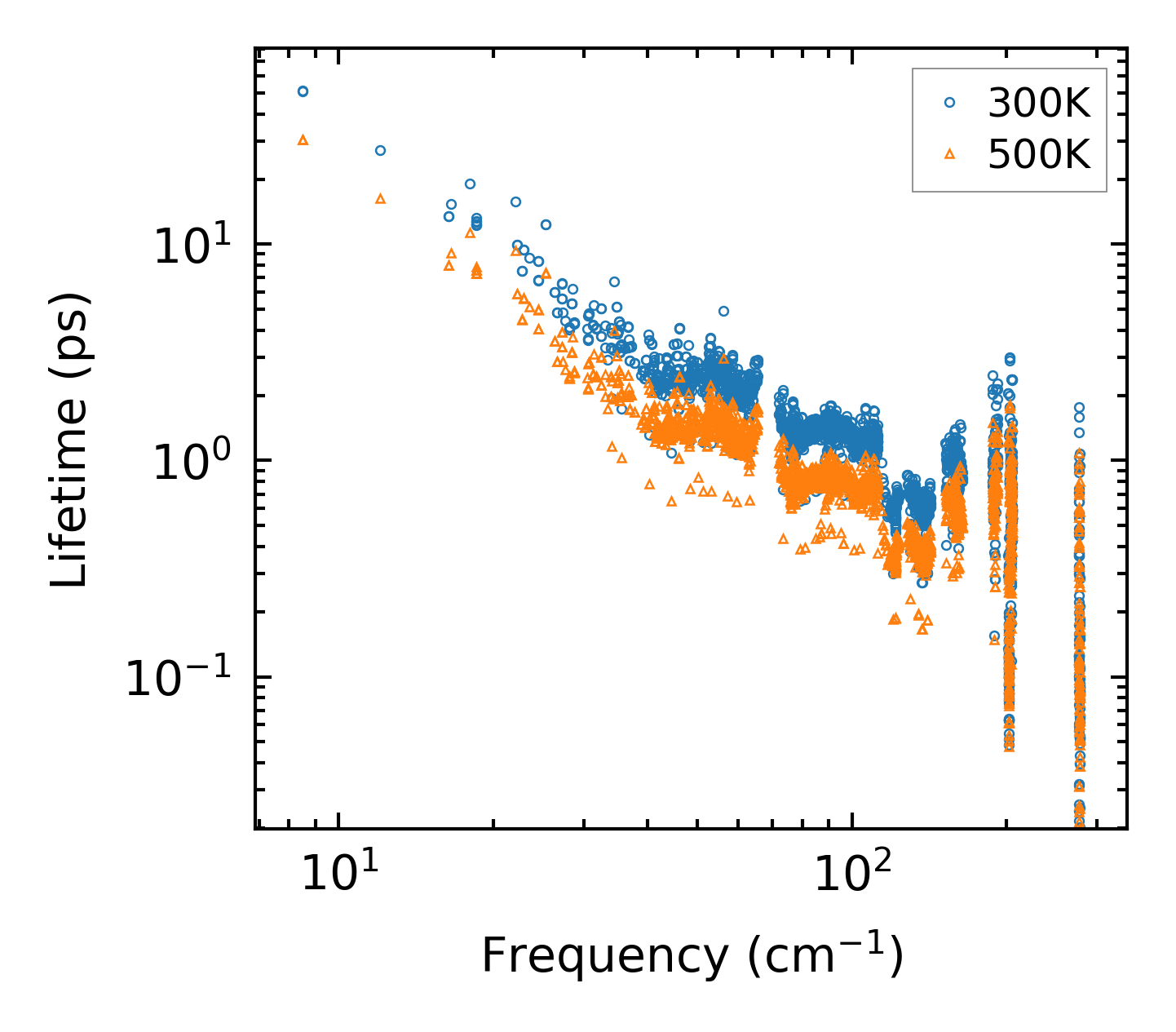

../../_images/fig_lifetime5674.png — (a) Phonon lifetime due to phonon-phonon scattering

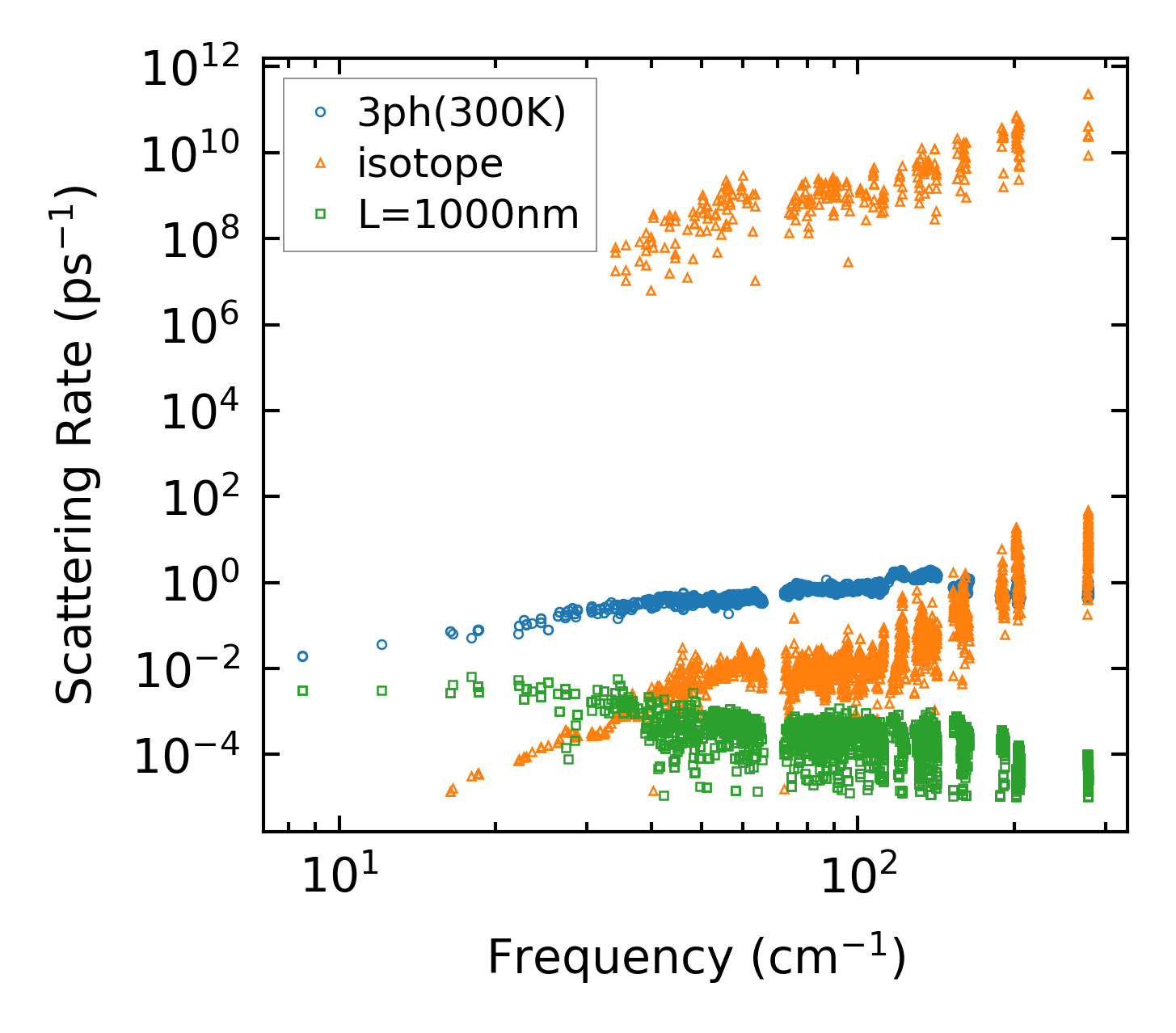

../../_images/fig_scat_rates5673.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

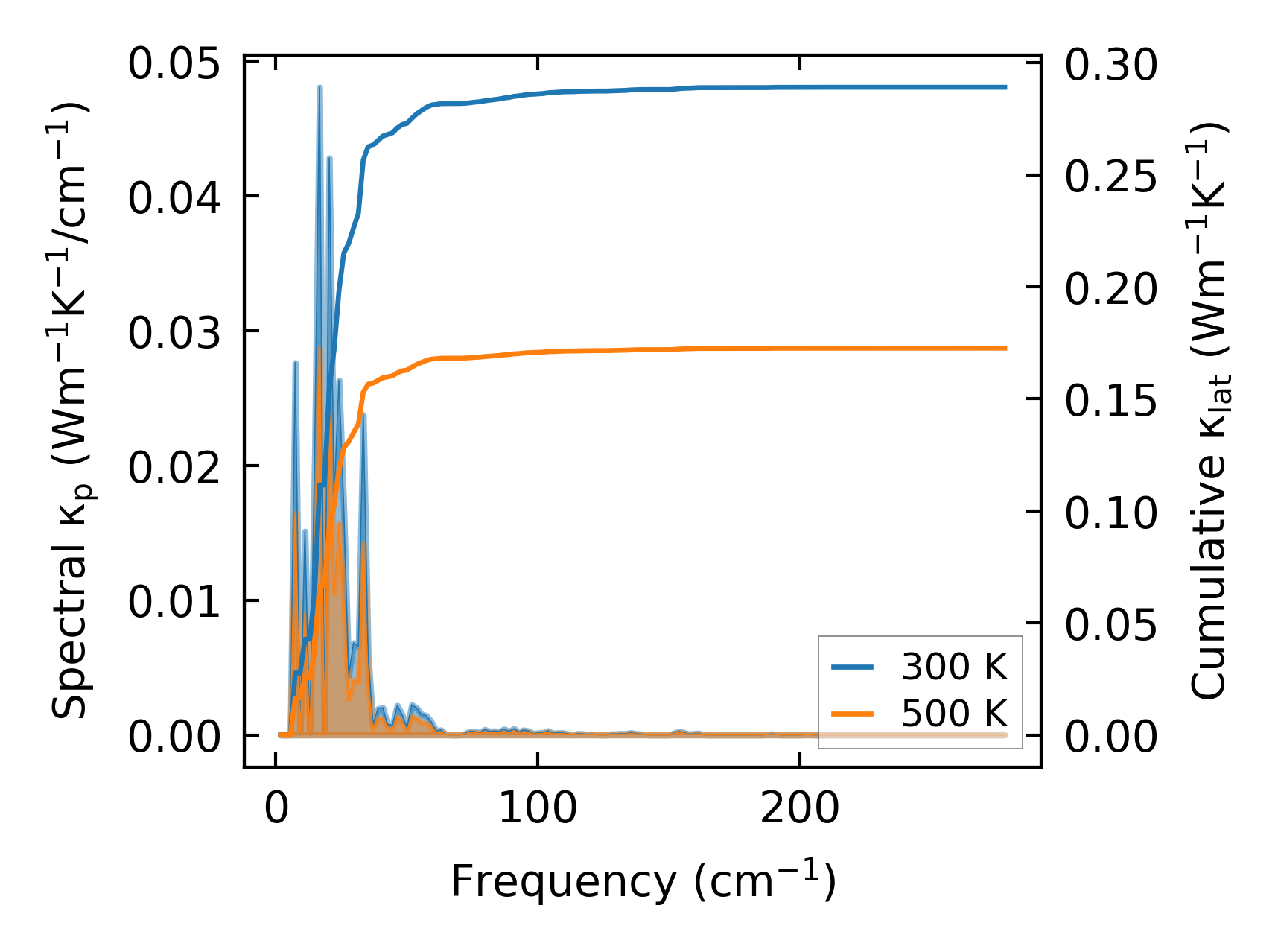

../../_images/fig_cumu_frequency5674.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

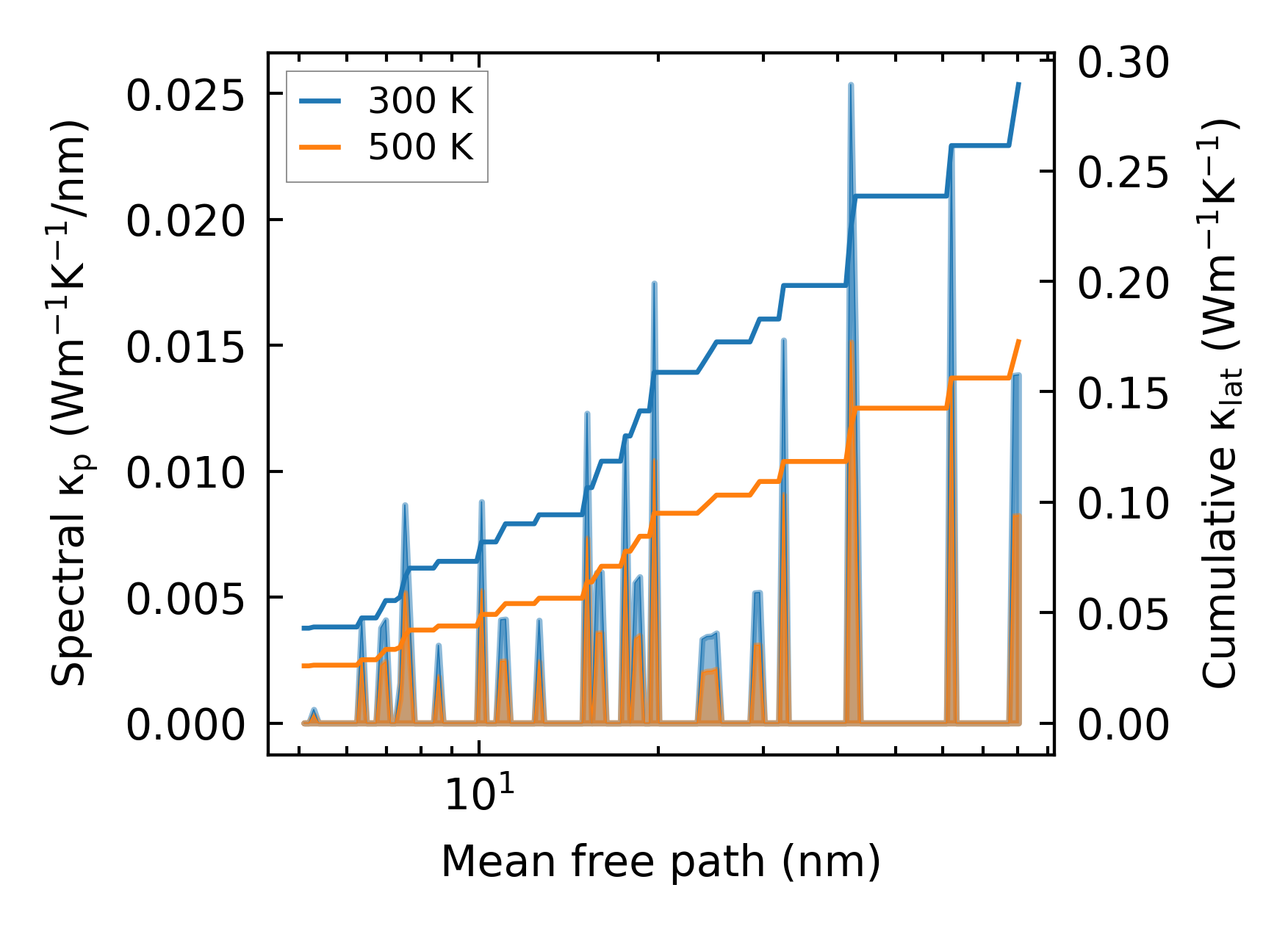

../../_images/fig_cumu_mfp5673.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

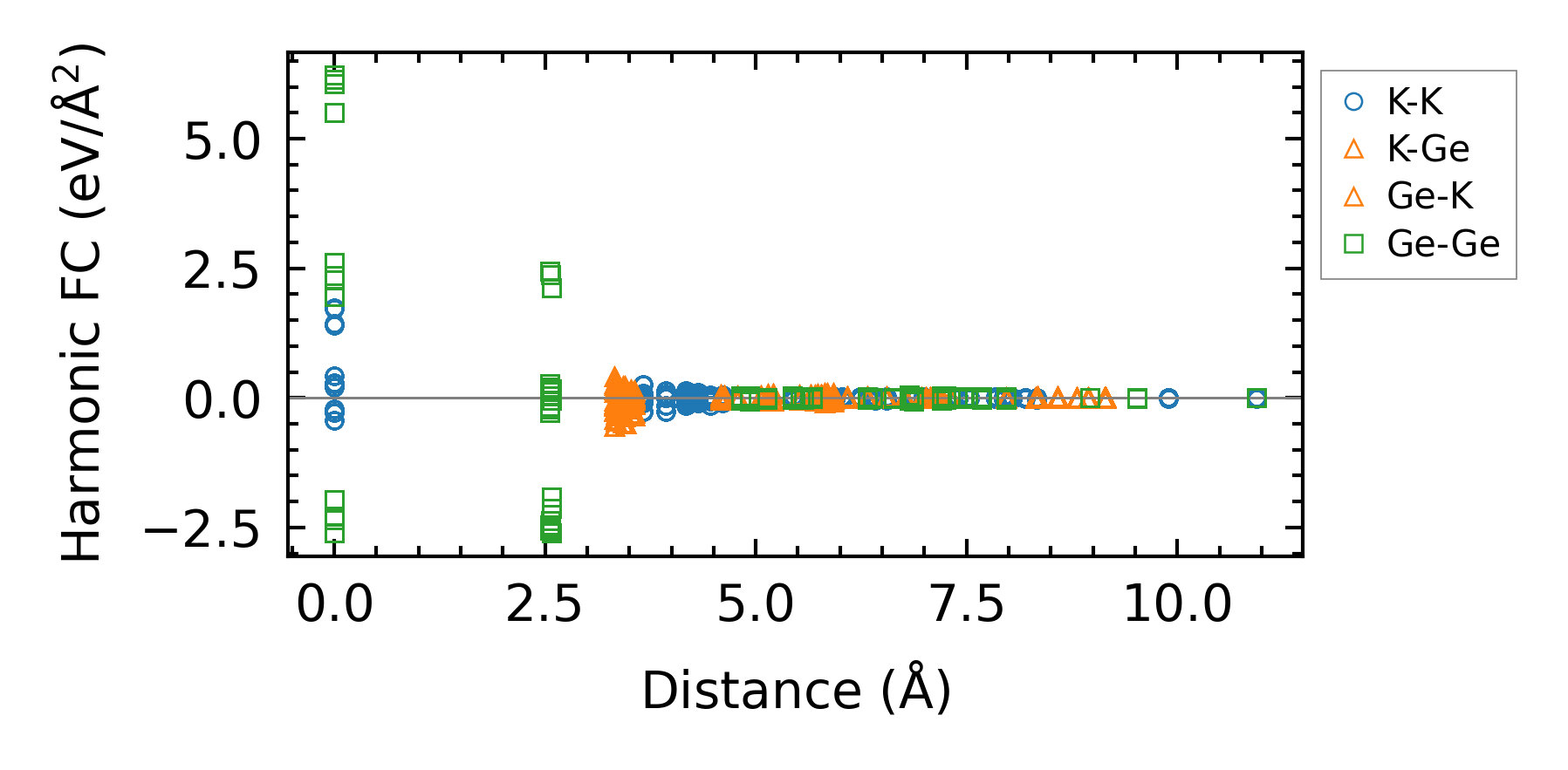

../../_images/fig_fc213164.png — (a) Force constants w.r.t atomic distance

Summary

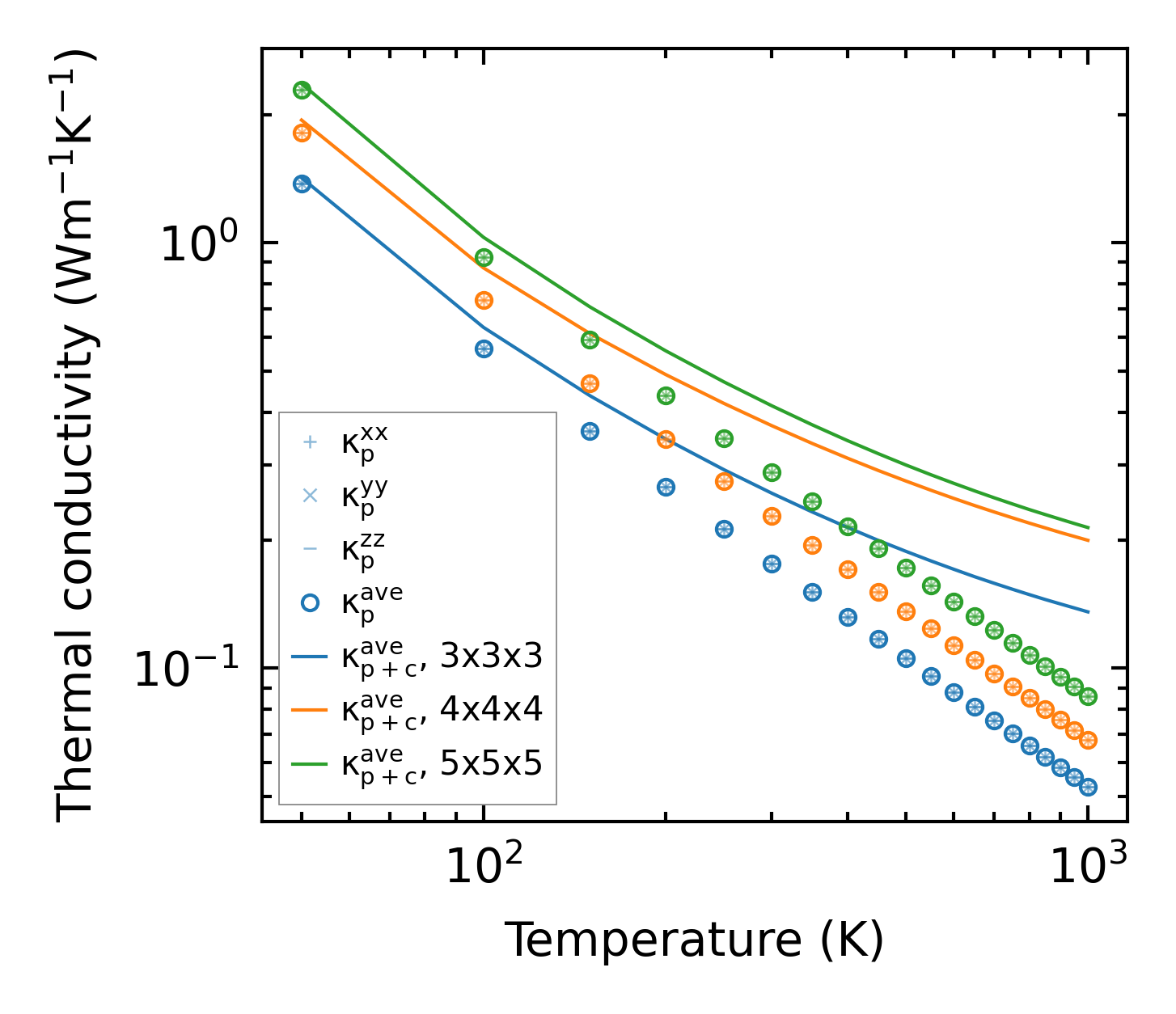

../../_images/fig_kappa10771.png — (a) Temperature-dependent lattice thermal conductivity

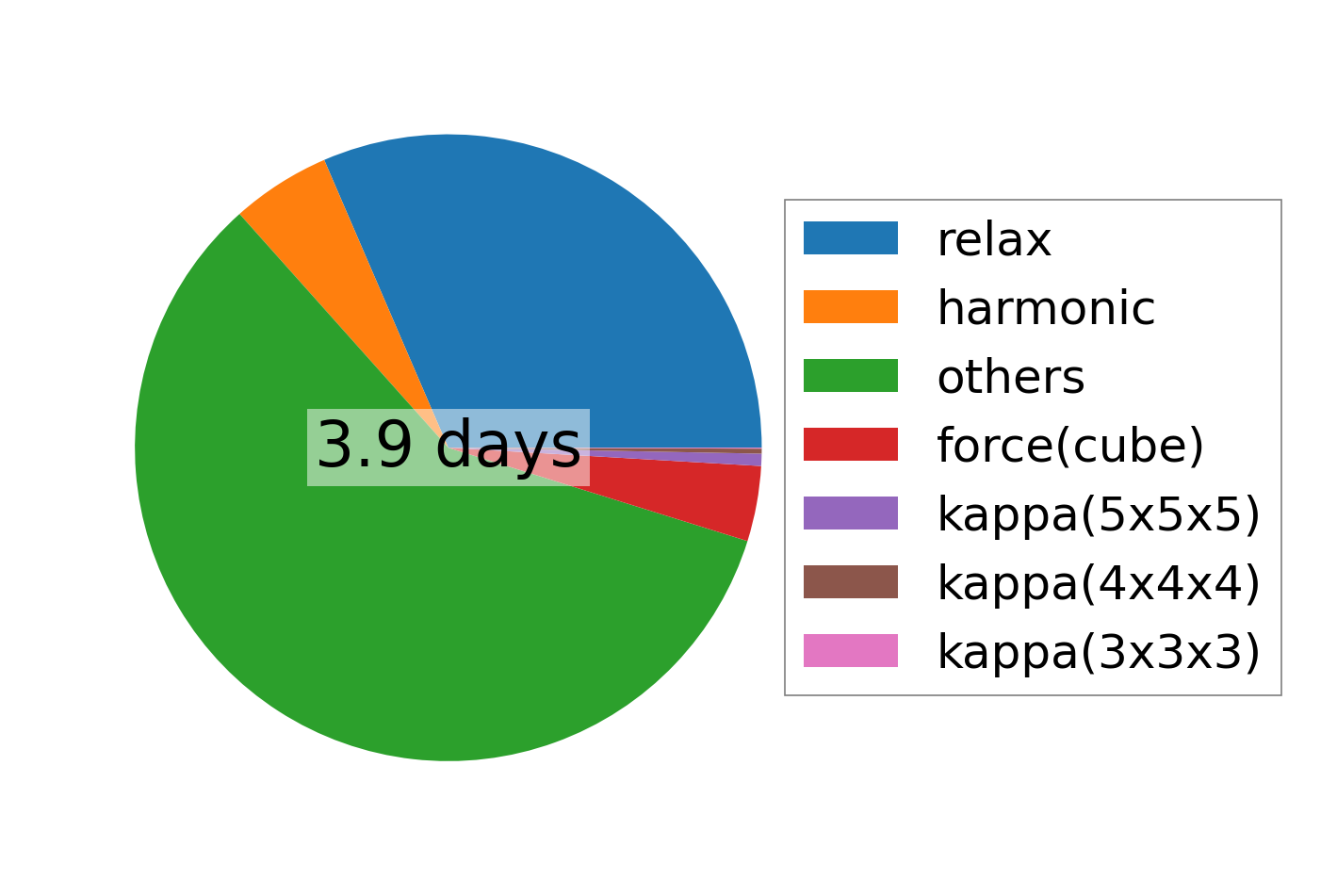

../../_images/fig_times22765.png — (b) Computation time
