mp-2068/RhF3/anharm

Space group: R-3c (167)
Link: Materials Project
Download: mp-2068.tar.gz

Harmonic properties

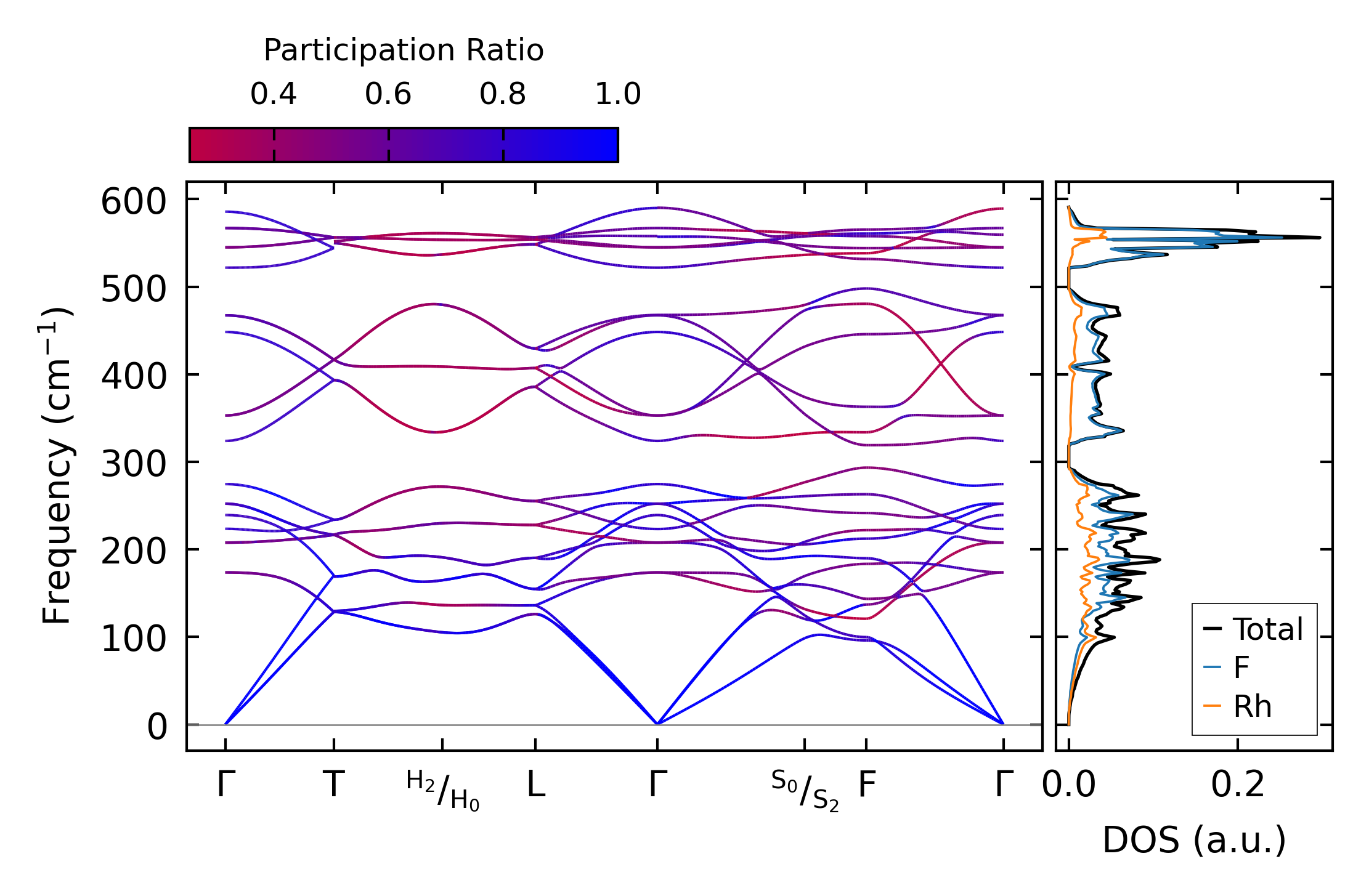

../../_images/fig_bandos_pr13522.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo13522.png — (b) Thermodynamic properties

Grüneisen parameters

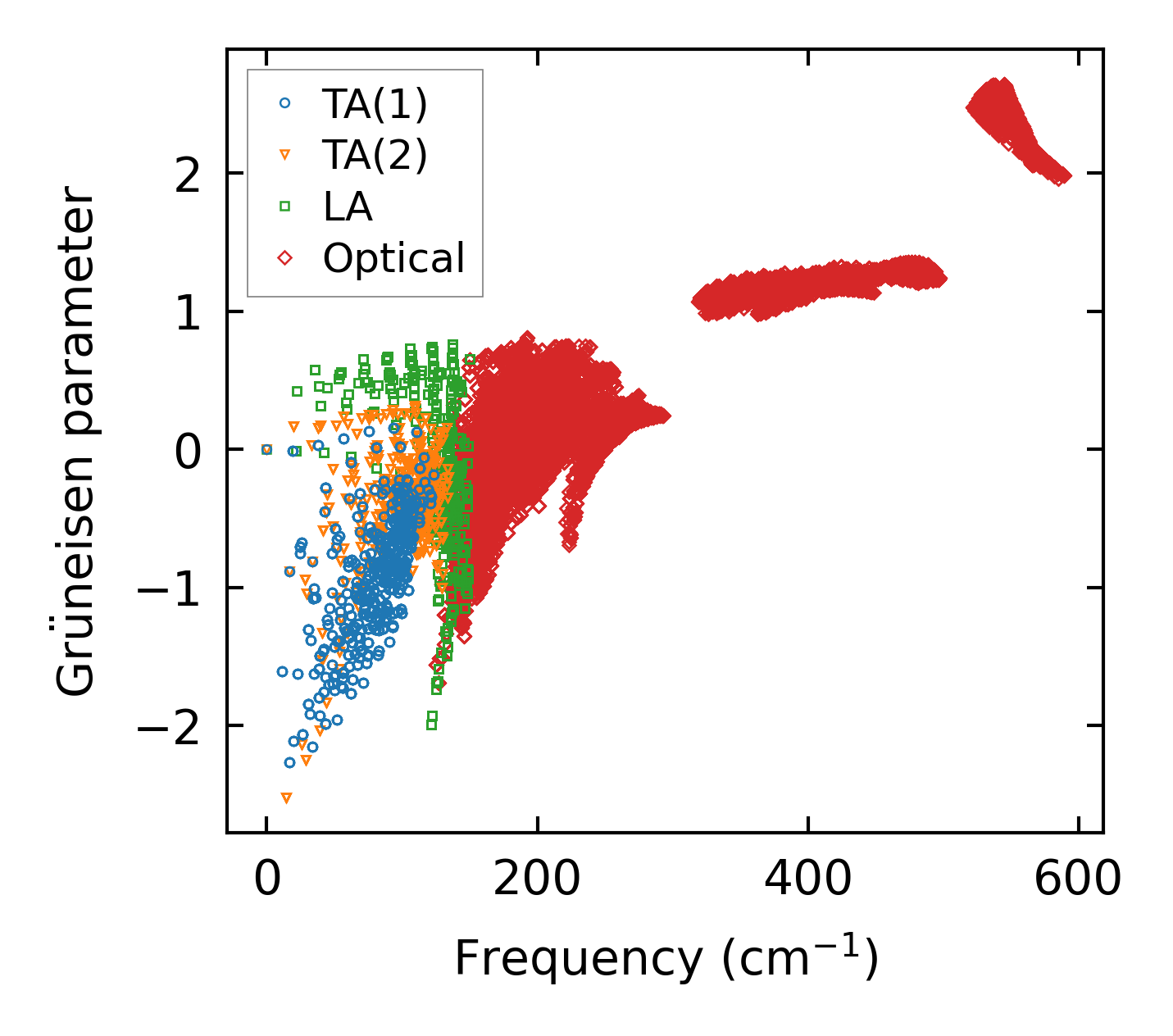

../../_images/fig_gru_all5719.png — (a) Grüneisen parameters

../../_images/fig_gruneisen5719.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 15x15x15, supercell: 2x2x1

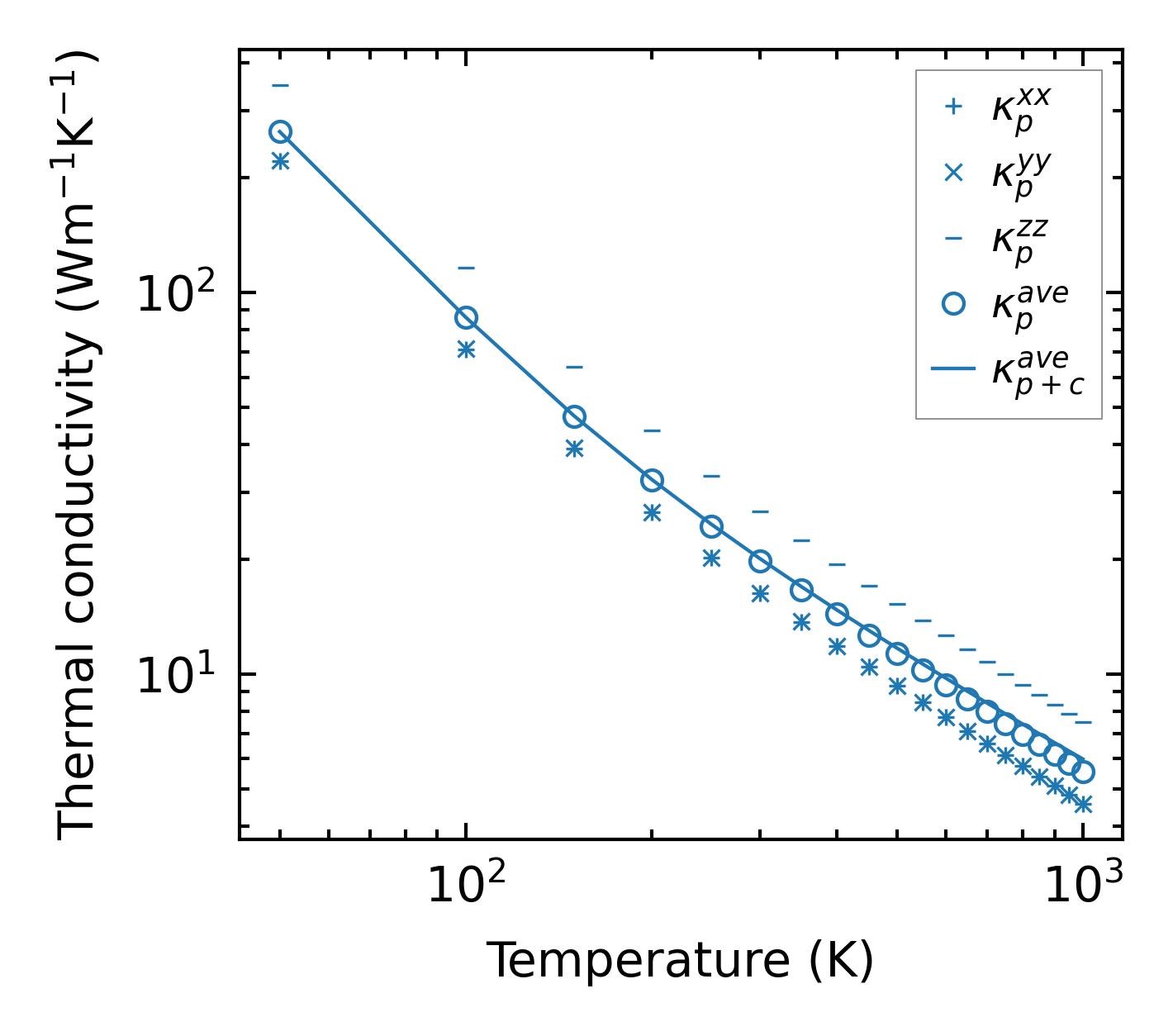

../../_images/fig_kappa10751.png — (a) Temperature-dependent lattice thermal conductivity

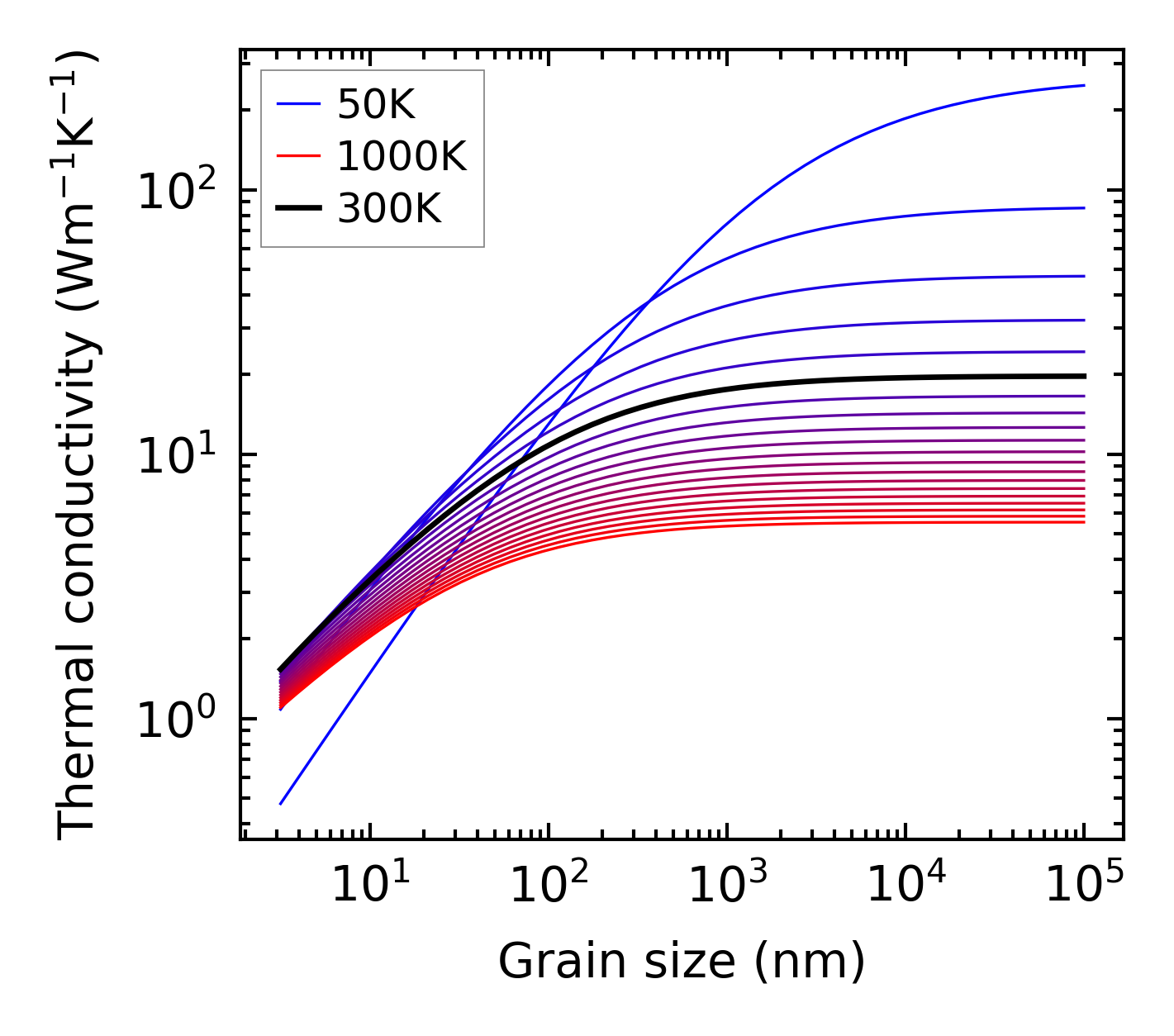

../../_images/fig_kappa_vs_grain_size5787.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

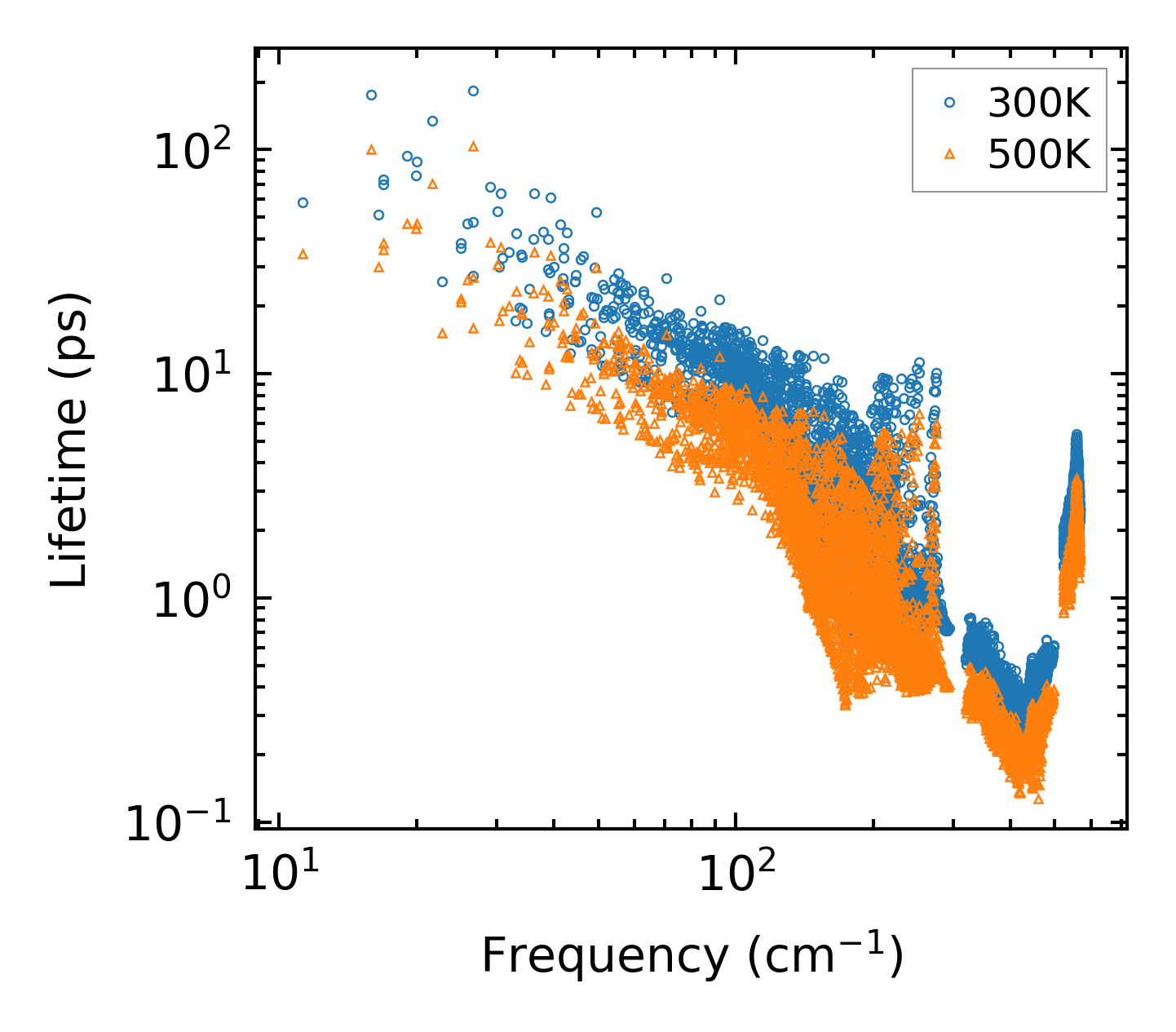

../../_images/fig_lifetime5664.png — (a) Phonon lifetime due to phonon-phonon scattering

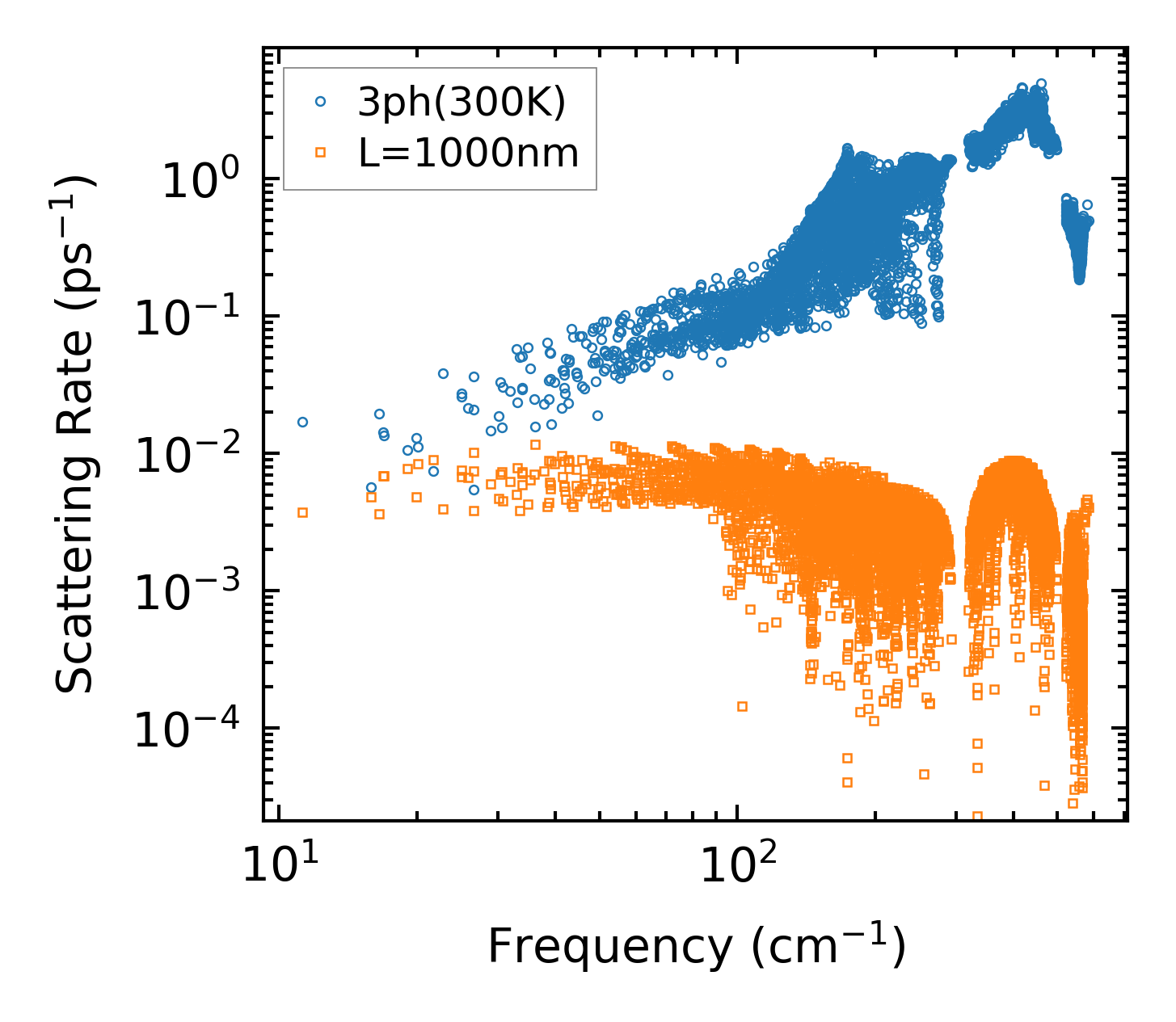

../../_images/fig_scat_rates5663.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency5664.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp5663.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

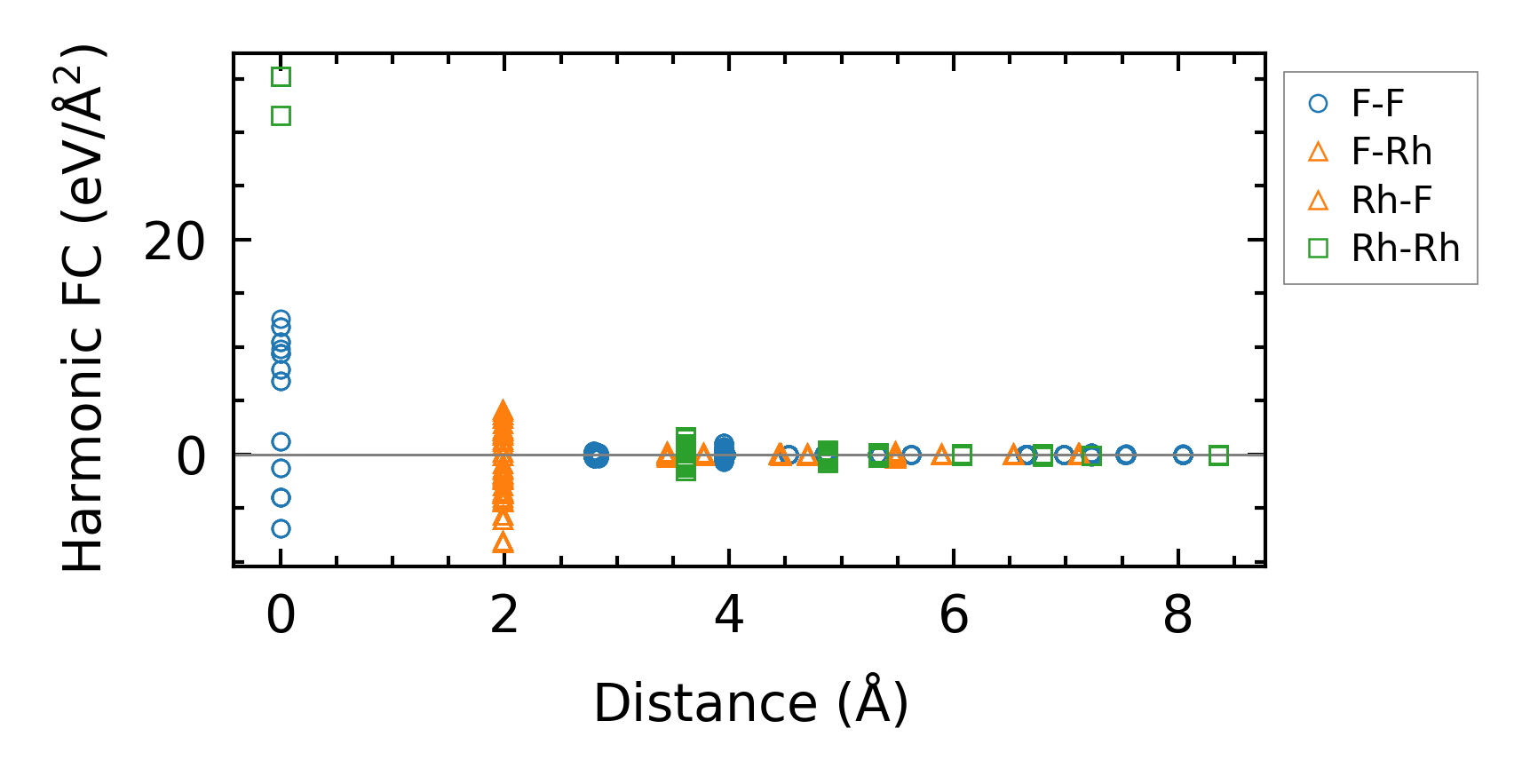

../../_images/fig_fc213155.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa10752.png — (a) Temperature-dependent lattice thermal conductivity

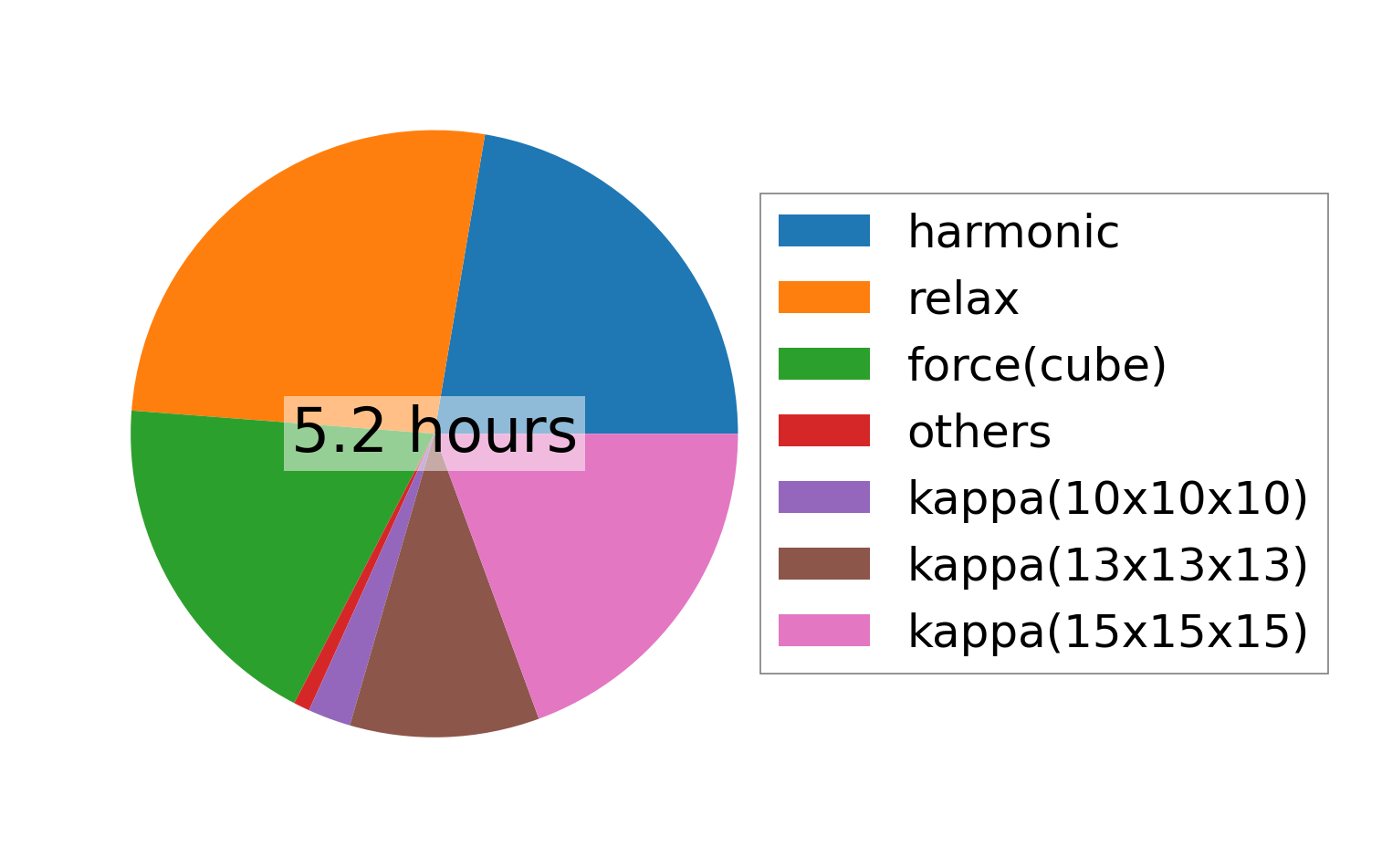

../../_images/fig_times22744.png — (b) Computation time
