mp-2242/GeS/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-2242.tar.gz

Harmonic properties

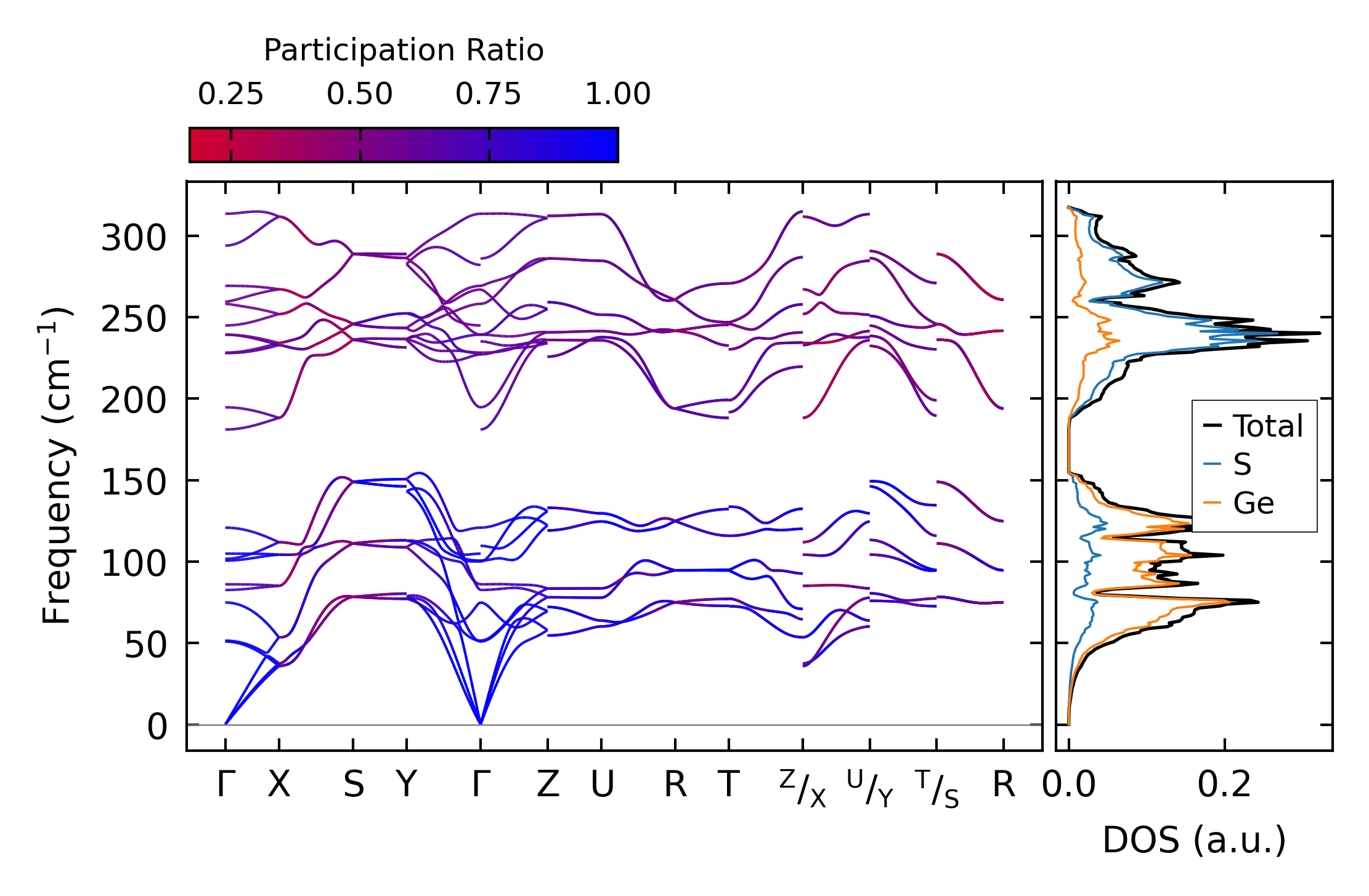

../../_images/fig_bandos_pr13179.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo13179.png — (b) Thermodynamic properties

Grüneisen parameters

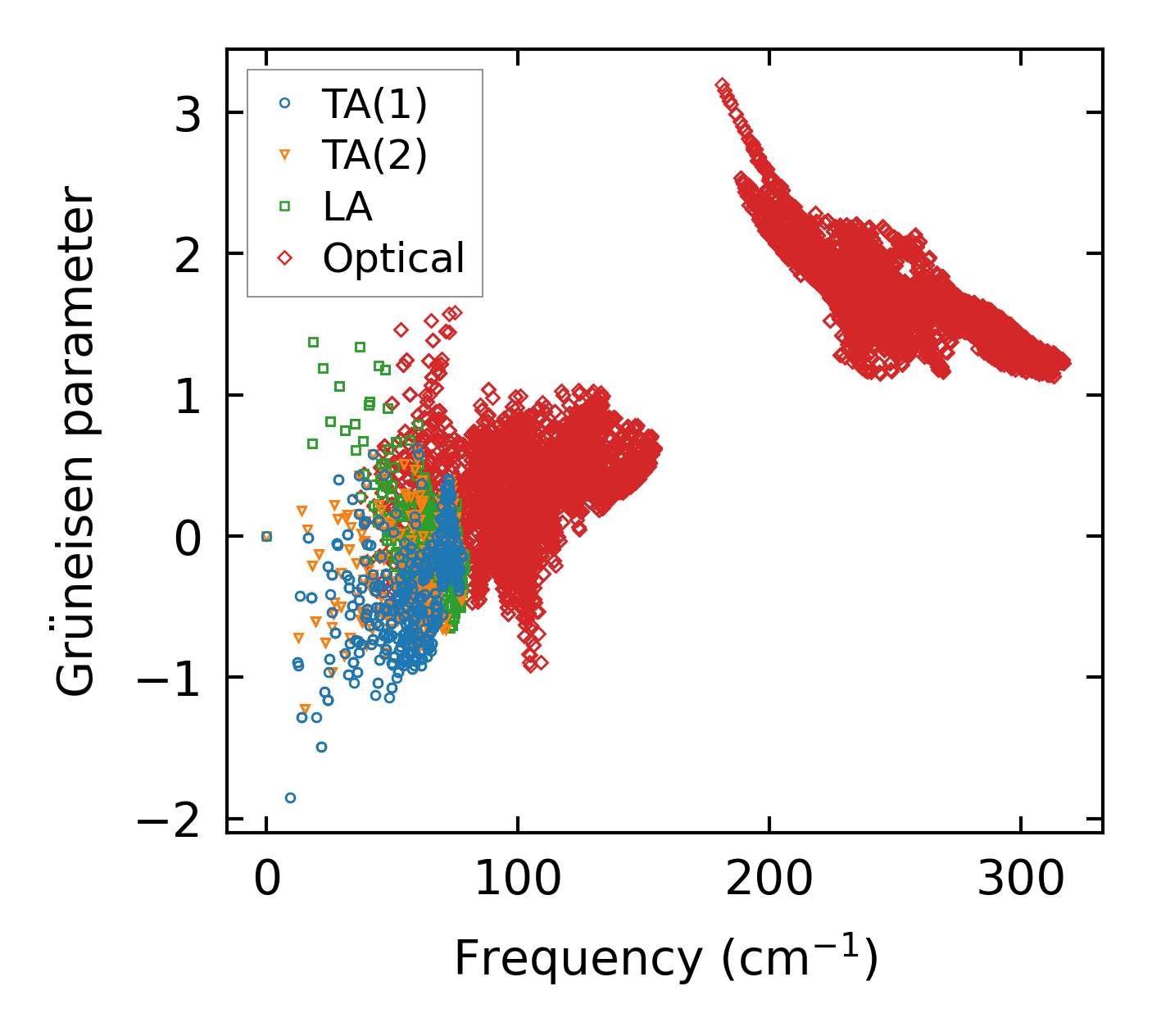

../../_images/fig_gru_all5512.png — (a) Grüneisen parameters

../../_images/fig_gruneisen5512.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 6x19x17, supercell: 2x3x3

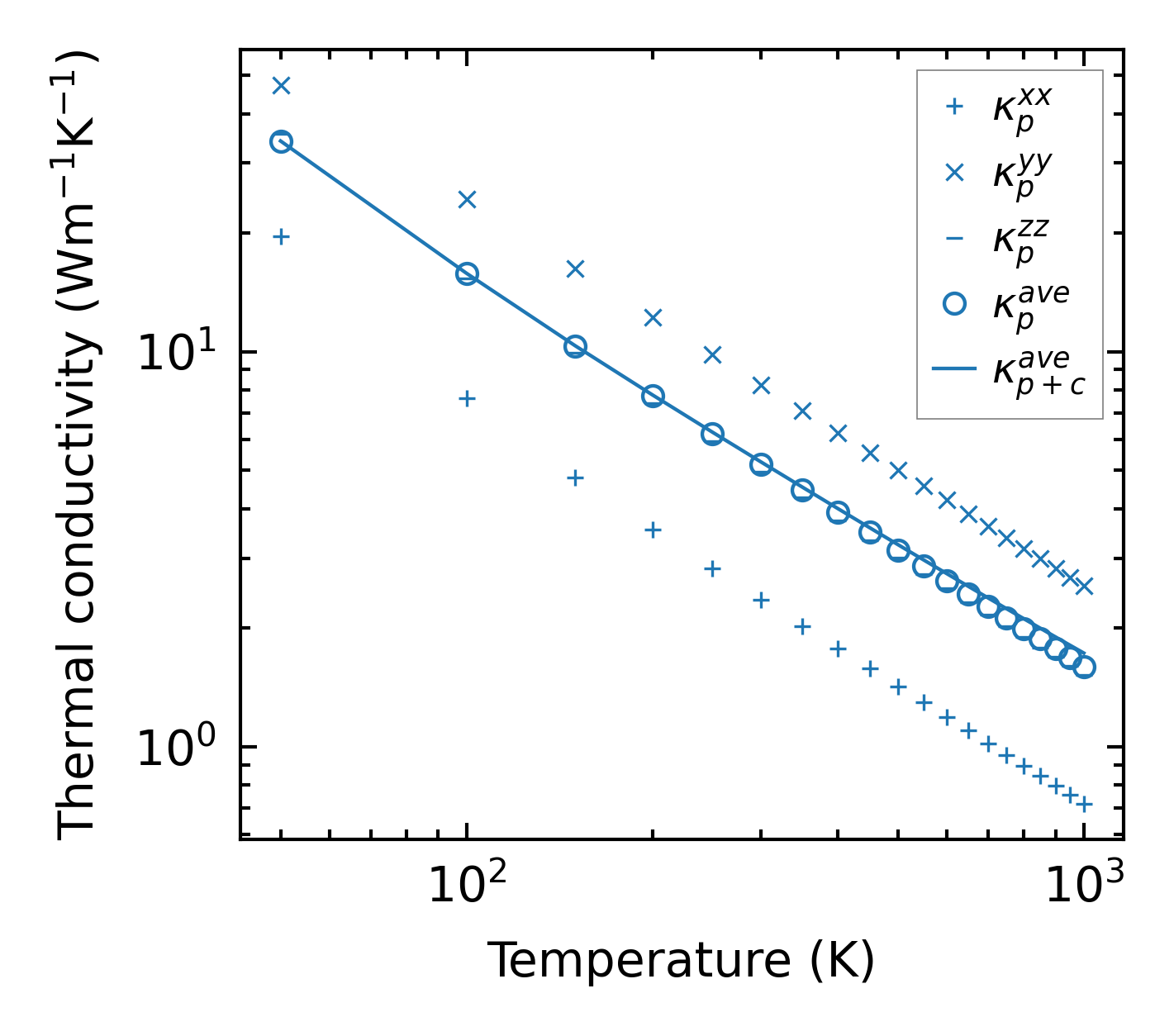

../../_images/fig_kappa10351.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size5577.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime5459.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates5458.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

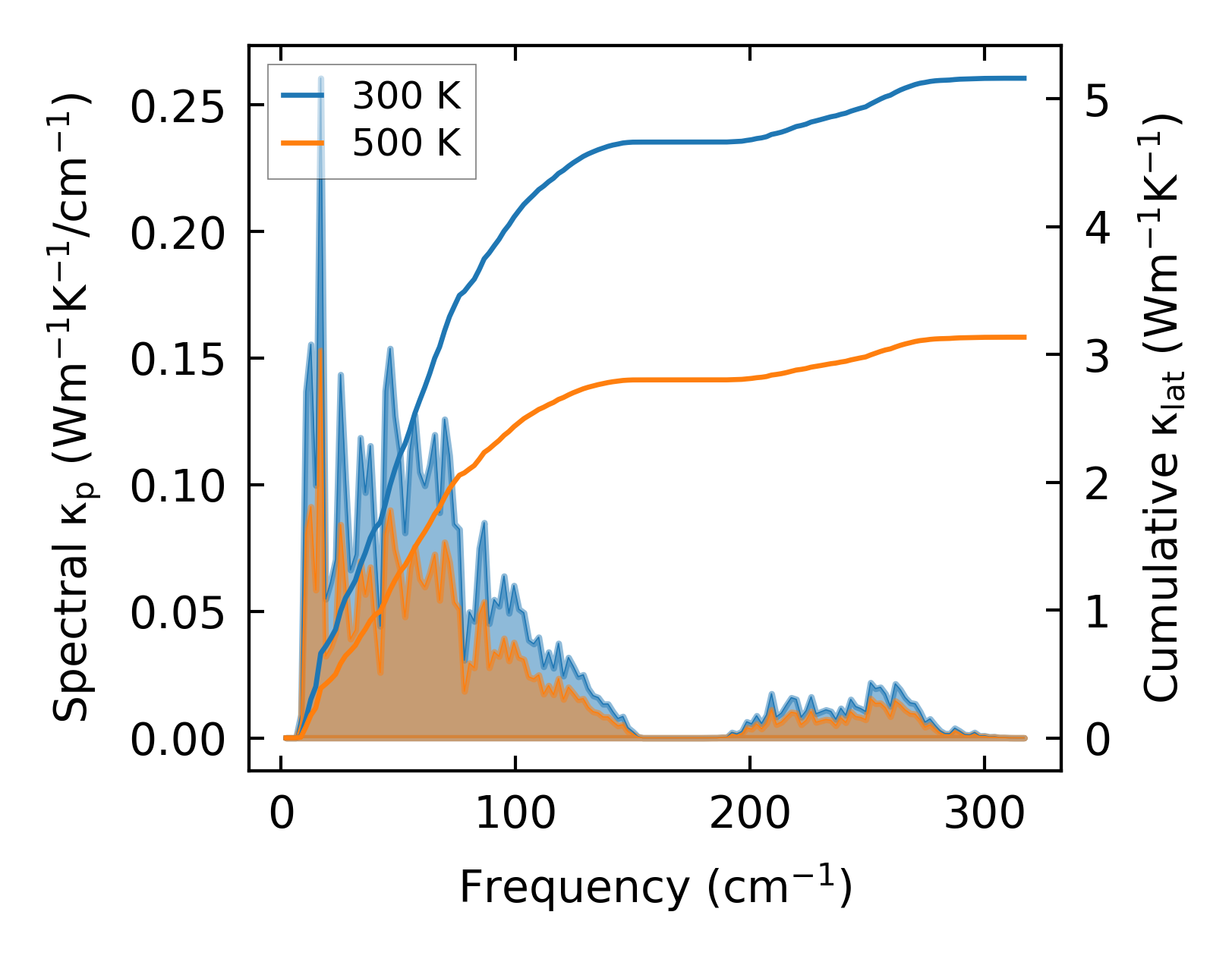

../../_images/fig_cumu_frequency5459.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

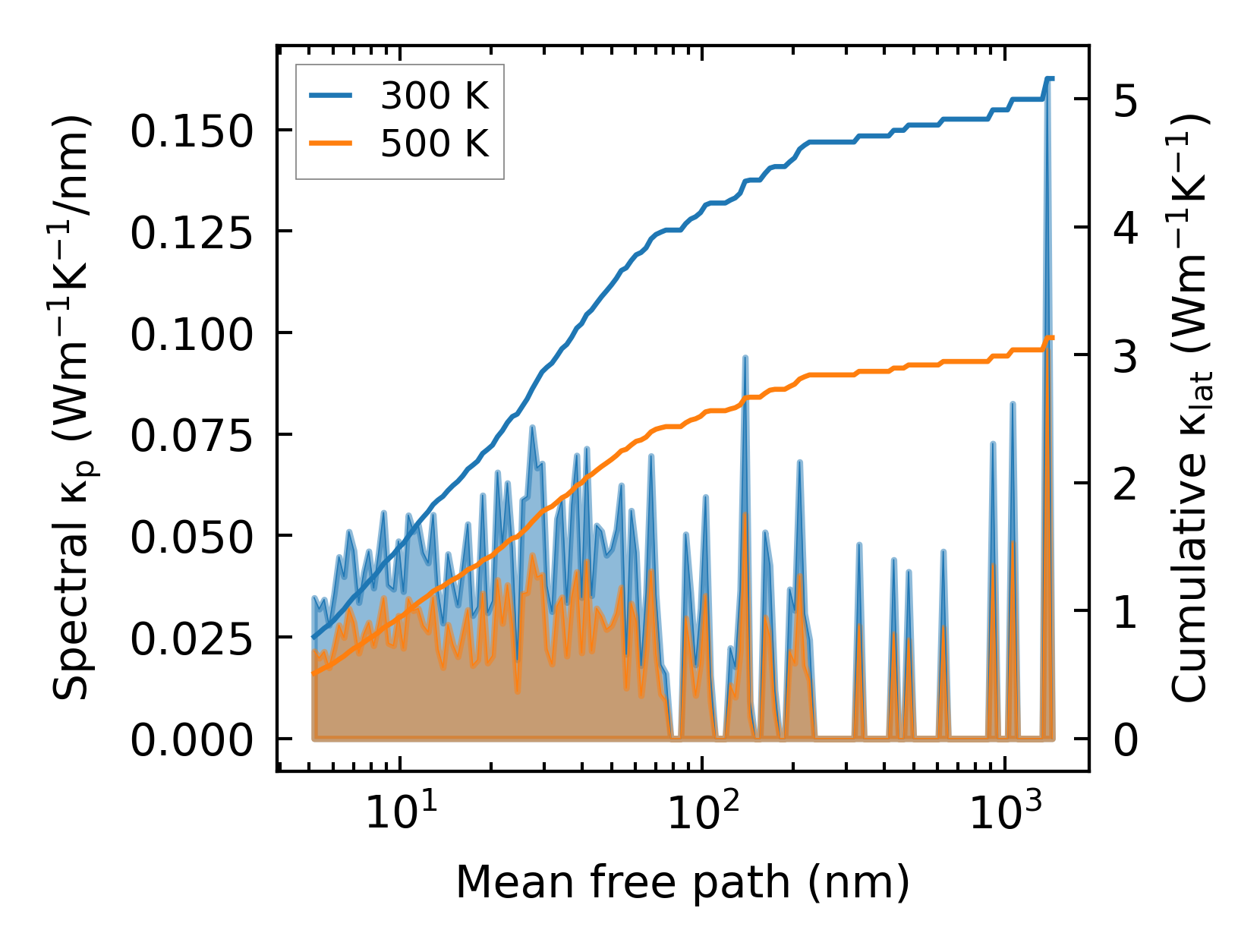

../../_images/fig_cumu_mfp5458.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

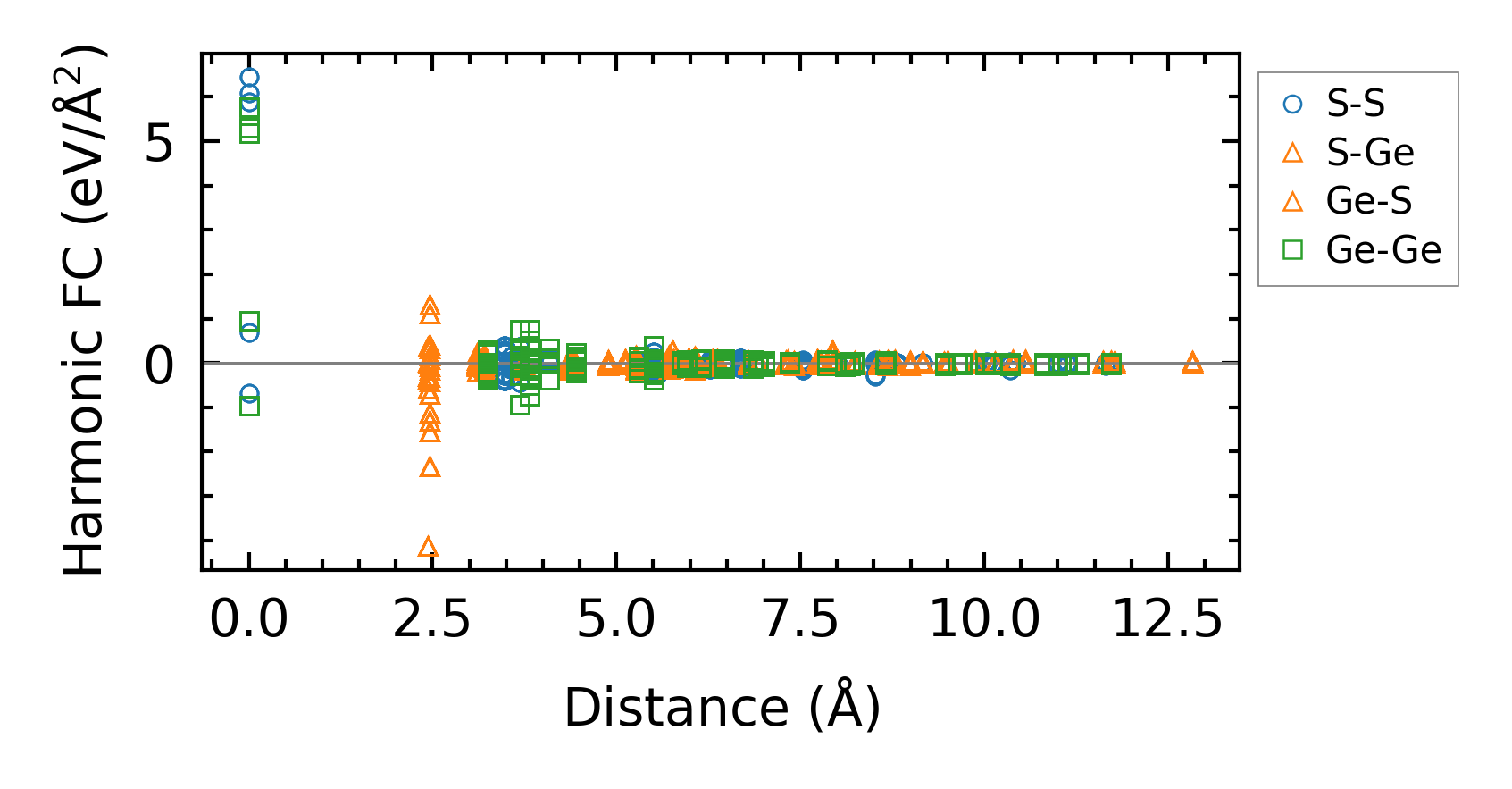

../../_images/fig_fc212837.png — (a) Force constants w.r.t atomic distance

Summary

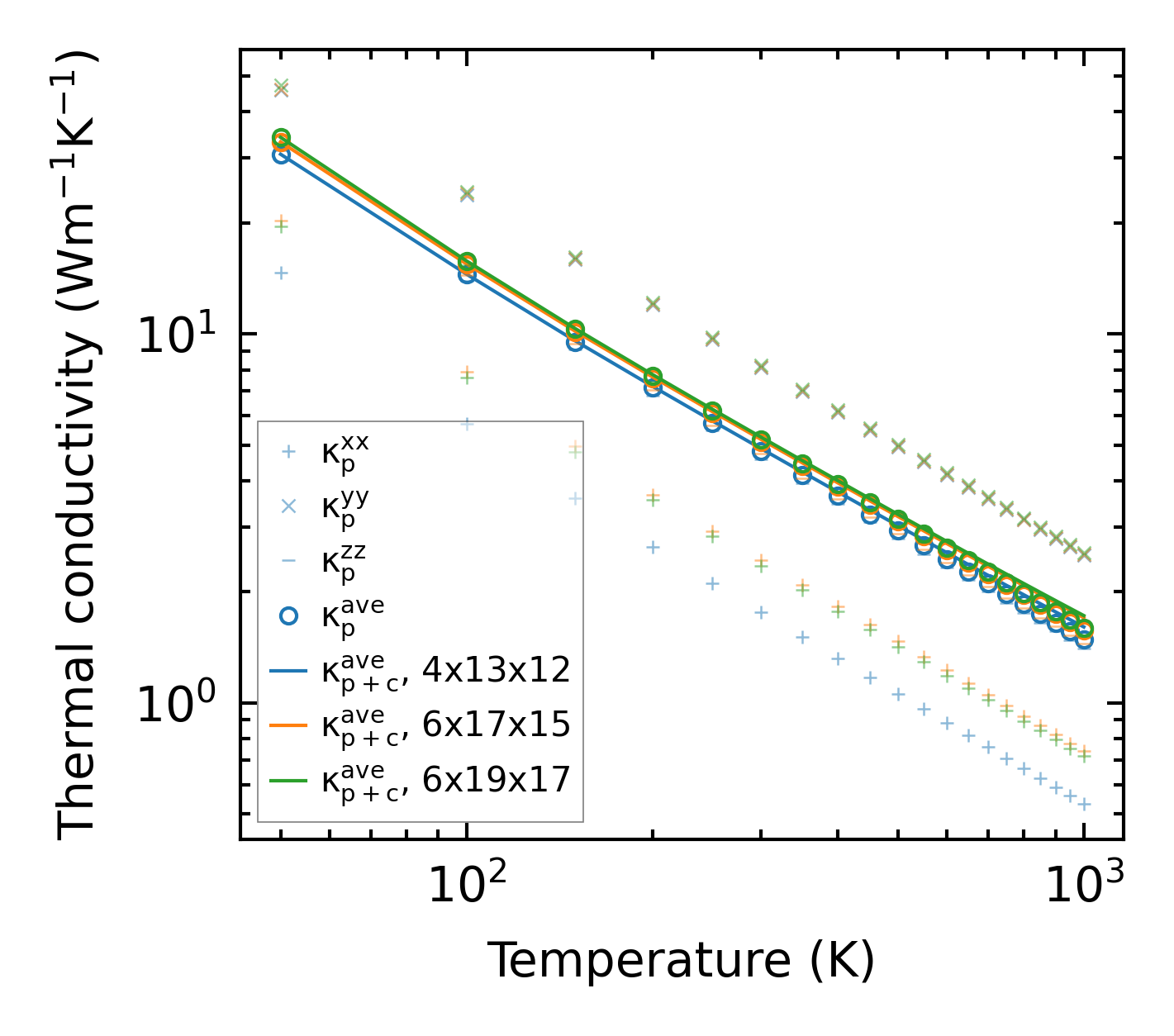

../../_images/fig_kappa10352.png — (a) Temperature-dependent lattice thermal conductivity

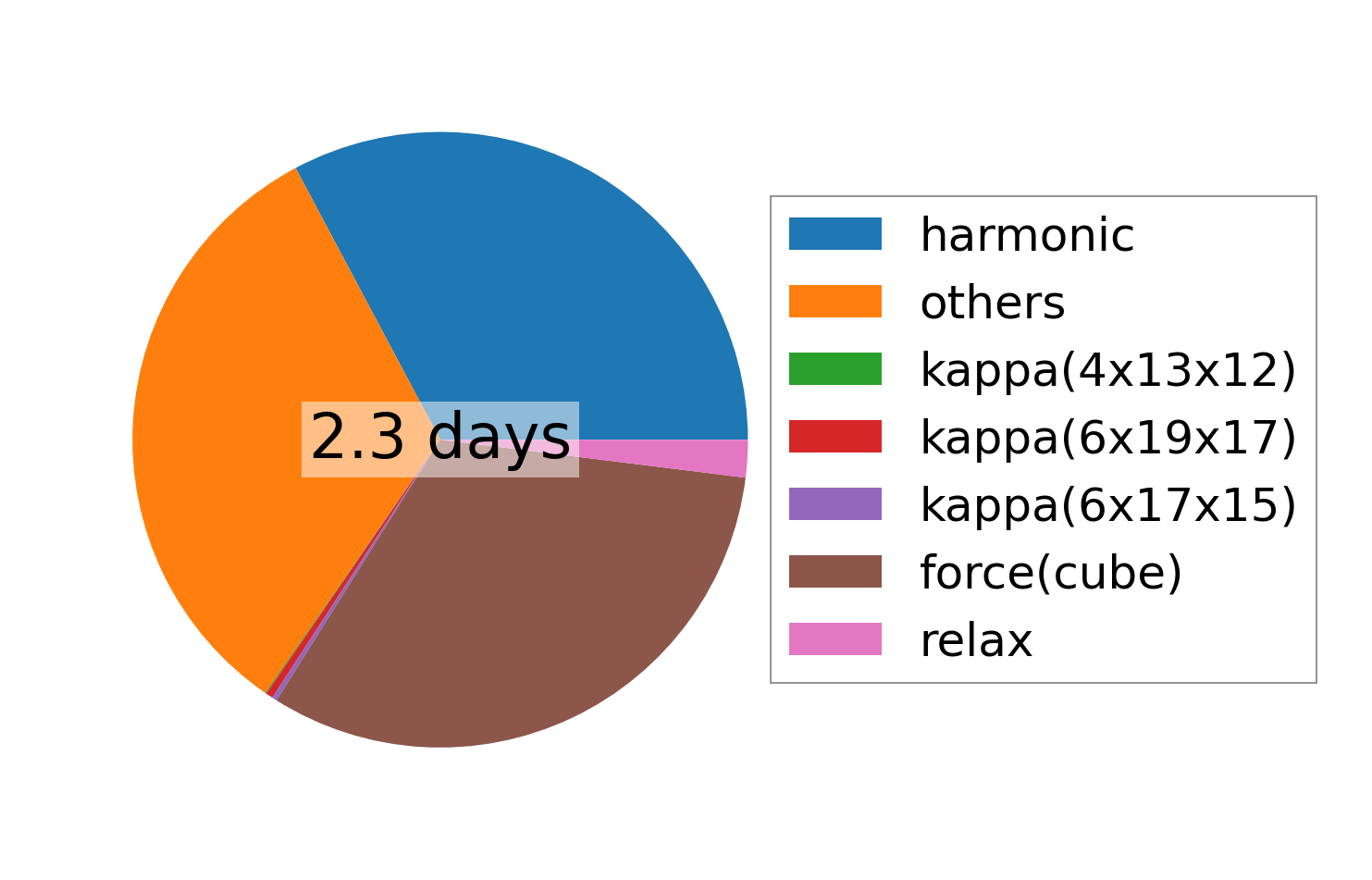

../../_images/fig_times22257.png — (b) Computation time
