mp-2782/ZnP2/anharm

Space group: P4_12_12 (92)
Link: Materials Project
Download: mp-2782.tar.gz

Equation of state

../../_images/fig_bm6621.png — (a) Equation of state

Harmonic properties

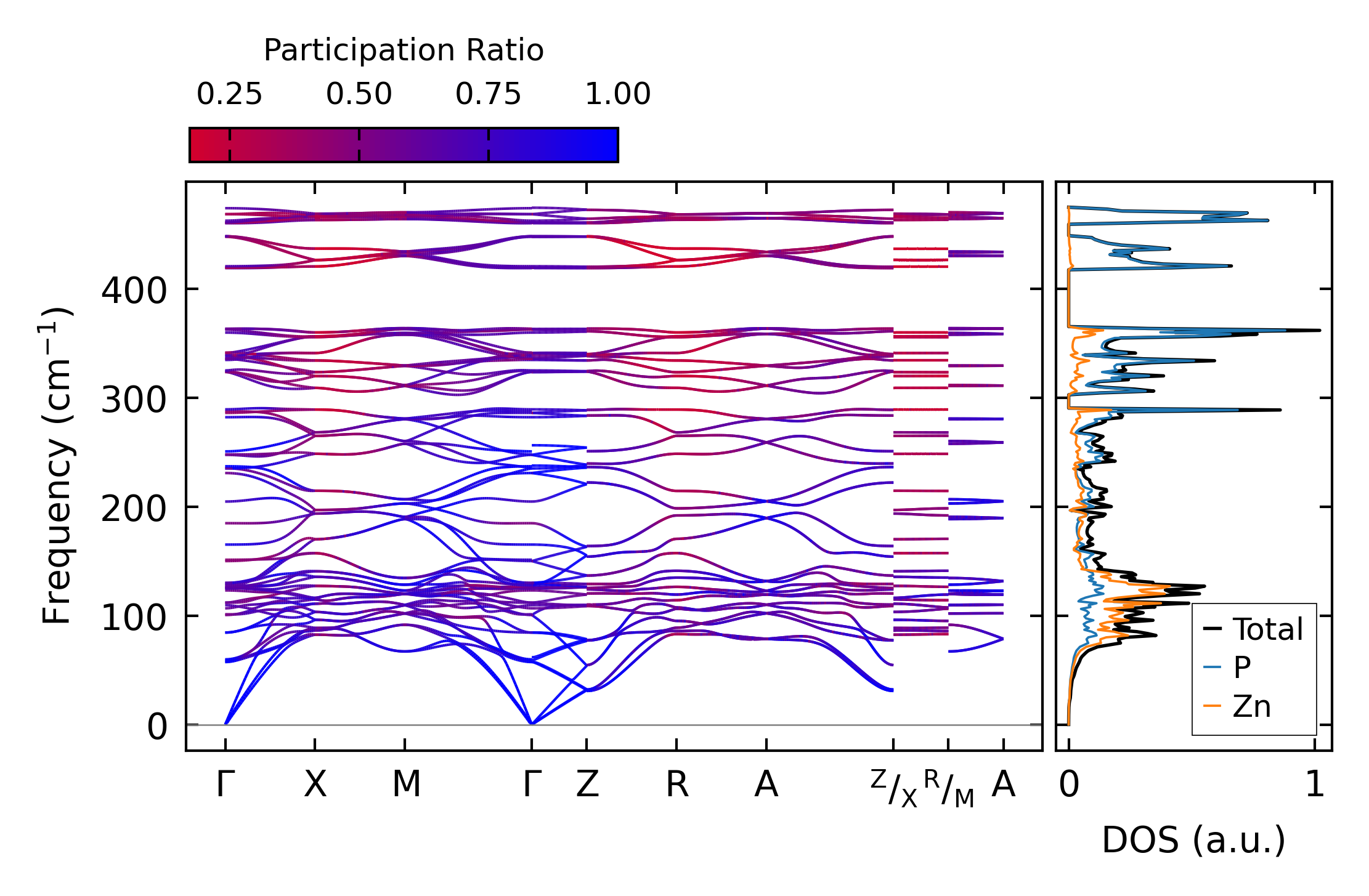

../../_images/fig_bandos_pr13254.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo13254.png — (b) Thermodynamic properties

Grüneisen parameters

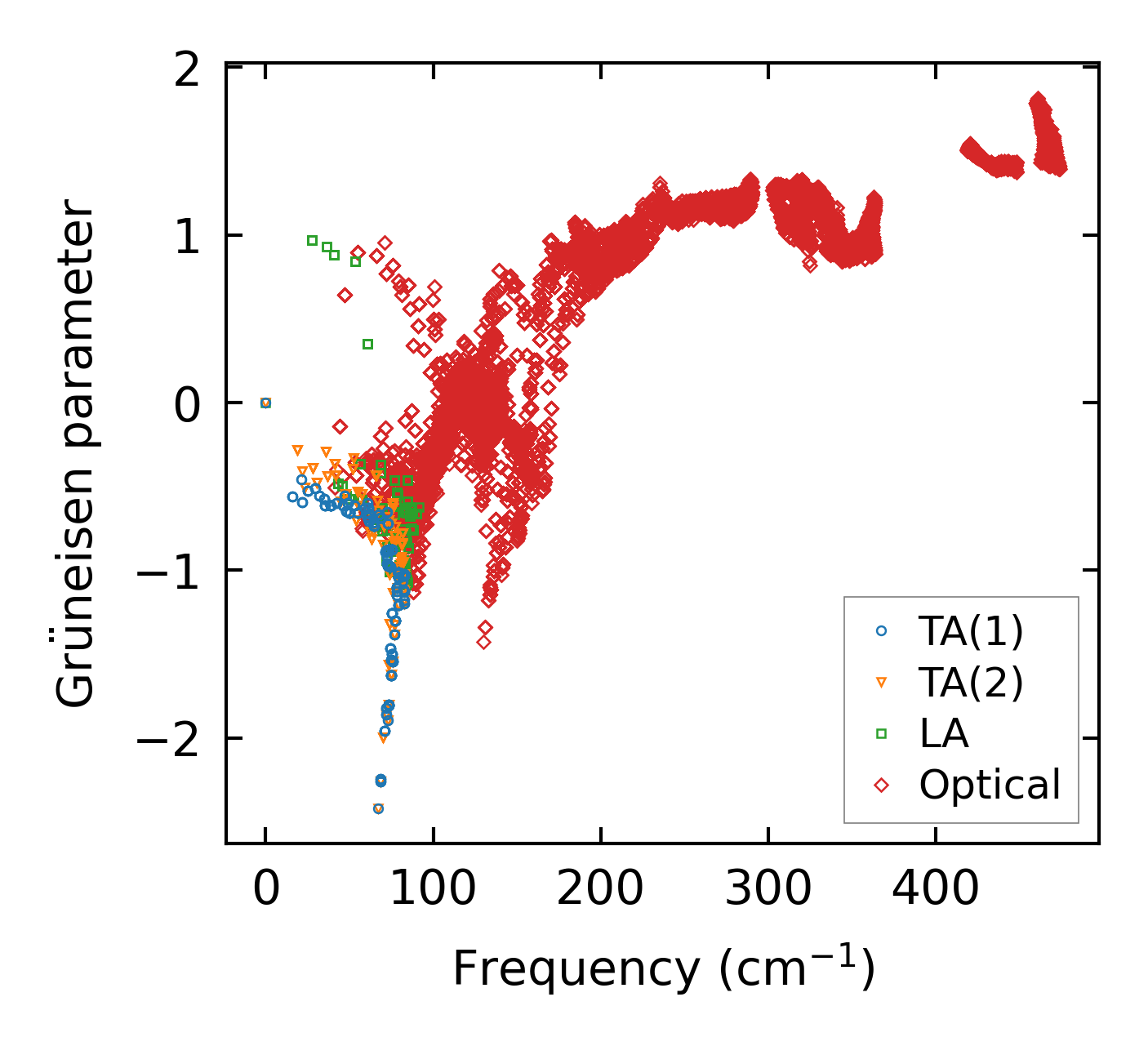

../../_images/fig_gru_all5565.png — (a) Grüneisen parameters

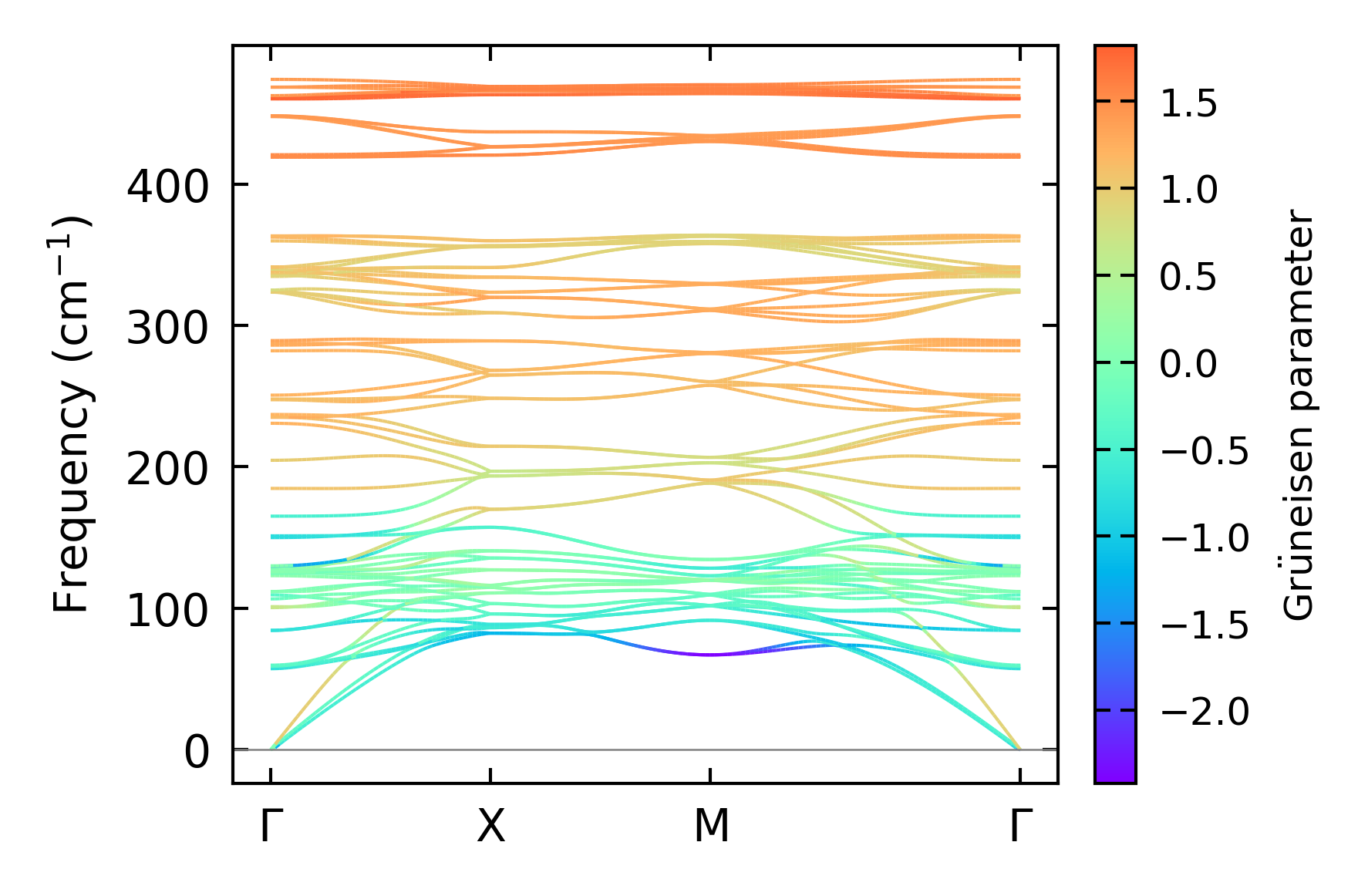

../../_images/fig_gruneisen5565.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x14x3, supercell: 2x2x1

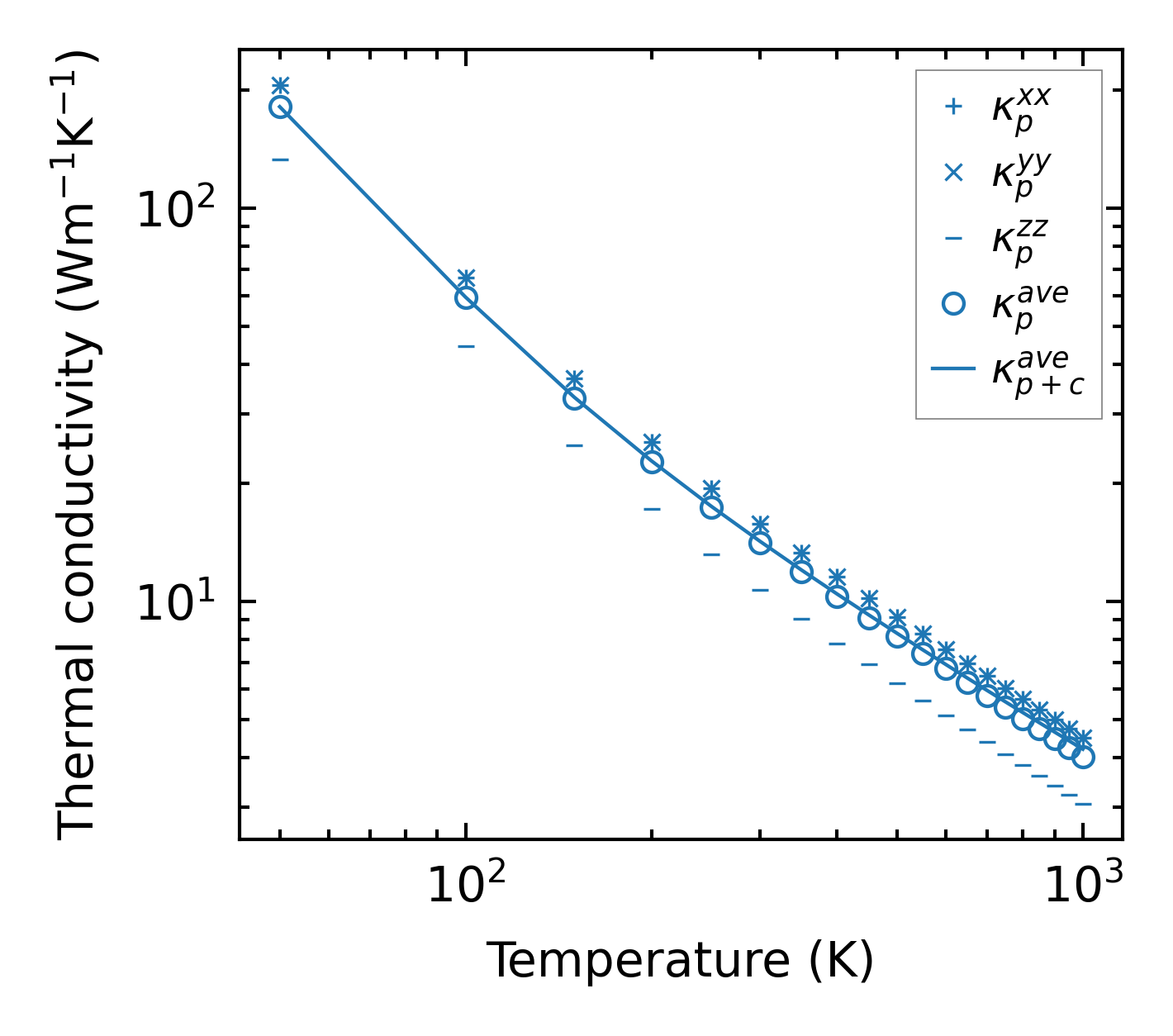

../../_images/fig_kappa10453.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size5629.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime5510.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates5509.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

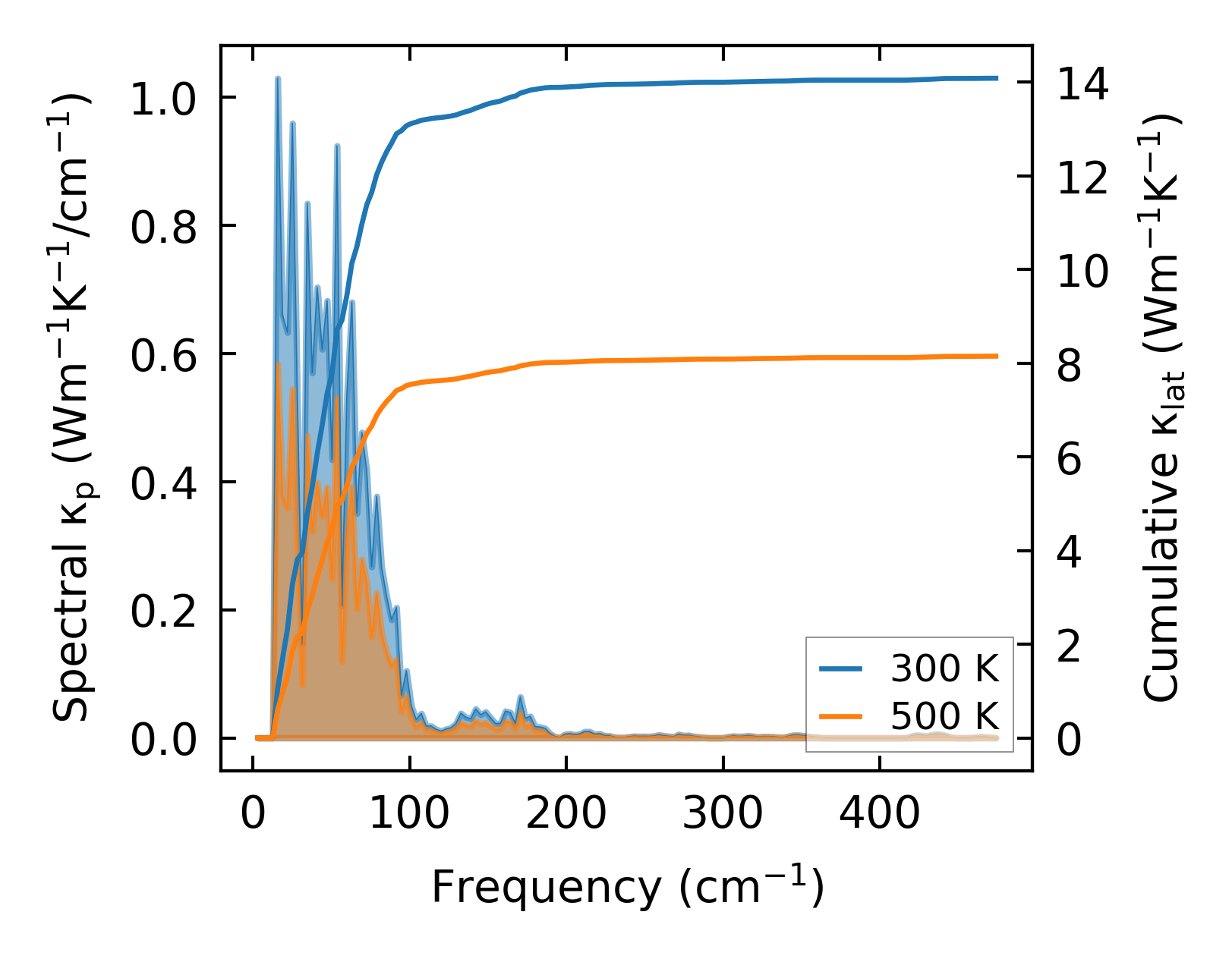

../../_images/fig_cumu_frequency5510.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

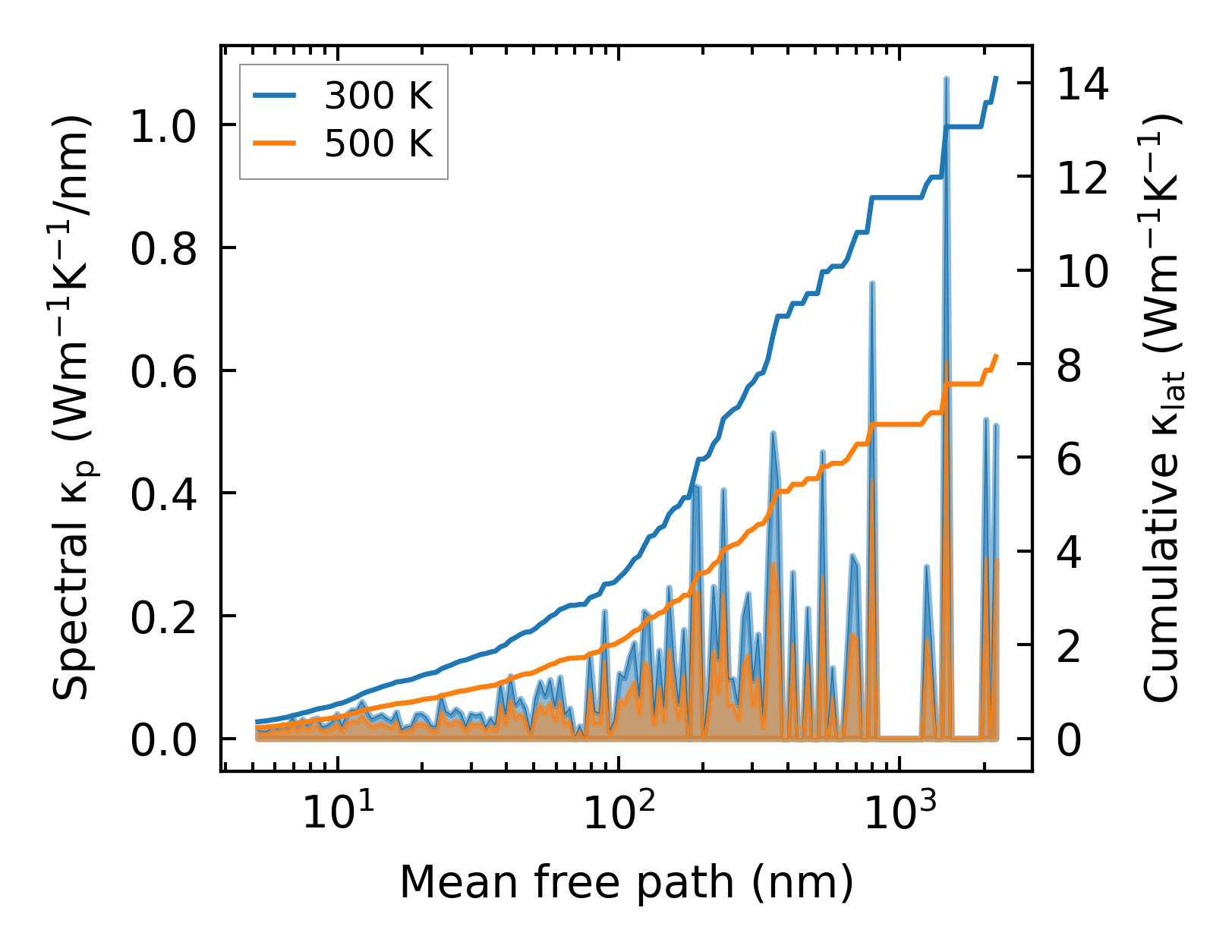

../../_images/fig_cumu_mfp5509.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

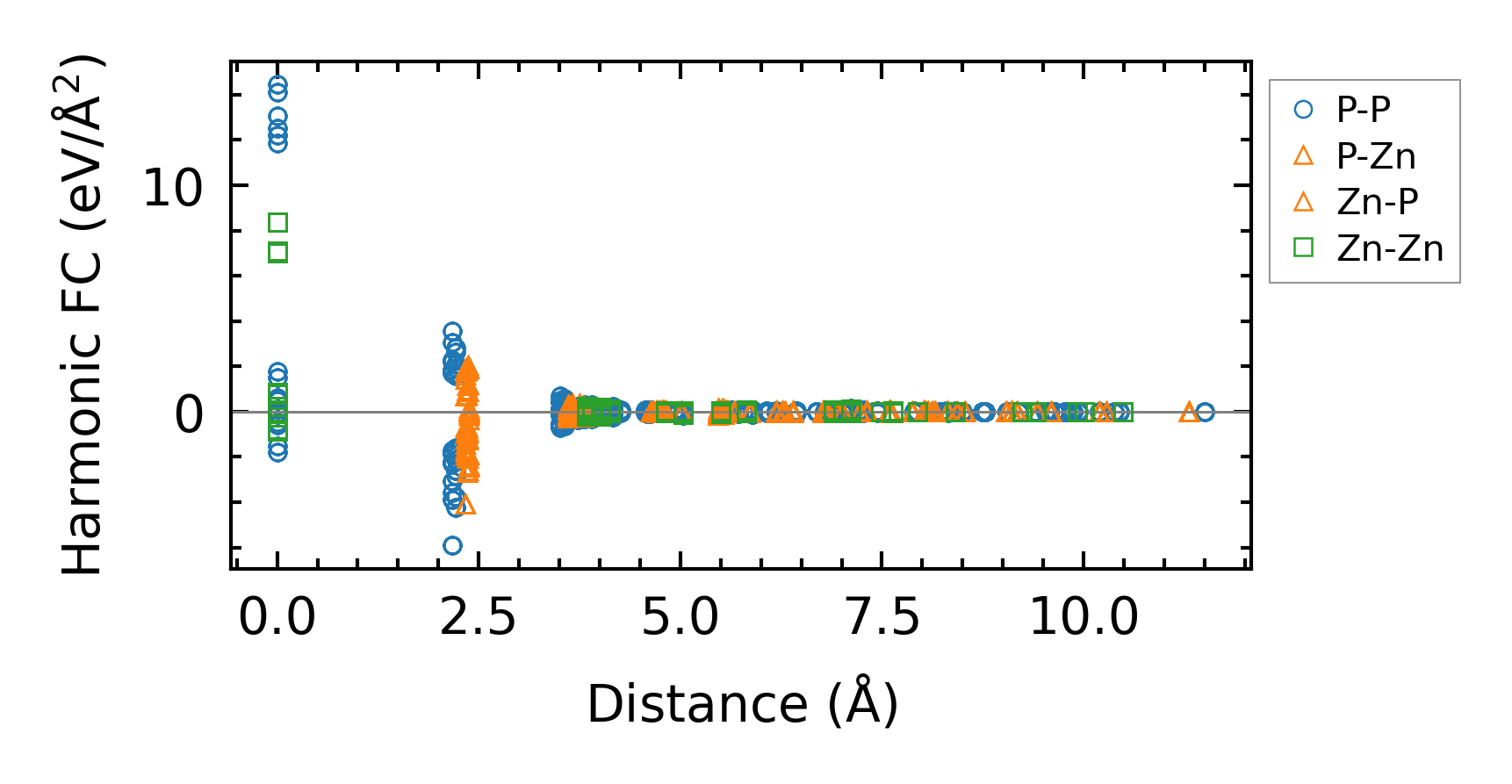

../../_images/fig_fc212899.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa10454.png — (a) Temperature-dependent lattice thermal conductivity

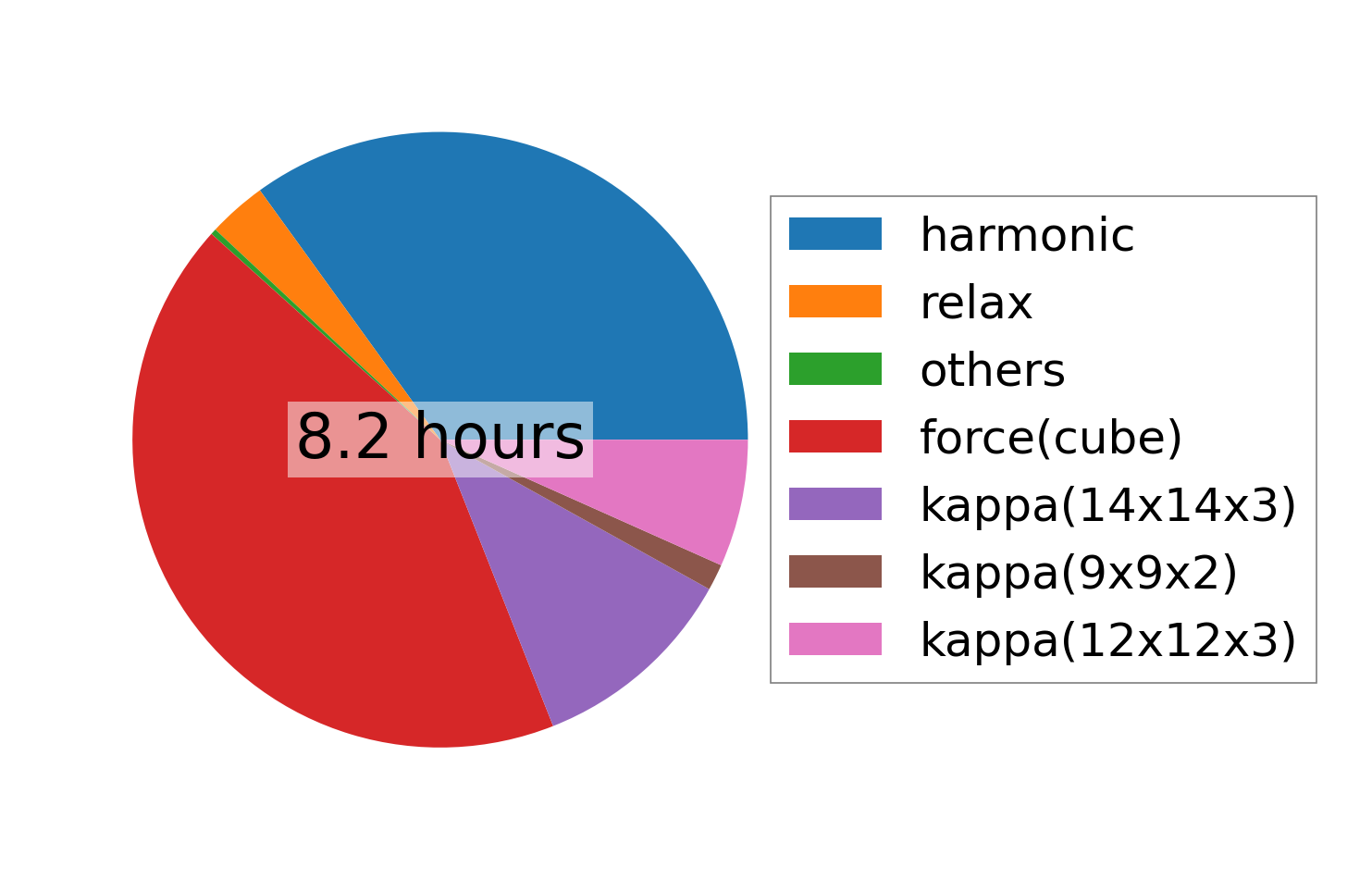

../../_images/fig_times22357.png — (b) Computation time
