mp-2076-2/ZrSe2/anharm

Space group: P-3m1 (164)
Link: Materials Project
Download: mp-2076-2.tar.gz

Equation of state

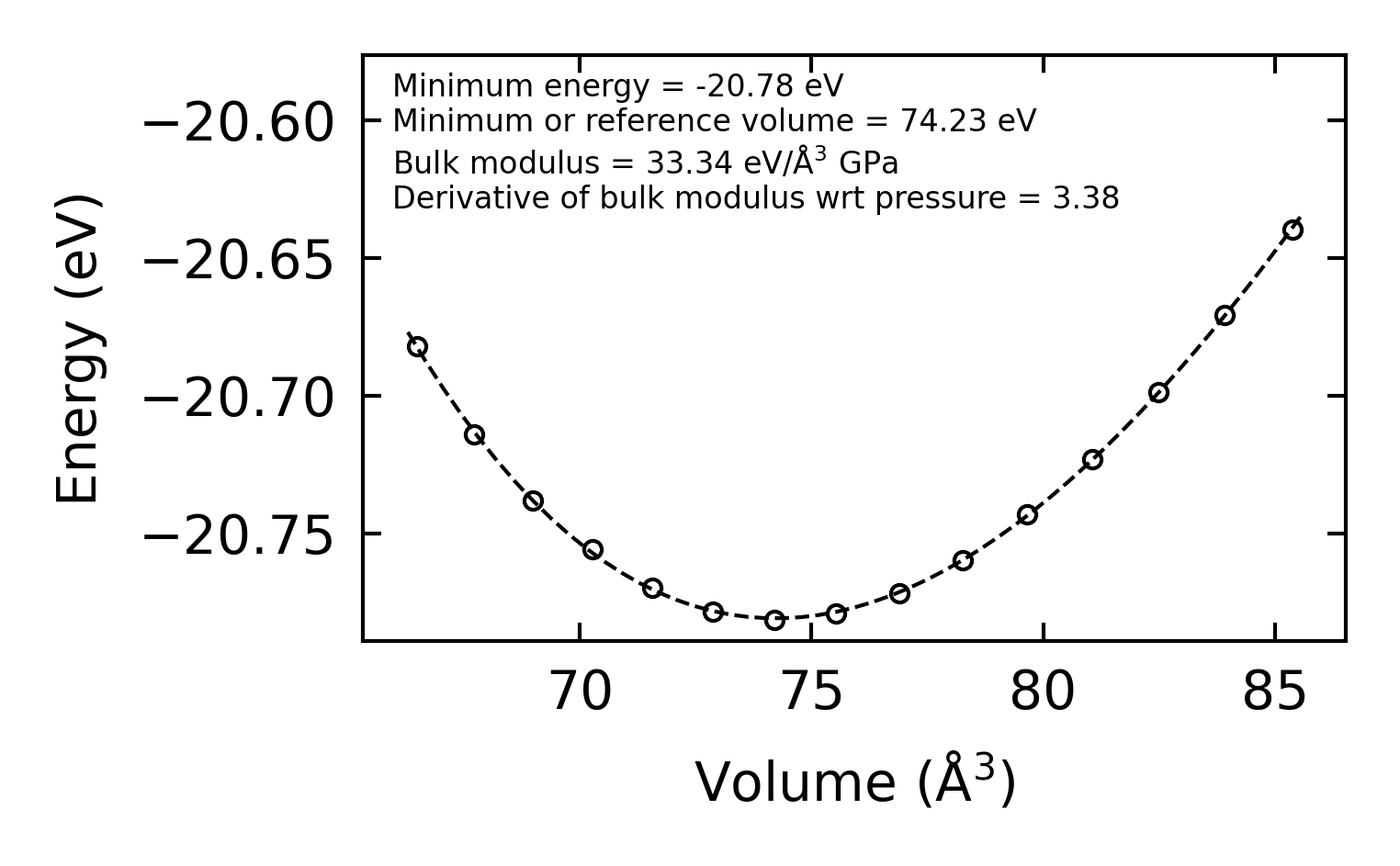

../../_images/fig_bm6754.png — (a) Equation of state

Harmonic properties

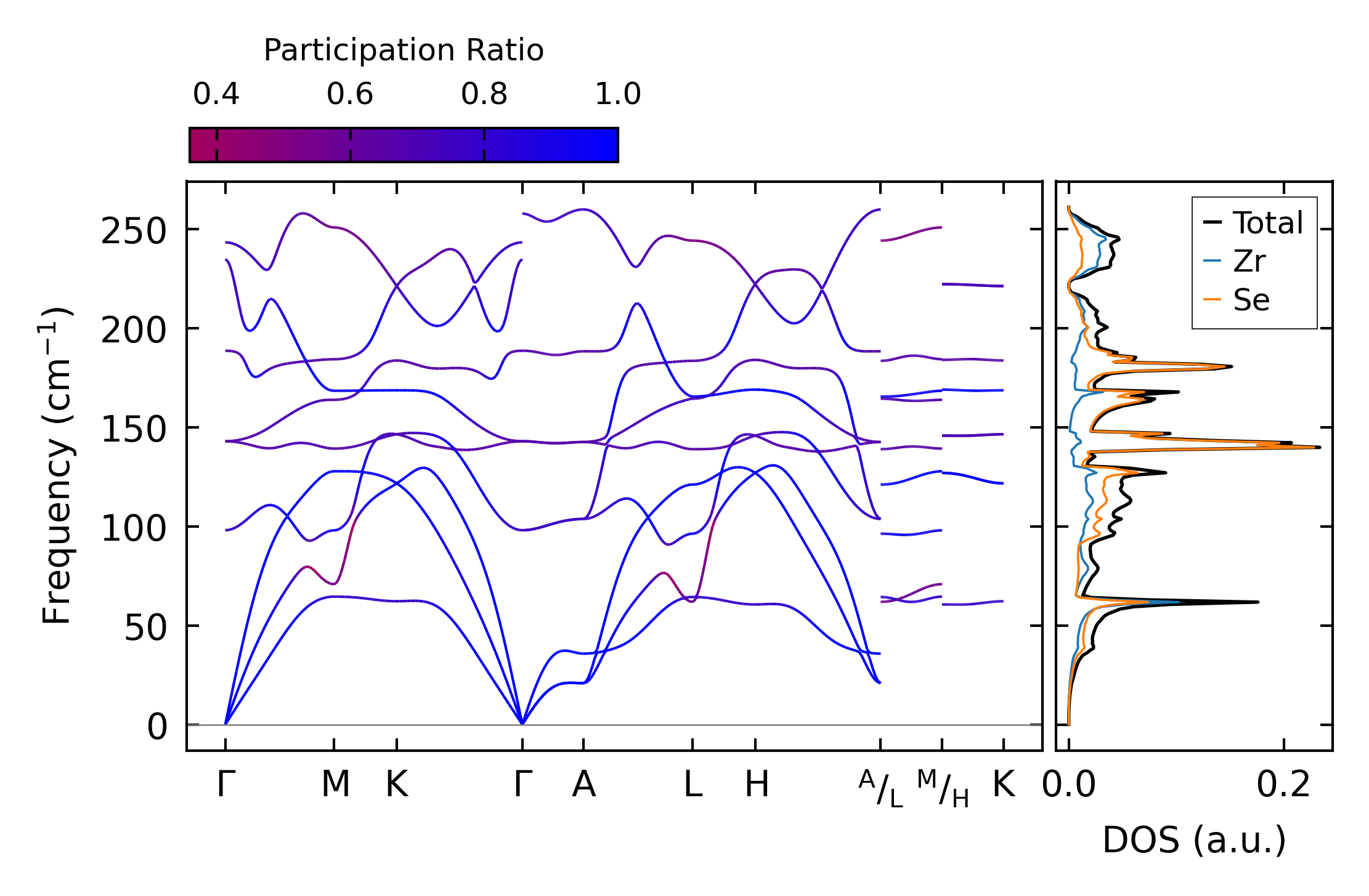

../../_images/fig_bandos_pr13527.png — (a) Phonon dispersion with participation ratio and DOS

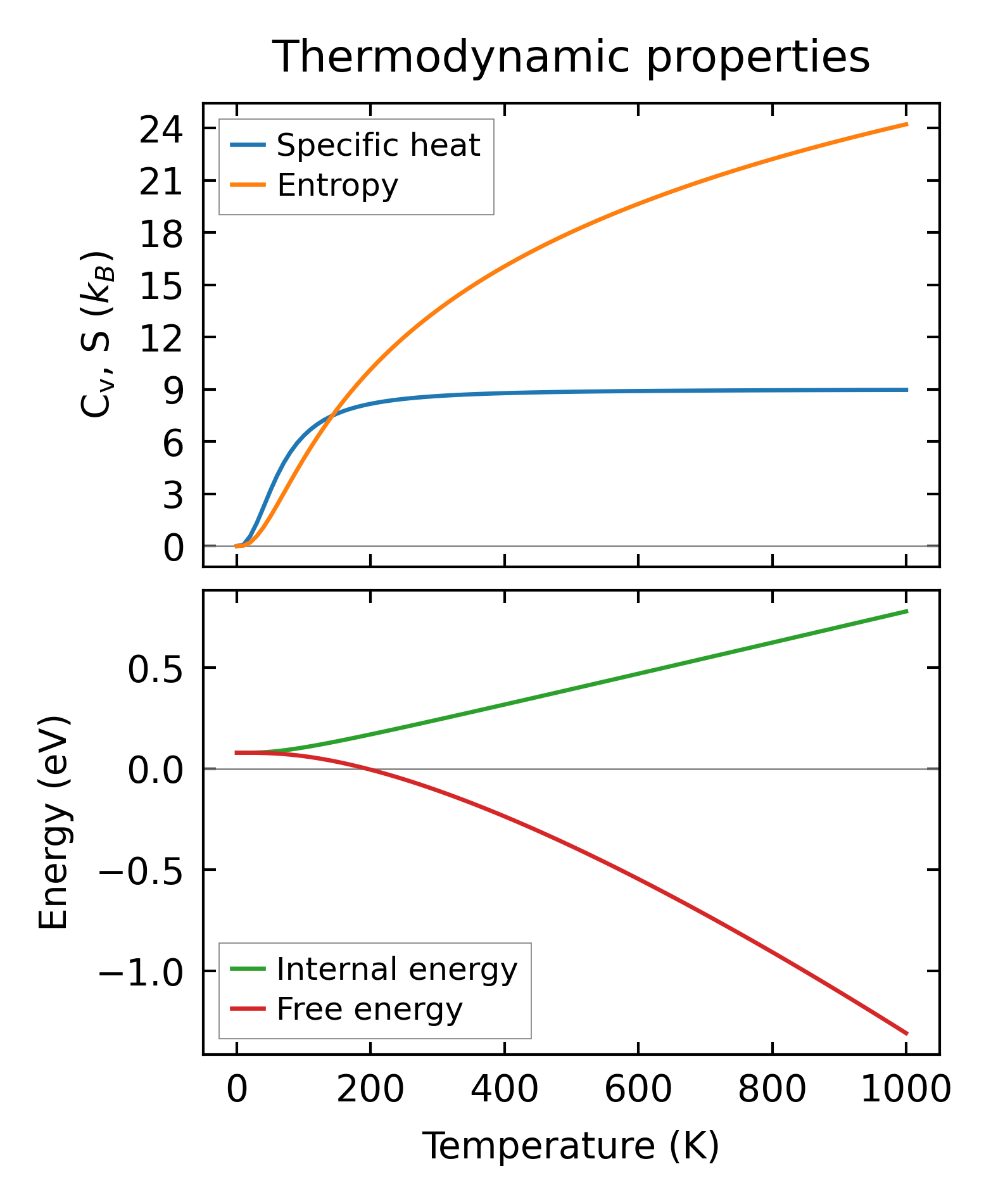

../../_images/fig_thermo13527.png — (b) Thermodynamic properties

Grüneisen parameters

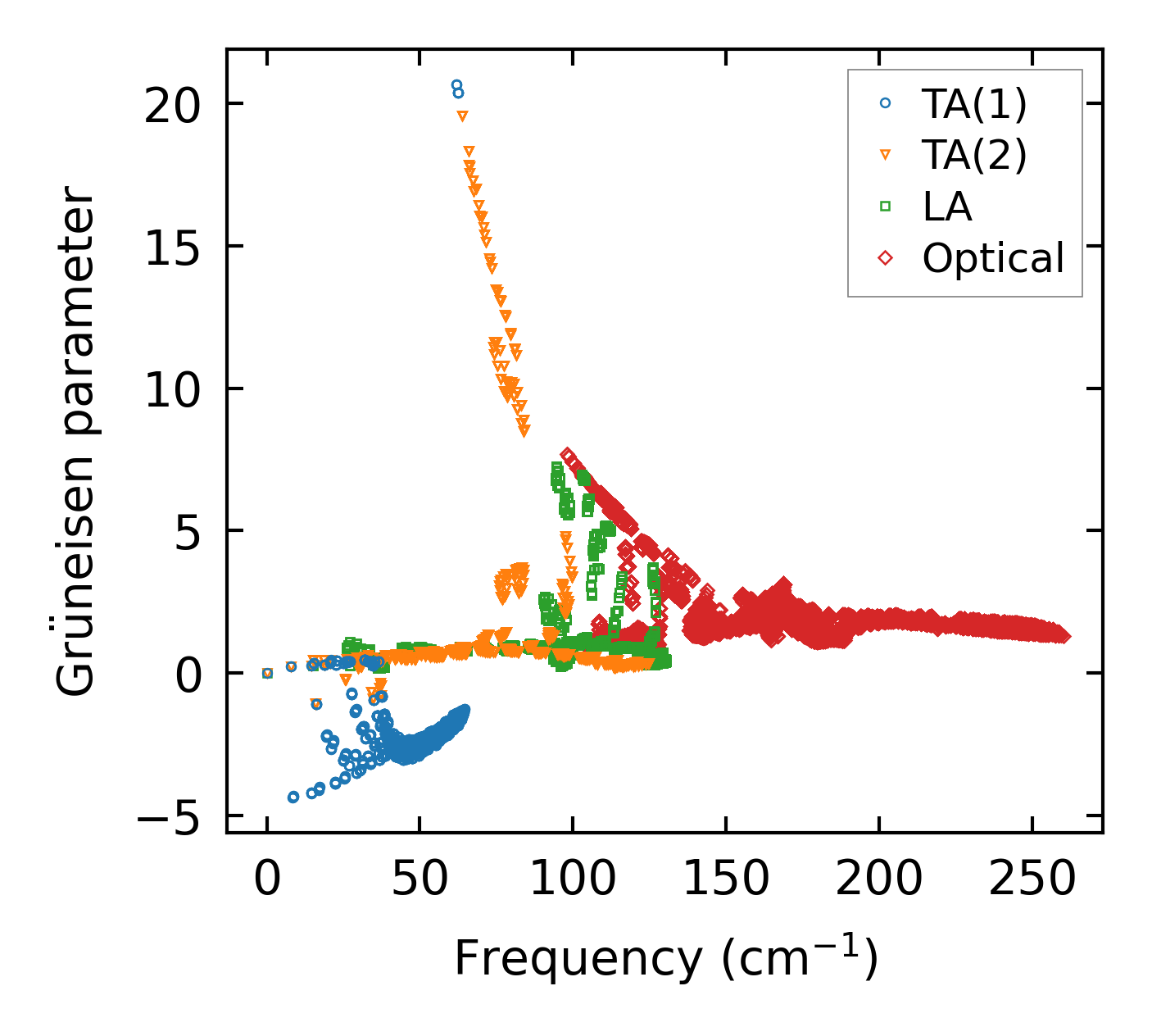

../../_images/fig_gru_all5724.png — (a) Grüneisen parameters

../../_images/fig_gruneisen5724.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 20x20x12, supercell: 4x4x3

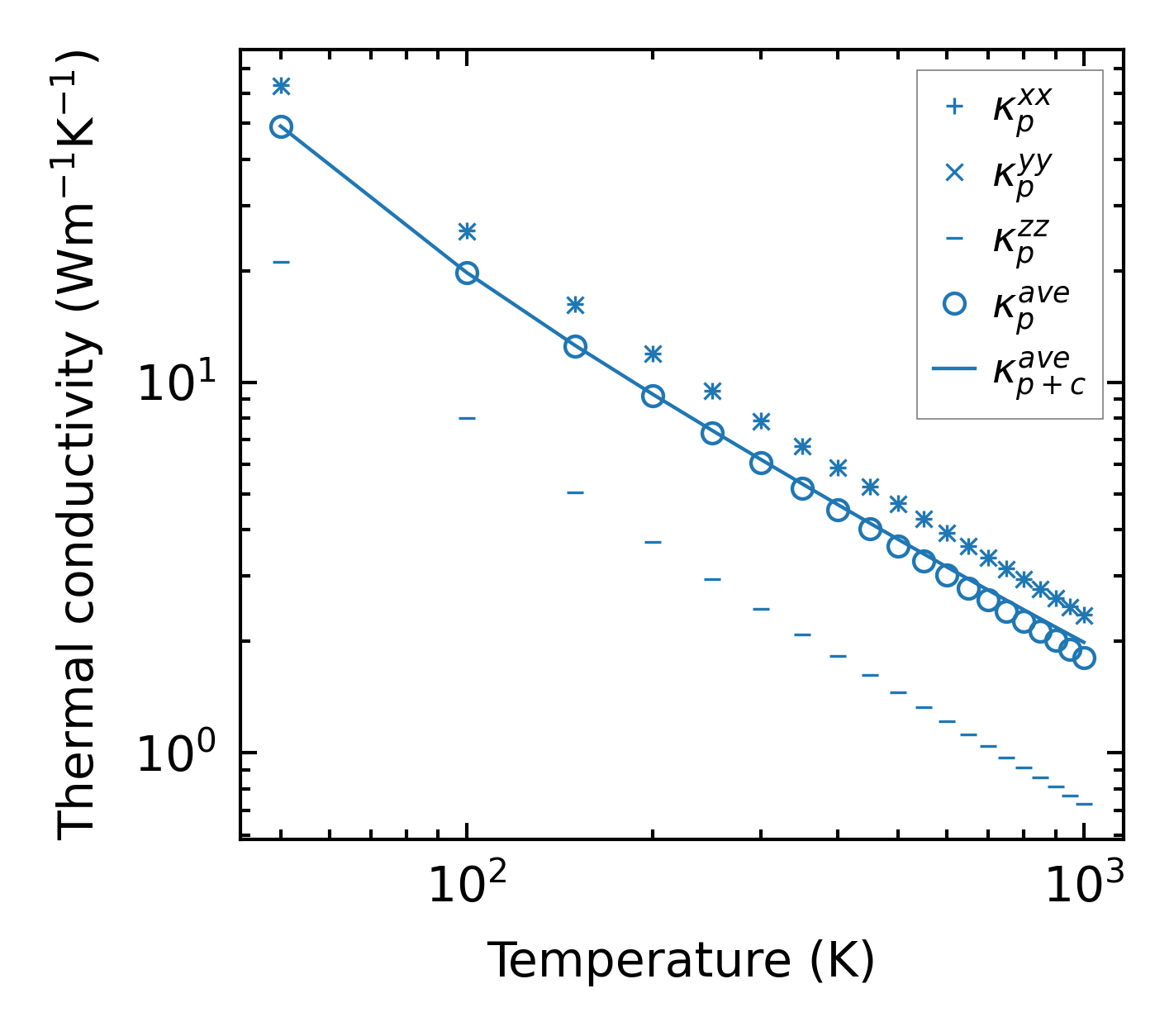

../../_images/fig_kappa10761.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size5792.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime5669.png — (a) Phonon lifetime due to phonon-phonon scattering

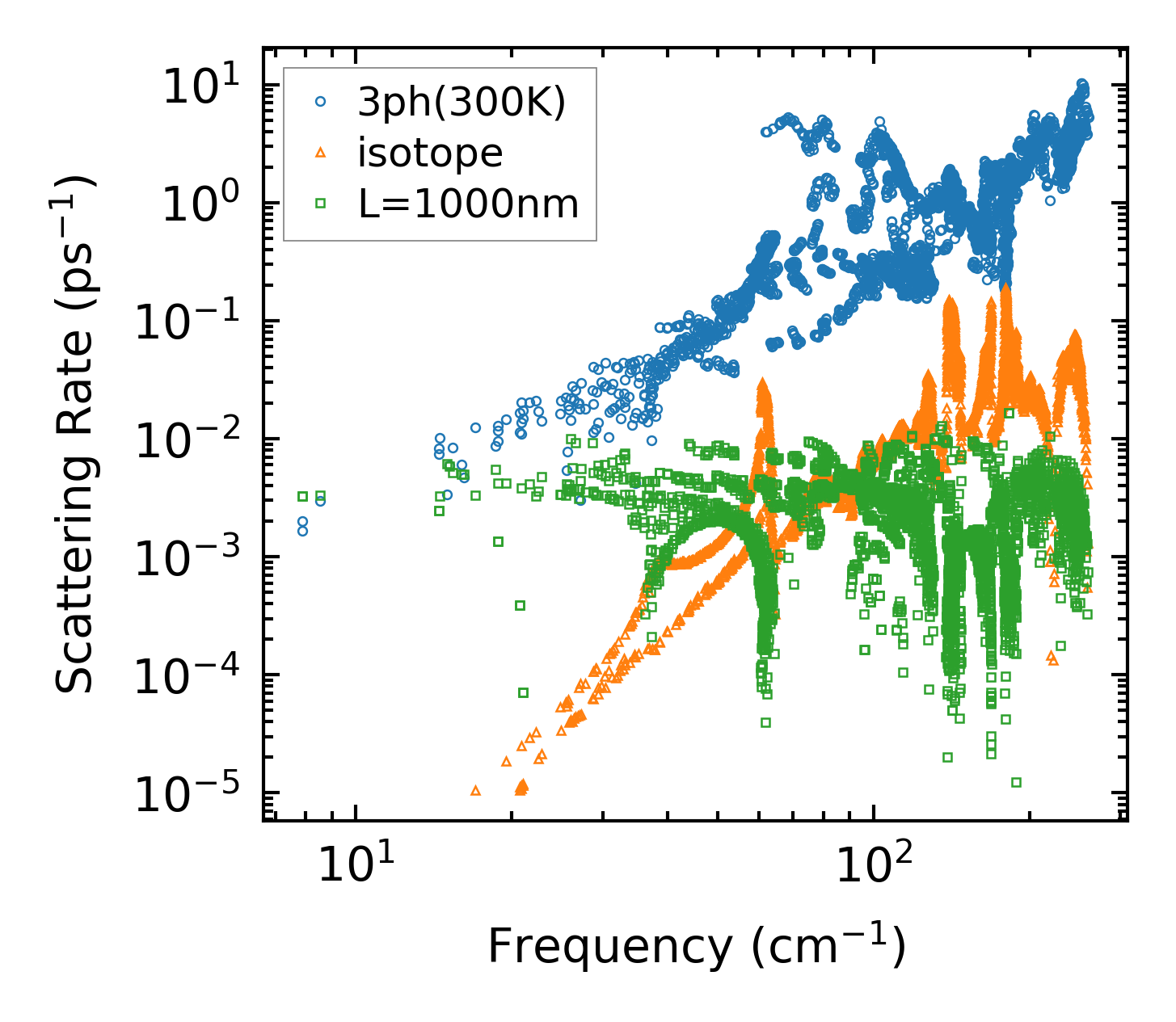

../../_images/fig_scat_rates5668.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency5669.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp5668.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc213159.png — (a) Force constants w.r.t atomic distance

Summary

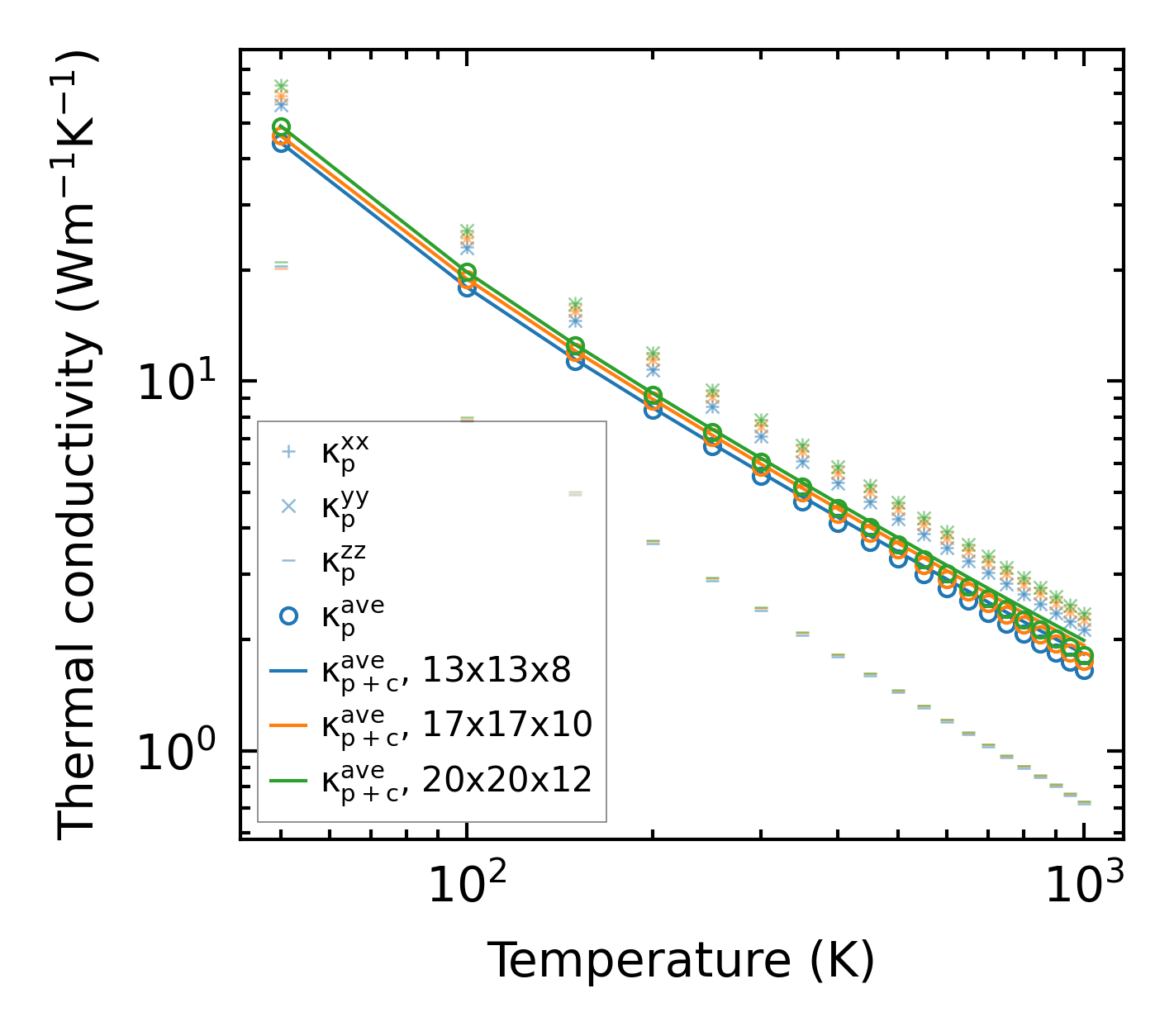

../../_images/fig_kappa10762.png — (a) Temperature-dependent lattice thermal conductivity

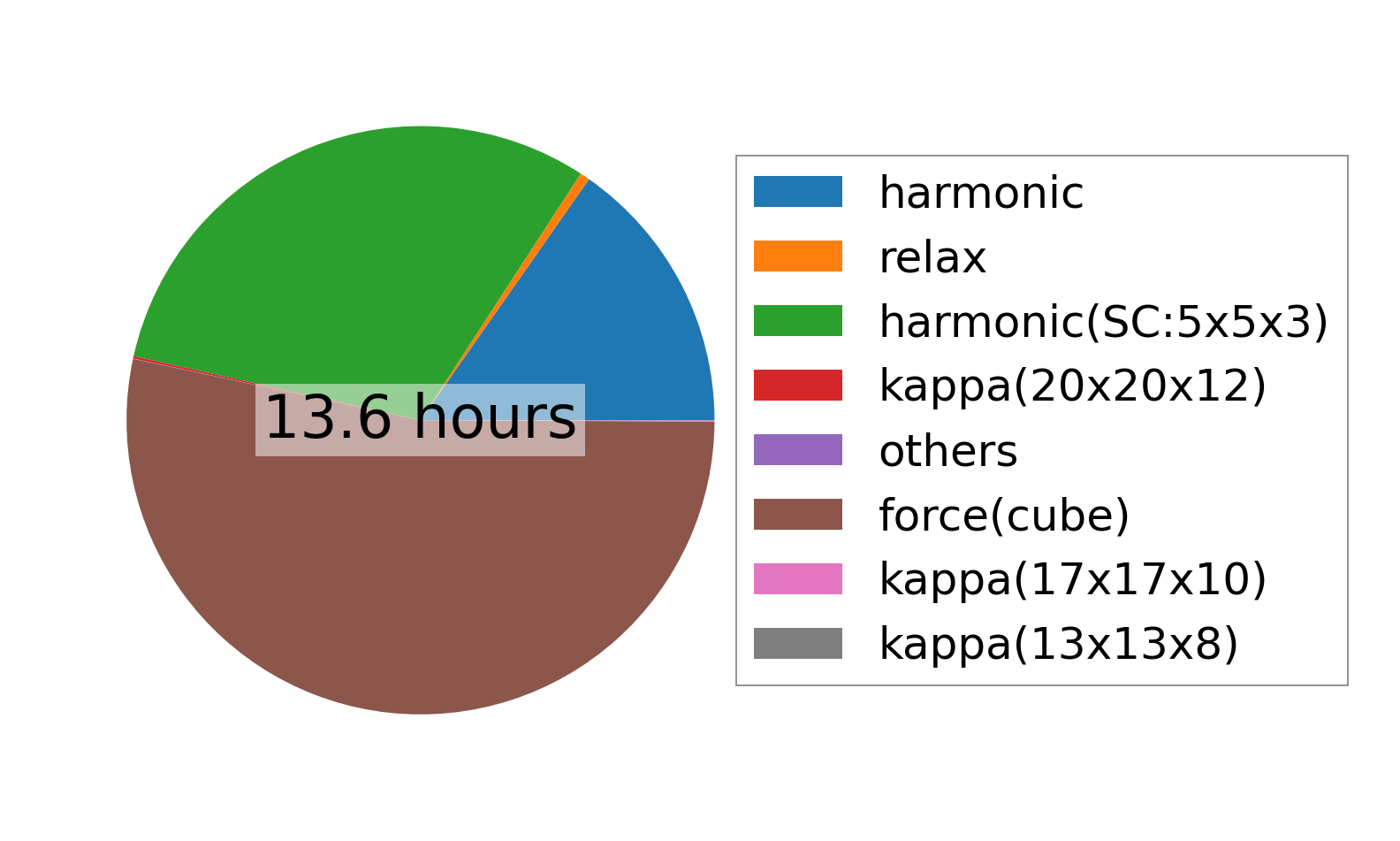

../../_images/fig_times22751.png — (b) Computation time
