mp-2511/PbF2/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-2511.tar.gz

Harmonic properties

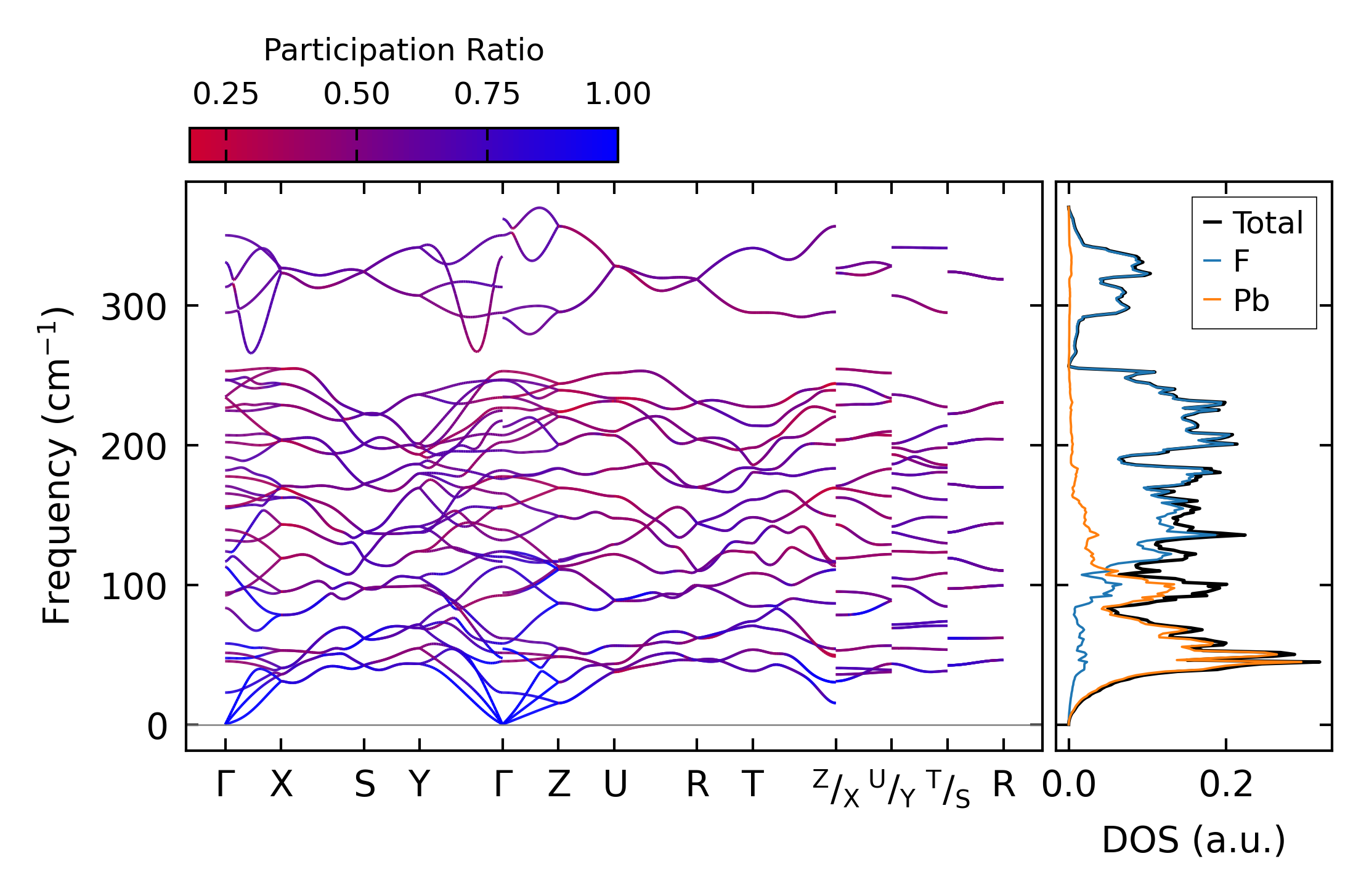

../../_images/fig_bandos_pr13217.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo13217.png — (b) Thermodynamic properties

Grüneisen parameters

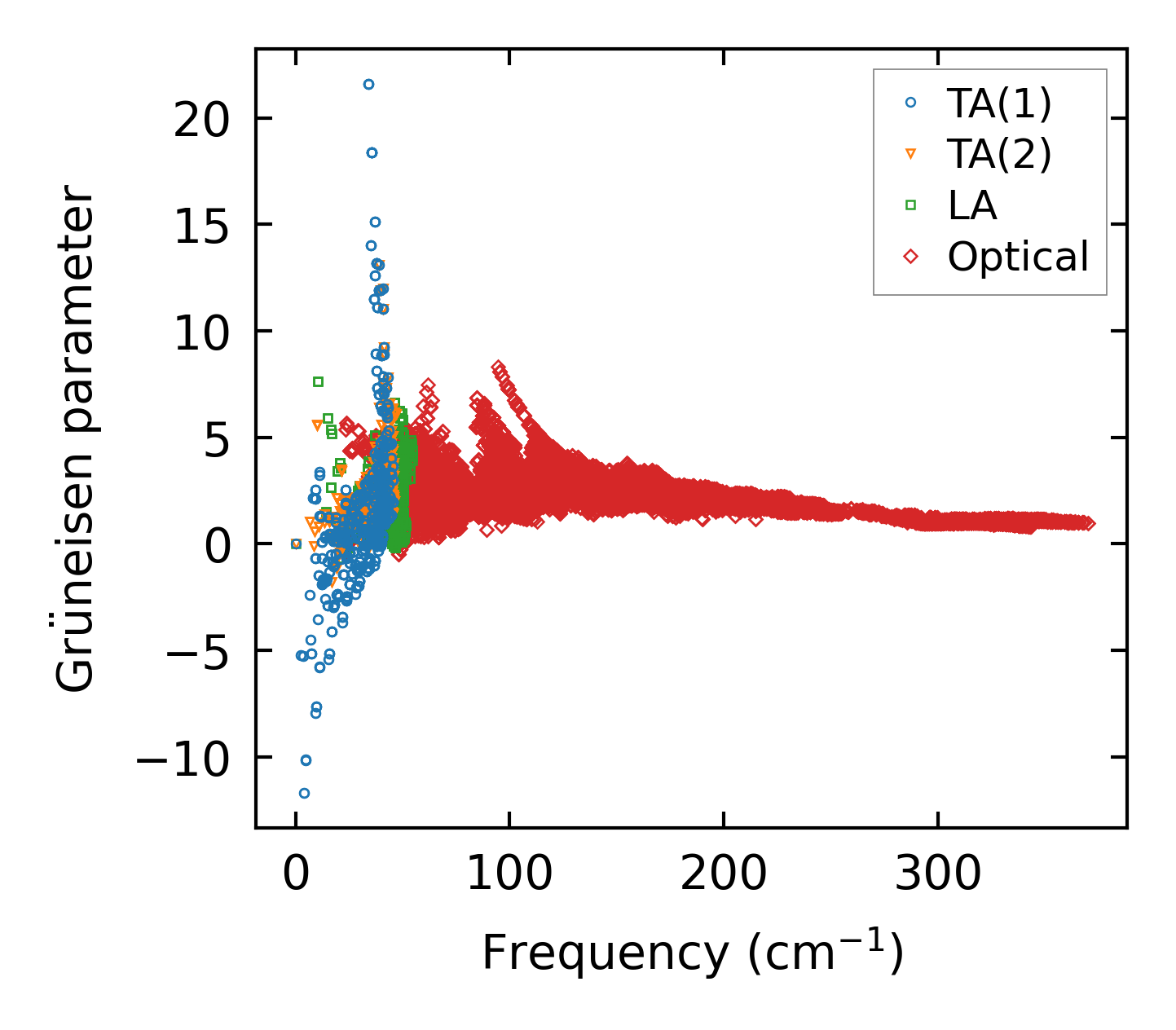

../../_images/fig_gru_all5535.png — (a) Grüneisen parameters

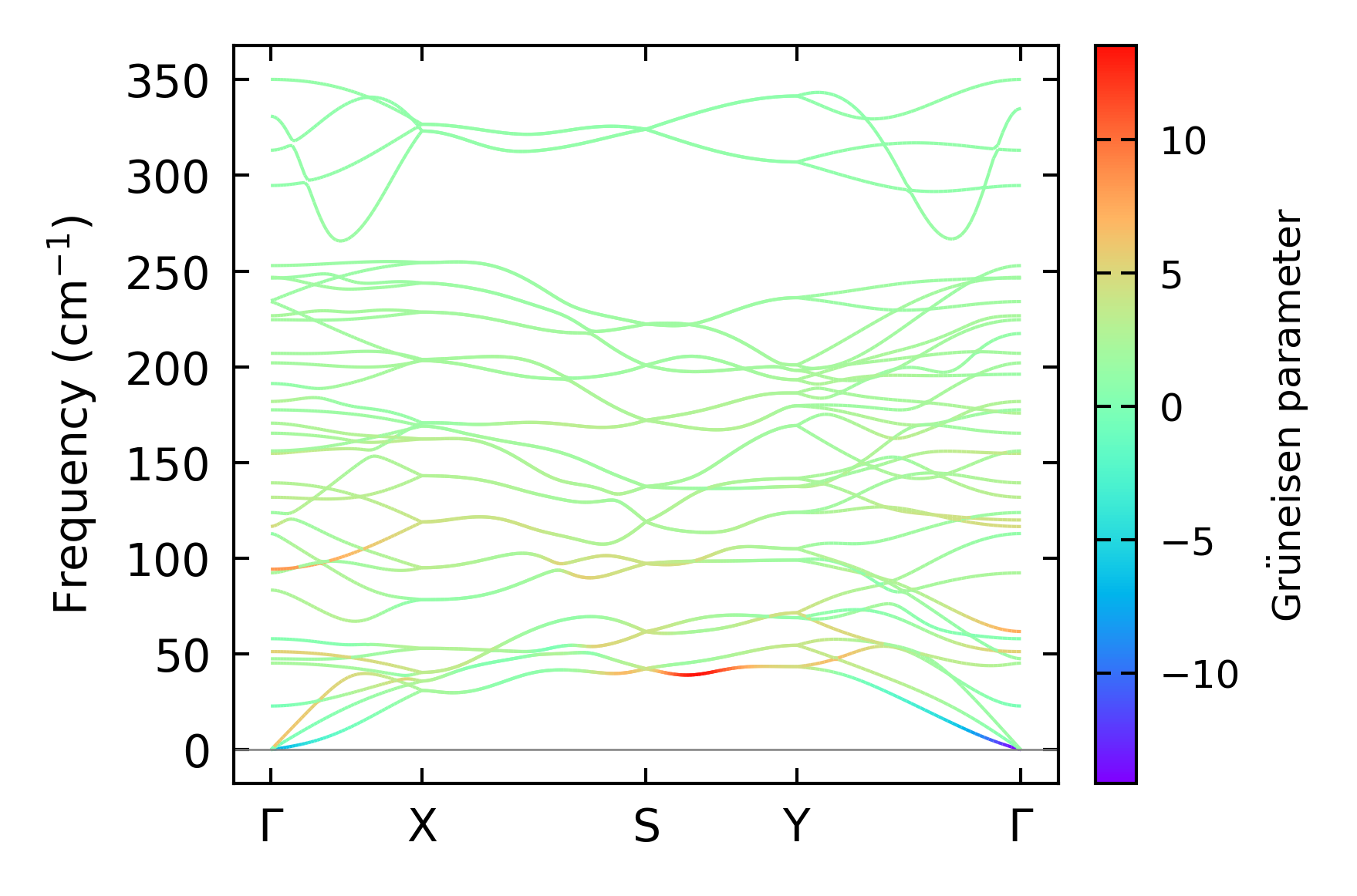

../../_images/fig_gruneisen5535.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x18x9, supercell: 2x3x2

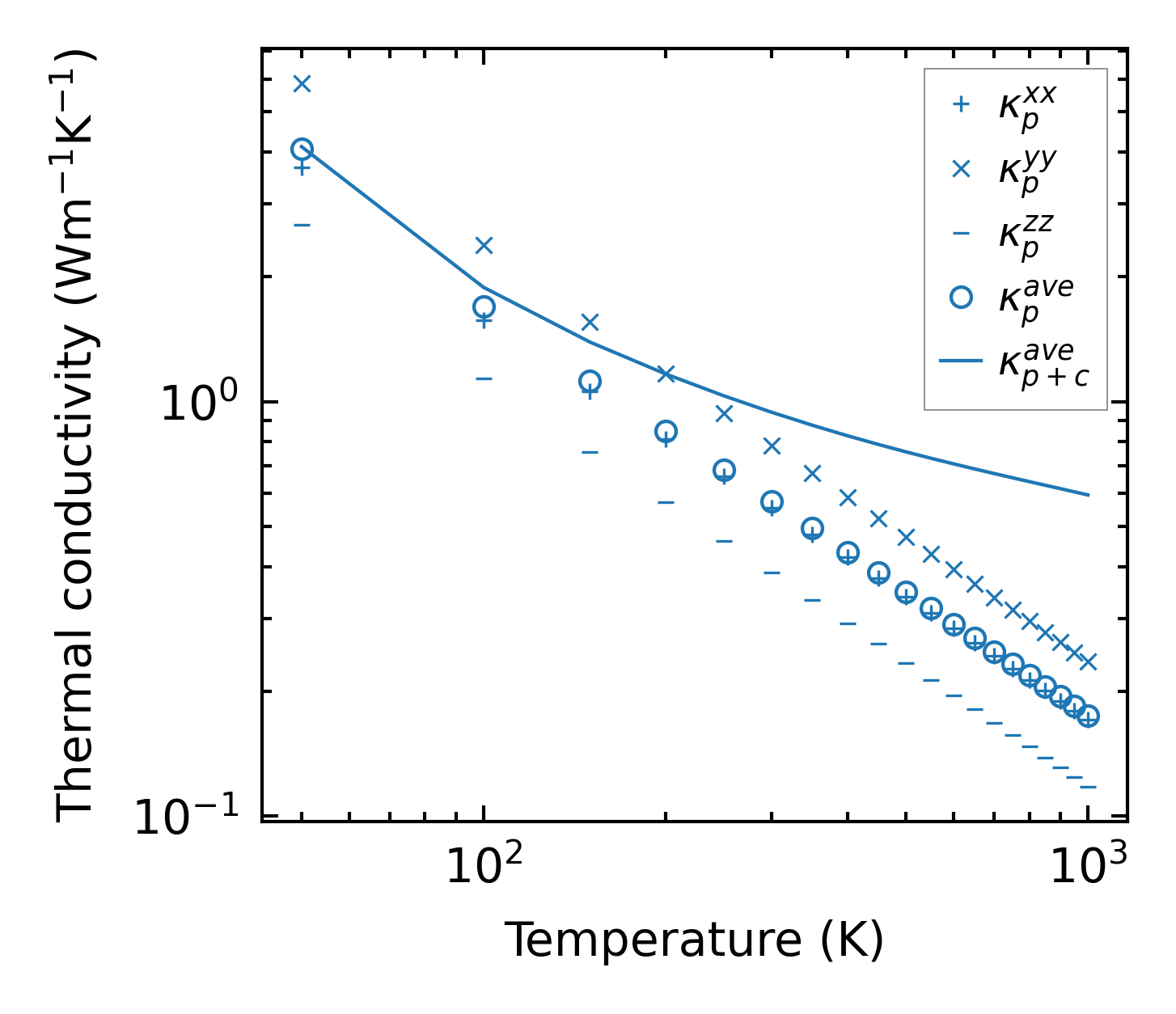

../../_images/fig_kappa10395.png — (a) Temperature-dependent lattice thermal conductivity

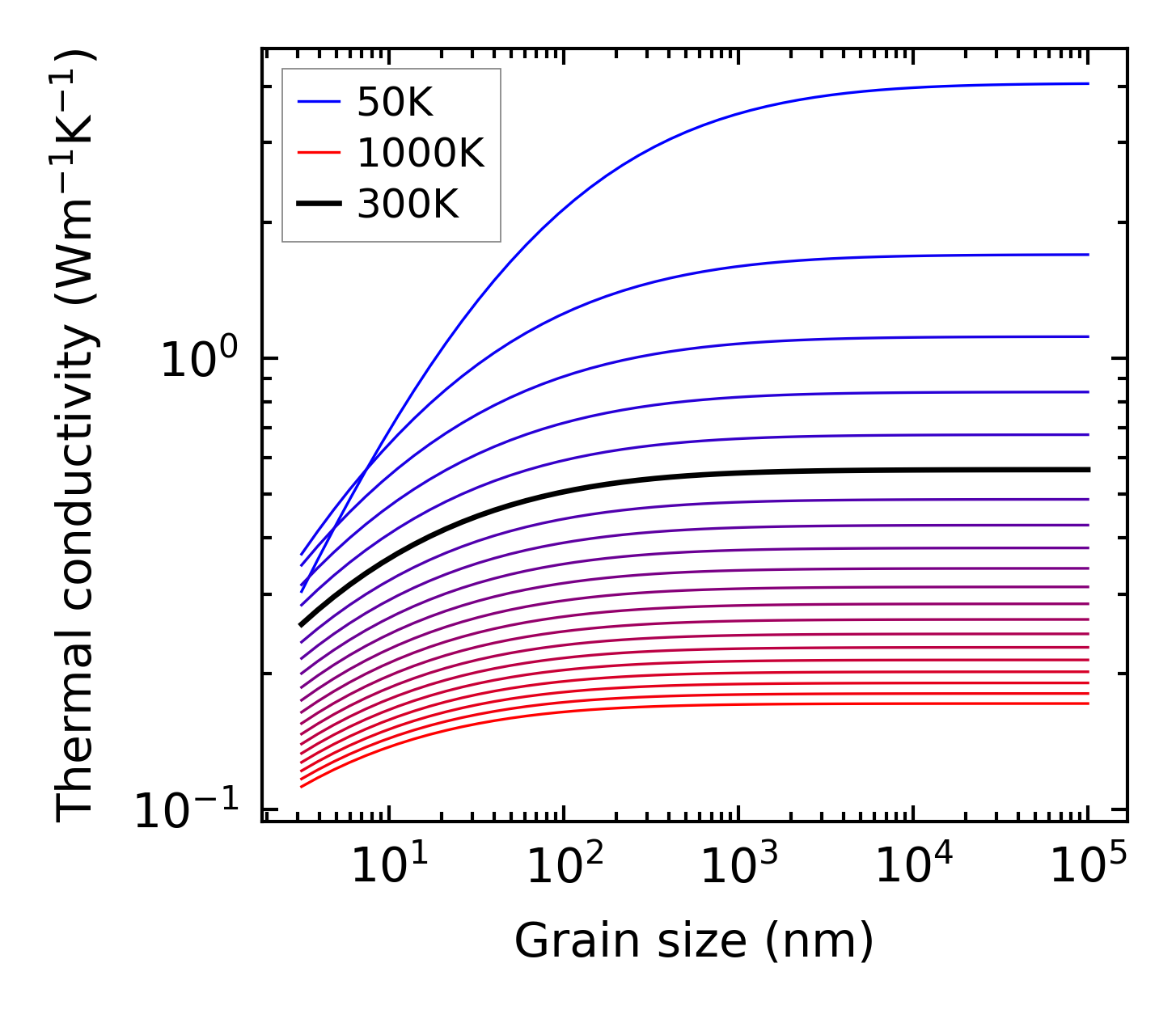

../../_images/fig_kappa_vs_grain_size5600.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

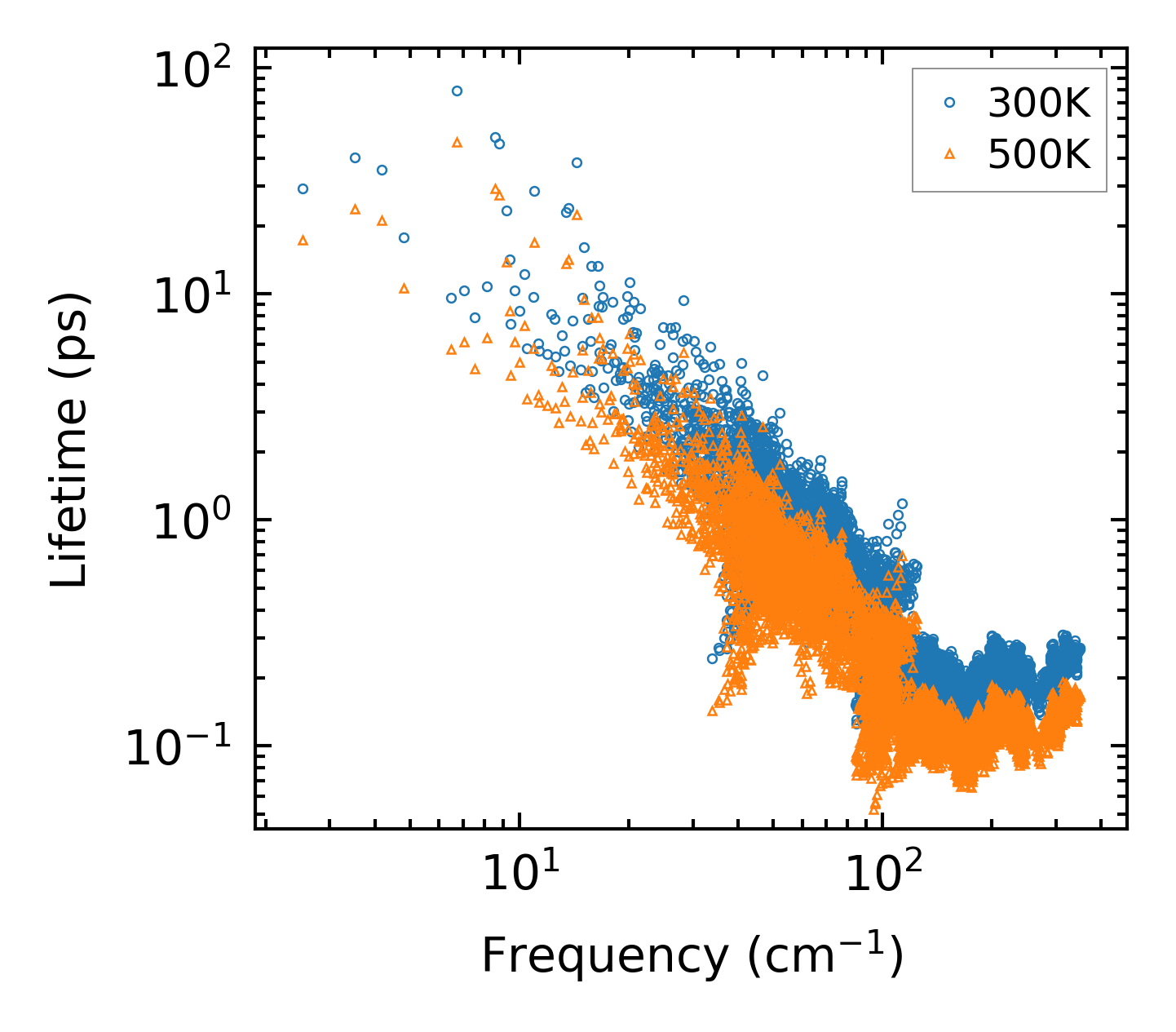

../../_images/fig_lifetime5481.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates5480.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency5481.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

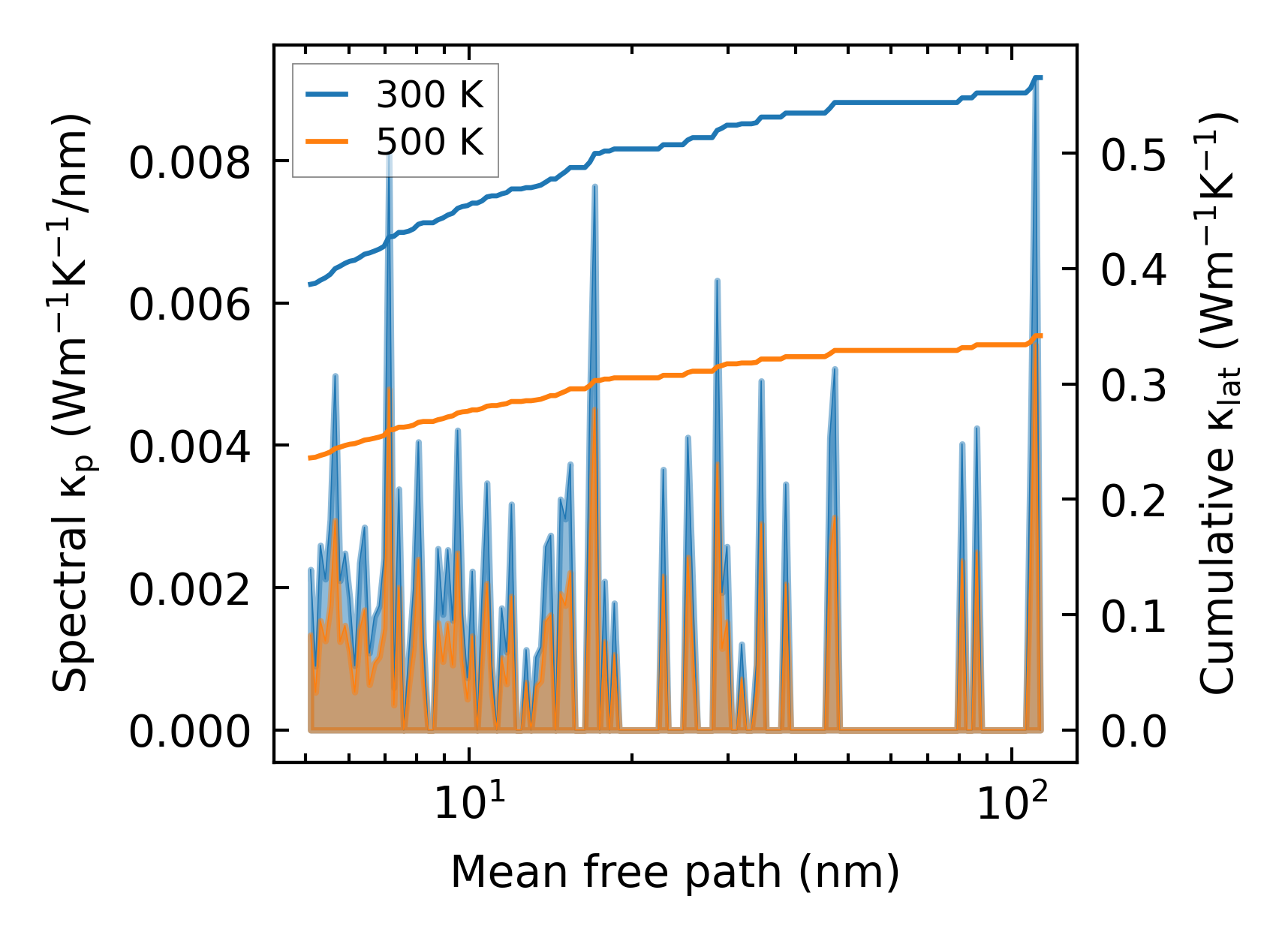

../../_images/fig_cumu_mfp5480.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc212870.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa10396.png — (a) Temperature-dependent lattice thermal conductivity

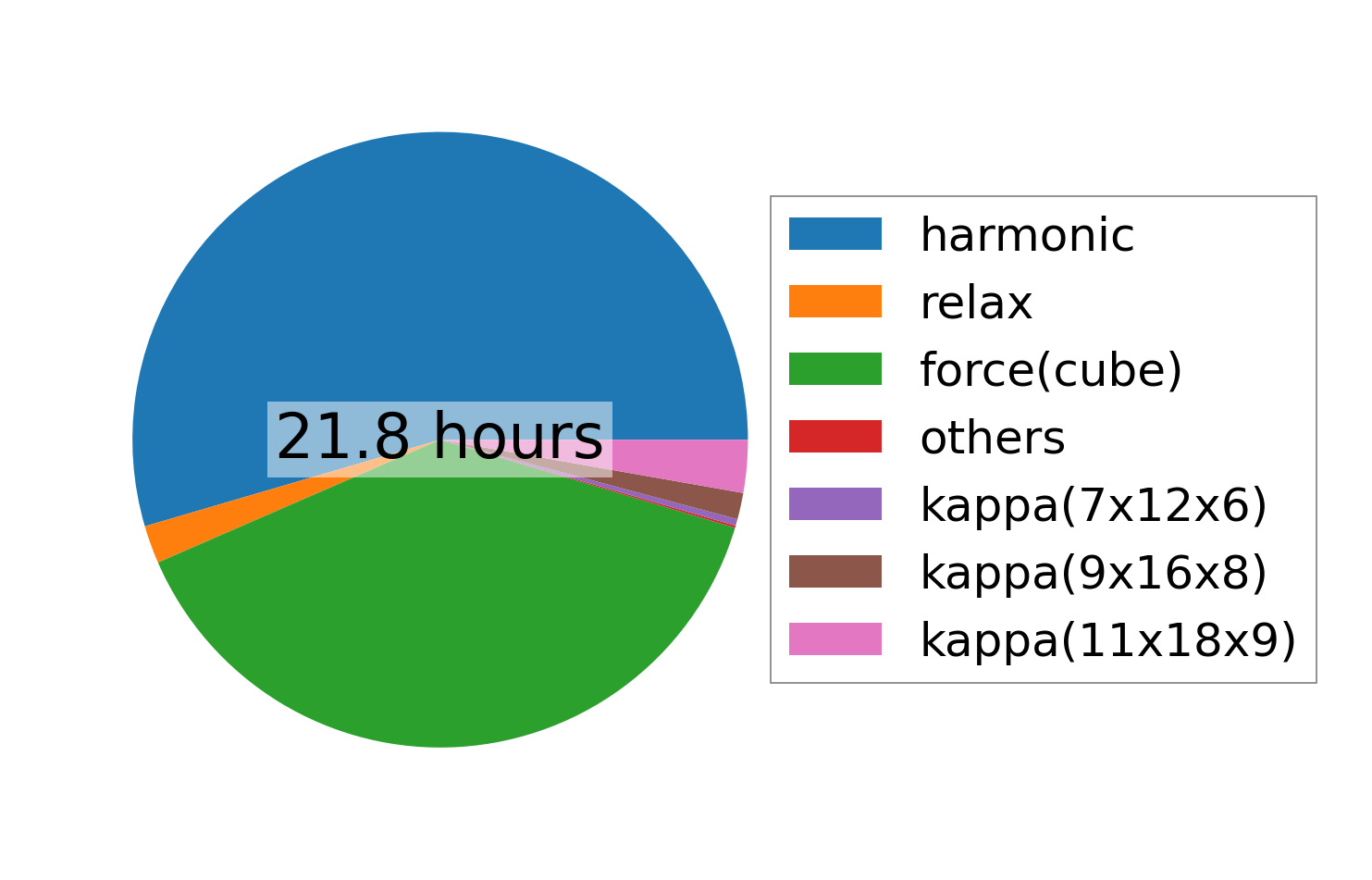

../../_images/fig_times22309.png — (b) Computation time
