mp-2826/Lu2S3/anharm

Space group: R-3c (167)
Link: Materials Project
Download: mp-2826.tar.gz

Harmonic properties

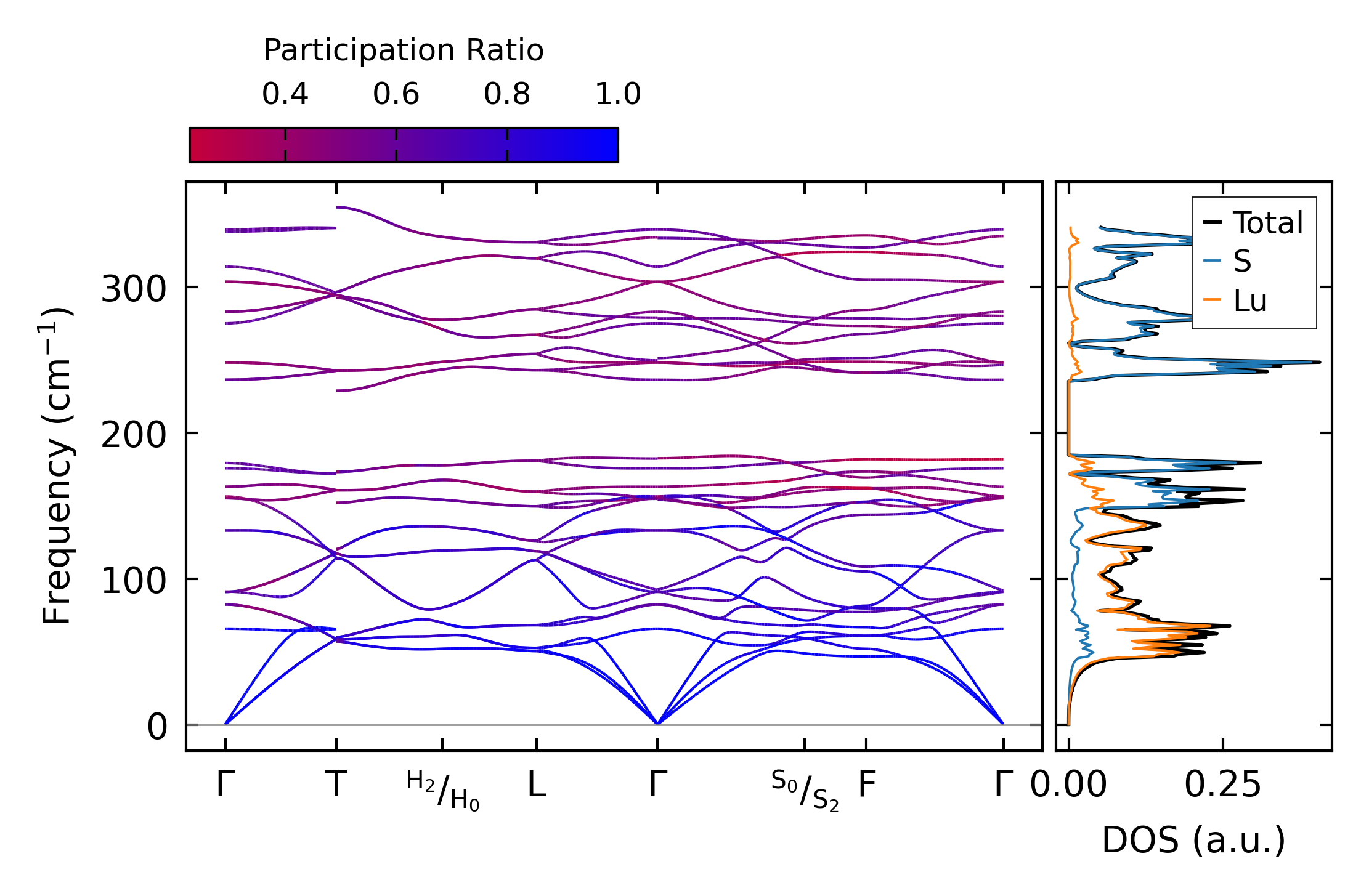

../../_images/fig_bandos_pr13260.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo13260.png — (b) Thermodynamic properties

Grüneisen parameters

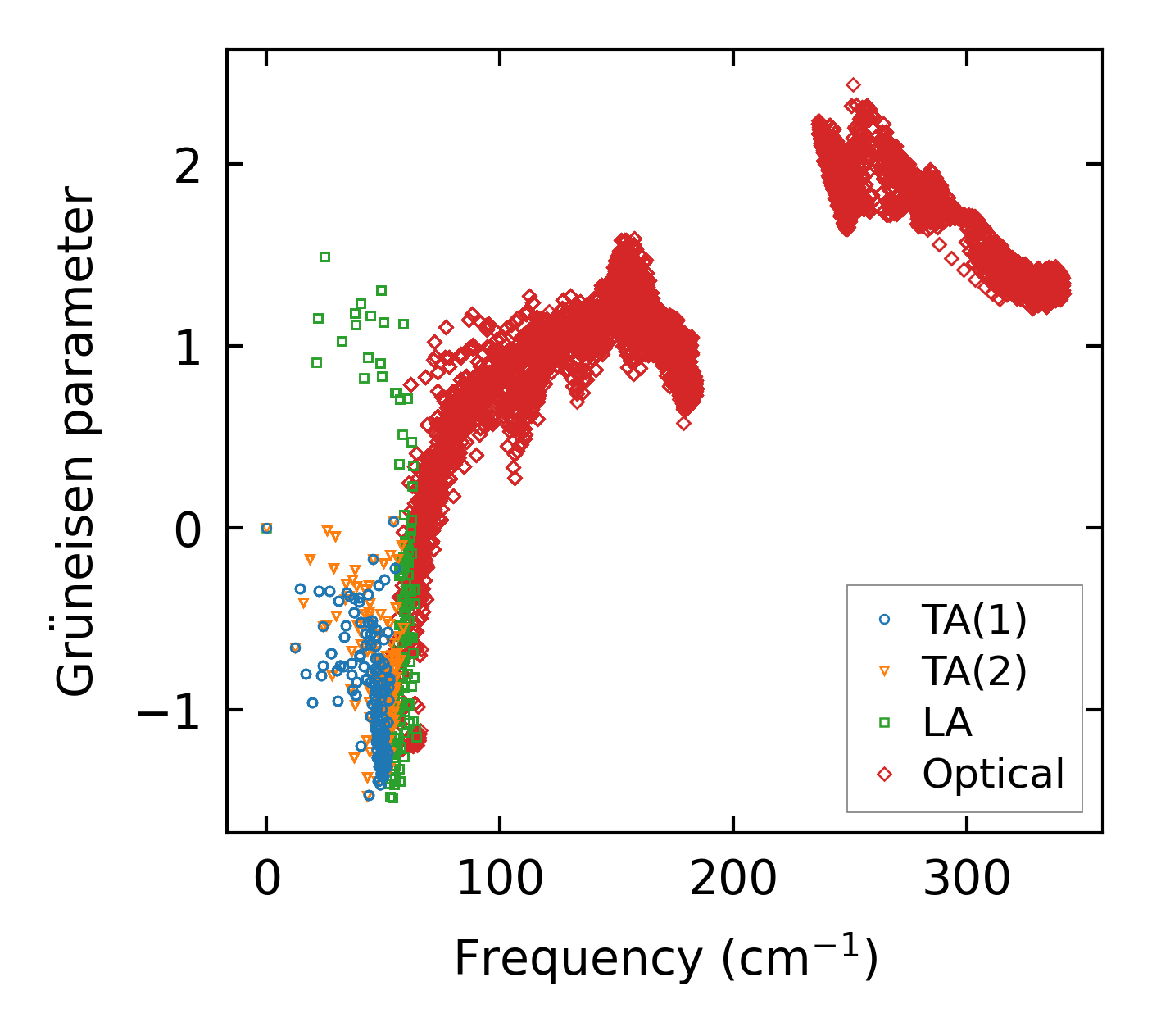

../../_images/fig_gru_all5570.png — (a) Grüneisen parameters

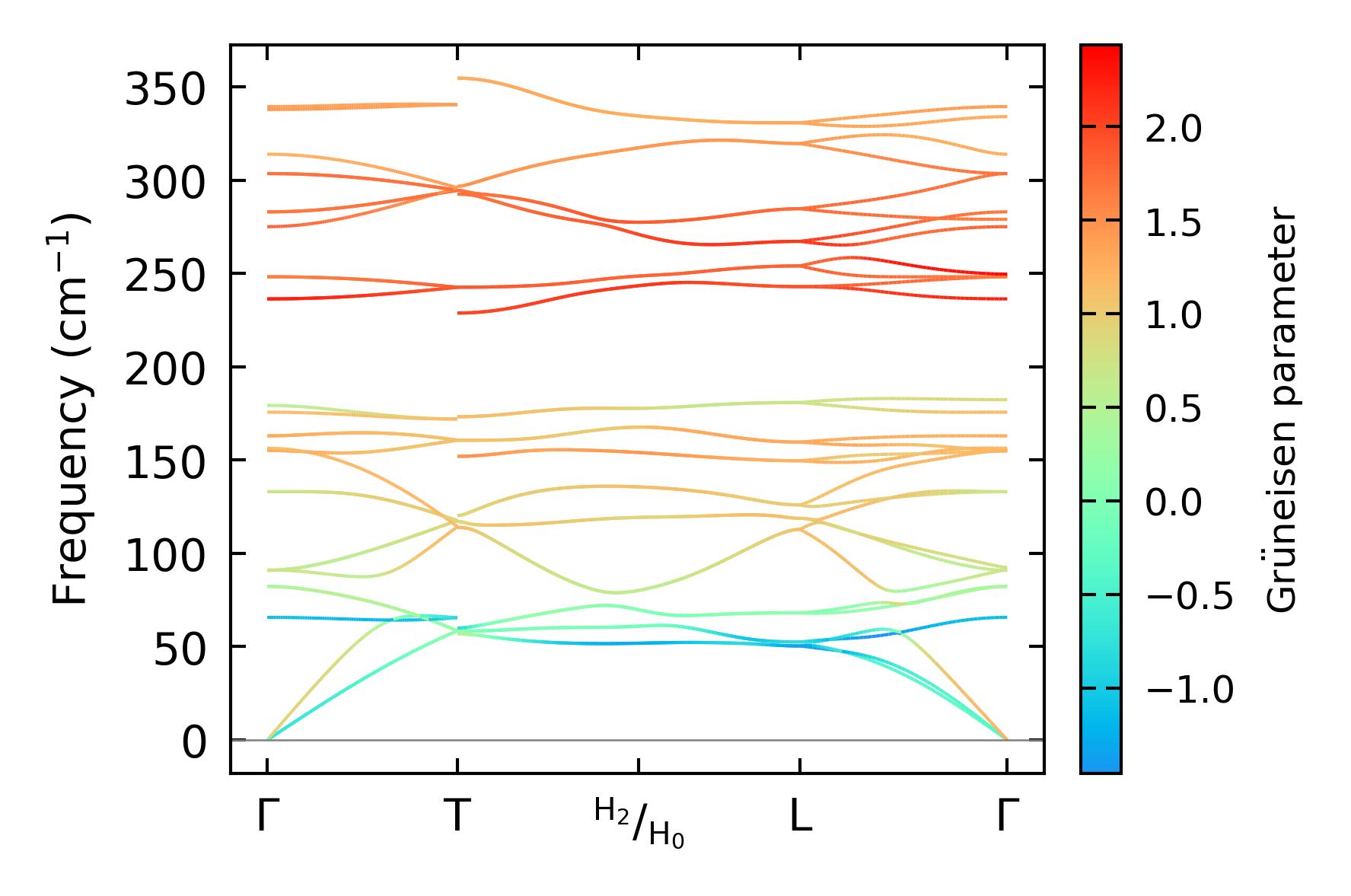

../../_images/fig_gruneisen5570.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x11x11, supercell: 2x2x1

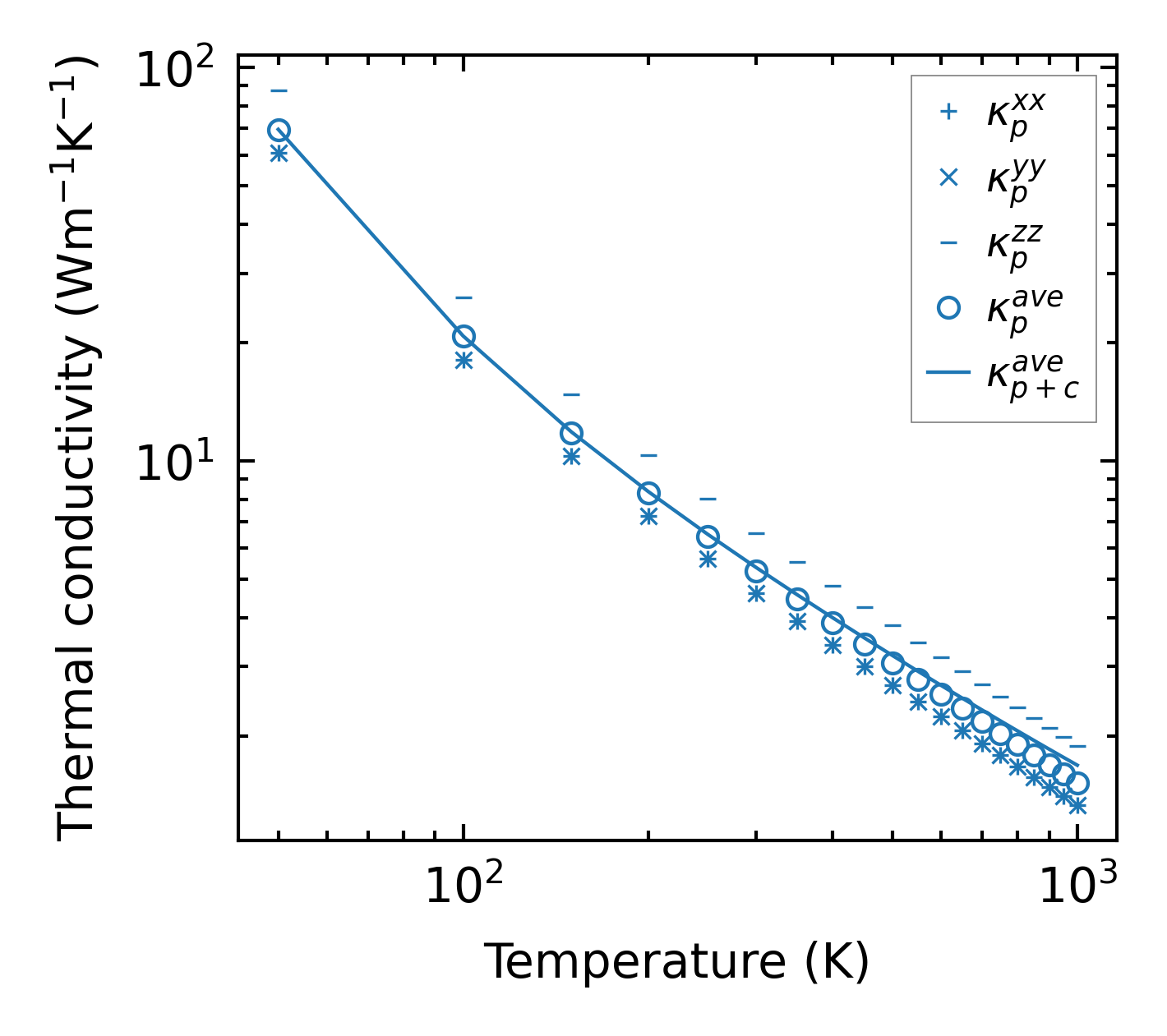

../../_images/fig_kappa10463.png — (a) Temperature-dependent lattice thermal conductivity

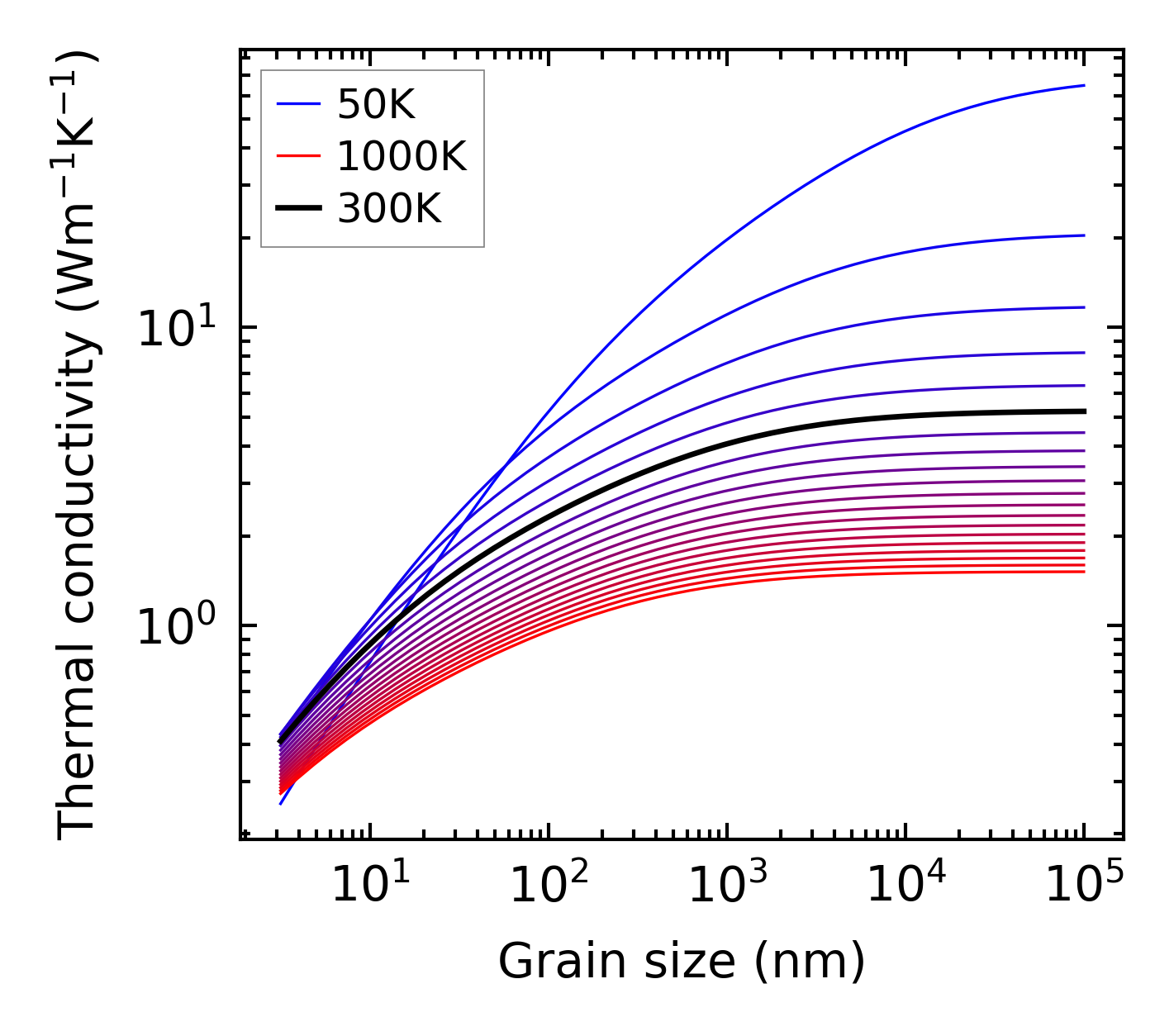

../../_images/fig_kappa_vs_grain_size5634.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

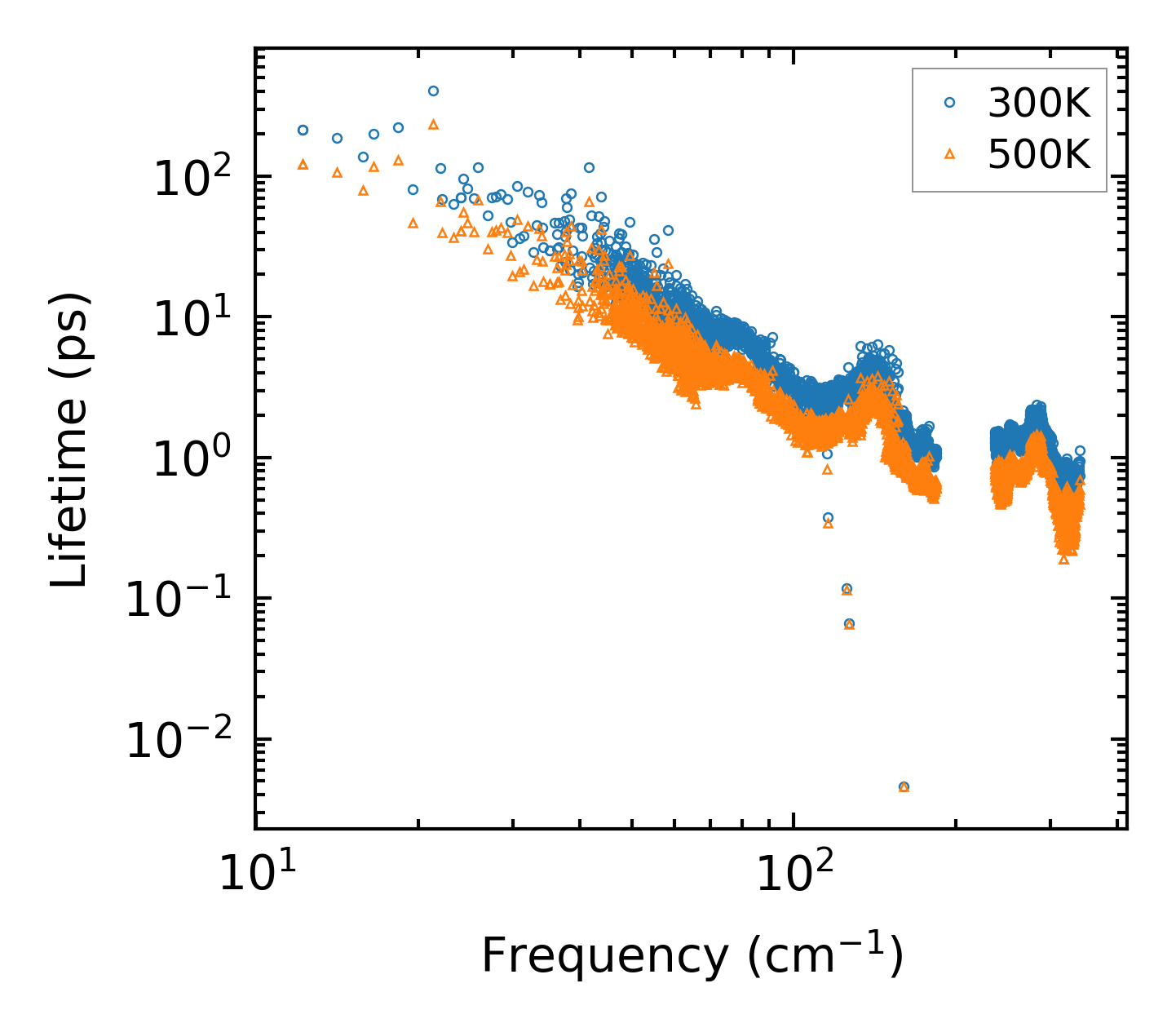

../../_images/fig_lifetime5515.png — (a) Phonon lifetime due to phonon-phonon scattering

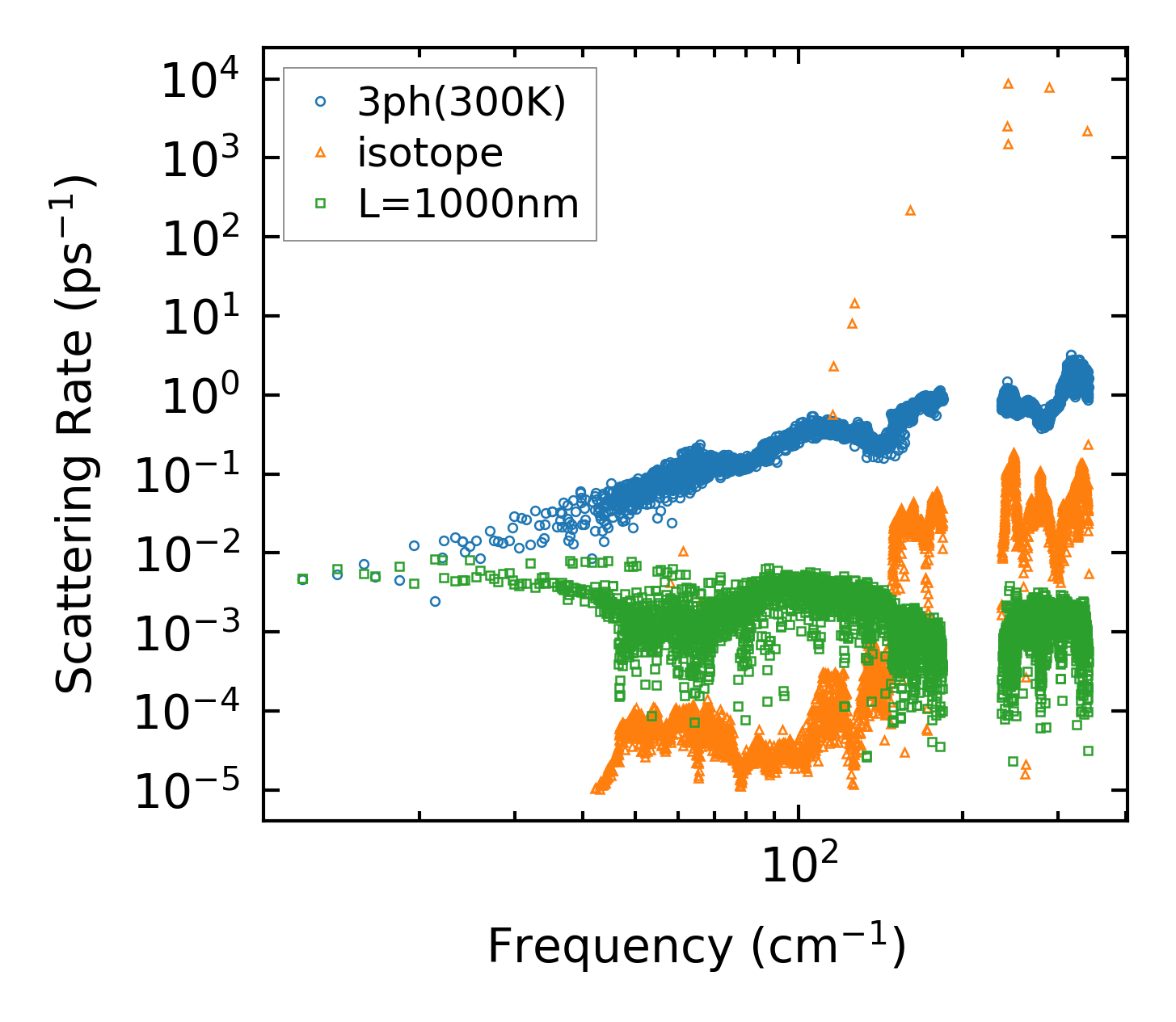

../../_images/fig_scat_rates5514.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

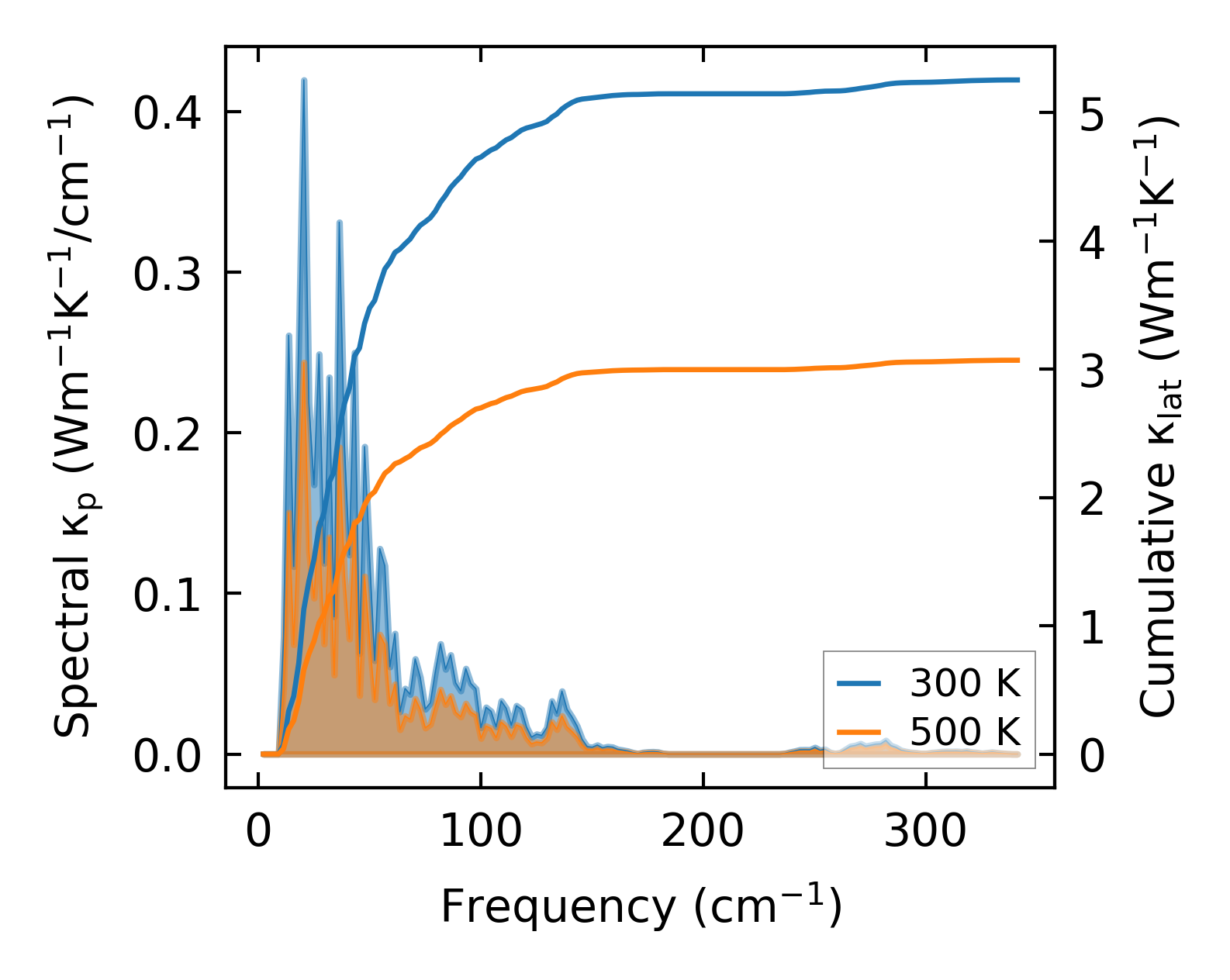

../../_images/fig_cumu_frequency5515.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

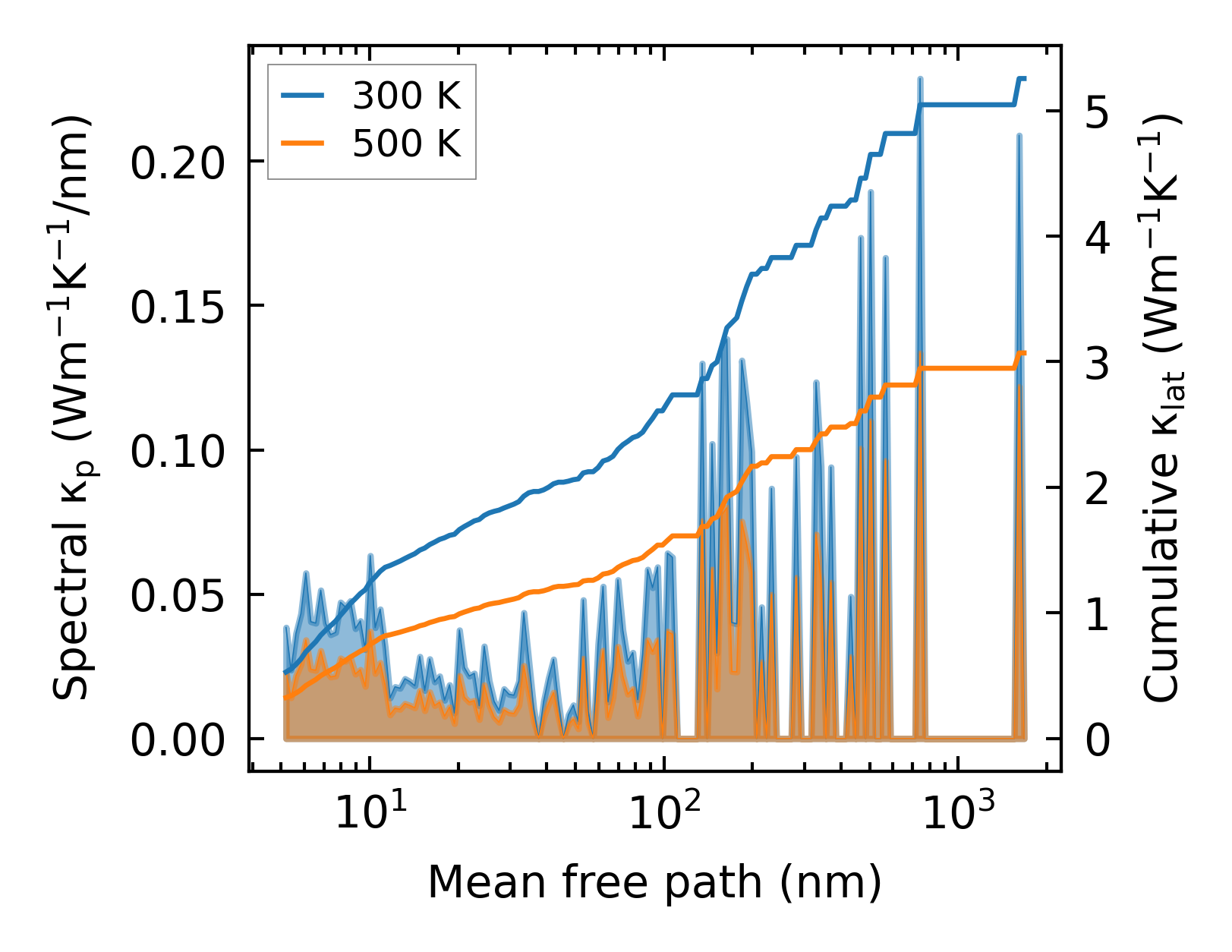

../../_images/fig_cumu_mfp5514.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

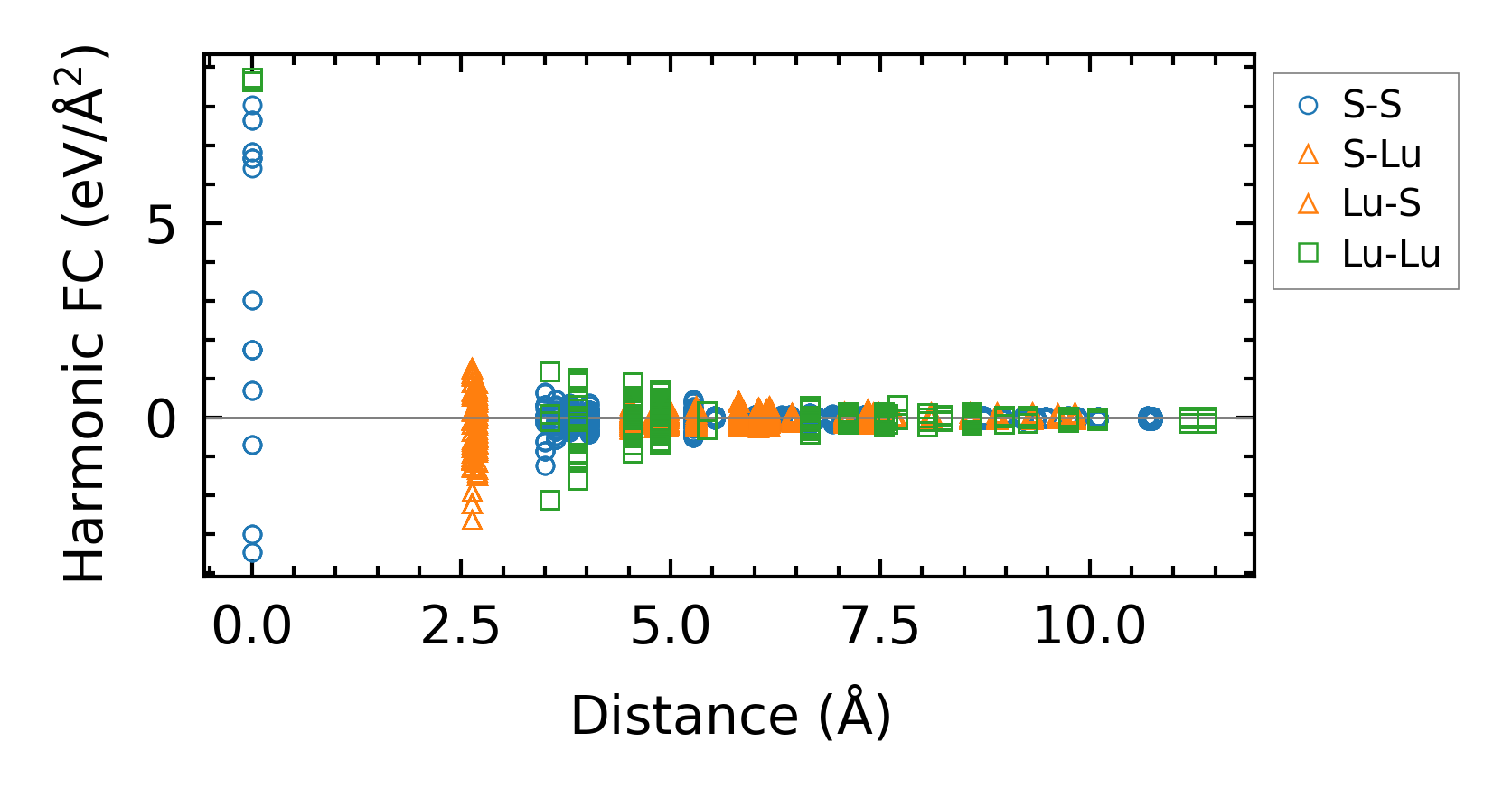

../../_images/fig_fc212904.png — (a) Force constants w.r.t atomic distance

Summary

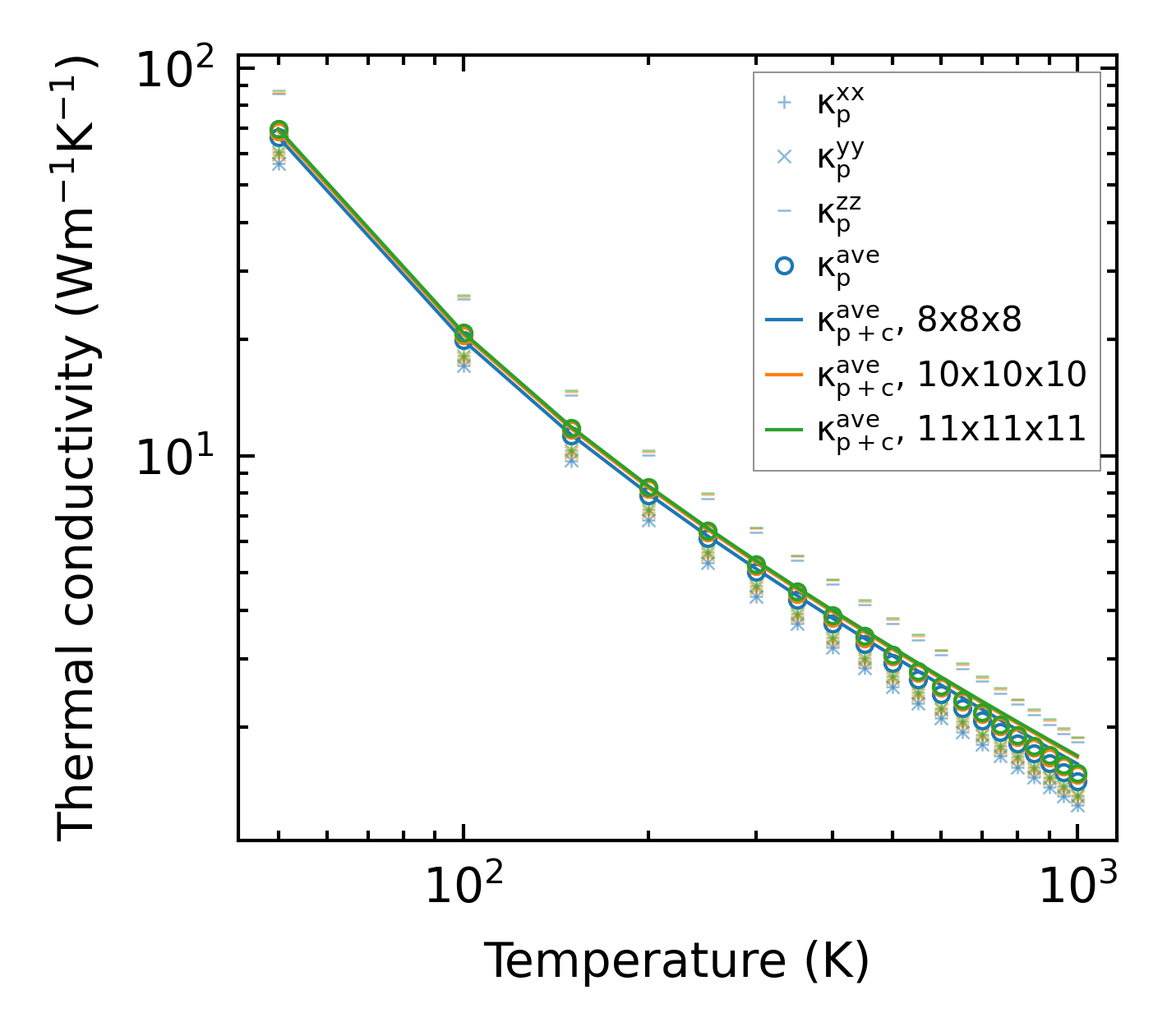

../../_images/fig_kappa10464.png — (a) Temperature-dependent lattice thermal conductivity

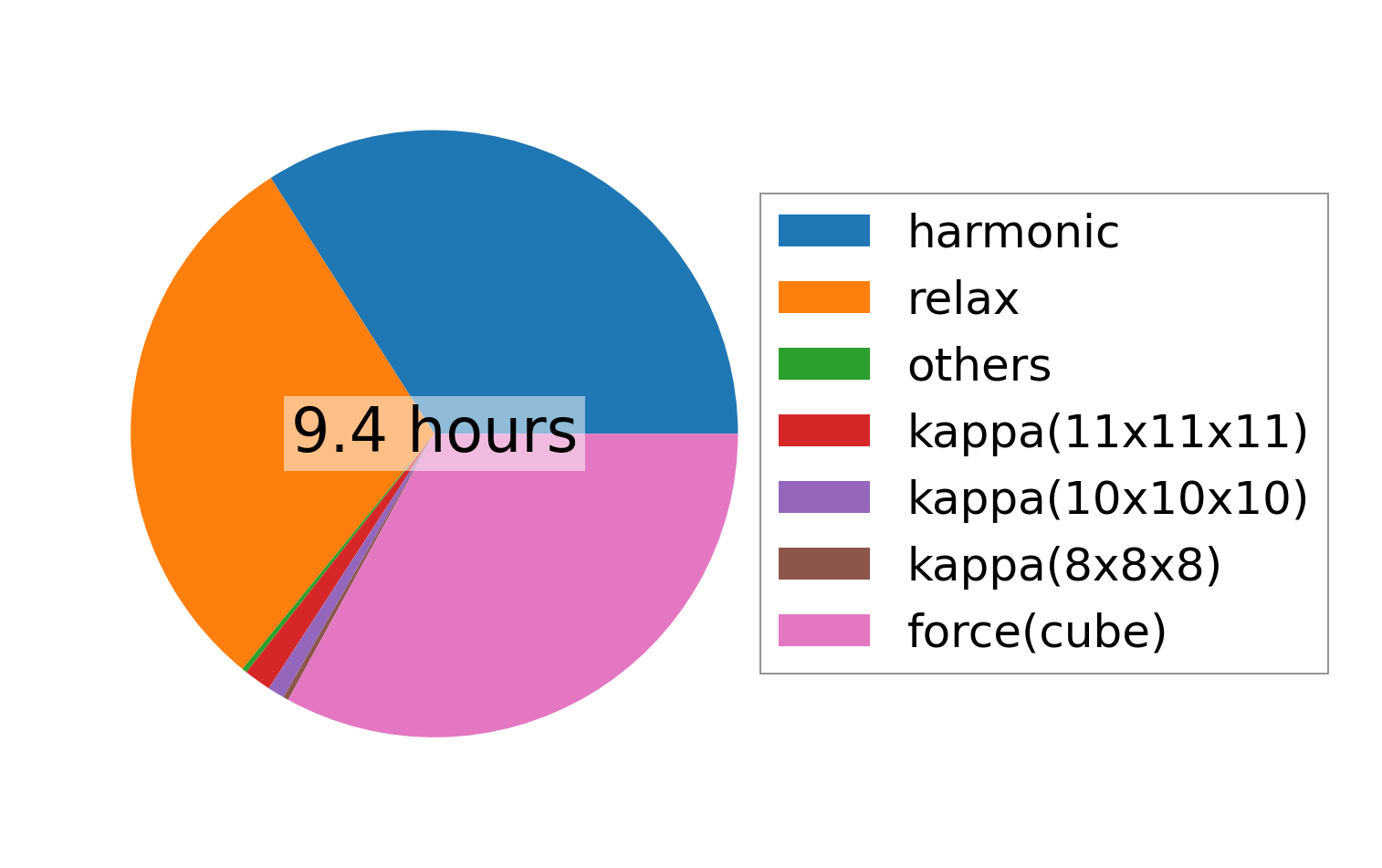

../../_images/fig_times22369.png — (b) Computation time
