mp-2201/PbSe/anharm

Space group: Fm-3m (225)
Link: Materials Project
Download: mp-2201.tar.gz

Equation of state

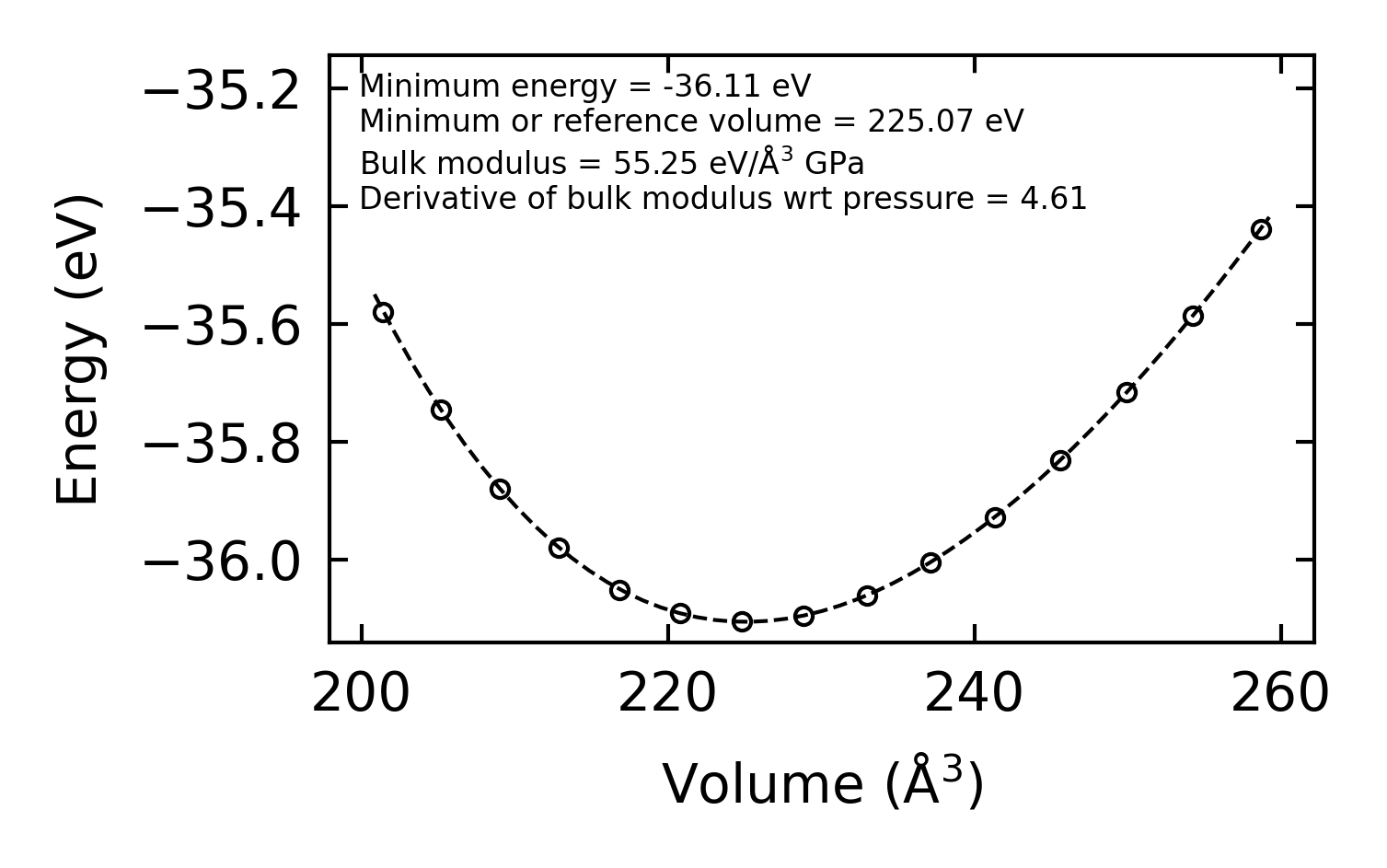

../../_images/fig_bm6766.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr13541.png — (a) Phonon dispersion with participation ratio and DOS

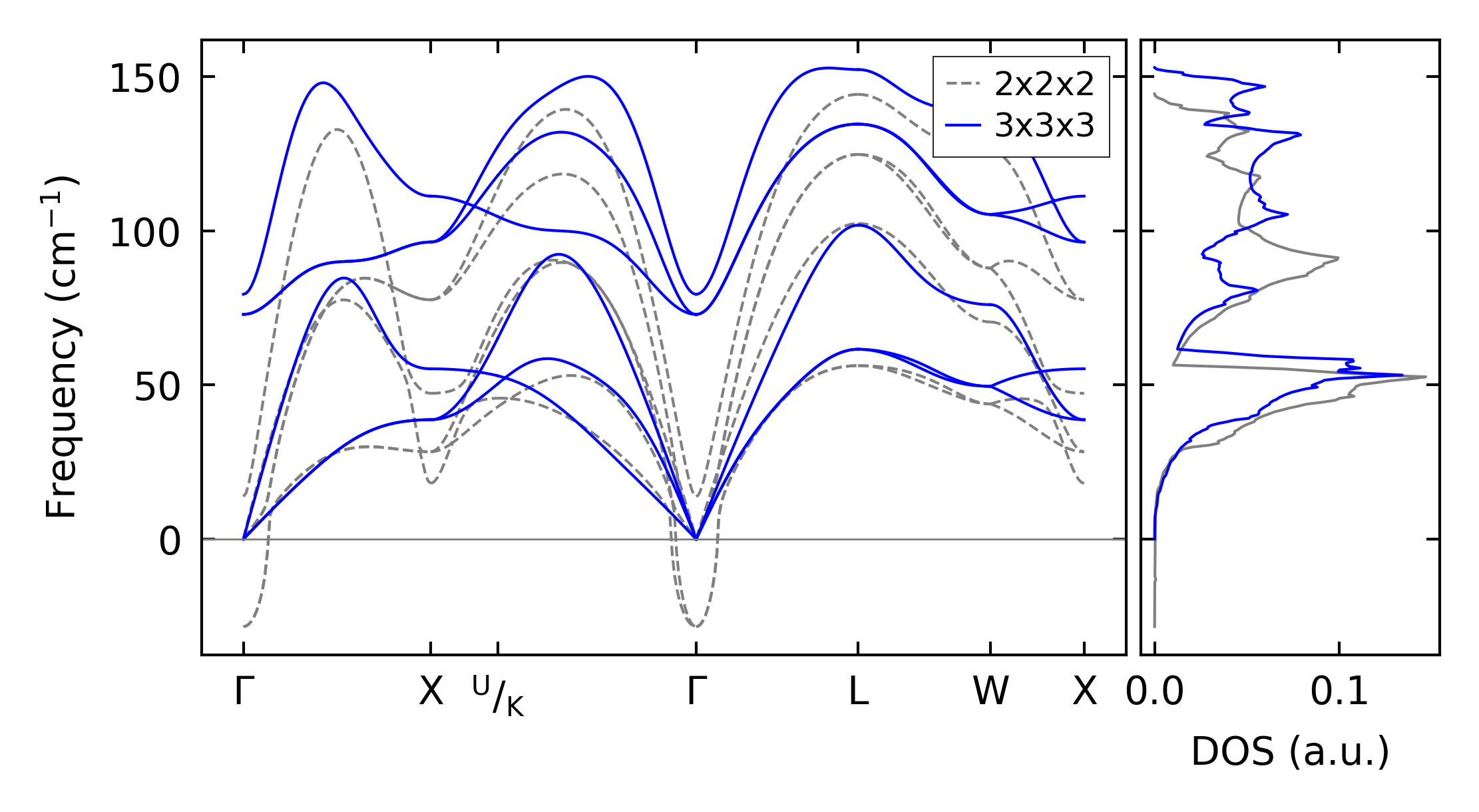

../../_images/fig_bandos17903.png — (b) Phonon dispersion and DOS

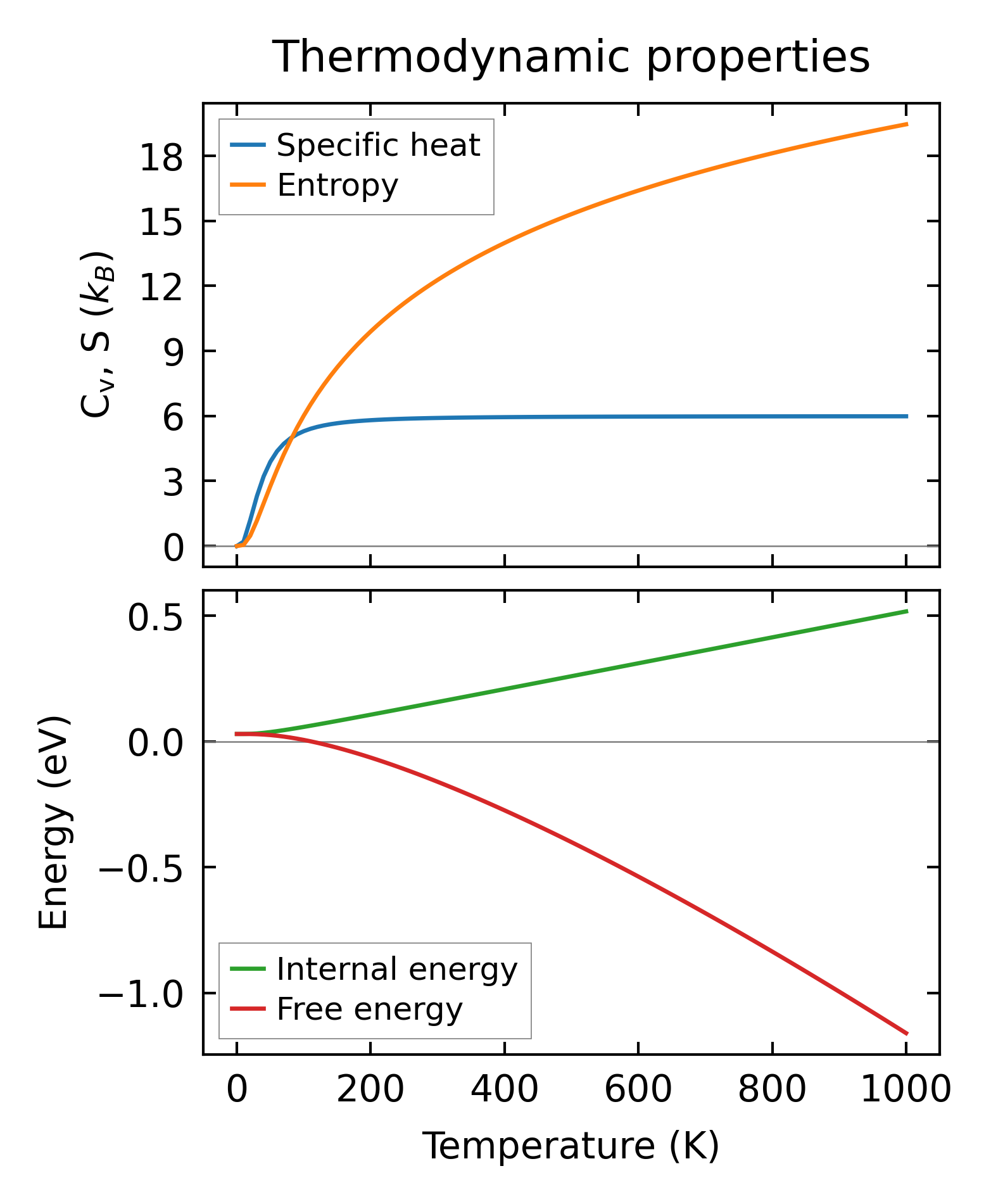

../../_images/fig_thermo13541.png — (c) Thermodynamic properties

Grüneisen parameters

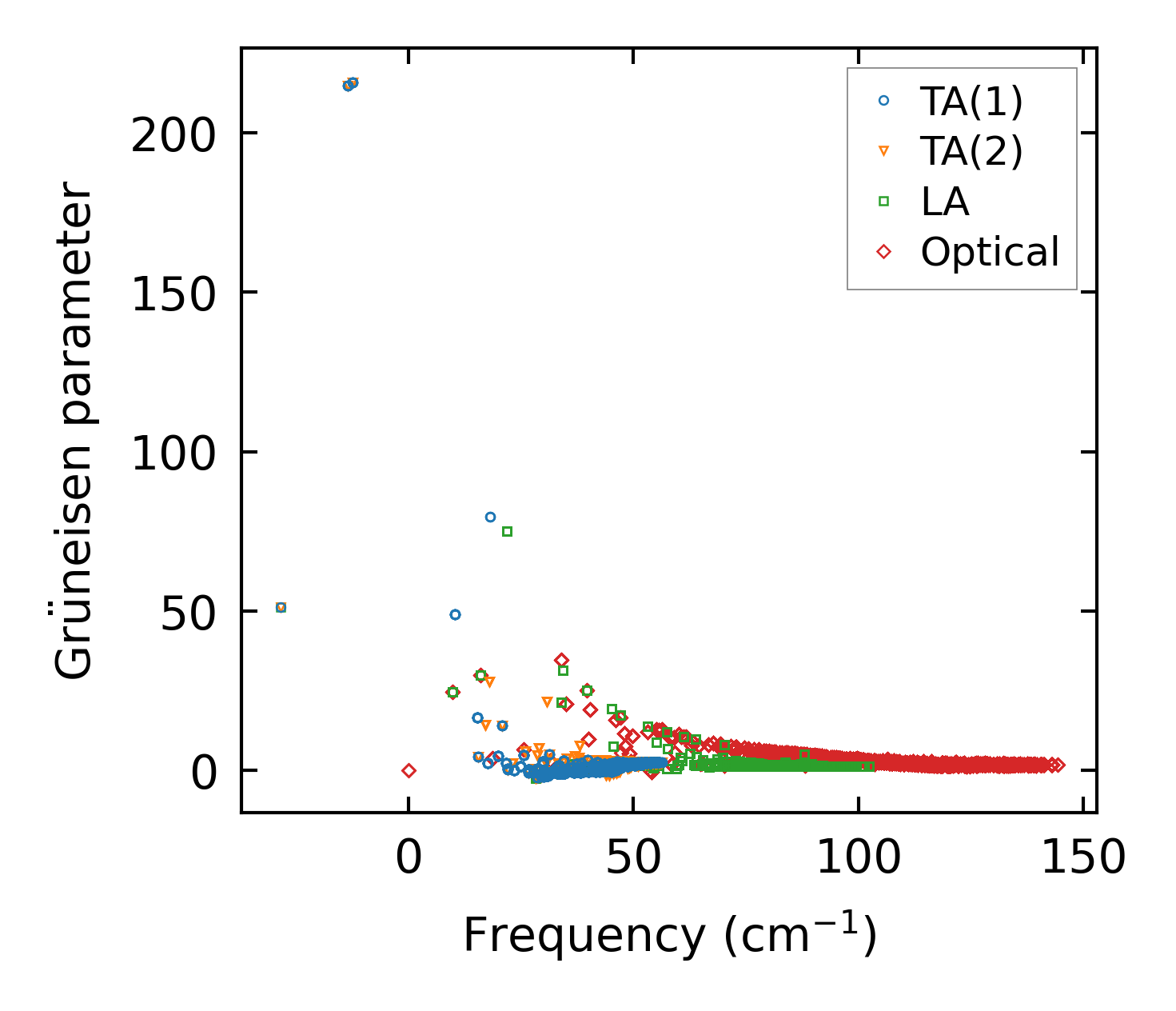

../../_images/fig_gru_all5733.png — (a) Grüneisen parameters

../../_images/fig_gruneisen5733.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon, supercell 3x3x3 — q-mesh: 18x18x18, supercell: 3x3x3

../../_images/fig_kappa10779.png — (a) Temperature-dependent lattice thermal conductivity

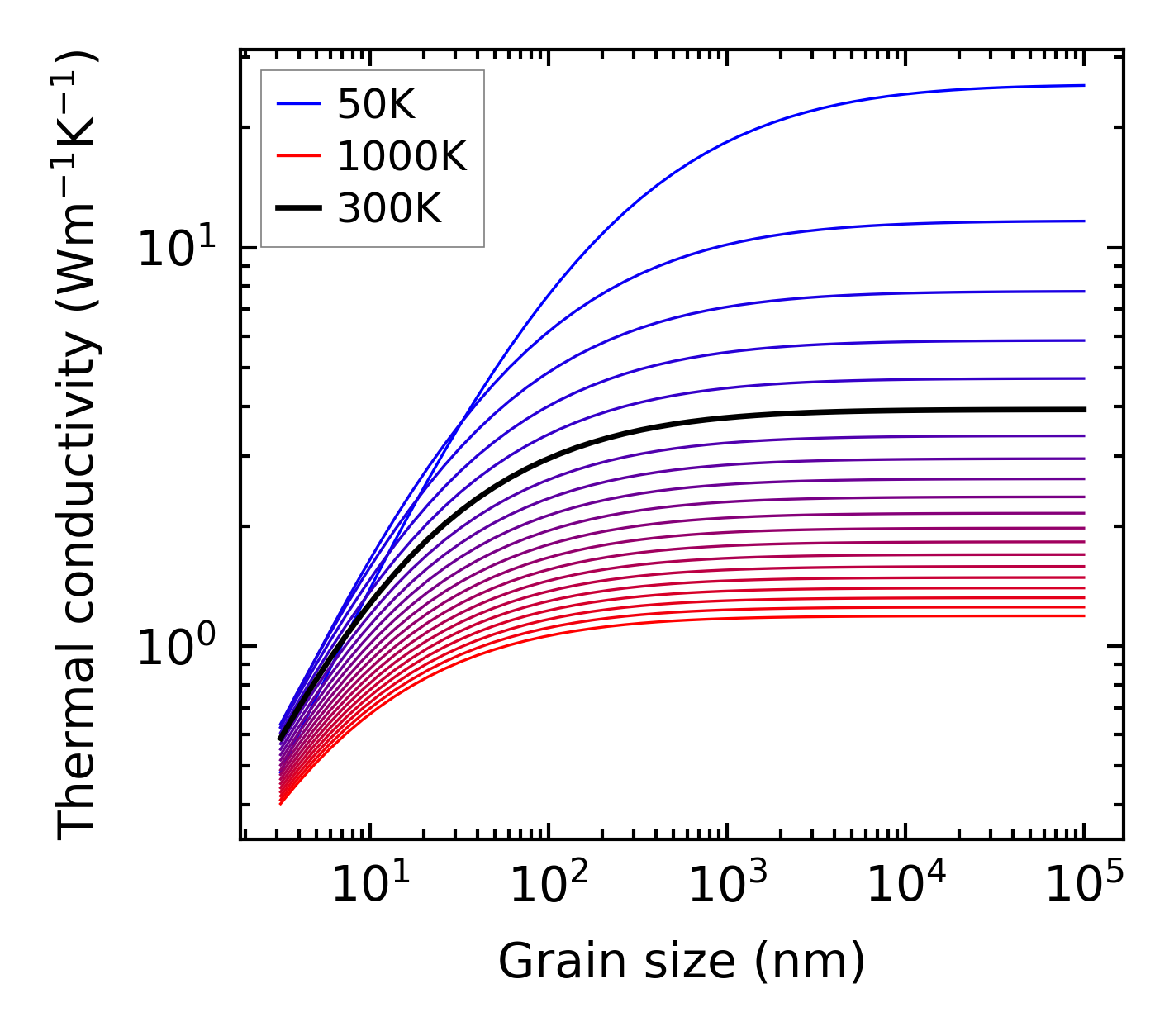

../../_images/fig_kappa_vs_grain_size5802.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime5678.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates5677.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

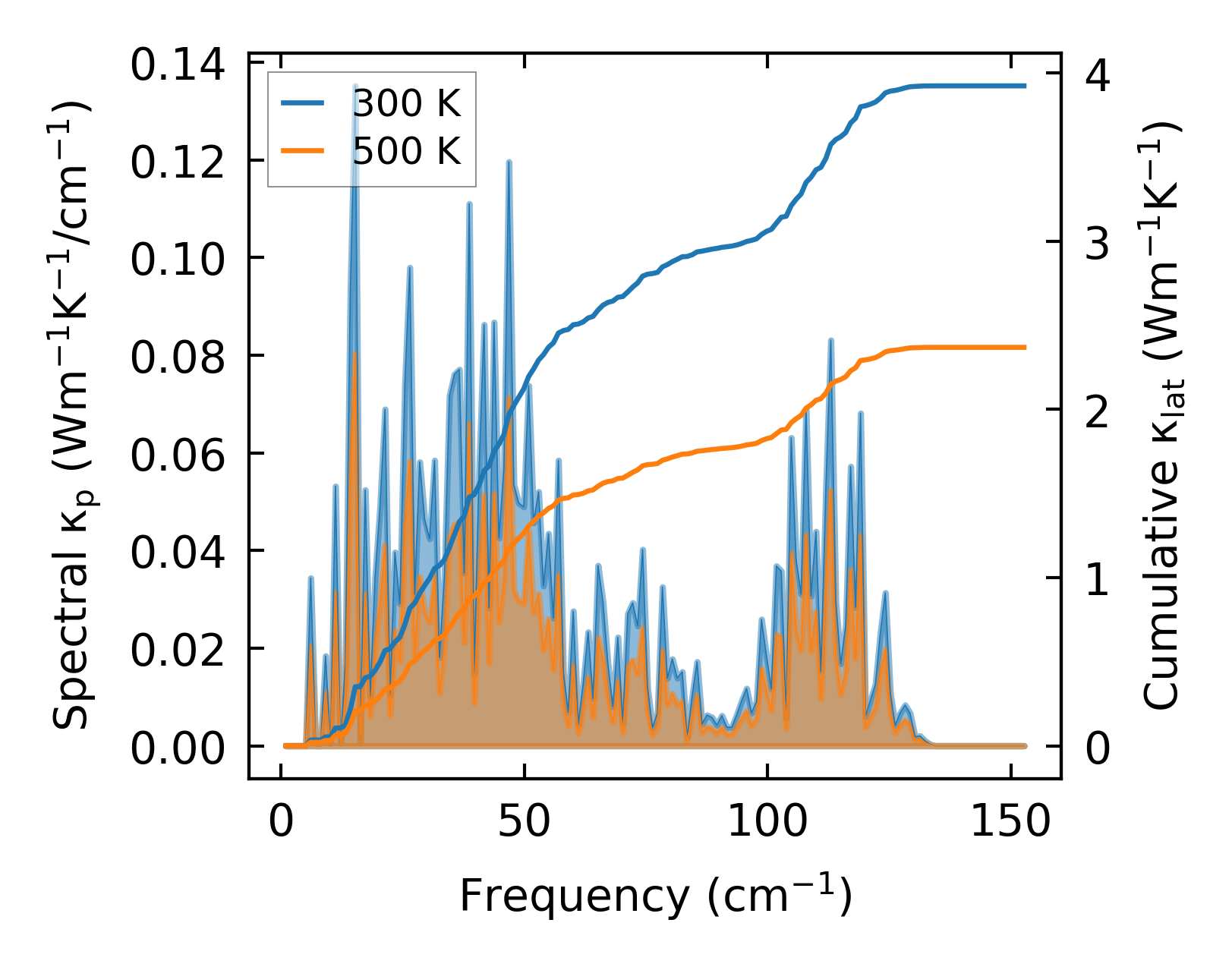

../../_images/fig_cumu_frequency5678.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

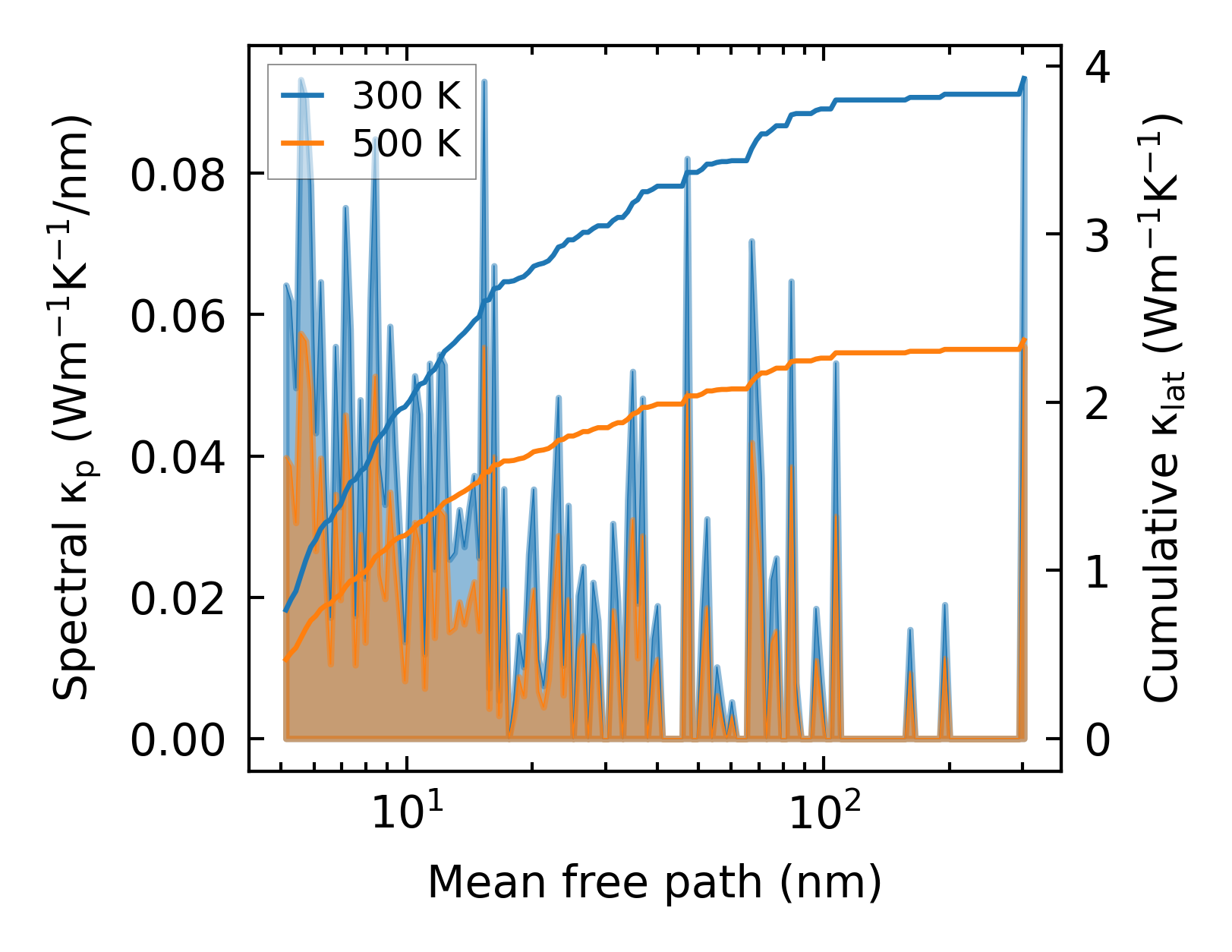

../../_images/fig_cumu_mfp5677.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc3371.png — (a) Force constants w.r.t atomic distance

Summary

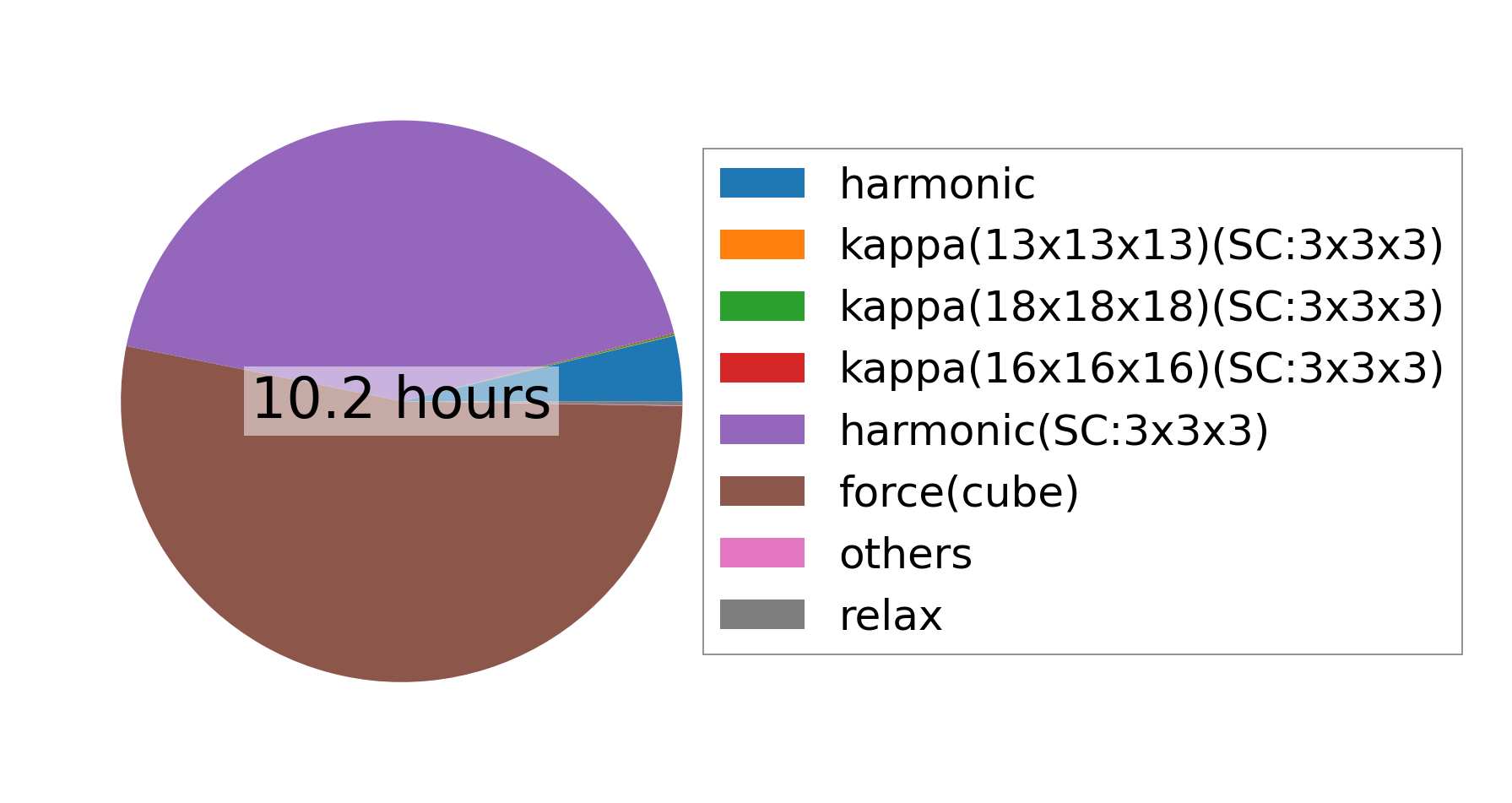

../../_images/fig_times22780.png — (a) Computation time
