mp-2951/CdGeO3/anharm

Space group: C2/c (15)
Link: Materials Project
Download: mp-2951.tar.gz

Equation of state

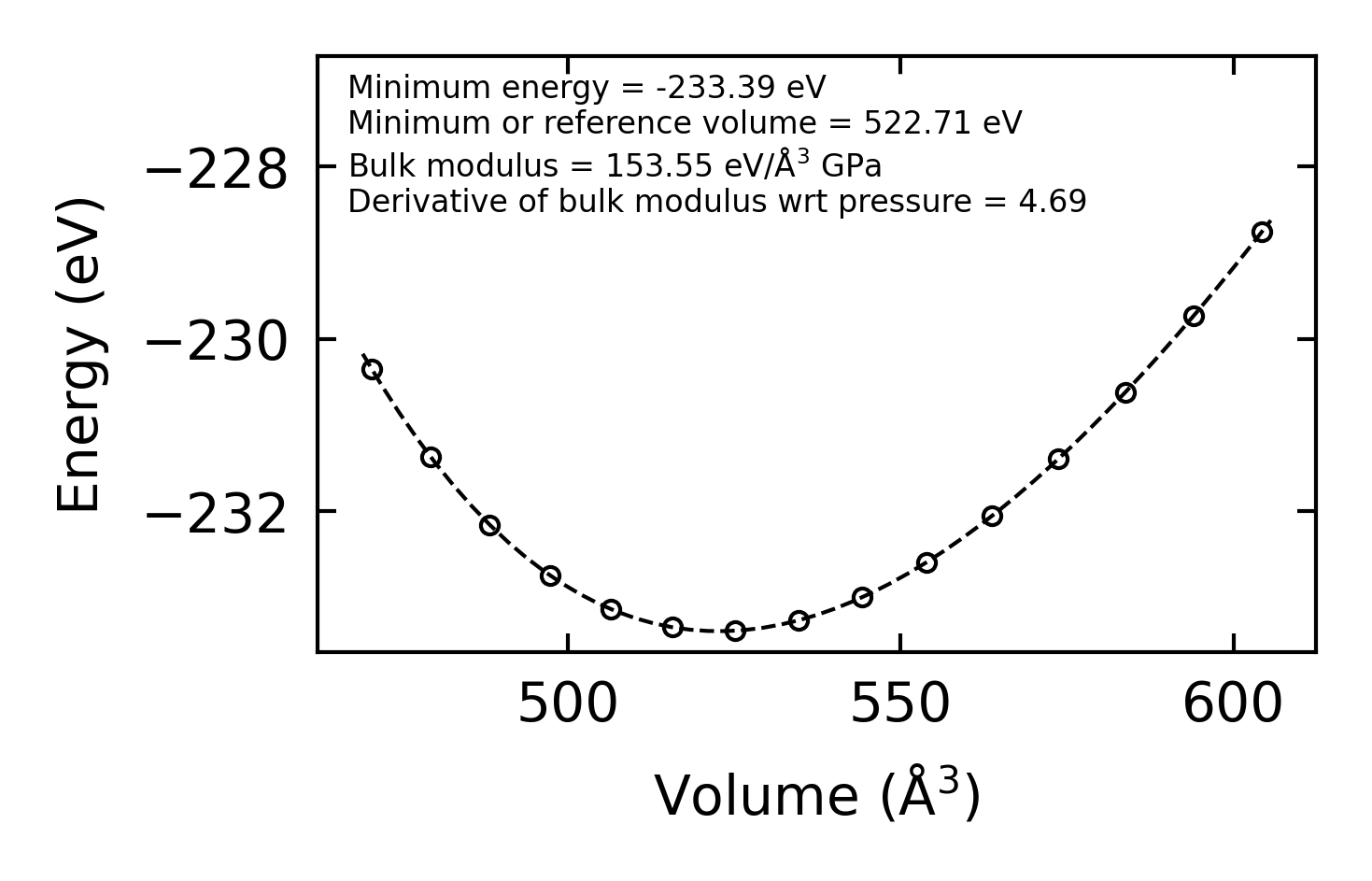

../../_images/fig_bm6635.png — (a) Equation of state

Harmonic properties

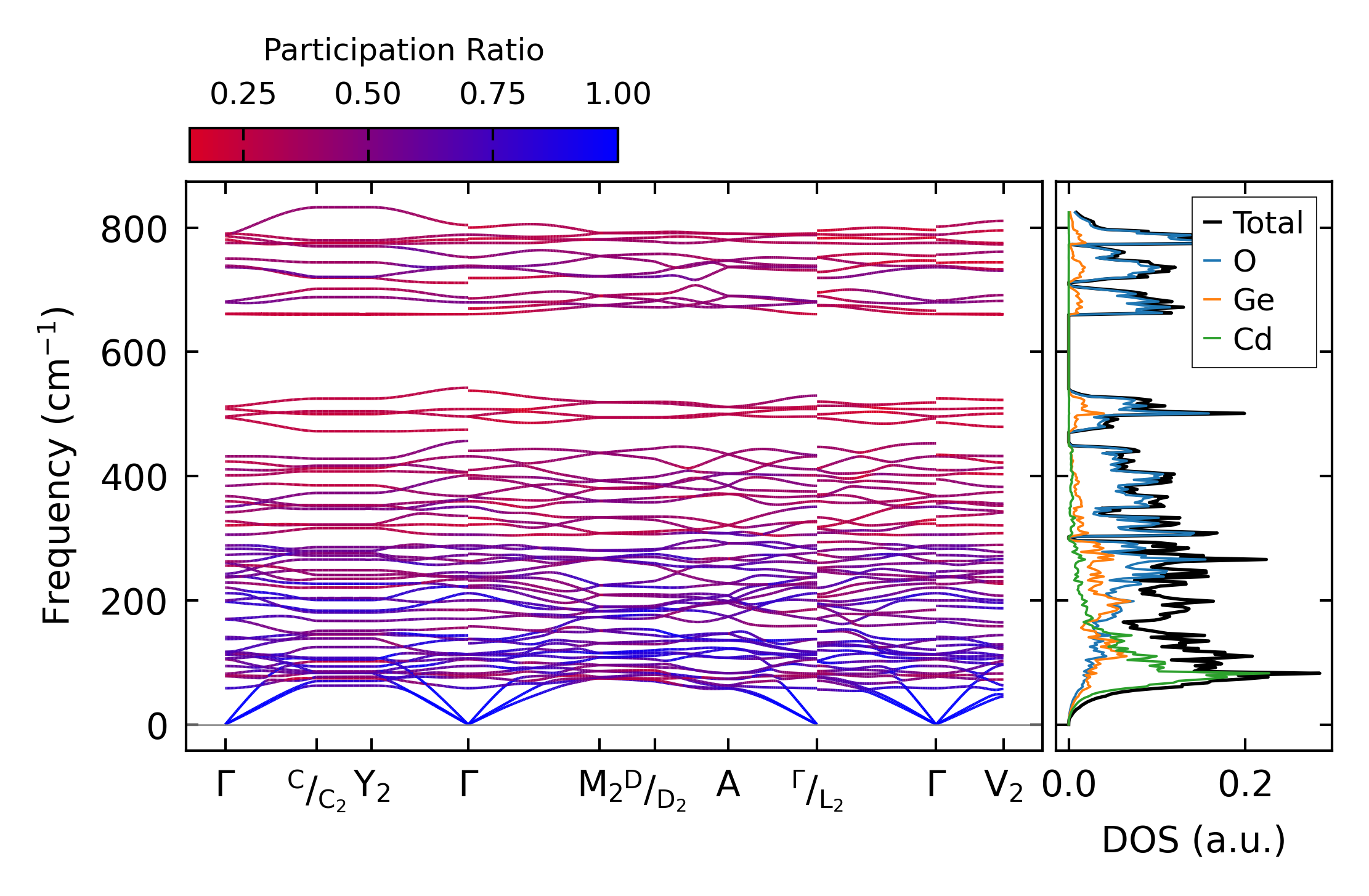

../../_images/fig_bandos_pr13284.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo13284.png — (b) Thermodynamic properties

Grüneisen parameters

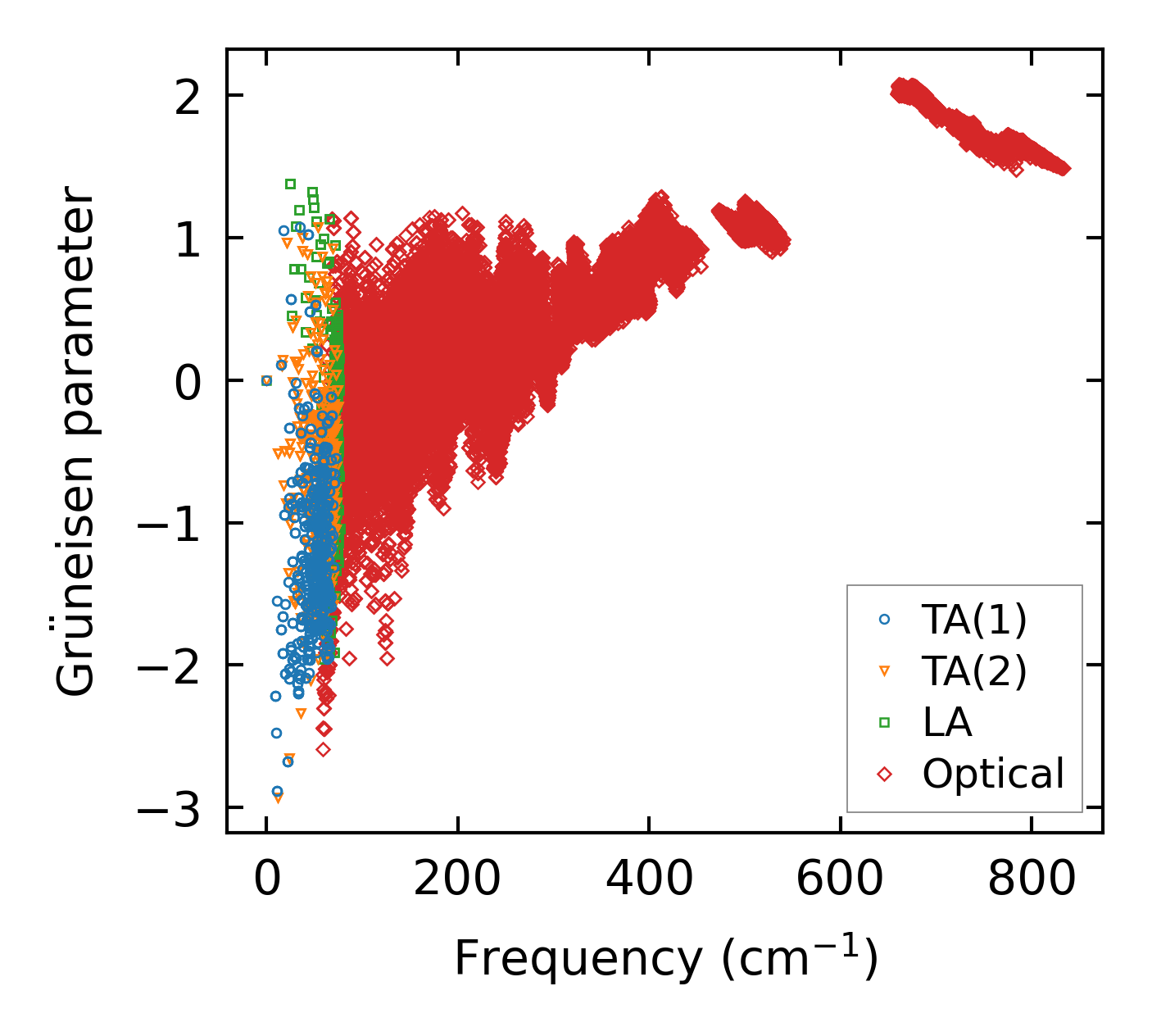

../../_images/fig_gru_all5589.png — (a) Grüneisen parameters

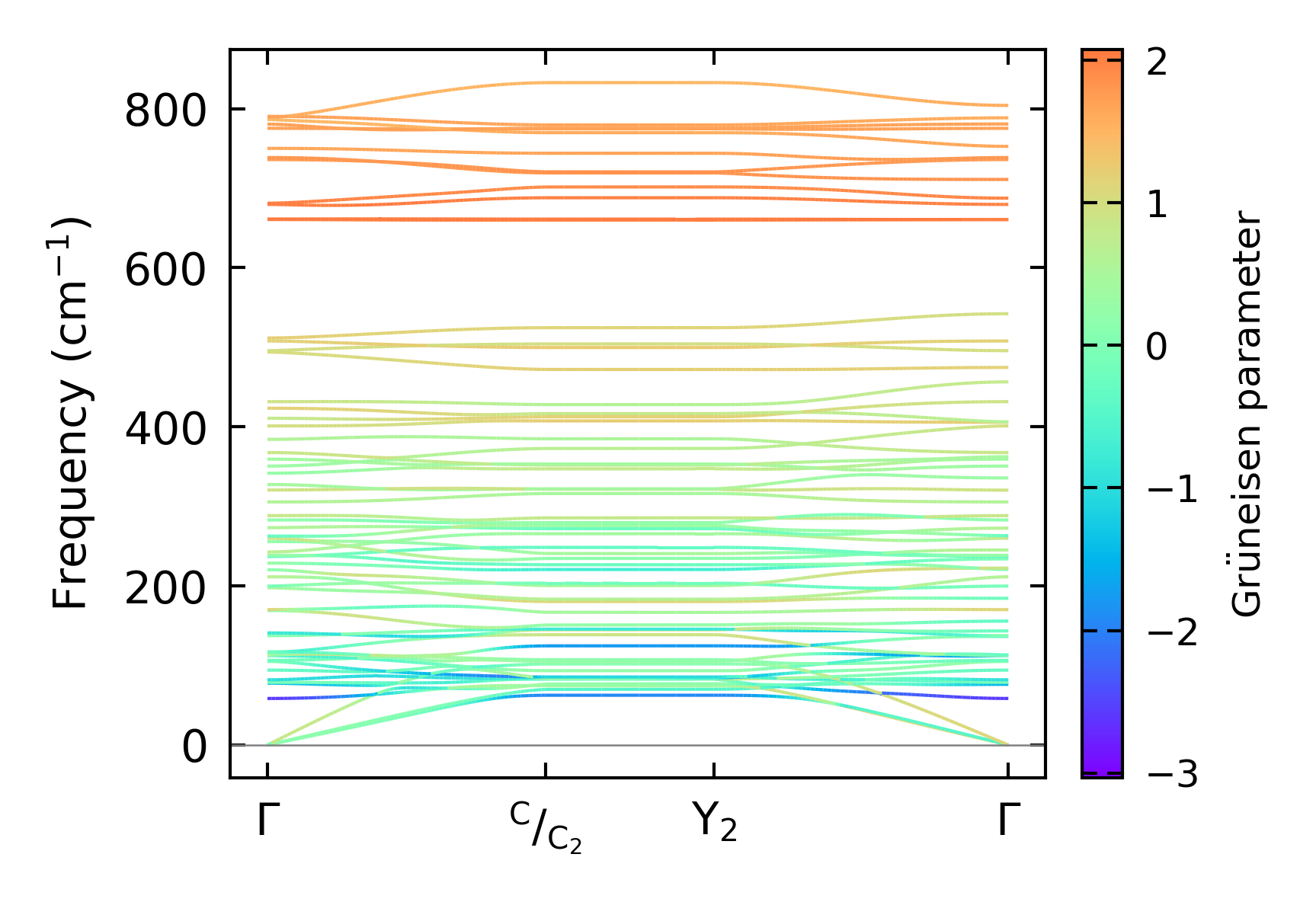

../../_images/fig_gruneisen5589.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x13, supercell: 1x1x2

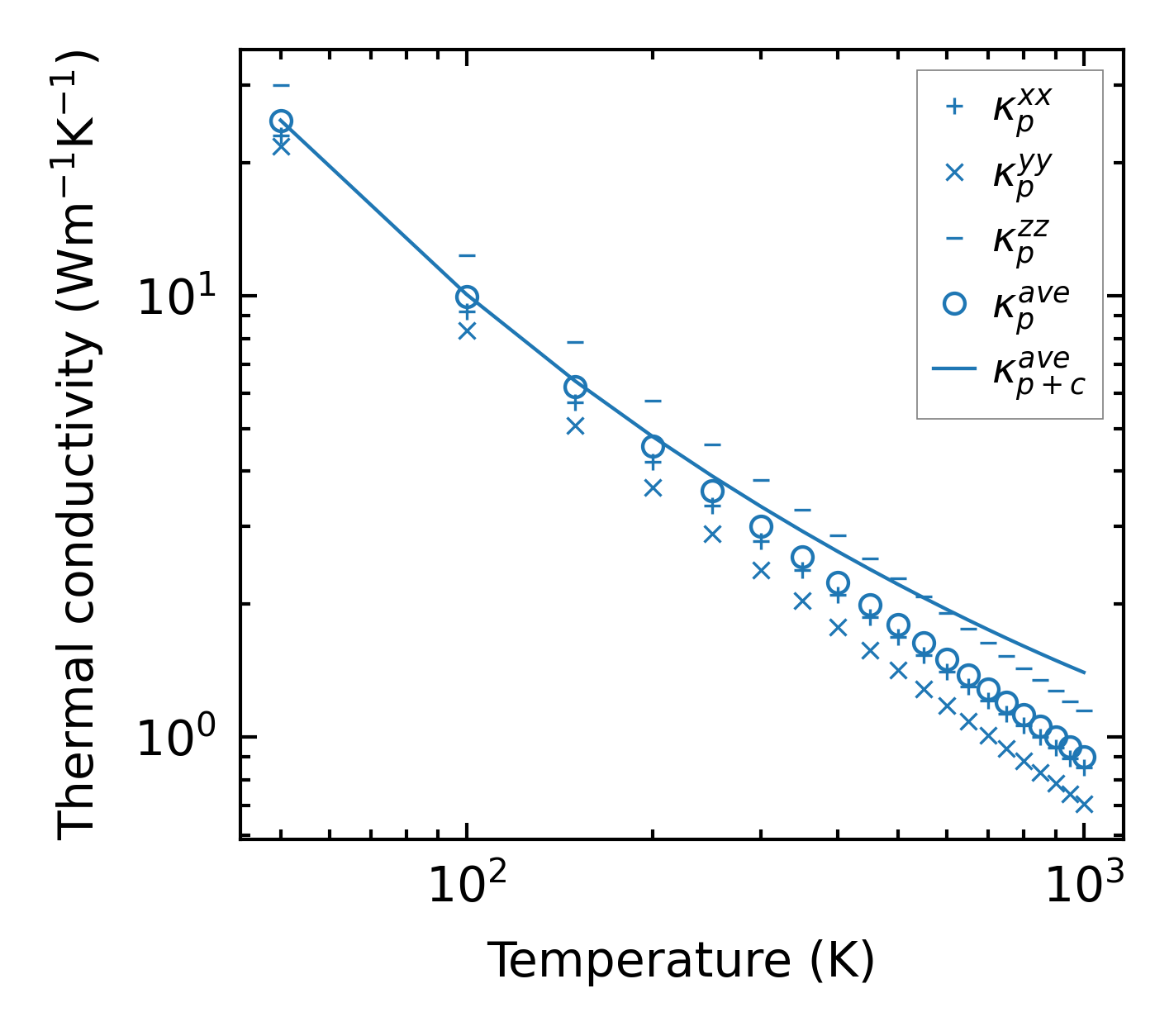

../../_images/fig_kappa10500.png — (a) Temperature-dependent lattice thermal conductivity

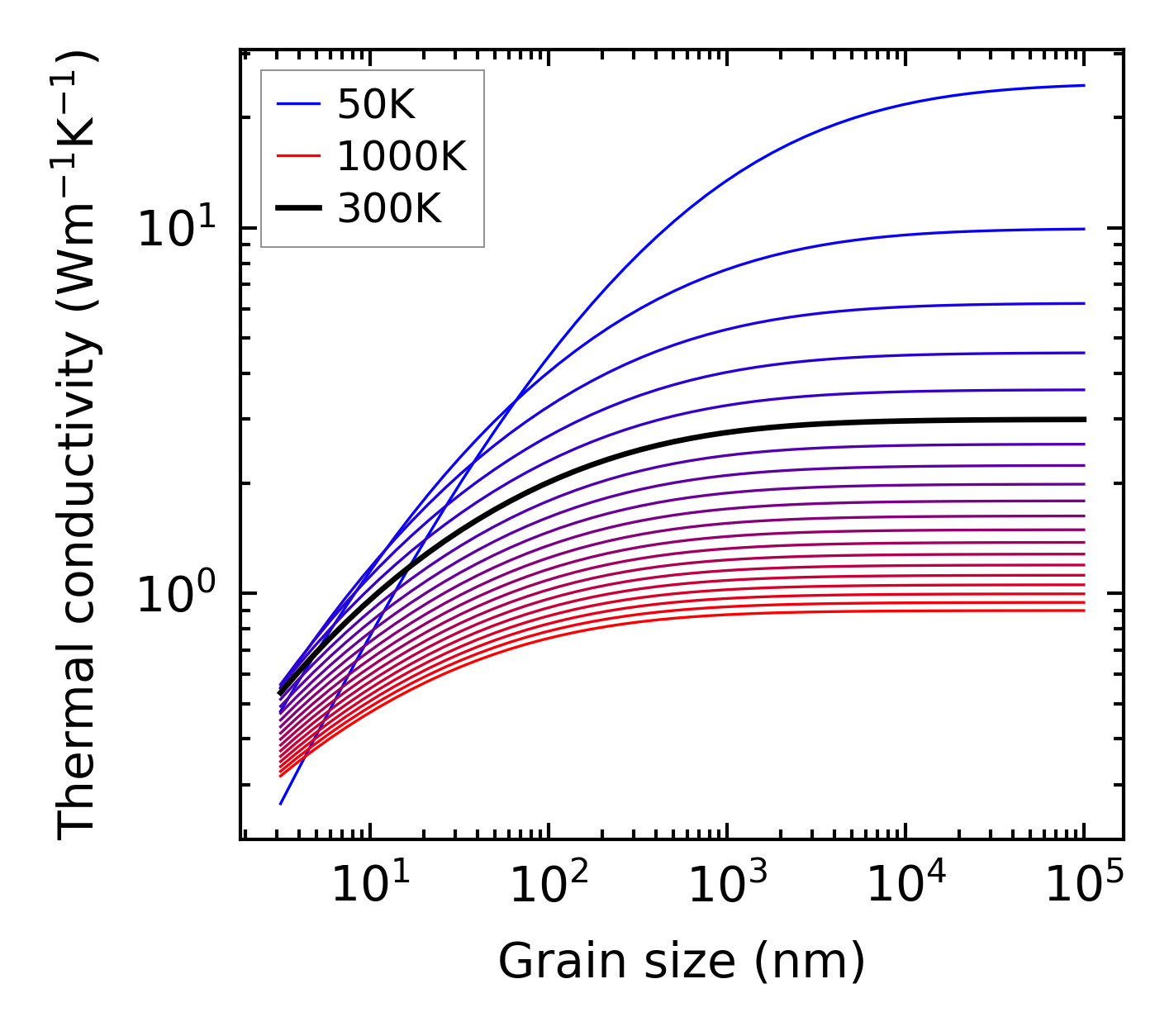

../../_images/fig_kappa_vs_grain_size5653.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

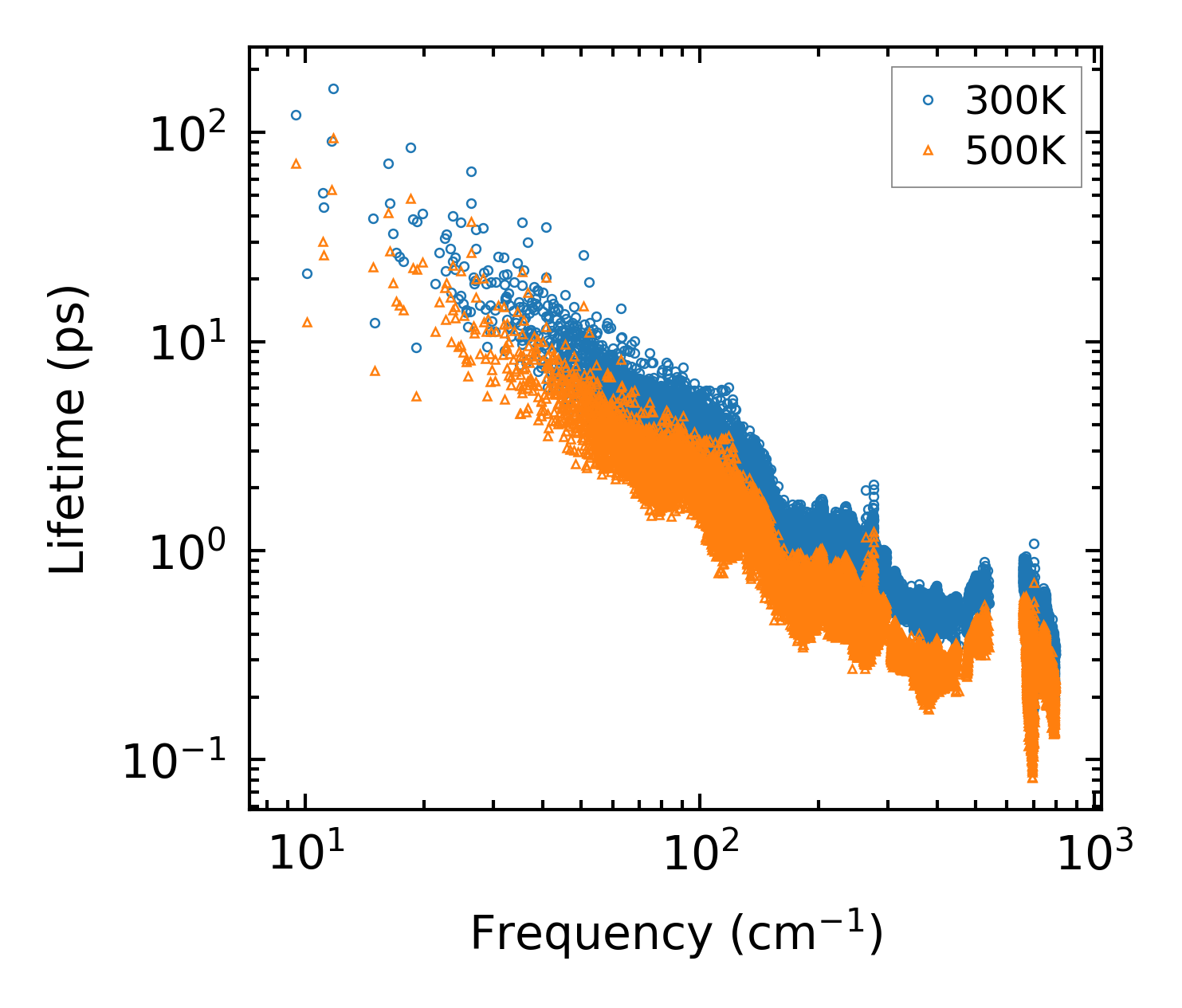

../../_images/fig_lifetime5534.png — (a) Phonon lifetime due to phonon-phonon scattering

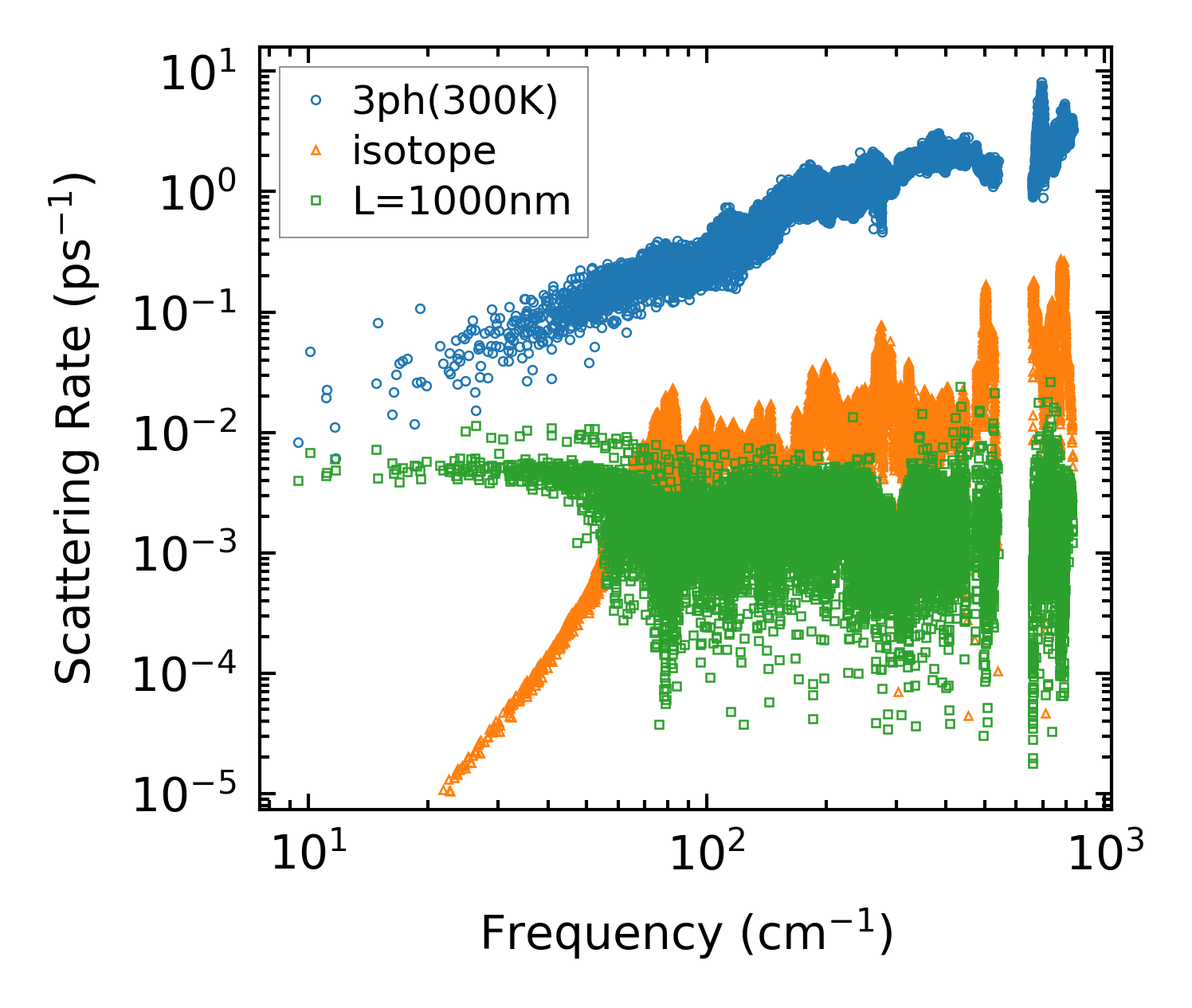

../../_images/fig_scat_rates5533.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

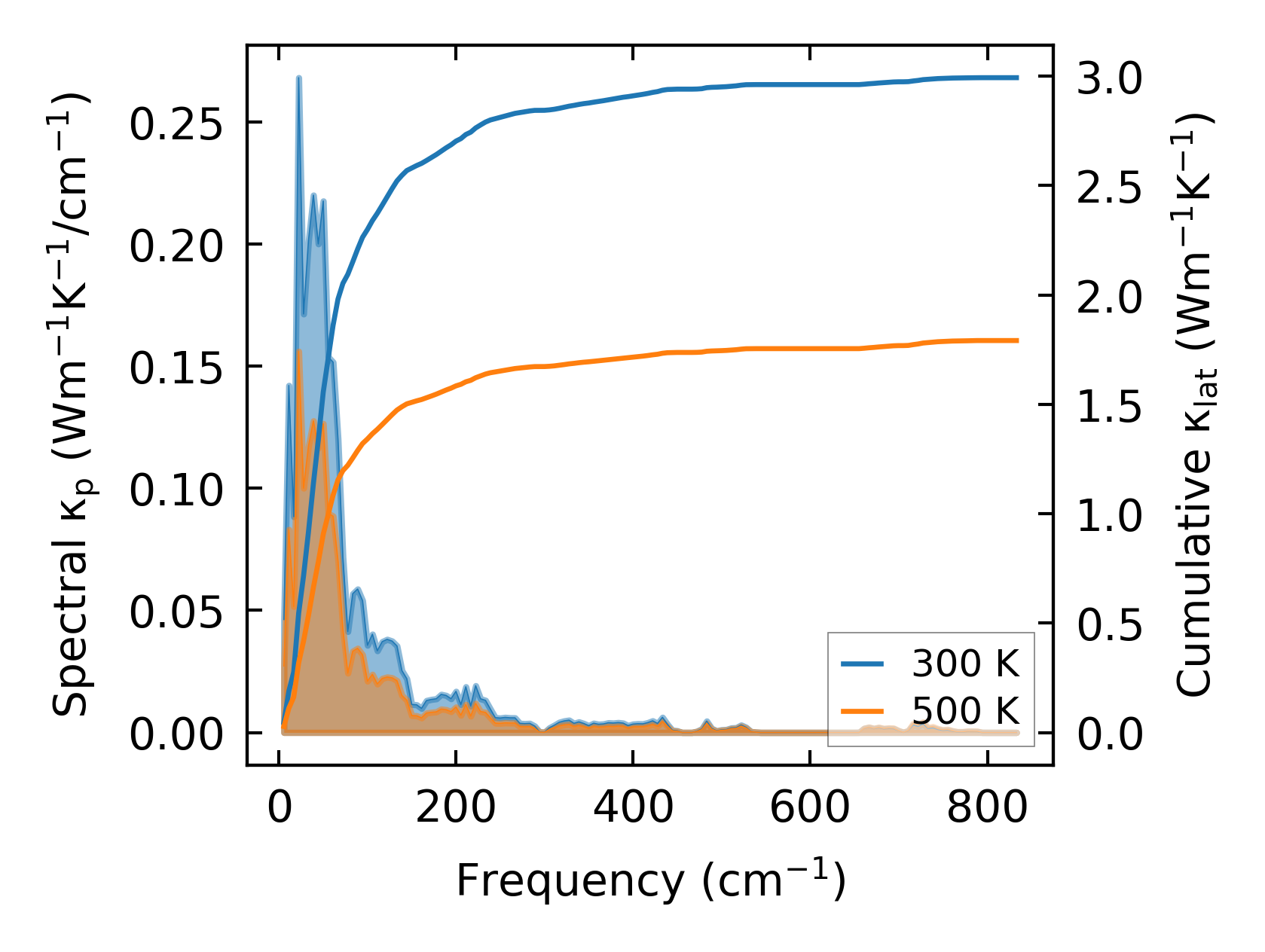

../../_images/fig_cumu_frequency5534.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

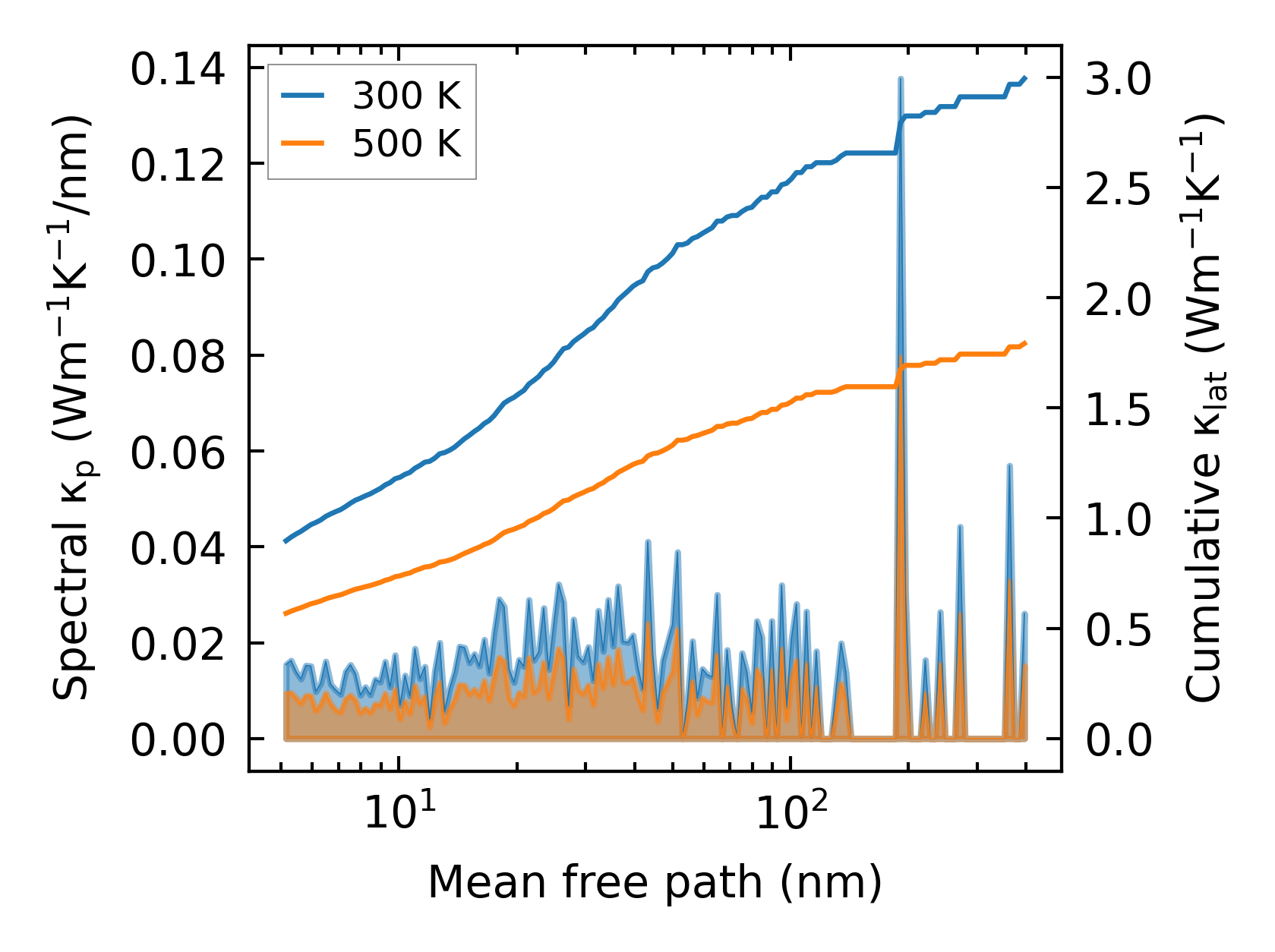

../../_images/fig_cumu_mfp5533.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

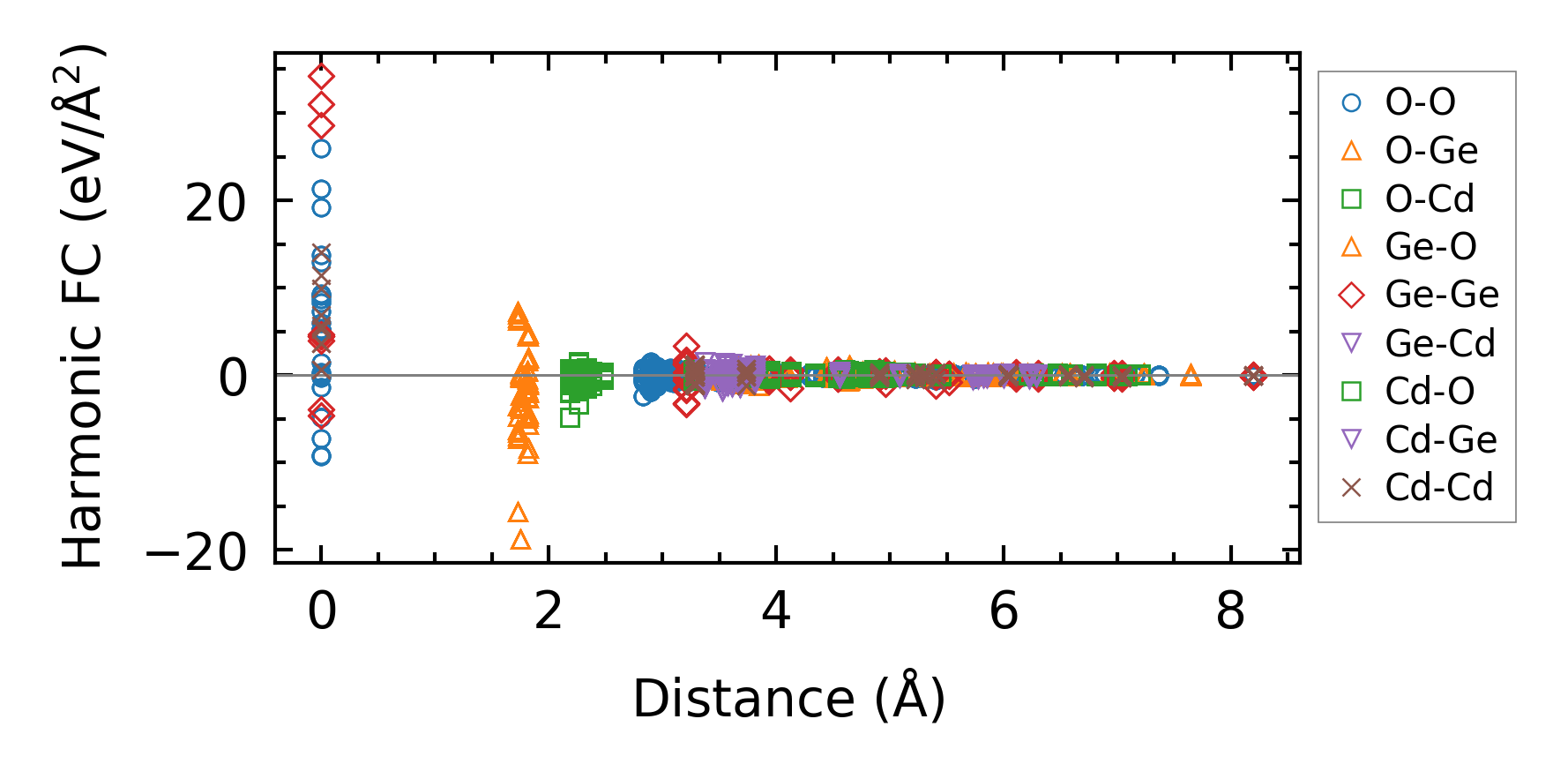

../../_images/fig_fc212926.png — (a) Force constants w.r.t atomic distance

Summary

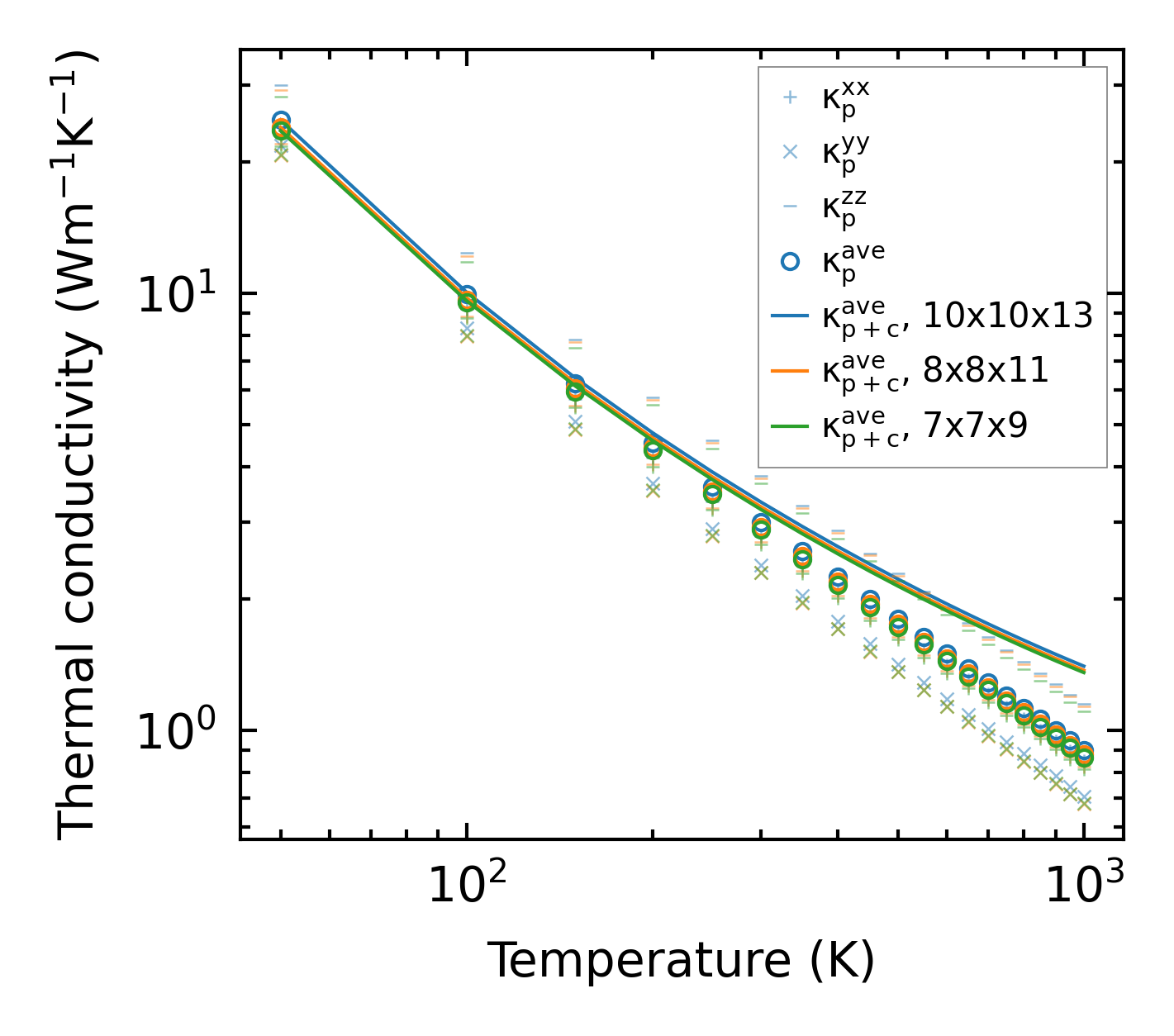

../../_images/fig_kappa10501.png — (a) Temperature-dependent lattice thermal conductivity

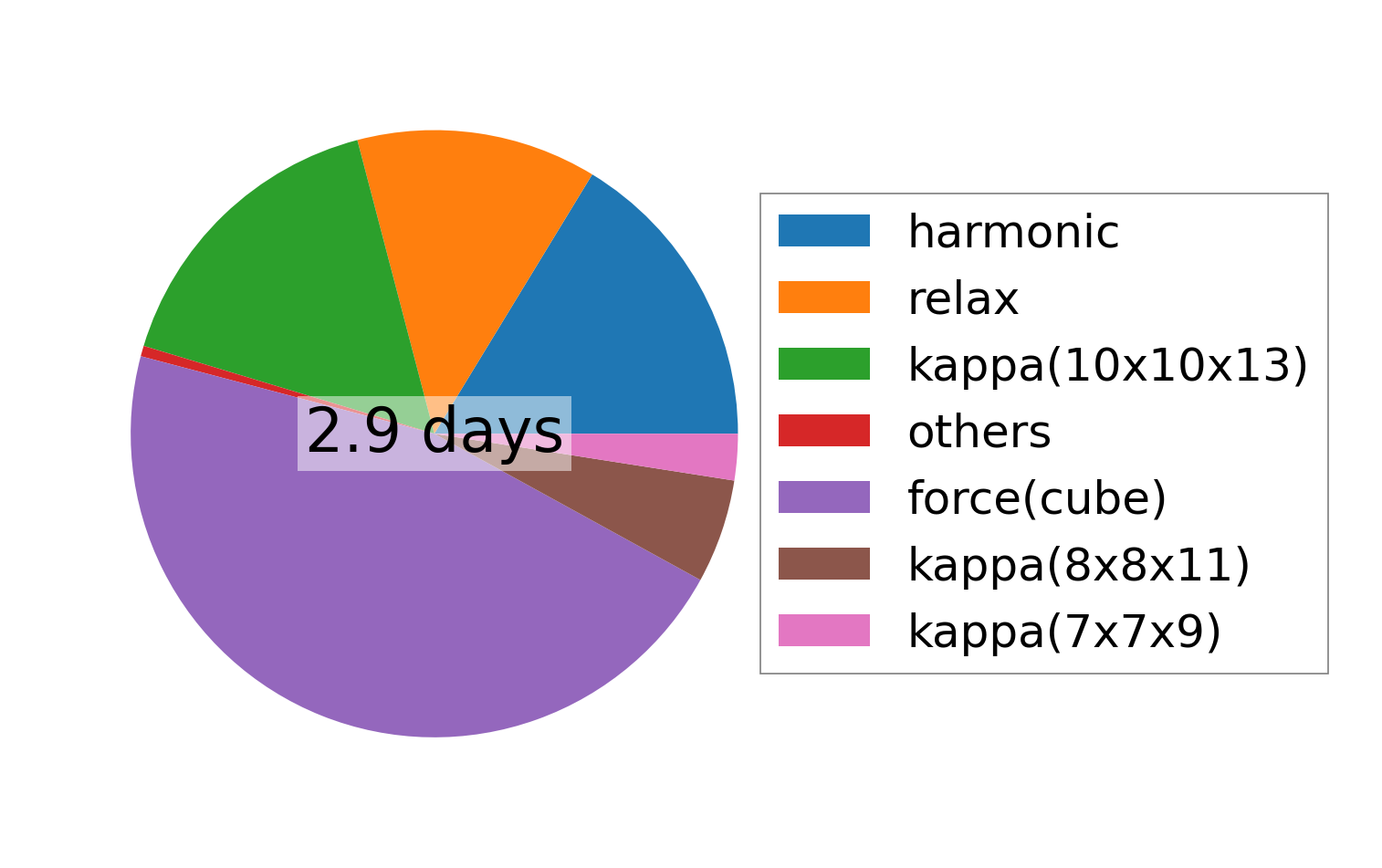

../../_images/fig_times22401.png — (b) Computation time
