mp-2340-2/Na2O2/anharm

Space group: P-62m (189)
Link: Materials Project
Download: mp-2340-2.tar.gz

Harmonic properties

../../_images/fig_bandos_pr13191.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo13191.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all5519.png — (a) Grüneisen parameters

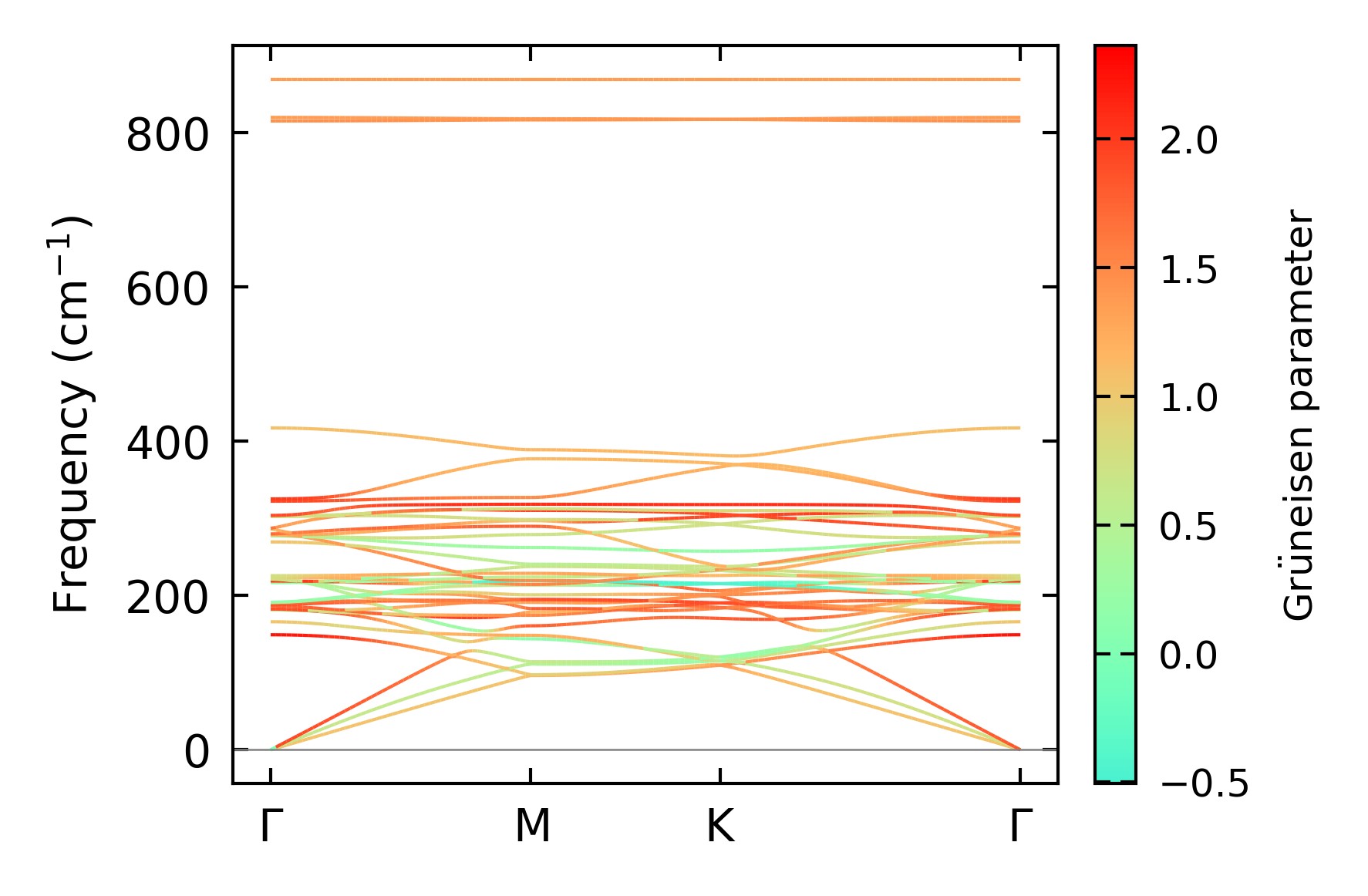

../../_images/fig_gruneisen5519.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x17, supercell: 2x2x3

../../_images/fig_kappa10364.png — (a) Temperature-dependent lattice thermal conductivity

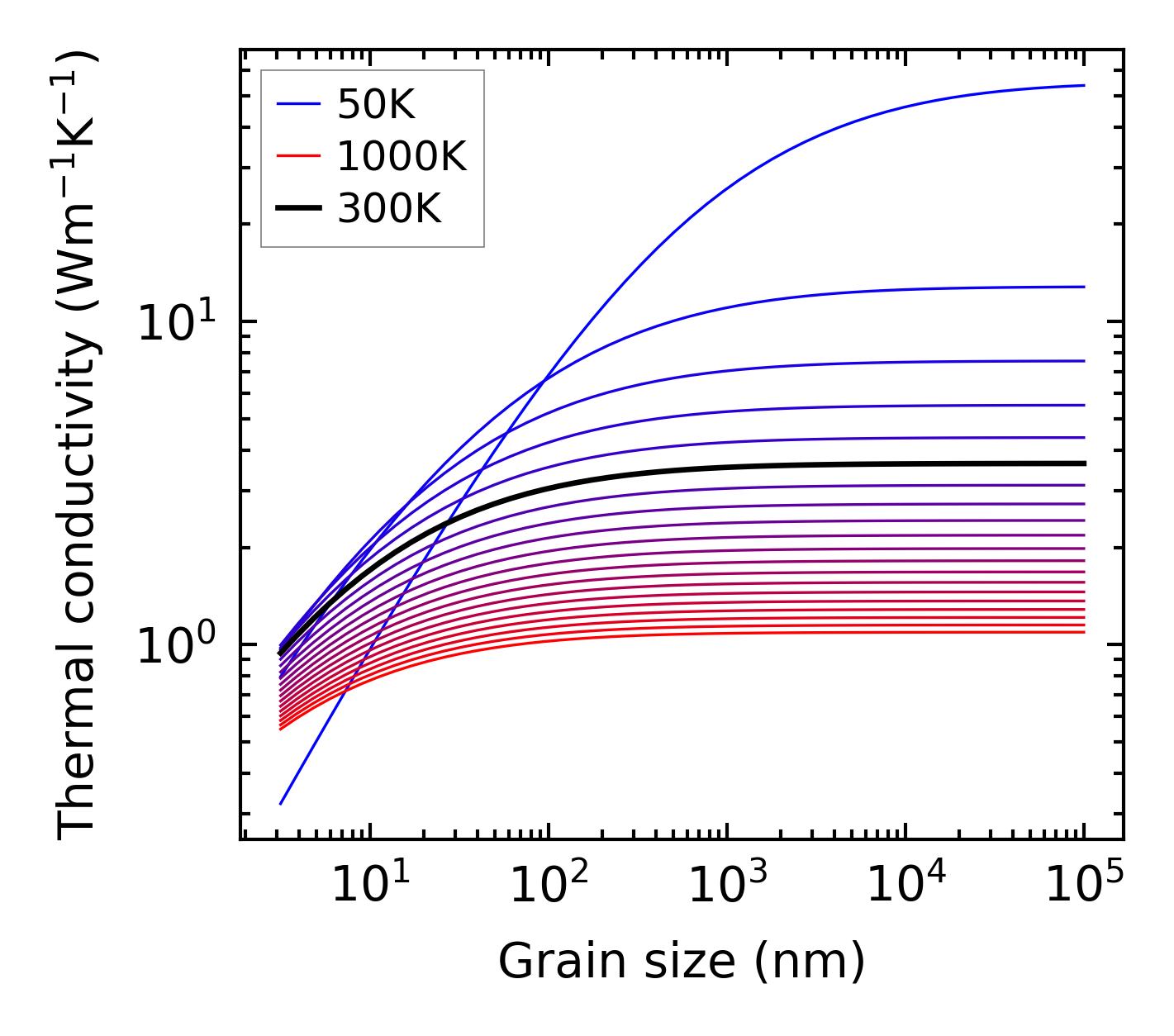

../../_images/fig_kappa_vs_grain_size5584.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

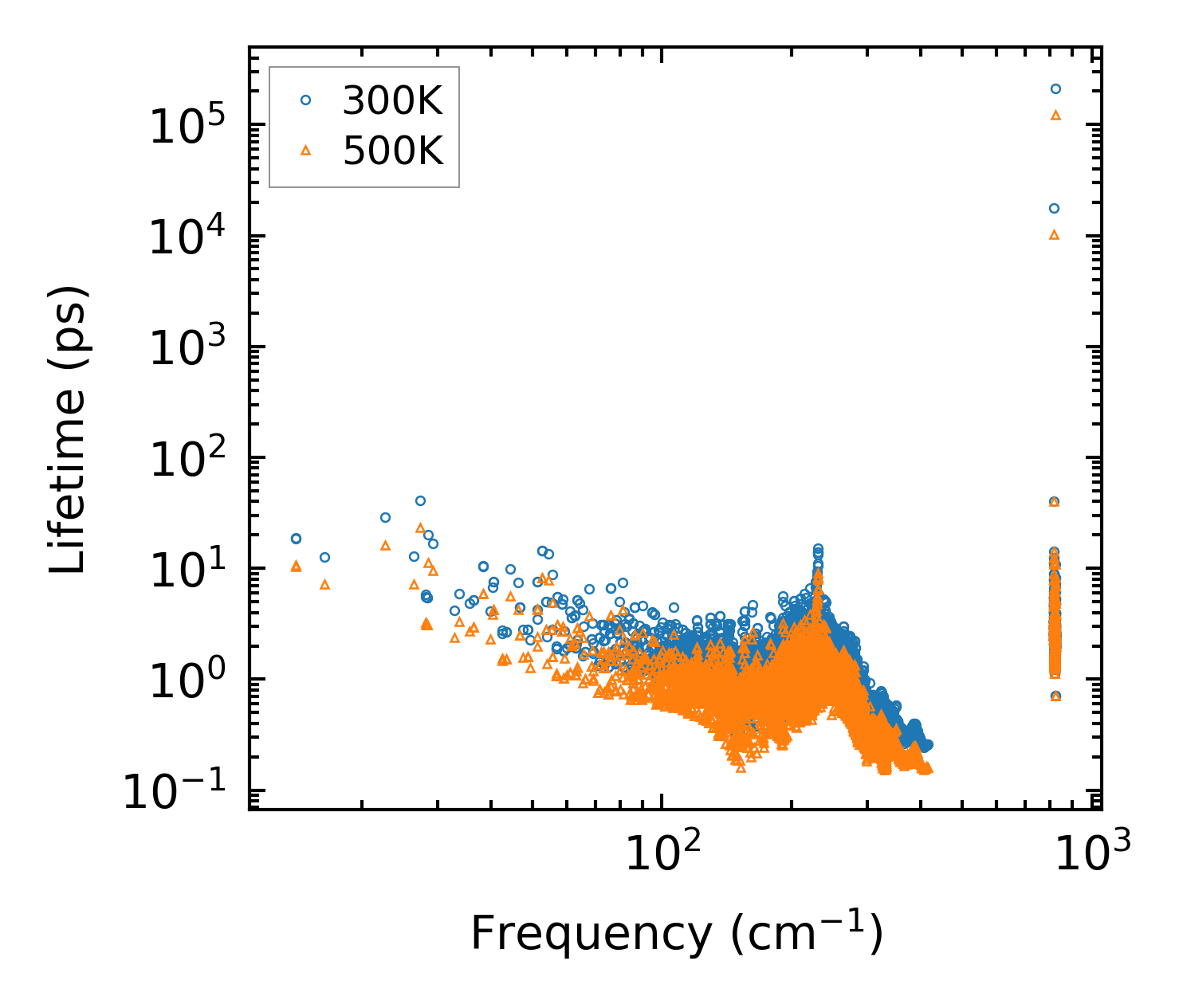

../../_images/fig_lifetime5466.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates5465.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

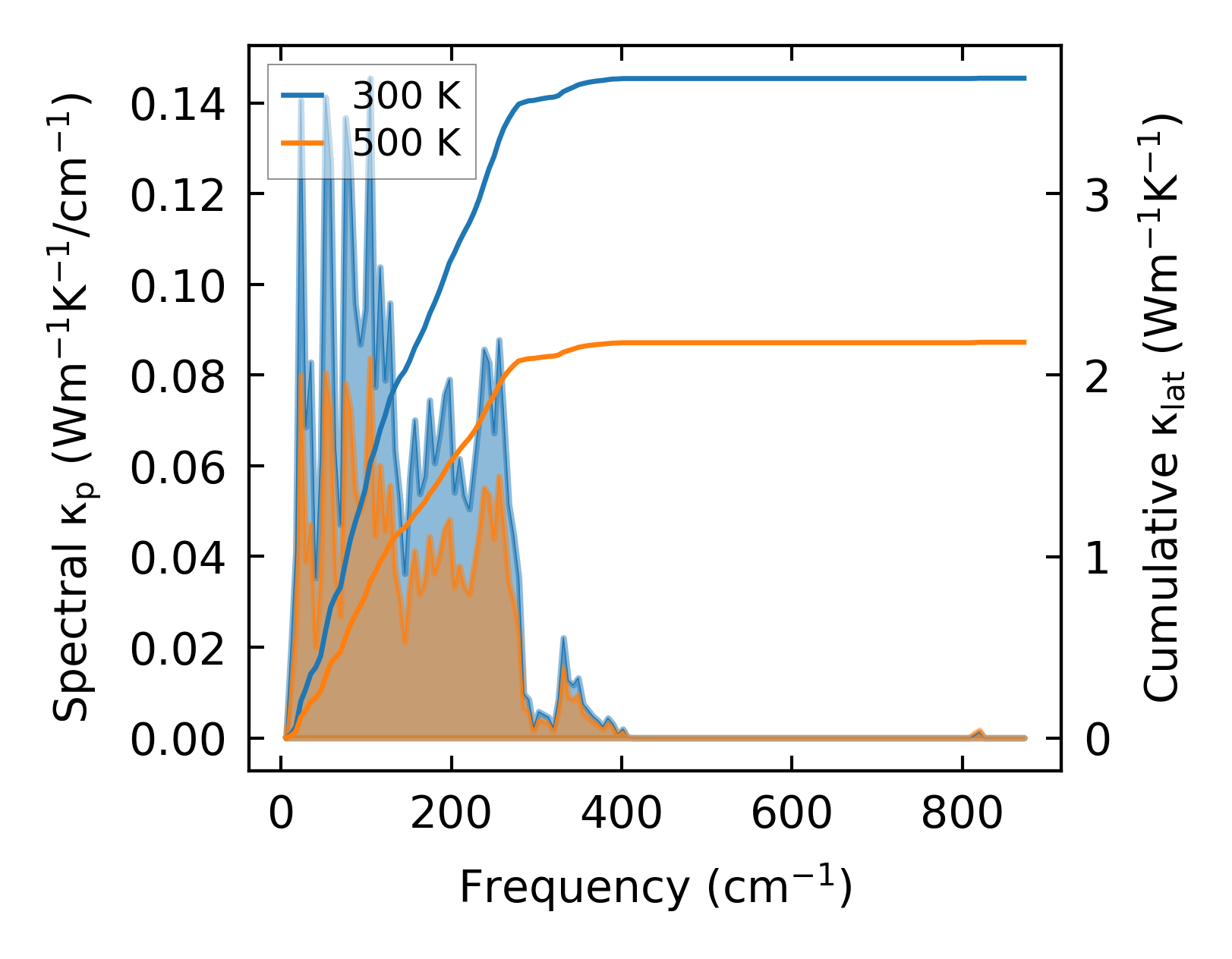

../../_images/fig_cumu_frequency5466.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

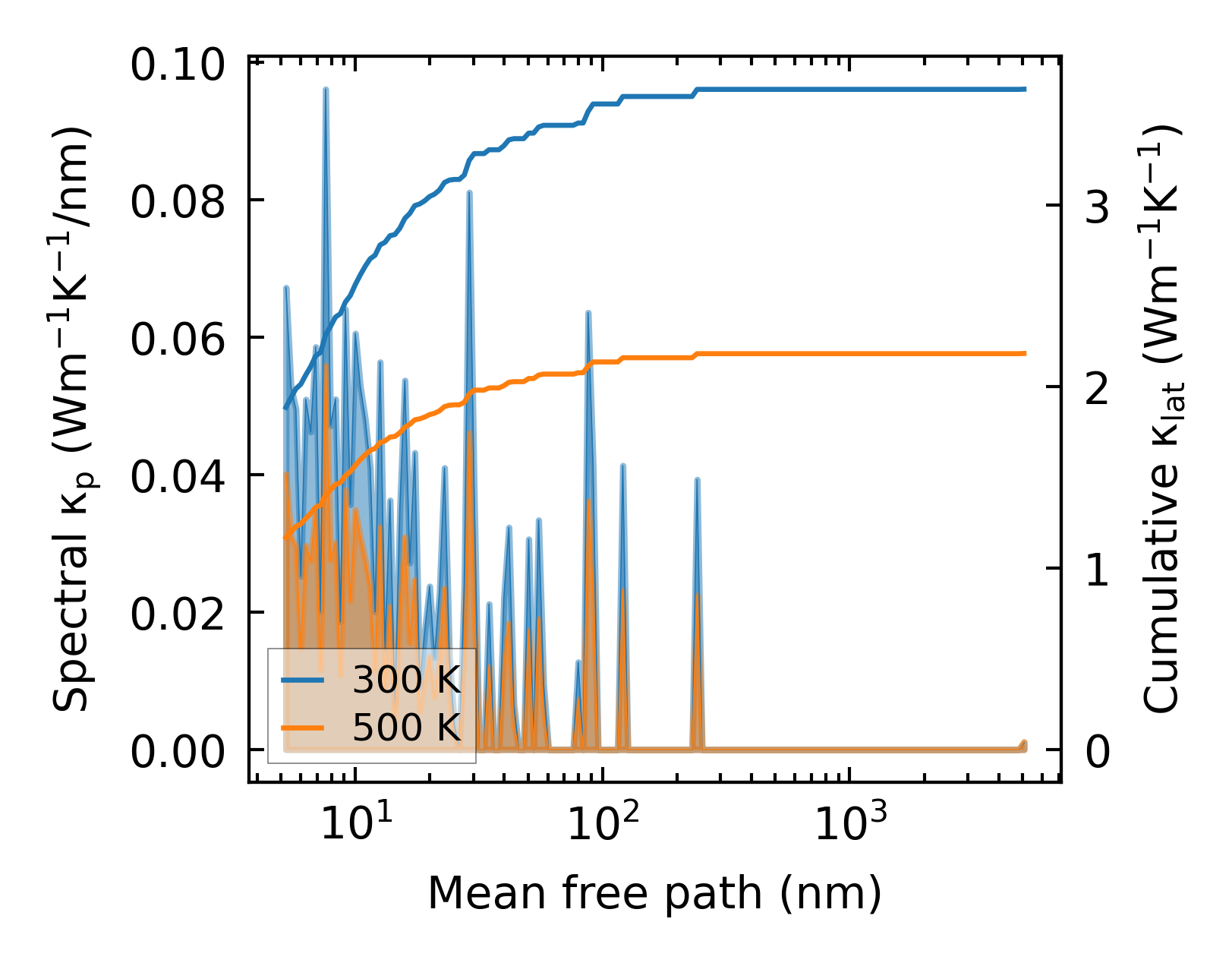

../../_images/fig_cumu_mfp5465.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

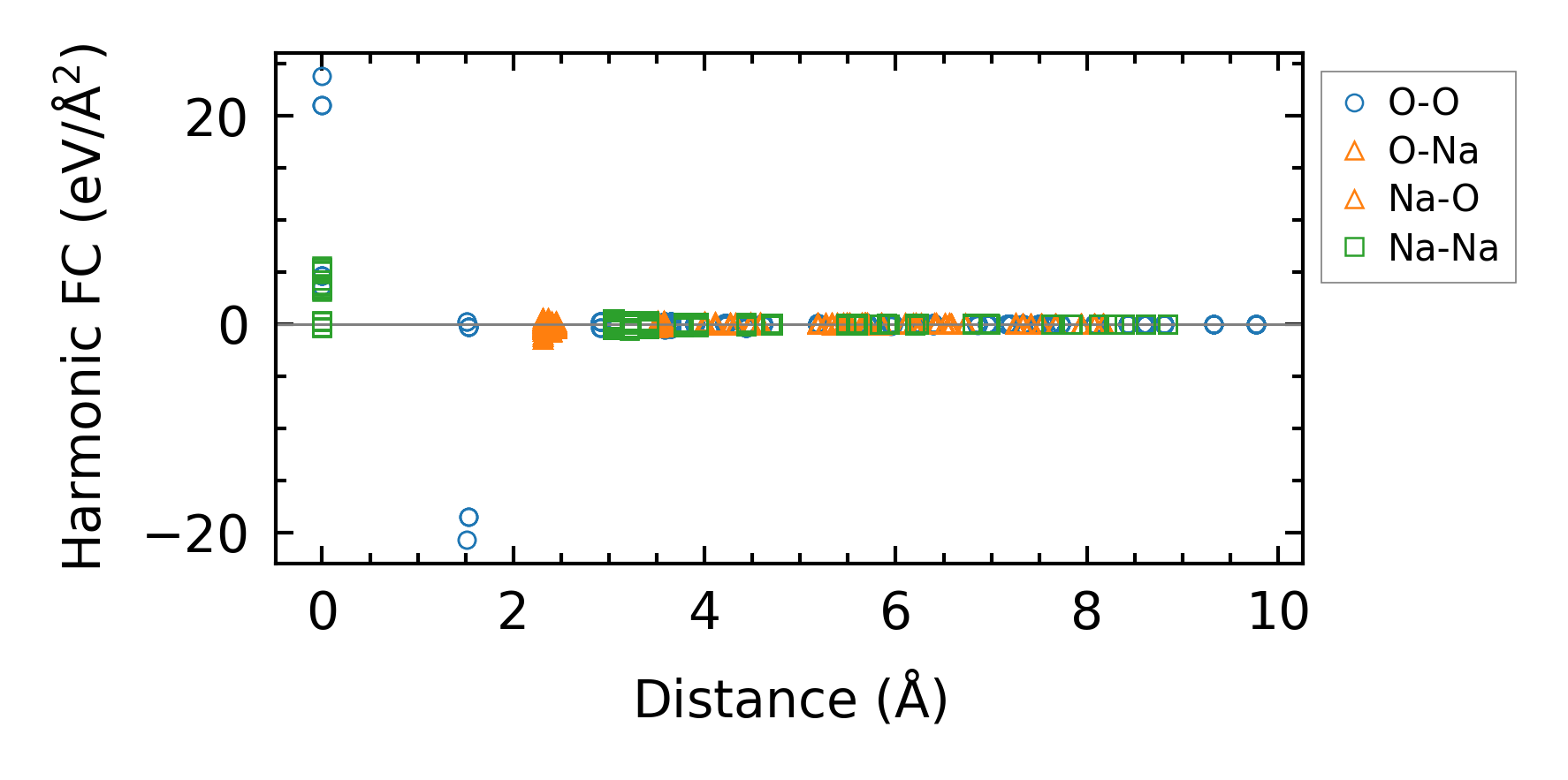

../../_images/fig_fc212848.png — (a) Force constants w.r.t atomic distance

Summary

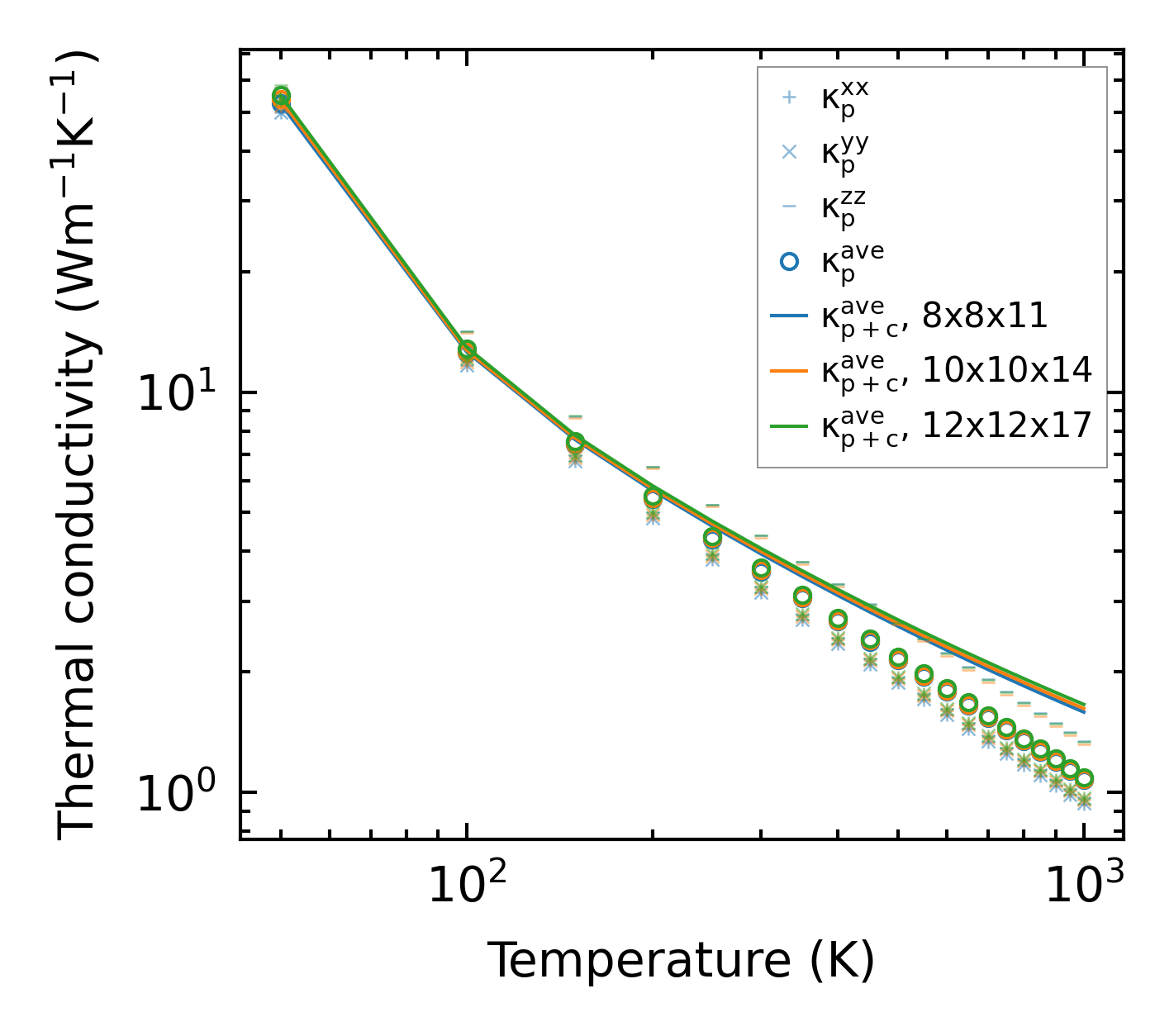

../../_images/fig_kappa10365.png — (a) Temperature-dependent lattice thermal conductivity

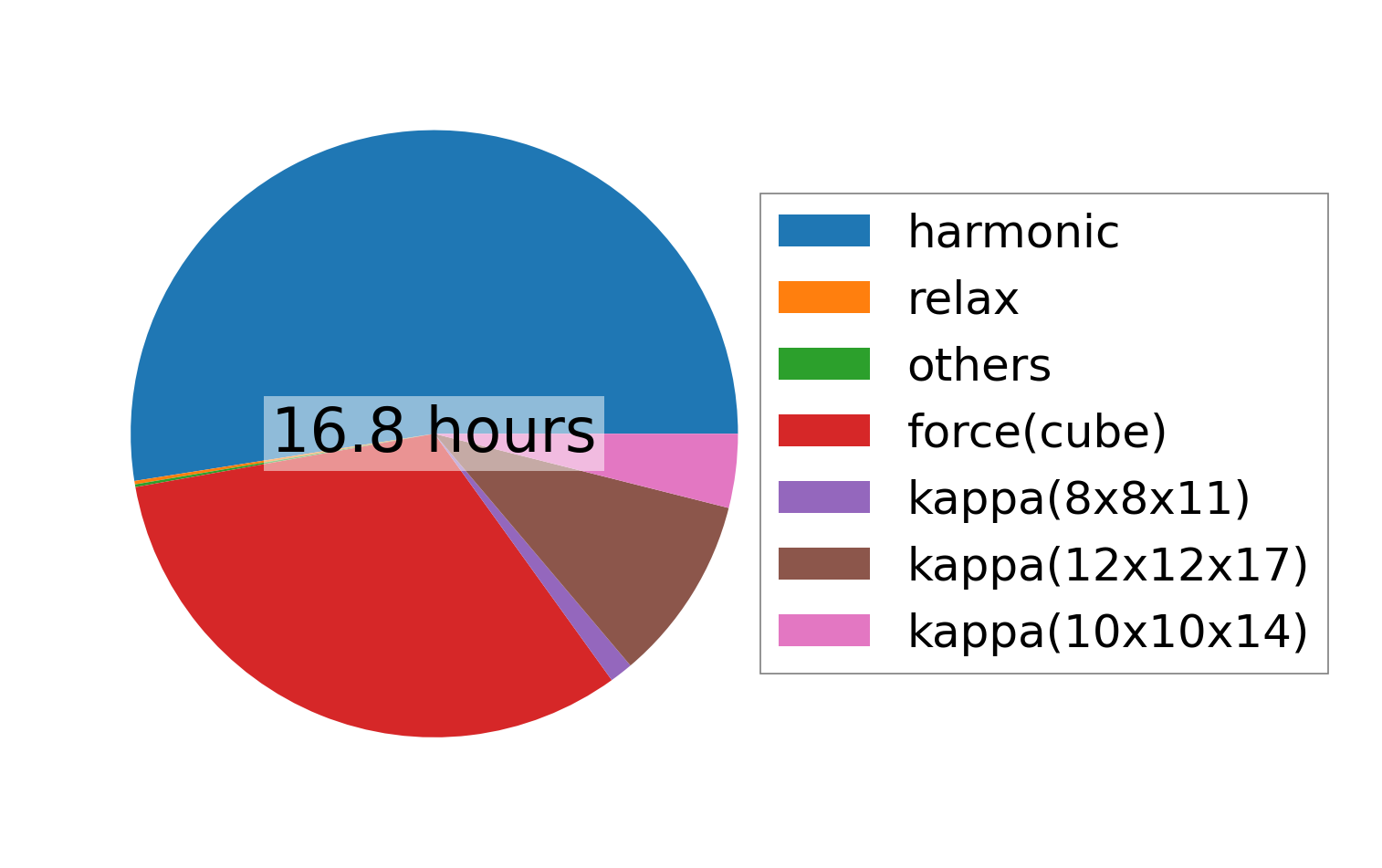

../../_images/fig_times22274.png — (b) Computation time
