mp-558977-2/LaErS3/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-558977-2.tar.gz

Equation of state

../../_images/fig_bm4039.png — (a) Equation of state

Harmonic properties

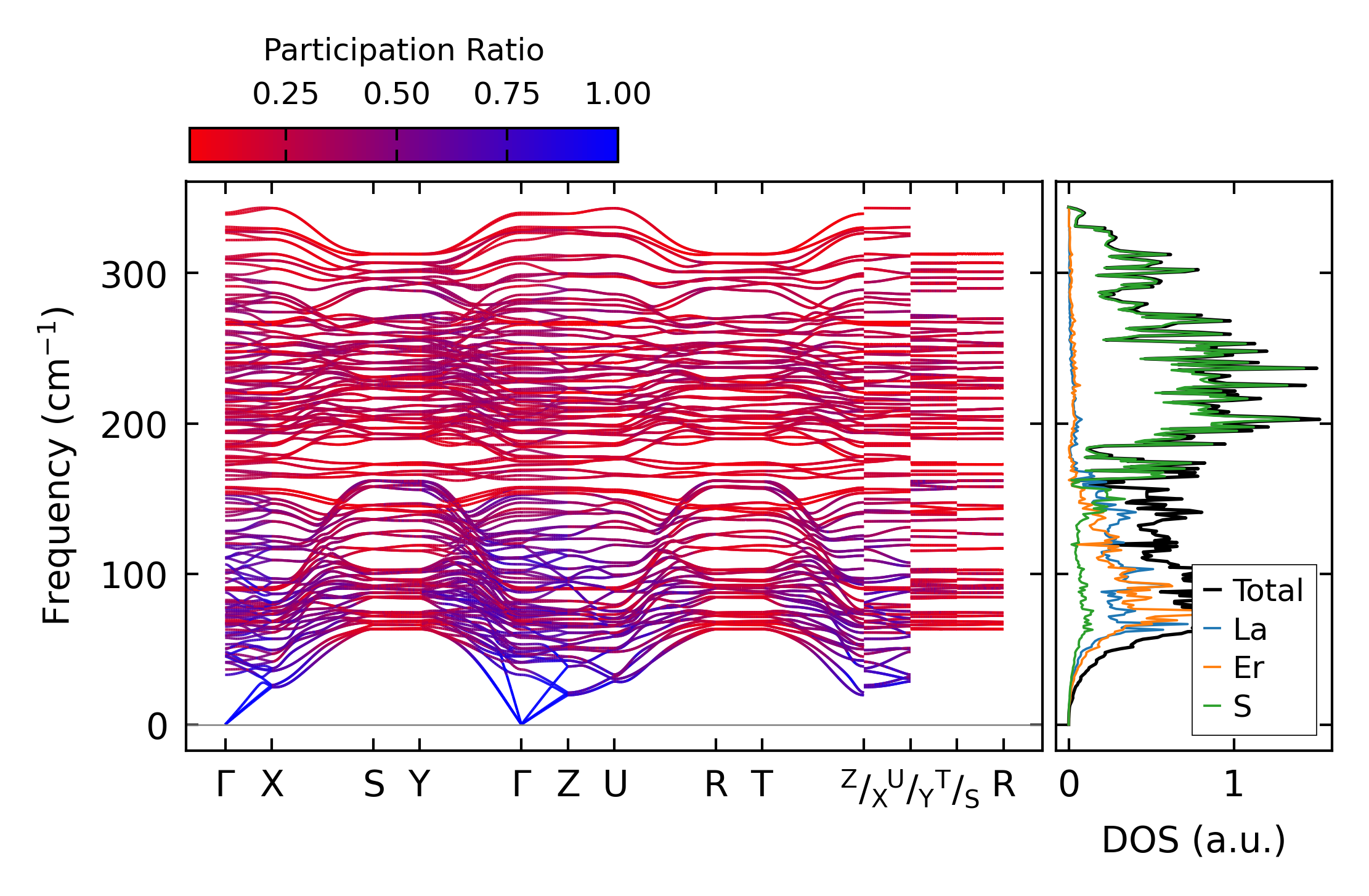

../../_images/fig_bandos_pr7823.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo7823.png — (b) Thermodynamic properties

Grüneisen parameters

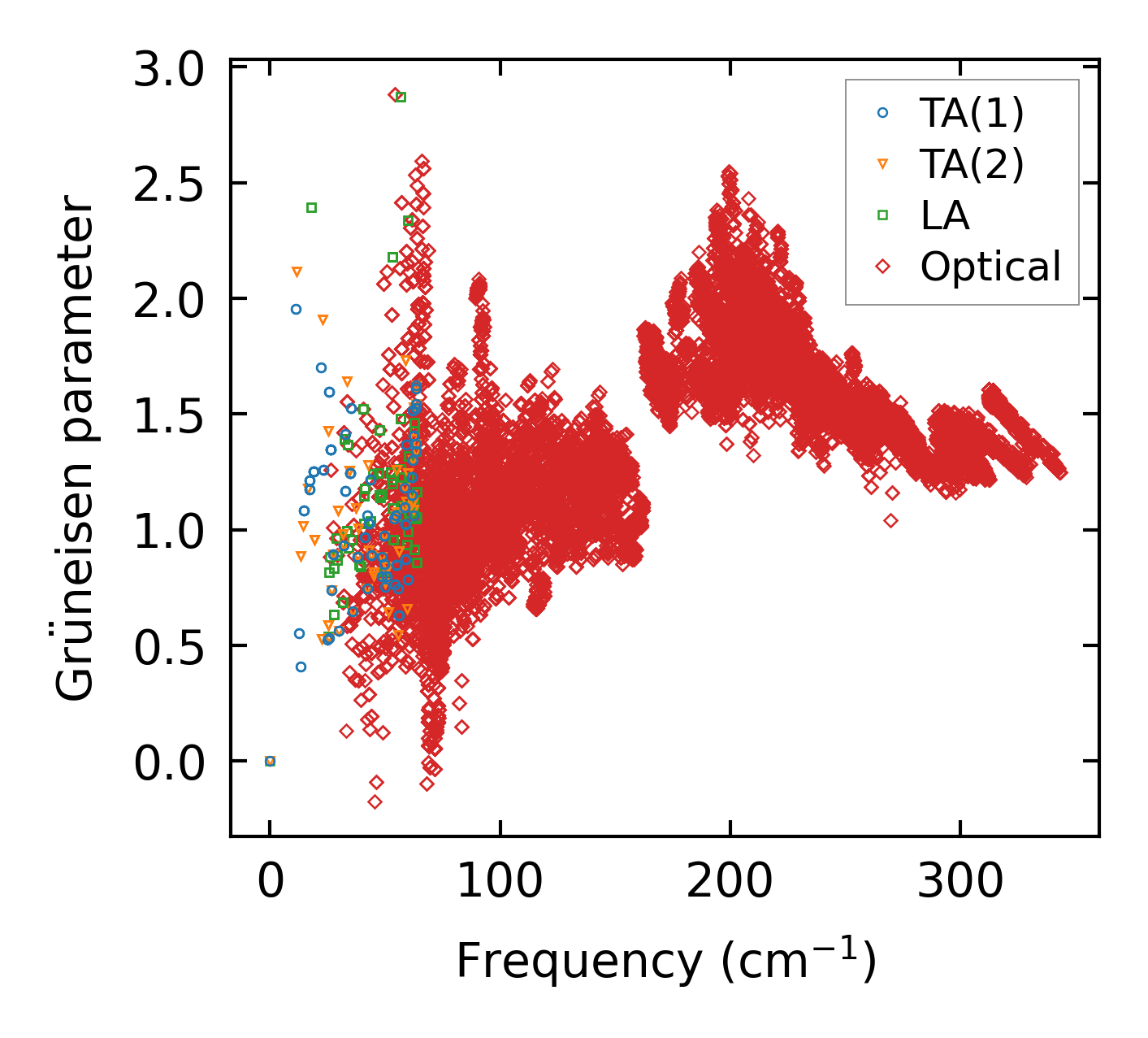

../../_images/fig_gru_all3257.png — (a) Grüneisen parameters

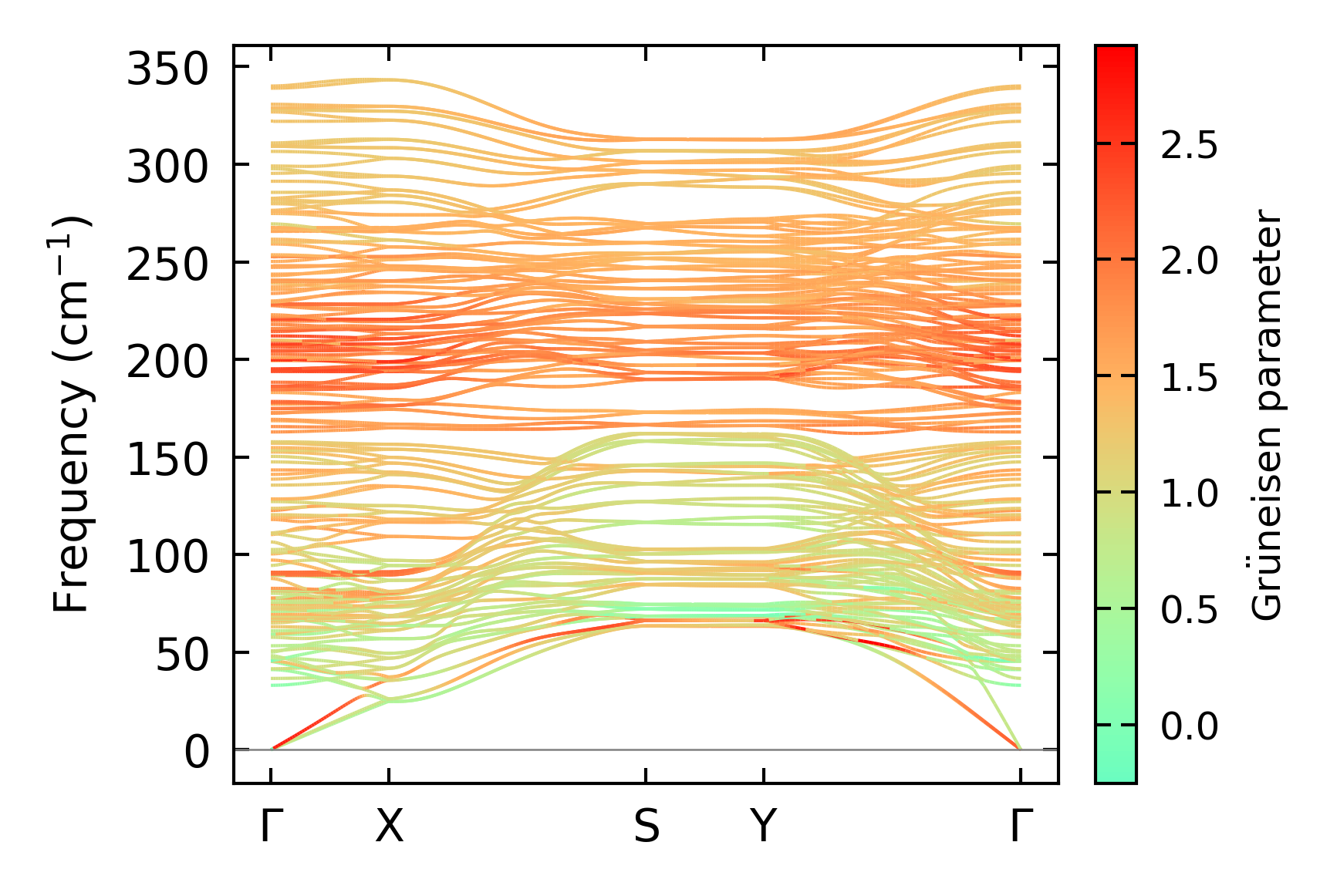

../../_images/fig_gruneisen3257.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 4x18x3, supercell: 1x2x1

../../_images/fig_kappa6169.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size3299.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

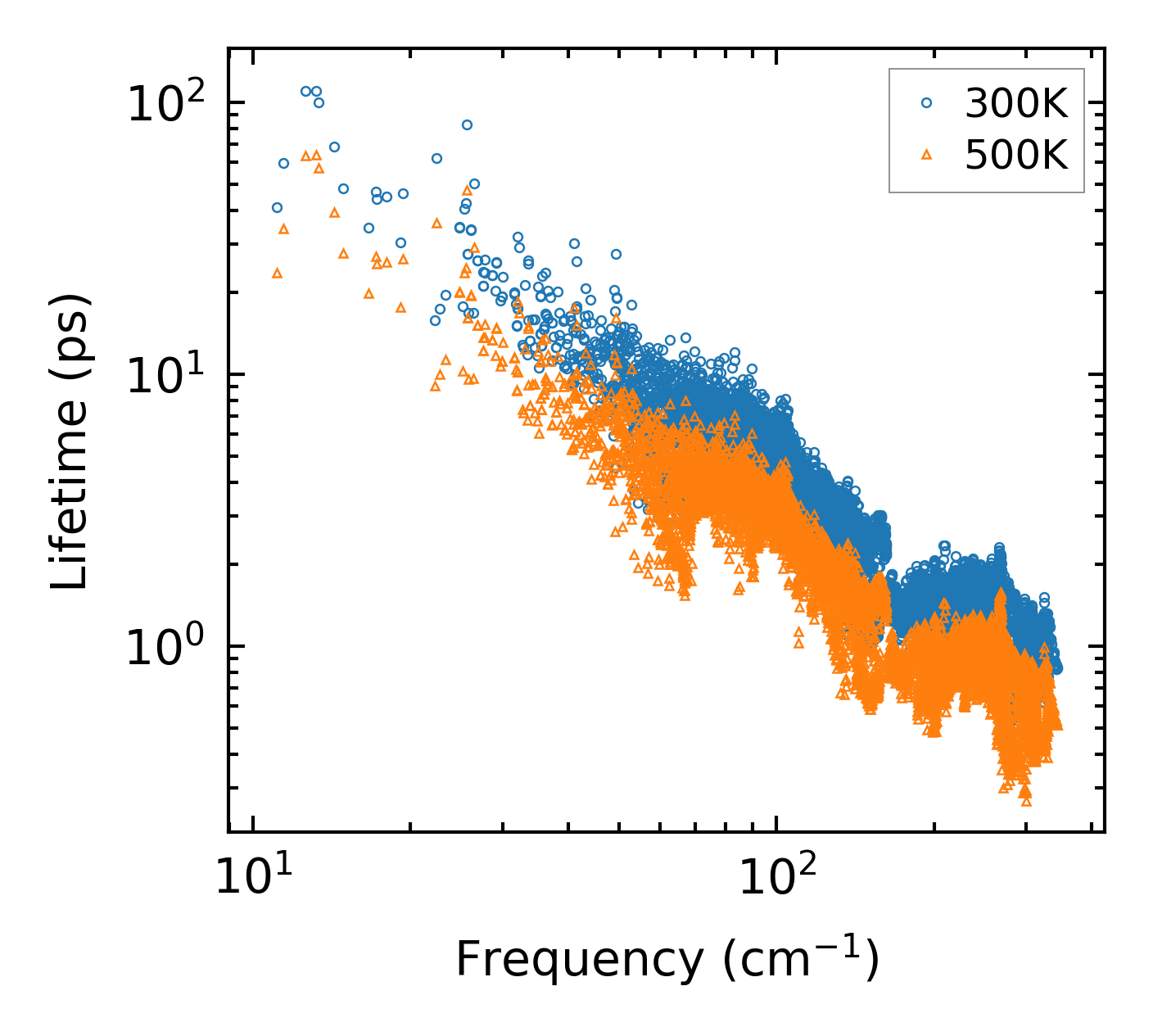

../../_images/fig_lifetime3229.png — (a) Phonon lifetime due to phonon-phonon scattering

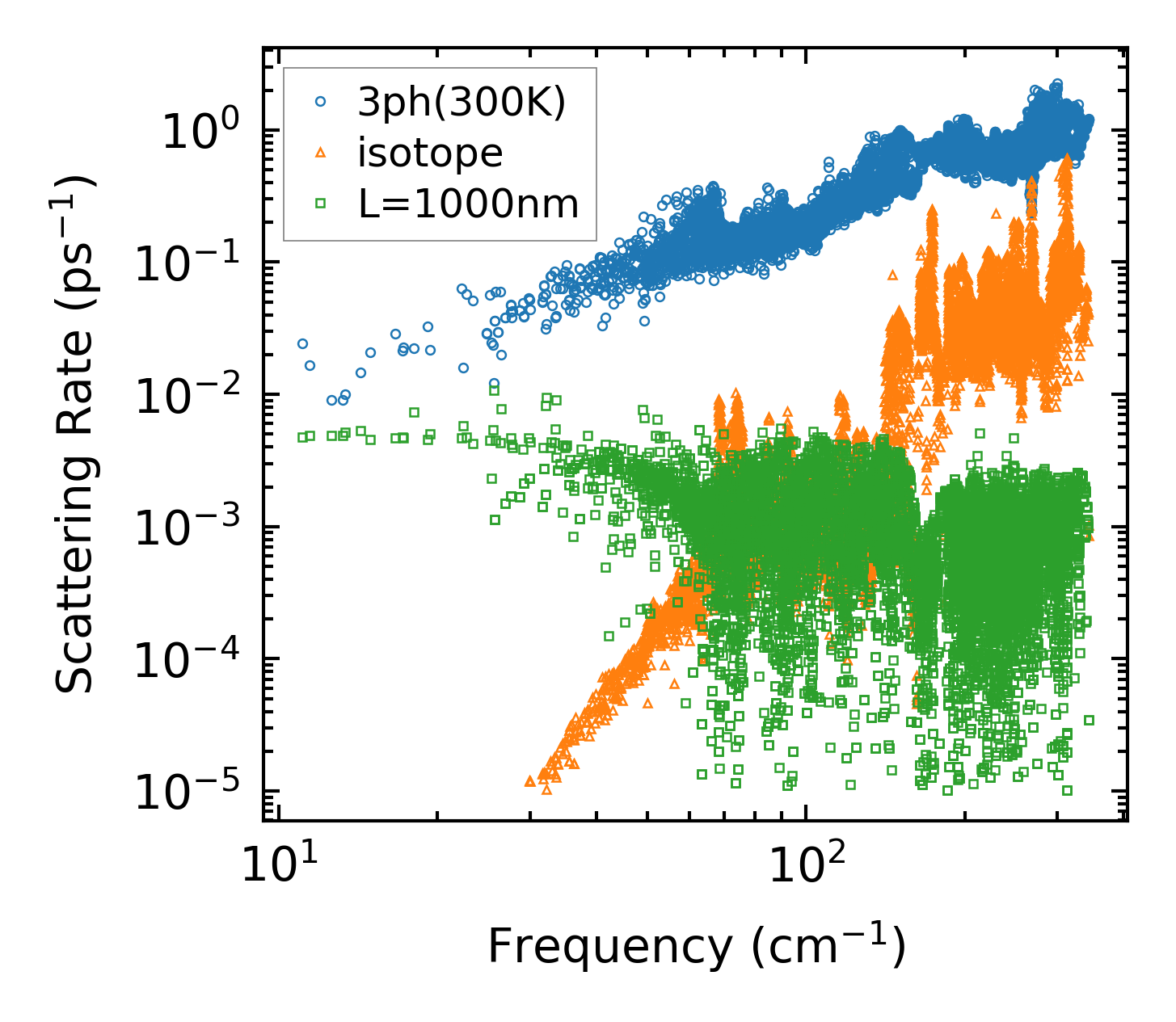

../../_images/fig_scat_rates3228.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

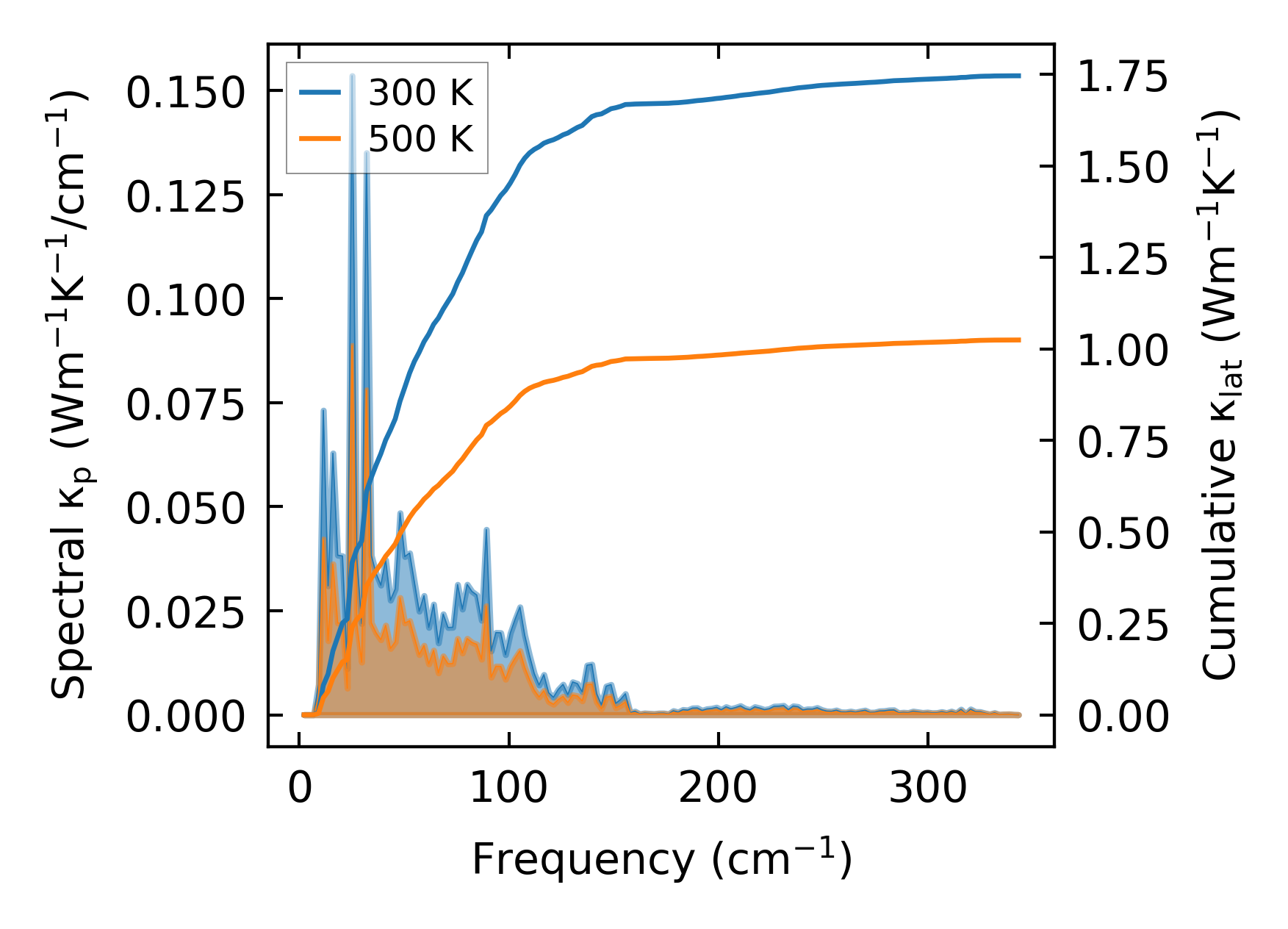

../../_images/fig_cumu_frequency3229.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp3228.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc27586.png — (a) Force constants w.r.t atomic distance

Summary

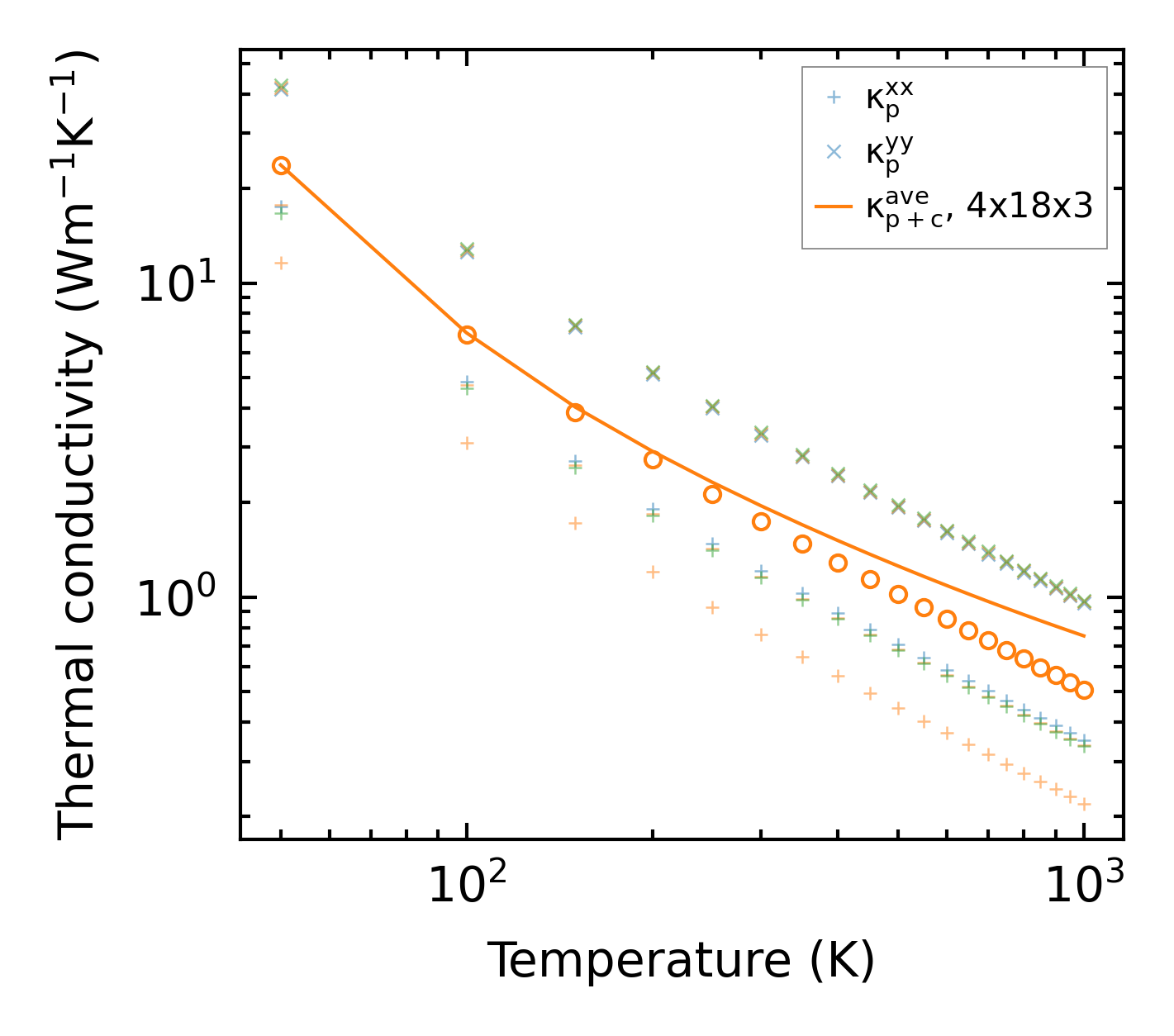

../../_images/fig_kappa6170.png — (a) Temperature-dependent lattice thermal conductivity

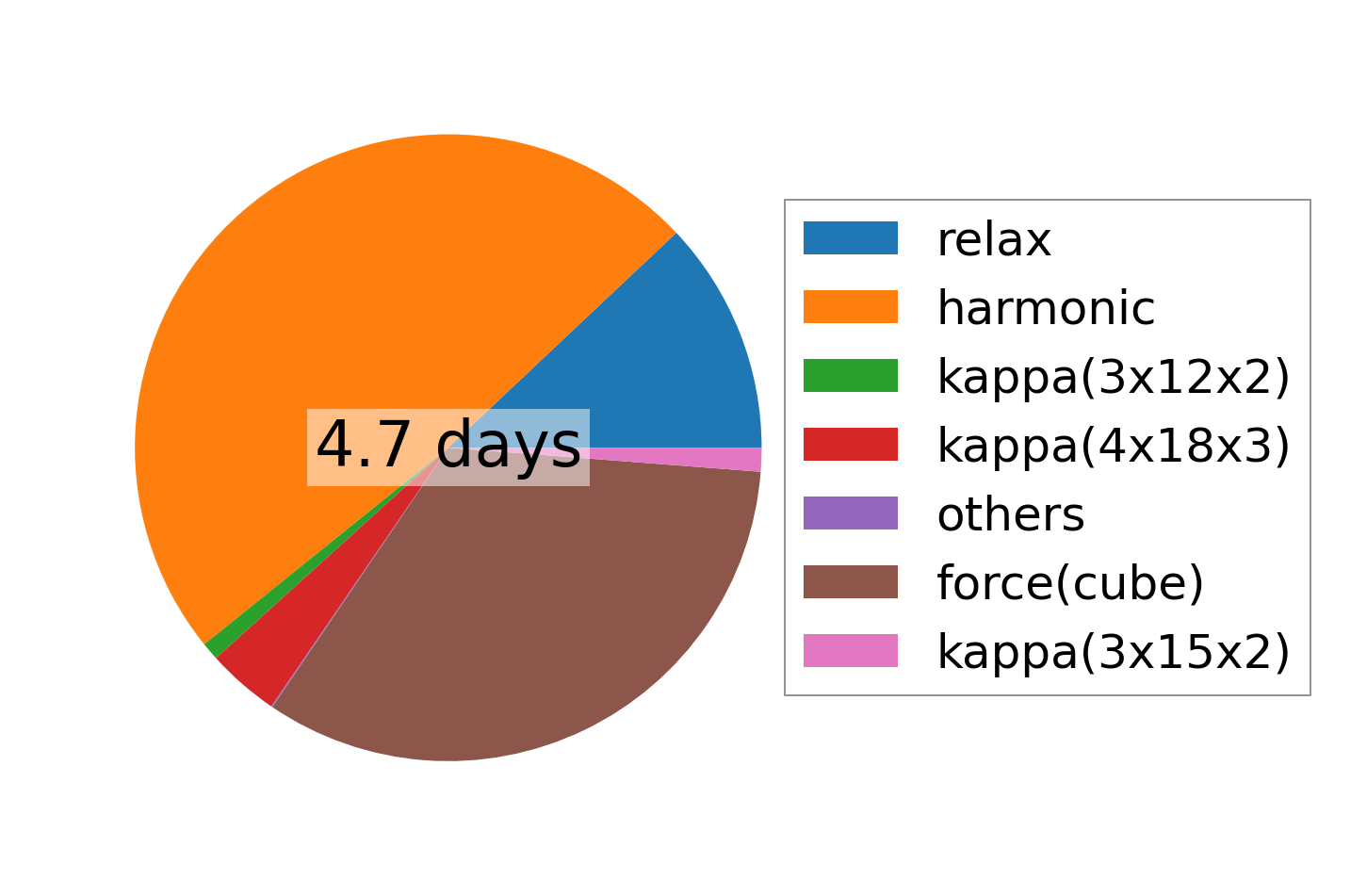

../../_images/fig_times13798.png — (b) Computation time
