mp-558428/Ba9Sc2Si6O24/anharm

Space group: R-3 (148)
Link: Materials Project
Download: mp-558428.tar.gz

Harmonic properties

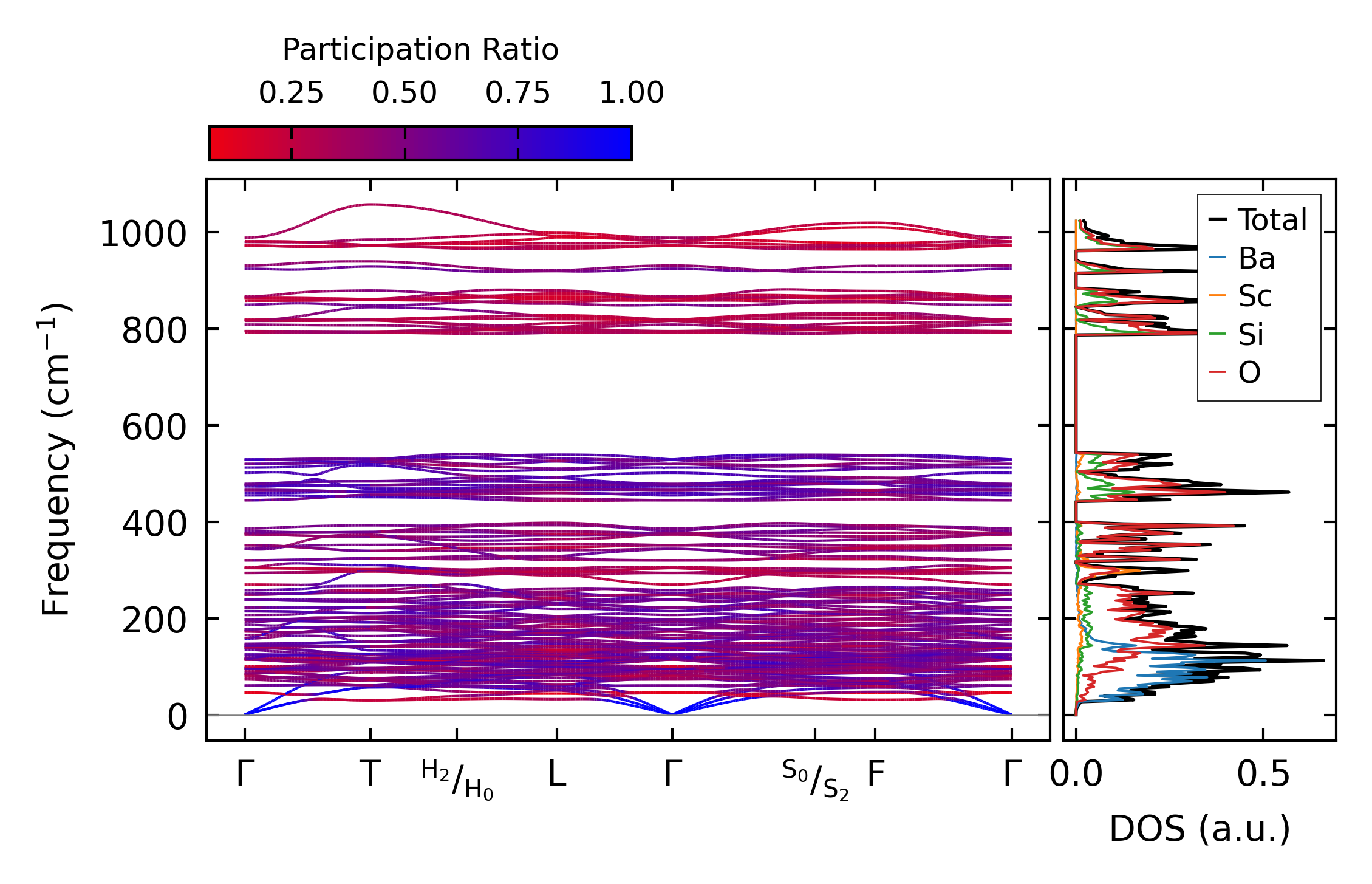

../../_images/fig_bandos_pr8018.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo8018.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all3311.png — (a) Grüneisen parameters

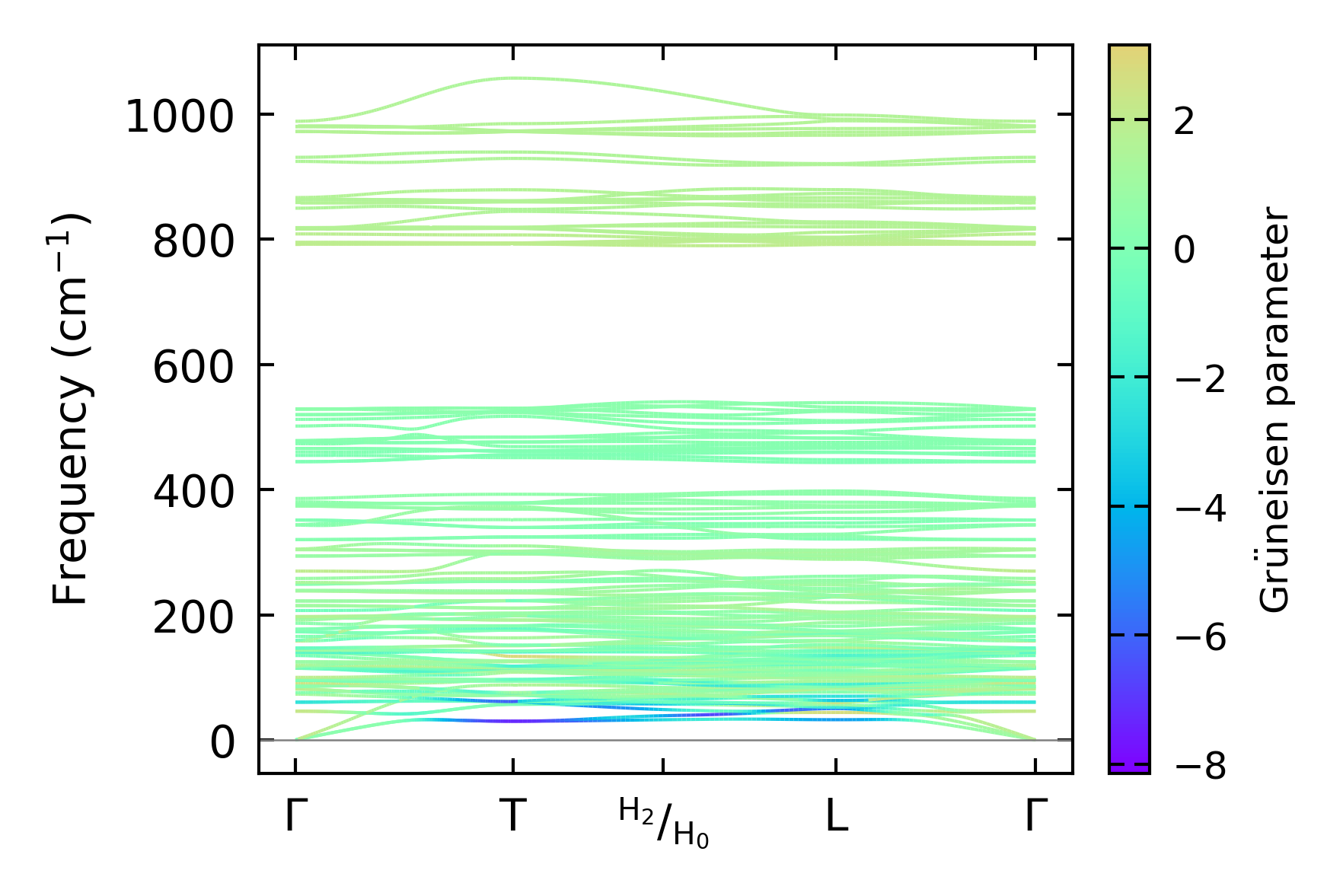

../../_images/fig_gruneisen3311.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x8x8, supercell: 1x1x1

../../_images/fig_kappa6271.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size3355.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

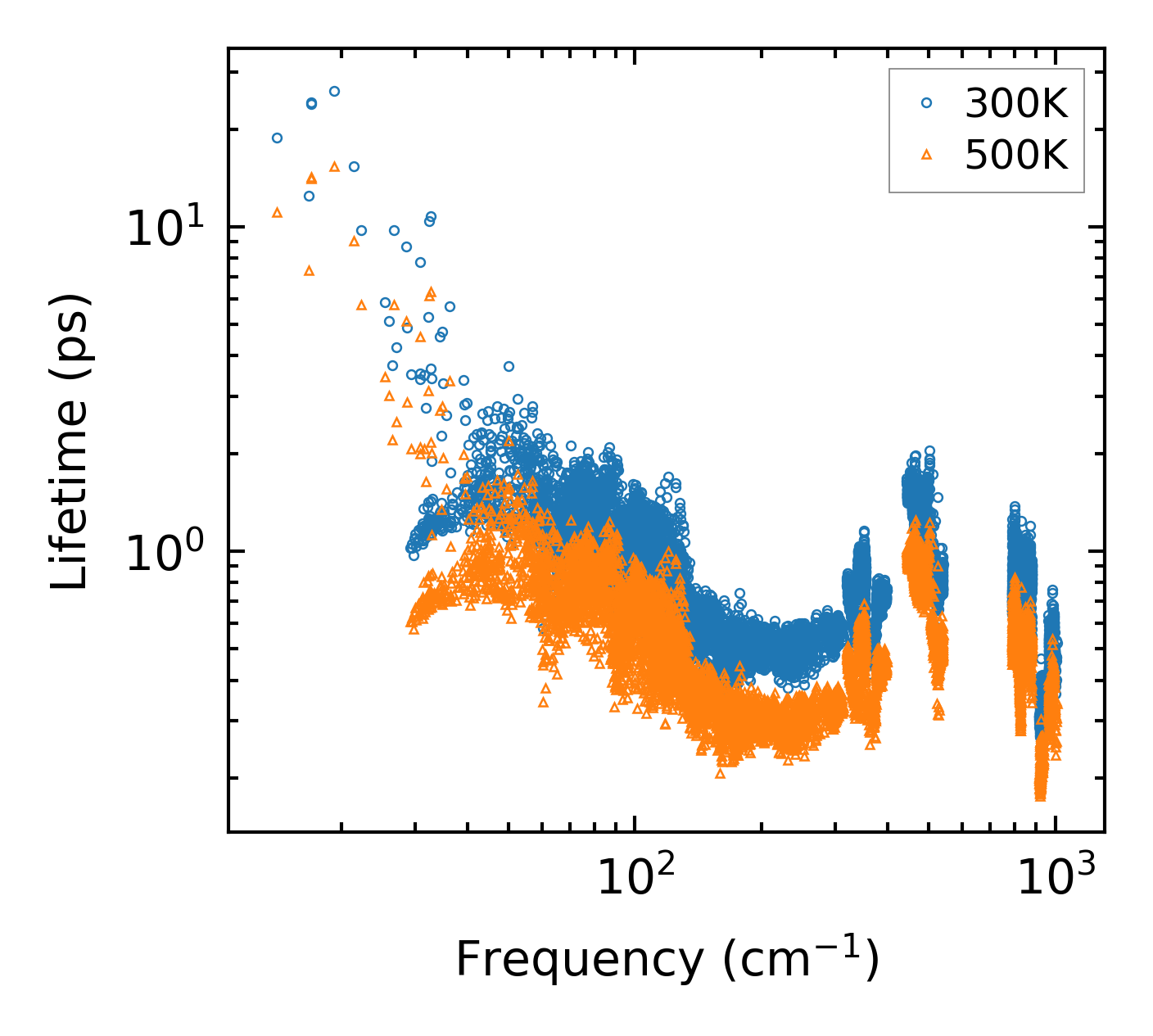

../../_images/fig_lifetime3283.png — (a) Phonon lifetime due to phonon-phonon scattering

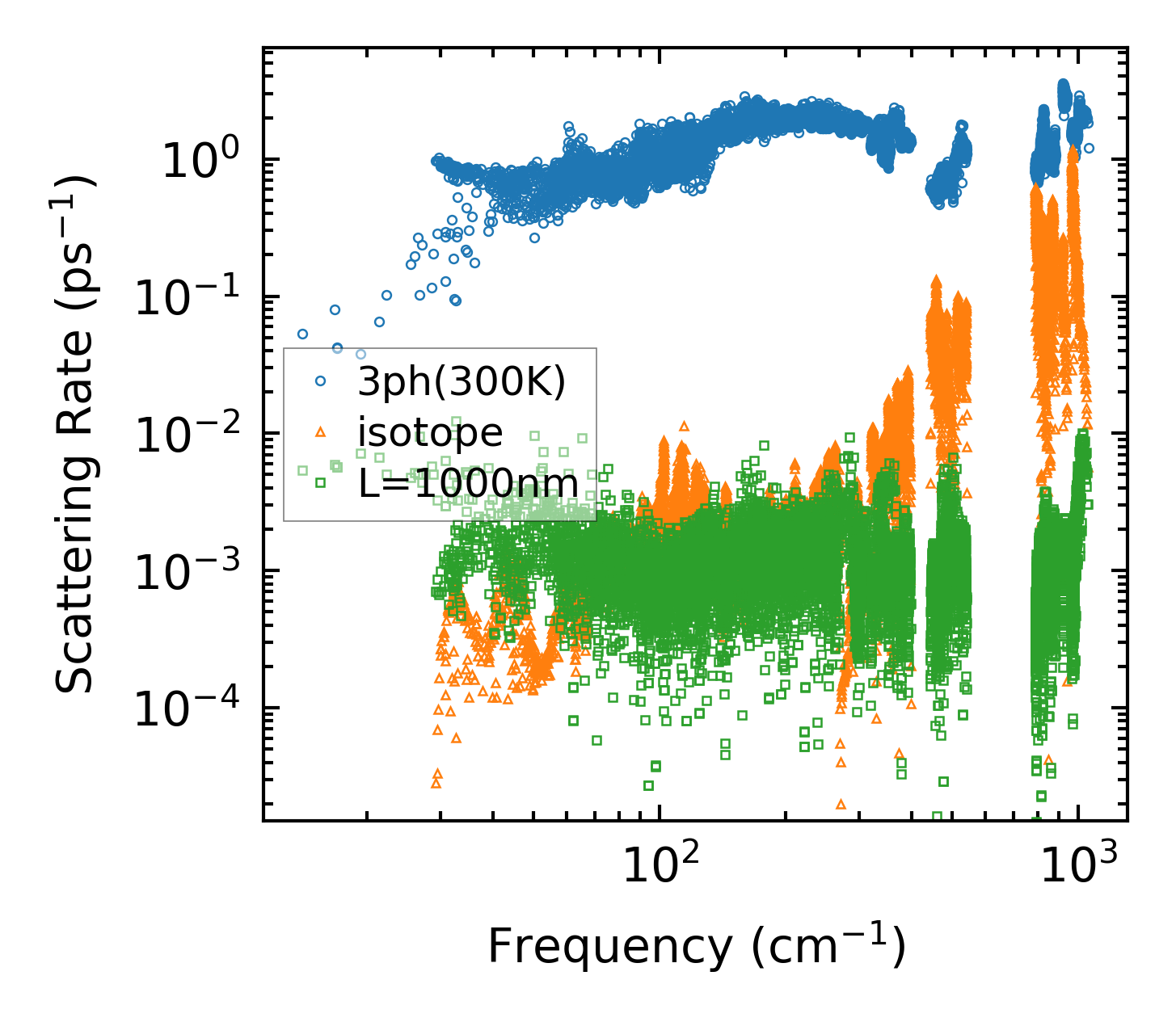

../../_images/fig_scat_rates3282.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

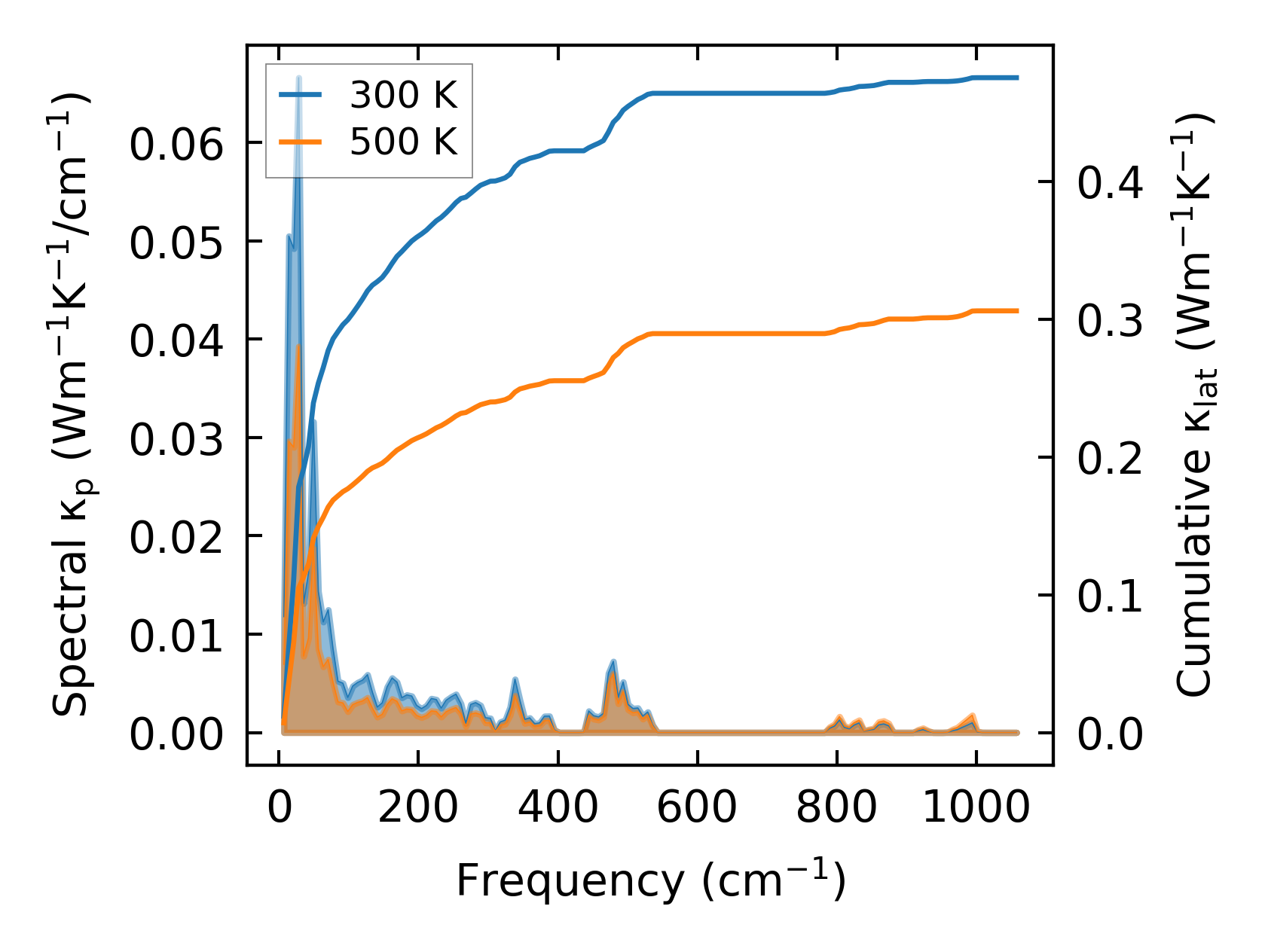

../../_images/fig_cumu_frequency3283.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp3282.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

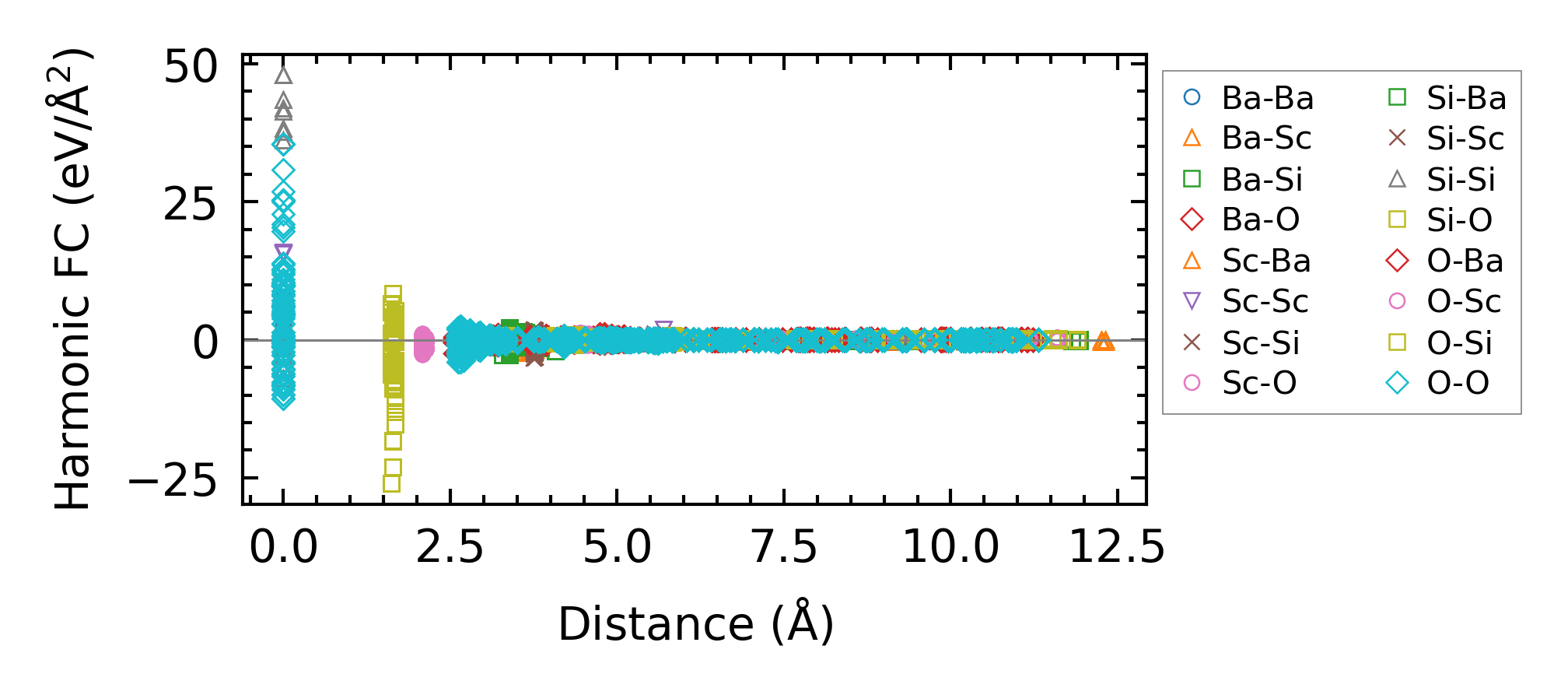

../../_images/fig_fc27780.png — (a) Force constants w.r.t atomic distance

Summary

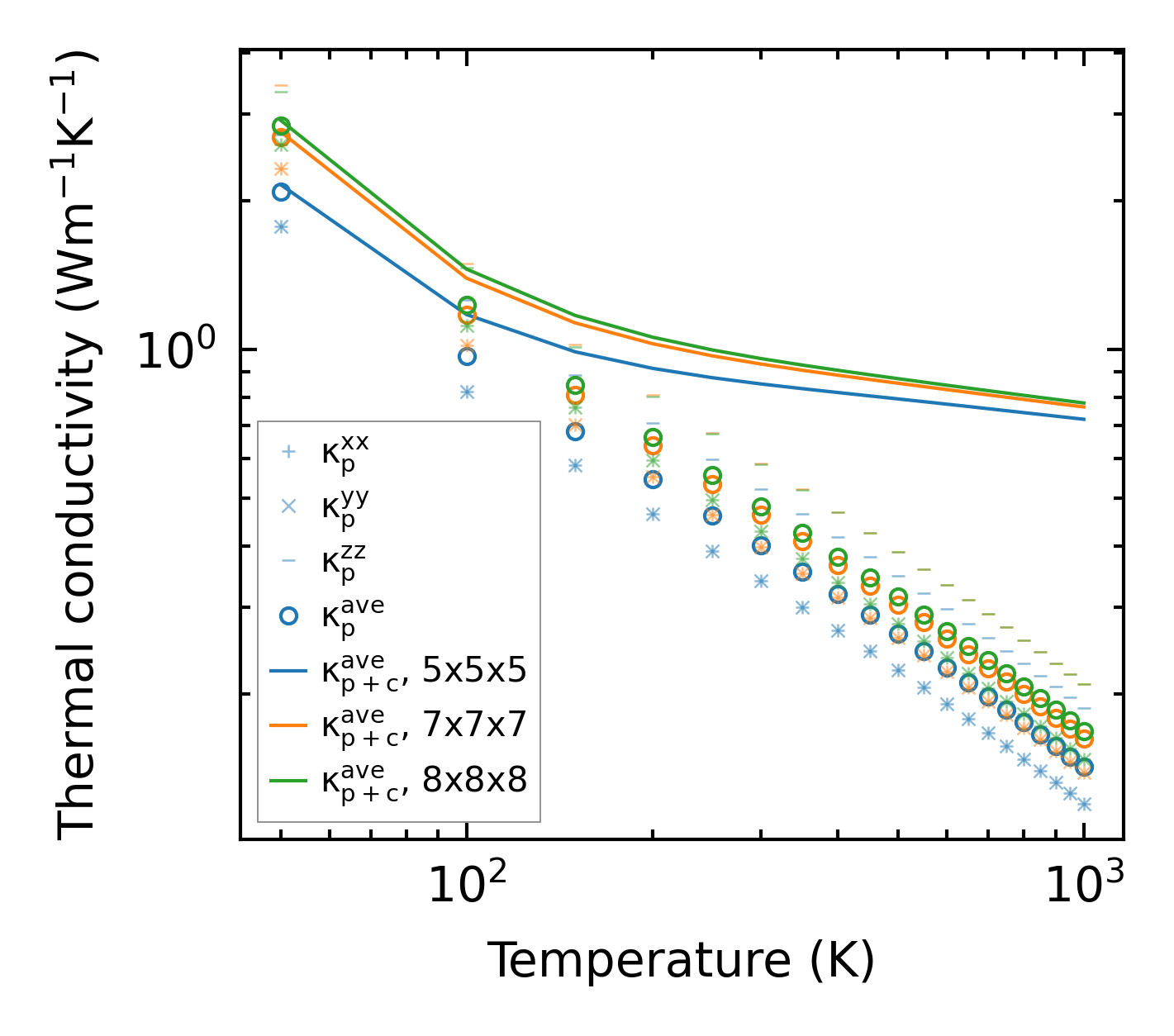

../../_images/fig_kappa6272.png — (a) Temperature-dependent lattice thermal conductivity

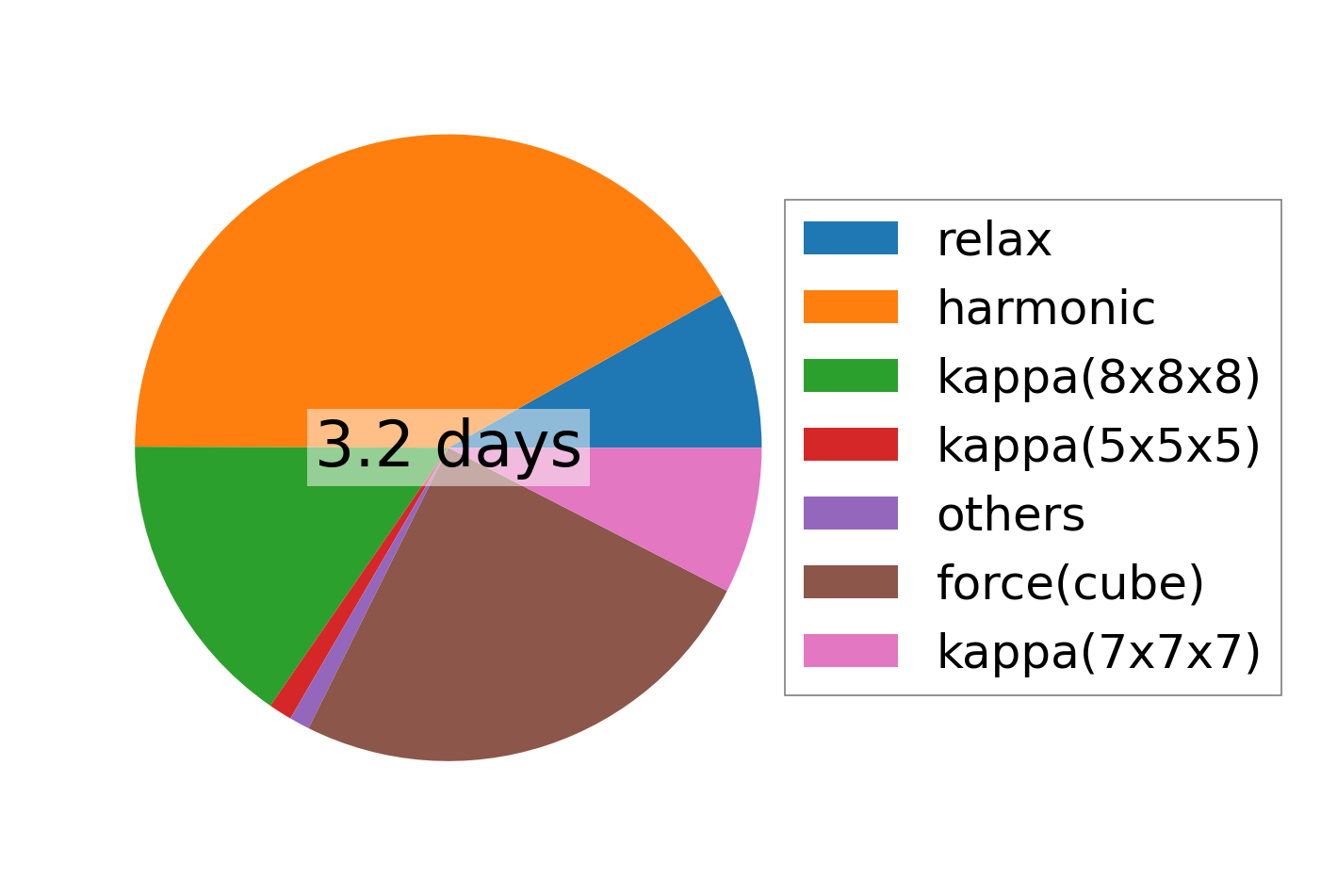

../../_images/fig_times14139.png — (b) Computation time
