mp-558533/Nd3UCl3O6/anharm

Space group: P6_3/m (176)
Link: Materials Project
Download: mp-558533.tar.gz

Harmonic properties

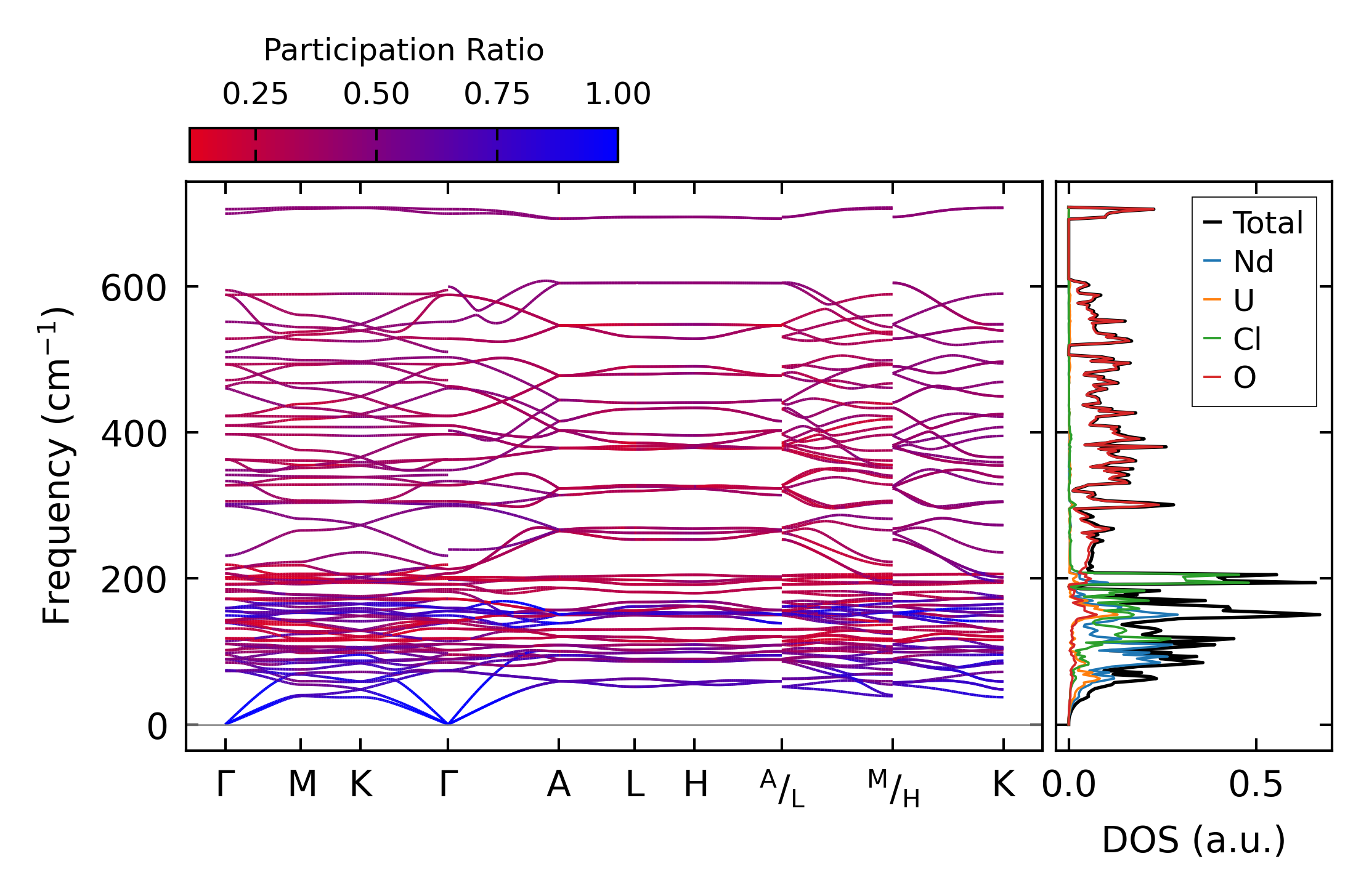

../../_images/fig_bandos_pr8040.png — (a) Phonon dispersion with participation ratio and DOS

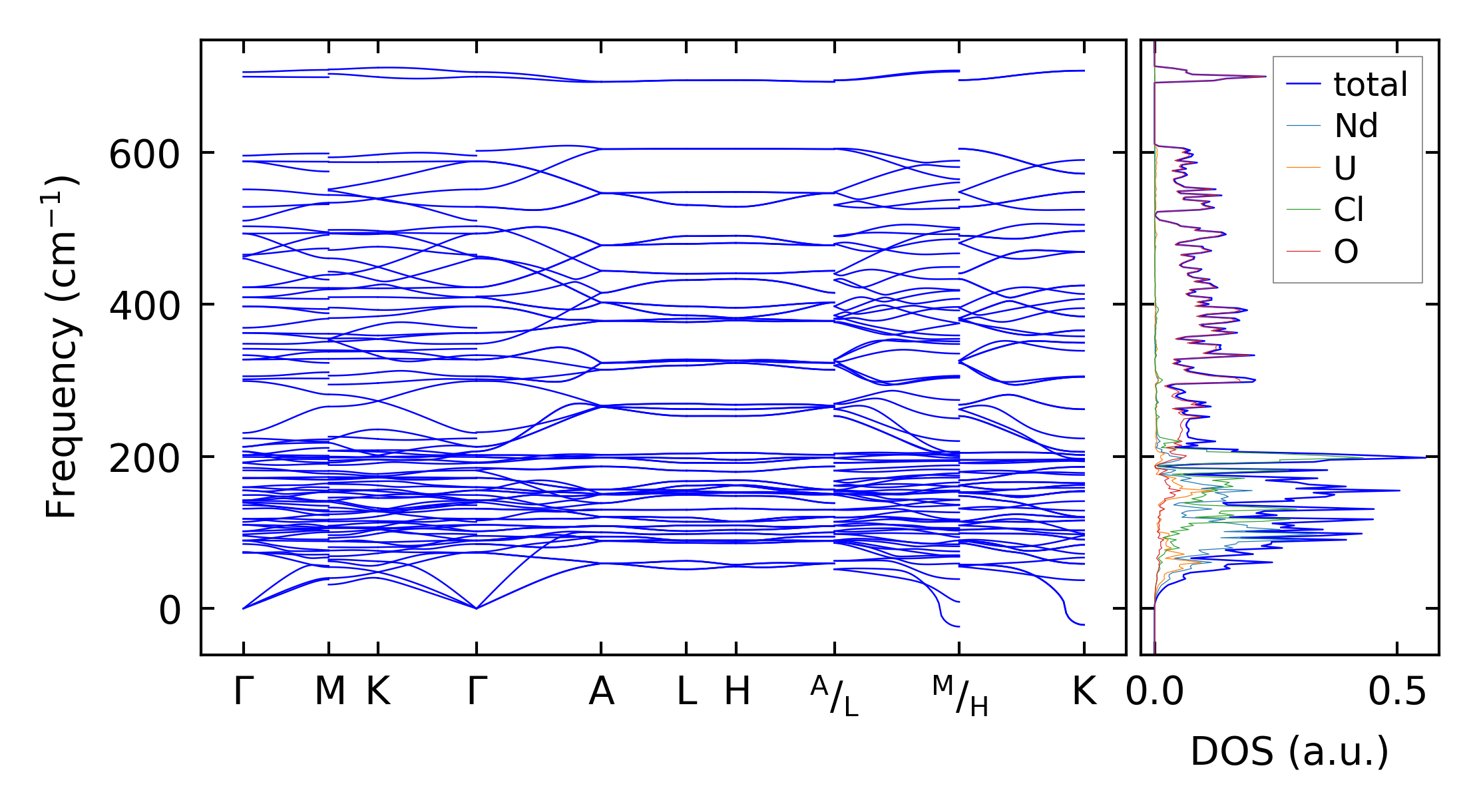

../../_images/fig_bandos11306.png — (b) Phonon dispersion and DOS

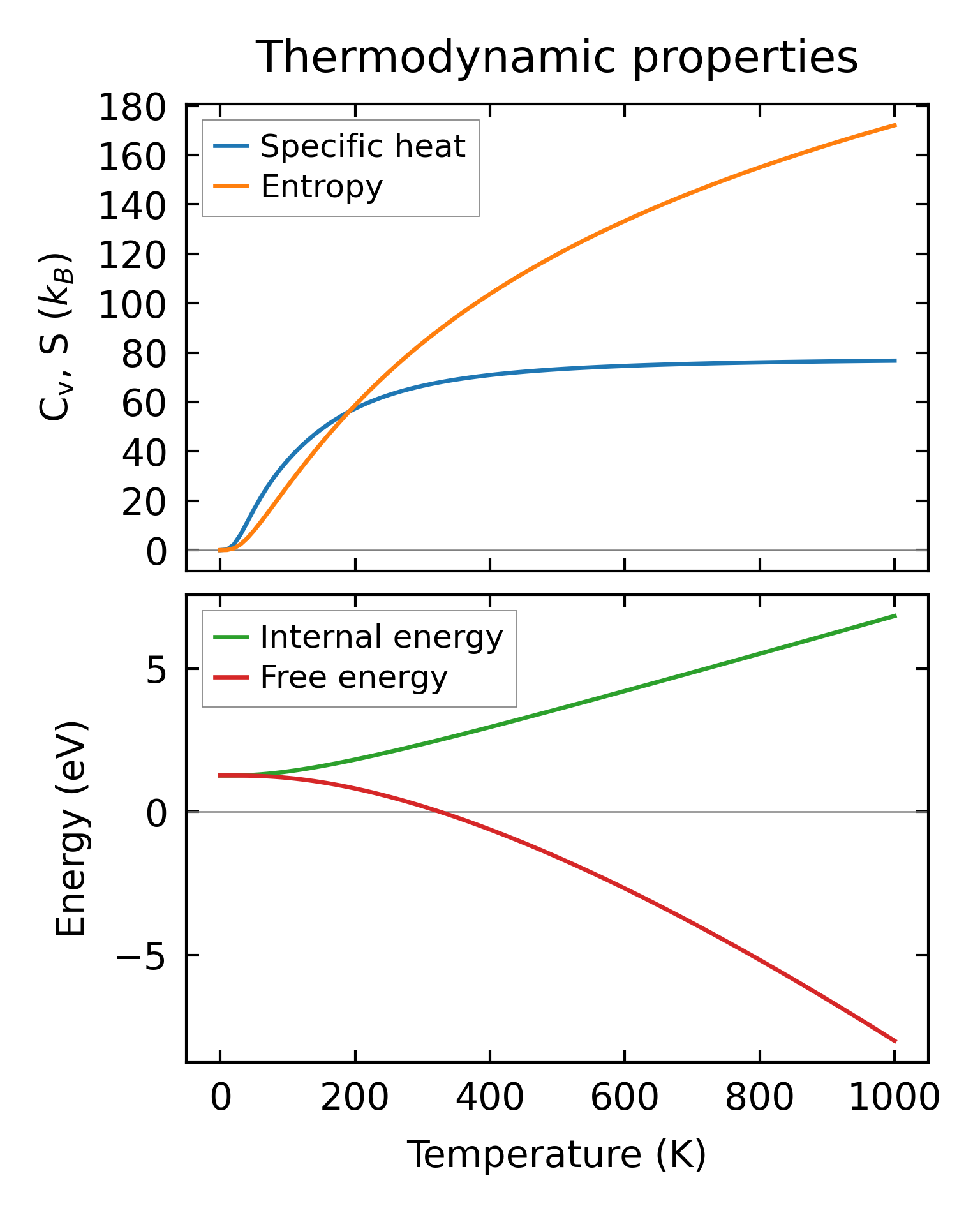

../../_images/fig_thermo8040.png — (c) Thermodynamic properties

Grüneisen parameters

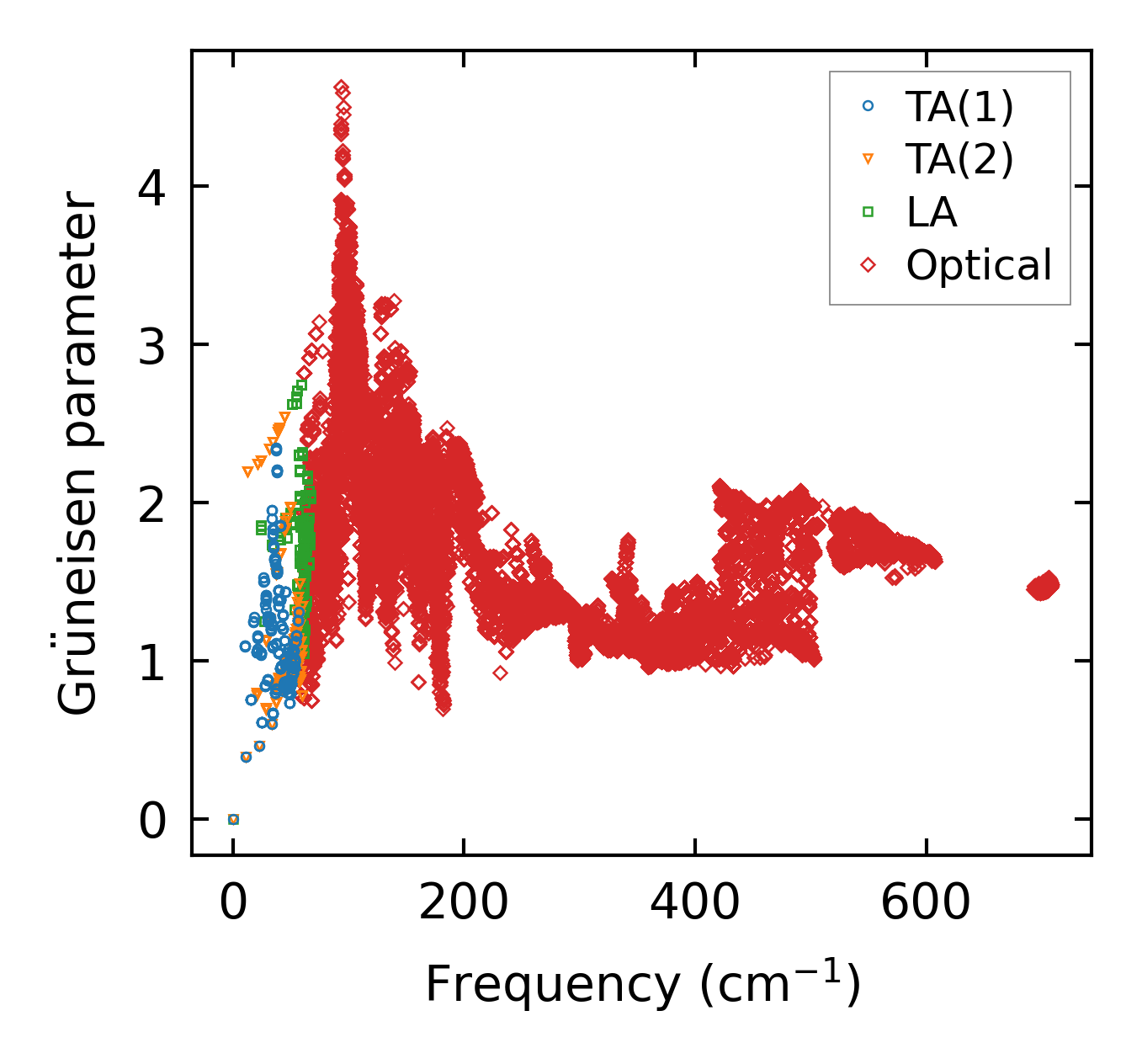

../../_images/fig_gru_all3319.png — (a) Grüneisen parameters

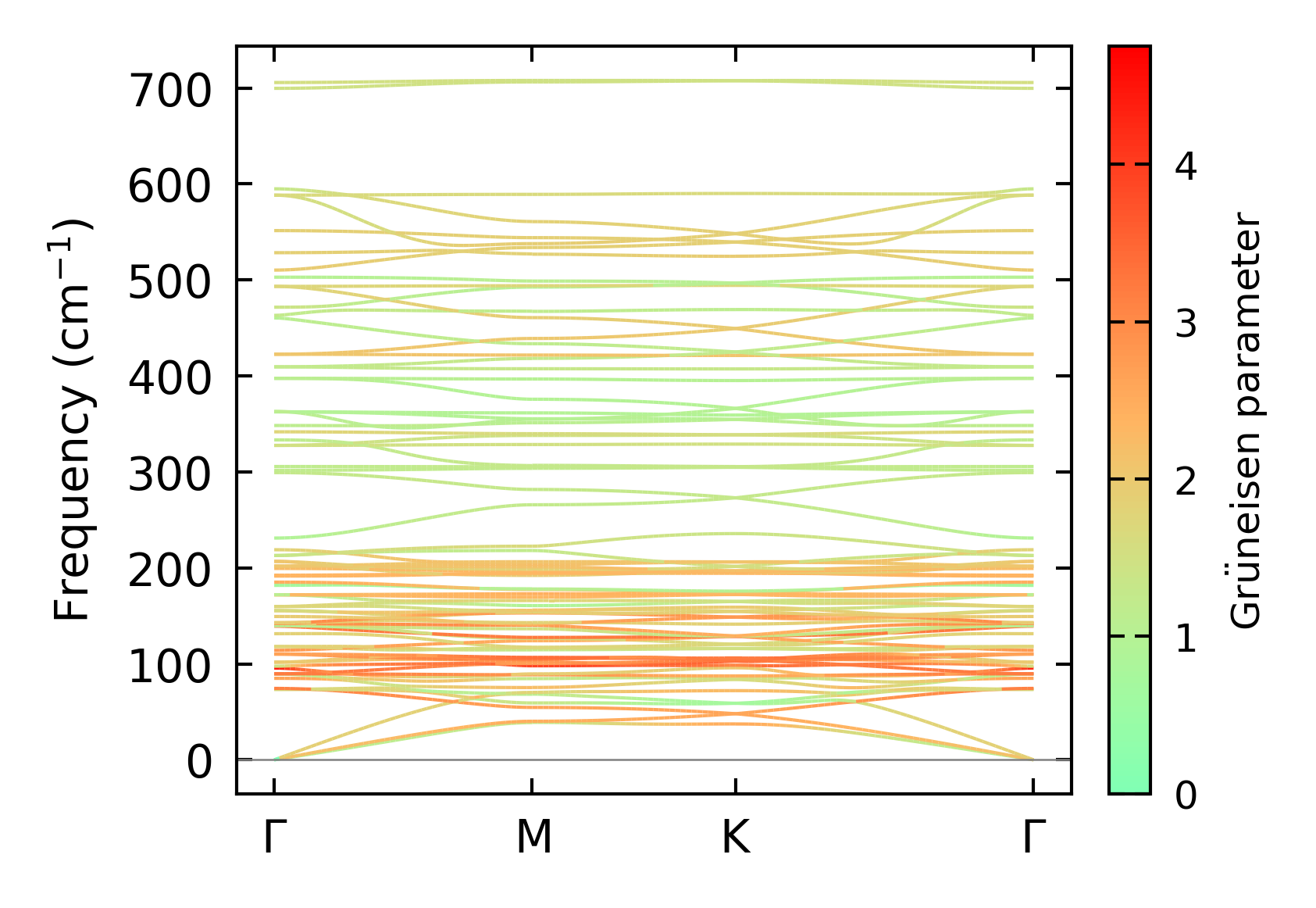

../../_images/fig_gruneisen3319.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

Force constants

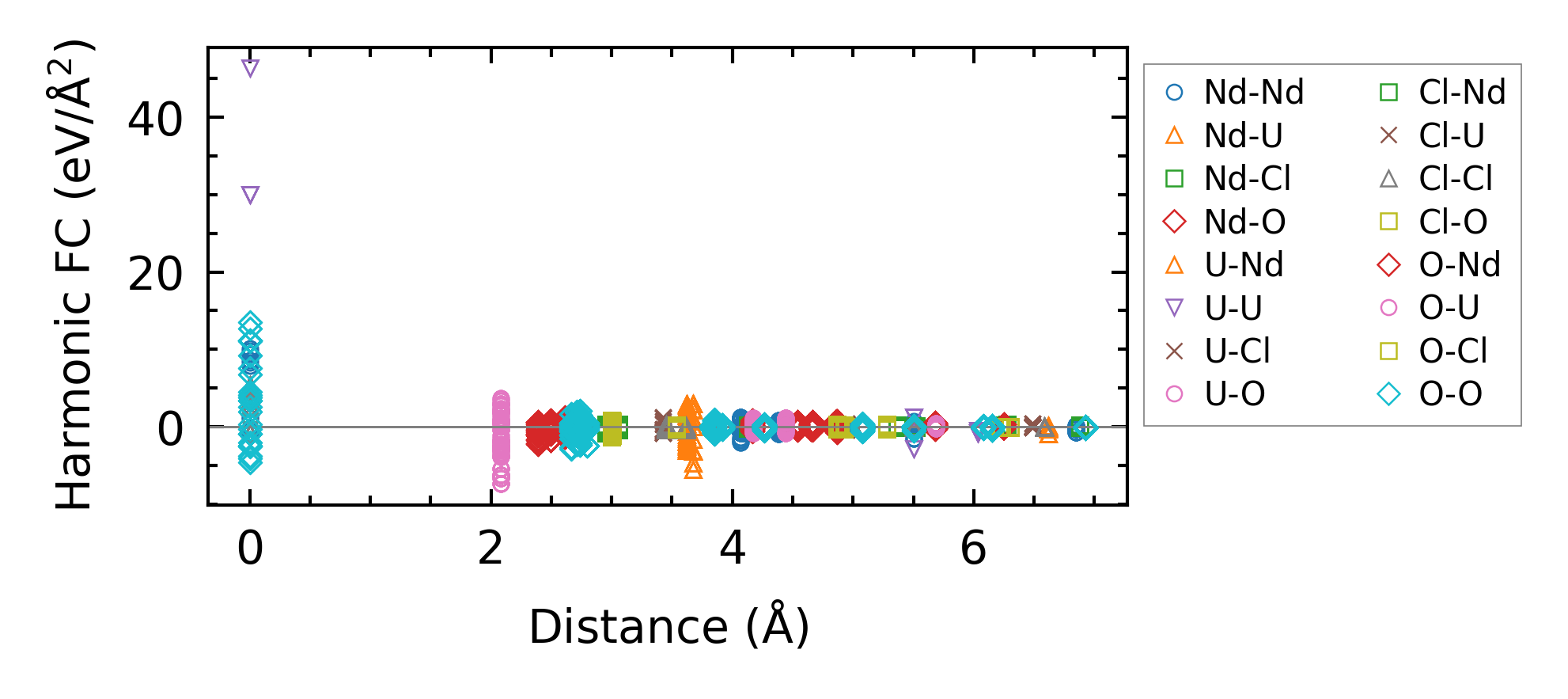

../../_images/fig_fc27802.png — (a) Force constants w.r.t atomic distance

Summary

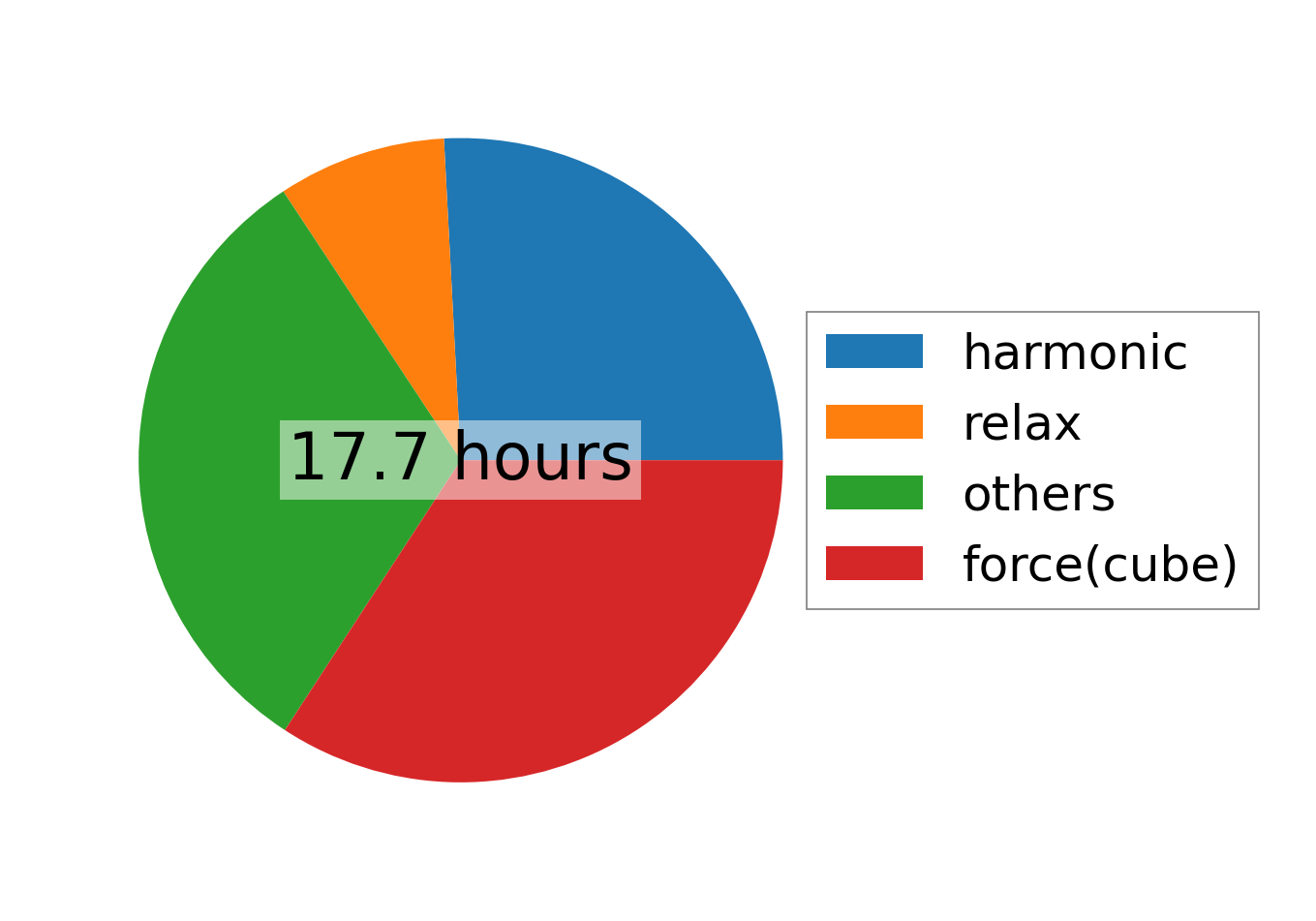

../../_images/fig_times14172.png — (a) Computation time
