mp-558071/RbS/anharm

Space group: Immm (71)
Link: Materials Project
Download: mp-558071.tar.gz

Harmonic properties

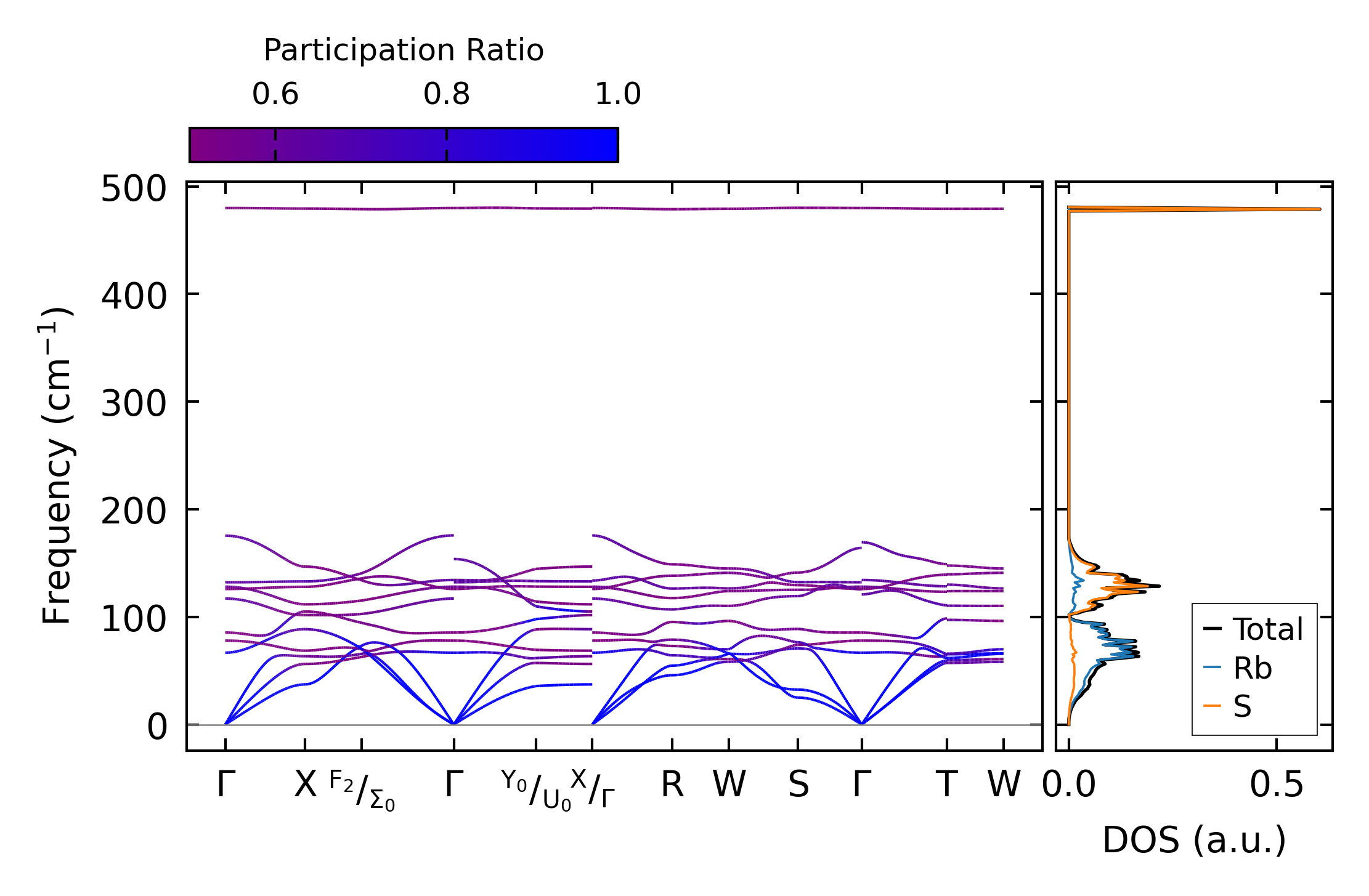

../../_images/fig_bandos_pr8259.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo8259.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all3375.png — (a) Grüneisen parameters

../../_images/fig_gruneisen3375.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x13x13, supercell: 3x3x2

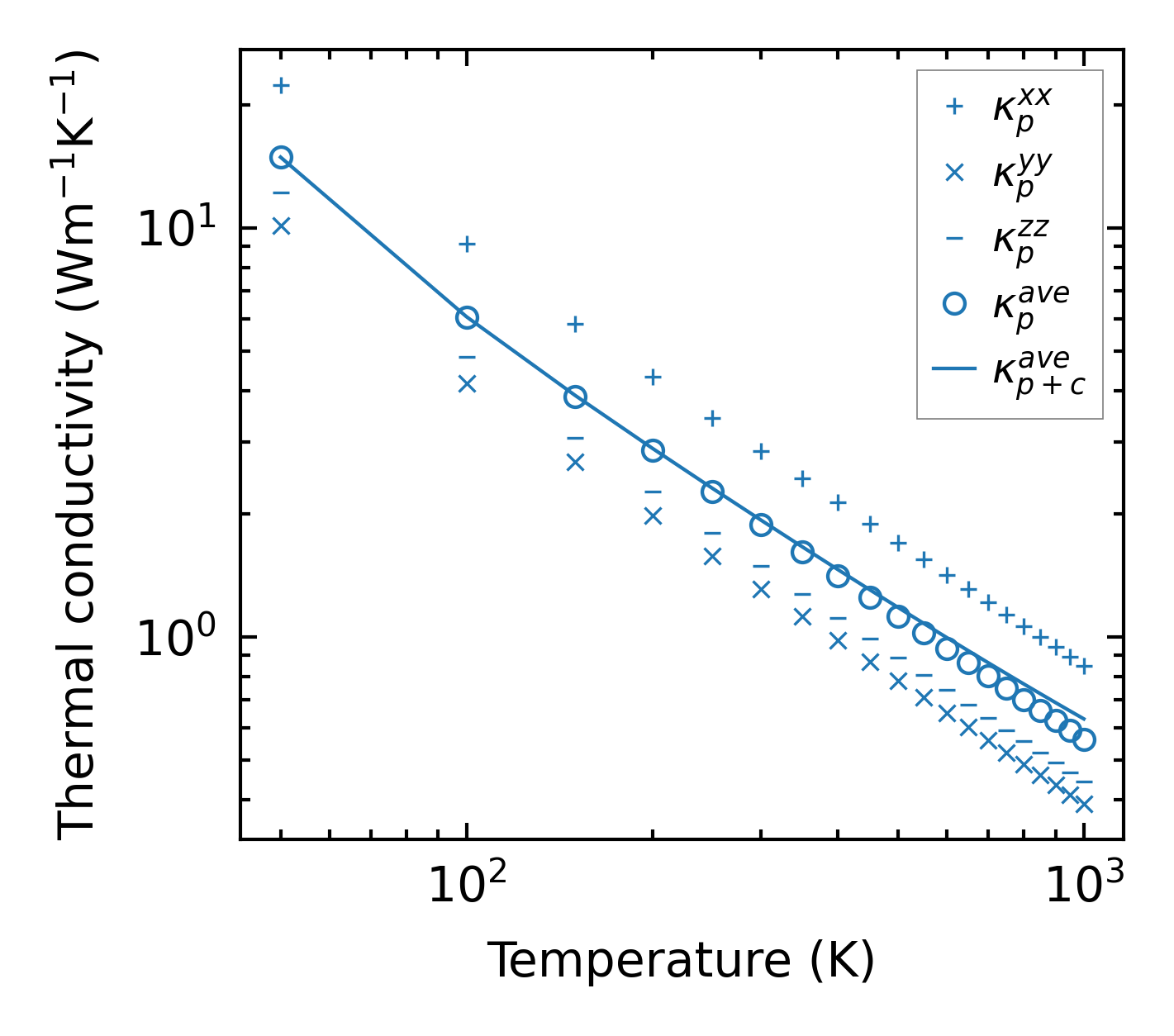

../../_images/fig_kappa6386.png — (a) Temperature-dependent lattice thermal conductivity

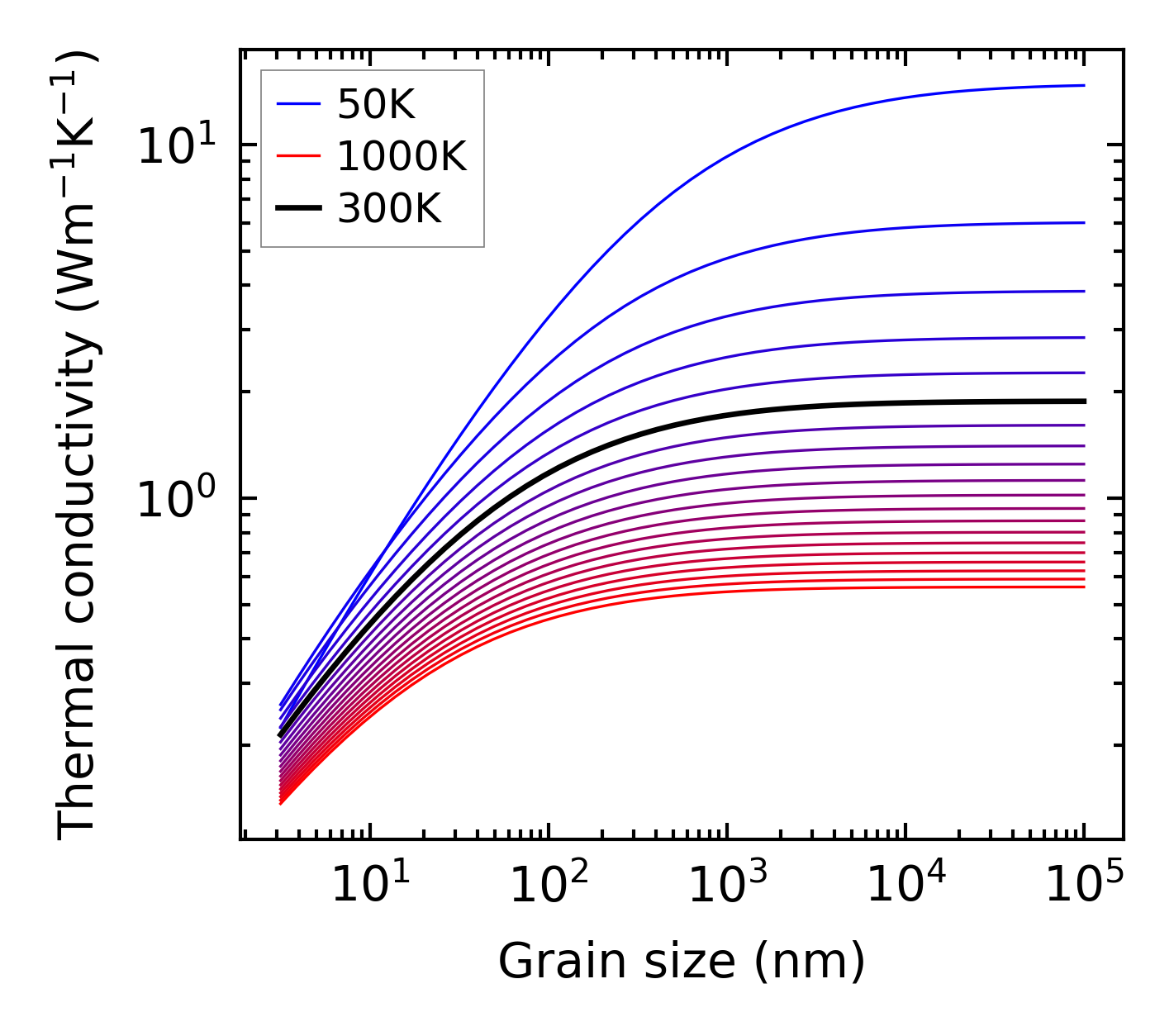

../../_images/fig_kappa_vs_grain_size3419.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime3344.png — (a) Phonon lifetime due to phonon-phonon scattering

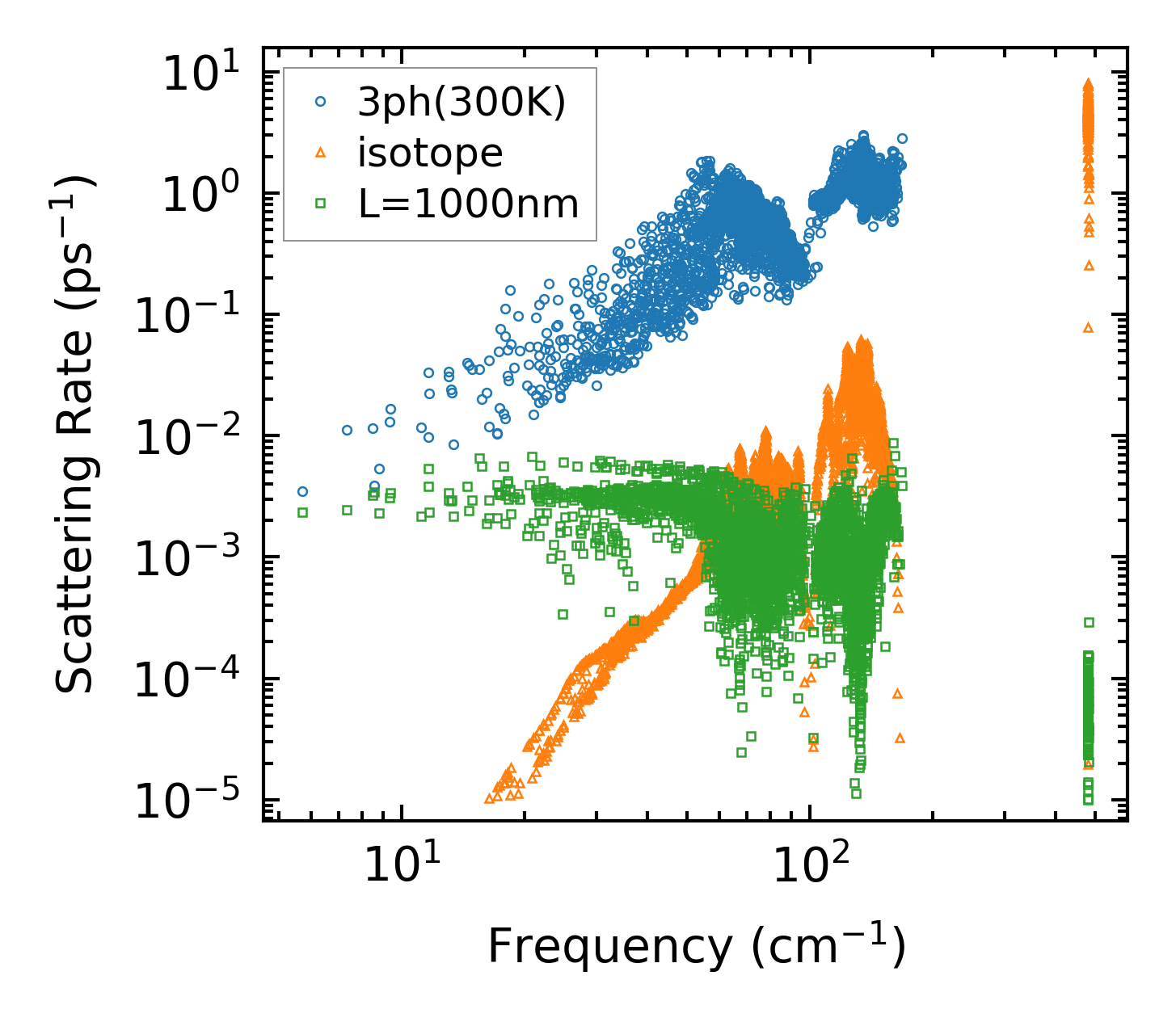

../../_images/fig_scat_rates3343.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

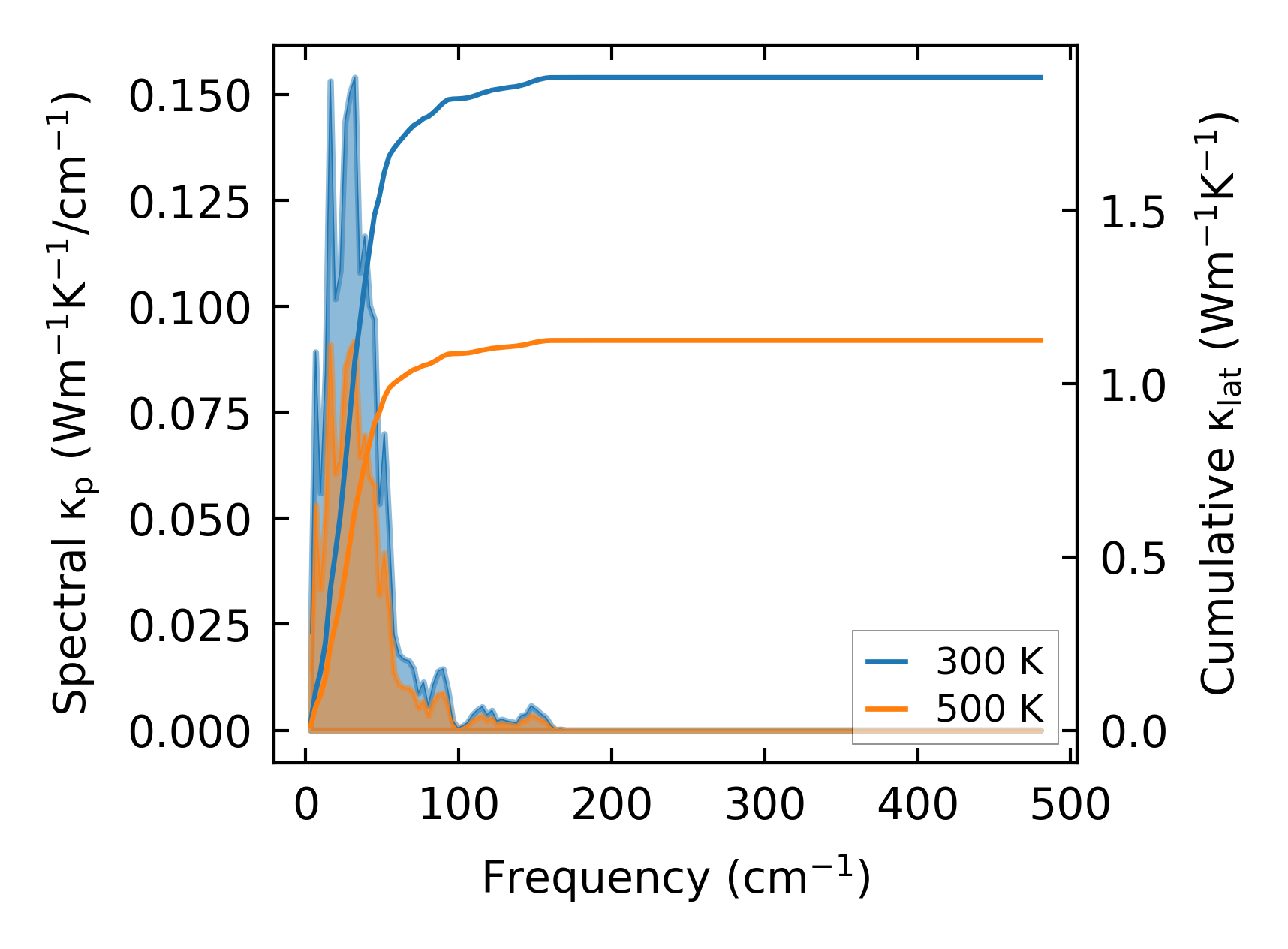

../../_images/fig_cumu_frequency3344.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

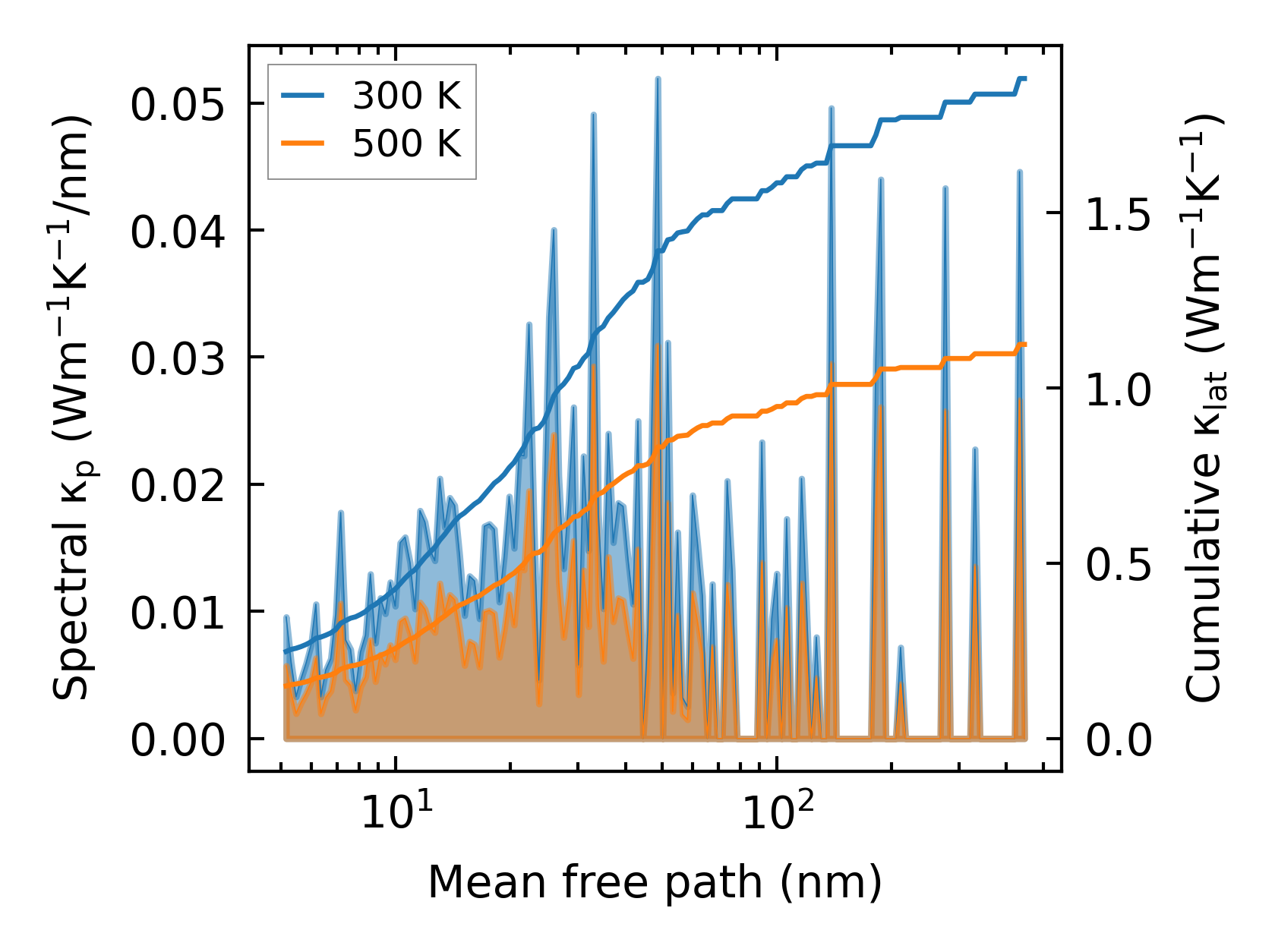

../../_images/fig_cumu_mfp3343.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

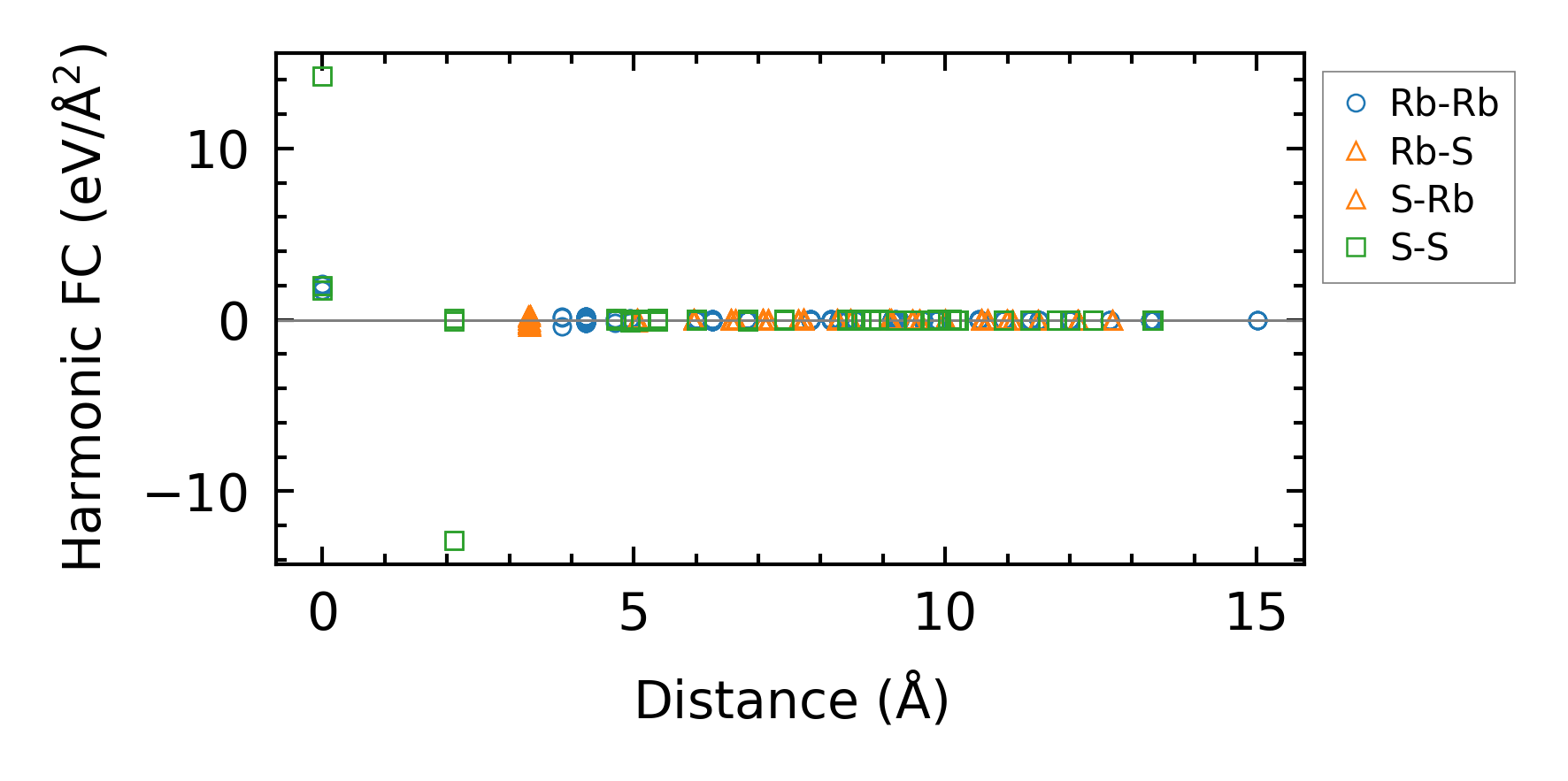

../../_images/fig_fc28021.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa6387.png — (a) Temperature-dependent lattice thermal conductivity

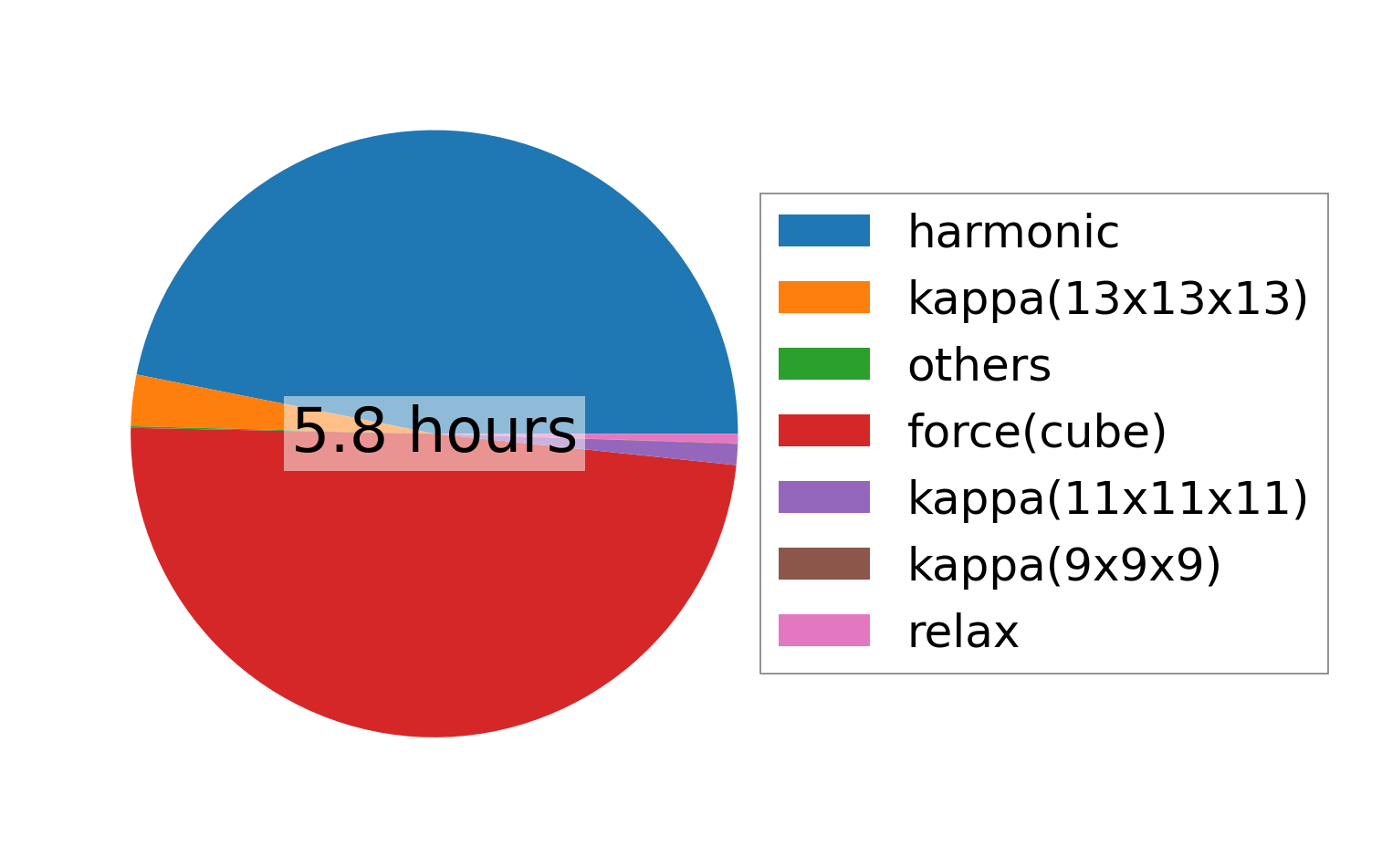

../../_images/fig_times14520.png — (b) Computation time
