mp-558285-2/GaBiO3/anharm

Space group: Pcca (54)
Link: Materials Project
Download: mp-558285-2.tar.gz

Equation of state

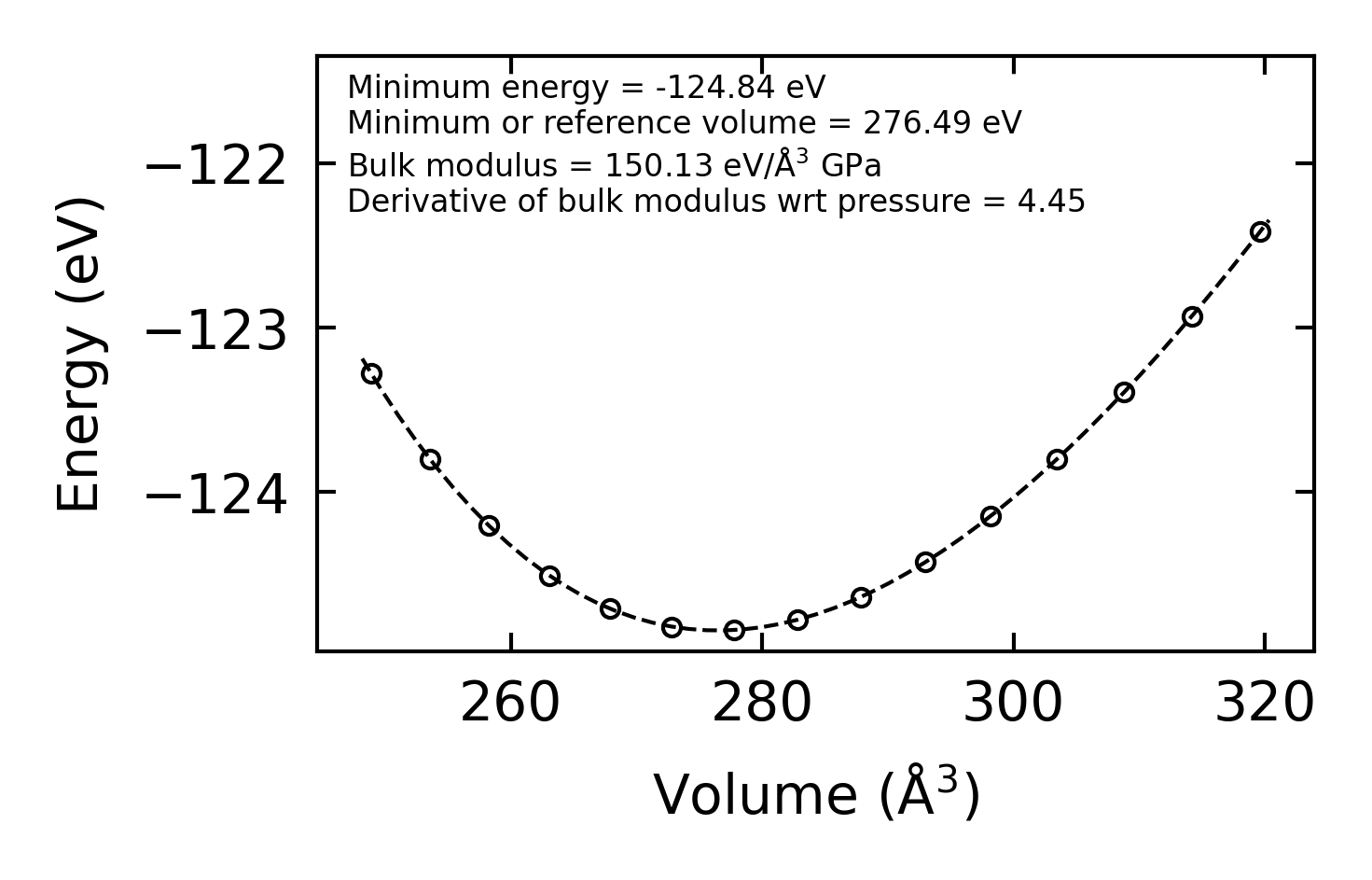

../../_images/fig_bm4108.png — (a) Equation of state

Harmonic properties

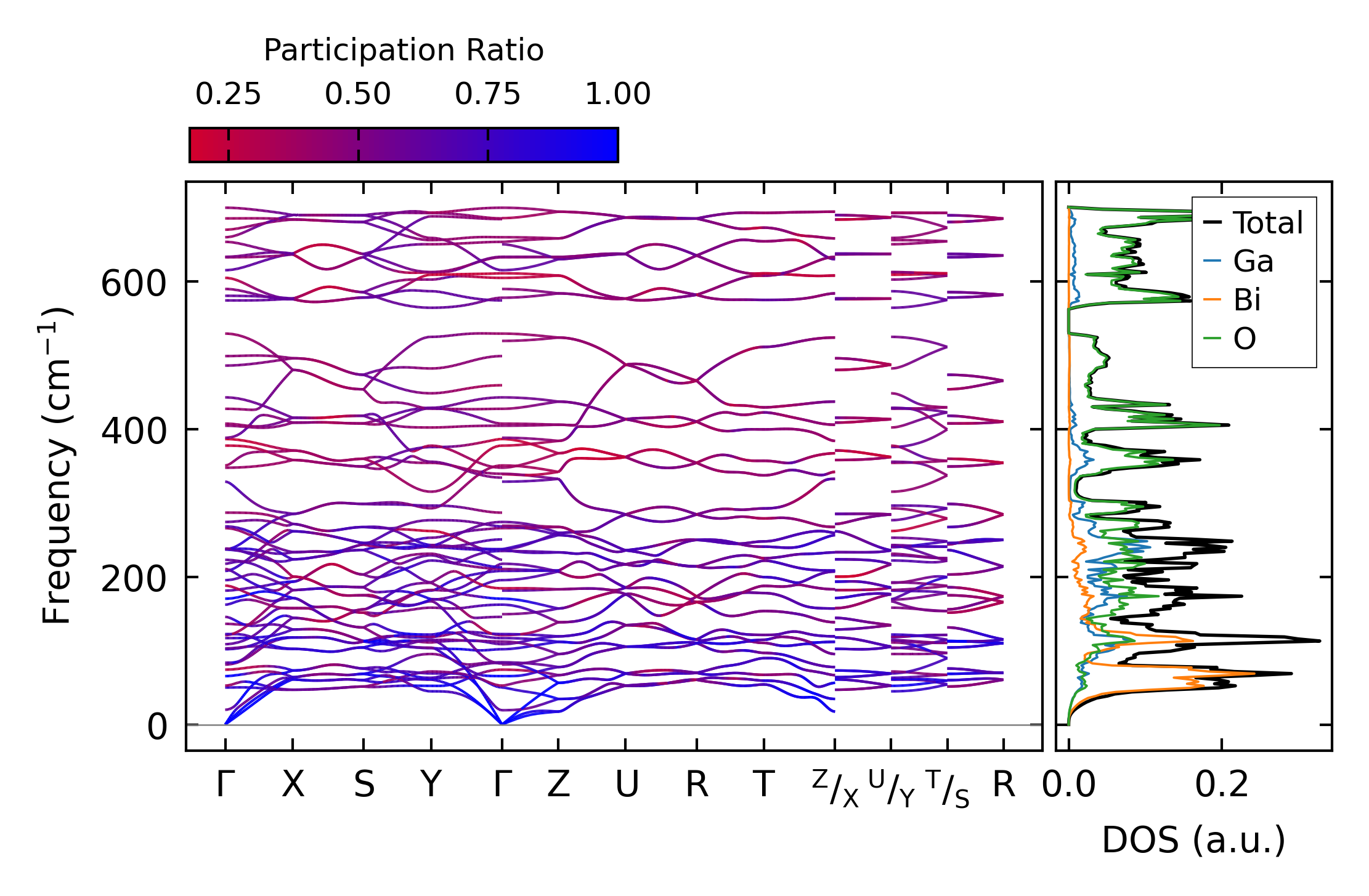

../../_images/fig_bandos_pr7988.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo7988.png — (b) Thermodynamic properties

Grüneisen parameters

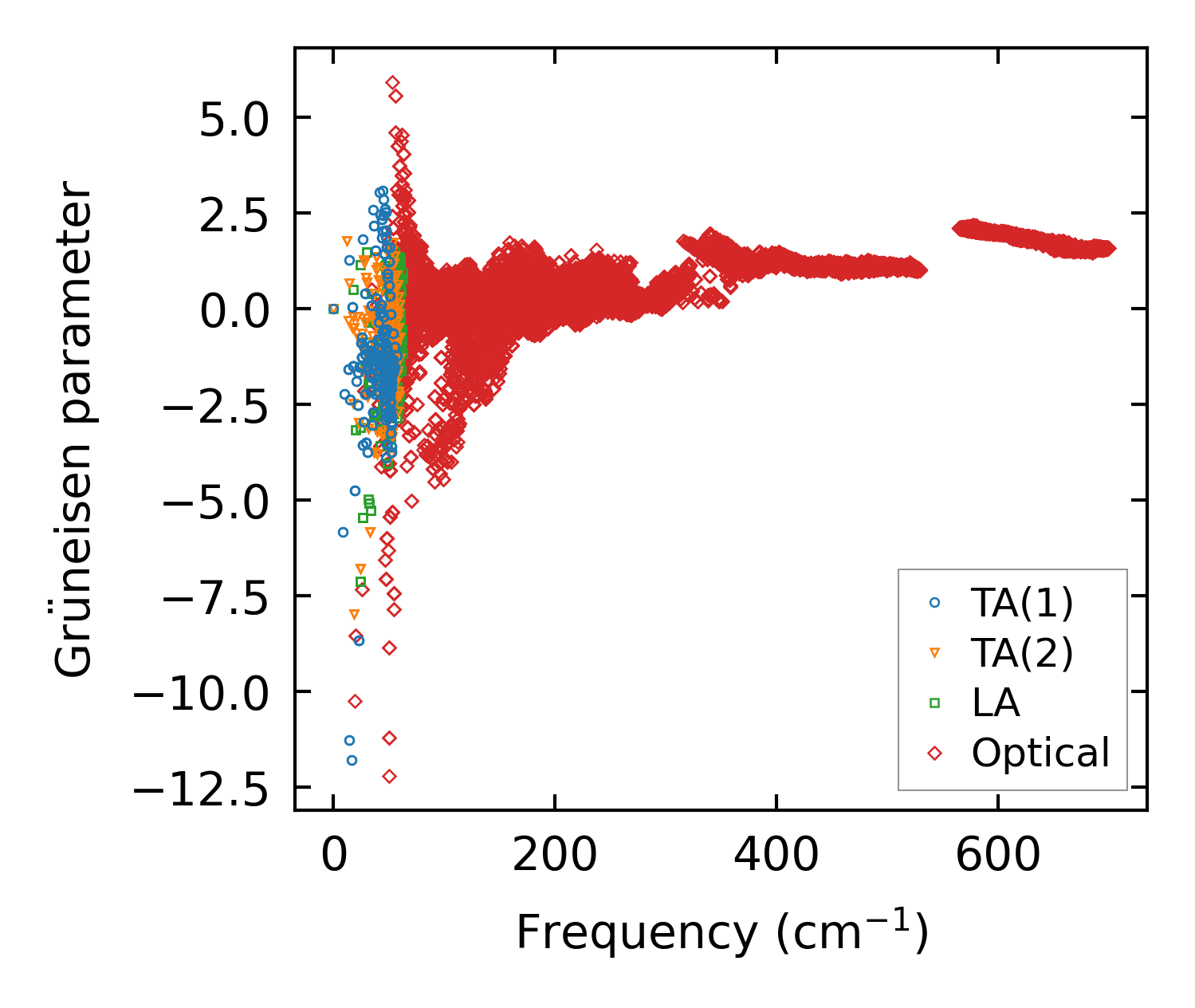

../../_images/fig_gru_all3303.png — (a) Grüneisen parameters

../../_images/fig_gruneisen3303.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x13x7, supercell: 2x2x1

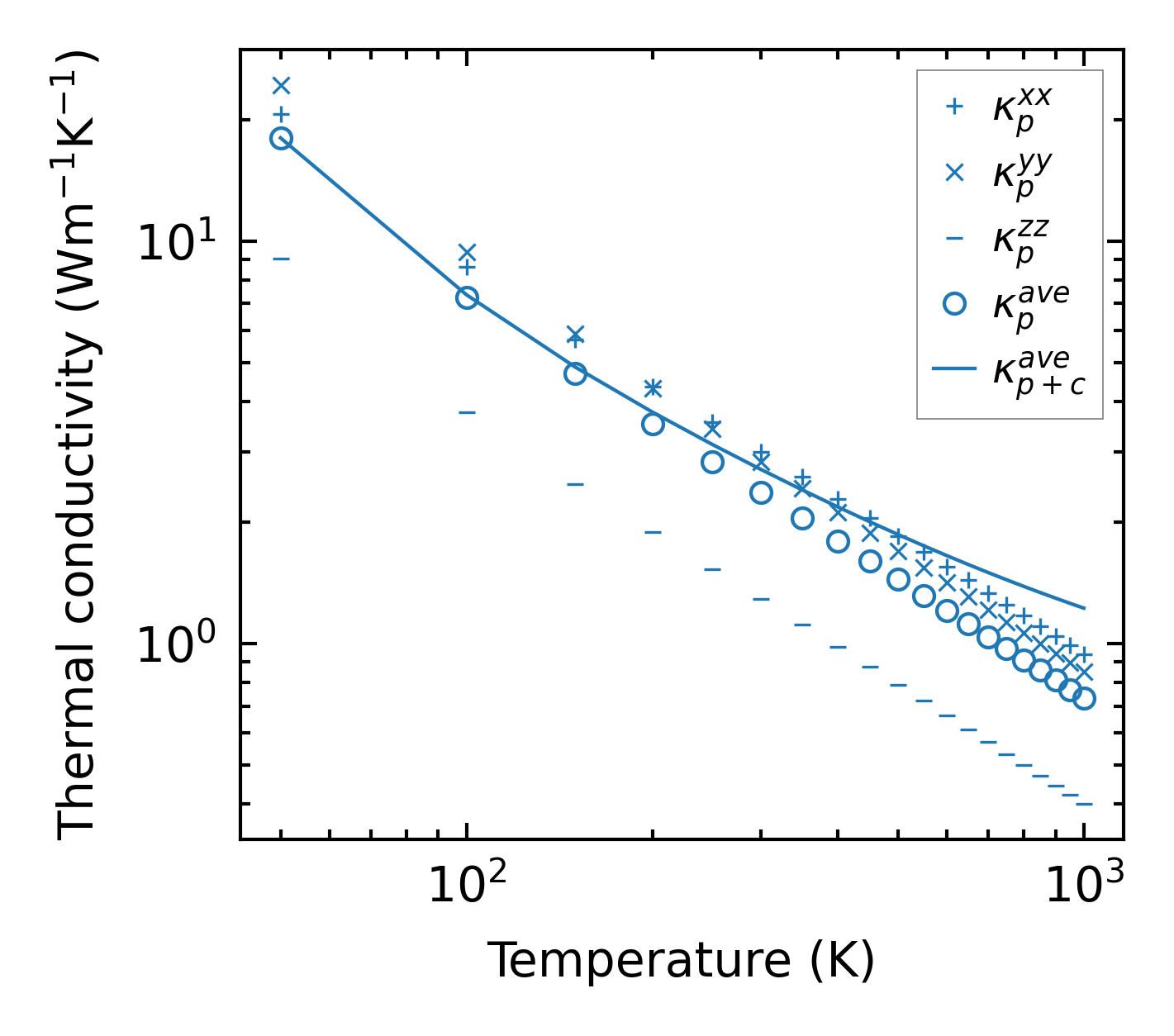

../../_images/fig_kappa6256.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size3346.png — (b) Peierls lattice thermal conductivity w.r.t grain size

3-phonon (LASSO), supercell 2x2x2 — q-mesh: 13x13x7, supercell: 2x2x2

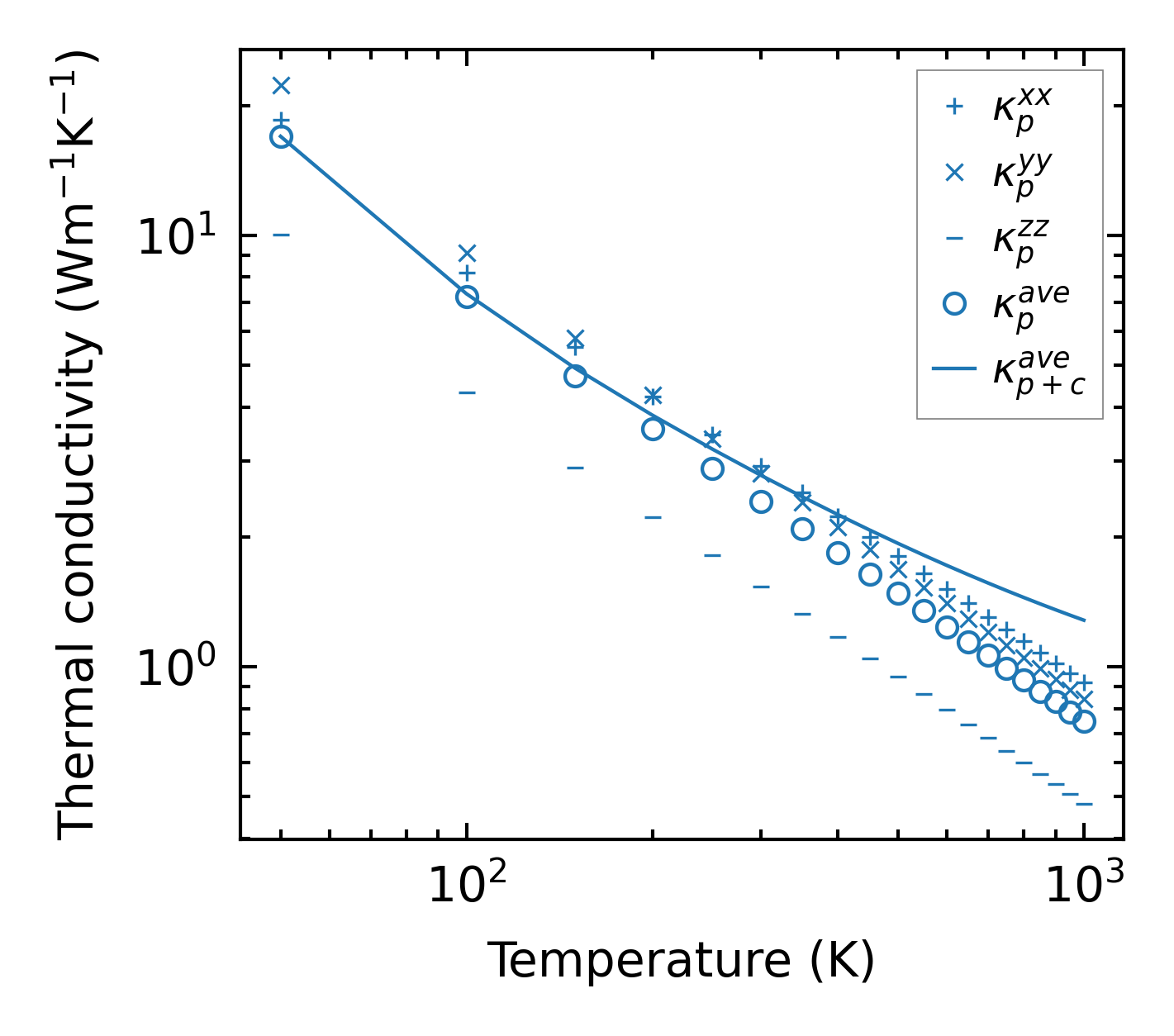

../../_images/fig_kappa6257.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size3347.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime3275.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates3274.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

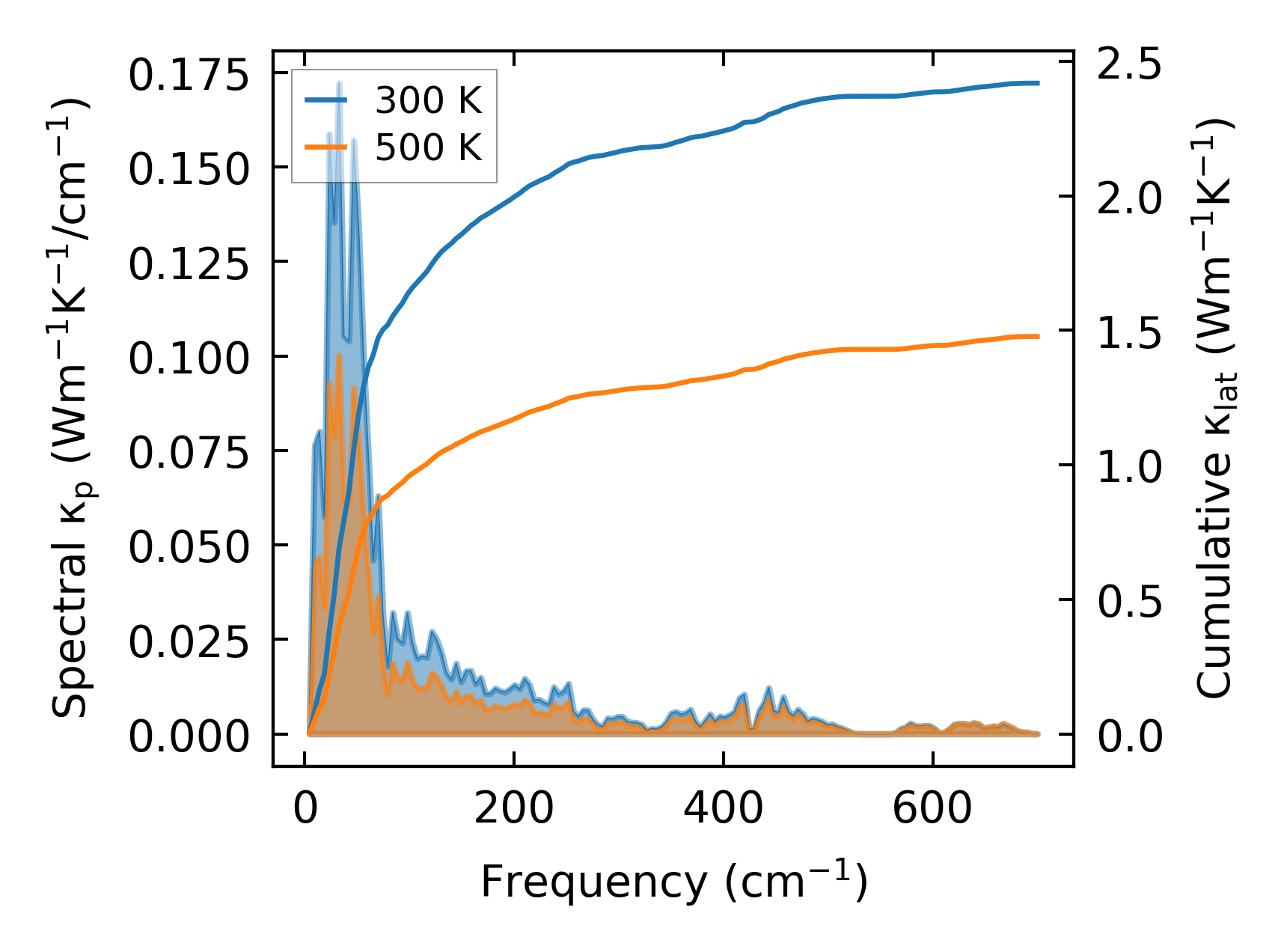

../../_images/fig_cumu_frequency3275.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

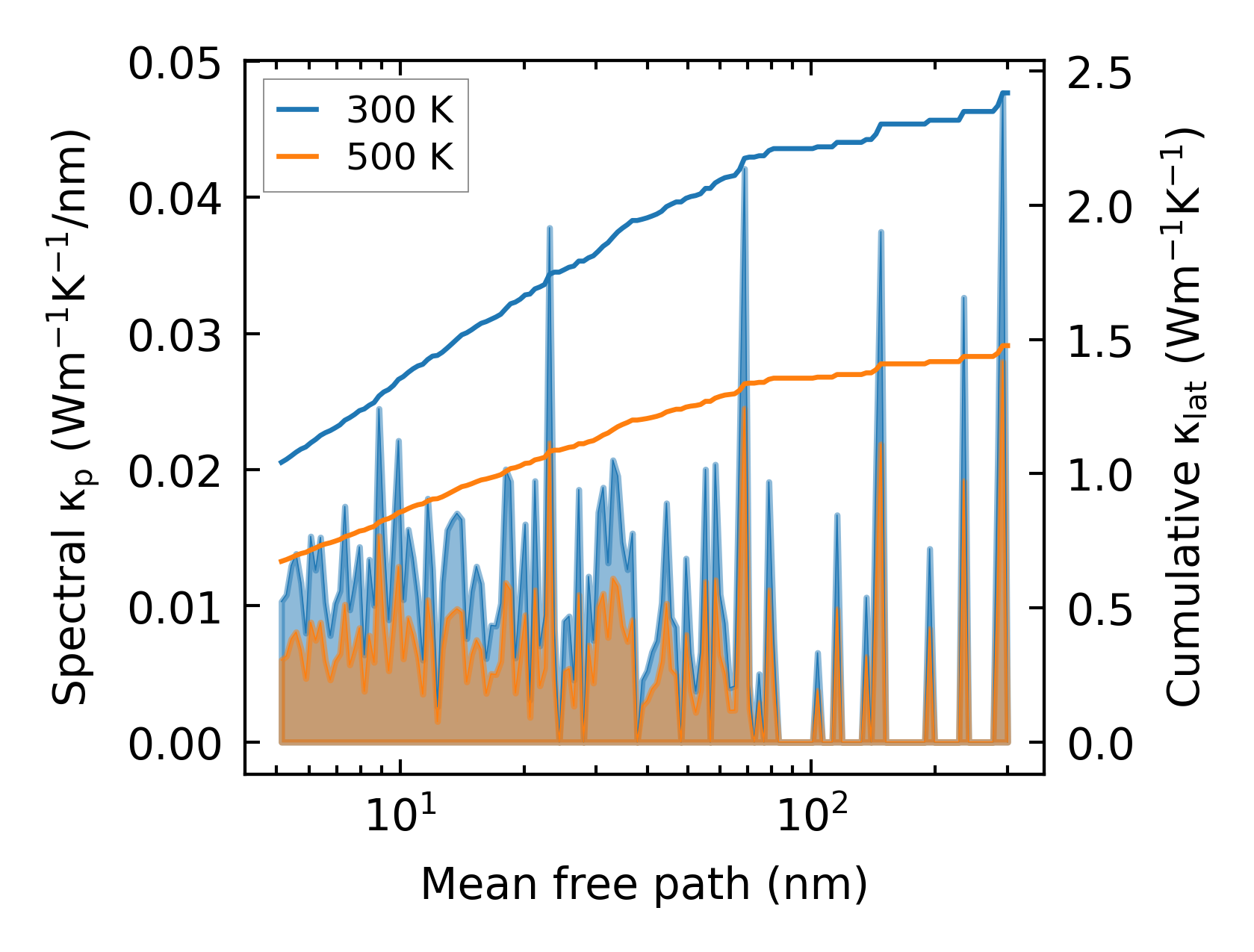

../../_images/fig_cumu_mfp3274.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

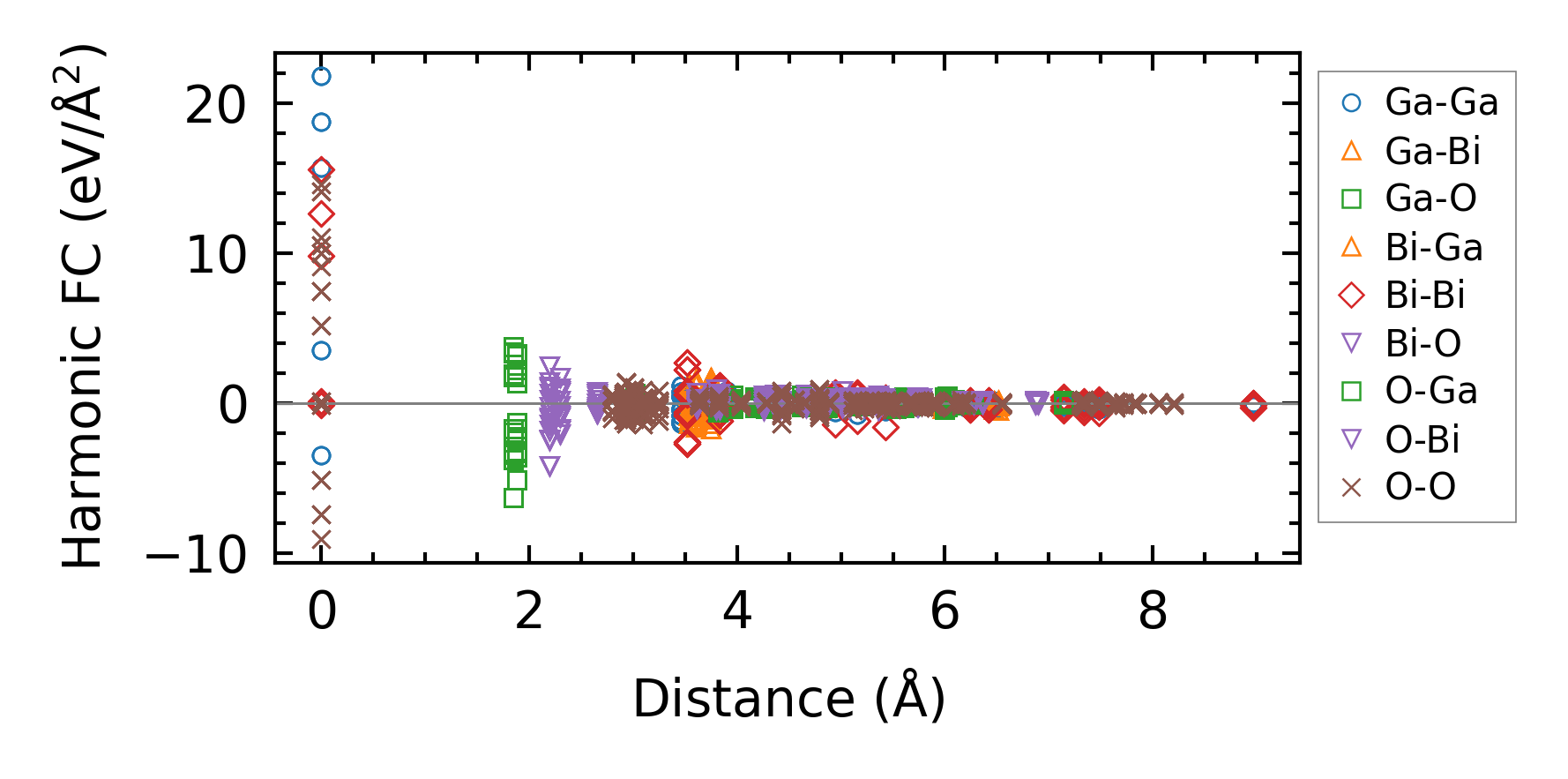

../../_images/fig_fc27750.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa6258.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times14087.png — (b) Computation time
