mp-558188/AgHg2AsO4/anharm

Space group: Pbam (55)
Link: Materials Project
Download: mp-558188.tar.gz

Harmonic properties

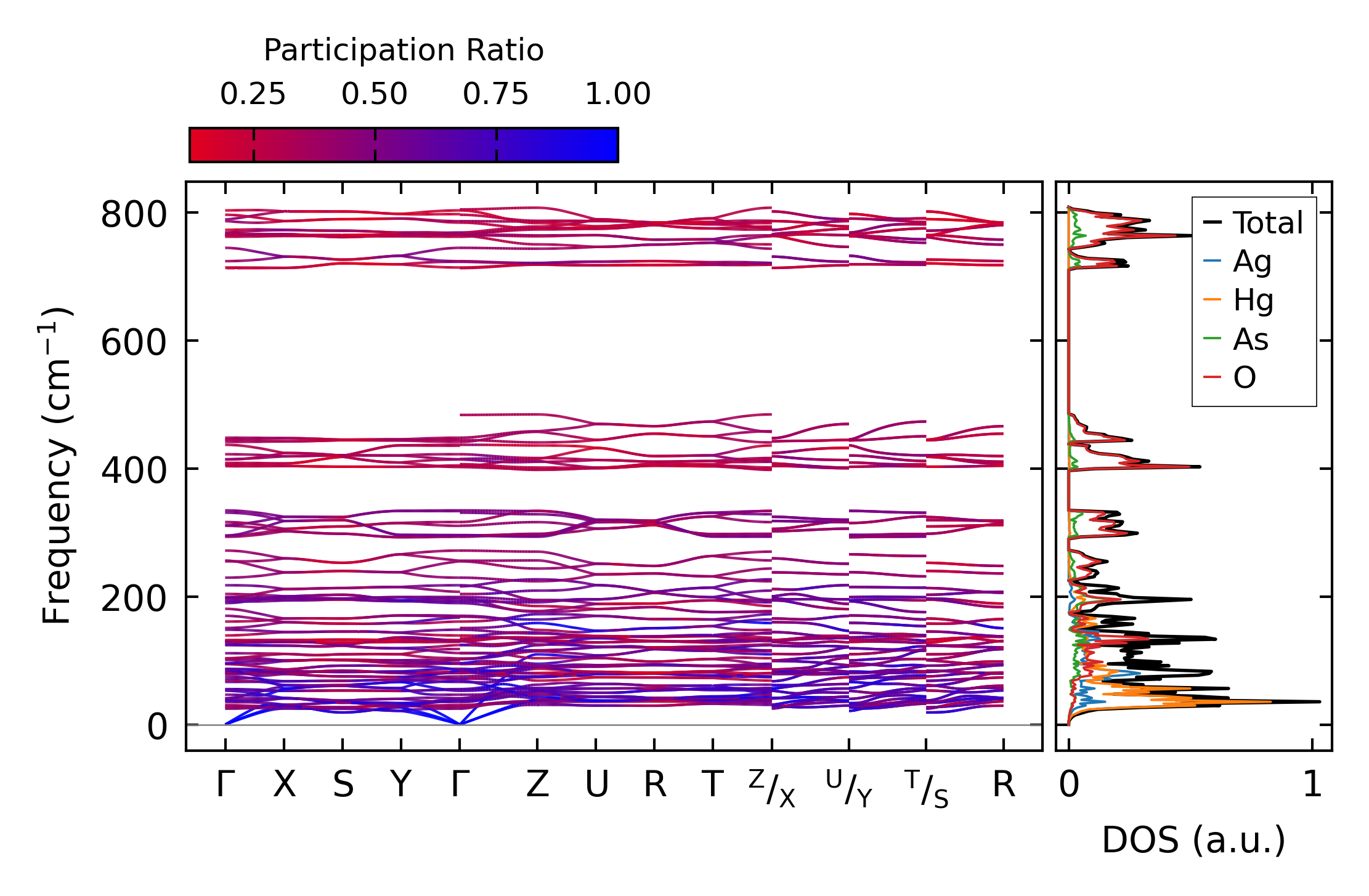

../../_images/fig_bandos_pr7960.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo7960.png — (b) Thermodynamic properties

Grüneisen parameters

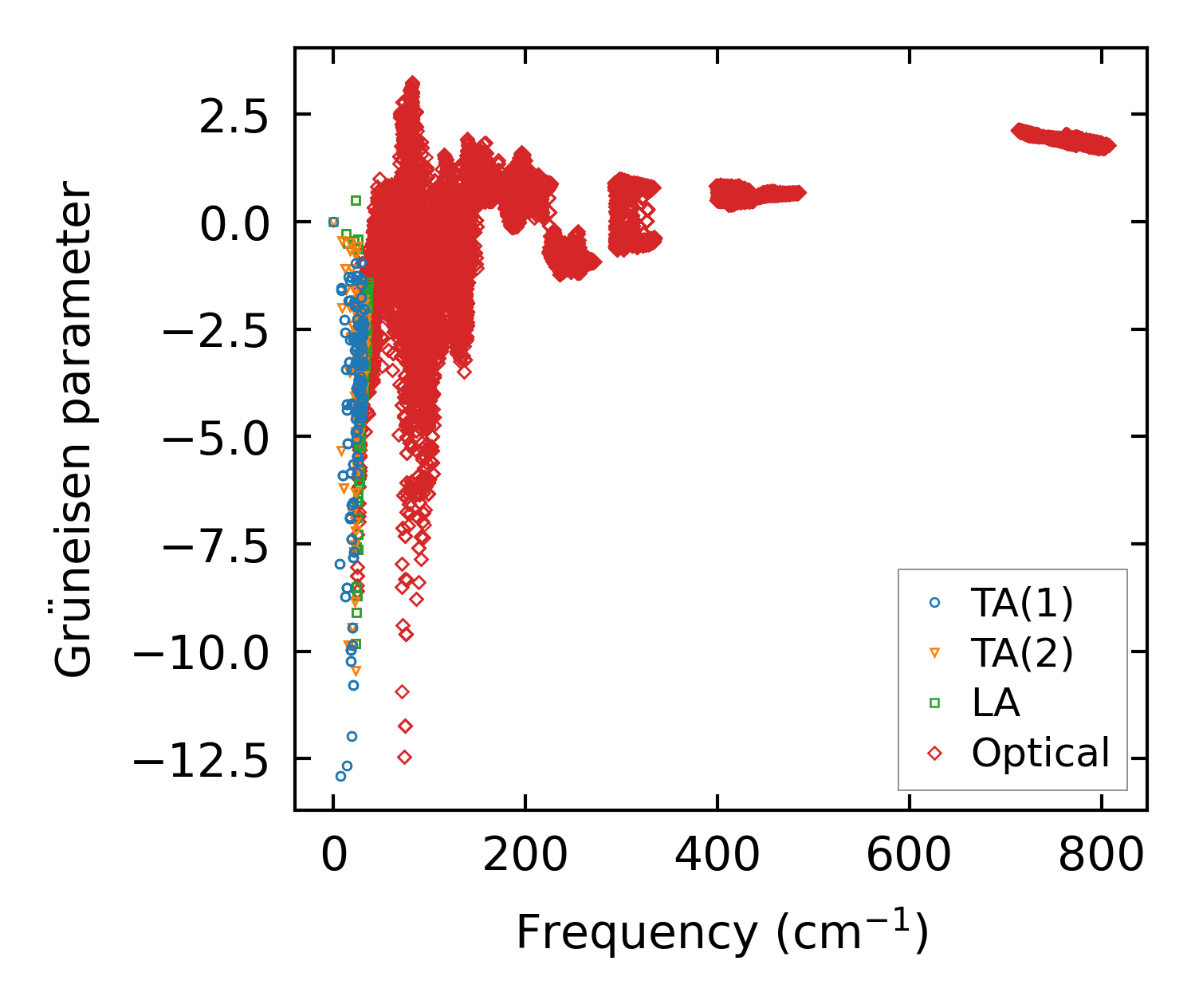

../../_images/fig_gru_all3291.png — (a) Grüneisen parameters

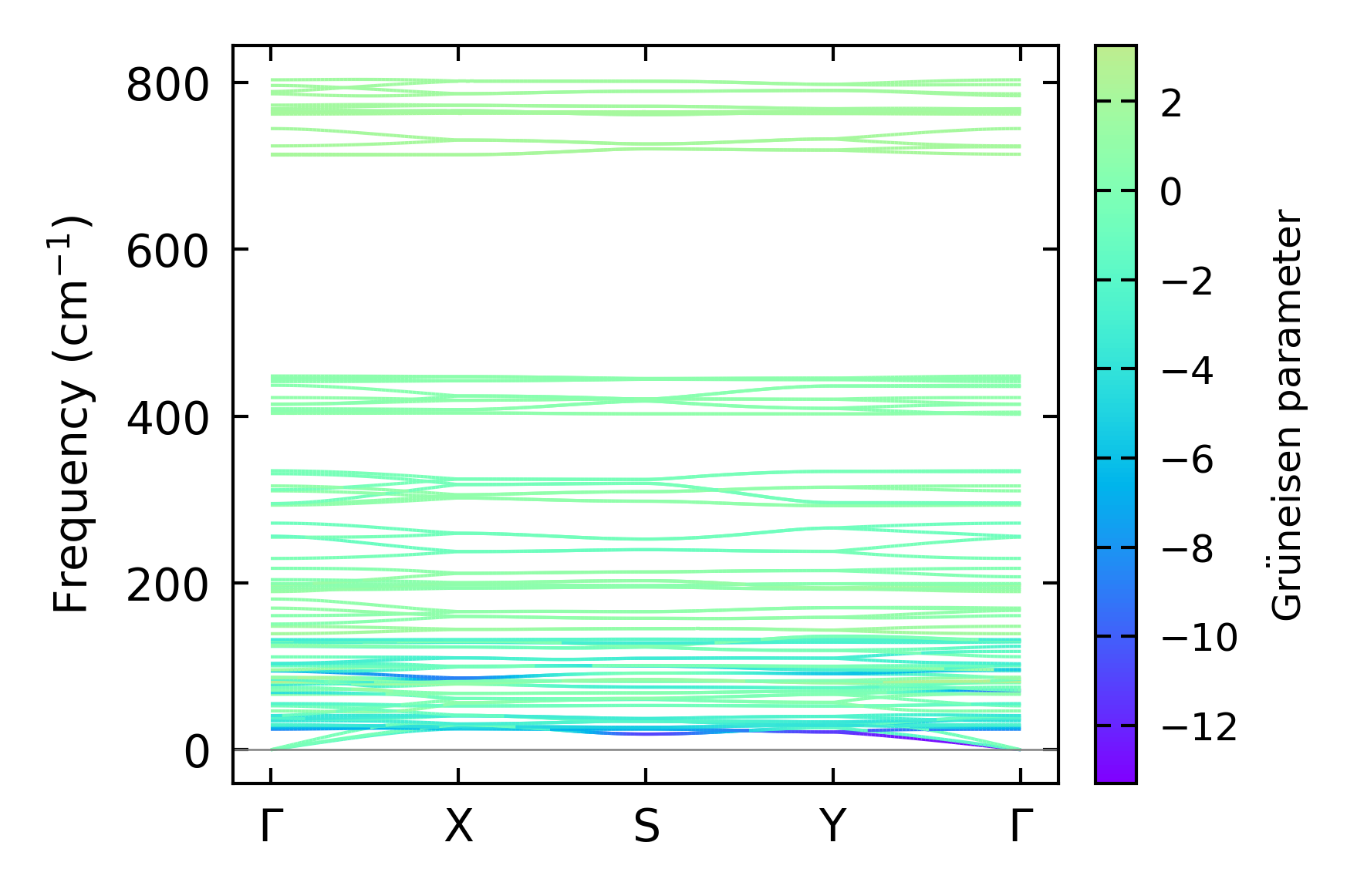

../../_images/fig_gruneisen3291.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x7x11, supercell: 2x1x2

../../_images/fig_kappa6233.png — (a) Temperature-dependent lattice thermal conductivity

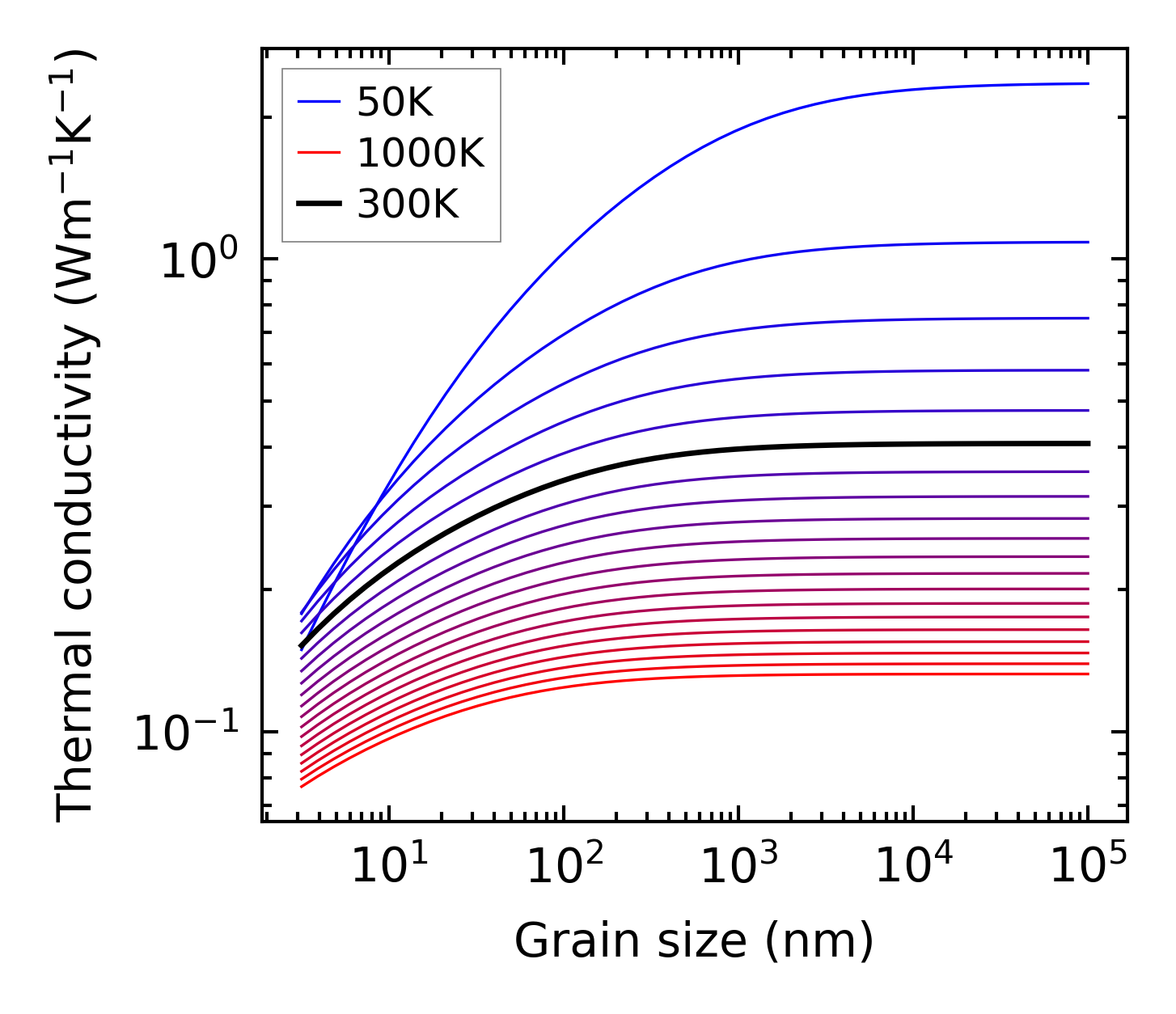

../../_images/fig_kappa_vs_grain_size3334.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

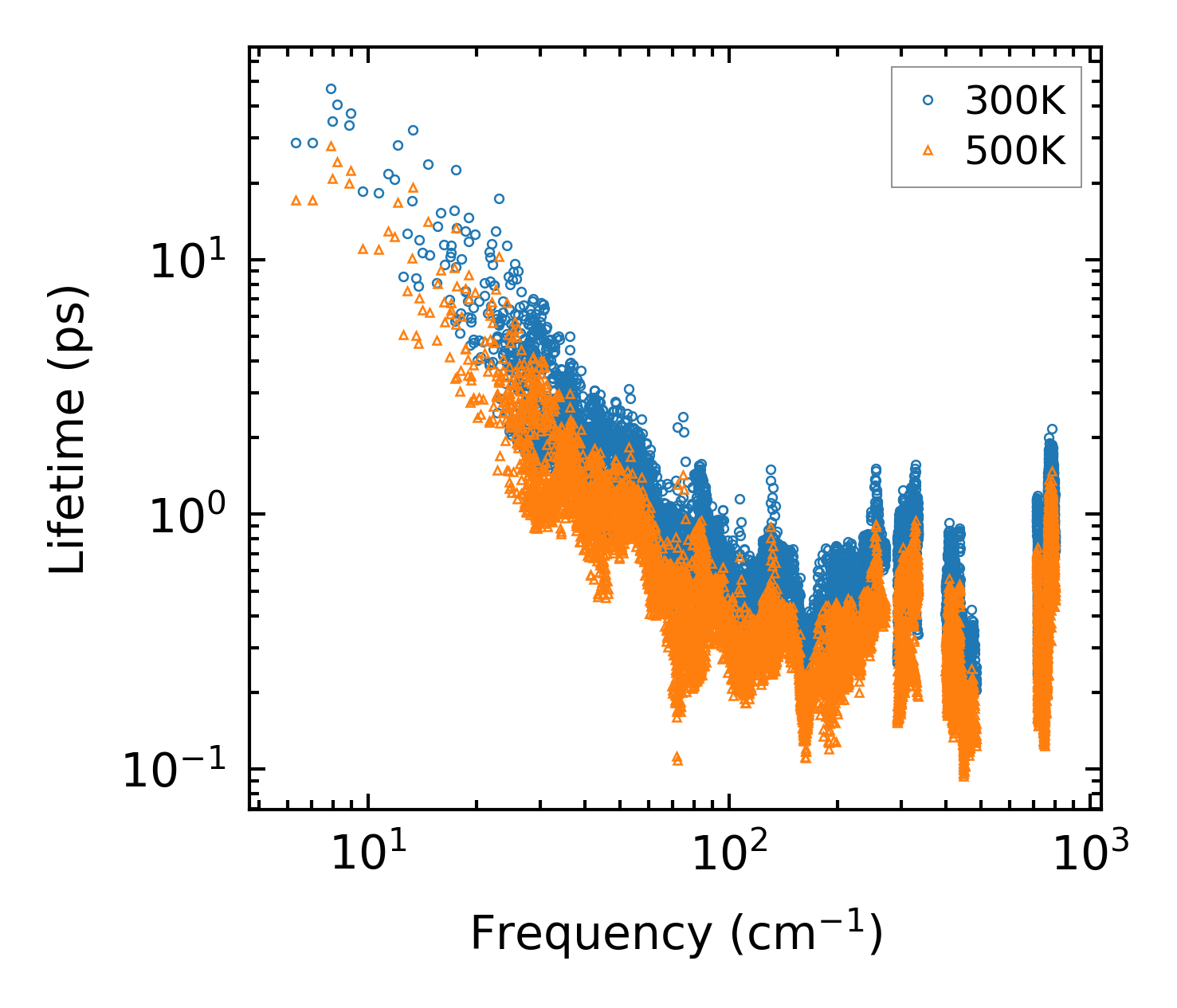

../../_images/fig_lifetime3263.png — (a) Phonon lifetime due to phonon-phonon scattering

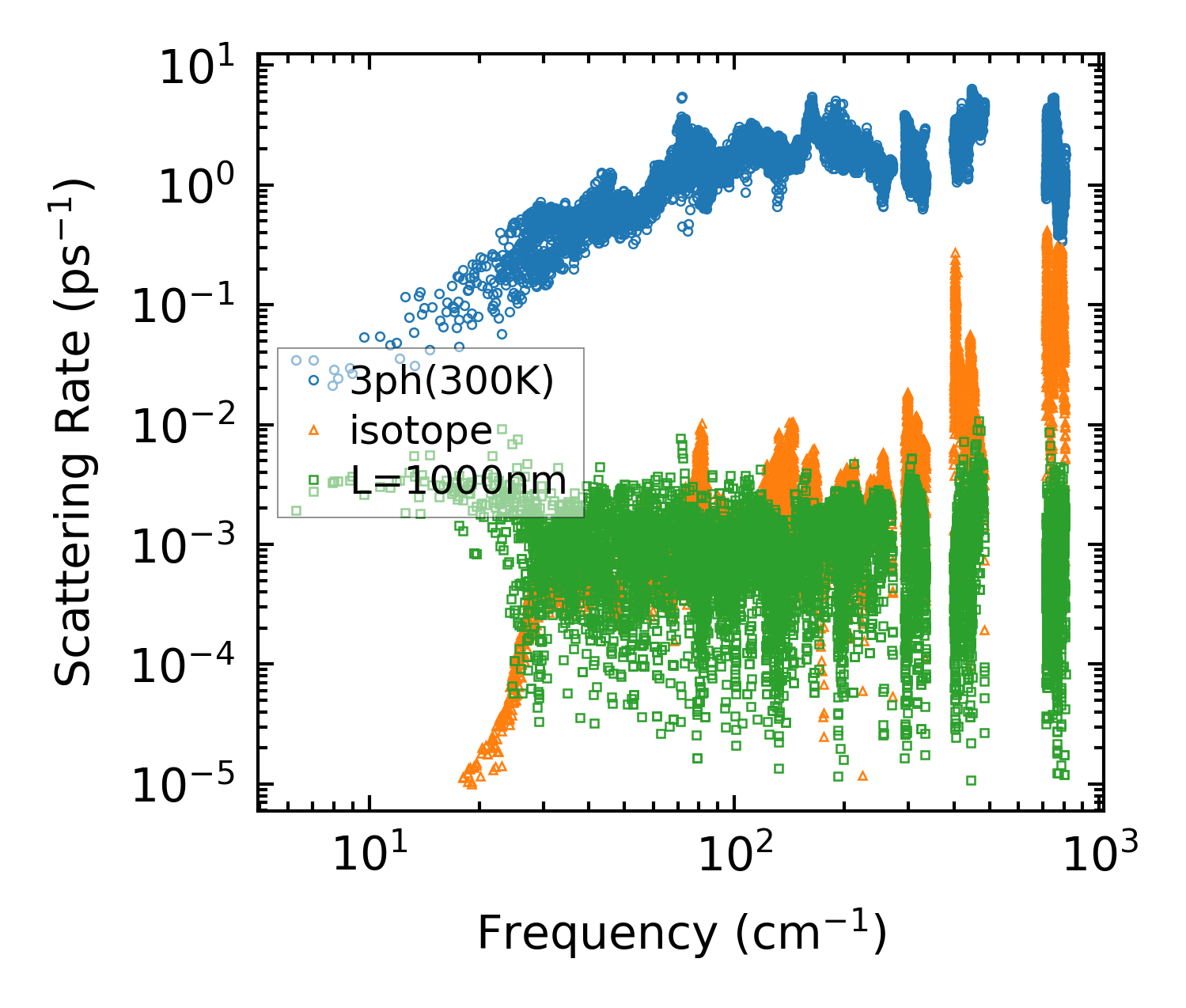

../../_images/fig_scat_rates3262.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

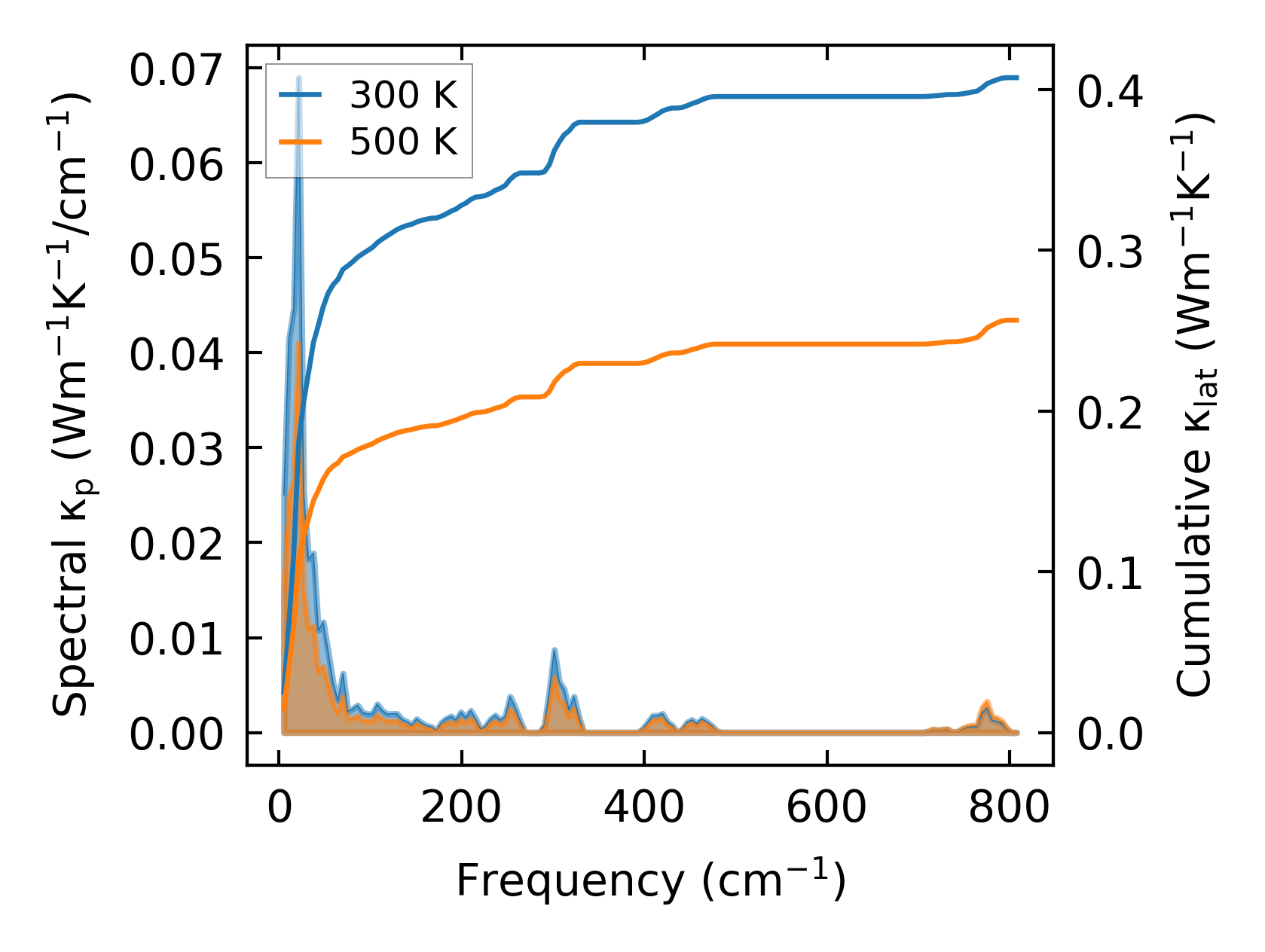

../../_images/fig_cumu_frequency3263.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp3262.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc27722.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa6234.png — (a) Temperature-dependent lattice thermal conductivity

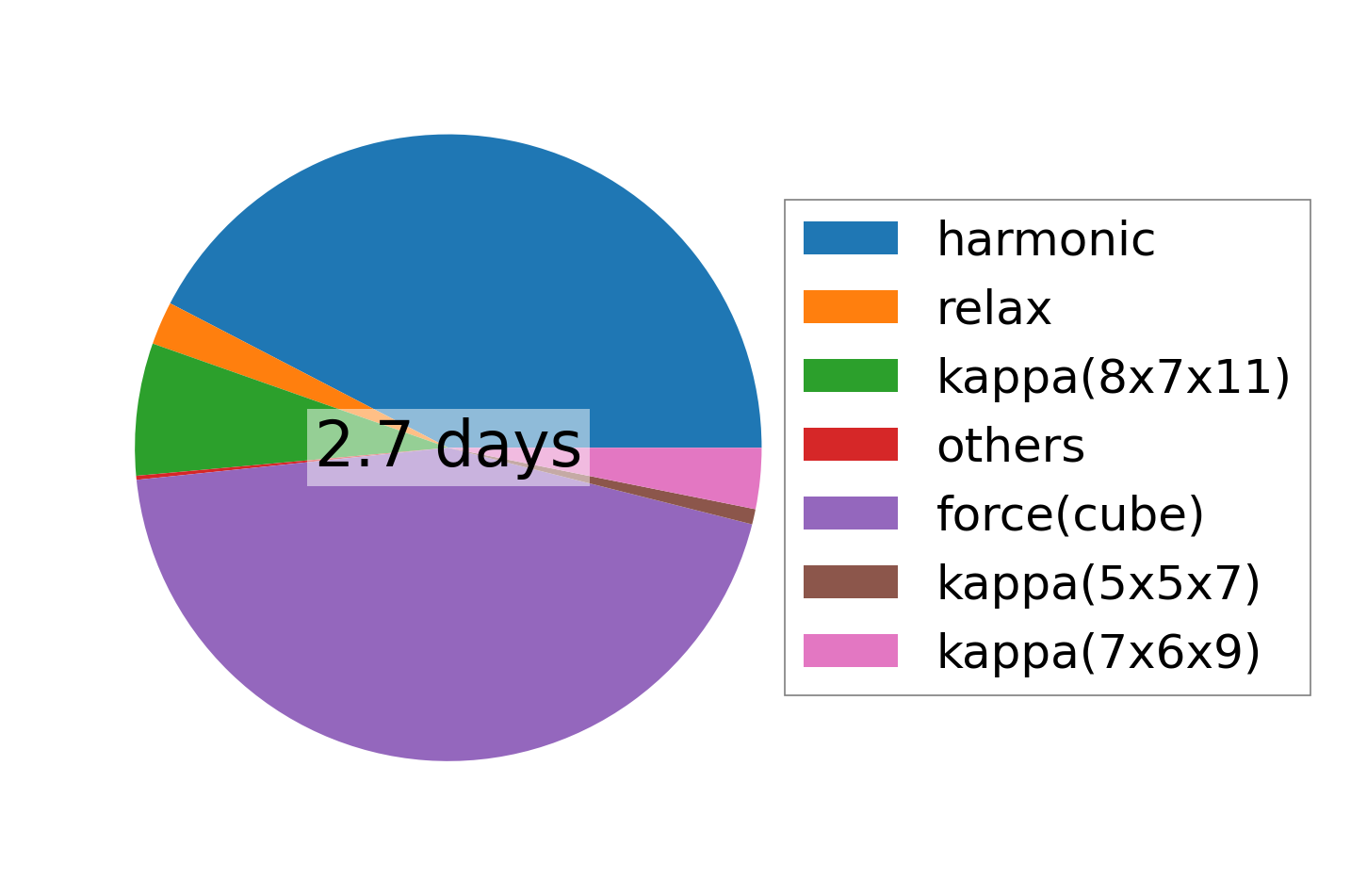

../../_images/fig_times14037.png — (b) Computation time
