mp-558211/Cs2NaCoF6/anharm

Space group: R-3m (166)
Link: Materials Project
Download: mp-558211.tar.gz

Harmonic properties

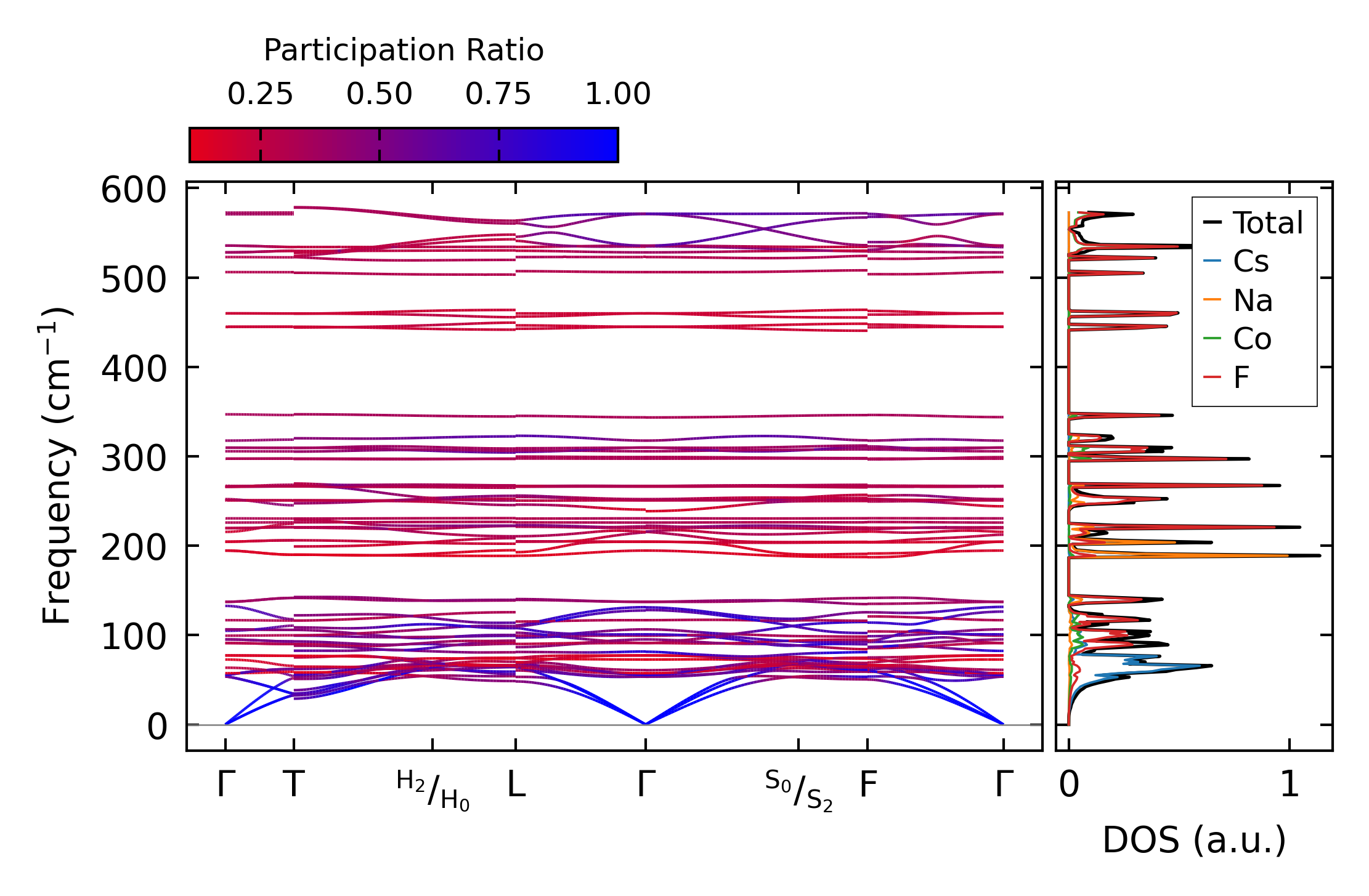

../../_images/fig_bandos_pr7969.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo7969.png — (b) Thermodynamic properties

Grüneisen parameters

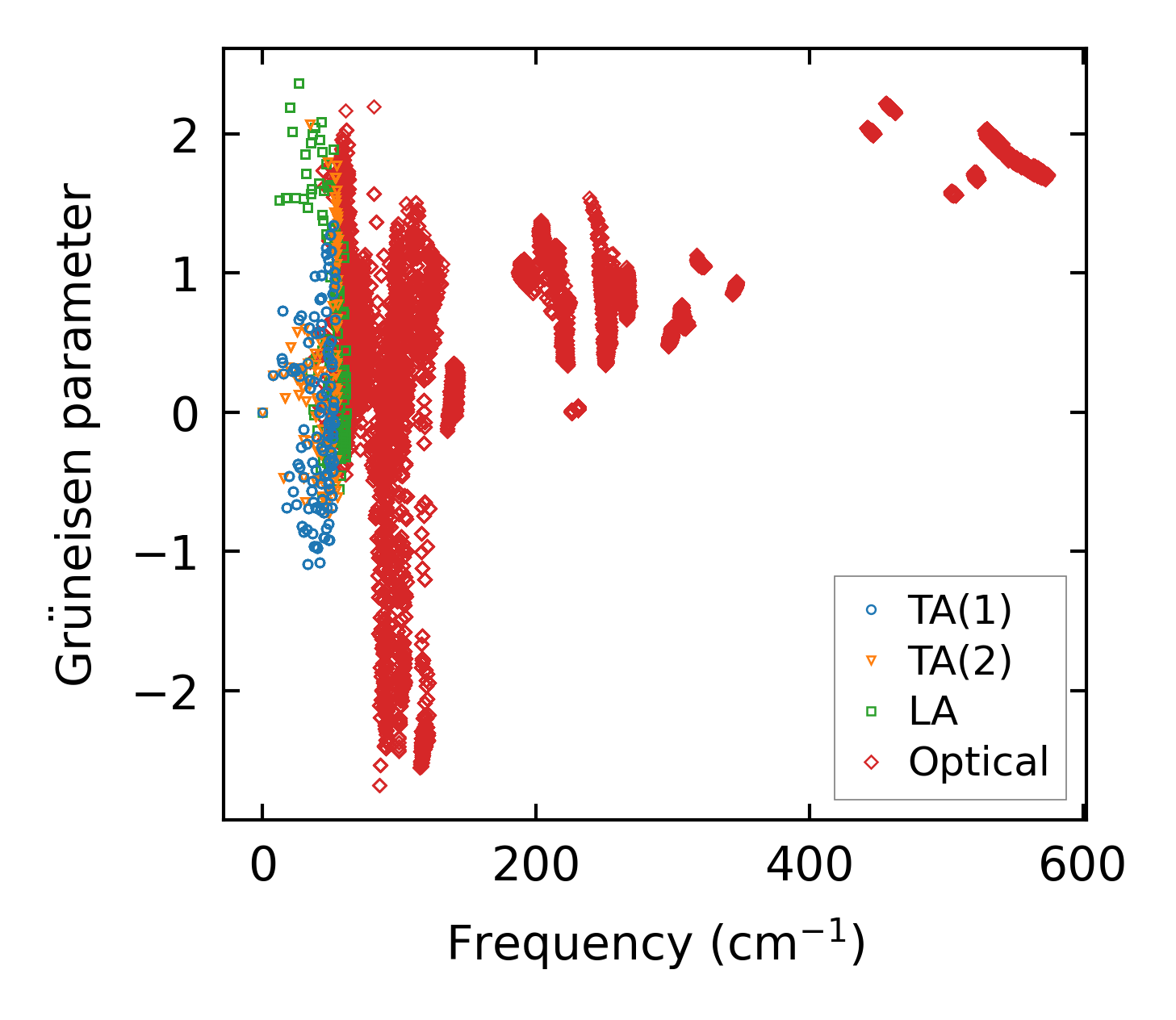

../../_images/fig_gru_all3295.png — (a) Grüneisen parameters

../../_images/fig_gruneisen3295.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x10, supercell: 1x1x1

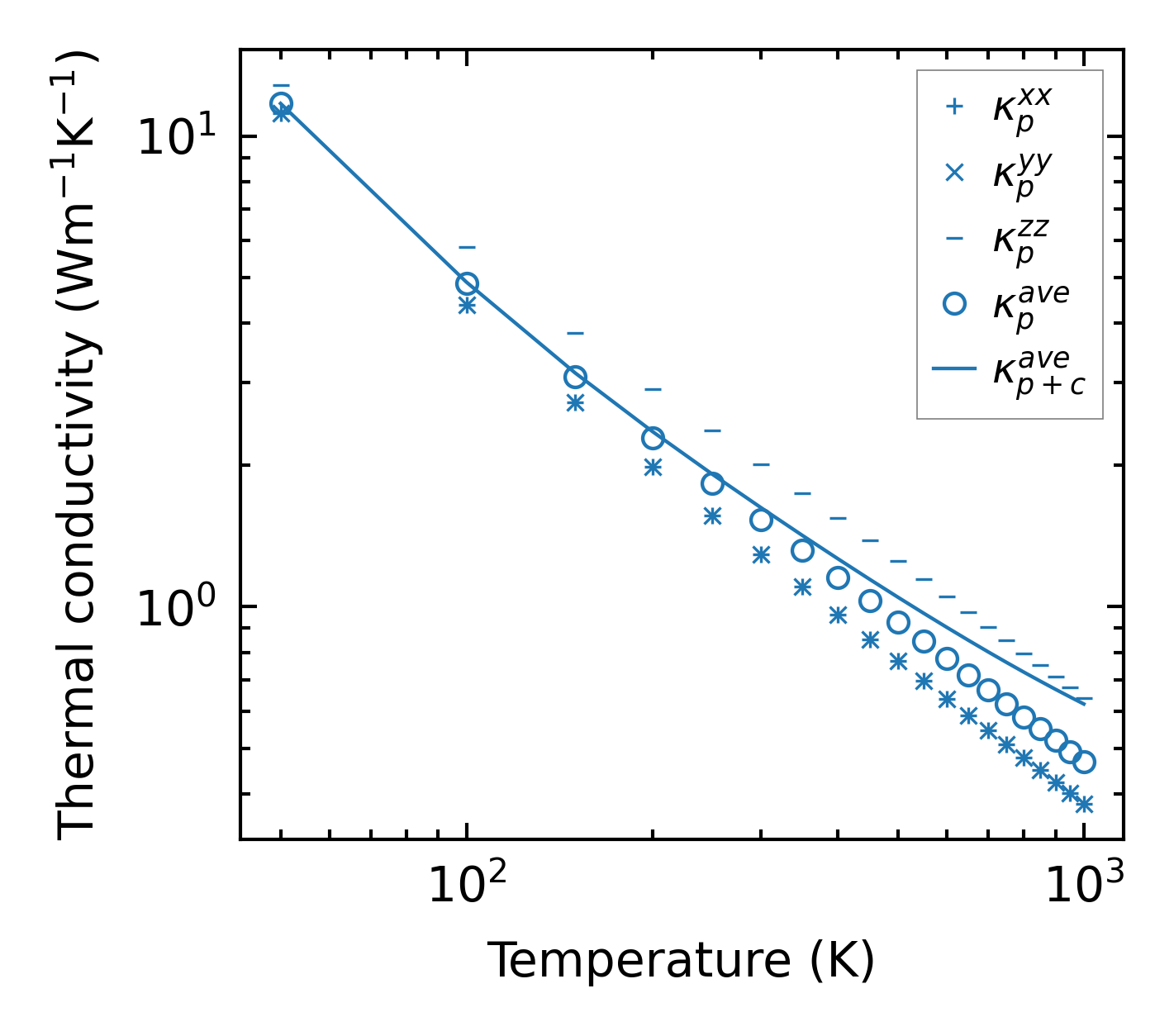

../../_images/fig_kappa6241.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size3338.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

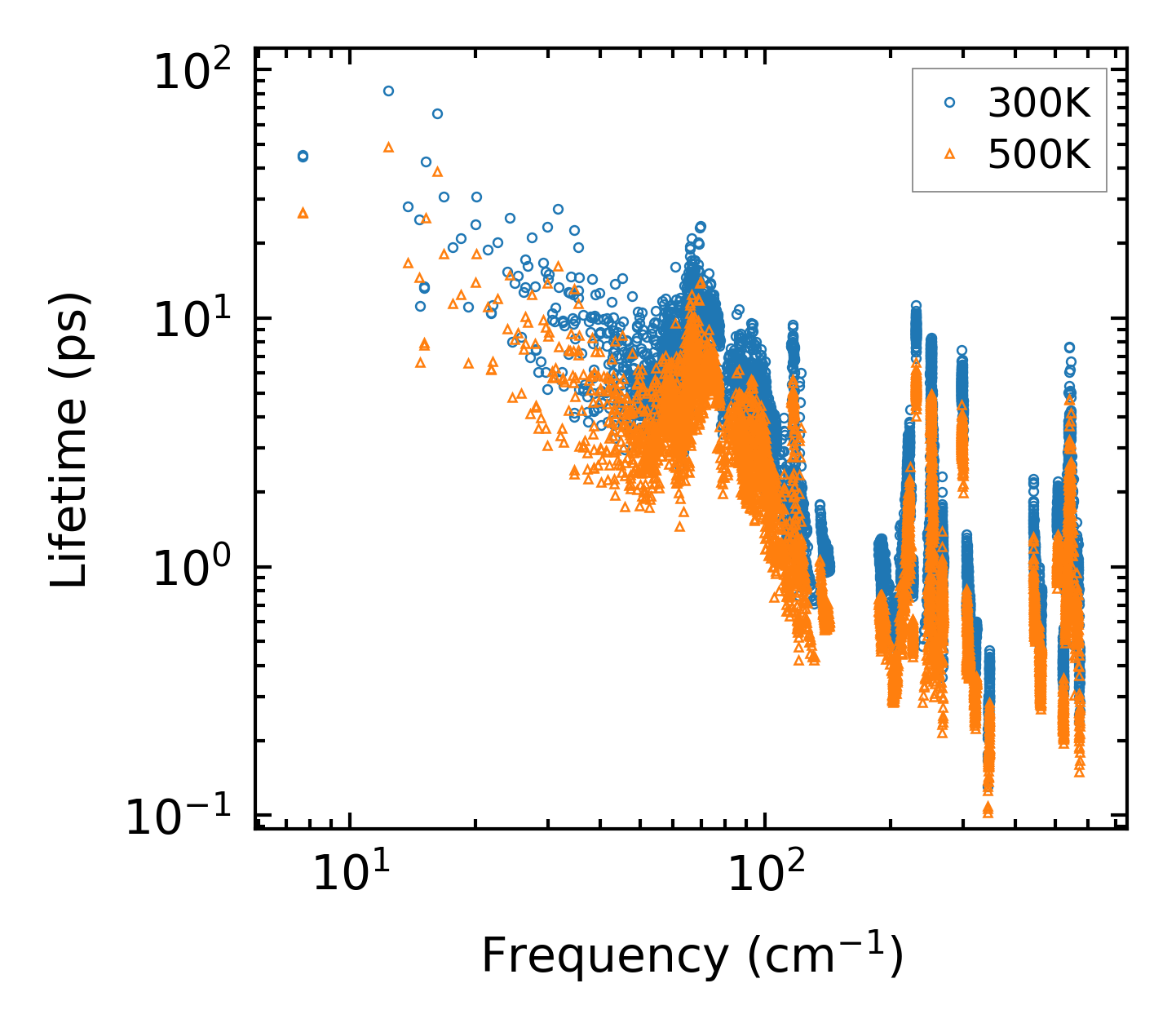

../../_images/fig_lifetime3267.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates3266.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

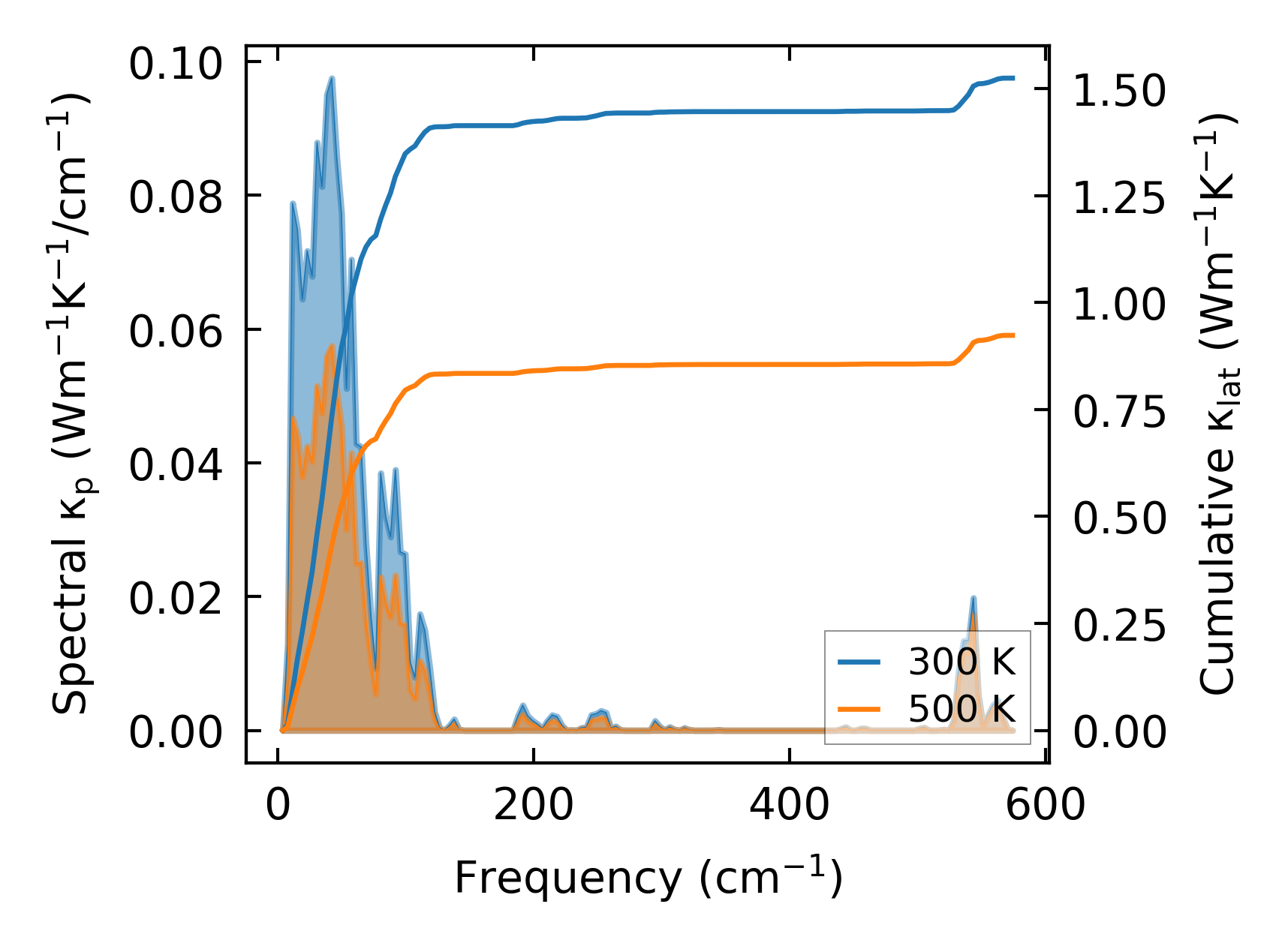

../../_images/fig_cumu_frequency3267.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

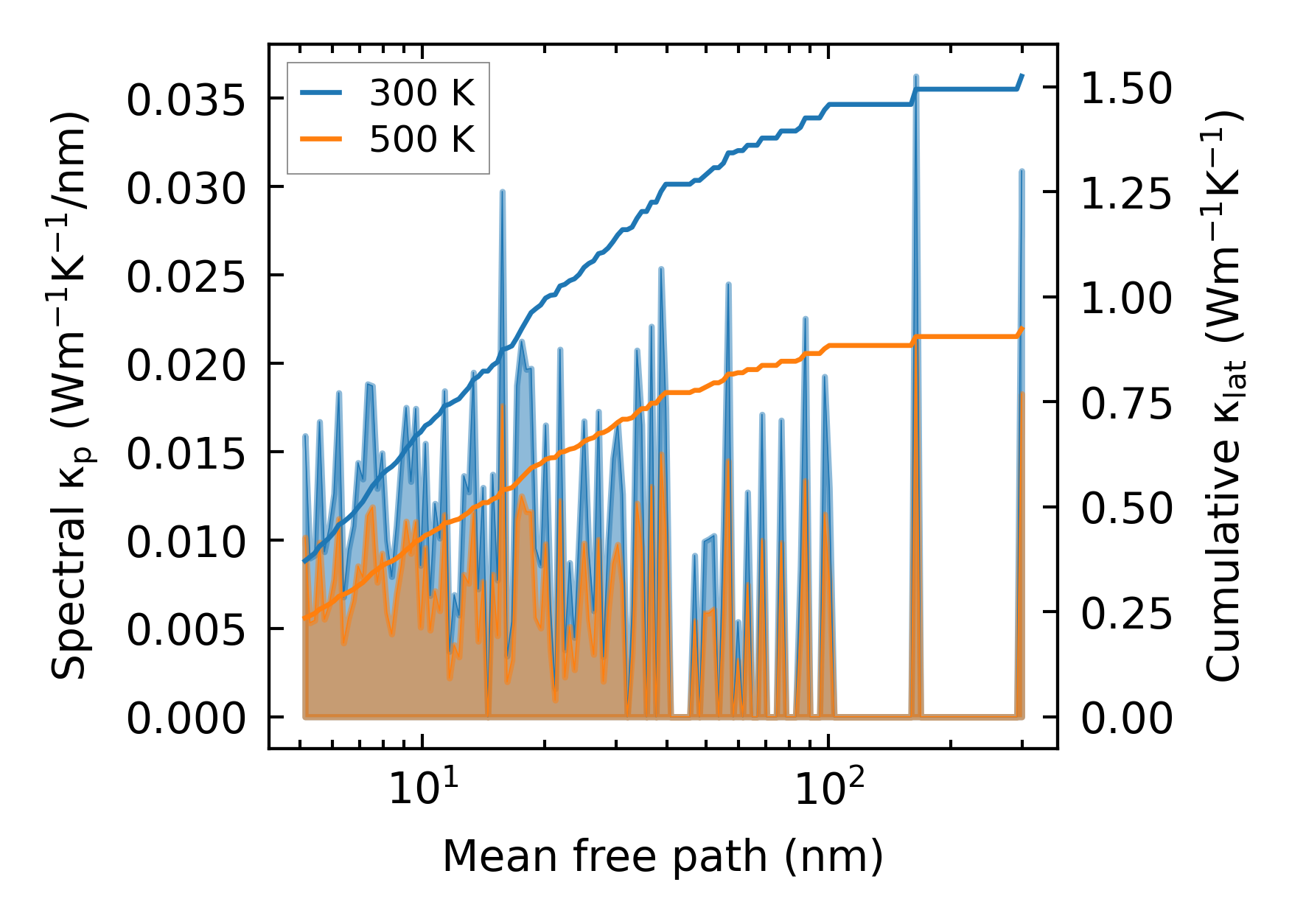

../../_images/fig_cumu_mfp3266.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

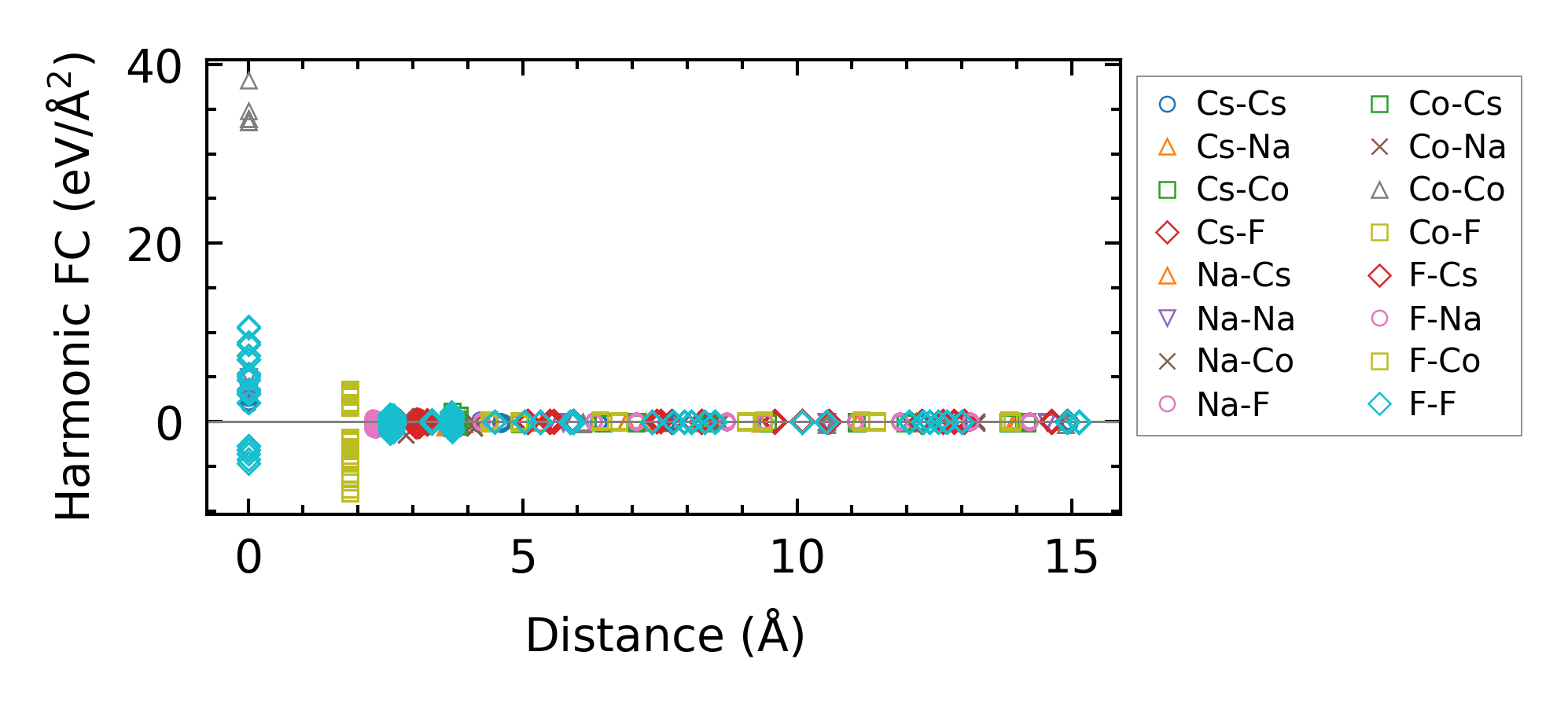

../../_images/fig_fc27731.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa6242.png — (a) Temperature-dependent lattice thermal conductivity

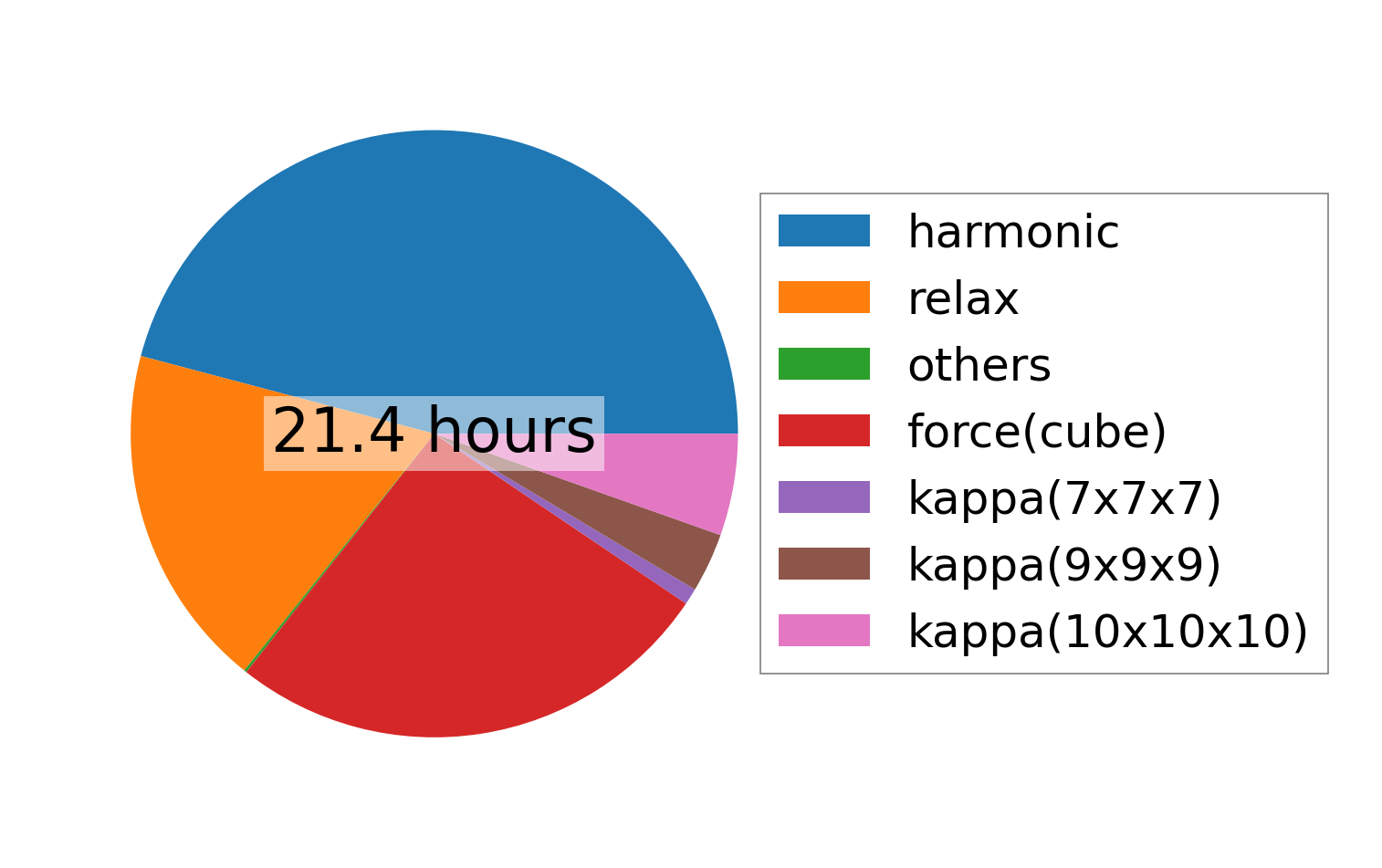

../../_images/fig_times14053.png — (b) Computation time
