mp-558907-2/CsCuBi2S4/anharm

Space group: Cmcm (63)
Link: Materials Project
Download: mp-558907-2.tar.gz

Equation of state

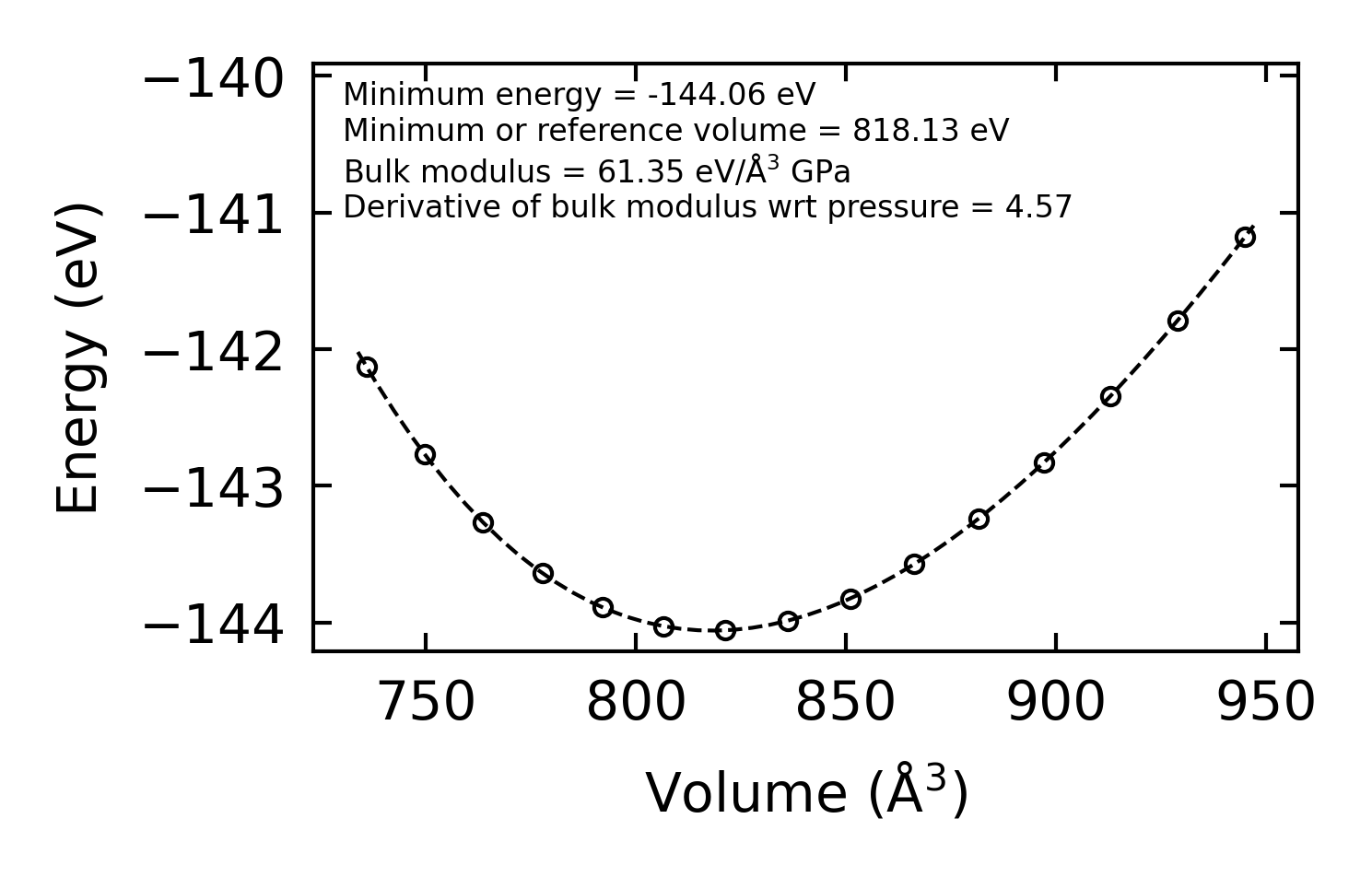

../../_images/fig_bm4160.png — (a) Equation of state

Harmonic properties

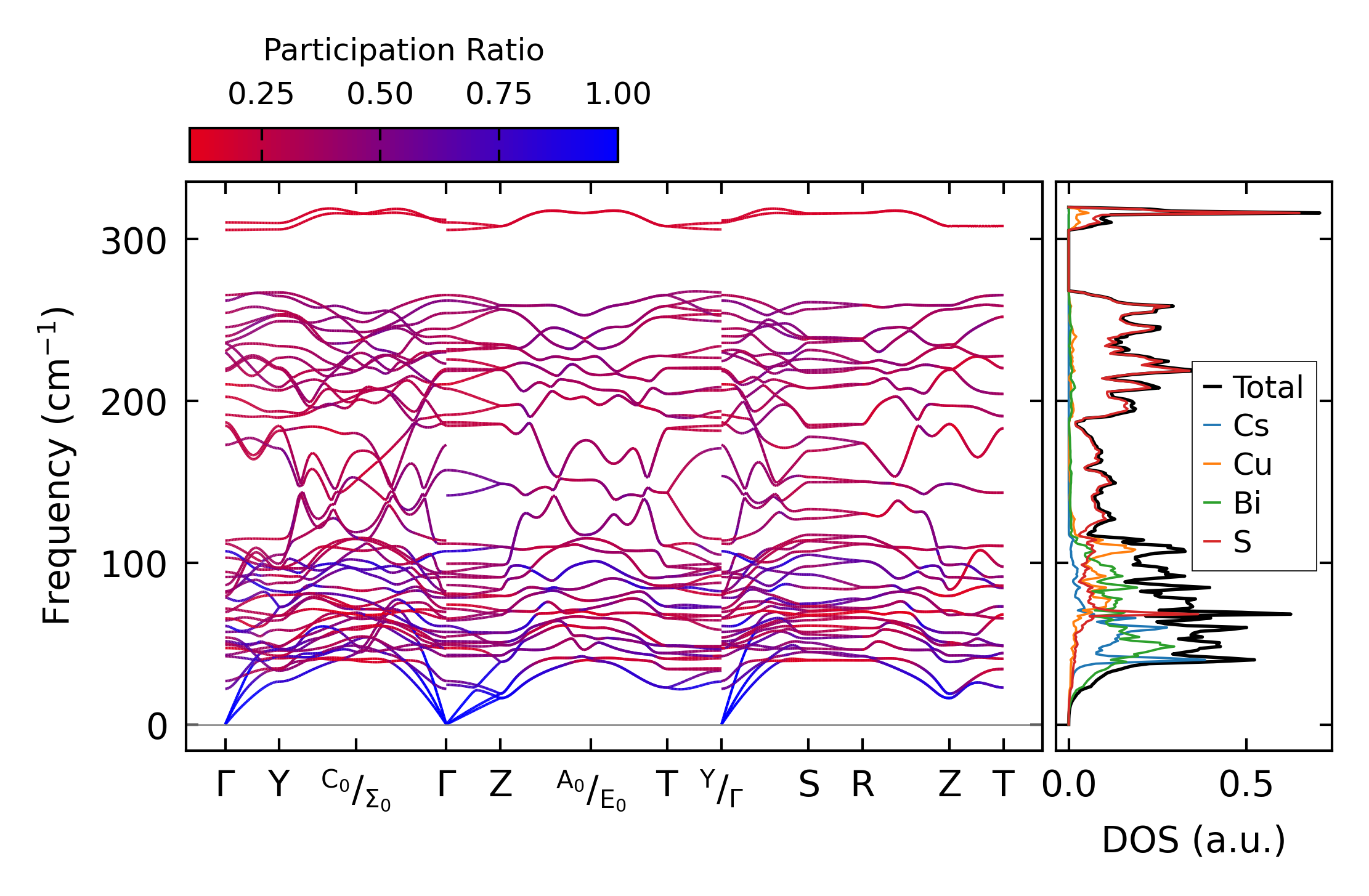

../../_images/fig_bandos_pr8115.png — (a) Phonon dispersion with participation ratio and DOS

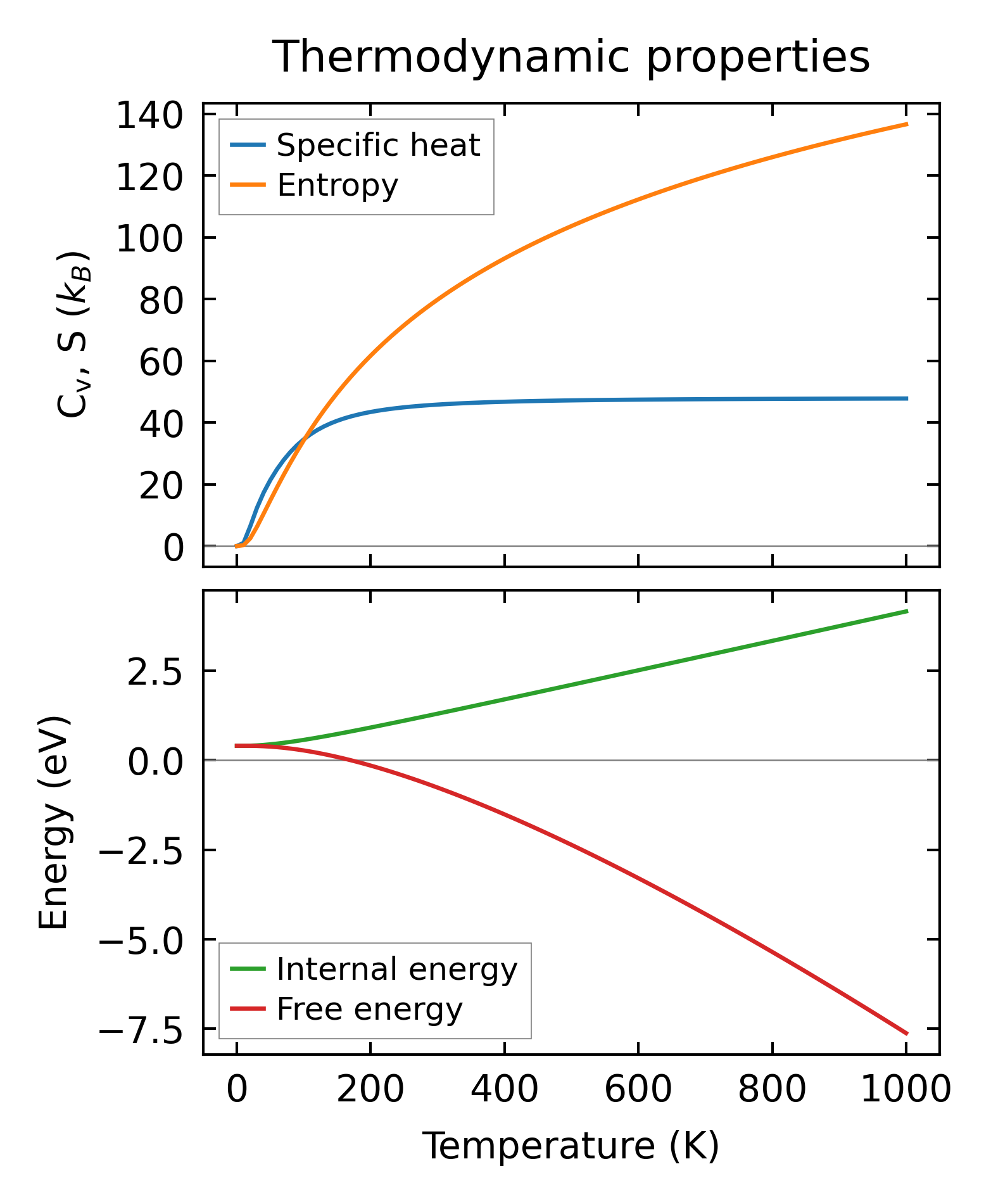

../../_images/fig_thermo8115.png — (b) Thermodynamic properties

Grüneisen parameters

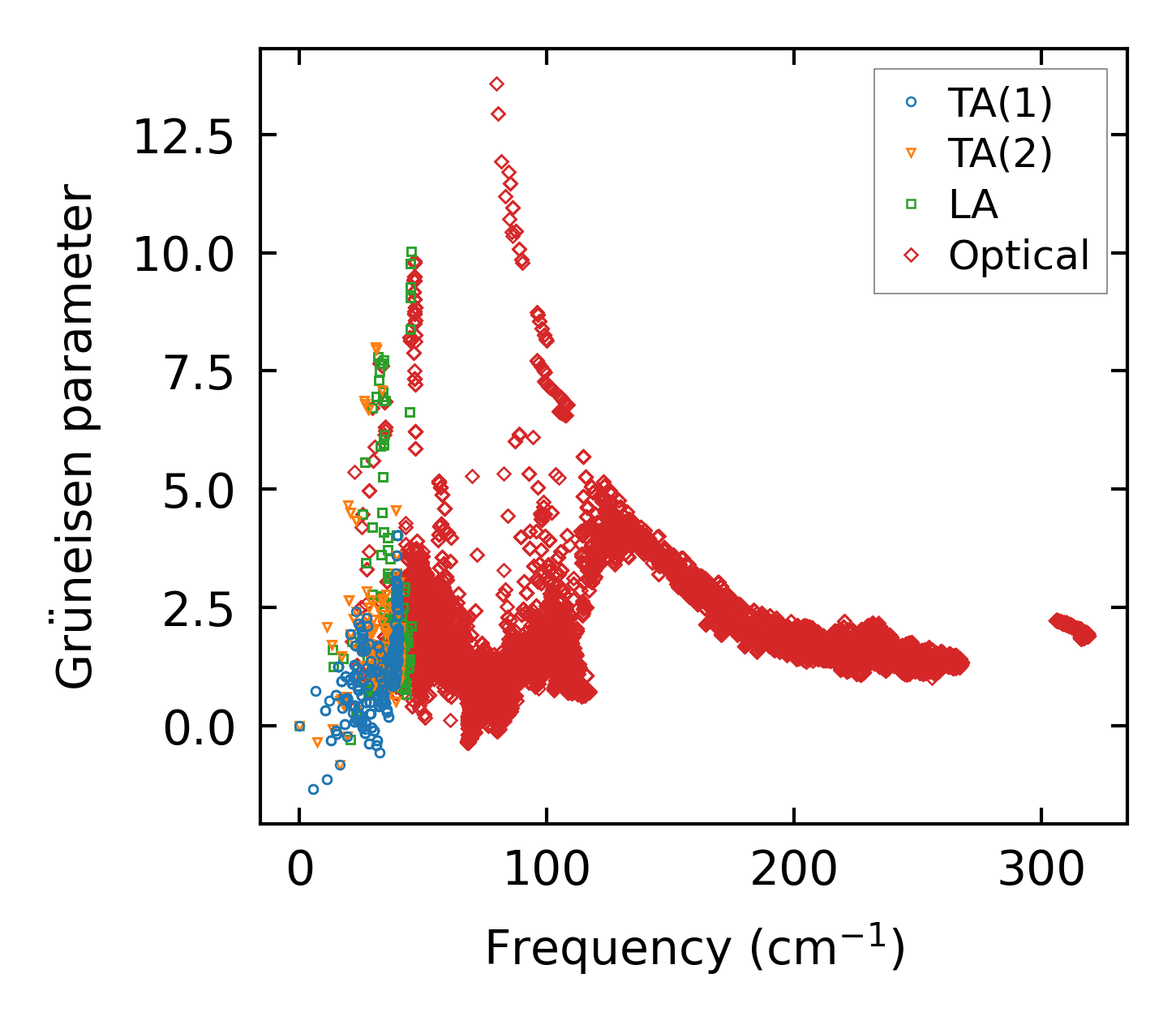

../../_images/fig_gru_all3343.png — (a) Grüneisen parameters

../../_images/fig_gruneisen3343.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x6, supercell: 4x1x1

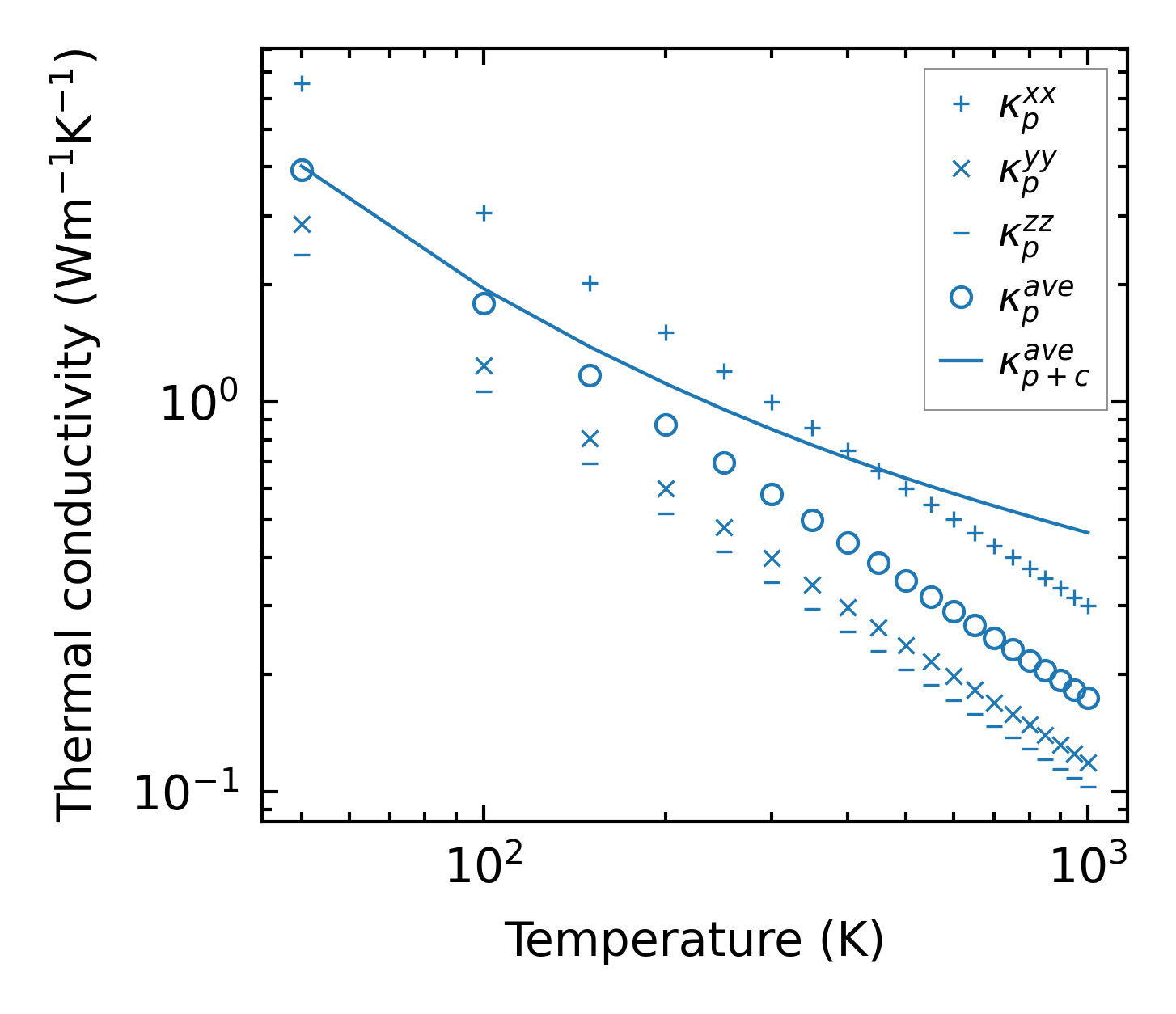

../../_images/fig_kappa6329.png — (a) Temperature-dependent lattice thermal conductivity

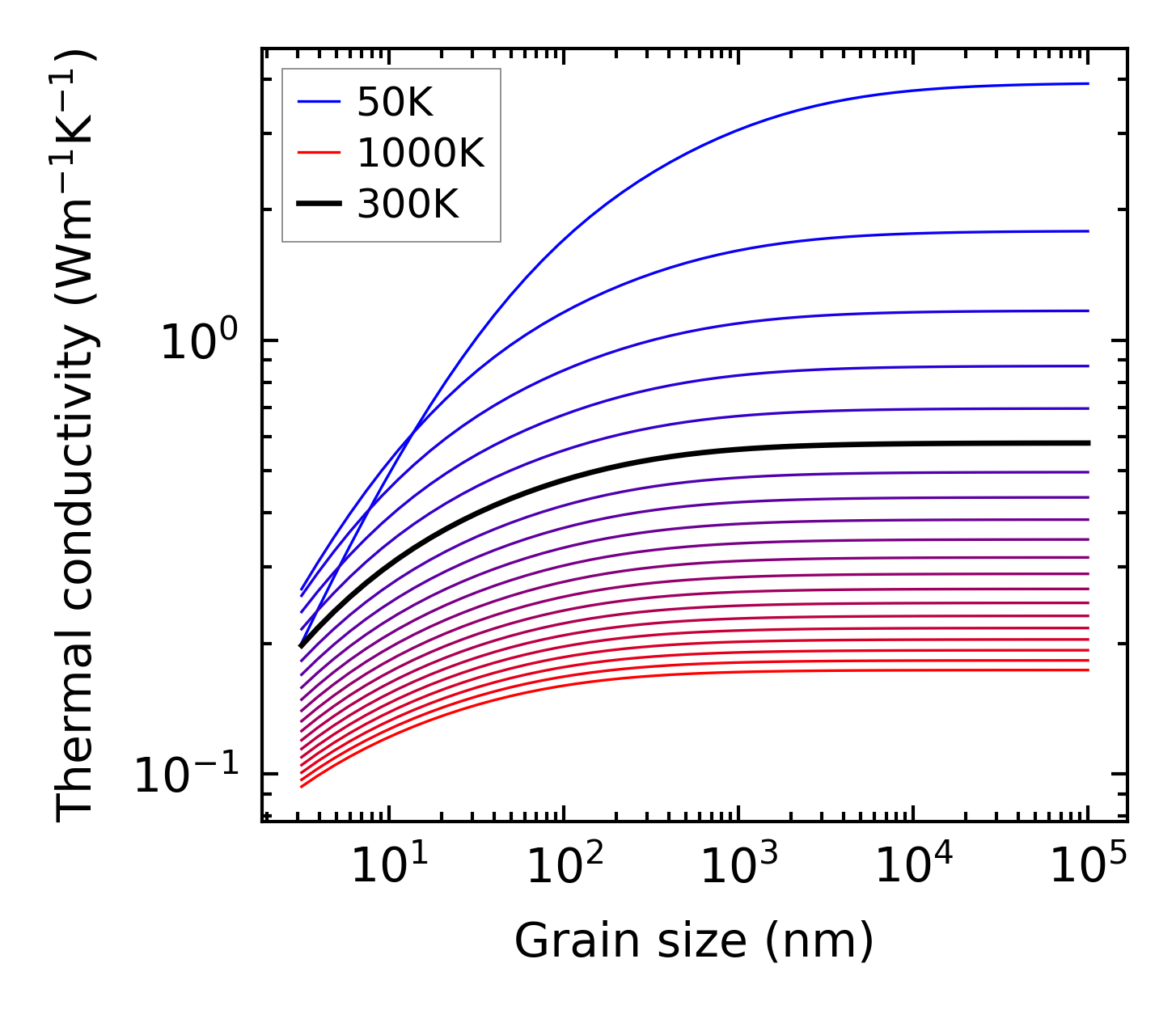

../../_images/fig_kappa_vs_grain_size3386.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime3313.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates3312.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency3313.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

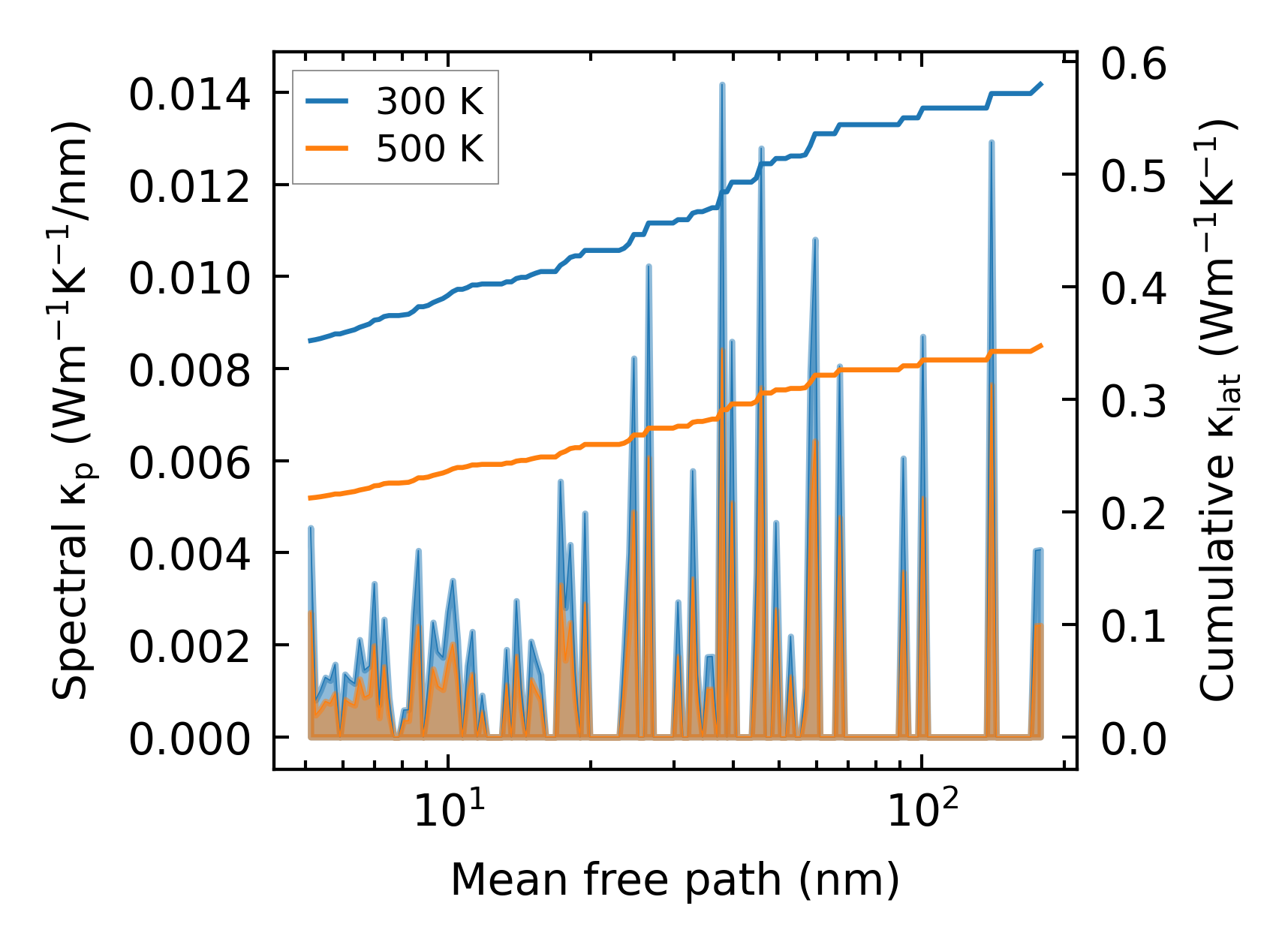

../../_images/fig_cumu_mfp3312.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc27877.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa6330.png — (a) Temperature-dependent lattice thermal conductivity

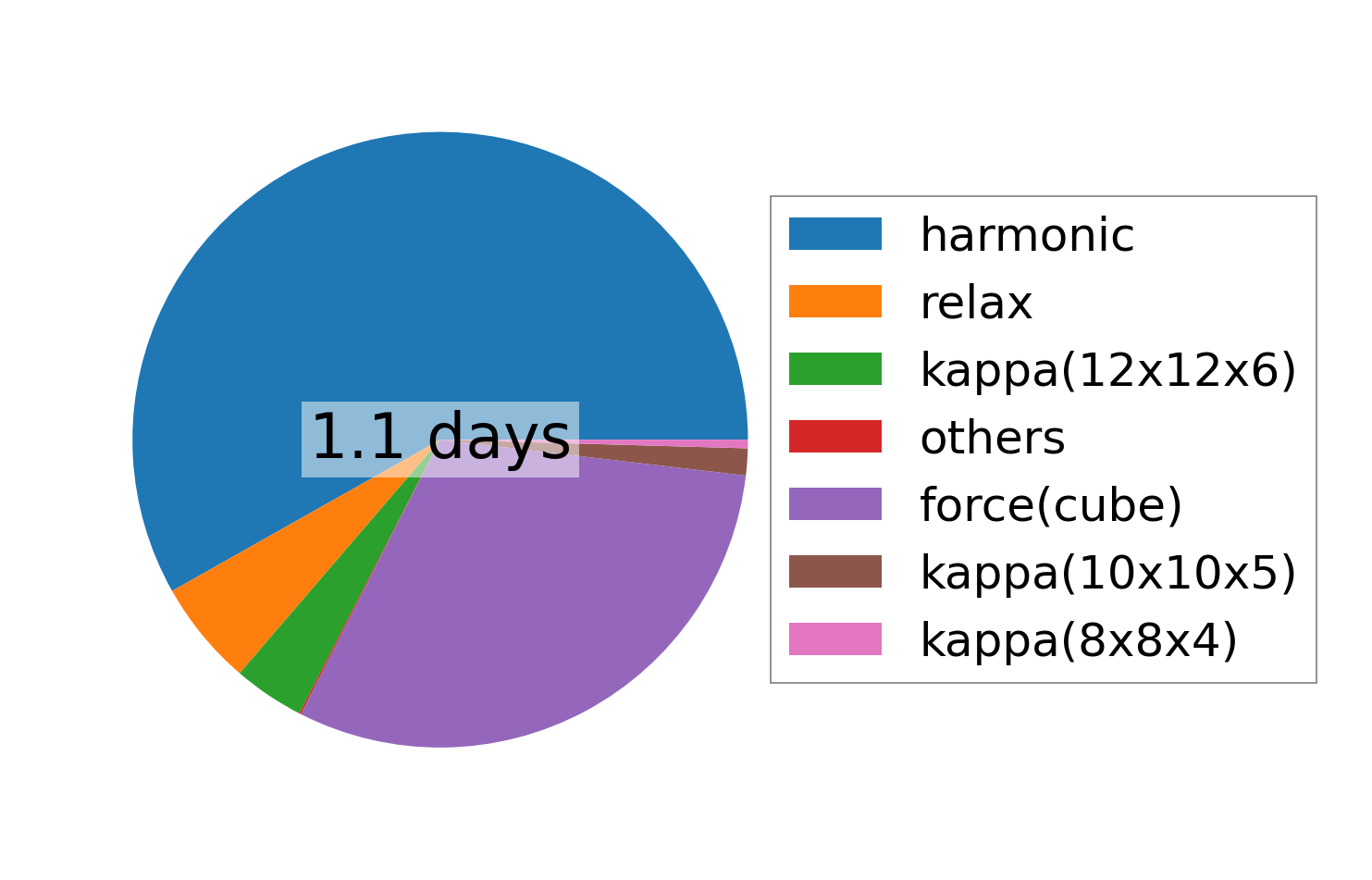

../../_images/fig_times14297.png — (b) Computation time
