mp-559893/LiBiPd2O4/anharm

Space group: P4/nmm (129)
Link: Materials Project
Download: mp-559893.tar.gz

Harmonic properties

../../_images/fig_bandos_pr7699.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo7699.png — (b) Thermodynamic properties

Grüneisen parameters

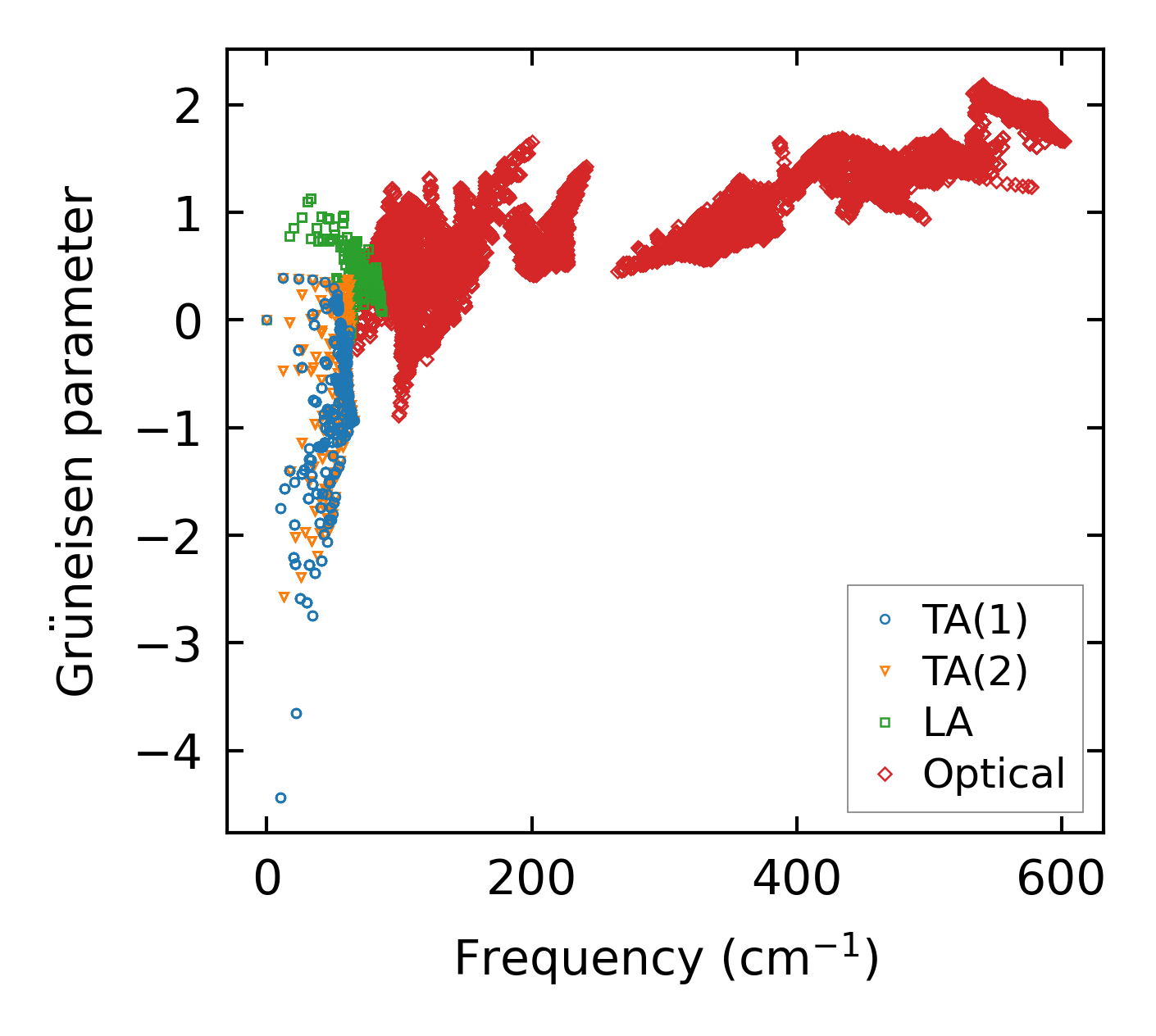

../../_images/fig_gru_all3221.png — (a) Grüneisen parameters

../../_images/fig_gruneisen3221.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x16, supercell: 2x2x2

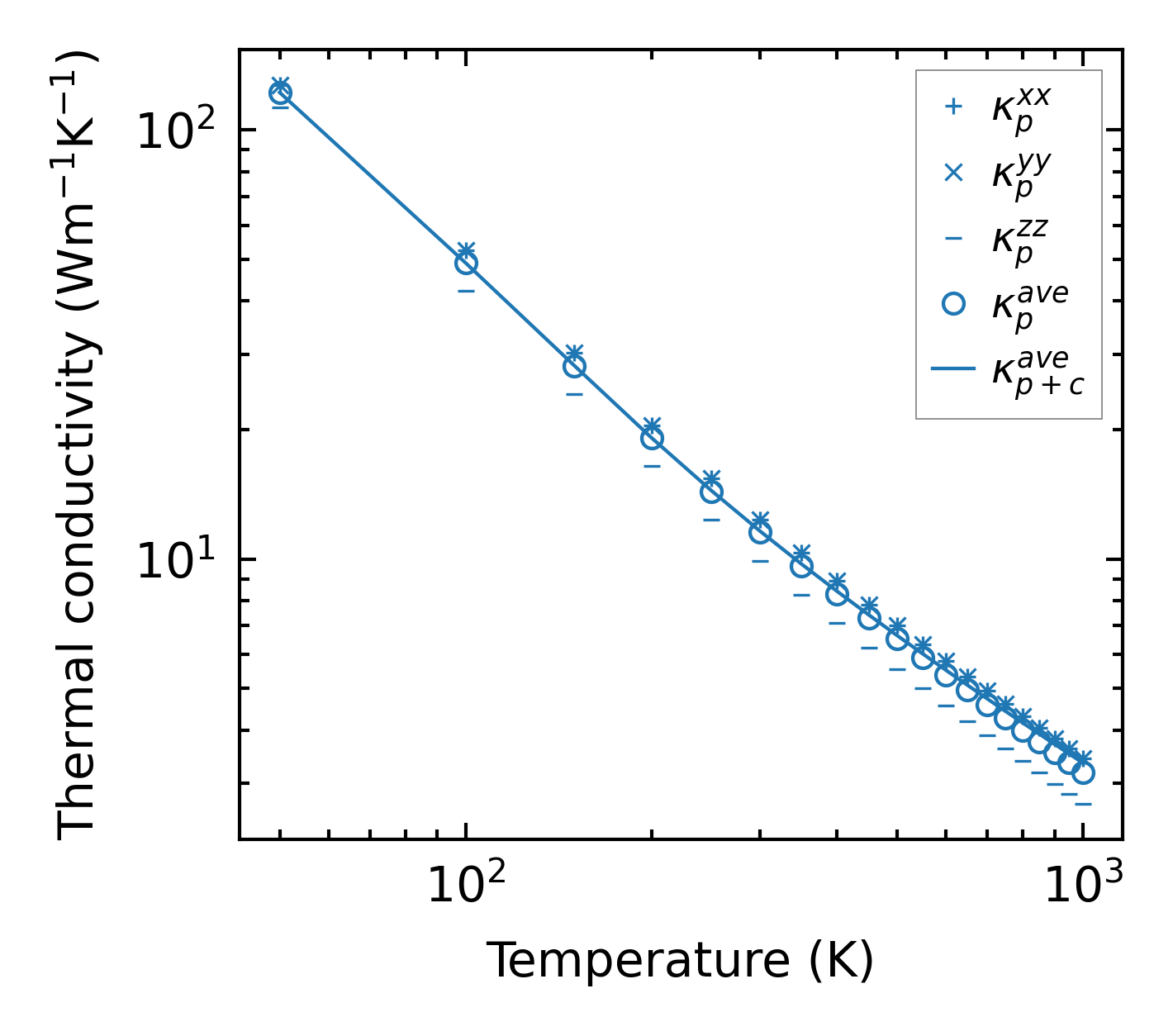

../../_images/fig_kappa6101.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size3263.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime3193.png — (a) Phonon lifetime due to phonon-phonon scattering

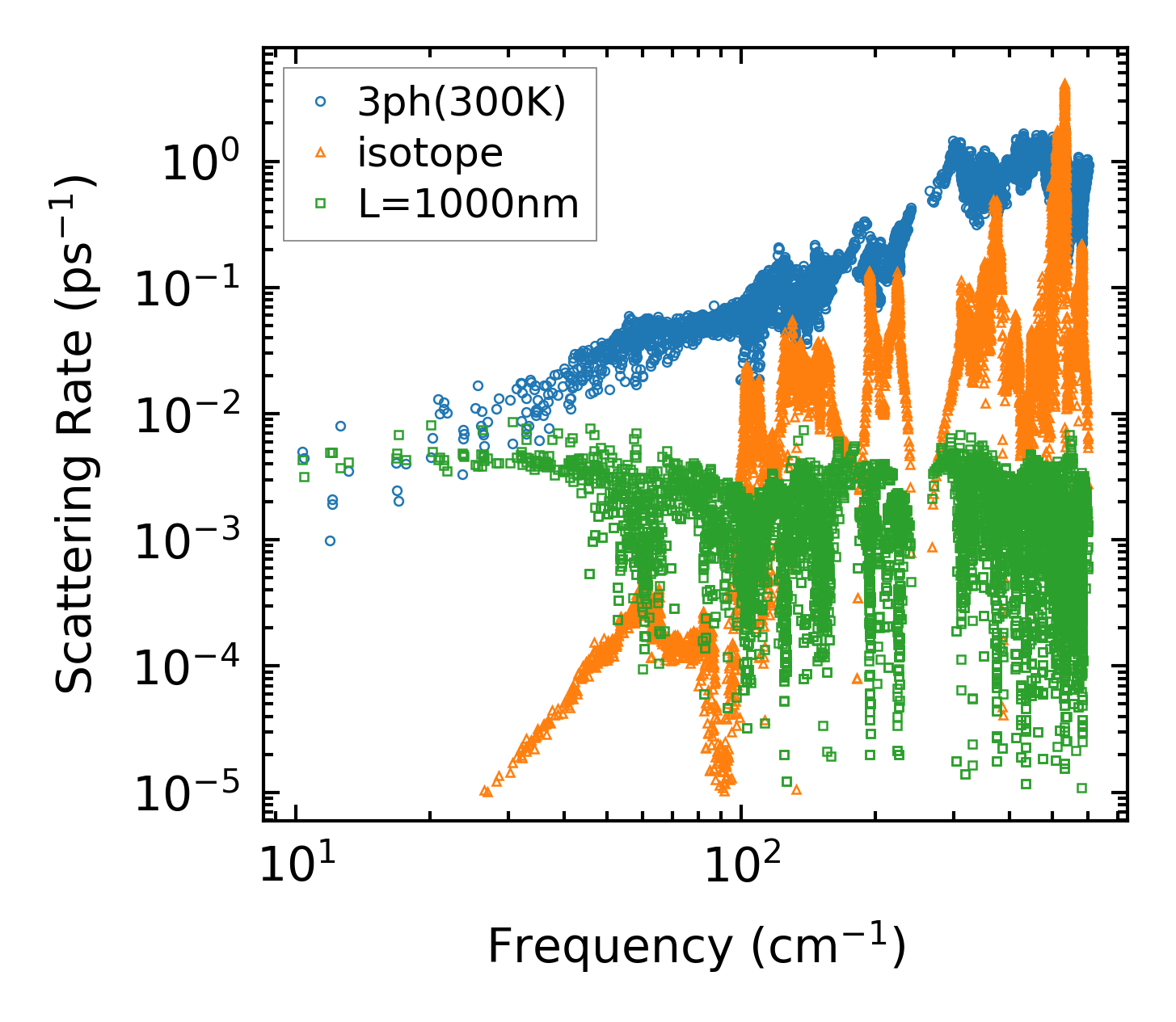

../../_images/fig_scat_rates3192.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

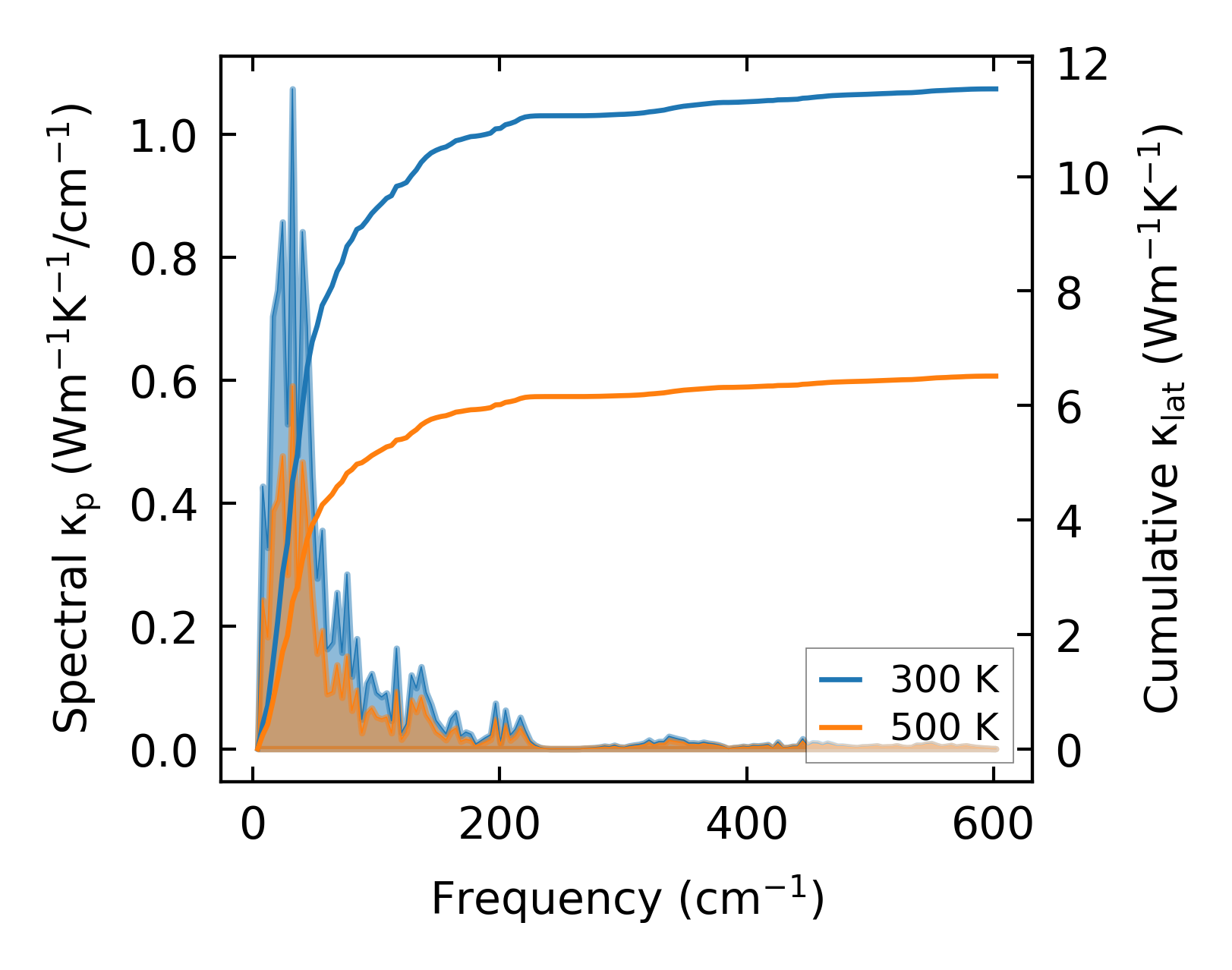

../../_images/fig_cumu_frequency3193.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

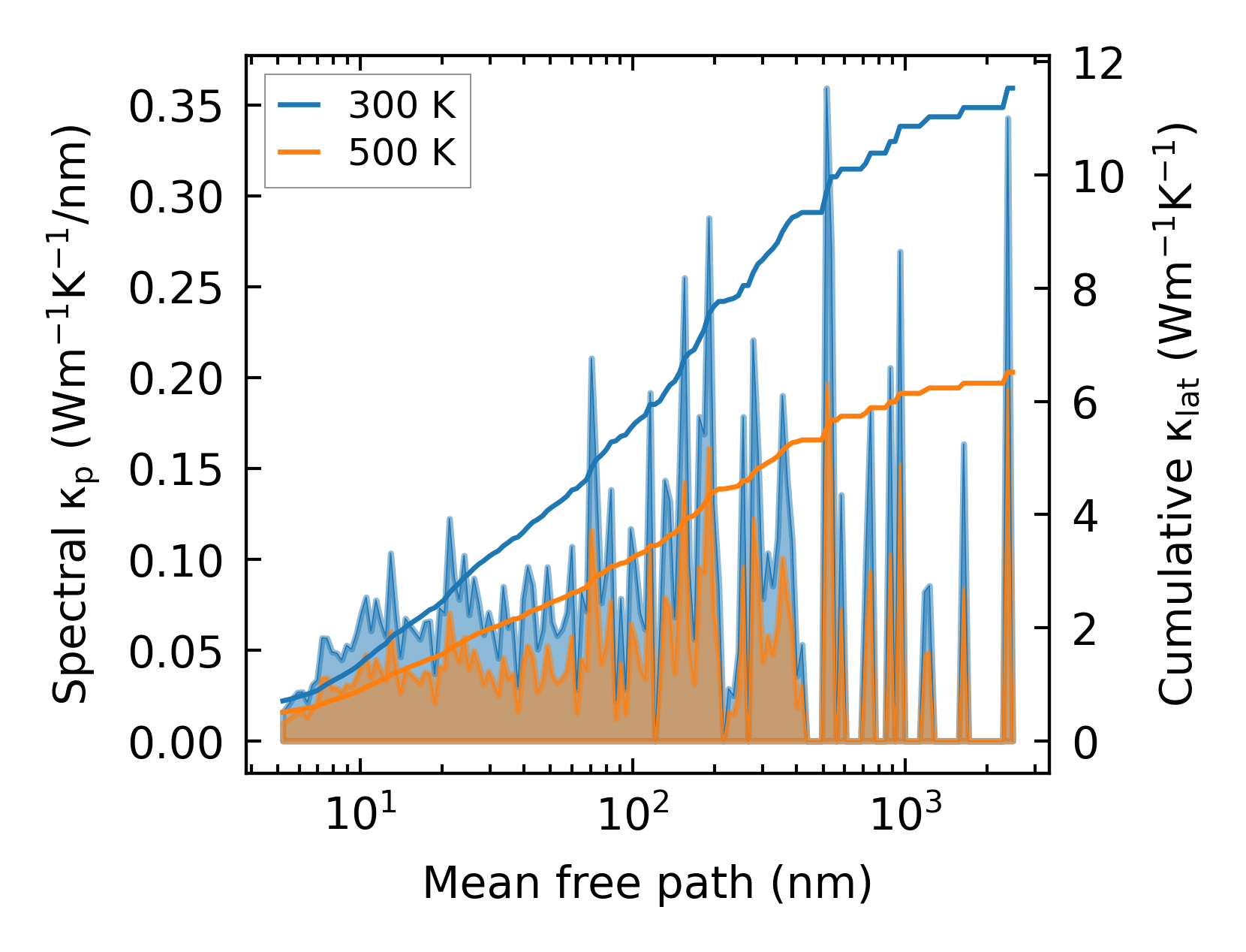

../../_images/fig_cumu_mfp3192.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

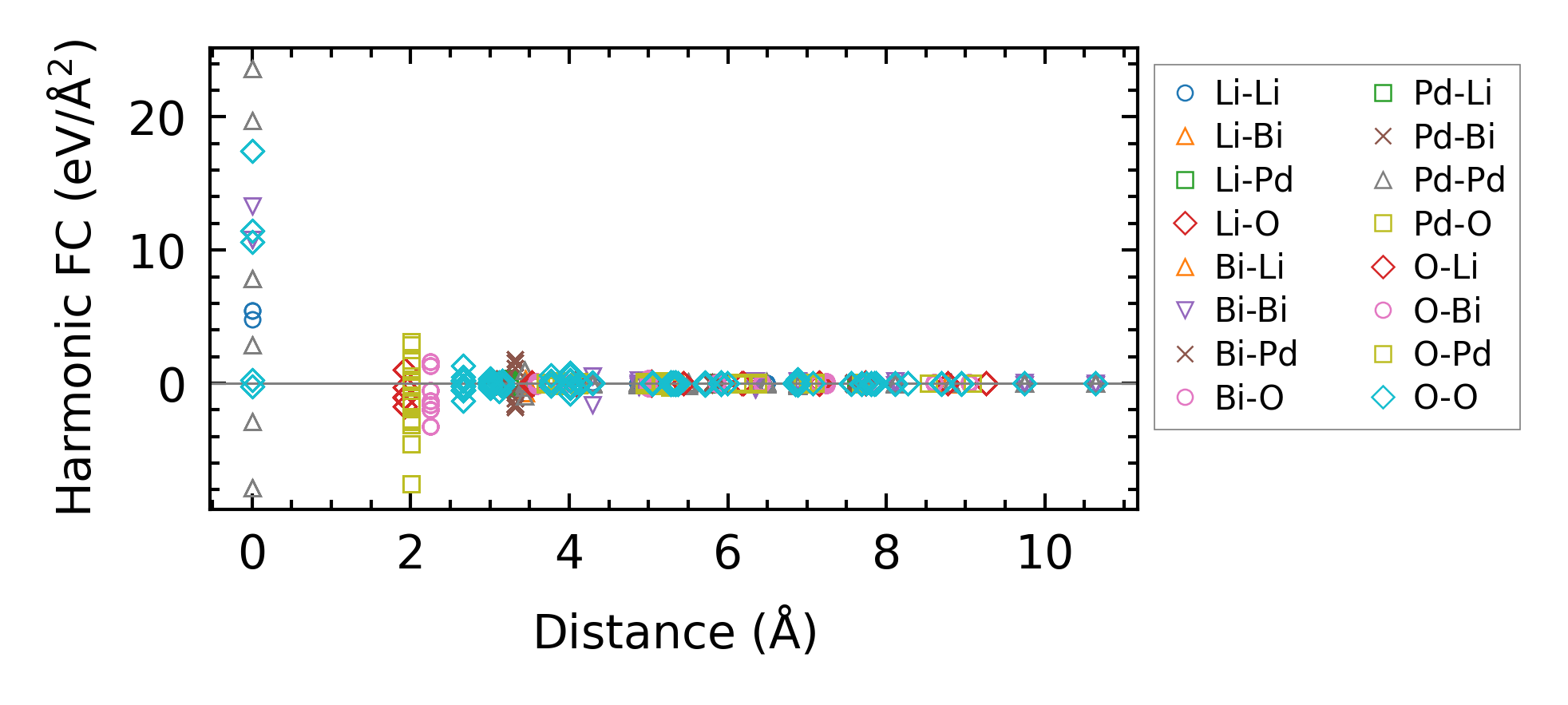

../../_images/fig_fc27462.png — (a) Force constants w.r.t atomic distance

Summary

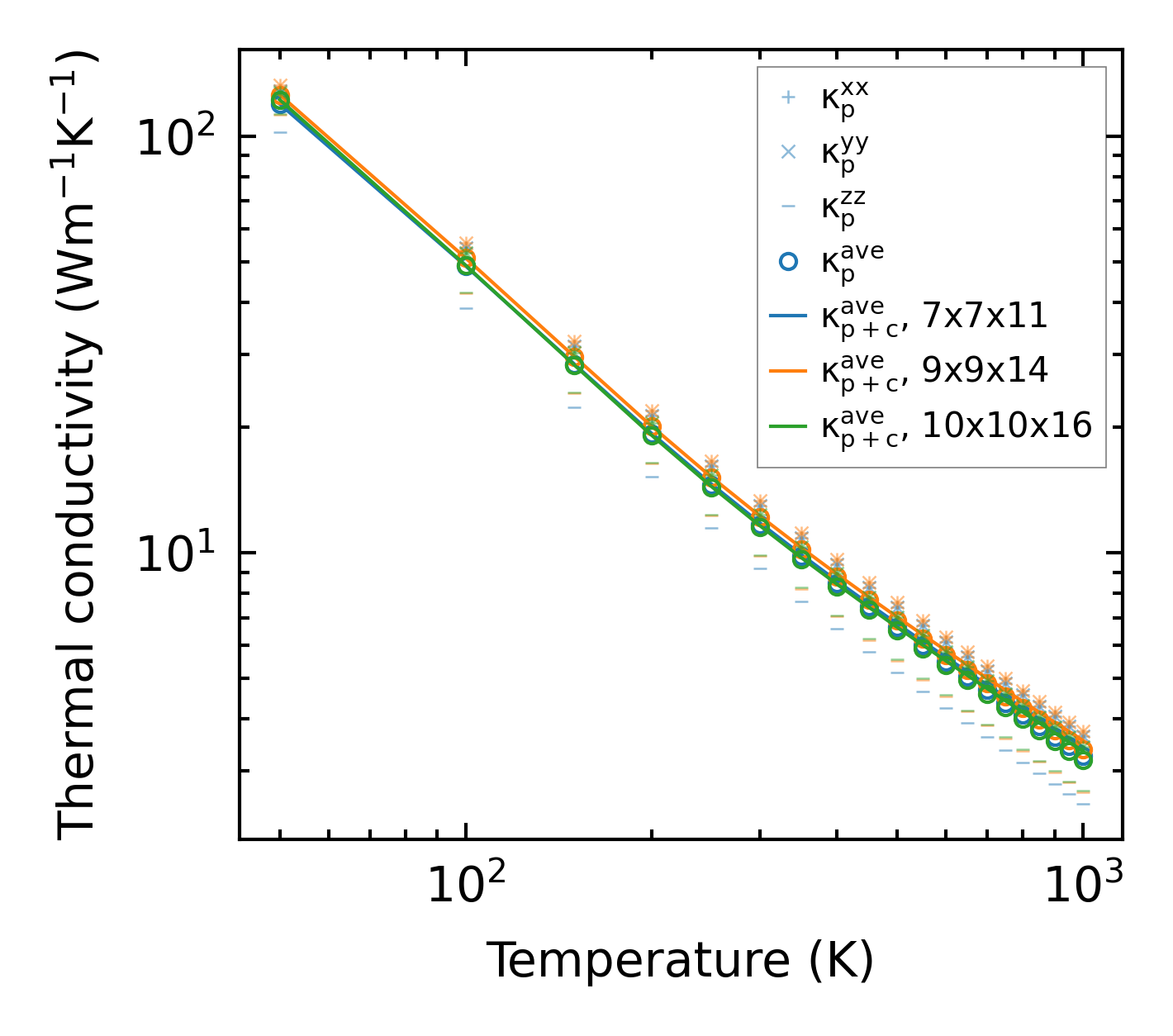

../../_images/fig_kappa6102.png — (a) Temperature-dependent lattice thermal conductivity

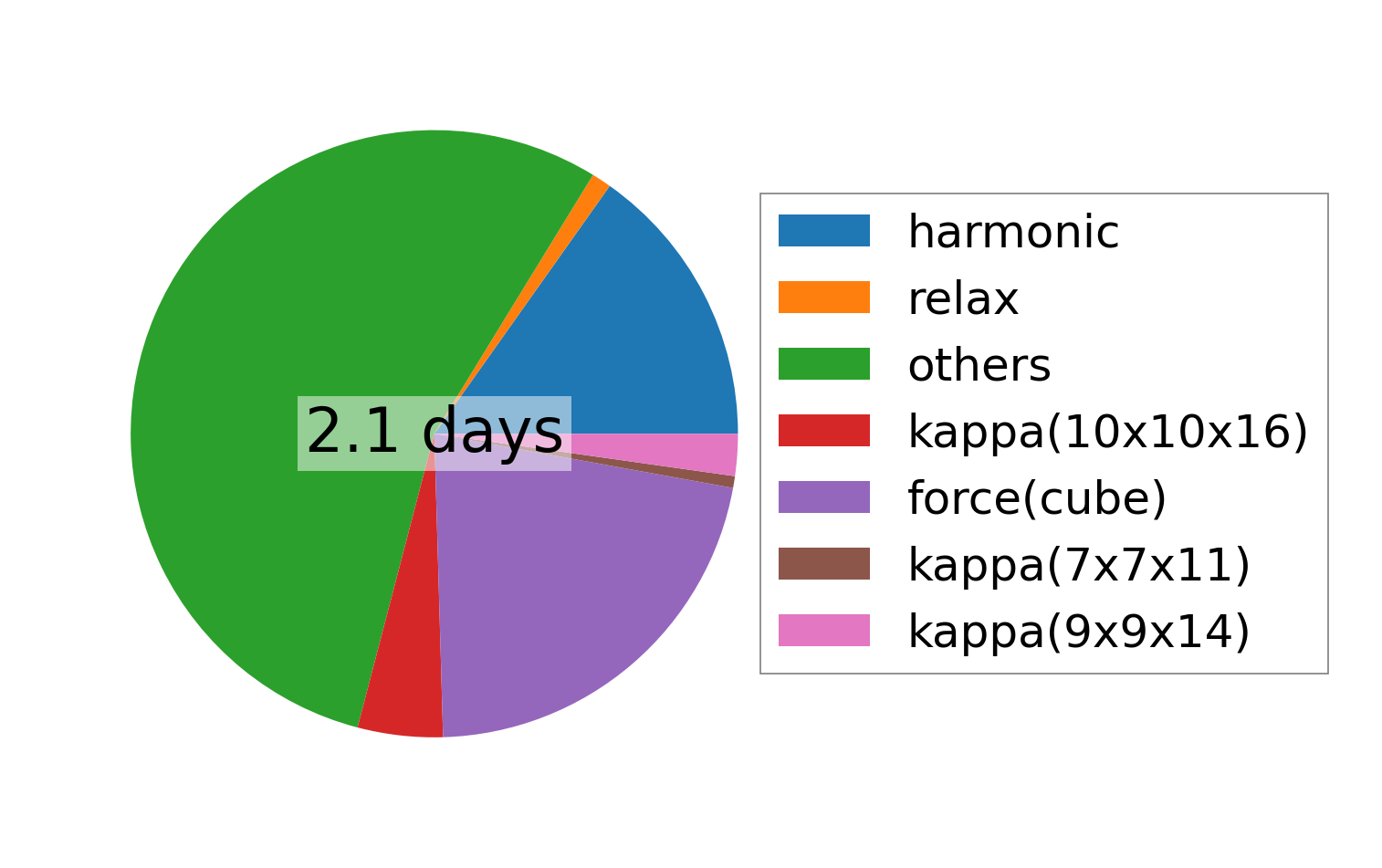

../../_images/fig_times13599.png — (b) Computation time
