mp-559882-2/HgCSNCl/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-559882-2.tar.gz

Harmonic properties

../../_images/fig_bandos_pr7697.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo7697.png — (b) Thermodynamic properties

Grüneisen parameters

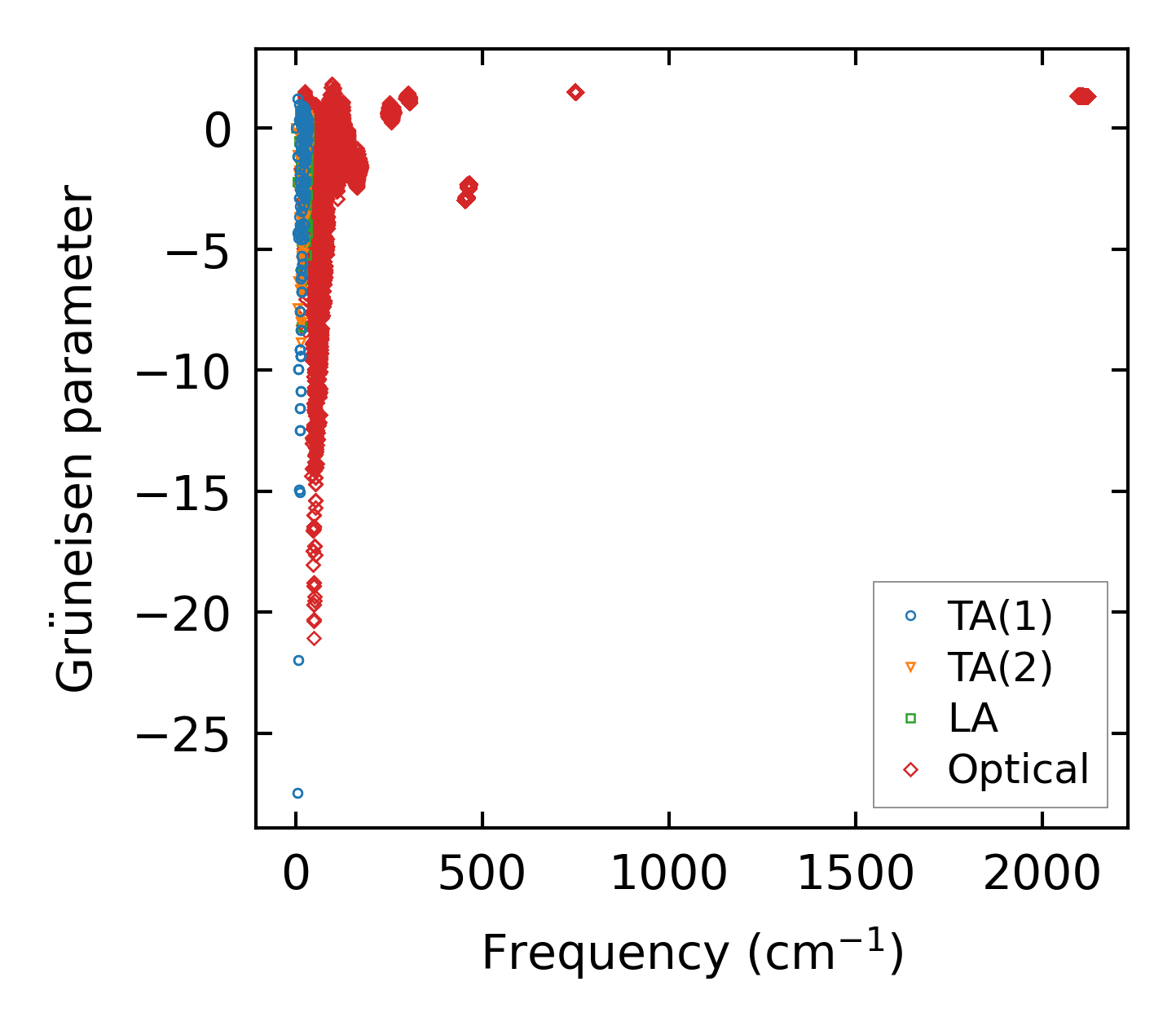

../../_images/fig_gru_all3219.png — (a) Grüneisen parameters

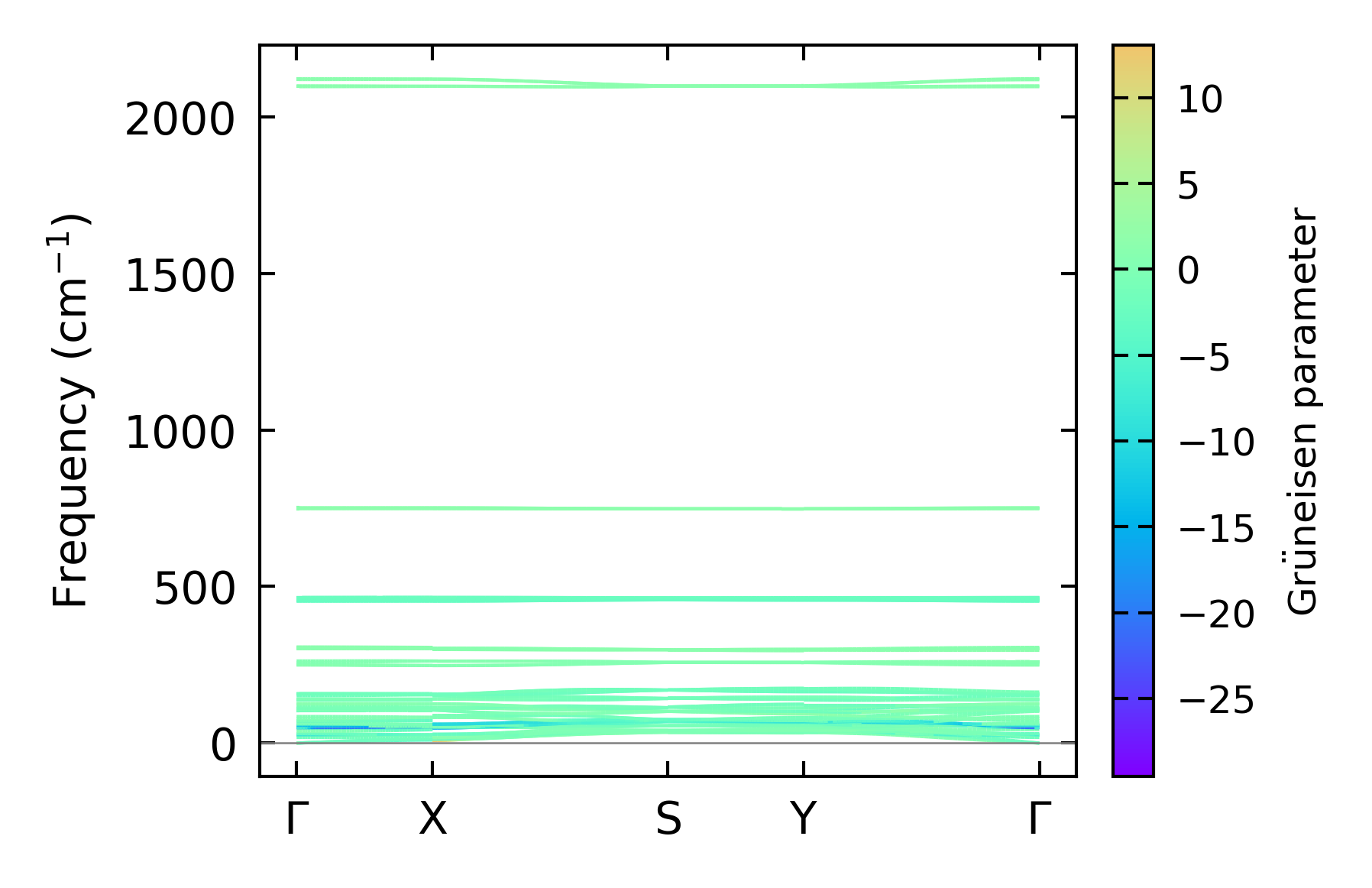

../../_images/fig_gruneisen3219.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 6x17x7, supercell: 1x3x2

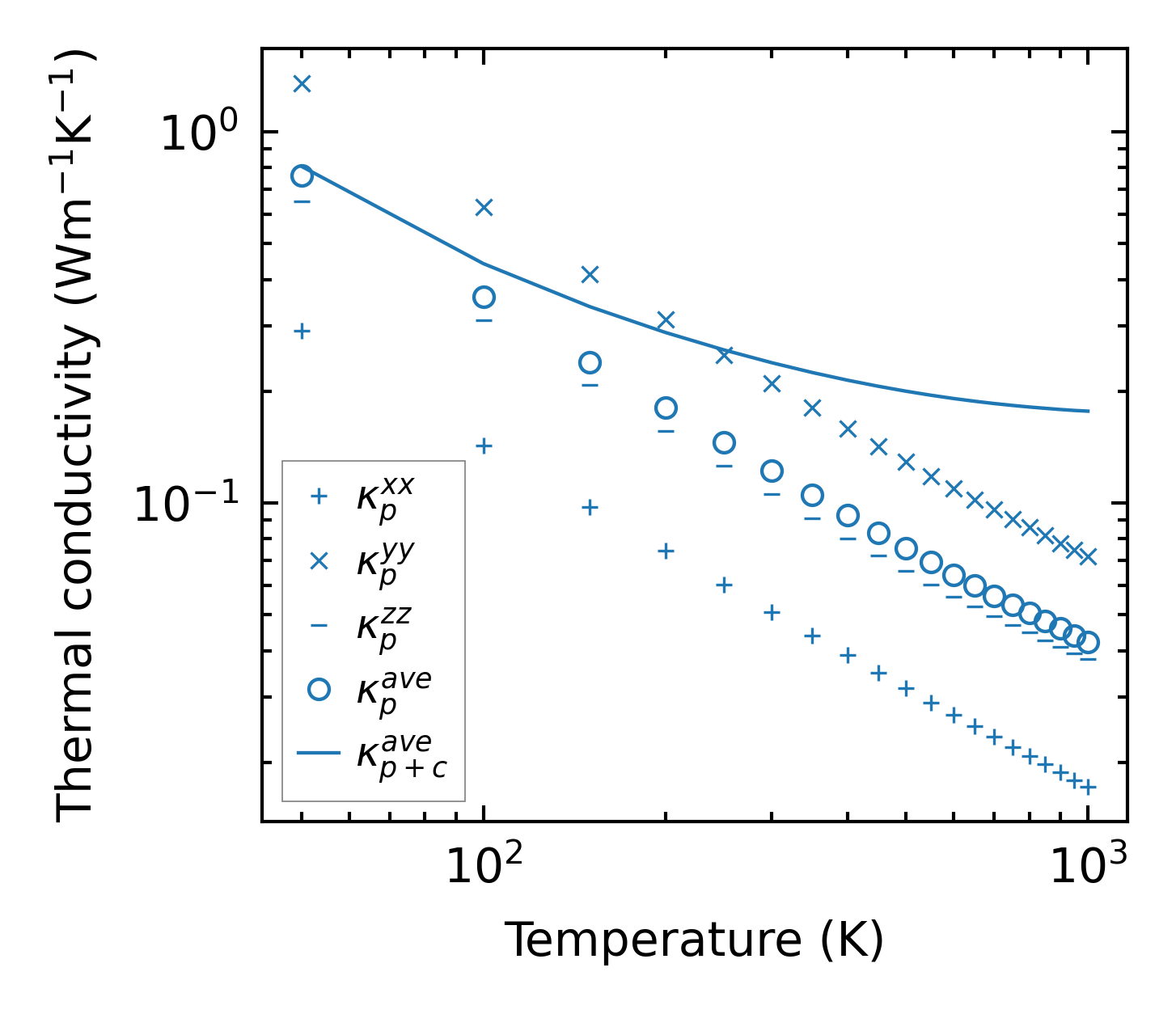

../../_images/fig_kappa6097.png — (a) Temperature-dependent lattice thermal conductivity

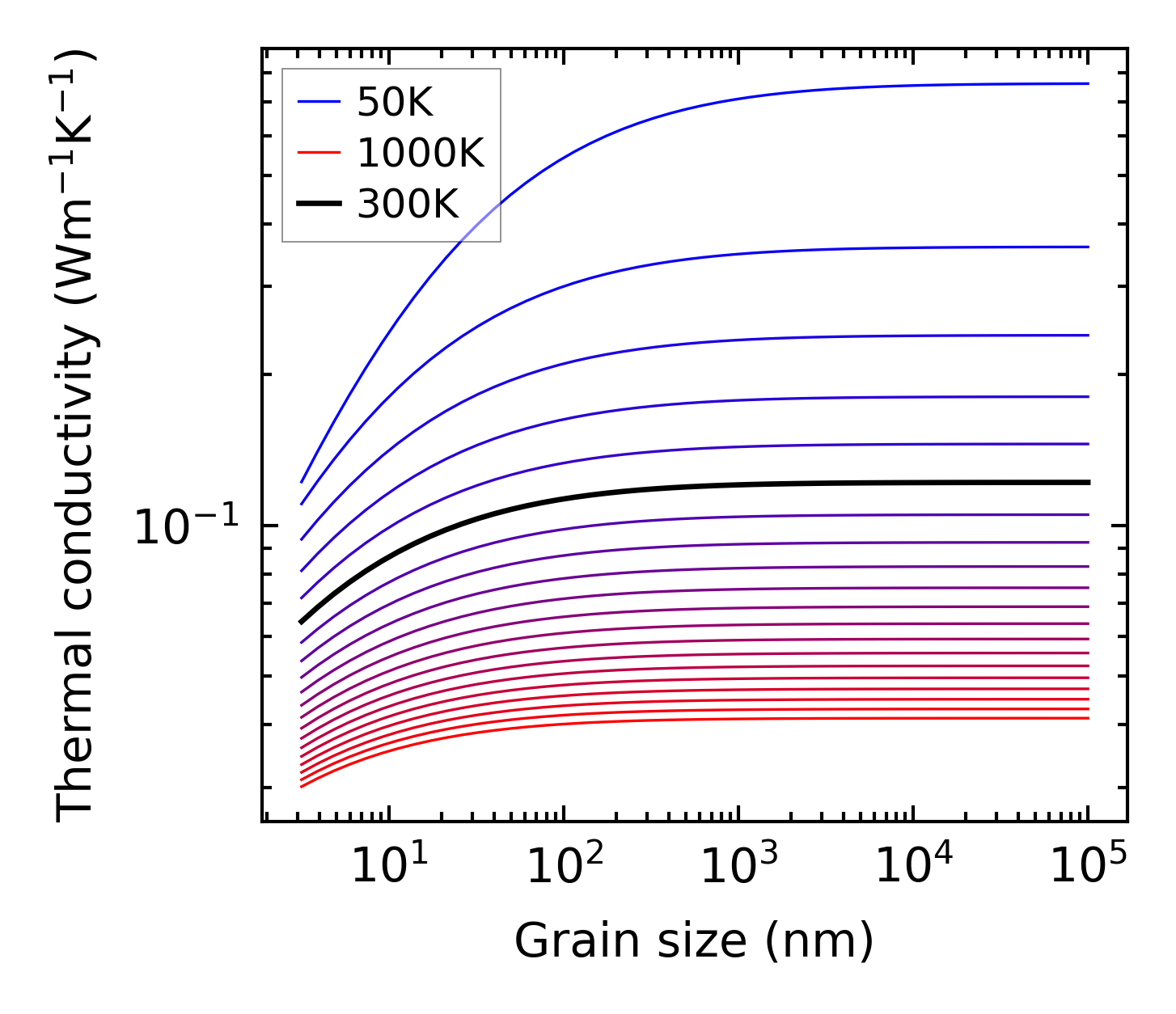

../../_images/fig_kappa_vs_grain_size3261.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

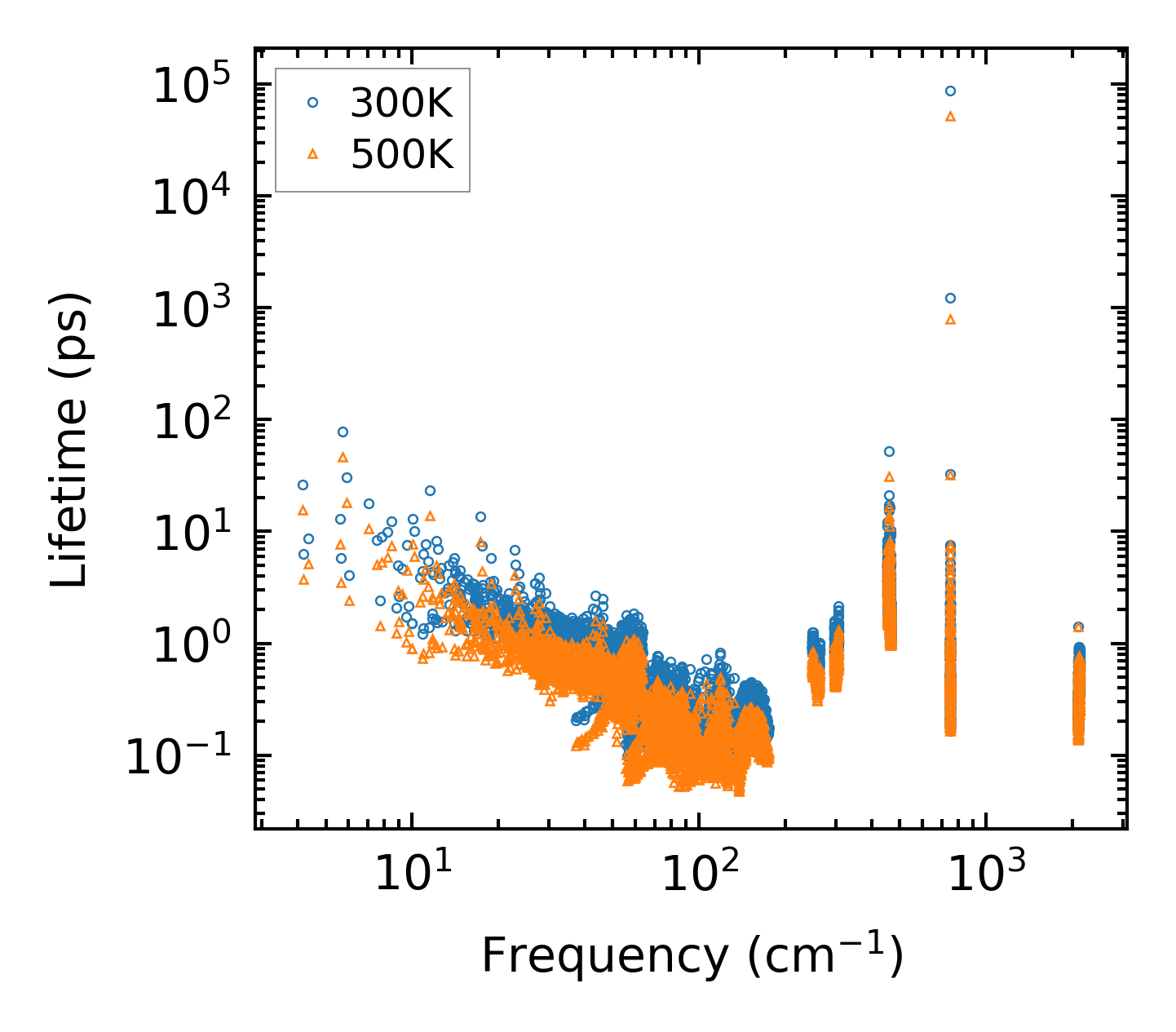

../../_images/fig_lifetime3191.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates3190.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency3191.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp3190.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

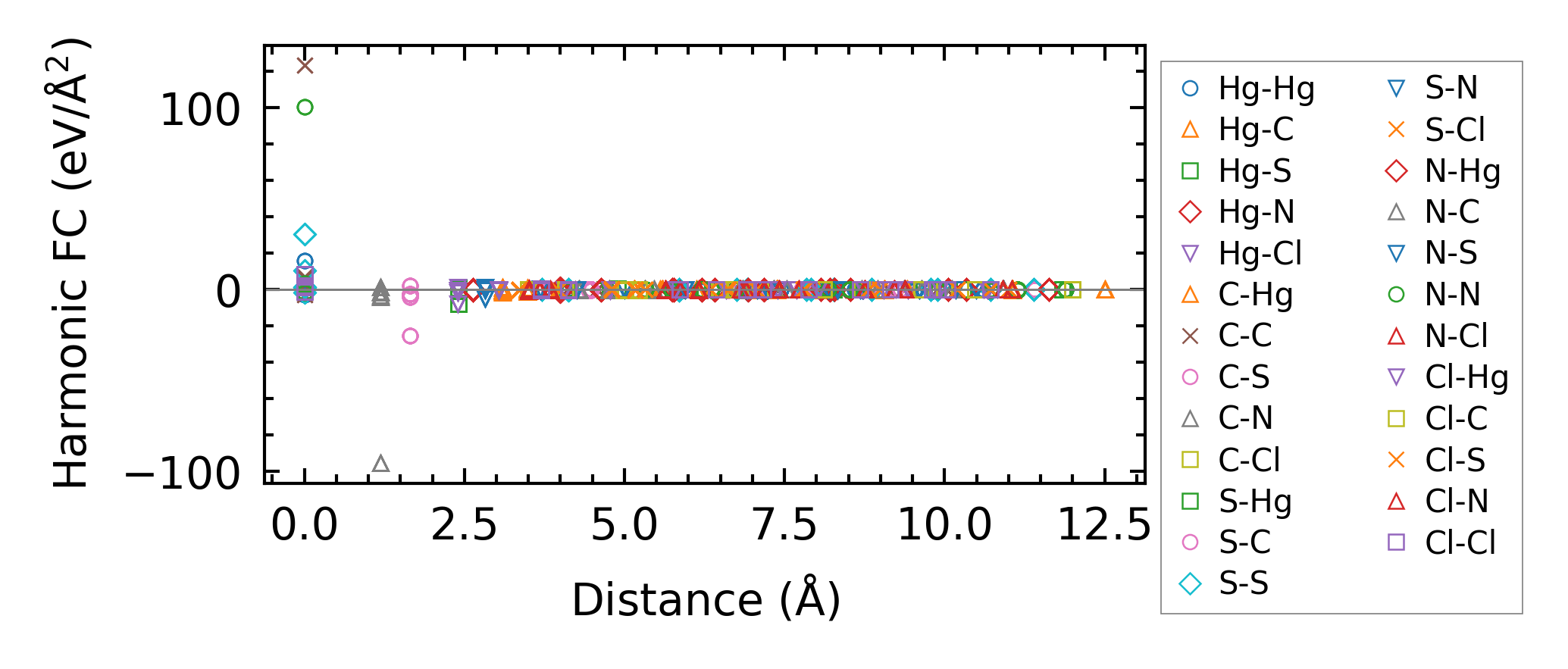

../../_images/fig_fc27460.png — (a) Force constants w.r.t atomic distance

Summary

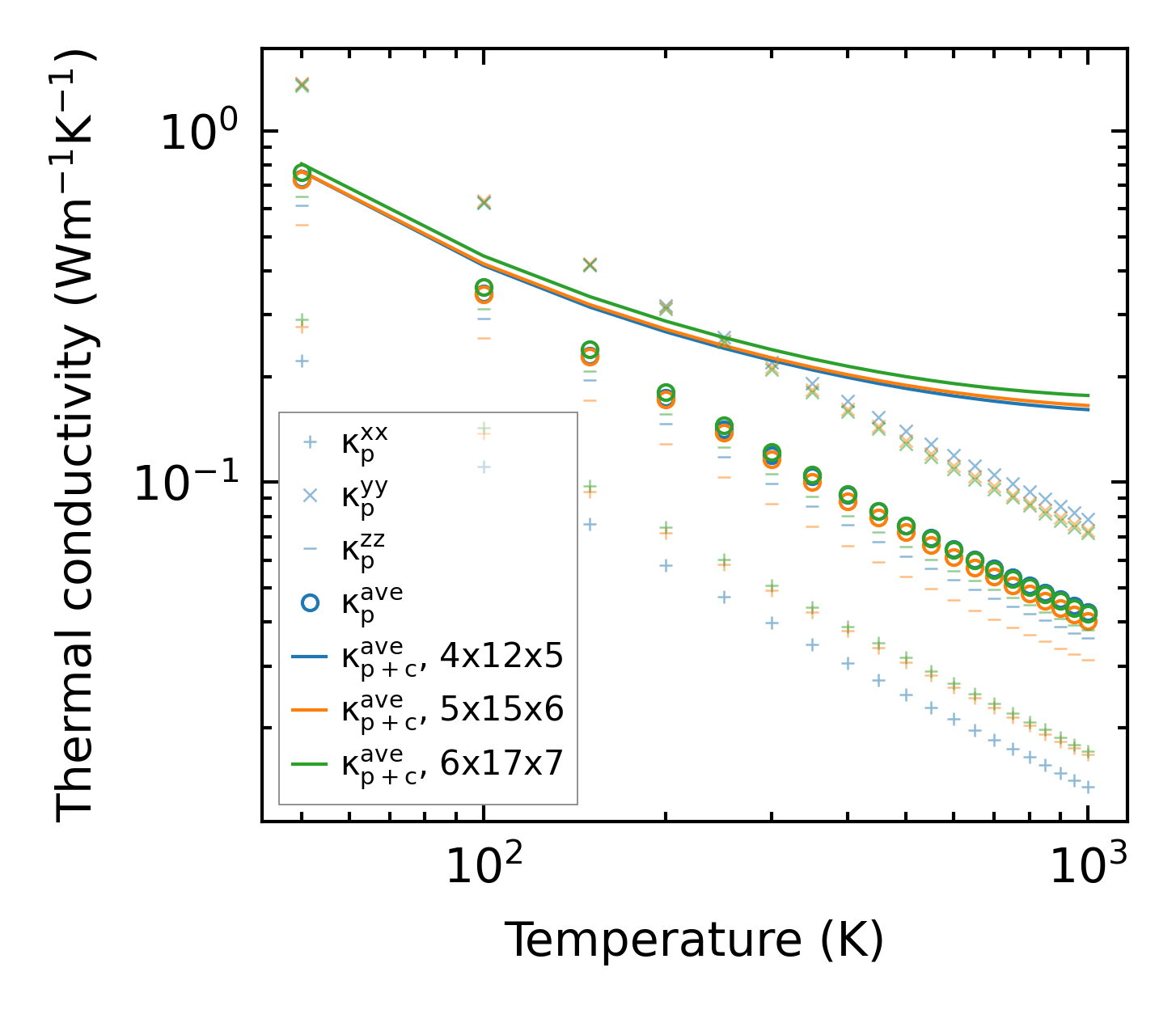

../../_images/fig_kappa6098.png — (a) Temperature-dependent lattice thermal conductivity

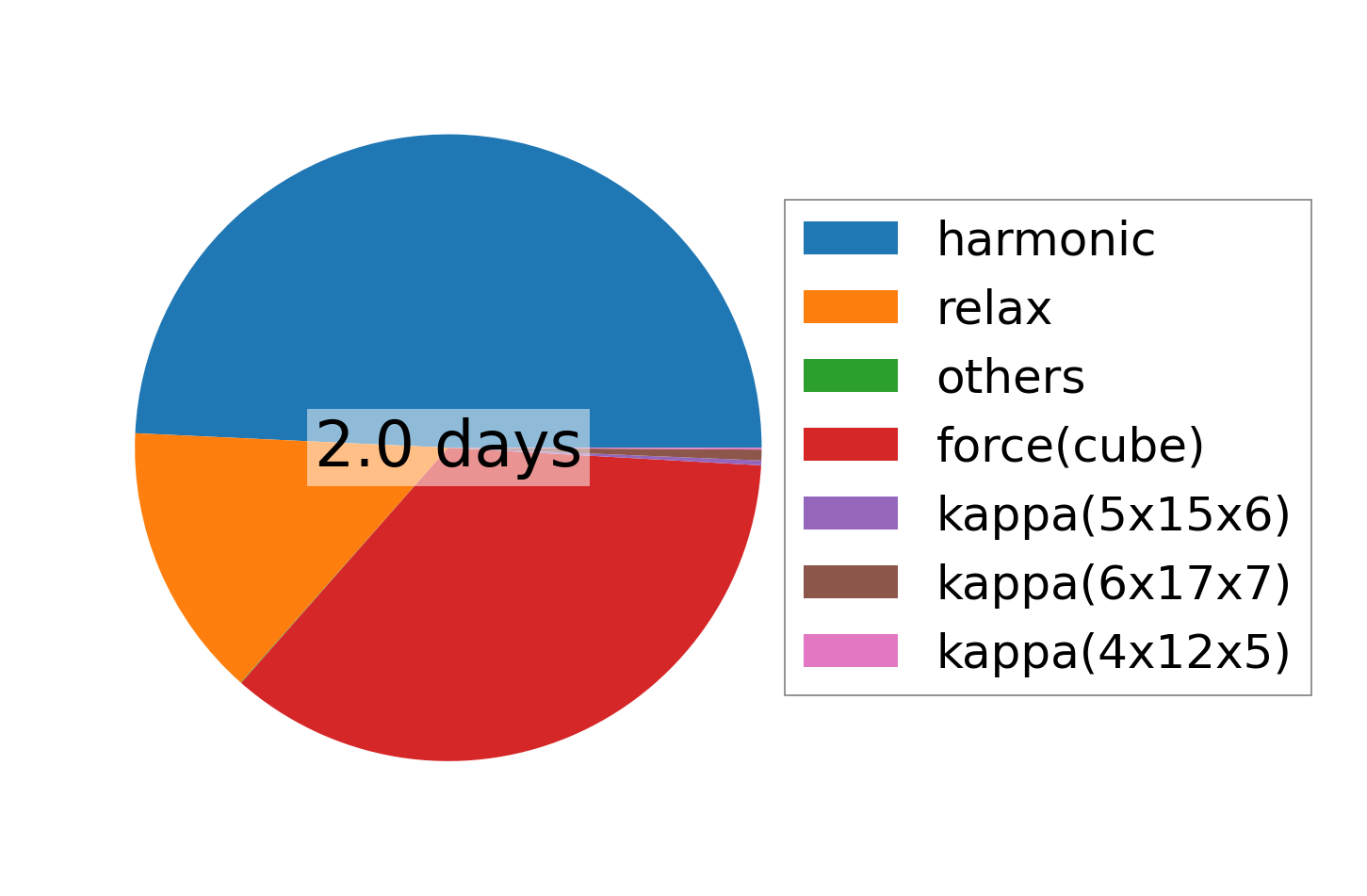

../../_images/fig_times13596.png — (b) Computation time
