mp-559831/Na3VS2O2/anharm

Space group: Pbca (61)
Link: Materials Project
Download: mp-559831.tar.gz

Harmonic properties

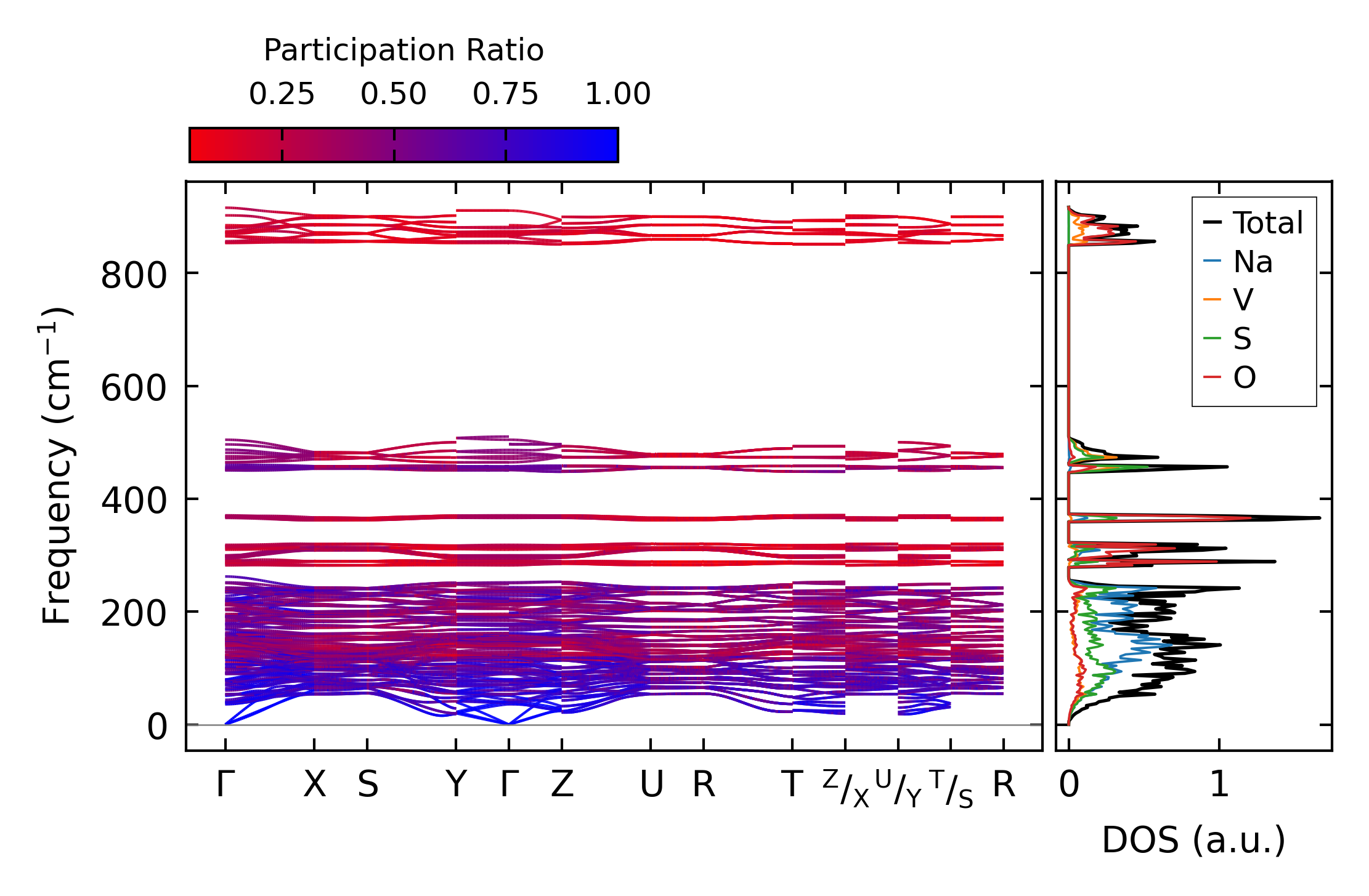

../../_images/fig_bandos_pr7685.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo7685.png — (b) Thermodynamic properties

Grüneisen parameters

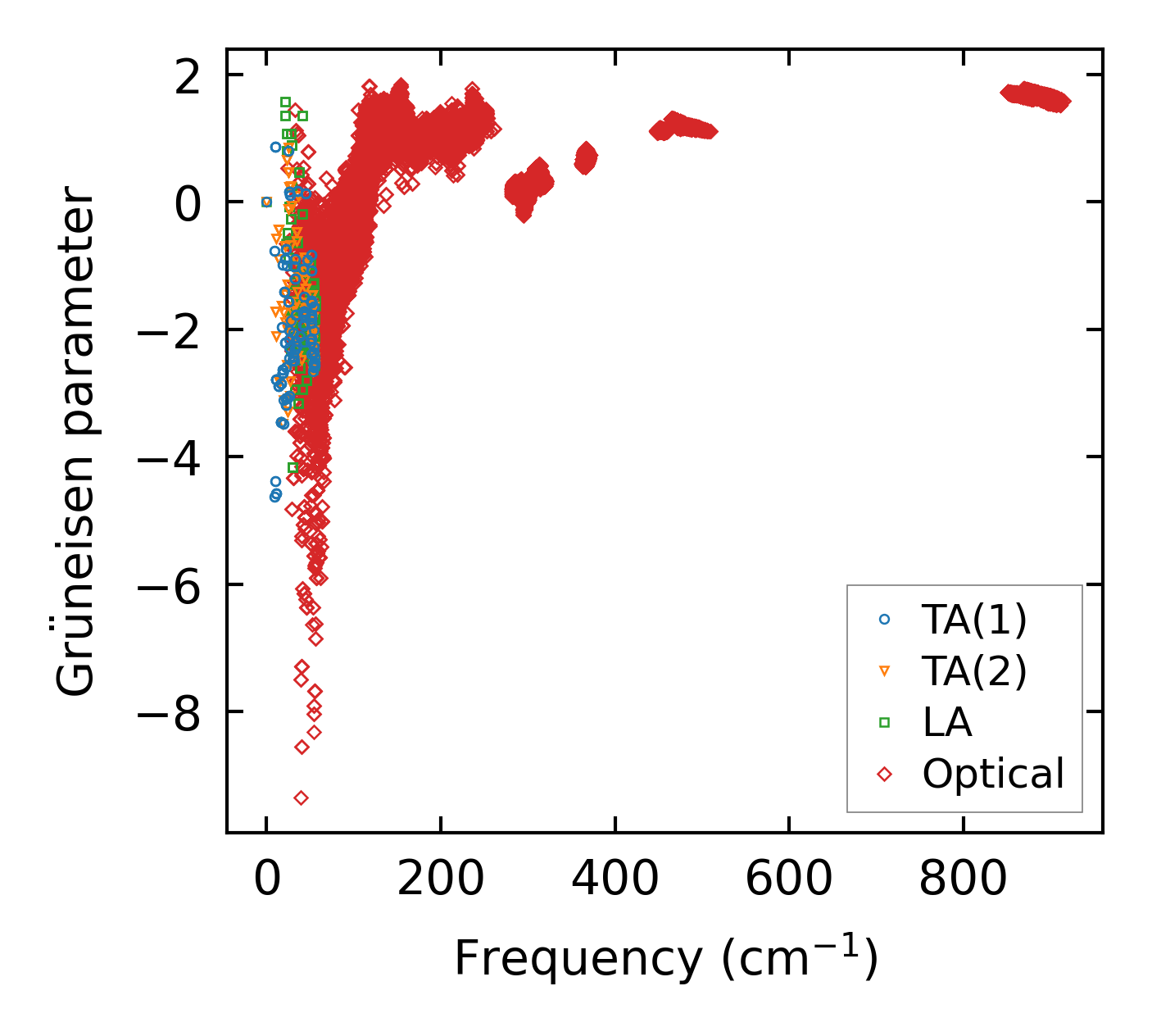

../../_images/fig_gru_all3214.png — (a) Grüneisen parameters

../../_images/fig_gruneisen3214.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x4x6, supercell: 2x1x1

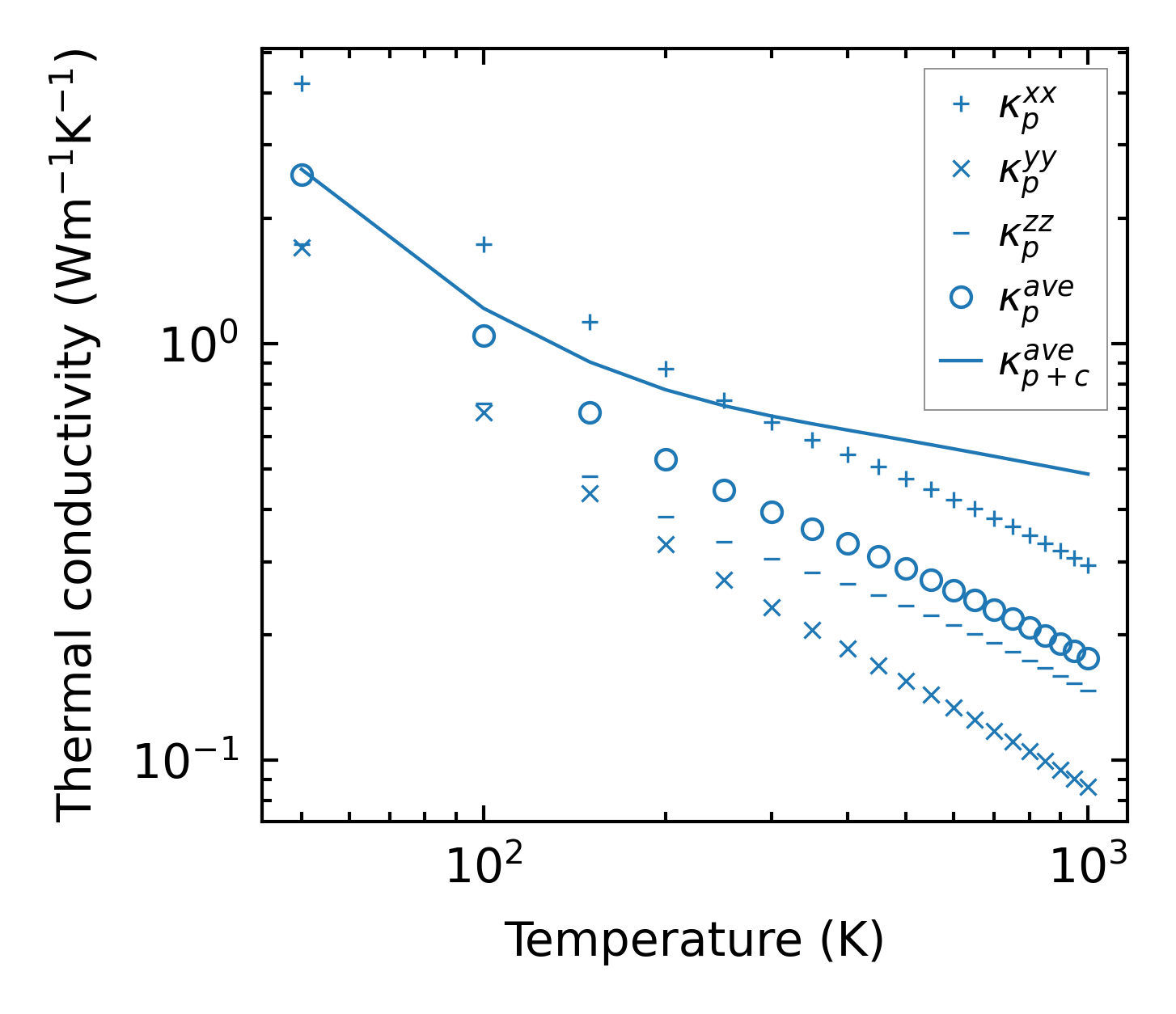

../../_images/fig_kappa6086.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size3255.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime3186.png — (a) Phonon lifetime due to phonon-phonon scattering

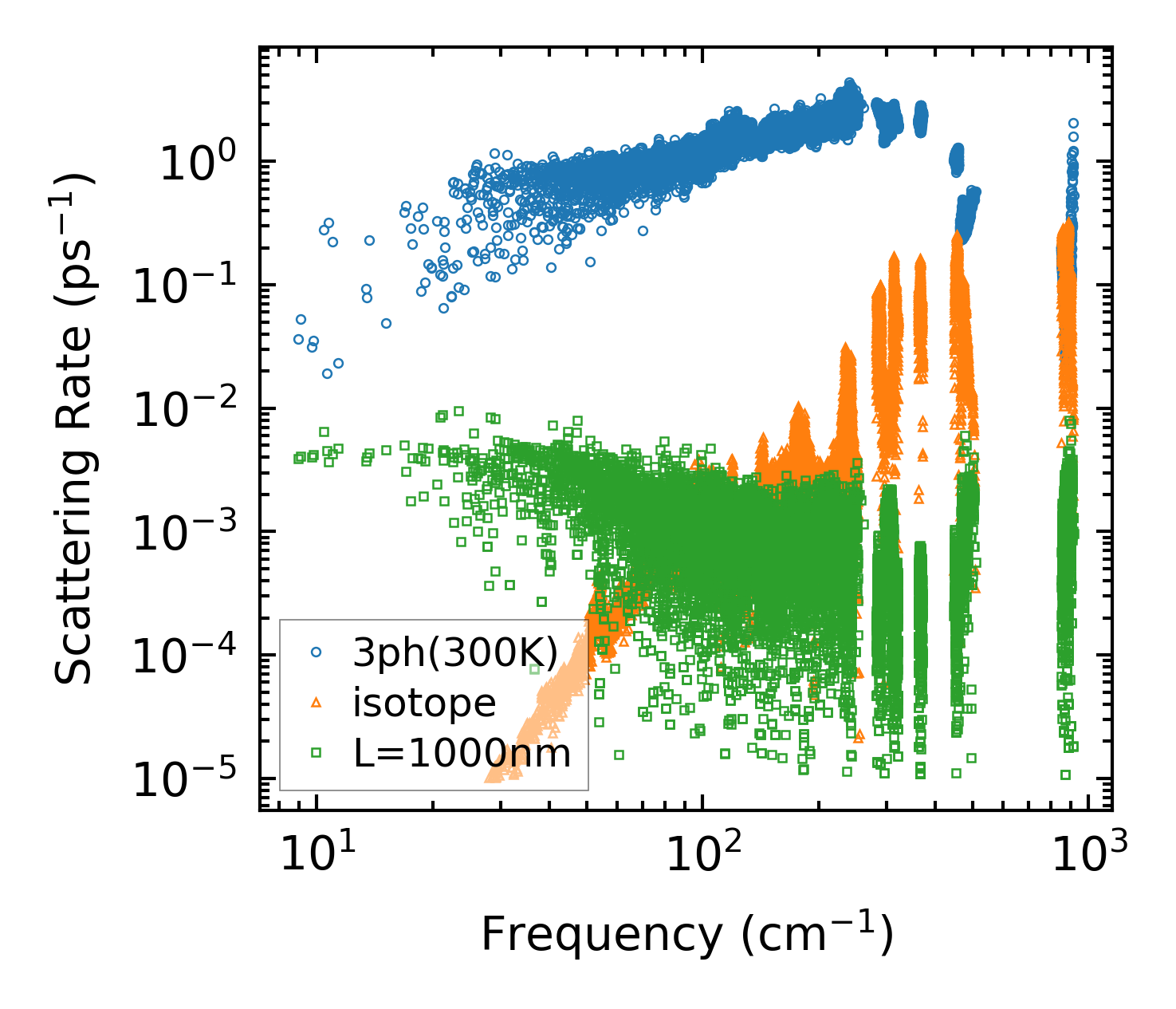

../../_images/fig_scat_rates3185.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

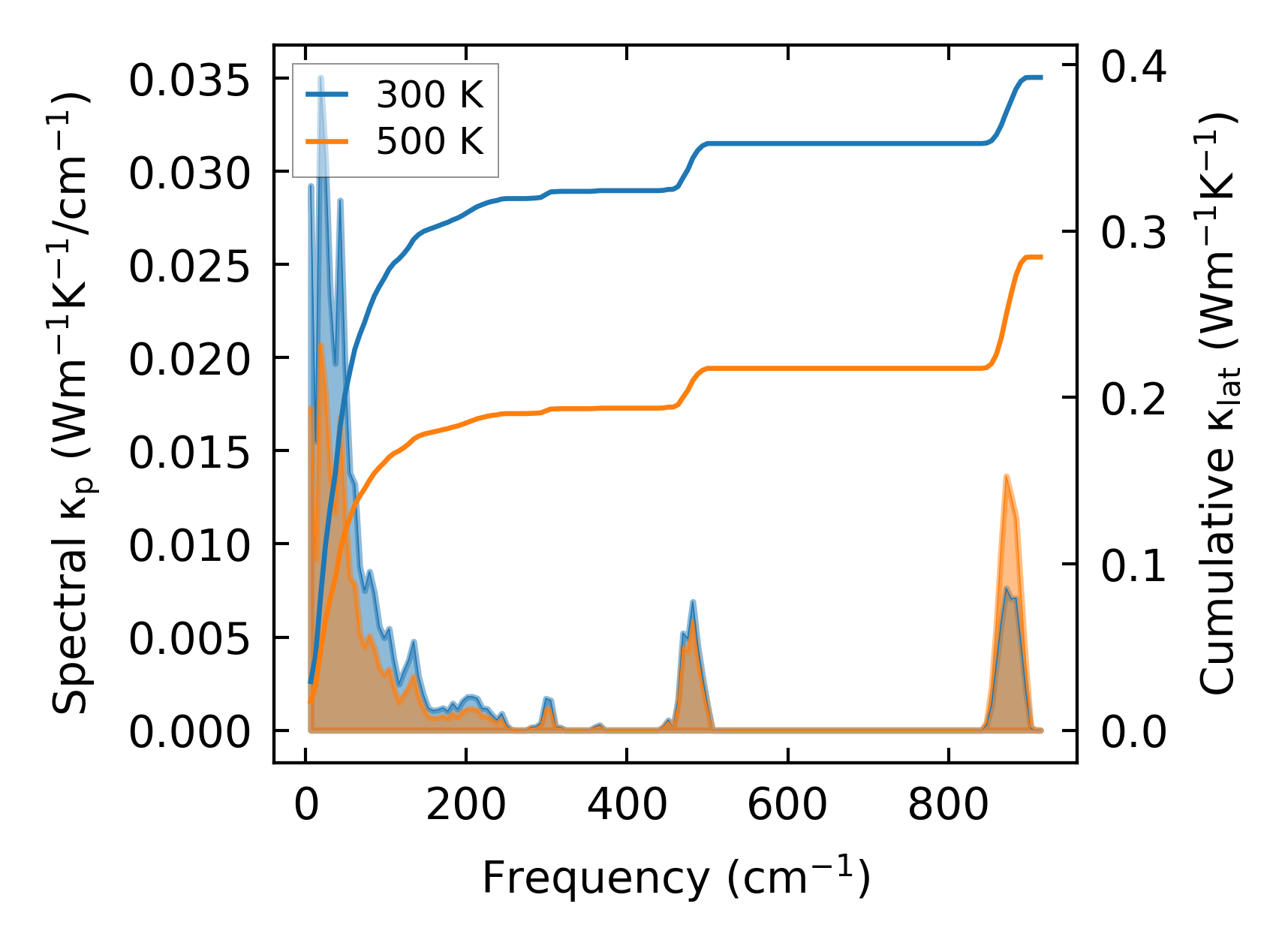

../../_images/fig_cumu_frequency3186.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp3185.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

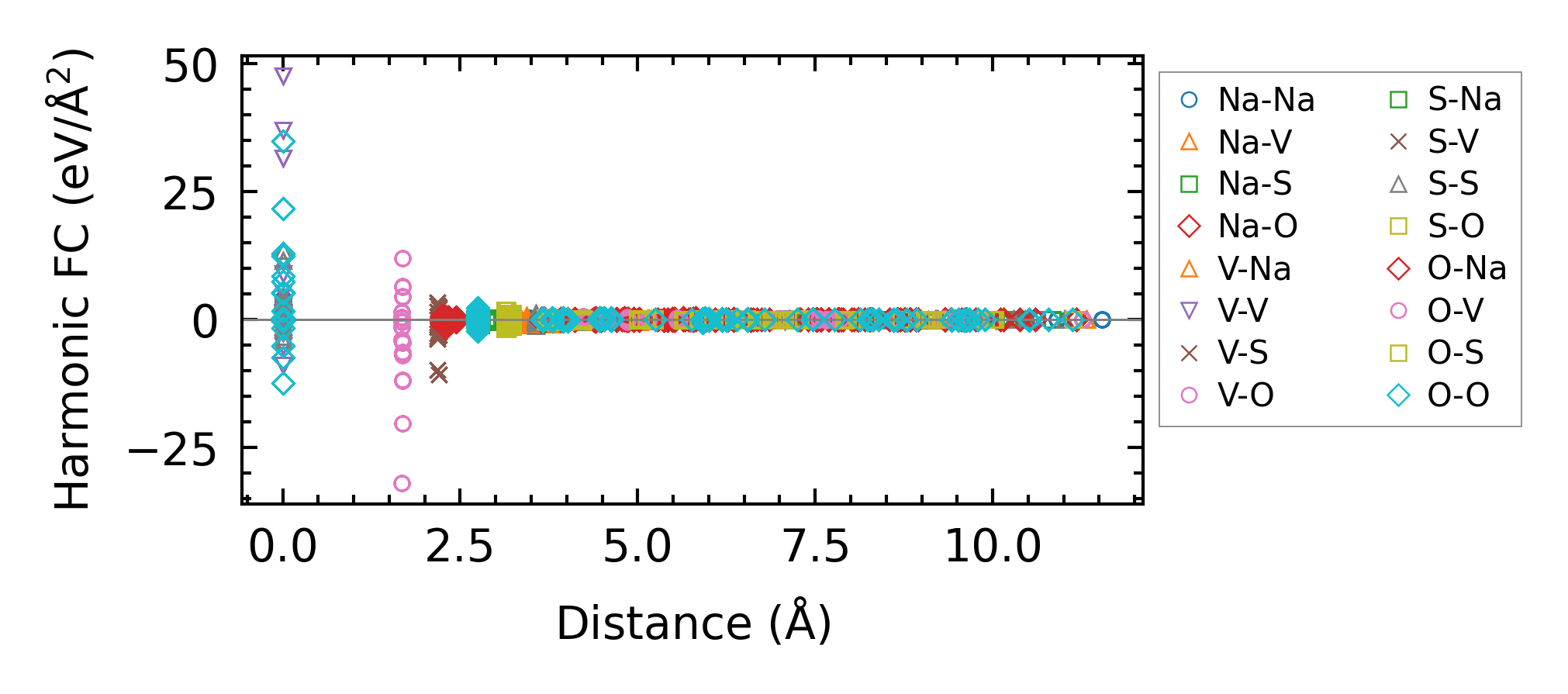

../../_images/fig_fc27448.png — (a) Force constants w.r.t atomic distance

Summary

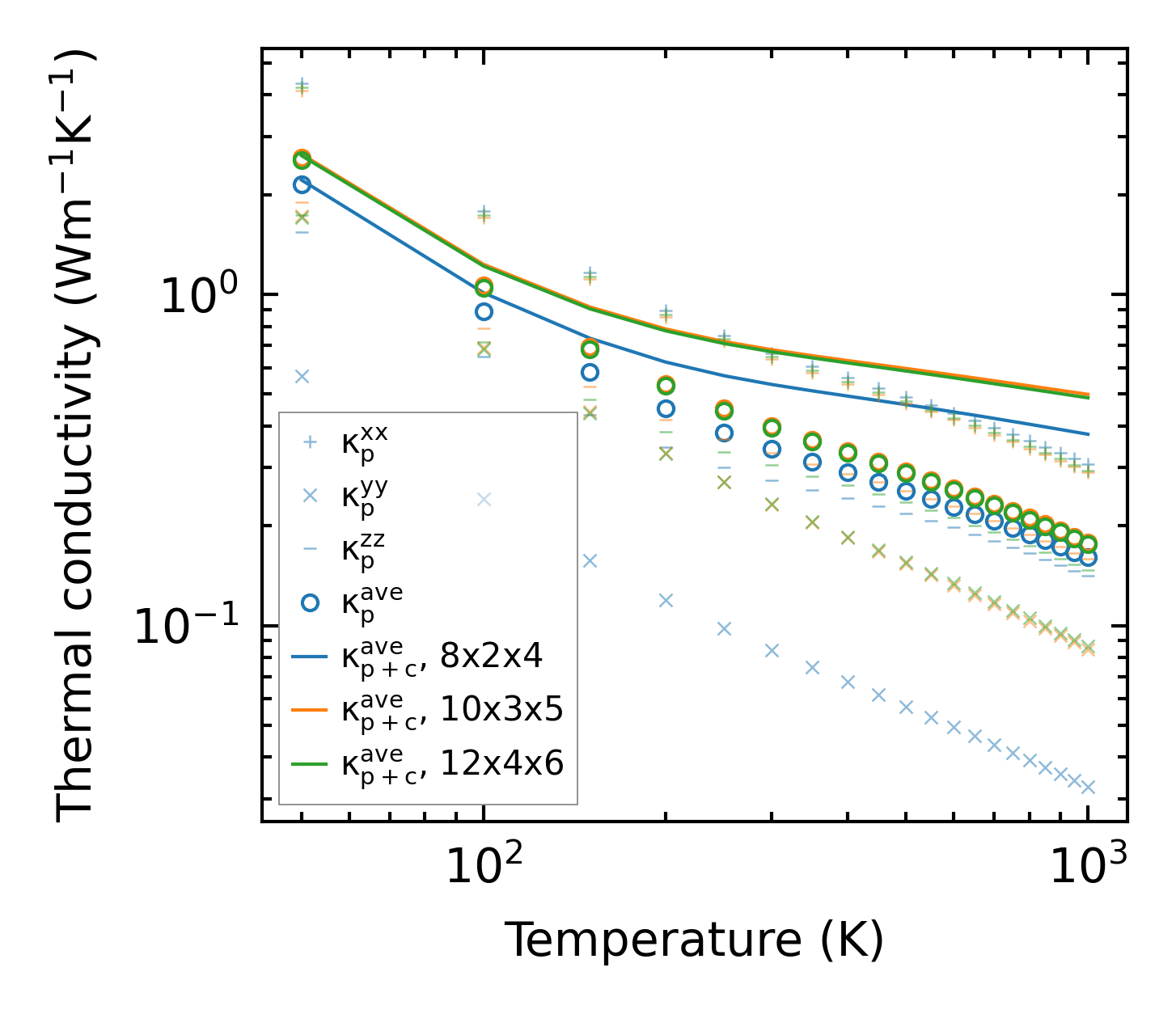

../../_images/fig_kappa6087.png — (a) Temperature-dependent lattice thermal conductivity

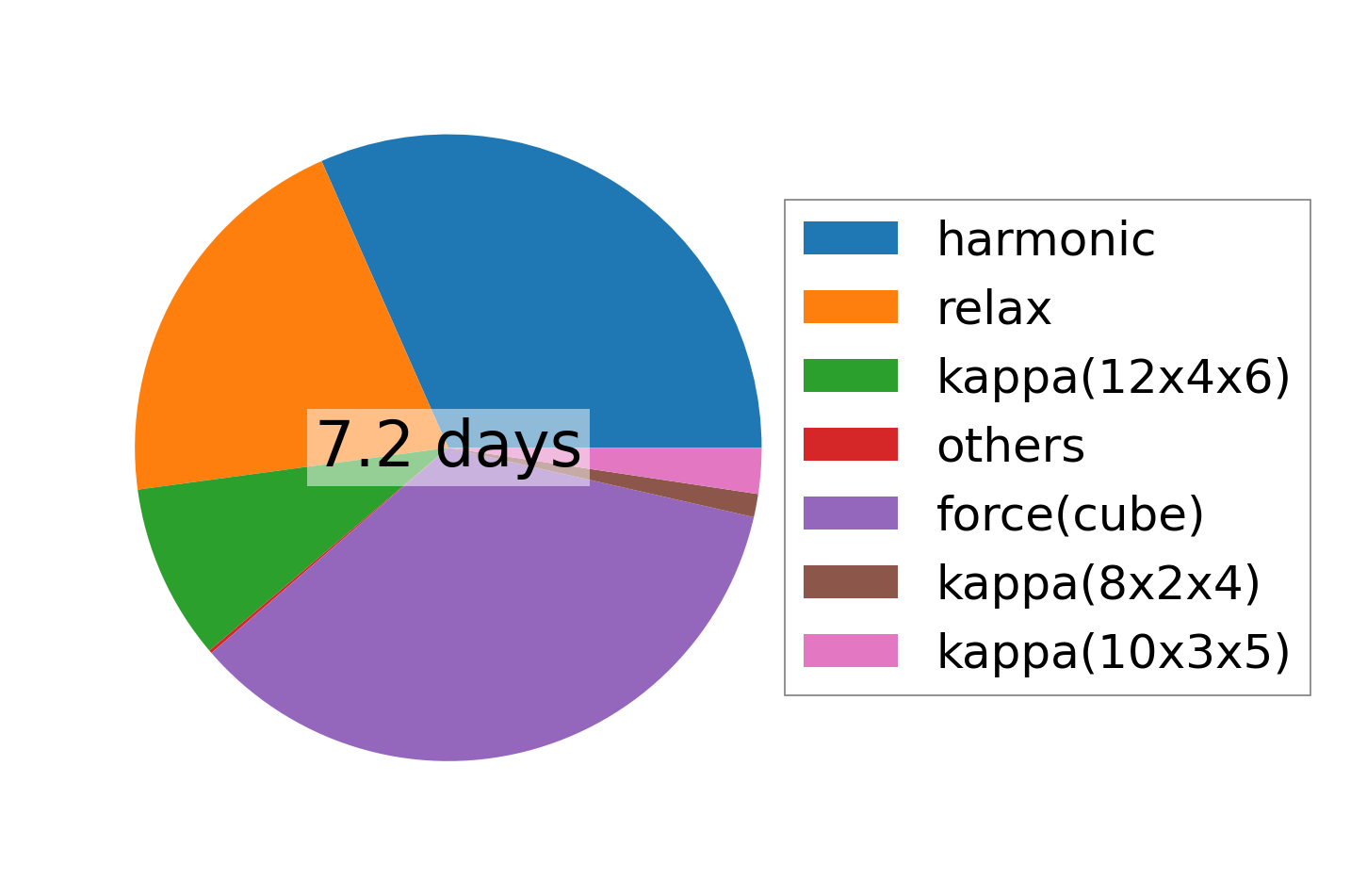

../../_images/fig_times13575.png — (b) Computation time
