mp-559833-2/Na2YCO3F3/anharm

Space group: Pbca (61)
Link: Materials Project
Download: mp-559833-2.tar.gz

Equation of state

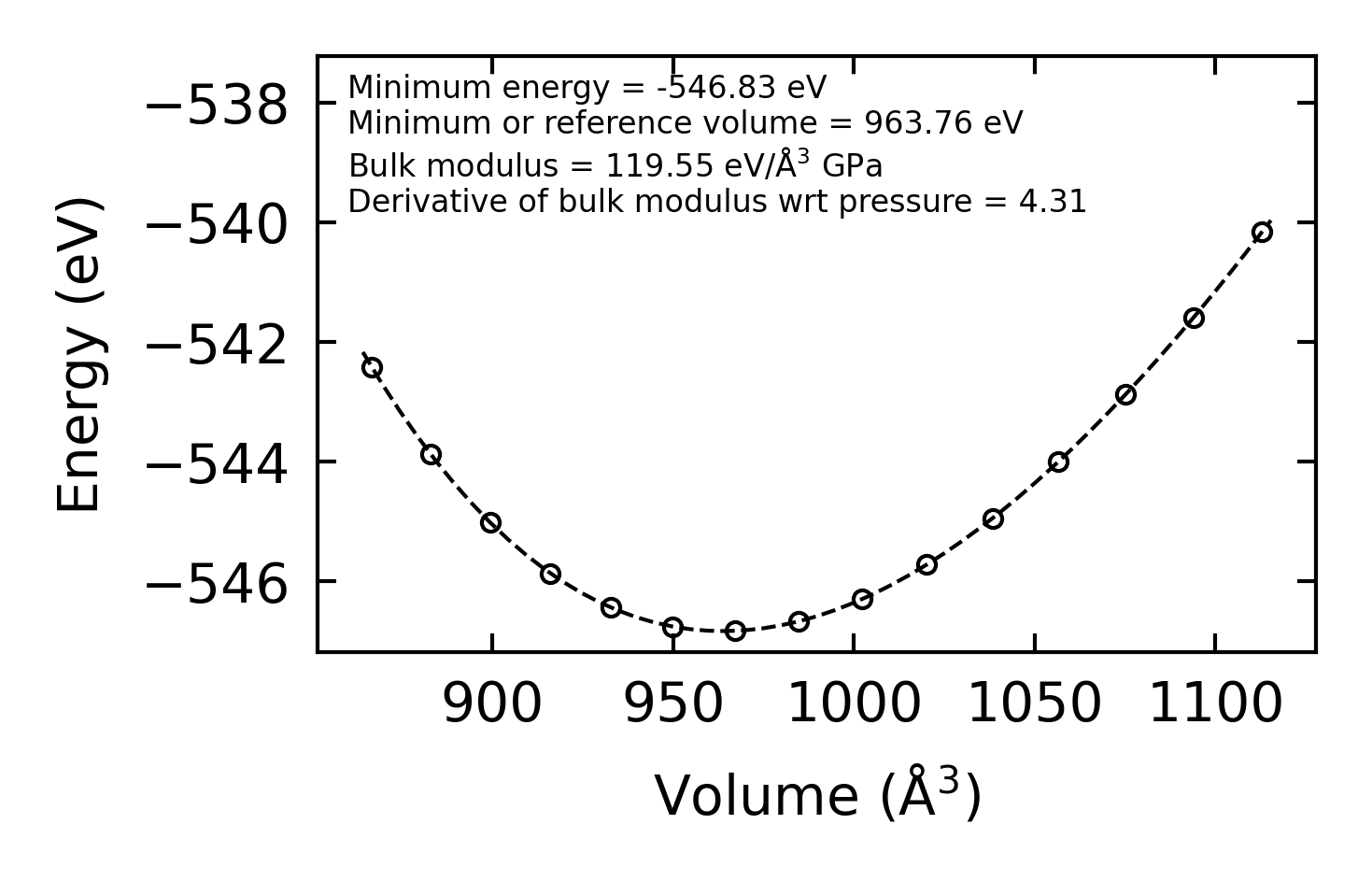

../../_images/fig_bm3989.png — (a) Equation of state

Harmonic properties

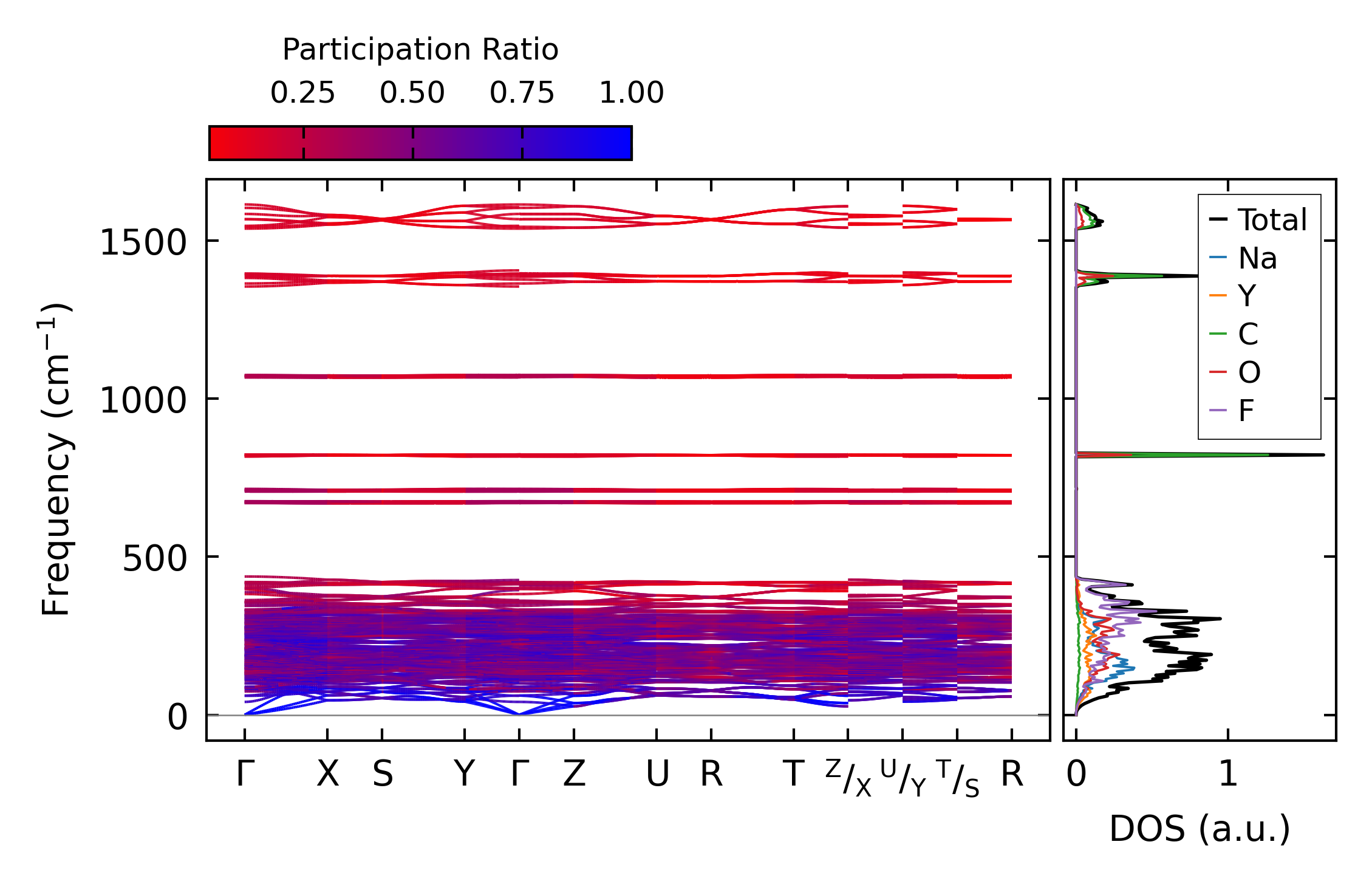

../../_images/fig_bandos_pr7686.png — (a) Phonon dispersion with participation ratio and DOS

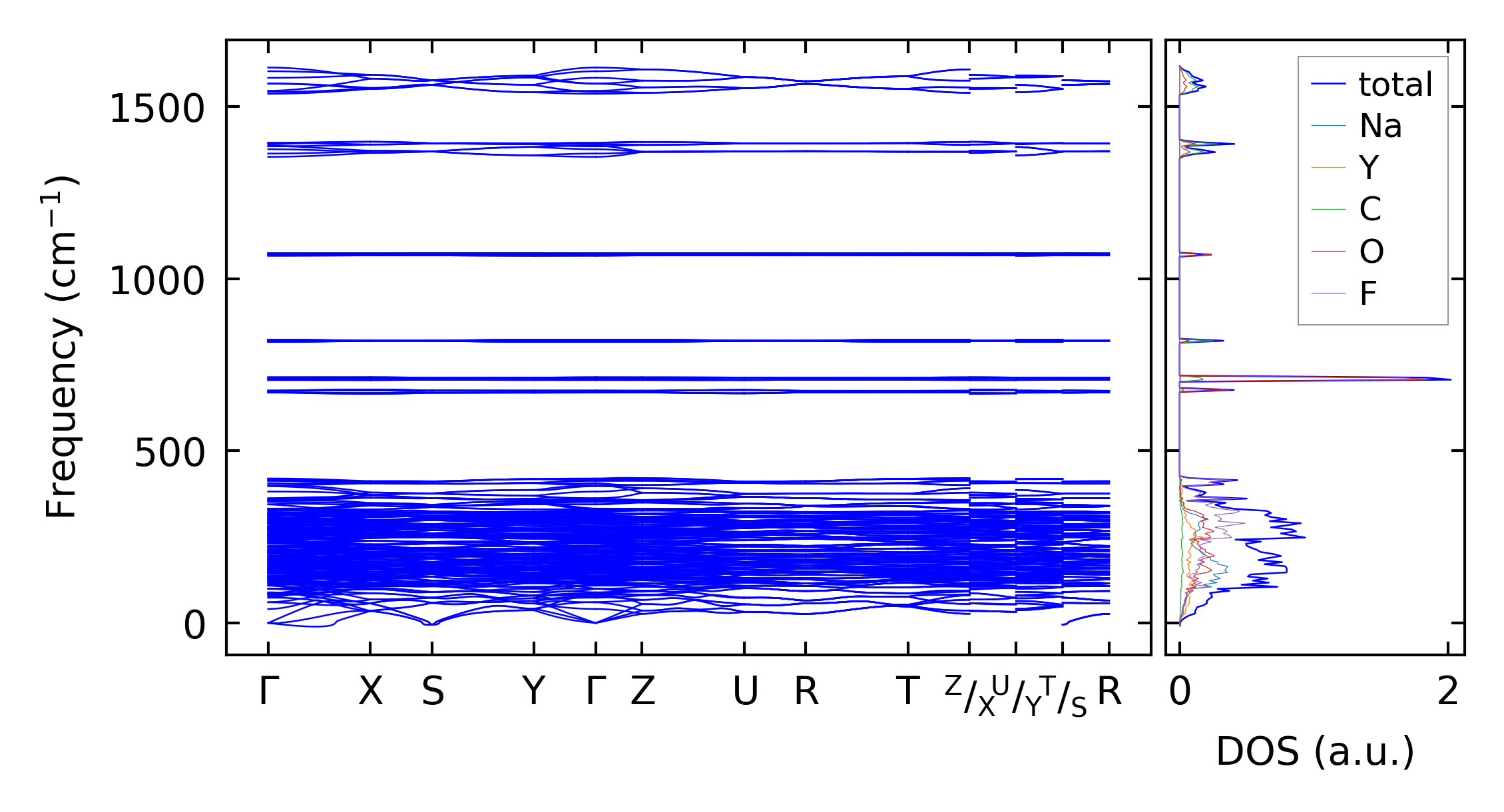

../../_images/fig_bandos10794.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo7686.png — (c) Thermodynamic properties

Grüneisen parameters

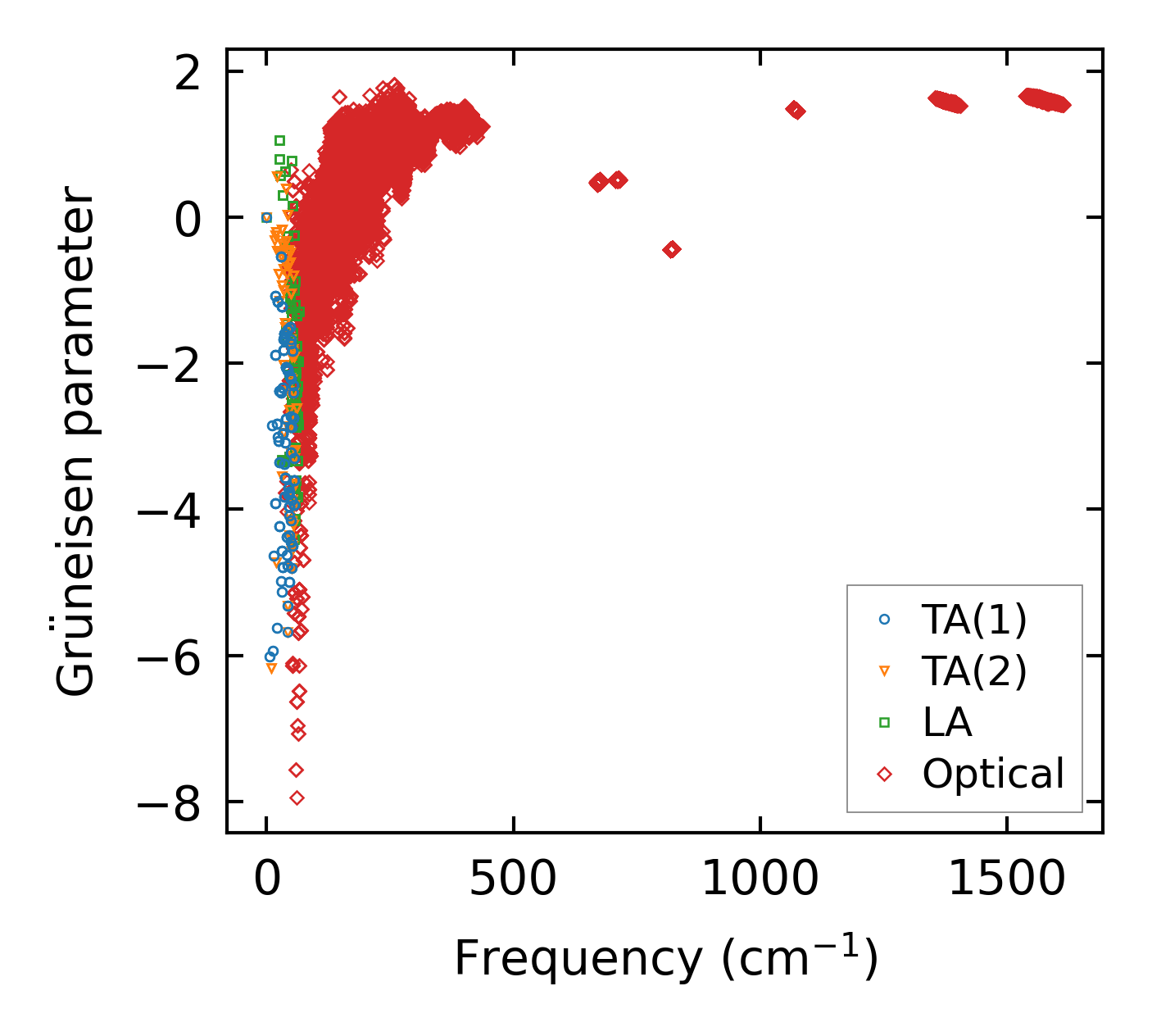

../../_images/fig_gru_all3215.png — (a) Grüneisen parameters

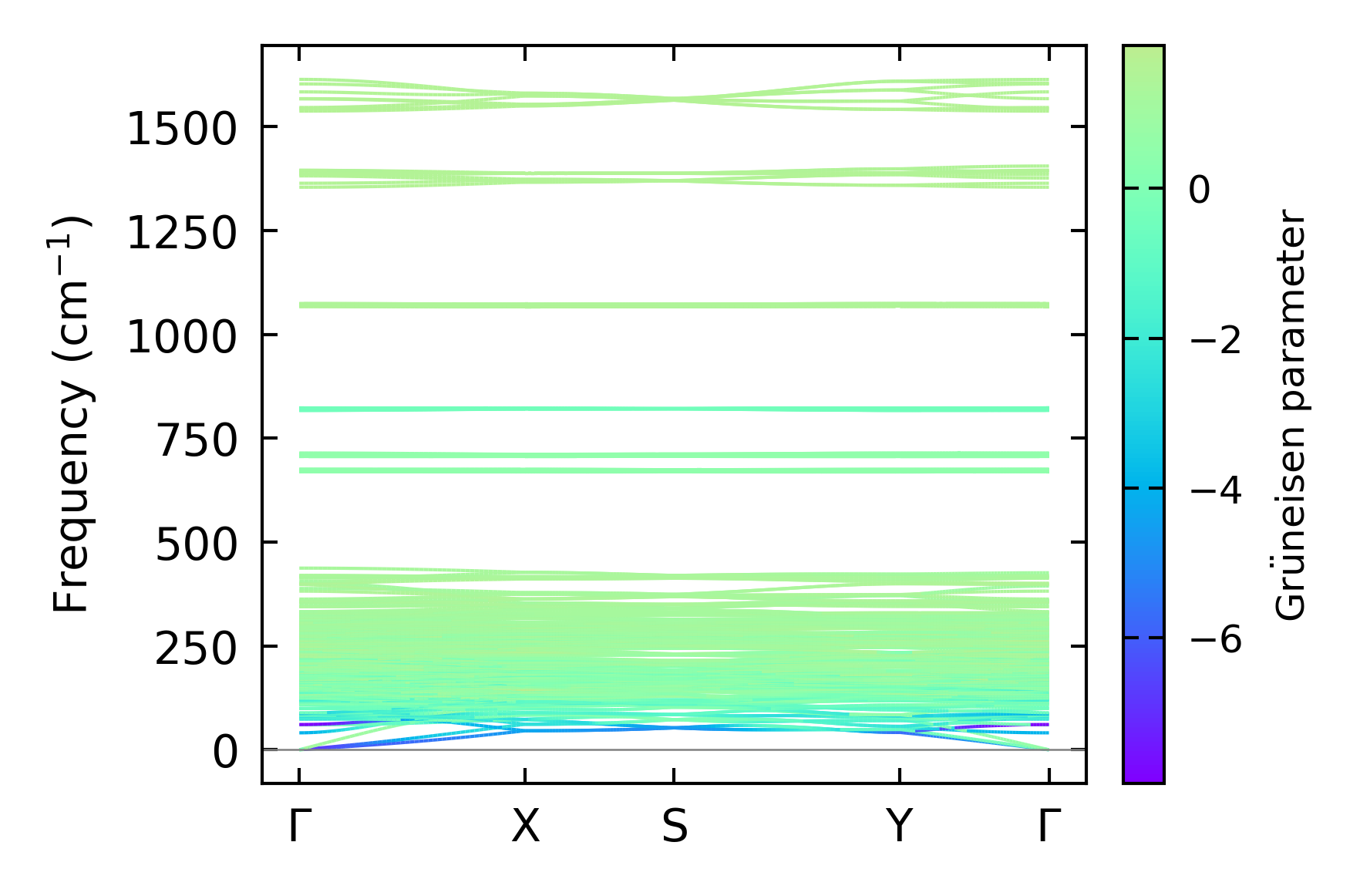

../../_images/fig_gruneisen3215.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x6x5, supercell: 1x1x1

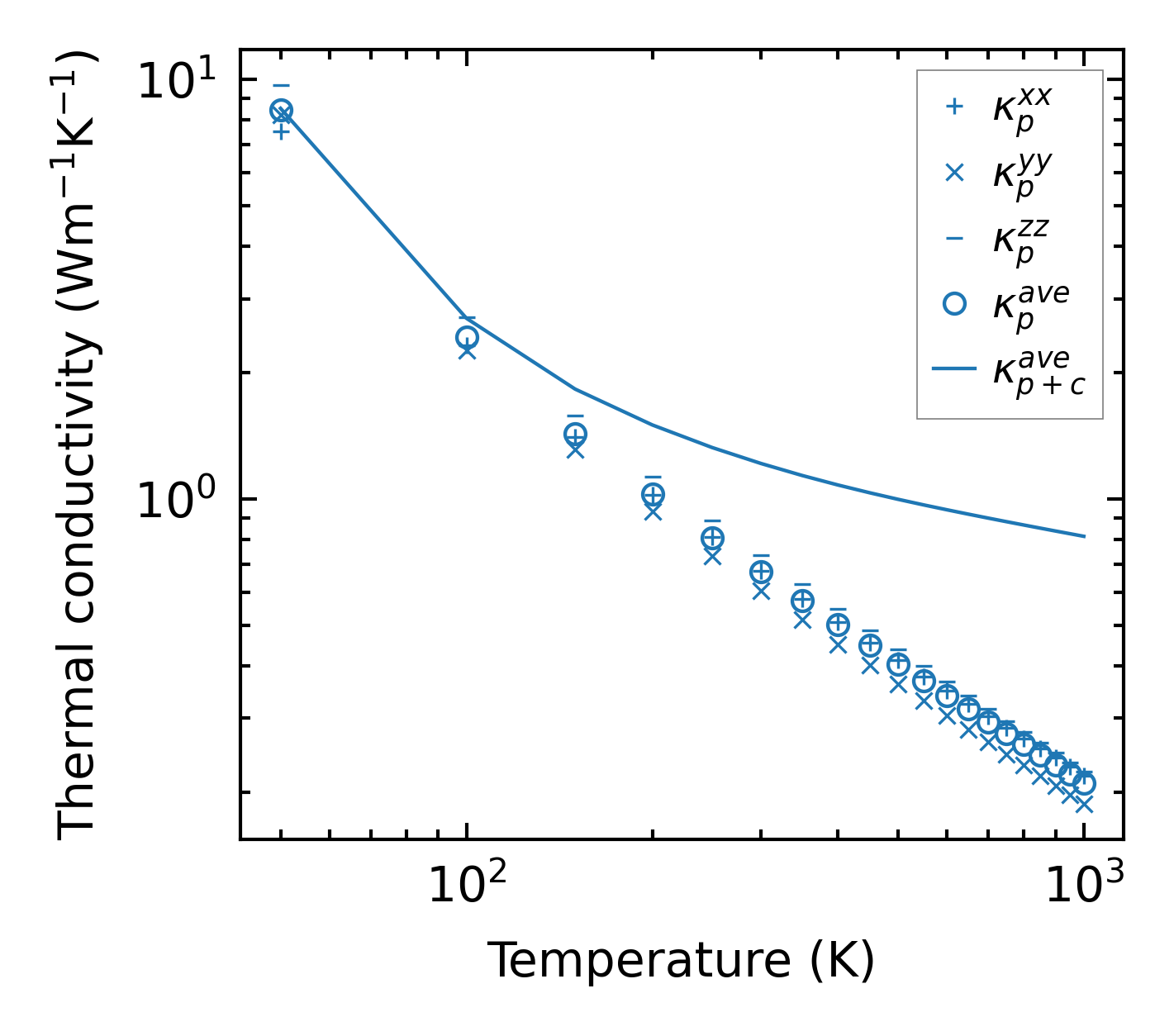

../../_images/fig_kappa6088.png — (a) Temperature-dependent lattice thermal conductivity

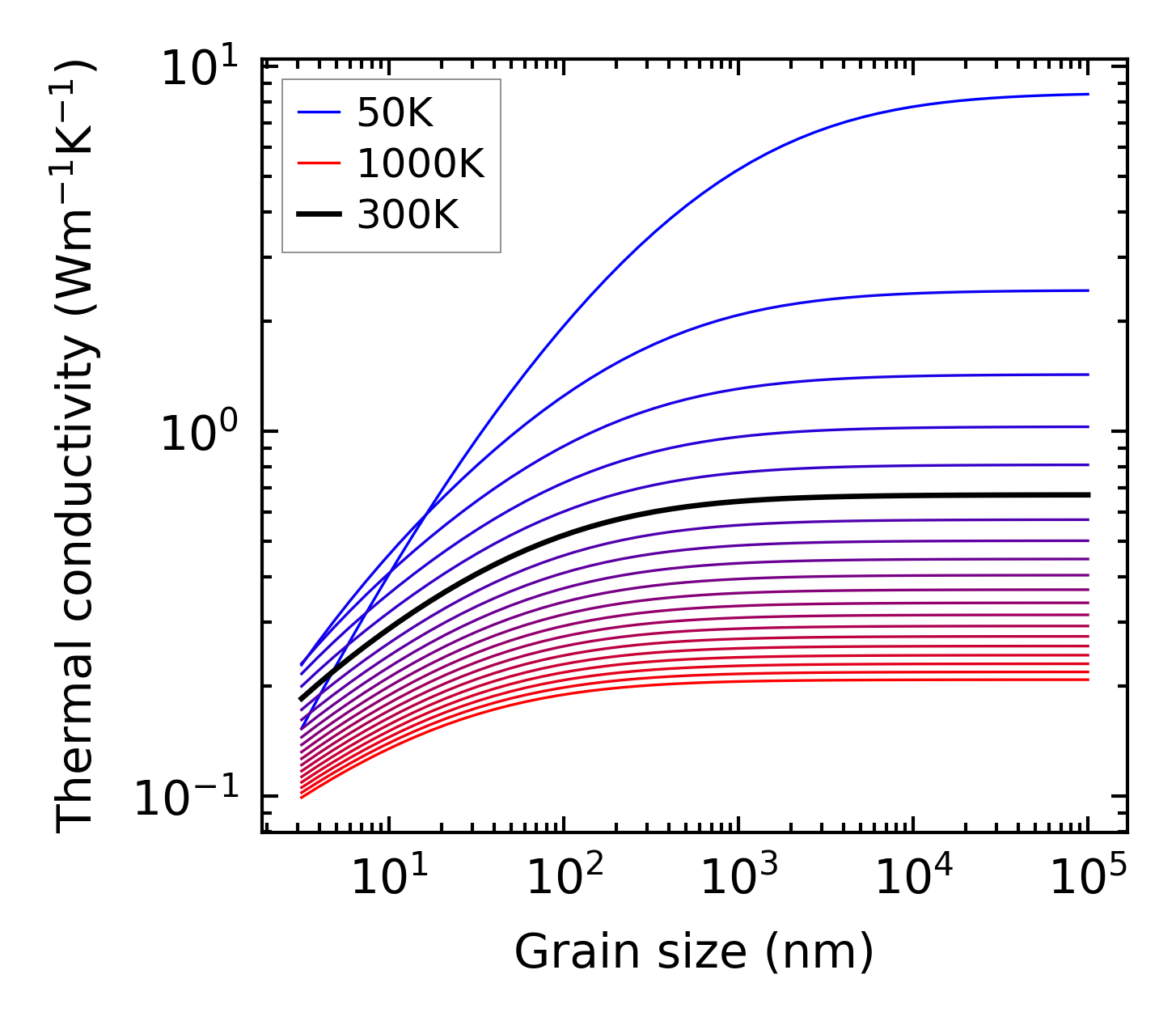

../../_images/fig_kappa_vs_grain_size3256.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

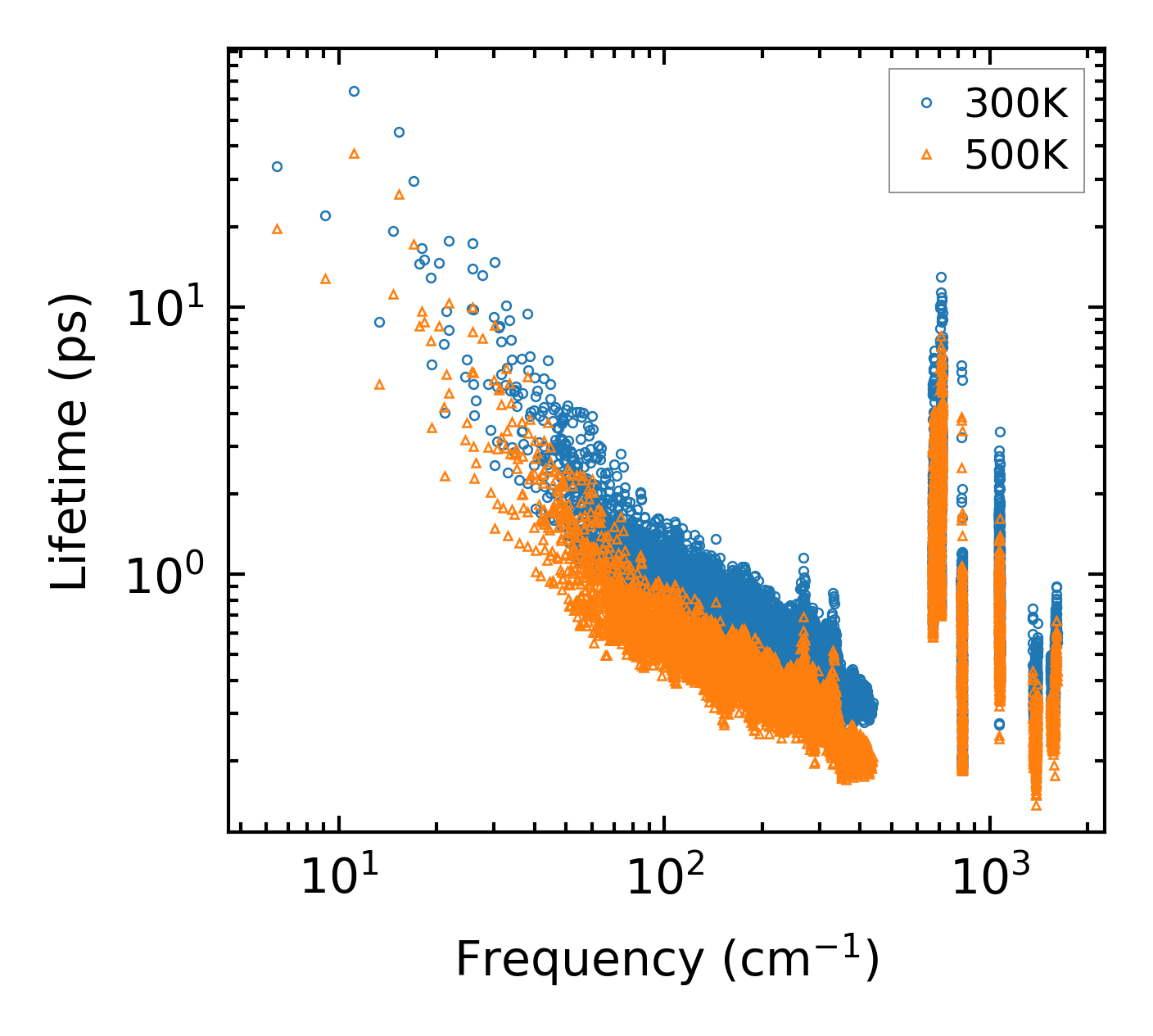

../../_images/fig_lifetime3187.png — (a) Phonon lifetime due to phonon-phonon scattering

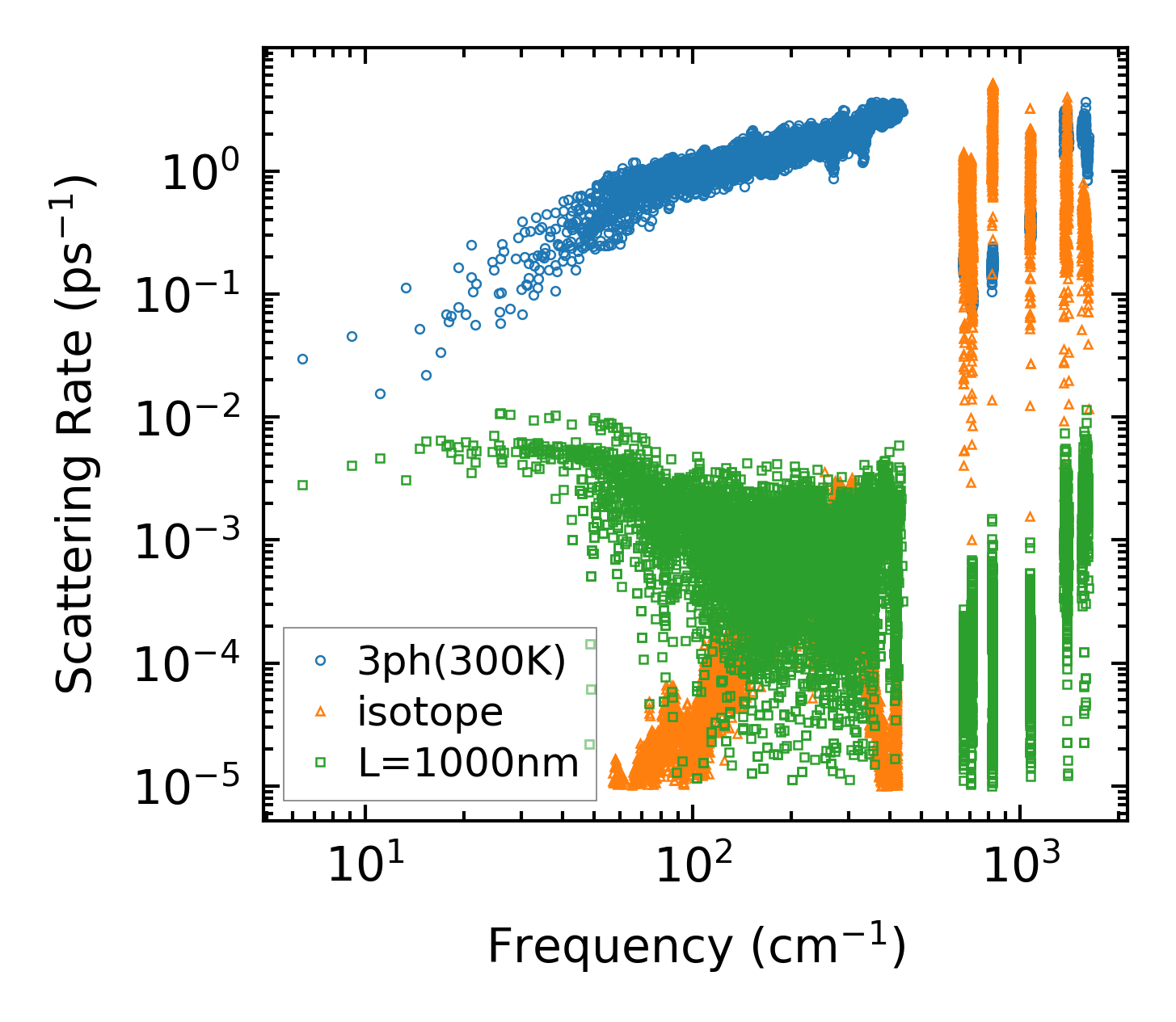

../../_images/fig_scat_rates3186.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

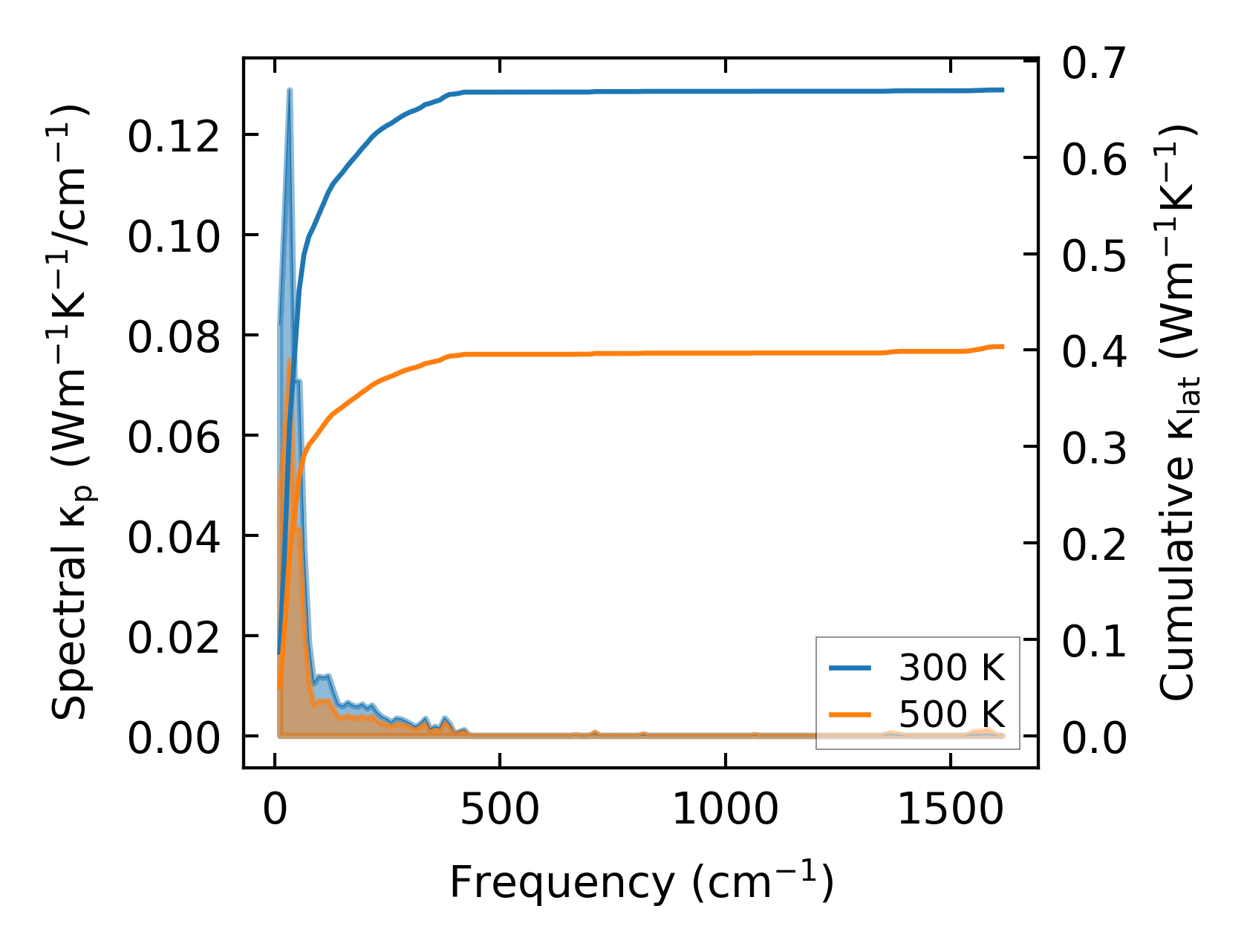

../../_images/fig_cumu_frequency3187.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

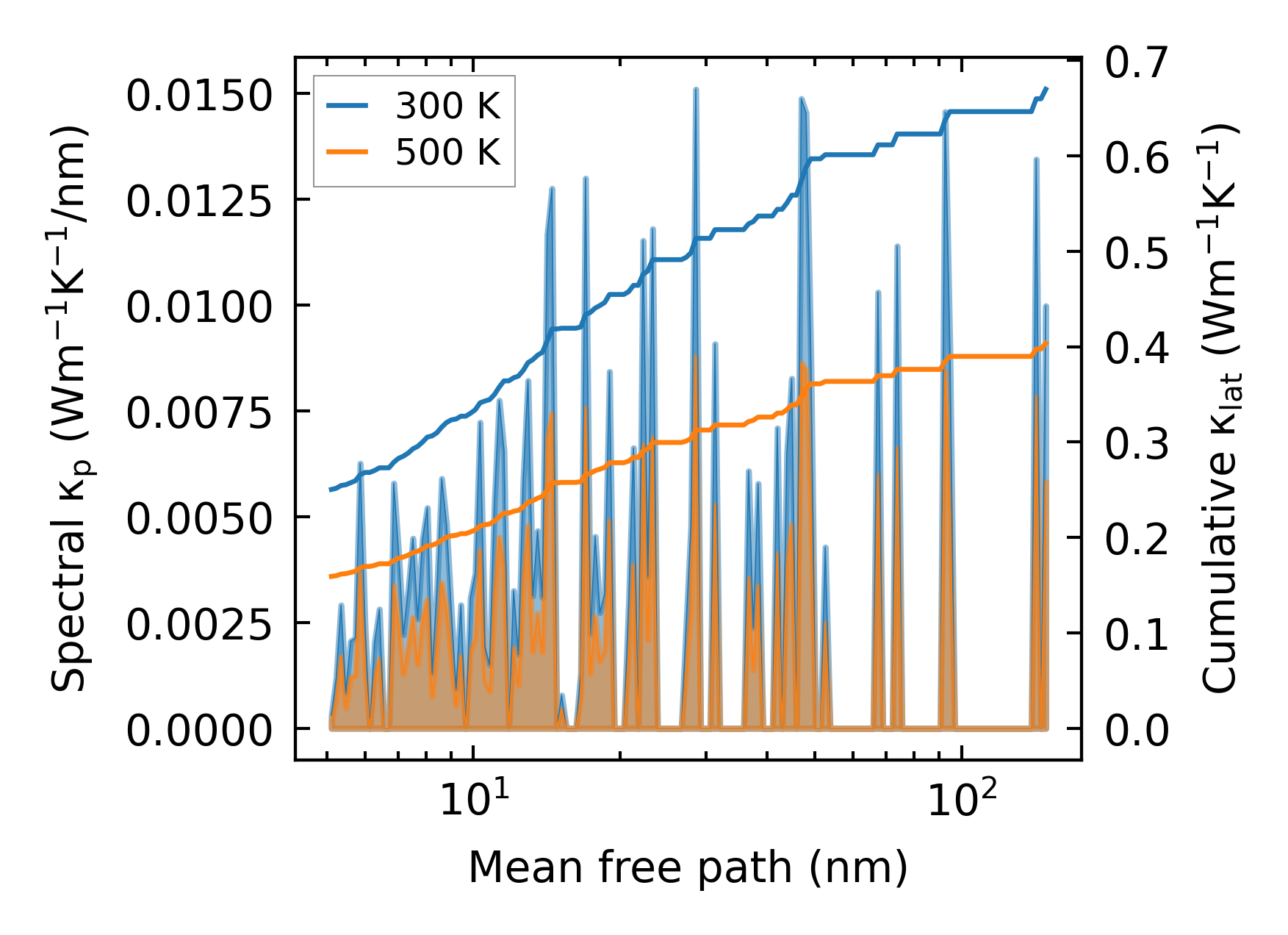

../../_images/fig_cumu_mfp3186.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

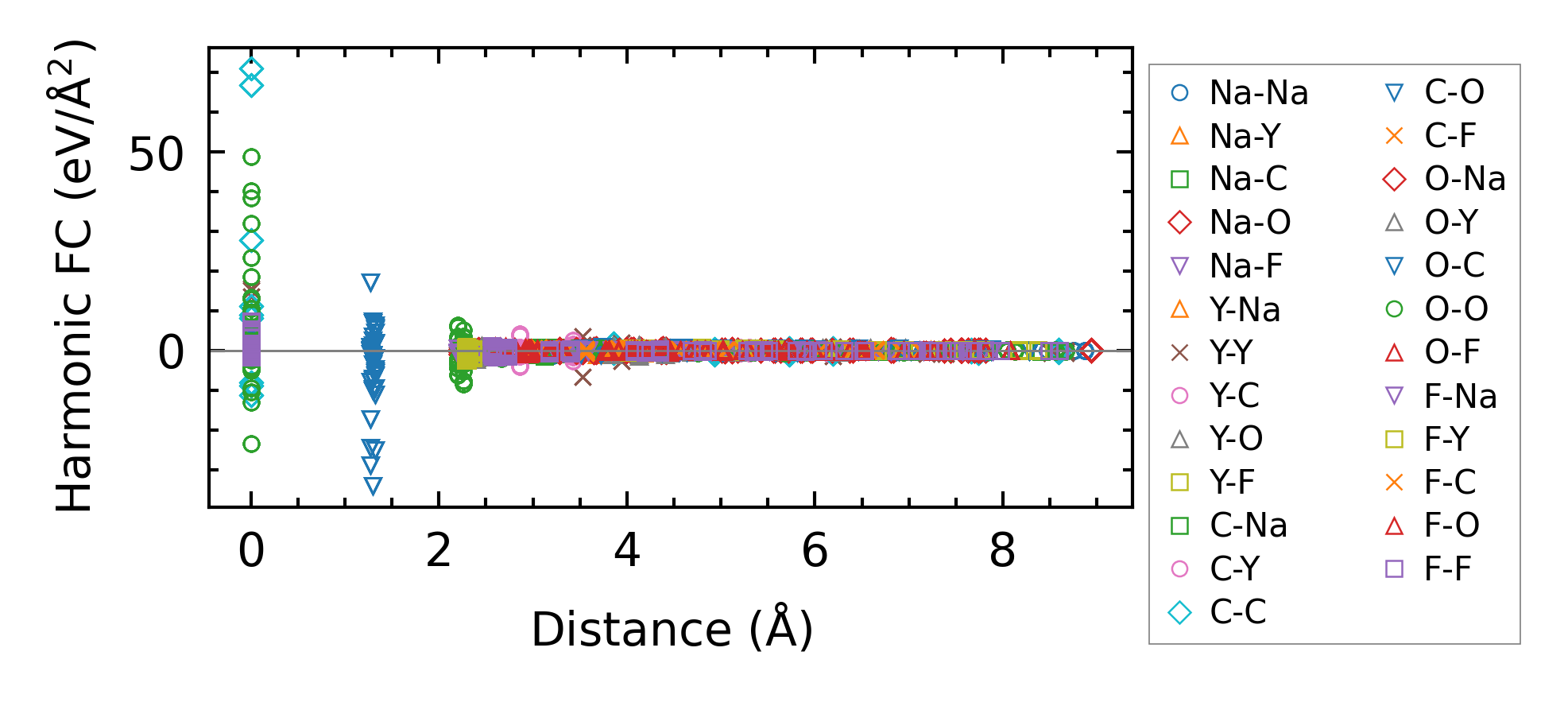

../../_images/fig_fc27449.png — (a) Force constants w.r.t atomic distance

Summary

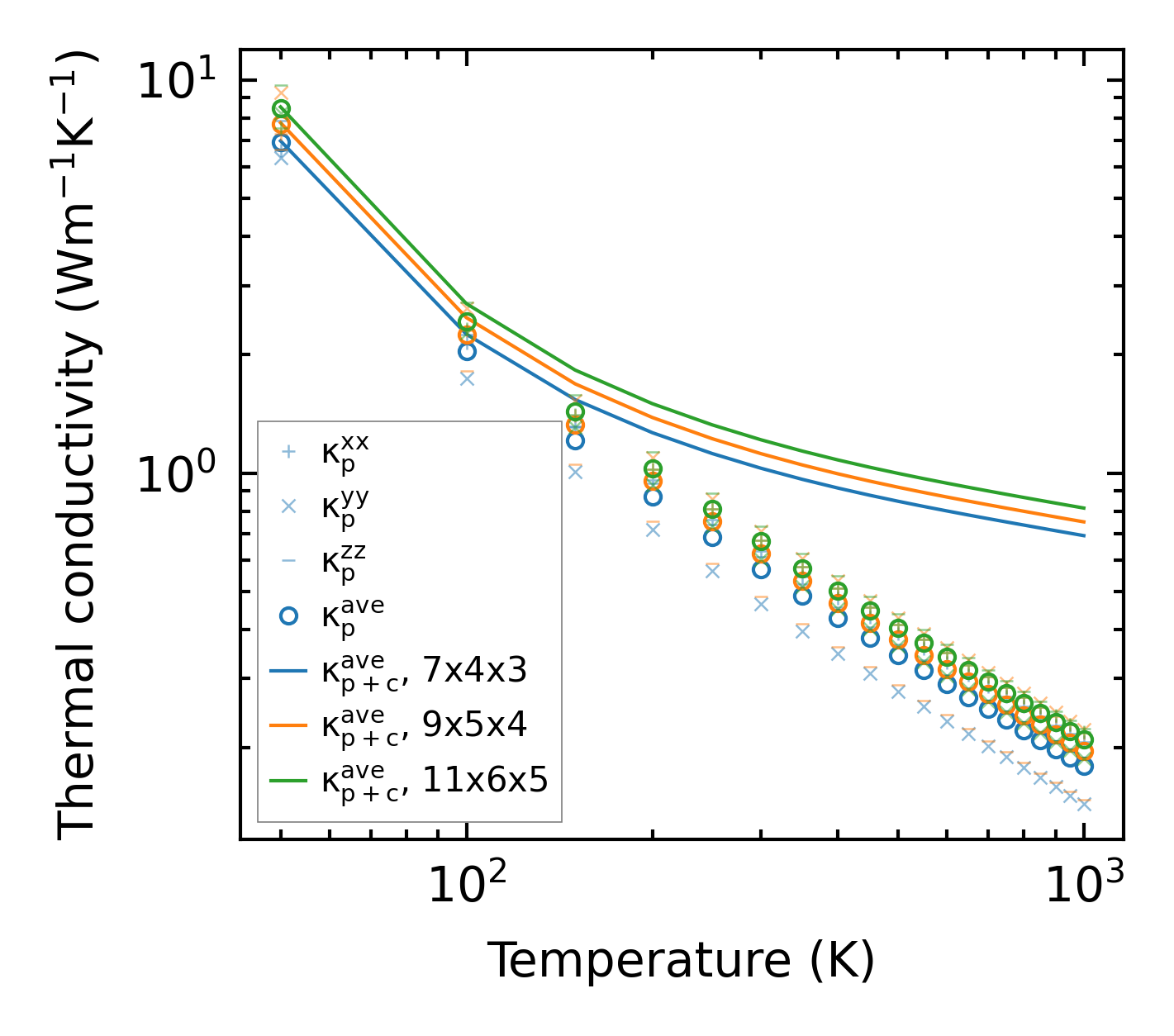

../../_images/fig_kappa6089.png — (a) Temperature-dependent lattice thermal conductivity

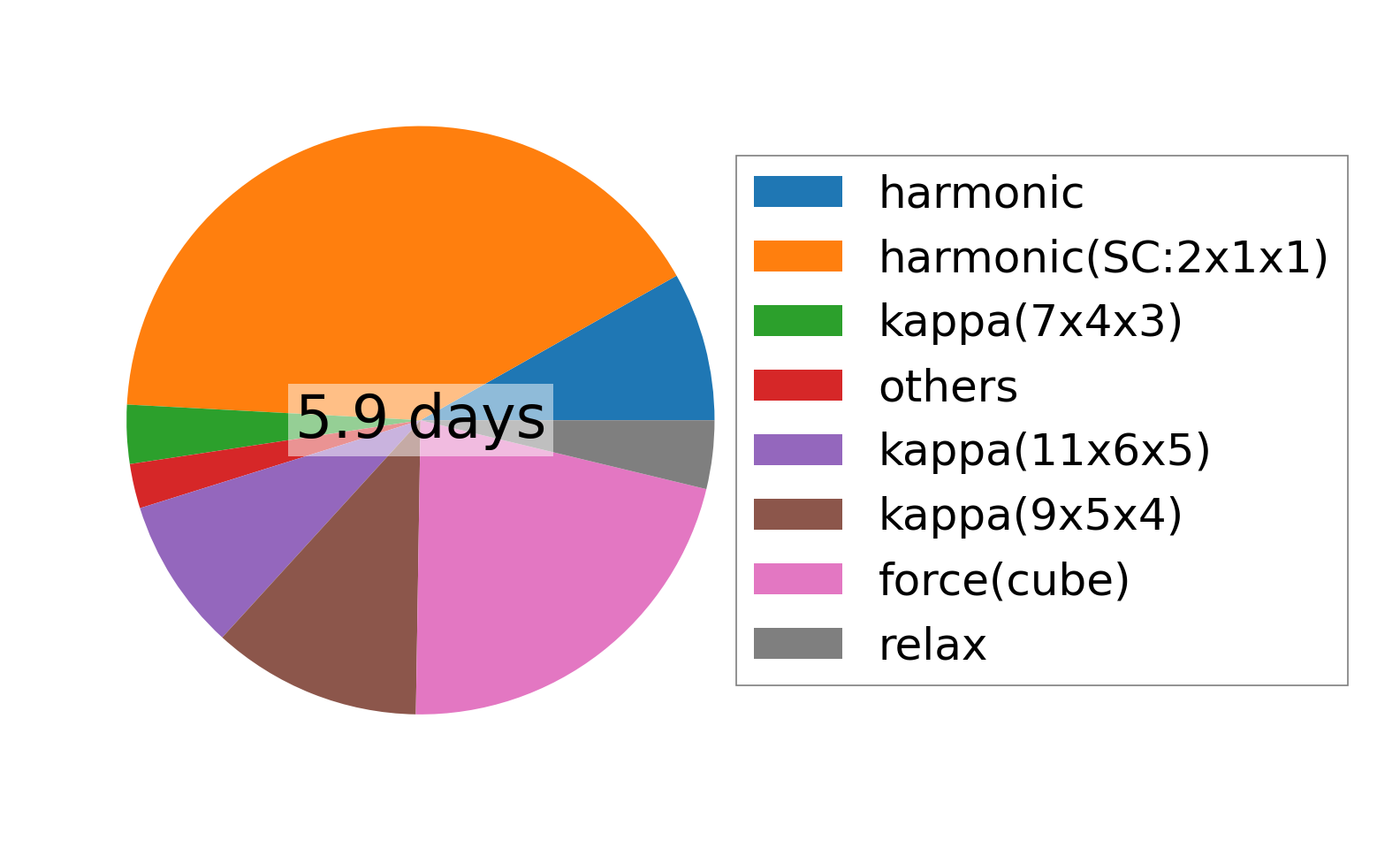

../../_images/fig_times13577.png — (b) Computation time
