mp-559571/ZrB2O5/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-559571.tar.gz

Harmonic properties

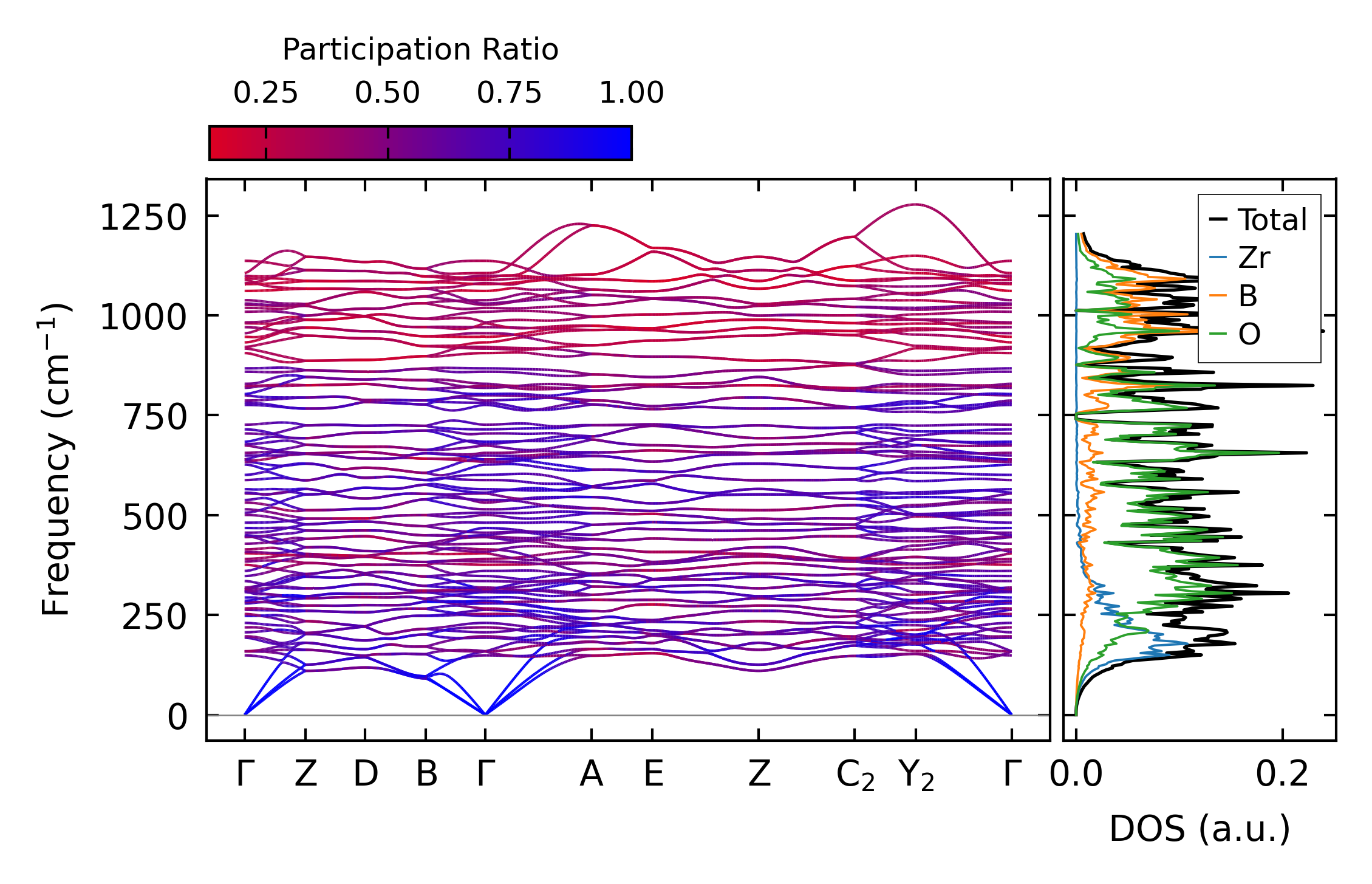

../../_images/fig_bandos_pr7948.png — (a) Phonon dispersion with participation ratio and DOS

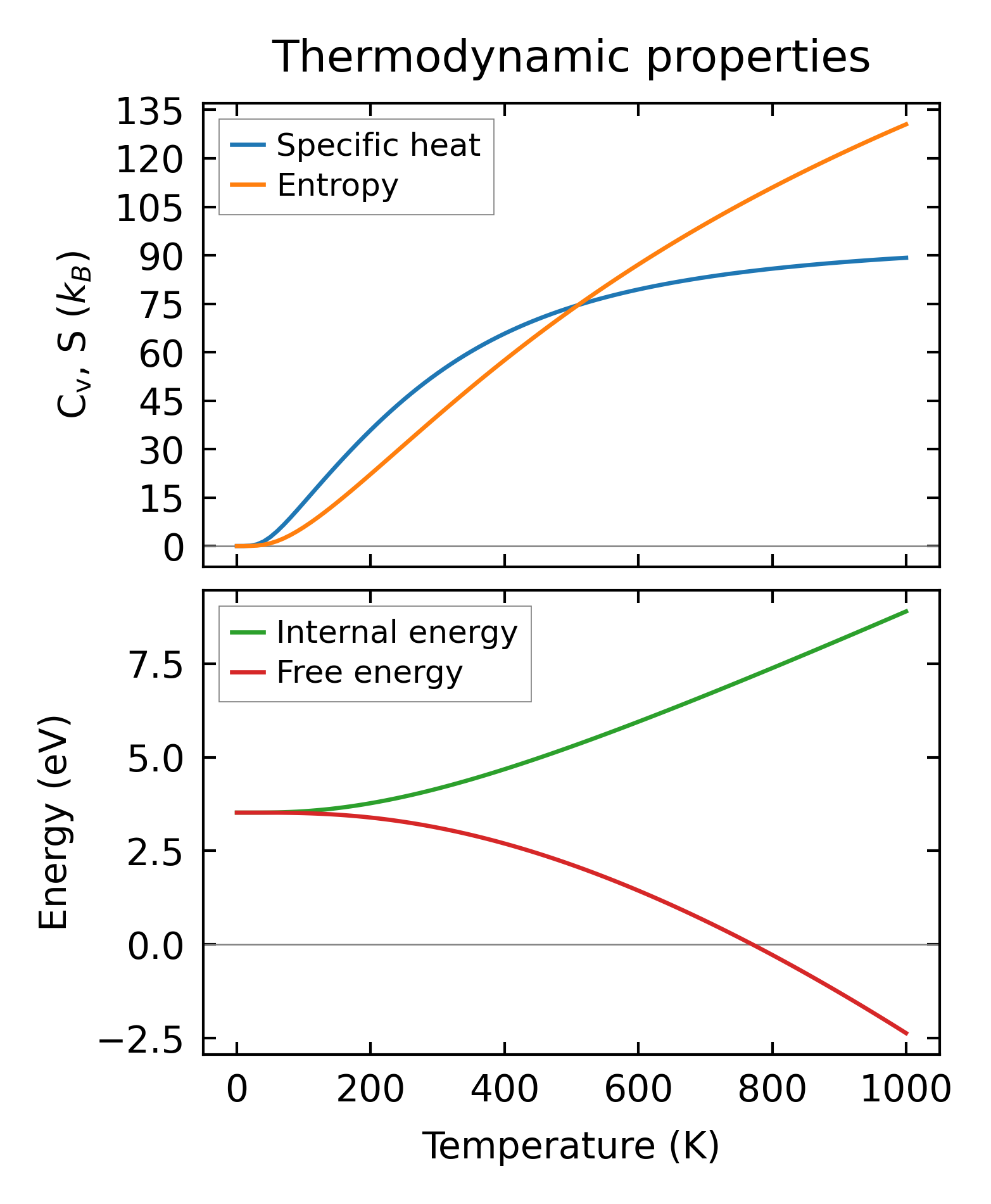

../../_images/fig_thermo7948.png — (b) Thermodynamic properties

Grüneisen parameters

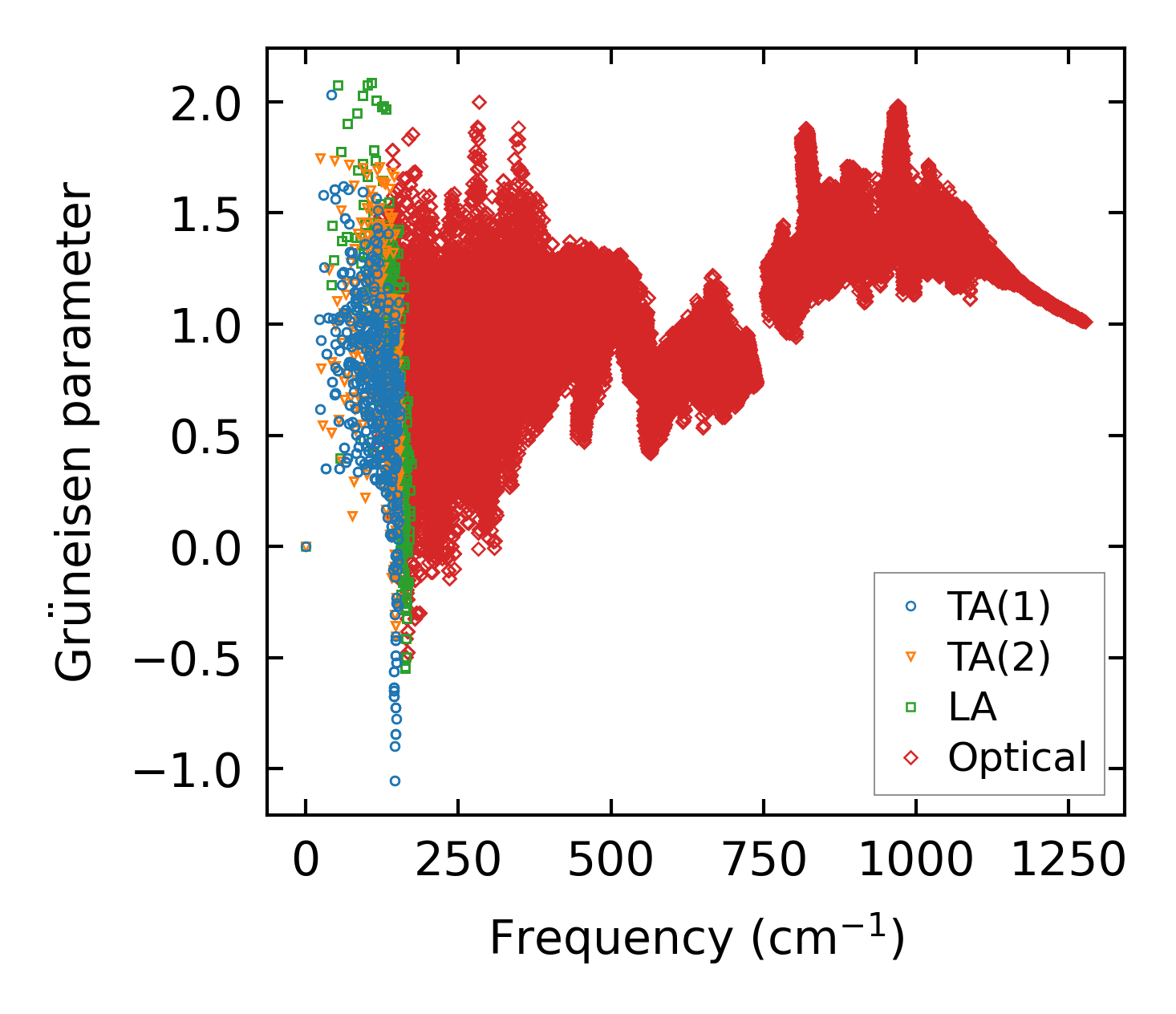

../../_images/fig_gru_all3286.png — (a) Grüneisen parameters

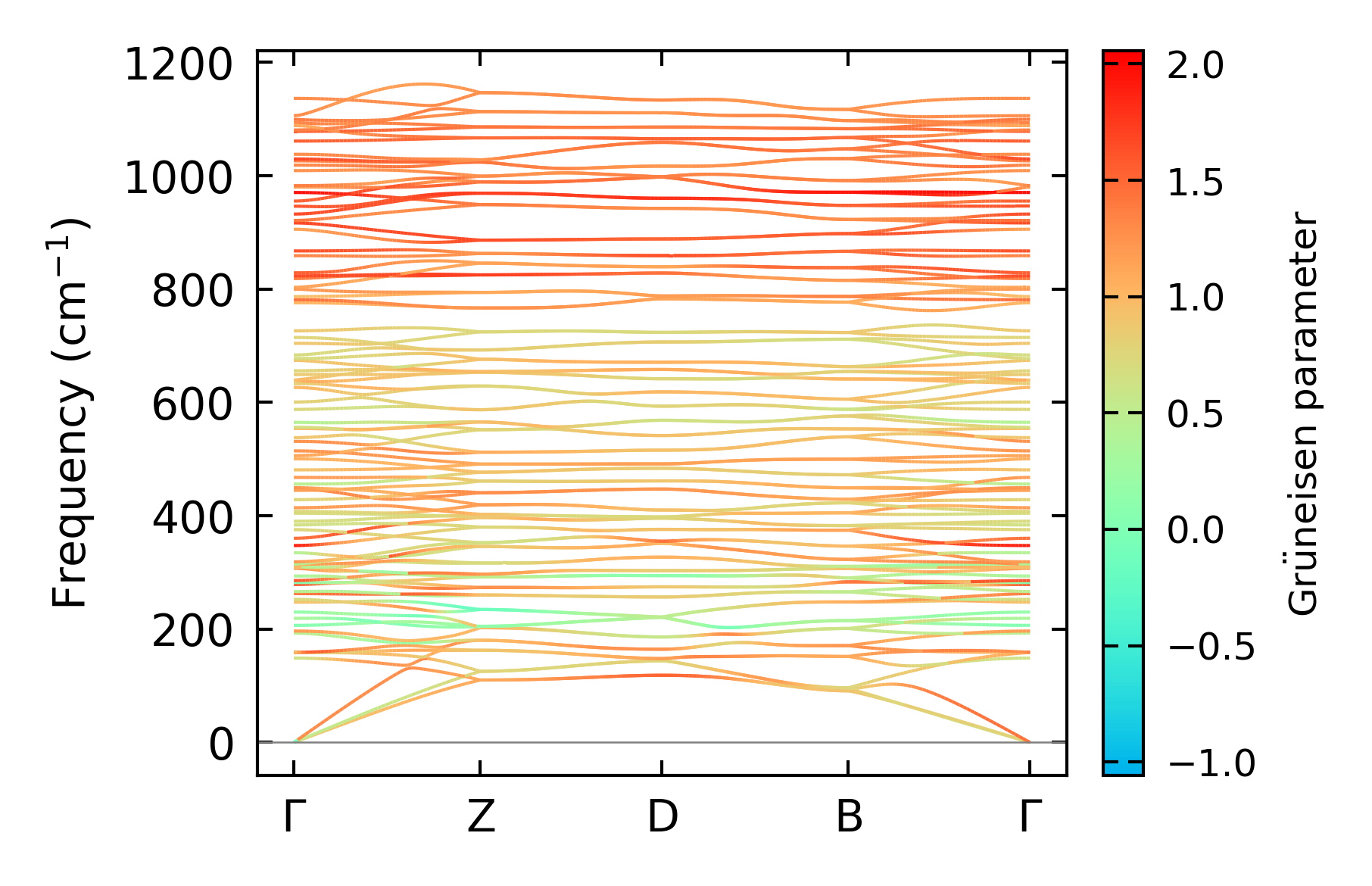

../../_images/fig_gruneisen3286.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 16x10x8, supercell: 2x2x1

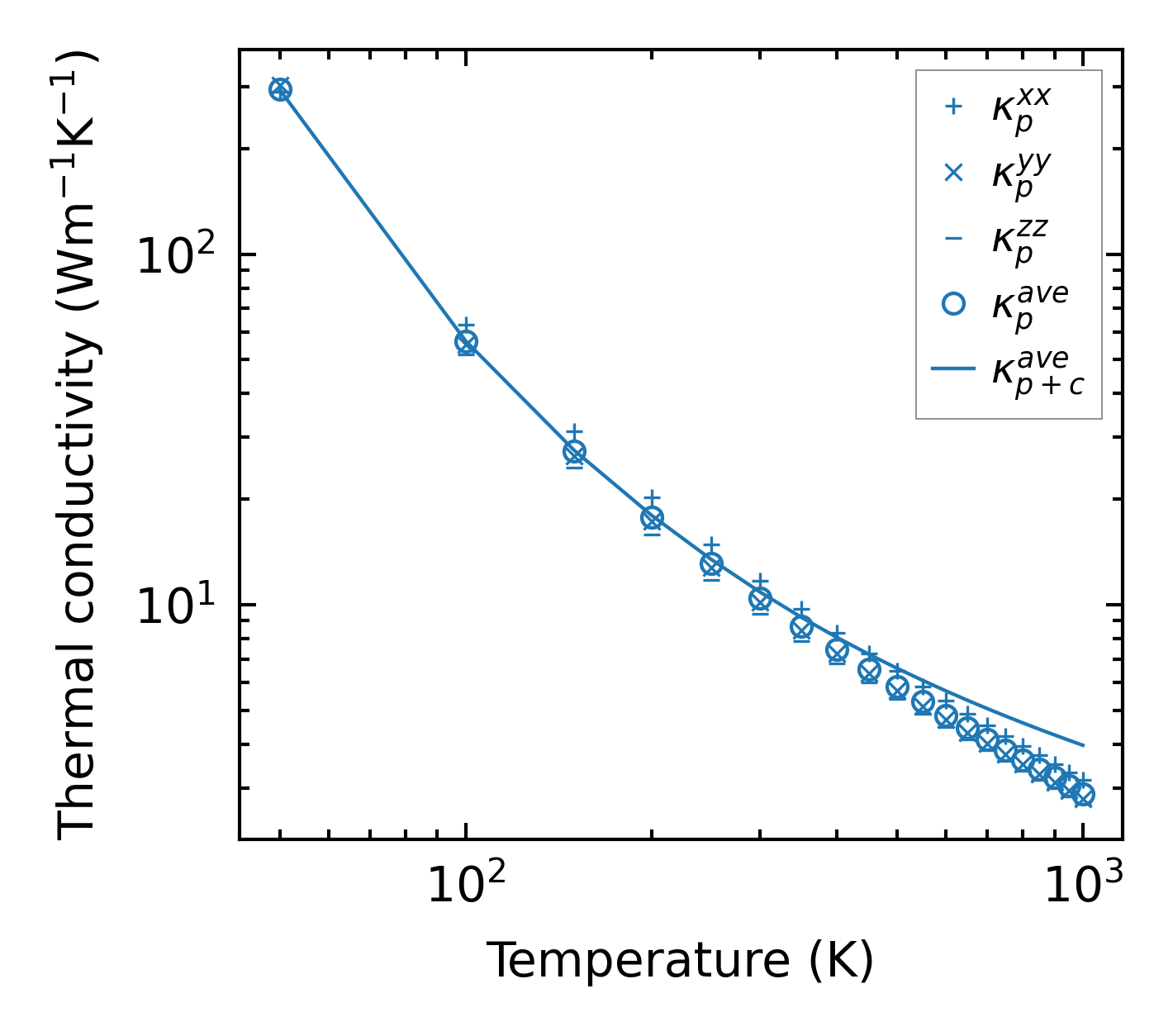

../../_images/fig_kappa6225.png — (a) Temperature-dependent lattice thermal conductivity

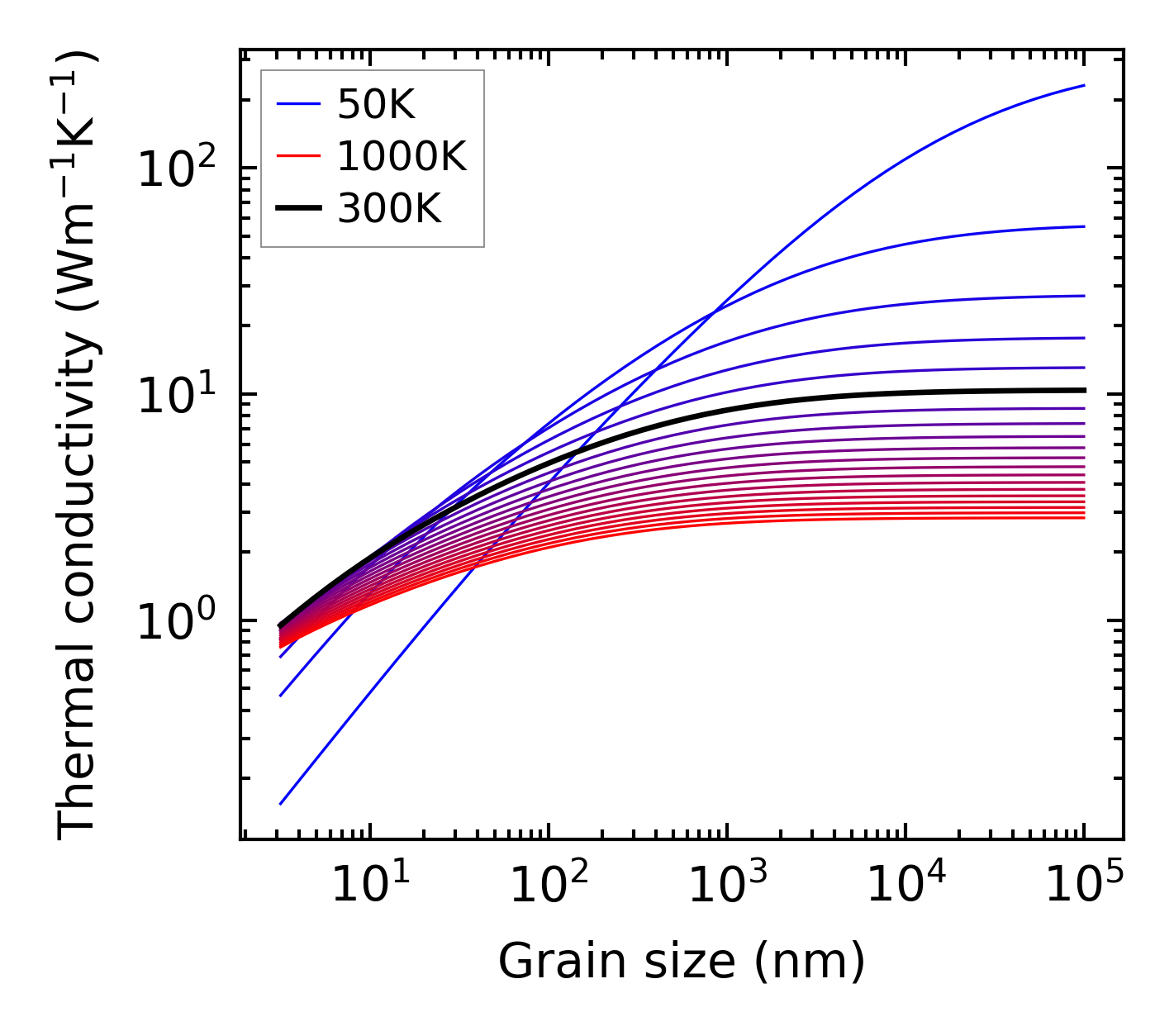

../../_images/fig_kappa_vs_grain_size3329.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

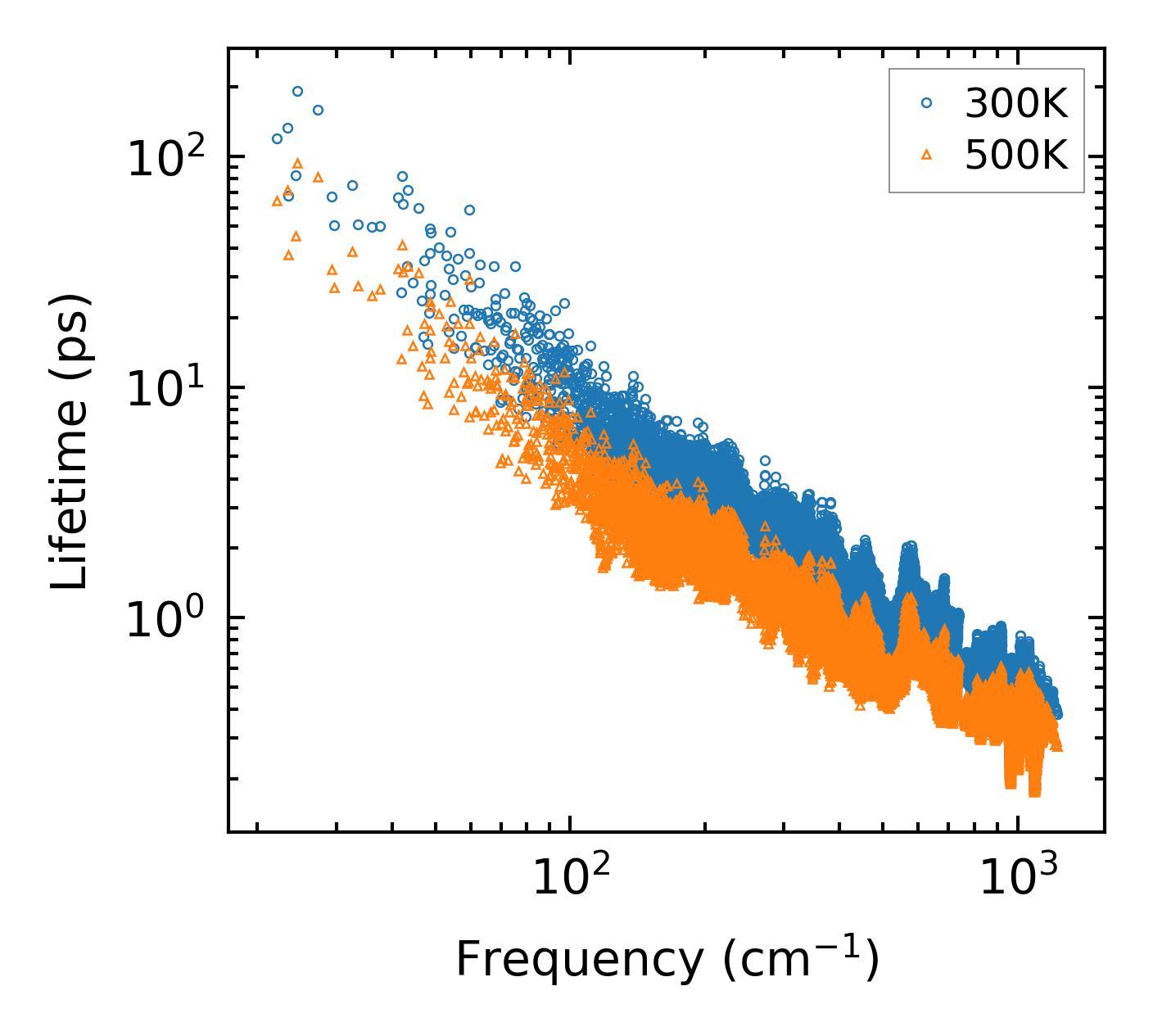

../../_images/fig_lifetime3258.png — (a) Phonon lifetime due to phonon-phonon scattering

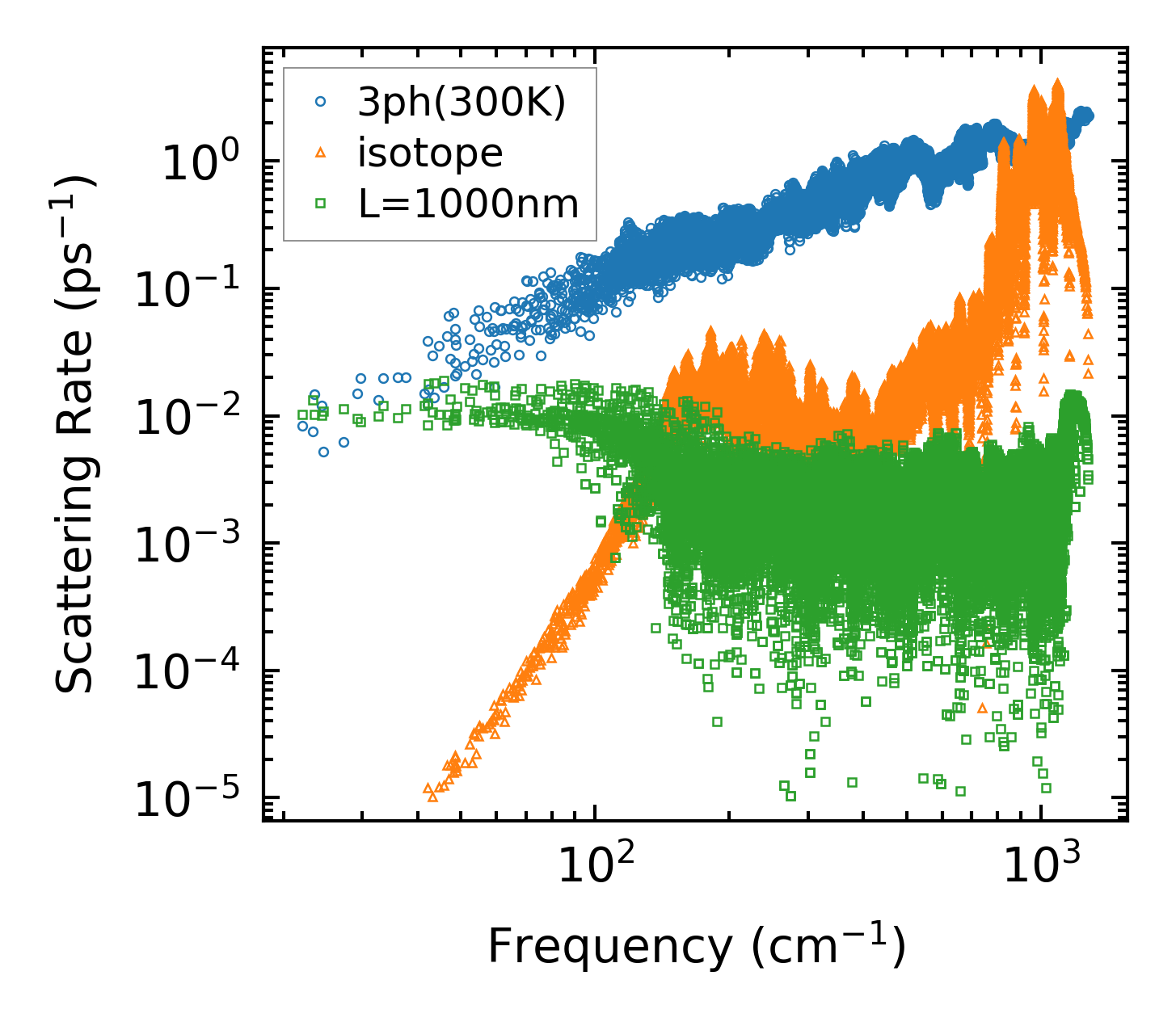

../../_images/fig_scat_rates3257.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

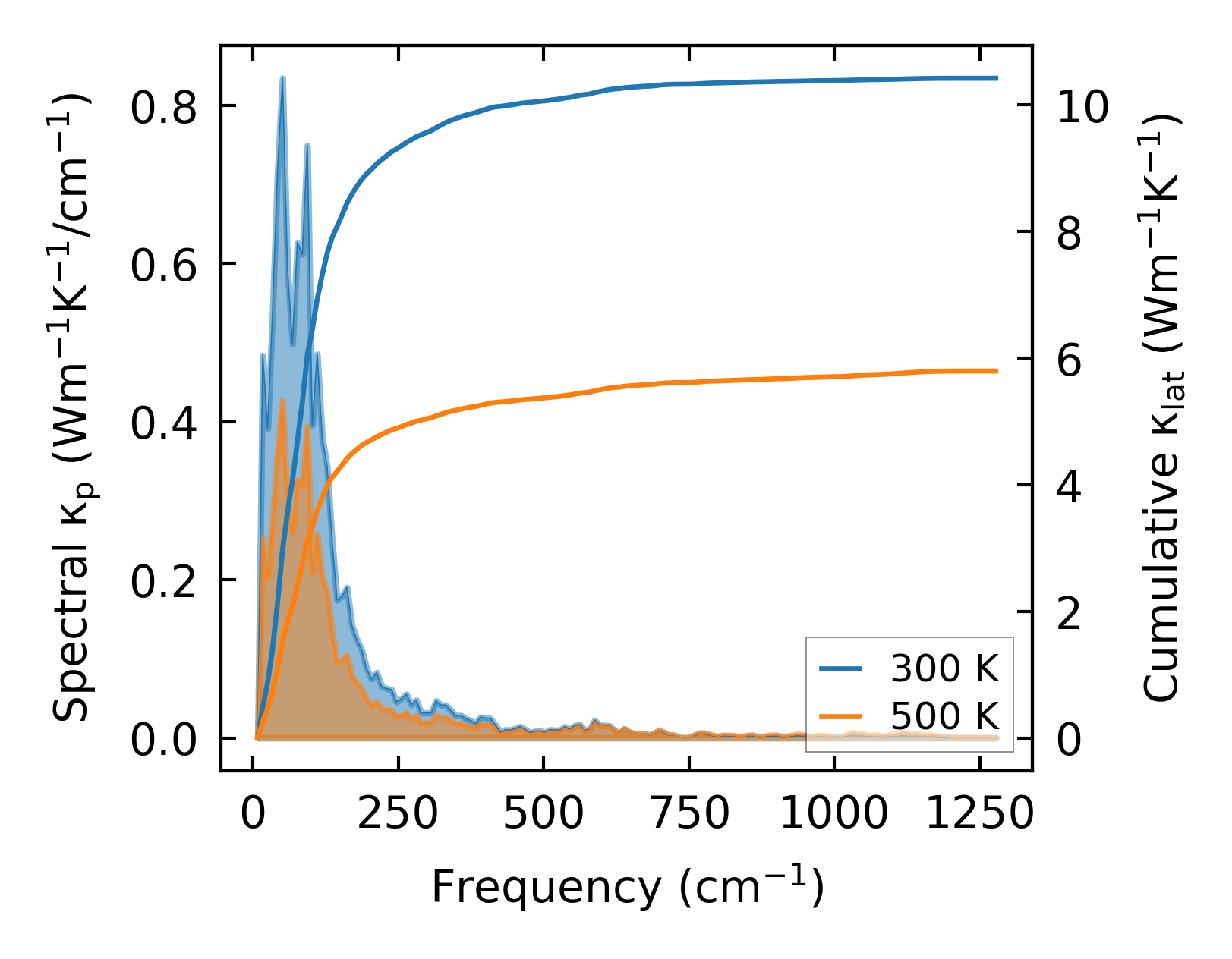

../../_images/fig_cumu_frequency3258.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

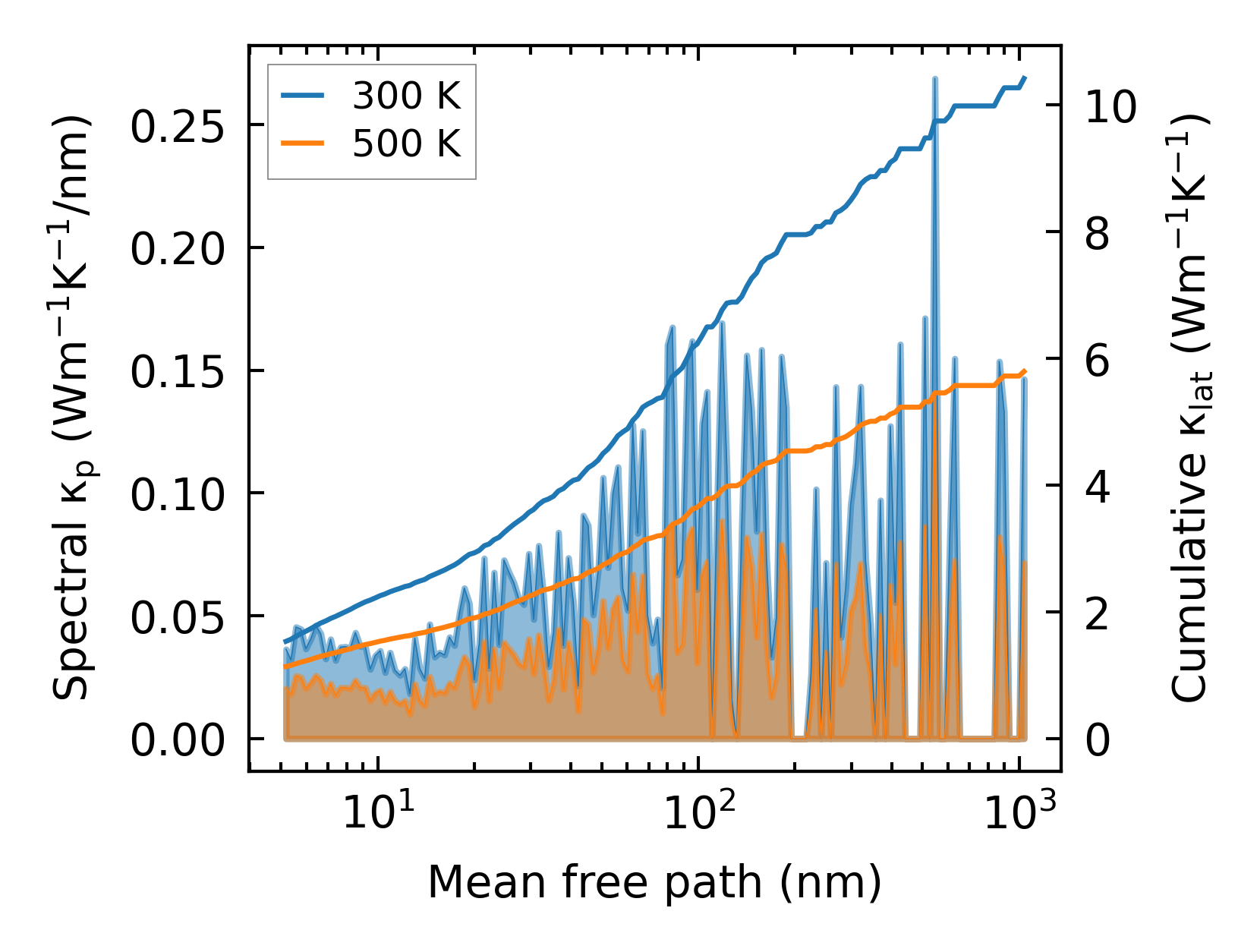

../../_images/fig_cumu_mfp3257.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

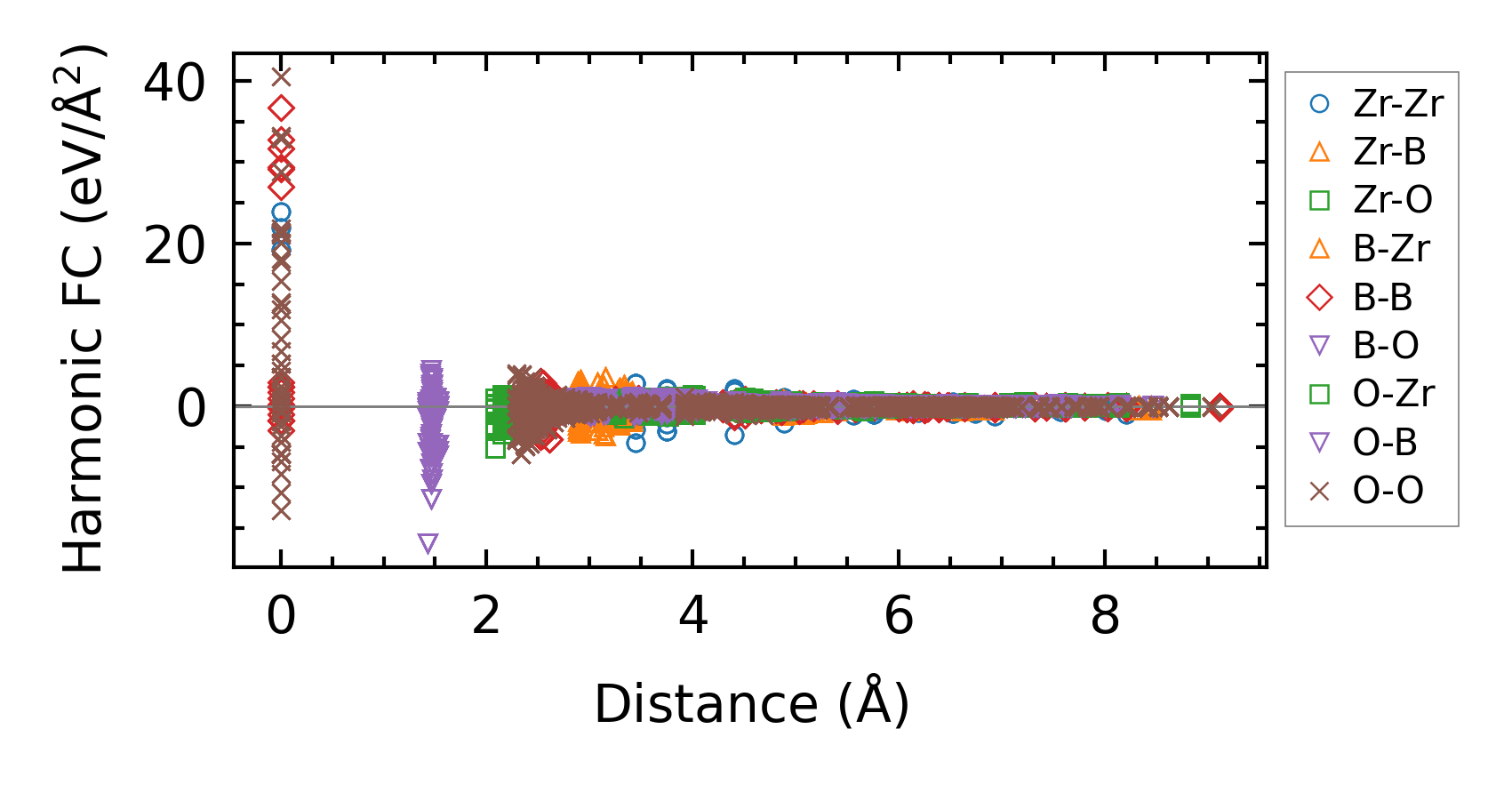

../../_images/fig_fc27710.png — (a) Force constants w.r.t atomic distance

Summary

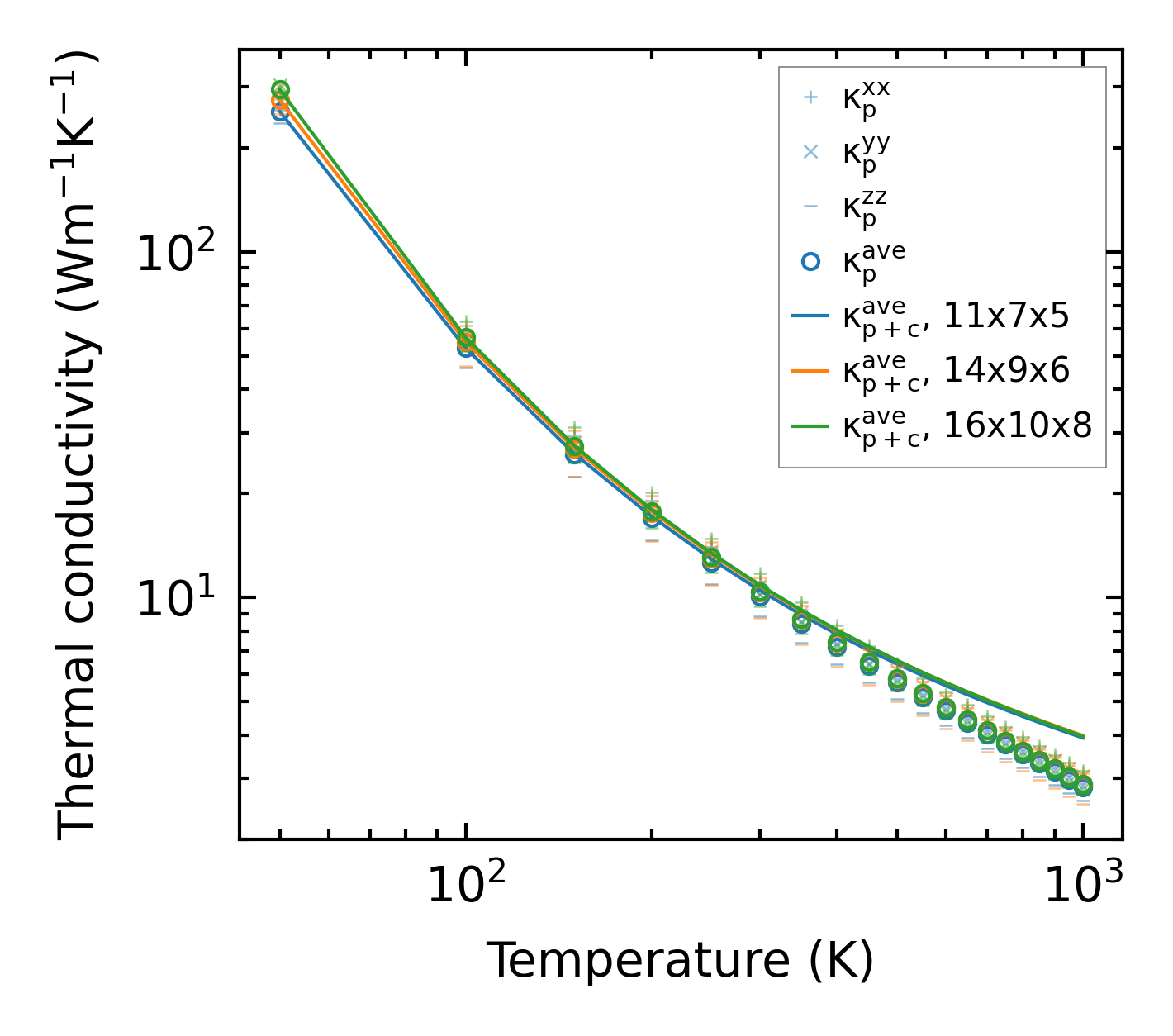

../../_images/fig_kappa6226.png — (a) Temperature-dependent lattice thermal conductivity

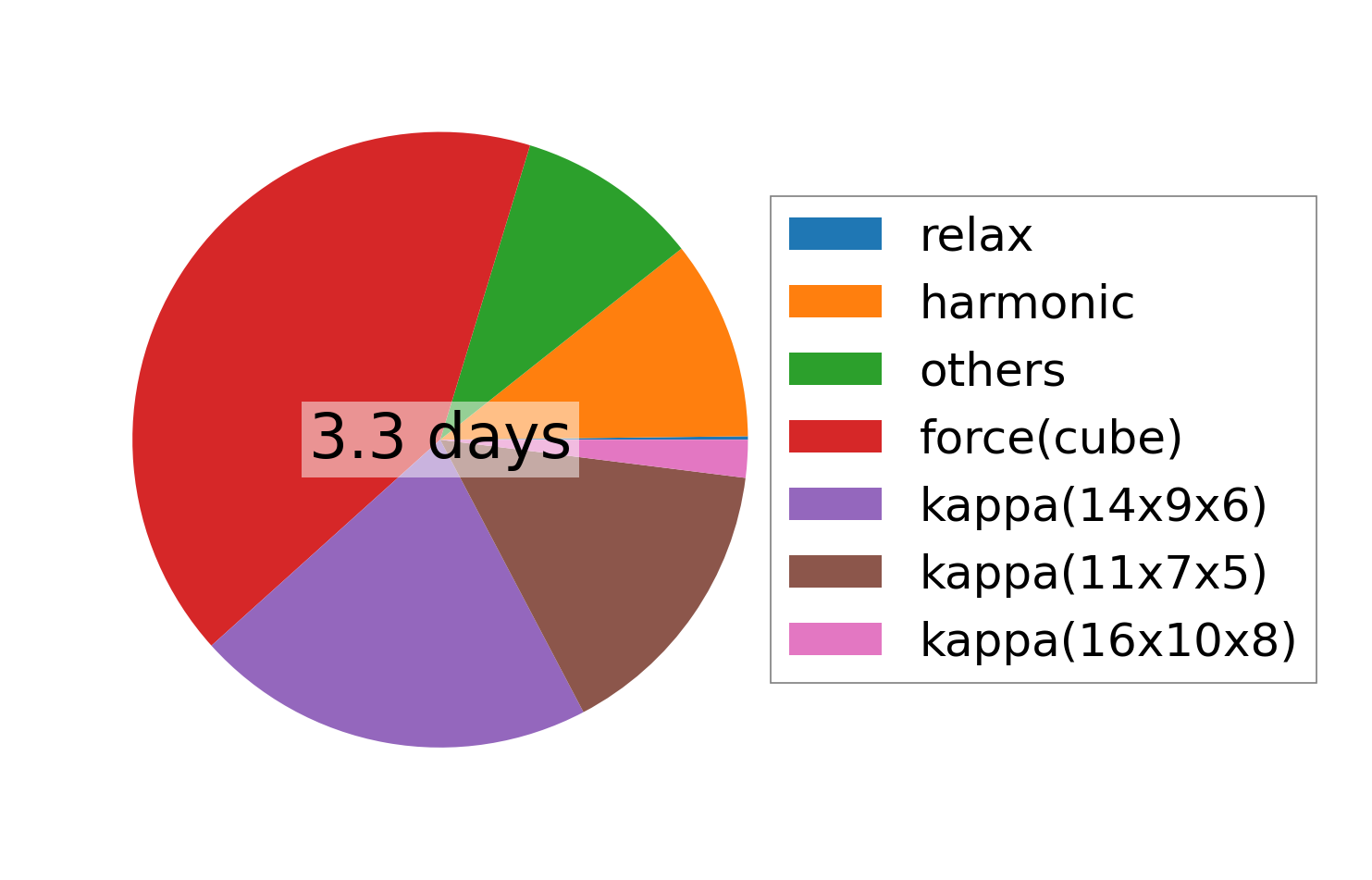

../../_images/fig_times14013.png — (b) Computation time
