mp-559602-2/AgSbS16F6/anharm

Space group: C2/c (15)
Link: Materials Project
Download: mp-559602-2.tar.gz

Equation of state

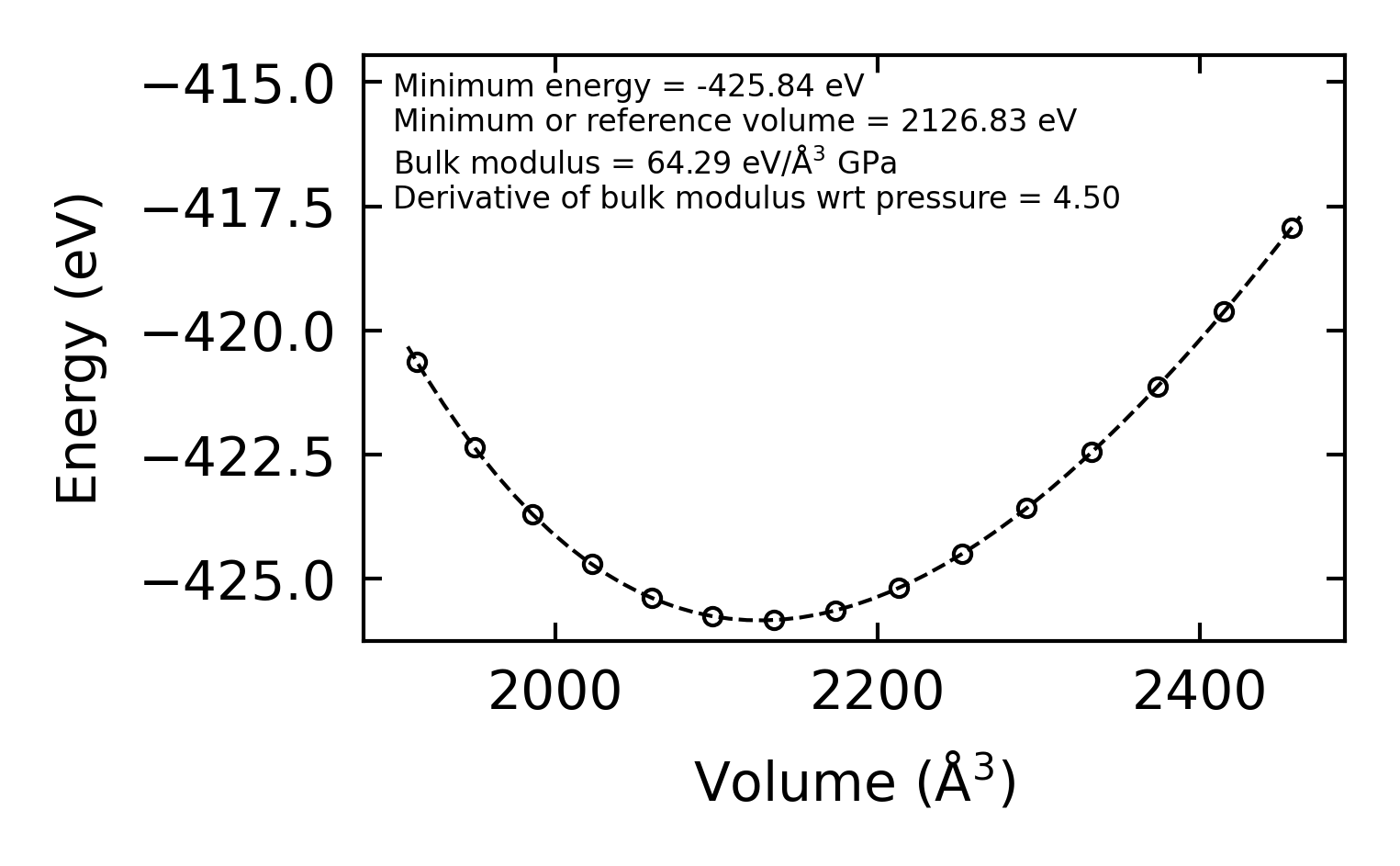

../../_images/fig_bm4090.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr7953.png — (a) Phonon dispersion with participation ratio and DOS

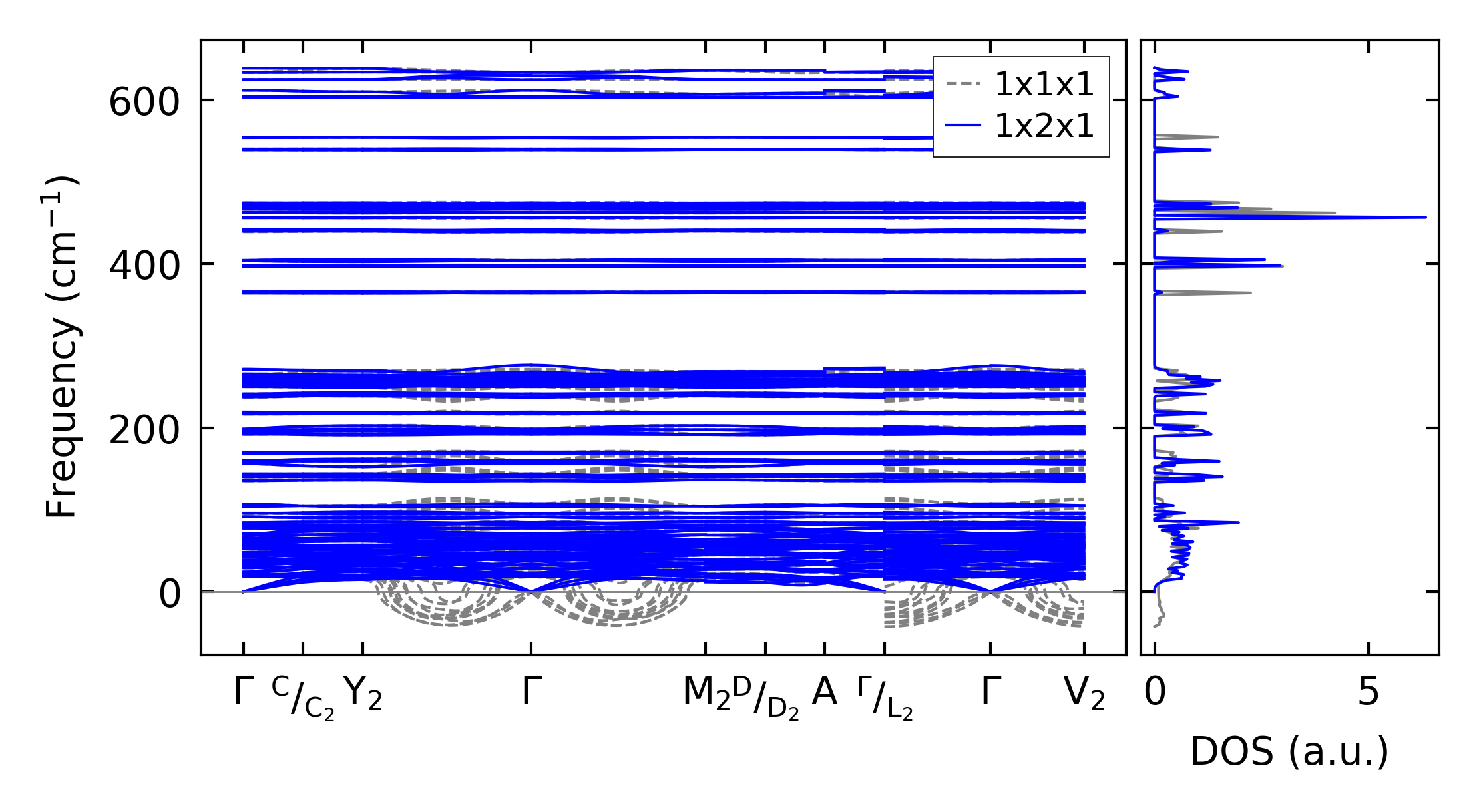

../../_images/fig_bandos11182.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo7953.png — (c) Thermodynamic properties

Grüneisen parameters

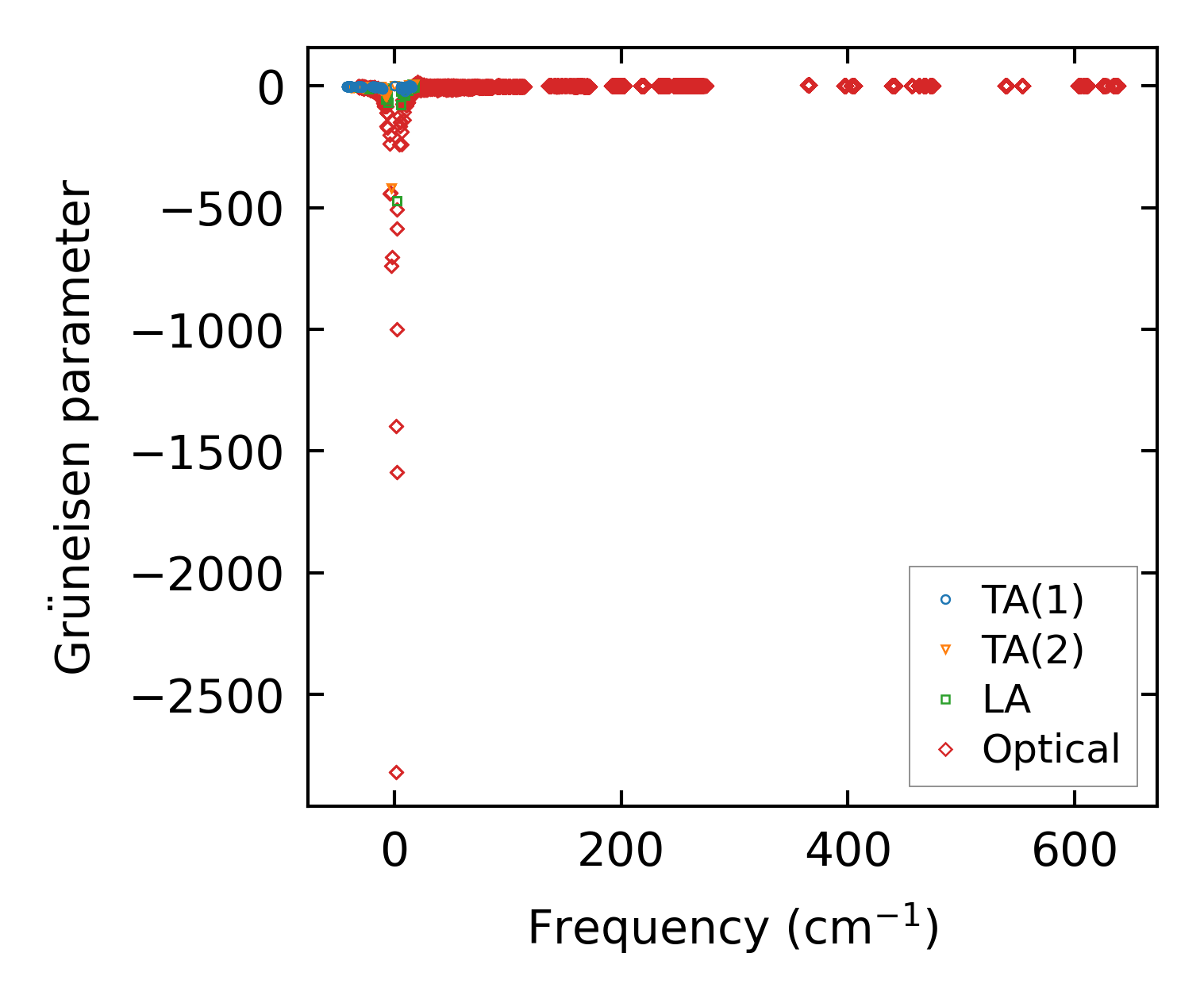

../../_images/fig_gru_all3288.png — (a) Grüneisen parameters

../../_images/fig_gruneisen3288.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 1x2x1 — q-mesh: 8x8x4, supercell: 1x2x1

../../_images/fig_kappa6229.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size3331.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

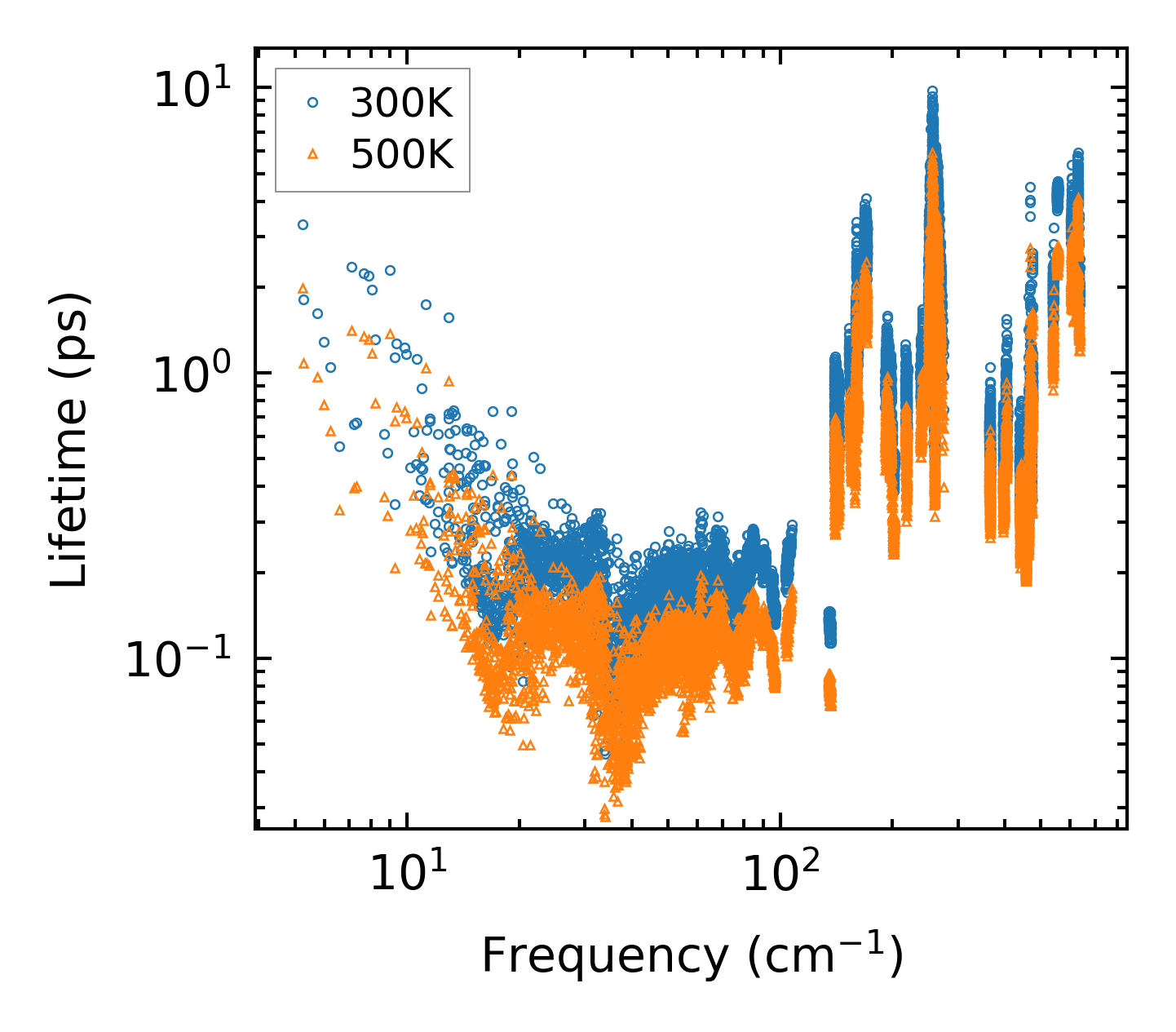

../../_images/fig_lifetime3260.png — (a) Phonon lifetime due to phonon-phonon scattering

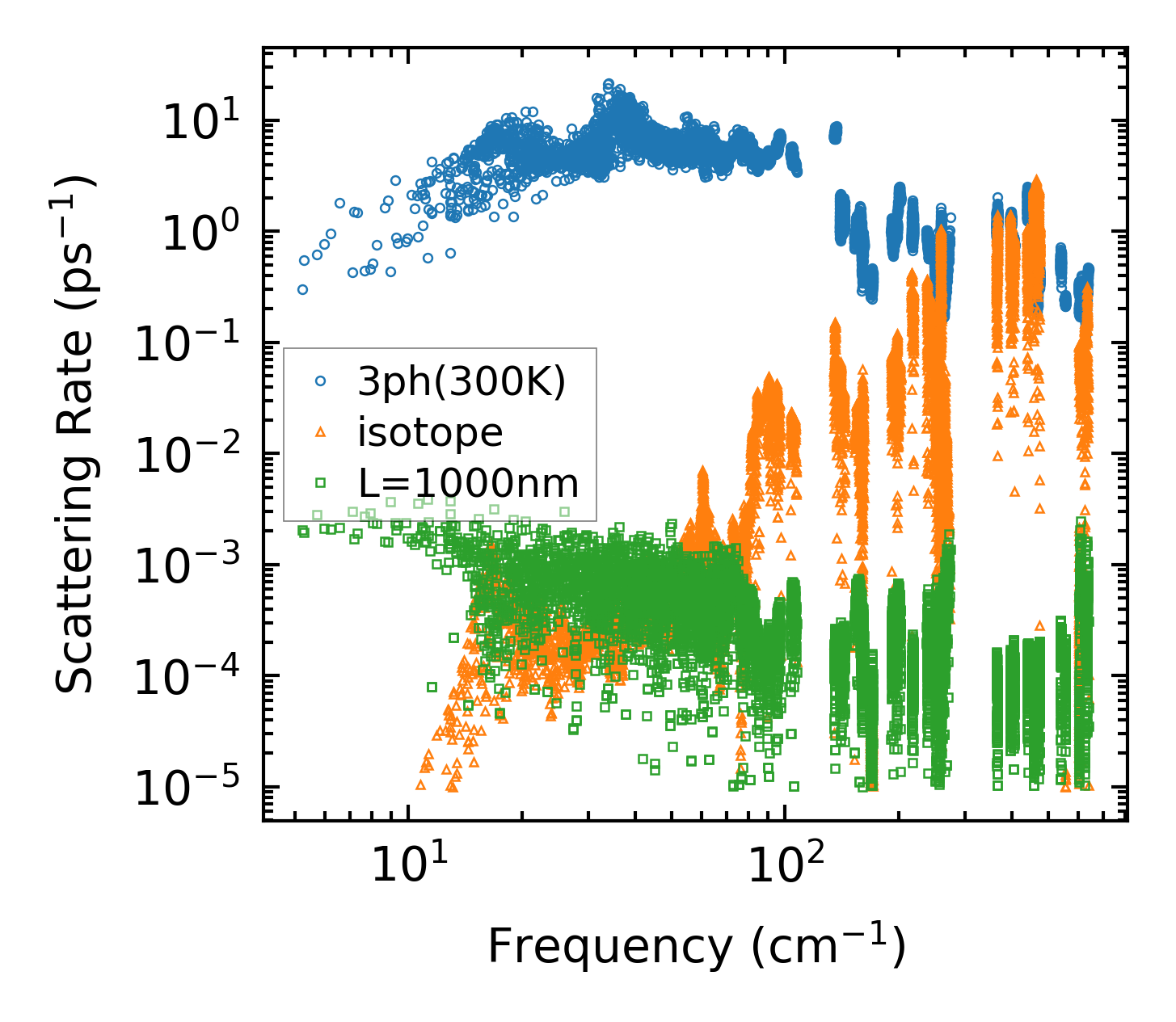

../../_images/fig_scat_rates3259.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

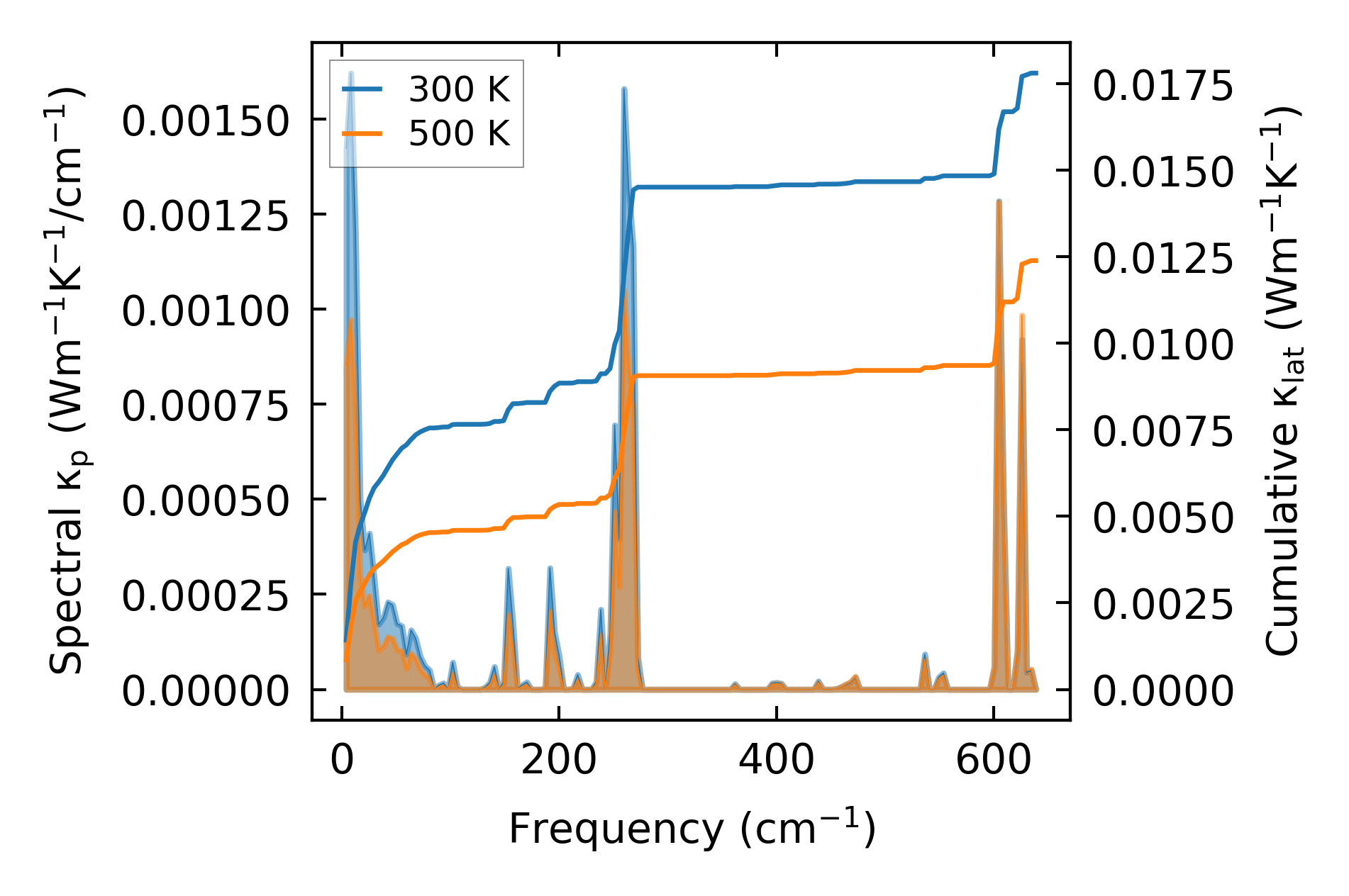

../../_images/fig_cumu_frequency3260.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

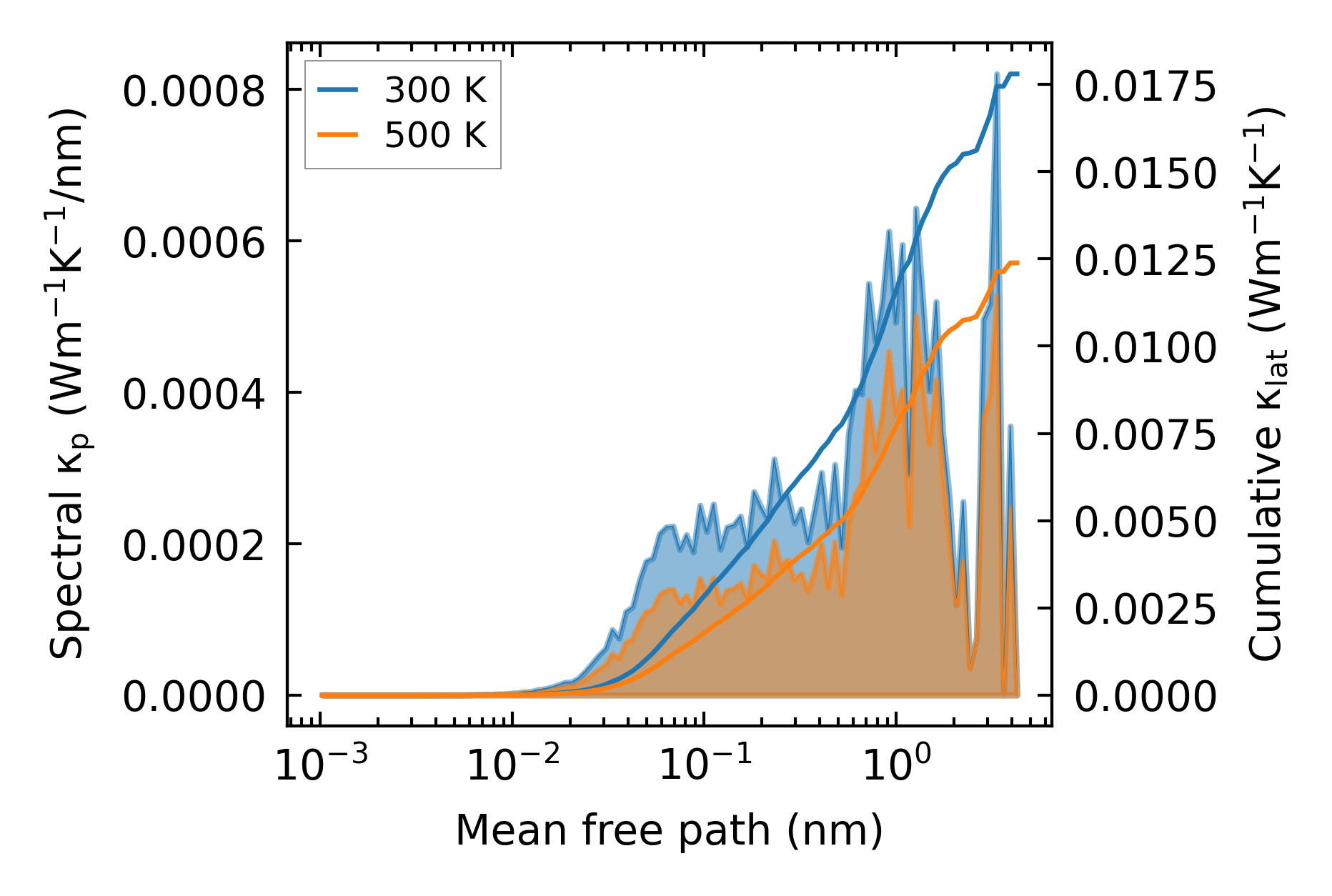

../../_images/fig_cumu_mfp3259.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc27715.png — (a) Force constants w.r.t atomic distance

Summary

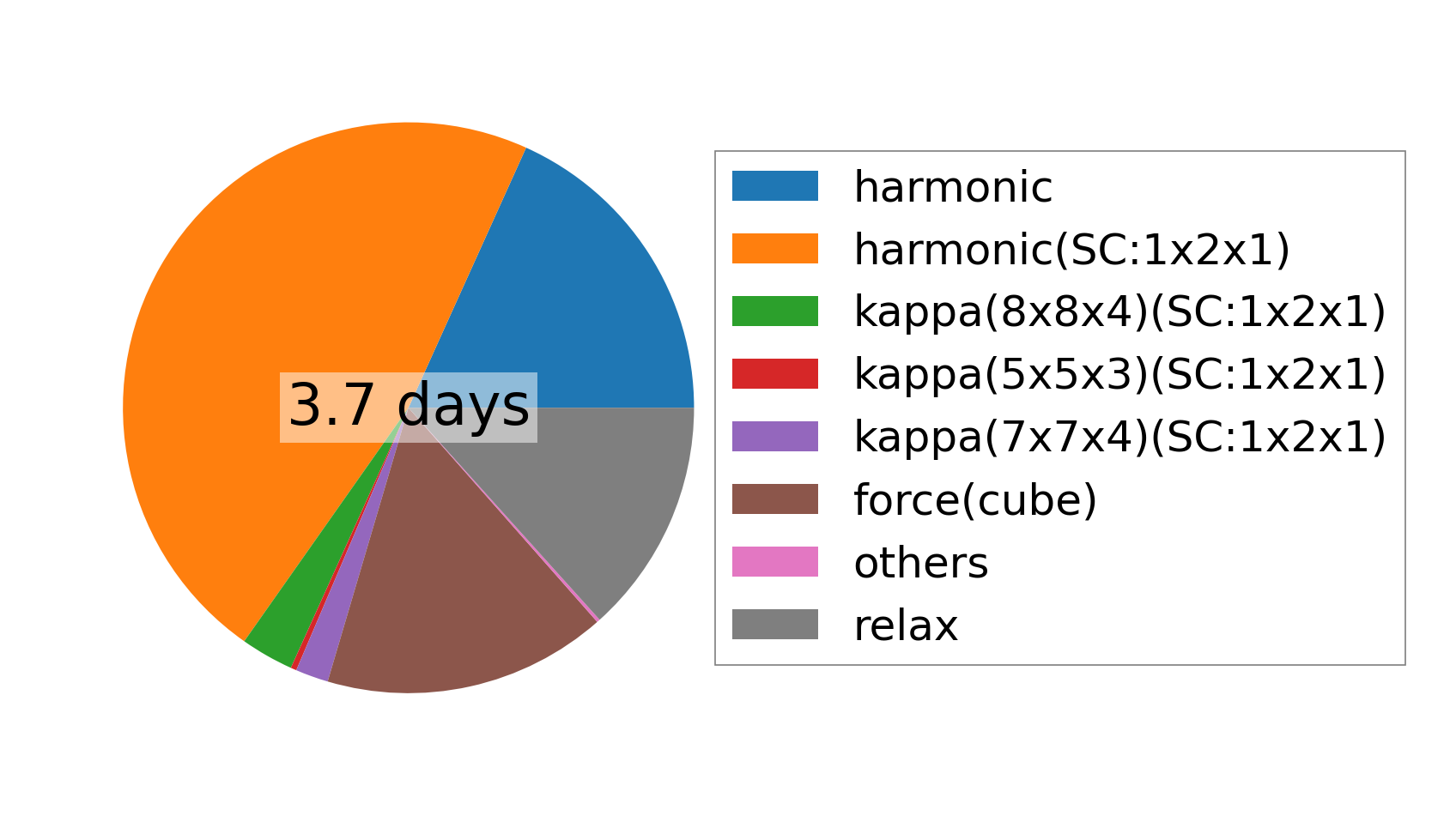

../../_images/fig_times14025.png — (a) Computation time
