mp-559319-2/Zn2P2O7/anharm

Space group: Pbcm (57)
Link: Materials Project
Download: mp-559319-2.tar.gz

Equation of state

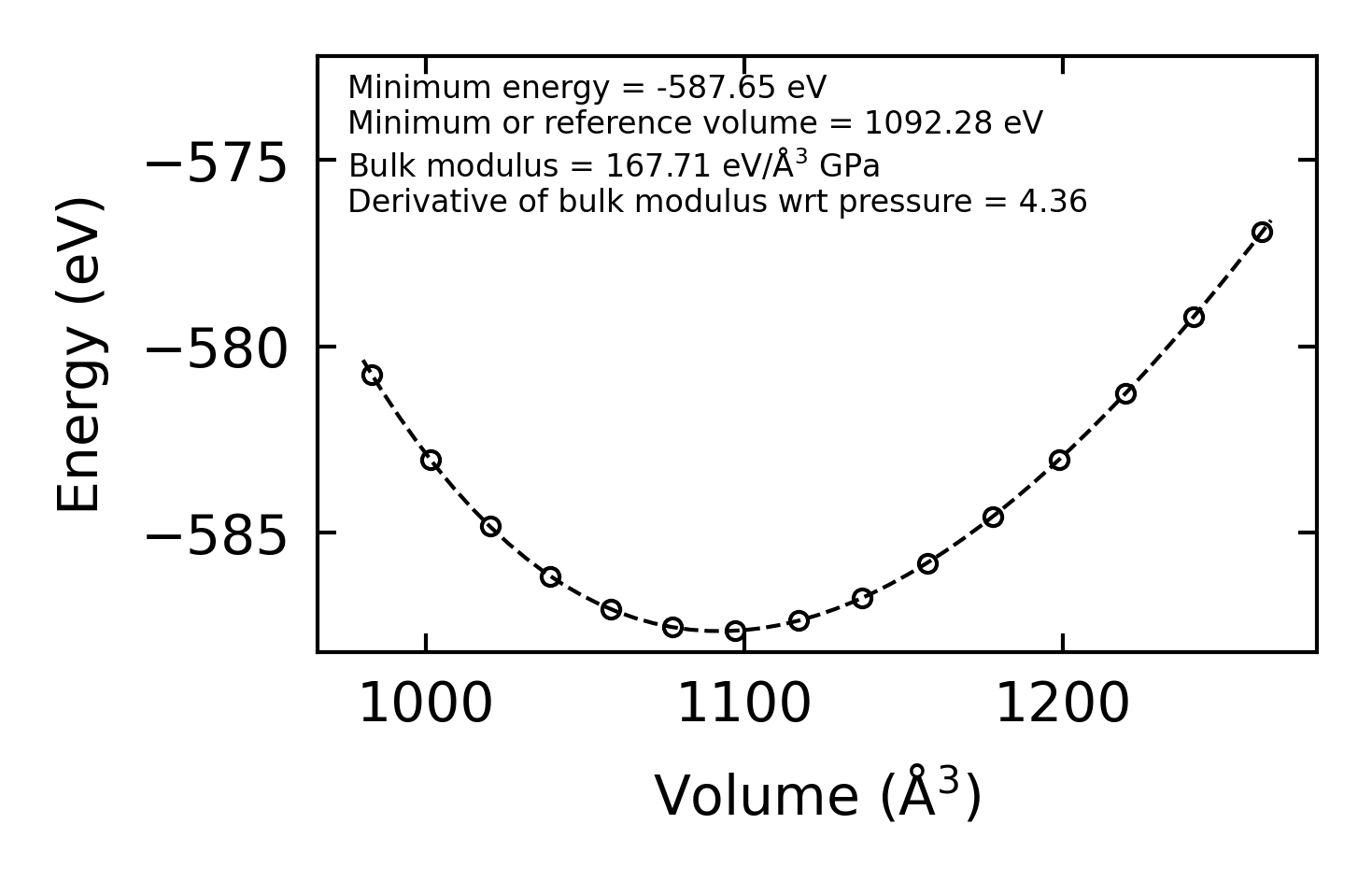

../../_images/fig_bm4069.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr7903.png — (a) Phonon dispersion with participation ratio and DOS

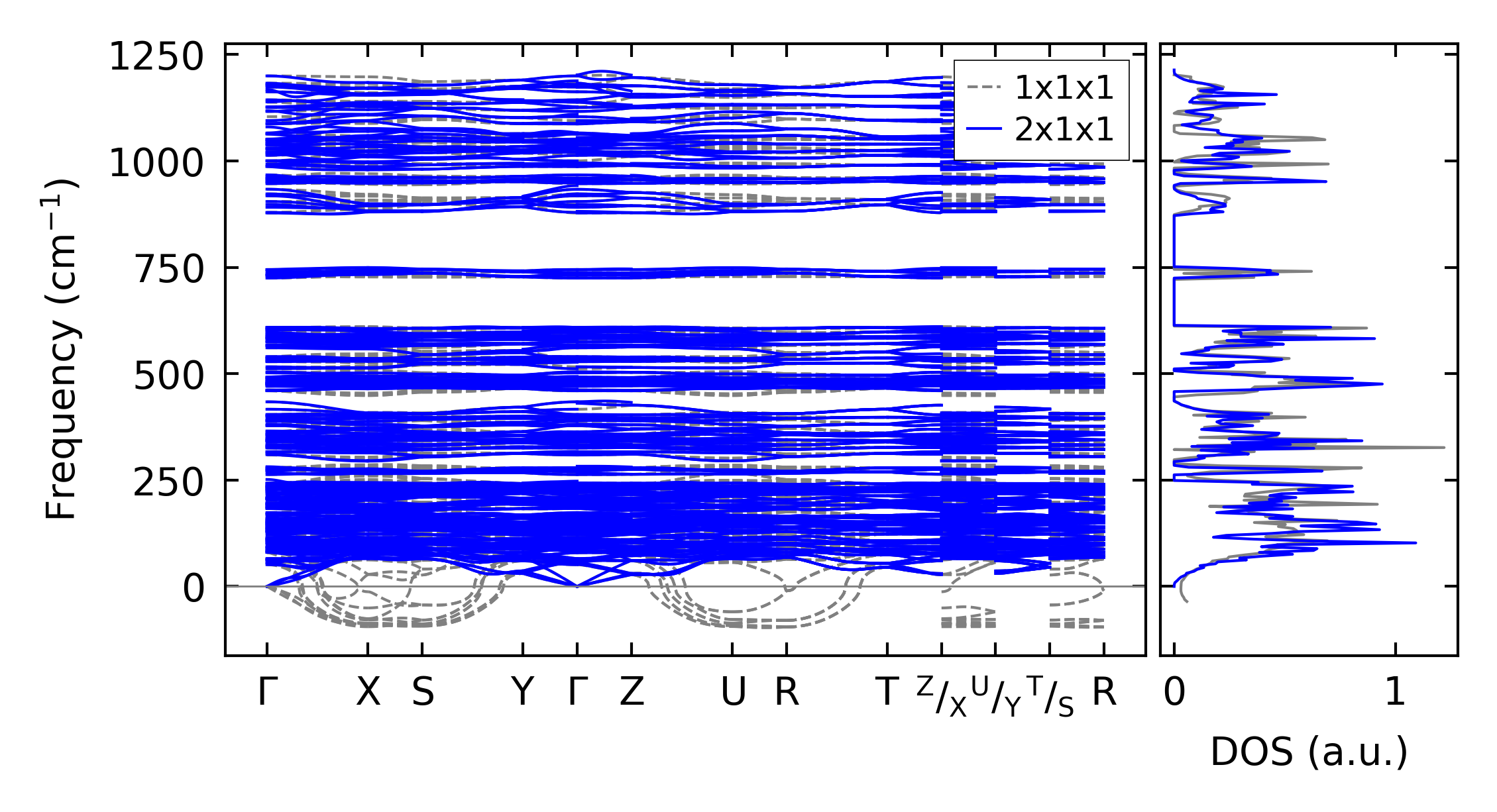

../../_images/fig_bandos11096.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo7903.png — (c) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all3275.png — (a) Grüneisen parameters

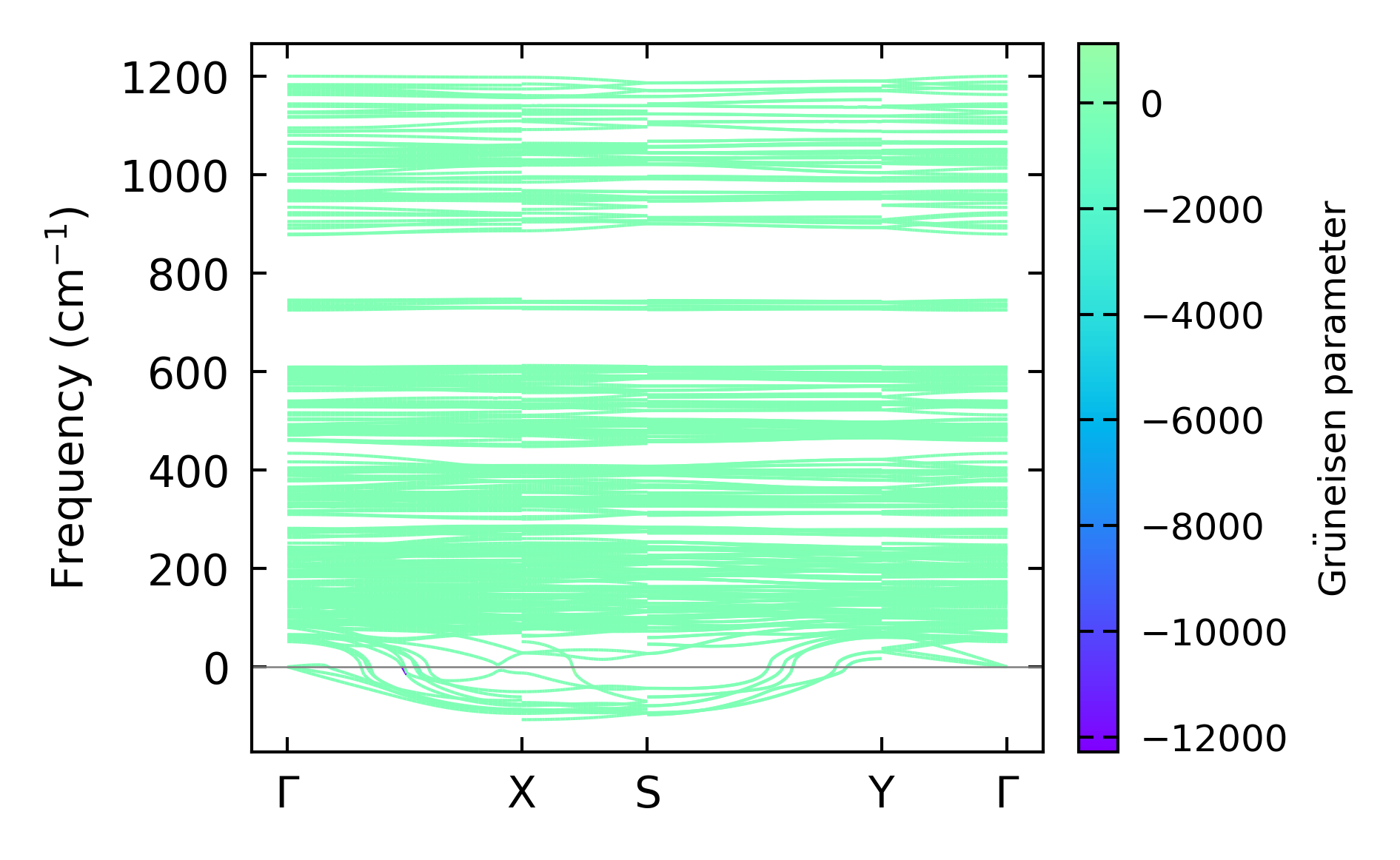

../../_images/fig_gruneisen3275.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x1x1 — q-mesh: 14x5x4, supercell: 2x1x1

../../_images/fig_kappa6205.png — (a) Temperature-dependent lattice thermal conductivity

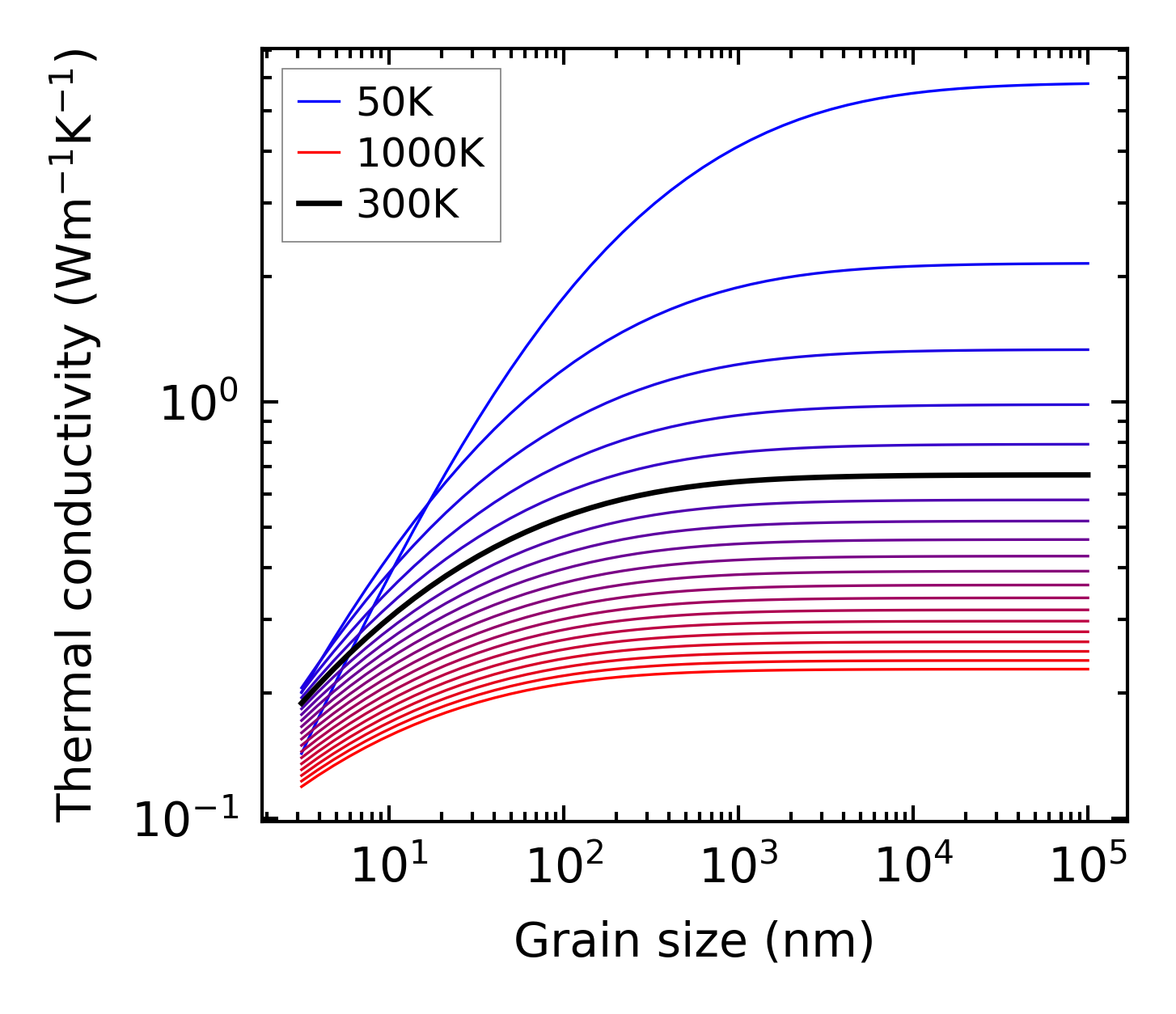

../../_images/fig_kappa_vs_grain_size3318.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime3247.png — (a) Phonon lifetime due to phonon-phonon scattering

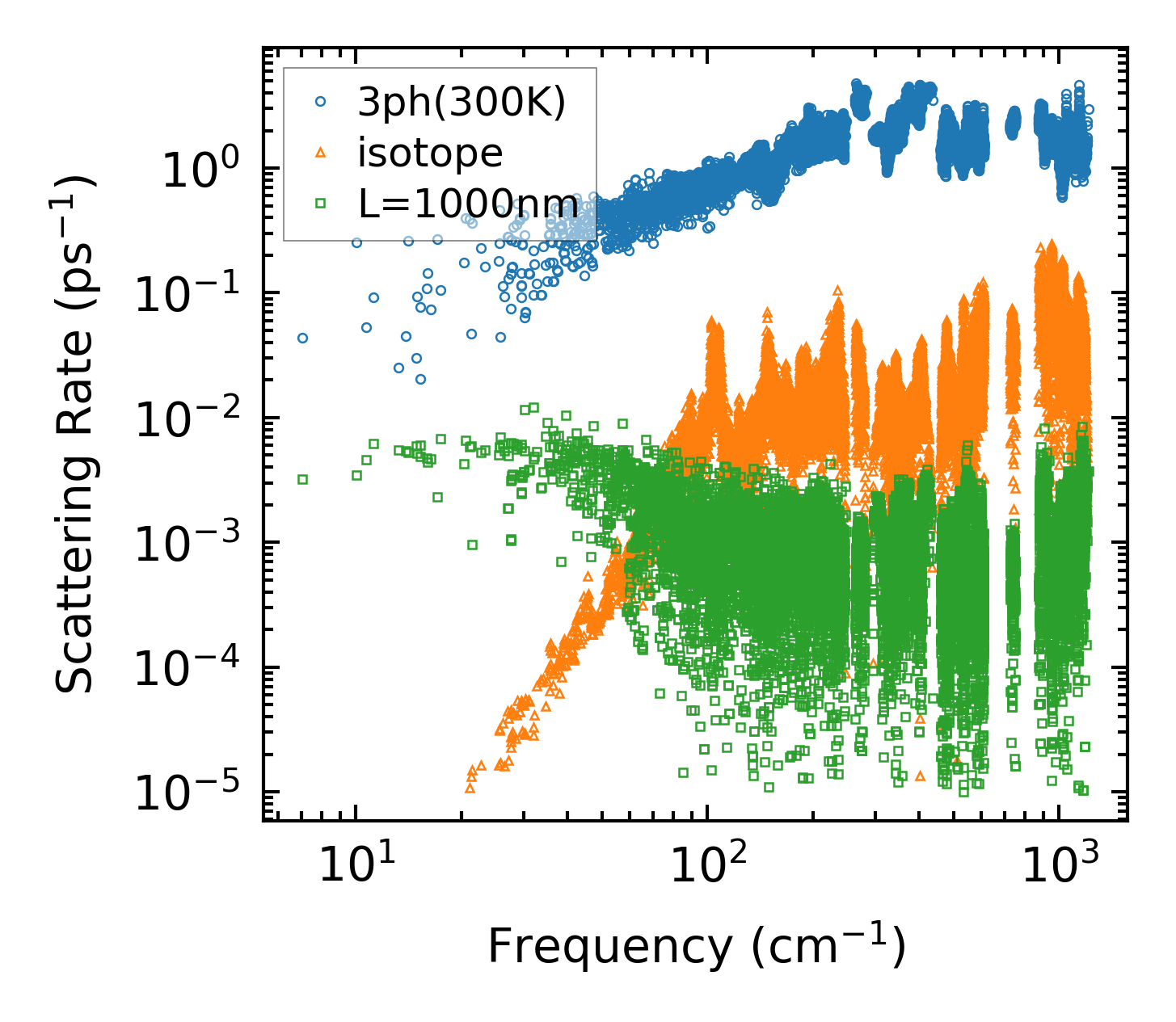

../../_images/fig_scat_rates3246.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

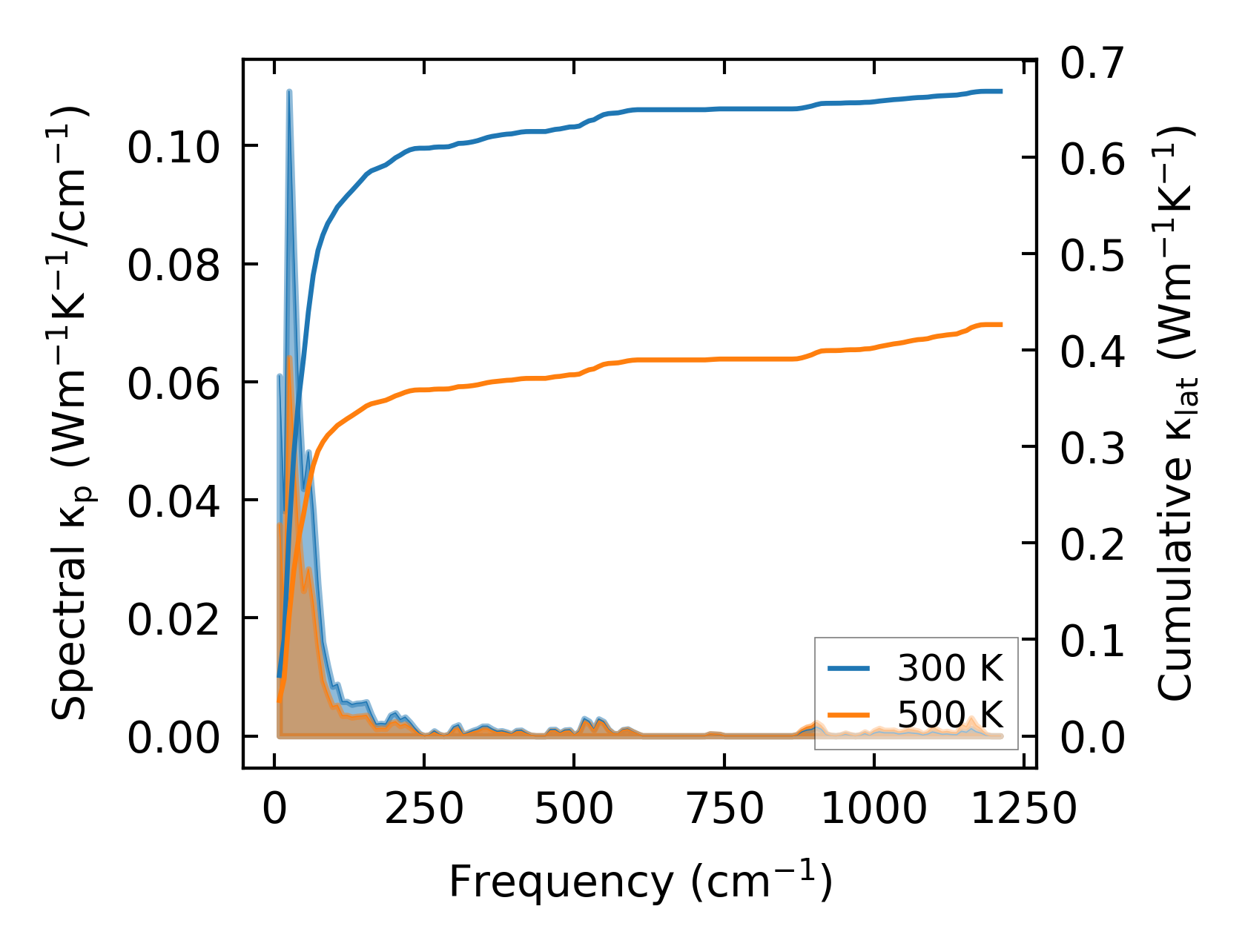

../../_images/fig_cumu_frequency3247.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

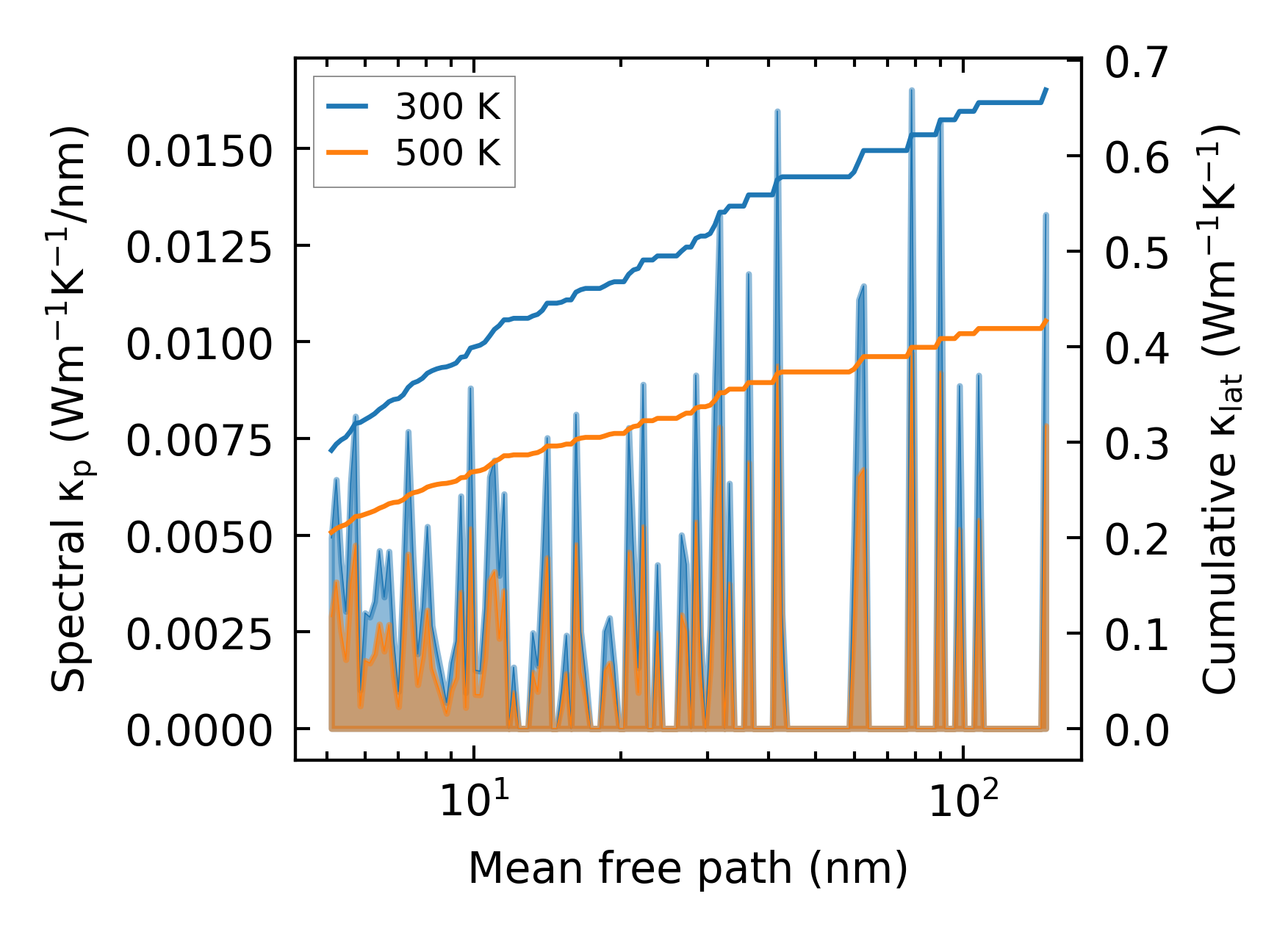

../../_images/fig_cumu_mfp3246.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

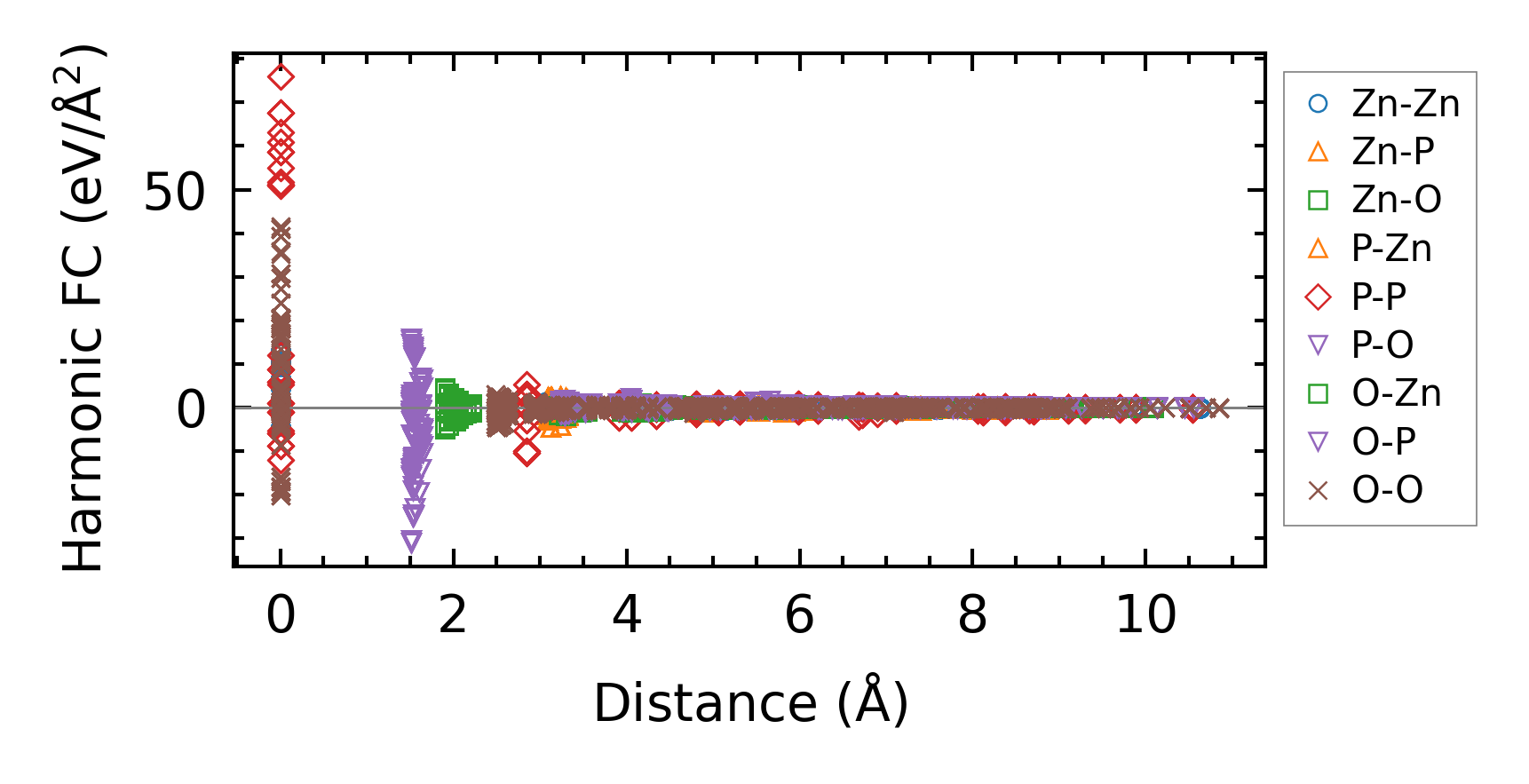

../../_images/fig_fc27665.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_times13928.png — (a) Computation time
