mp-559337-2/Nd7S6Cl9/anharm

Space group: P2/c (13)
Link: Materials Project
Download: mp-559337-2.tar.gz

Equation of state

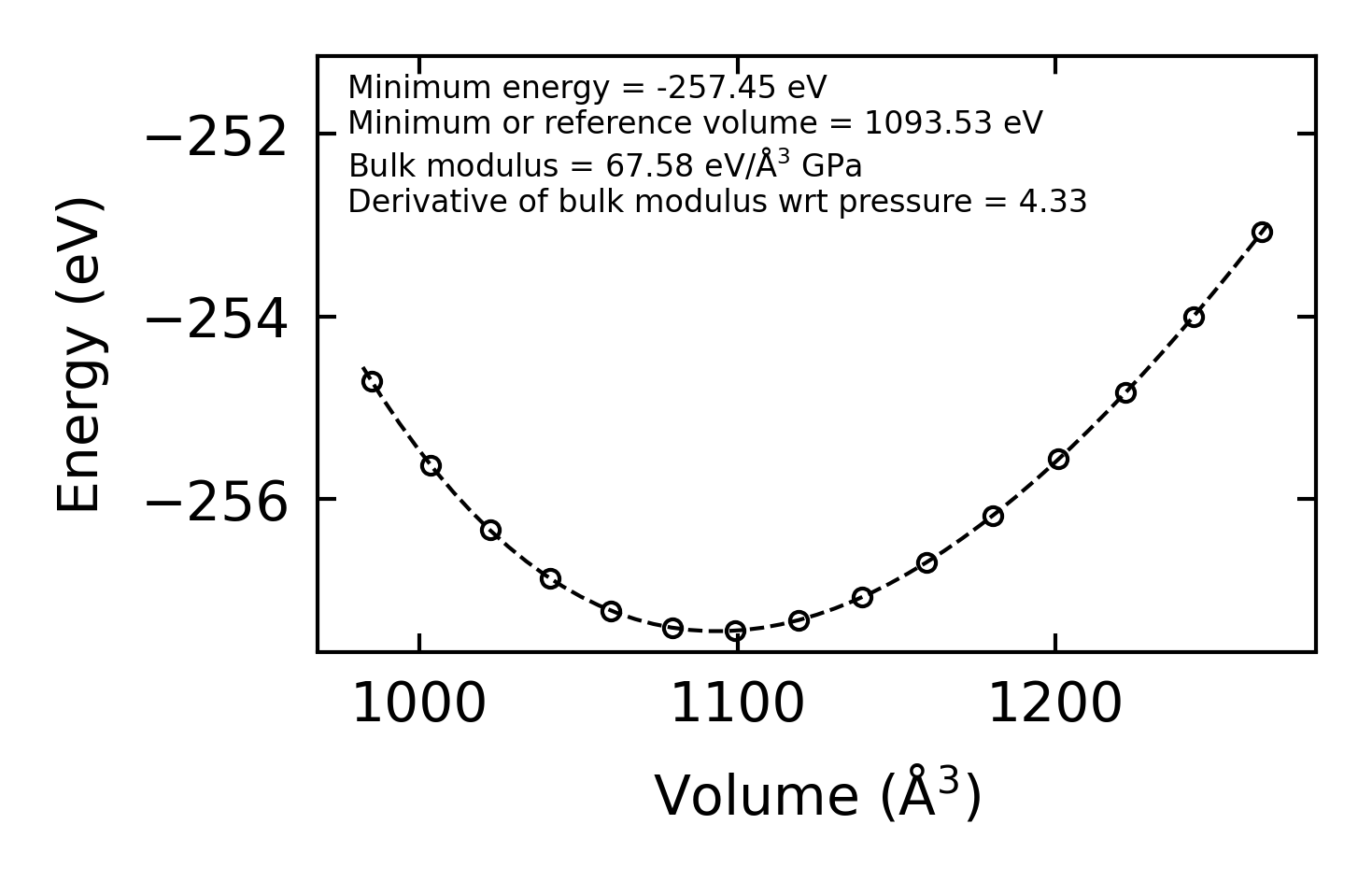

../../_images/fig_bm4072.png — (a) Equation of state

Harmonic properties

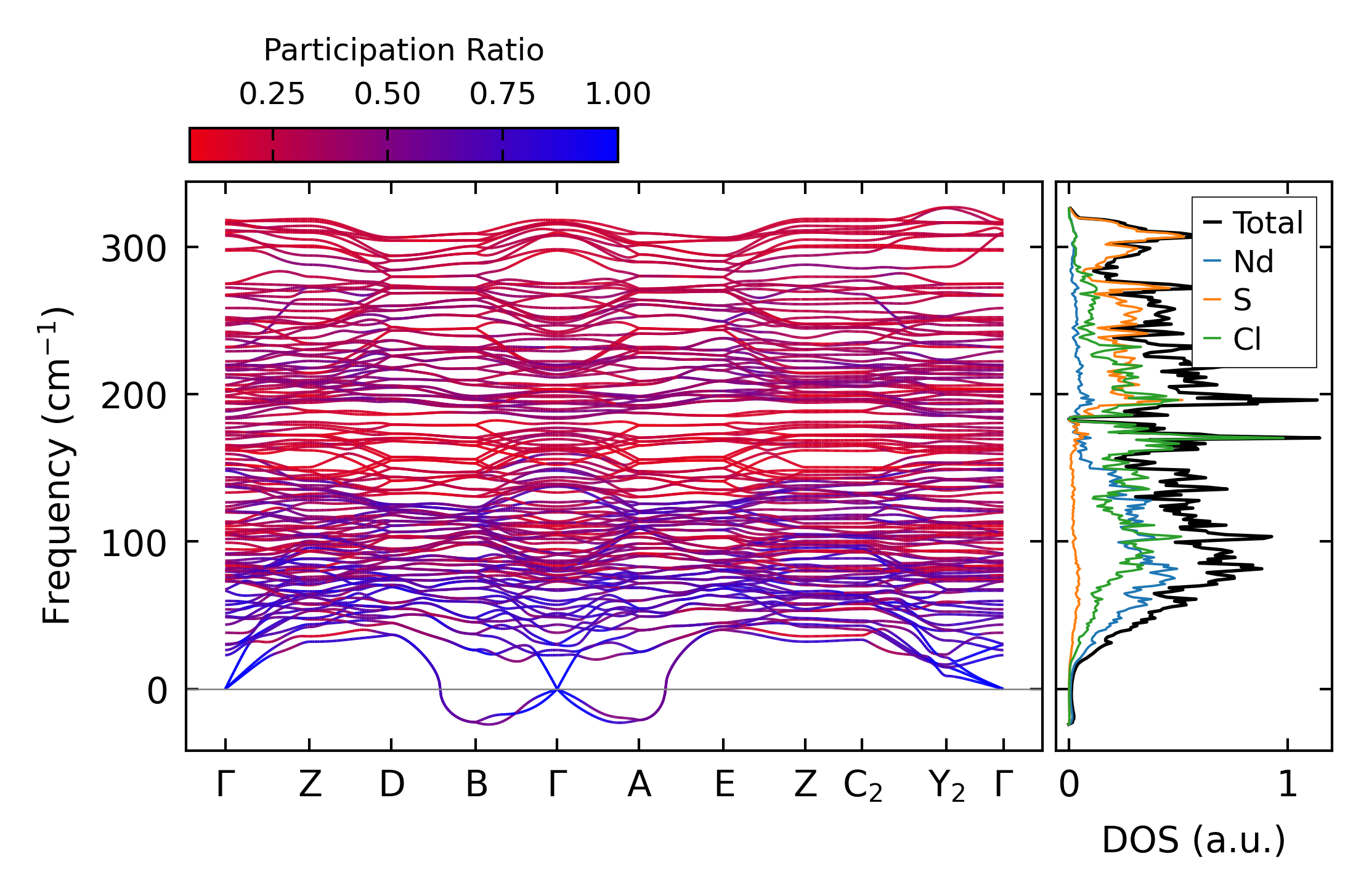

../../_images/fig_bandos_pr7907.png — (a) Phonon dispersion with participation ratio and DOS

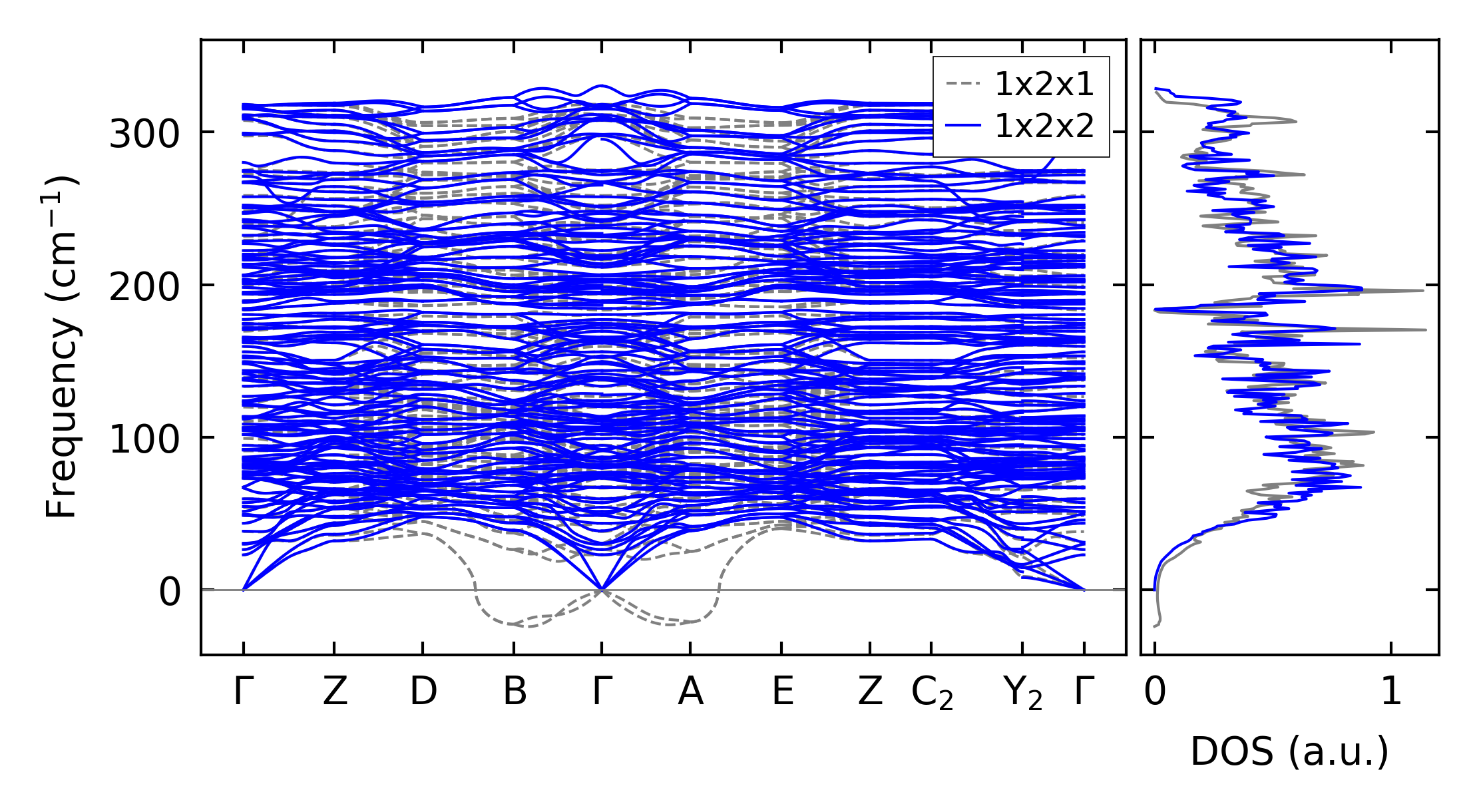

../../_images/fig_bandos11105.png — (b) Phonon dispersion and DOS

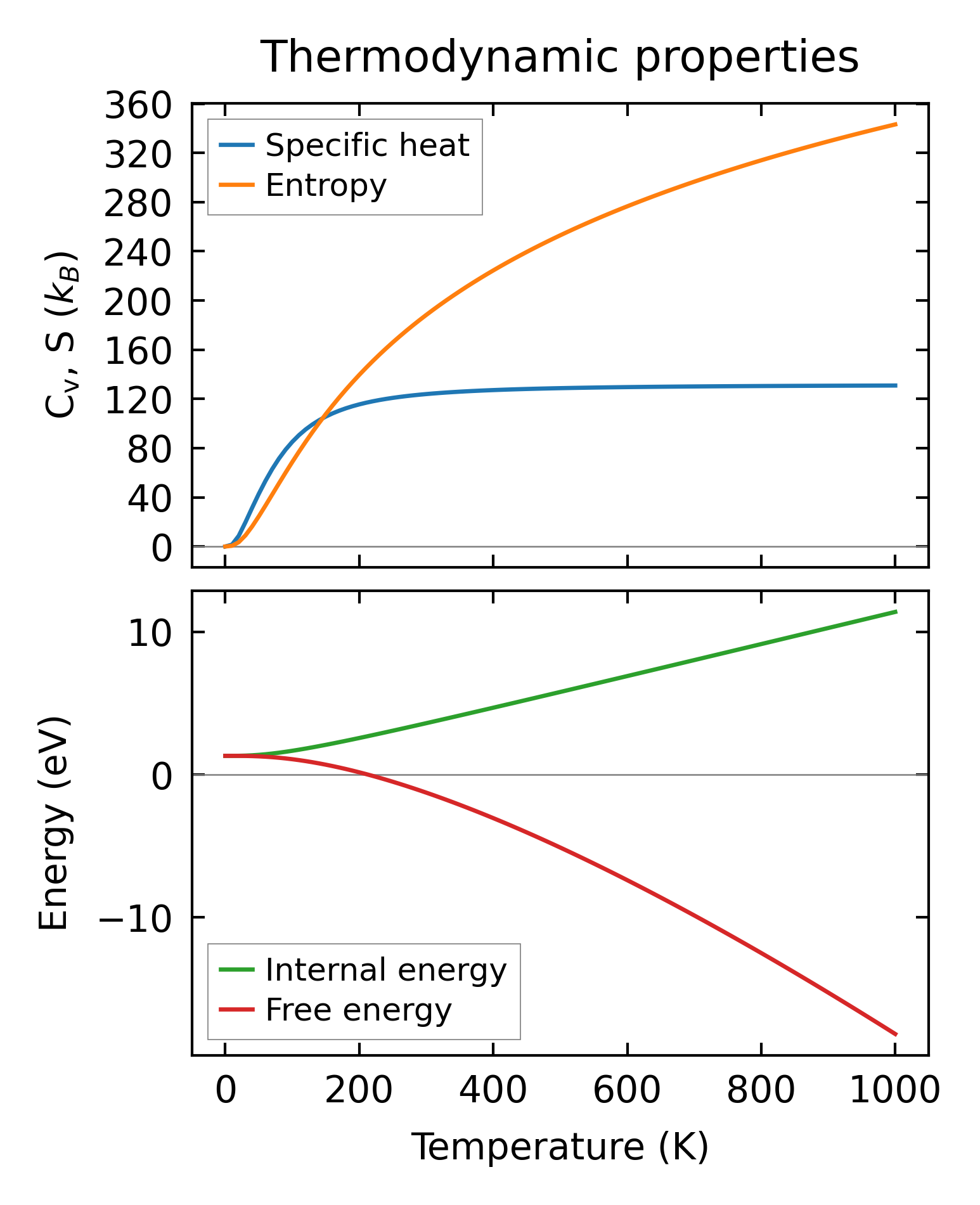

../../_images/fig_thermo7907.png — (c) Thermodynamic properties

Grüneisen parameters

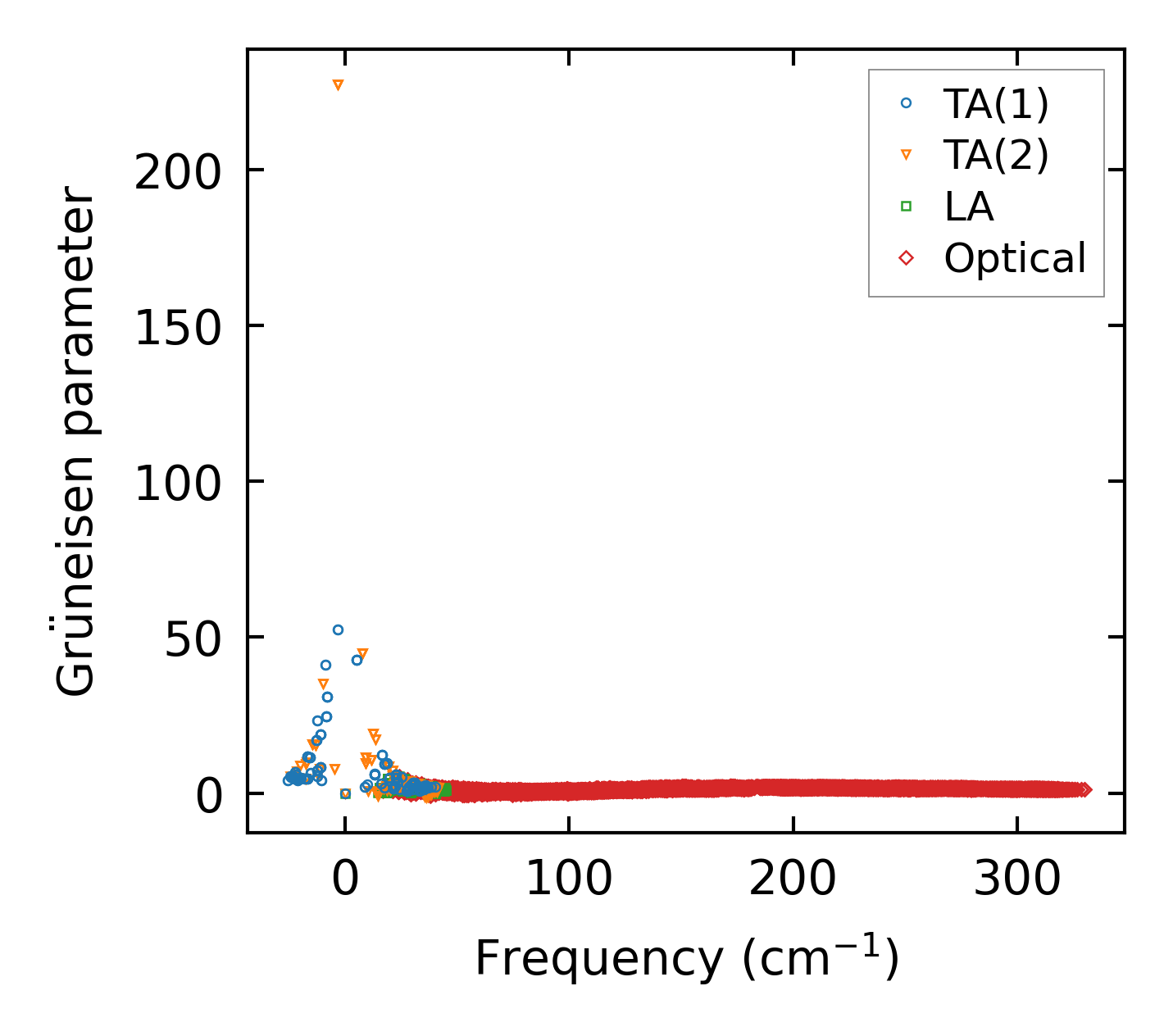

../../_images/fig_gru_all3276.png — (a) Grüneisen parameters

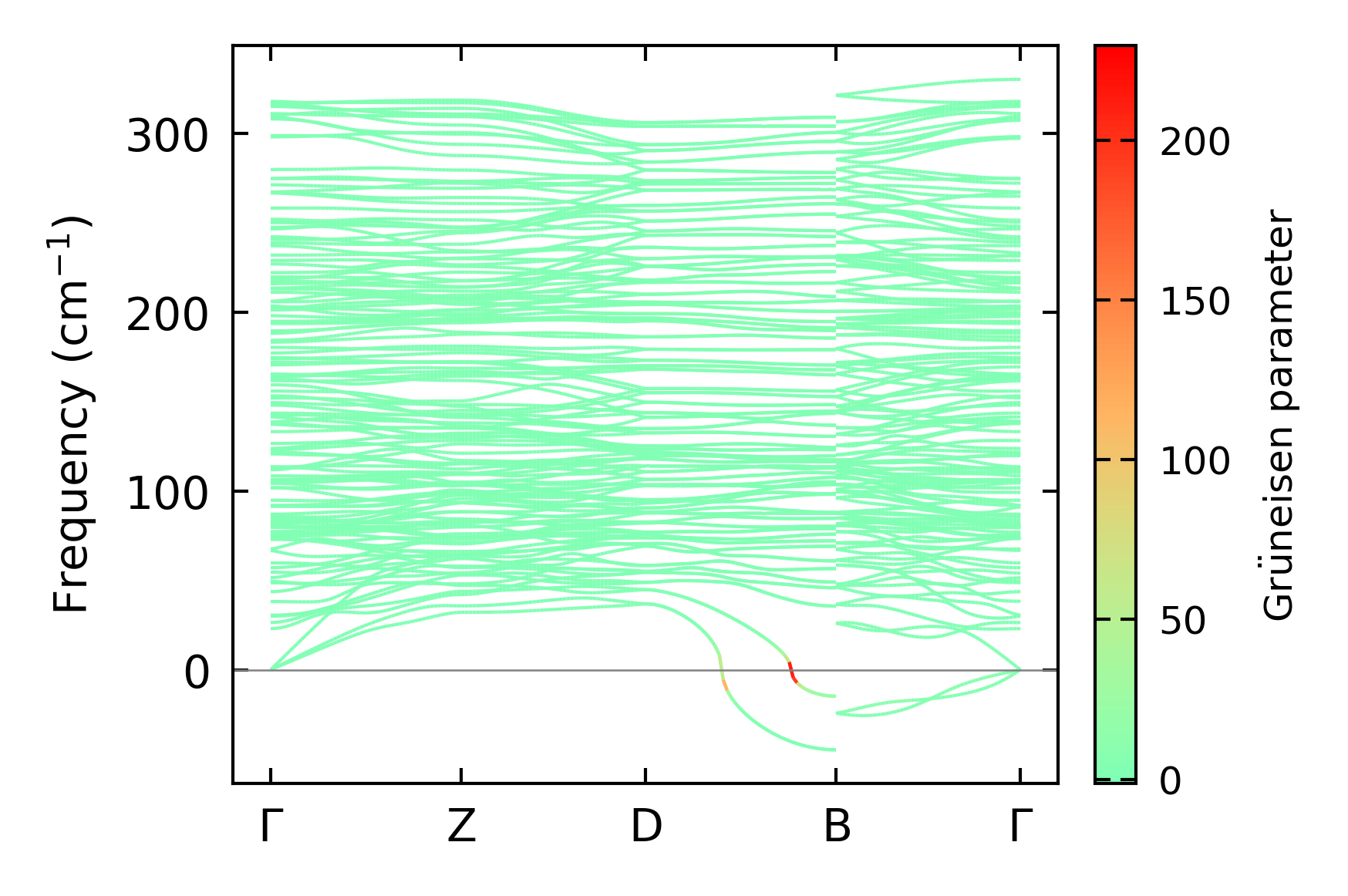

../../_images/fig_gruneisen3276.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 1x2x2 — q-mesh: 2x10x10, supercell: 1x2x2

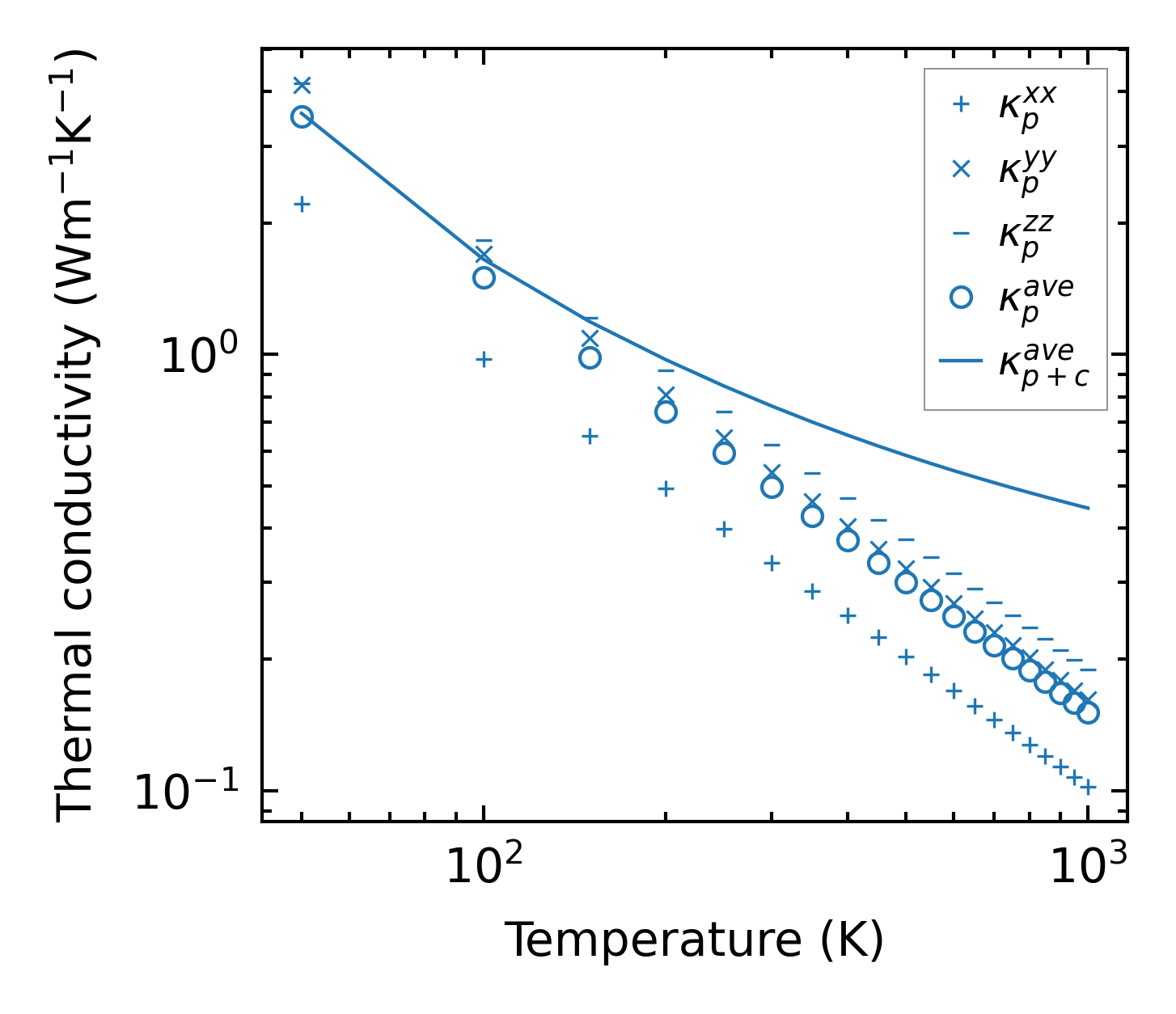

../../_images/fig_kappa6206.png — (a) Temperature-dependent lattice thermal conductivity

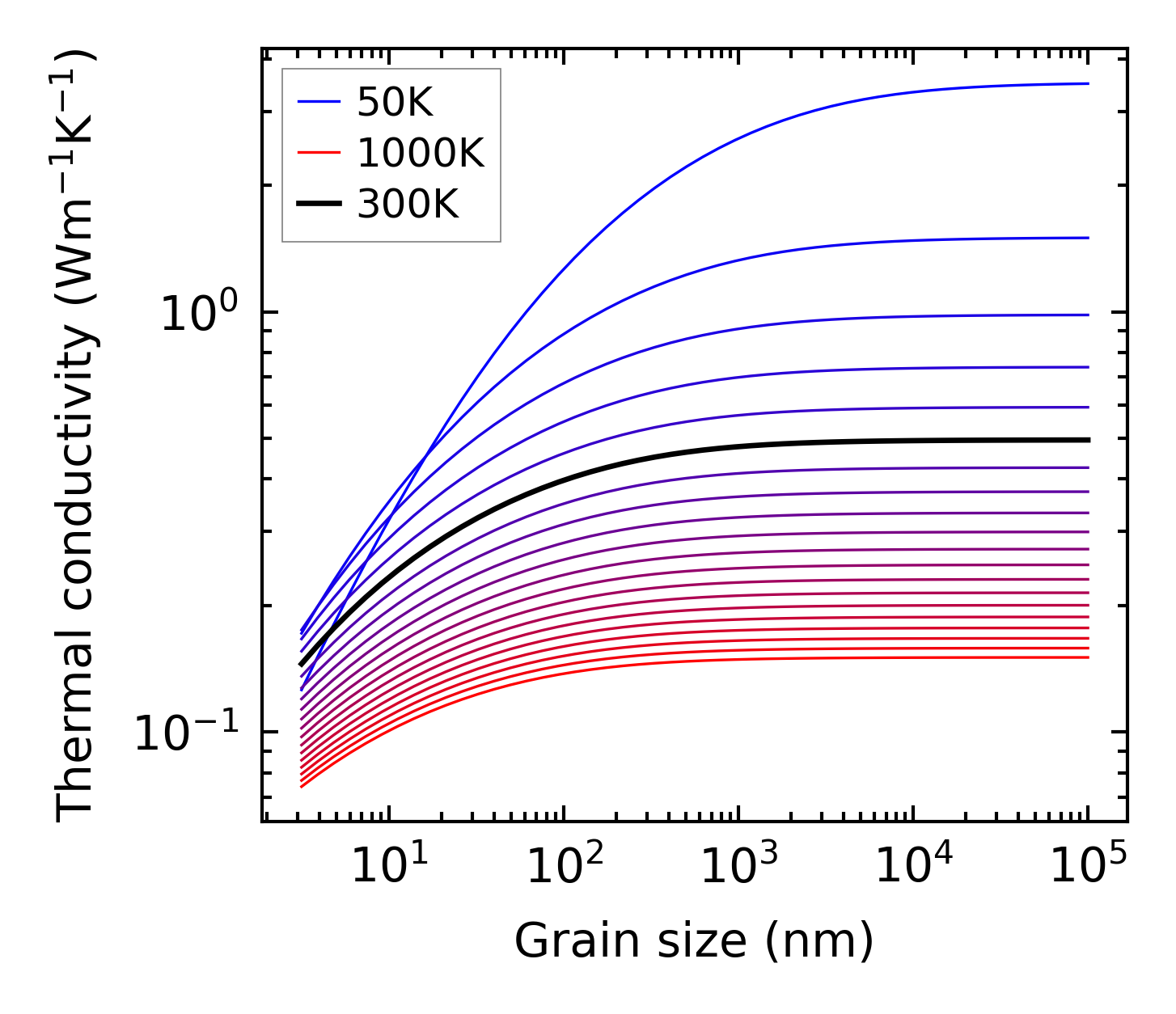

../../_images/fig_kappa_vs_grain_size3319.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

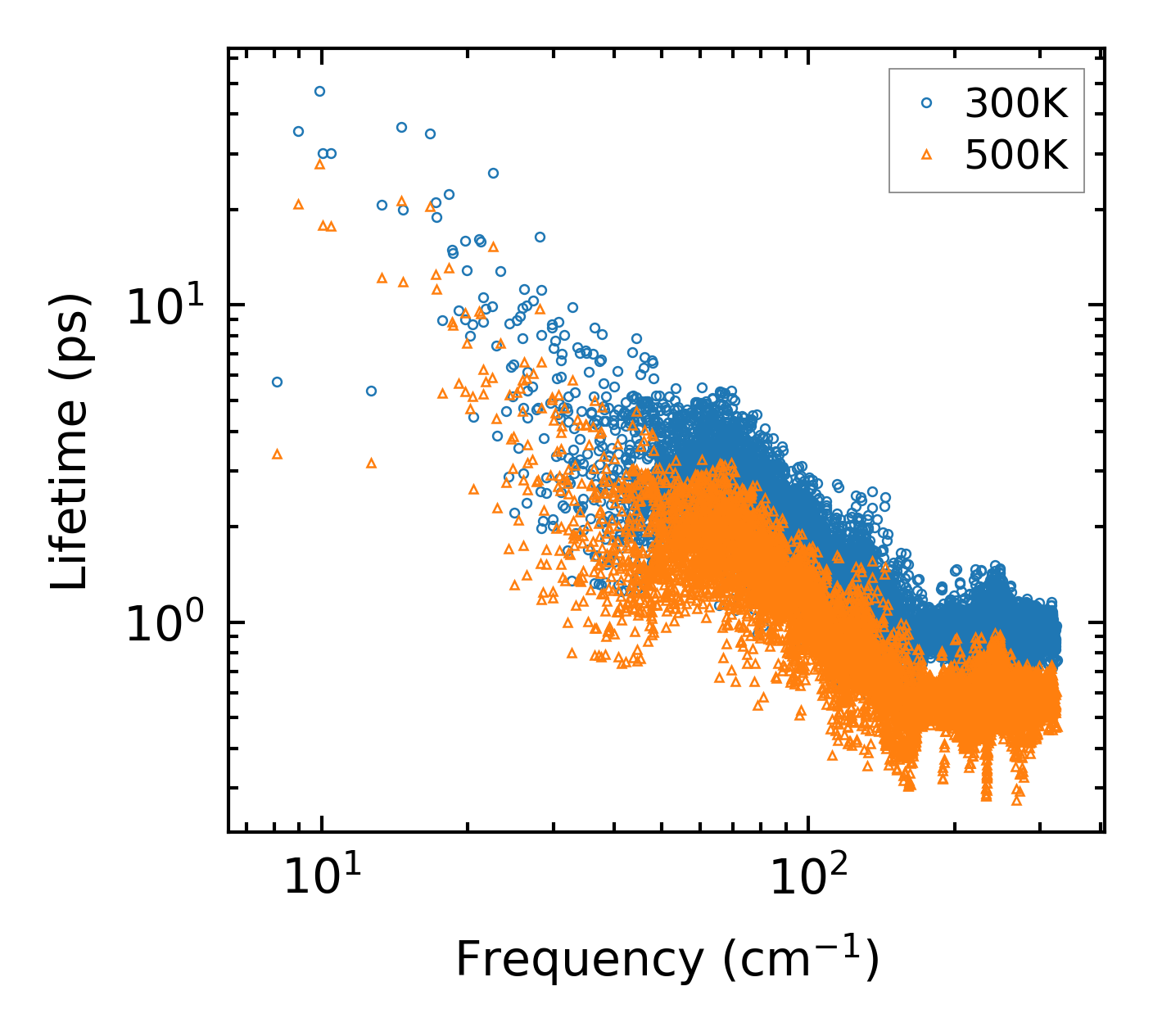

../../_images/fig_lifetime3248.png — (a) Phonon lifetime due to phonon-phonon scattering

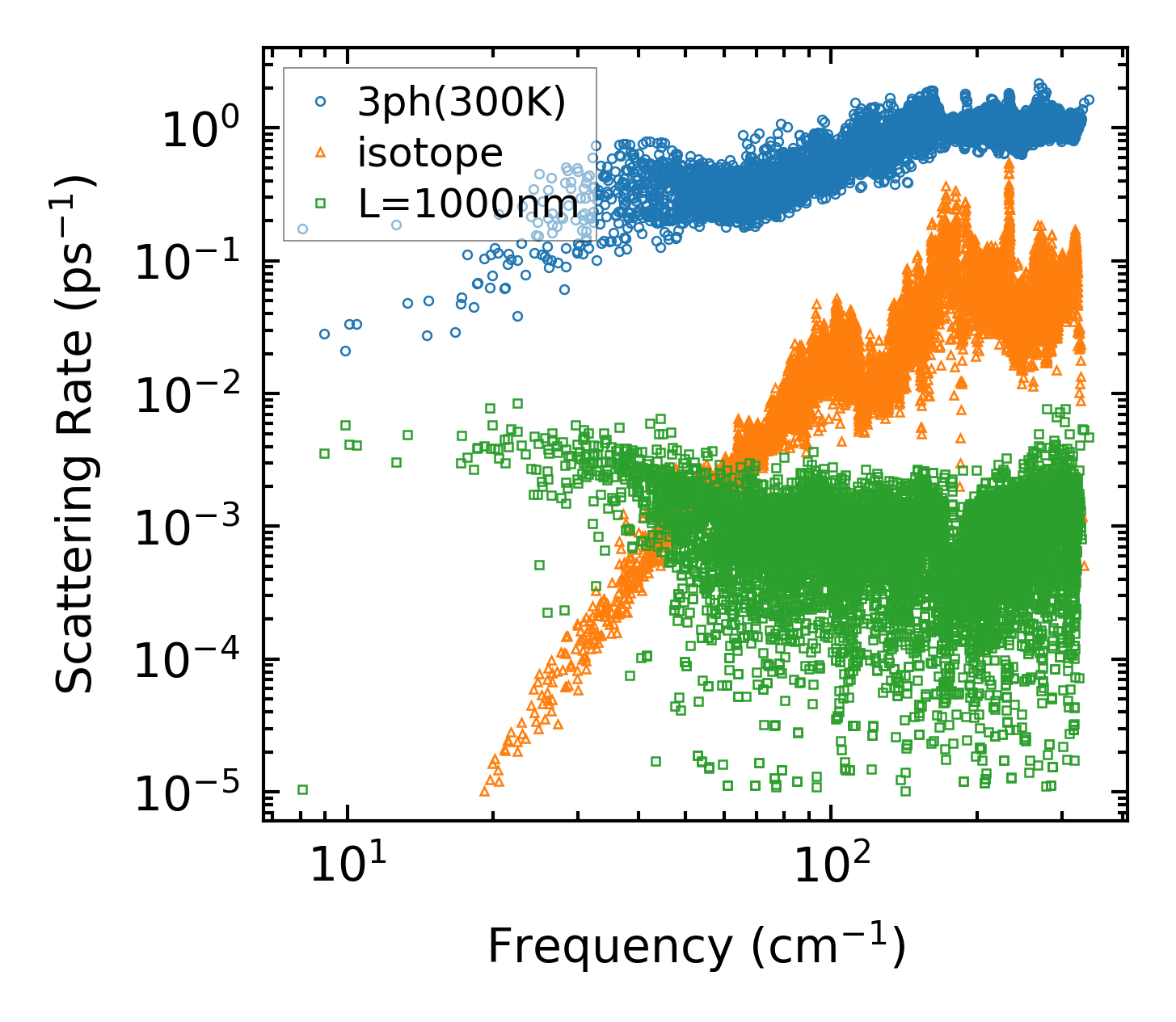

../../_images/fig_scat_rates3247.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

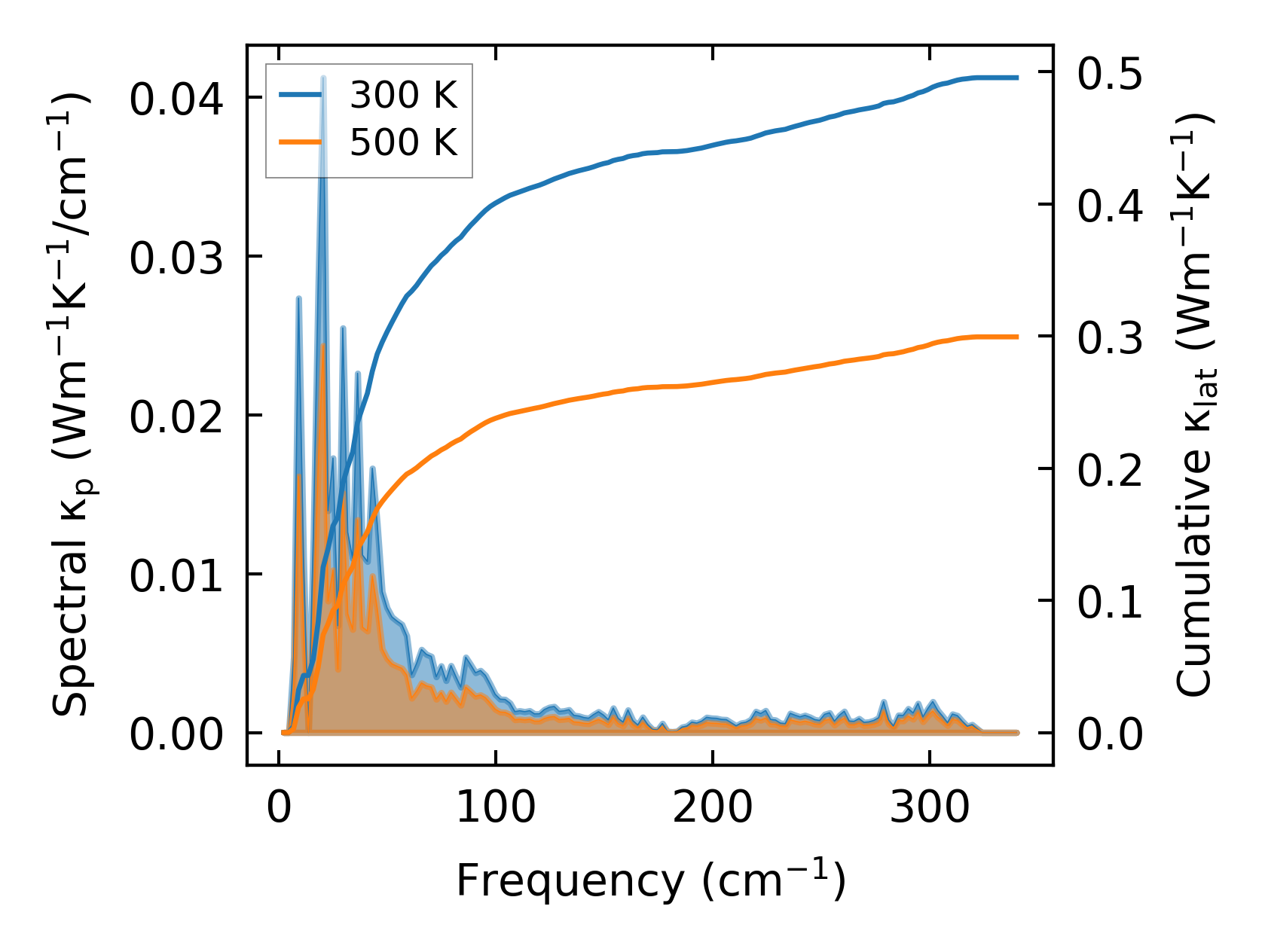

../../_images/fig_cumu_frequency3248.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

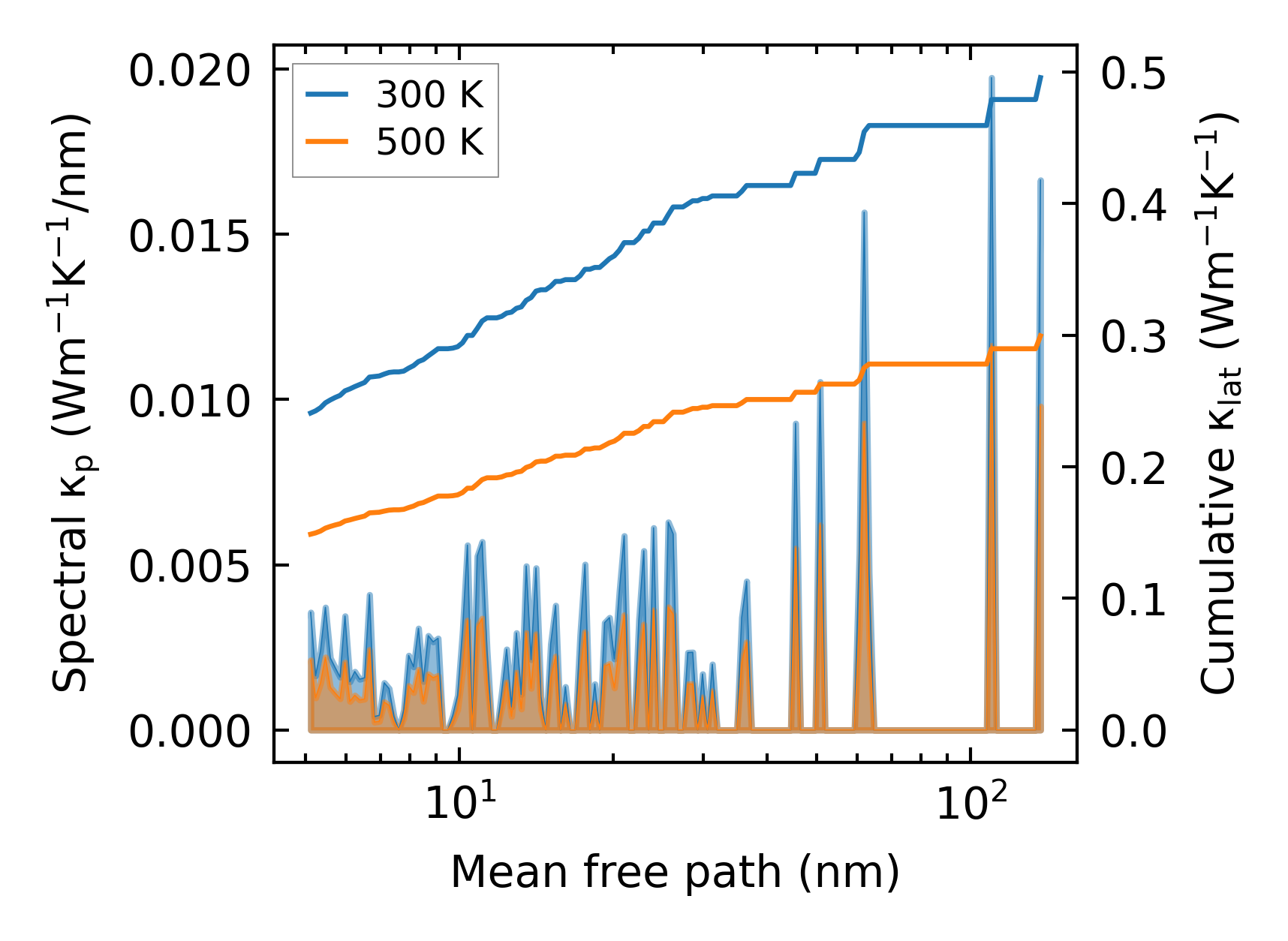

../../_images/fig_cumu_mfp3247.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

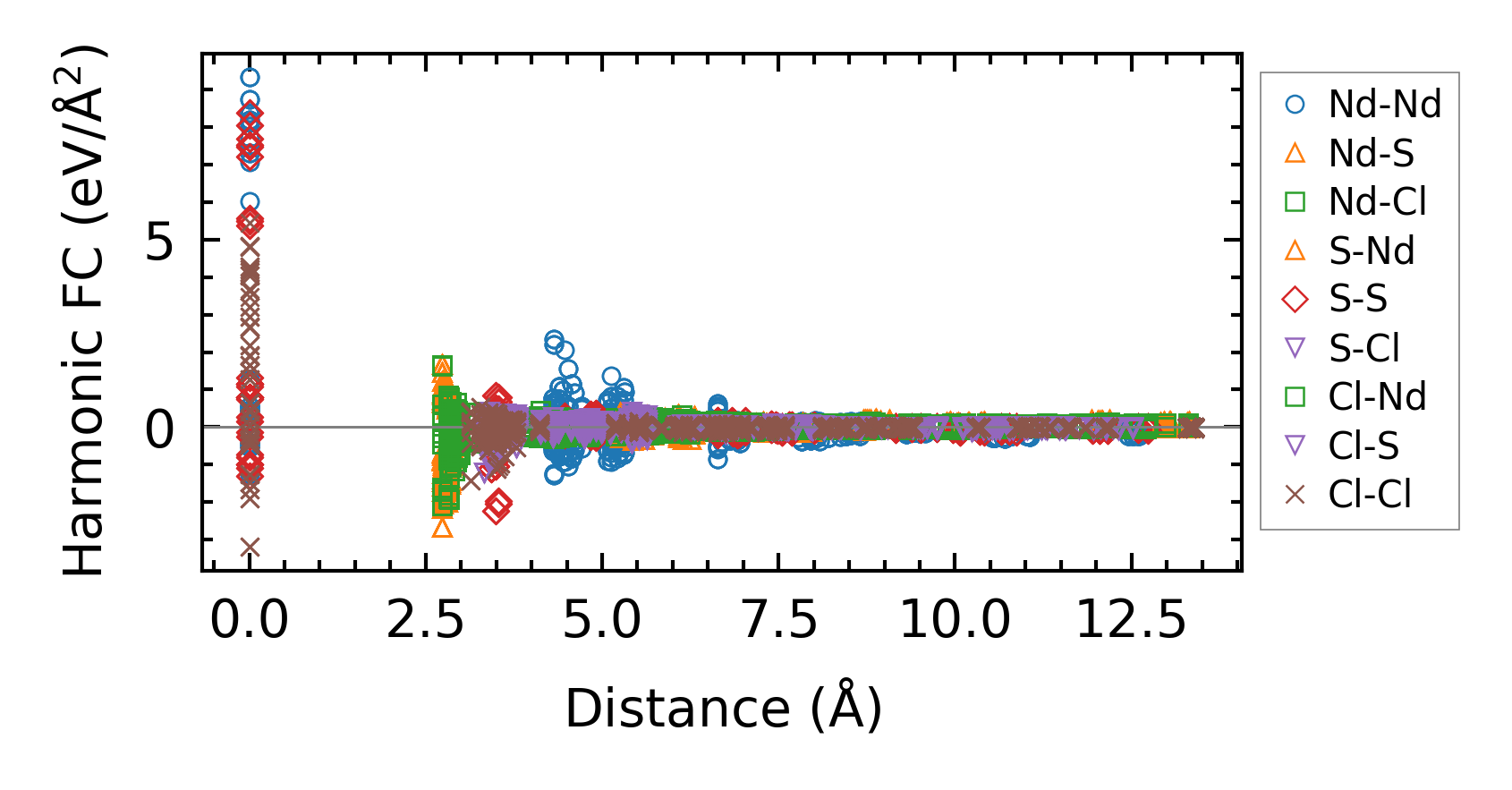

../../_images/fig_fc27669.png — (a) Force constants w.r.t atomic distance

Summary

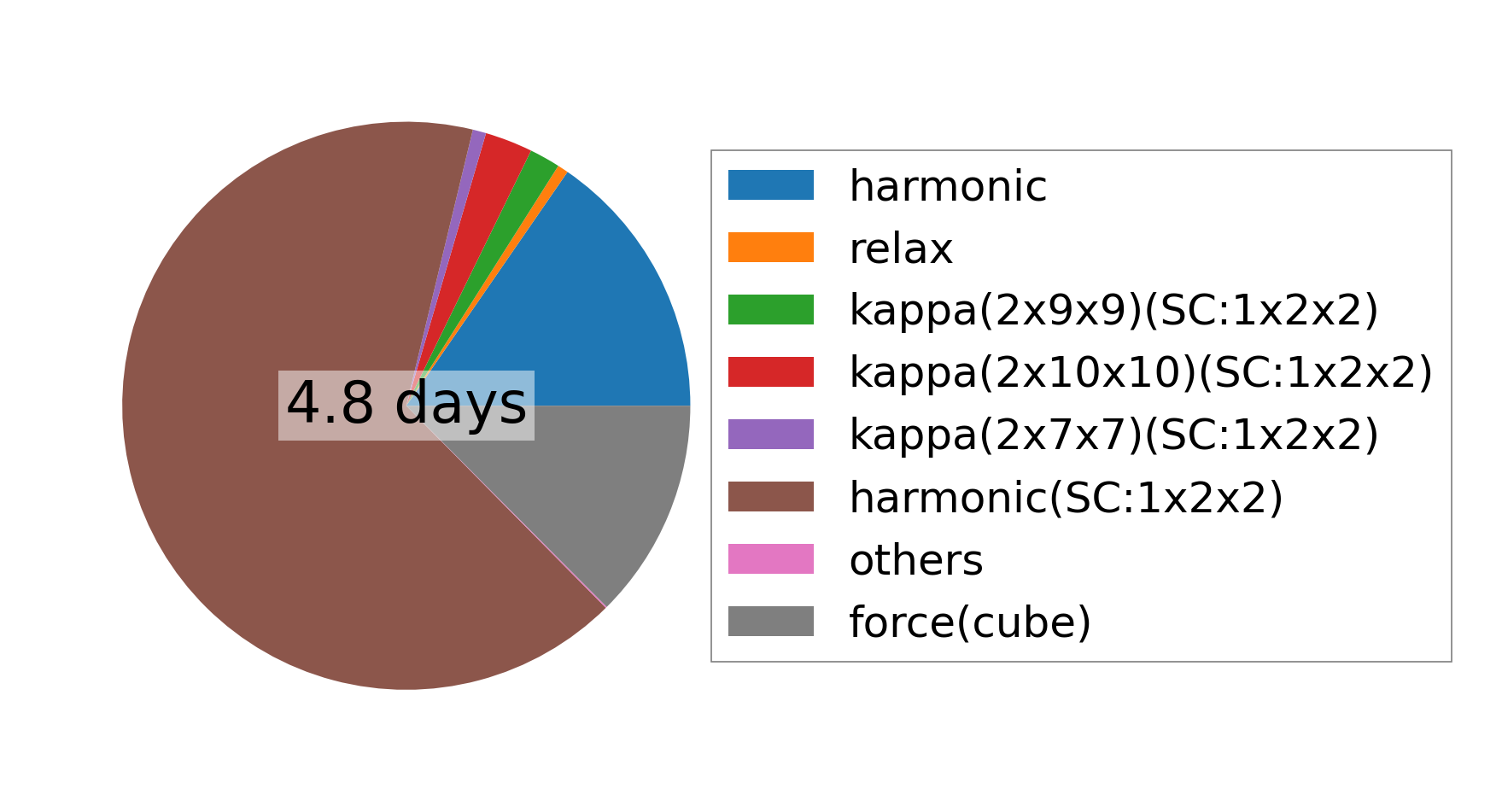

../../_images/fig_times13937.png — (a) Computation time
