mp-16905/Ba2MnTe3/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-16905.tar.gz

Harmonic properties

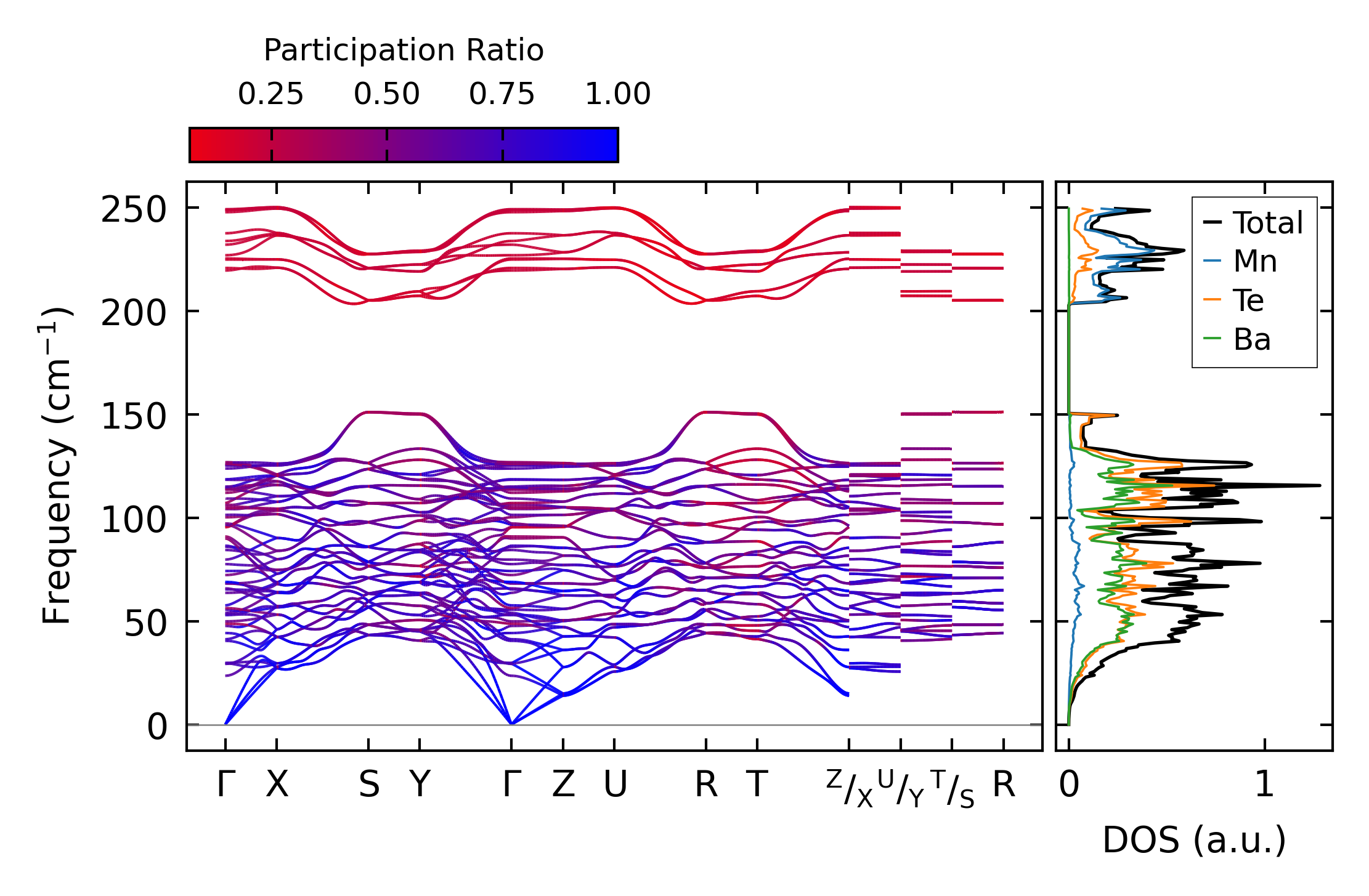

../../_images/fig_bandos_pr14120.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo14120.png — (b) Thermodynamic properties

Grüneisen parameters

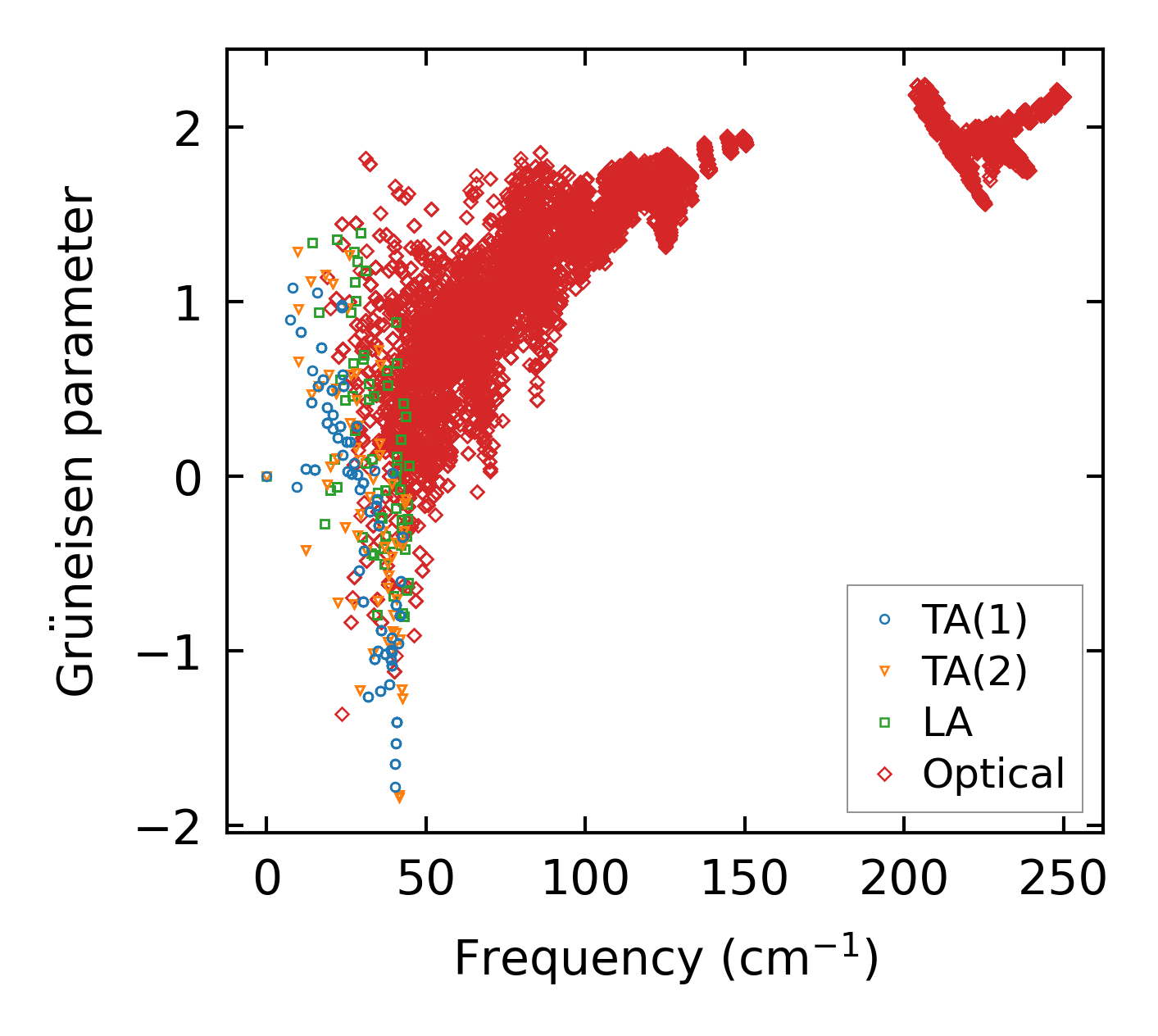

../../_images/fig_gru_all5993.png — (a) Grüneisen parameters

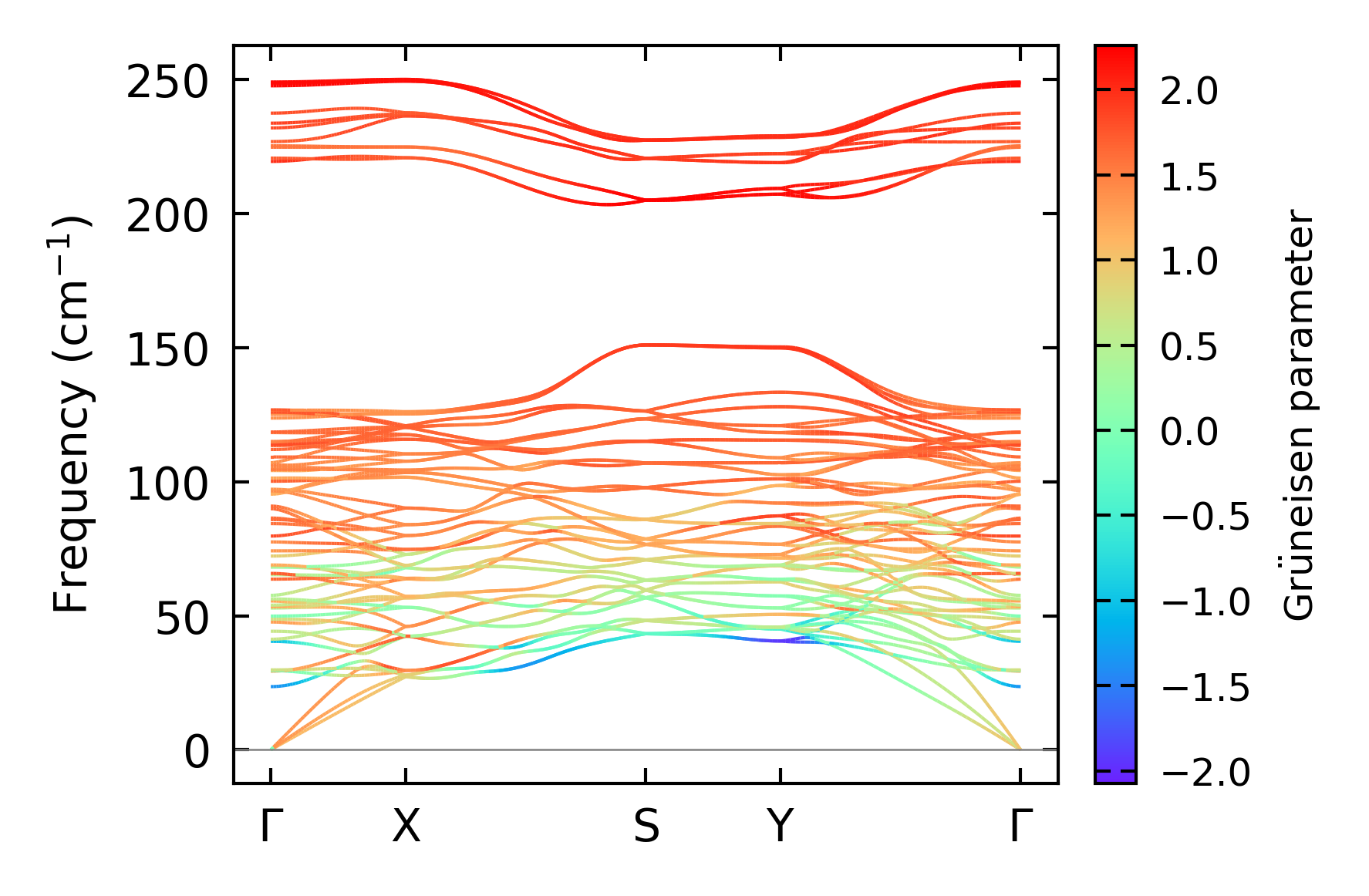

../../_images/fig_gruneisen5993.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x15x3, supercell: 2x3x1

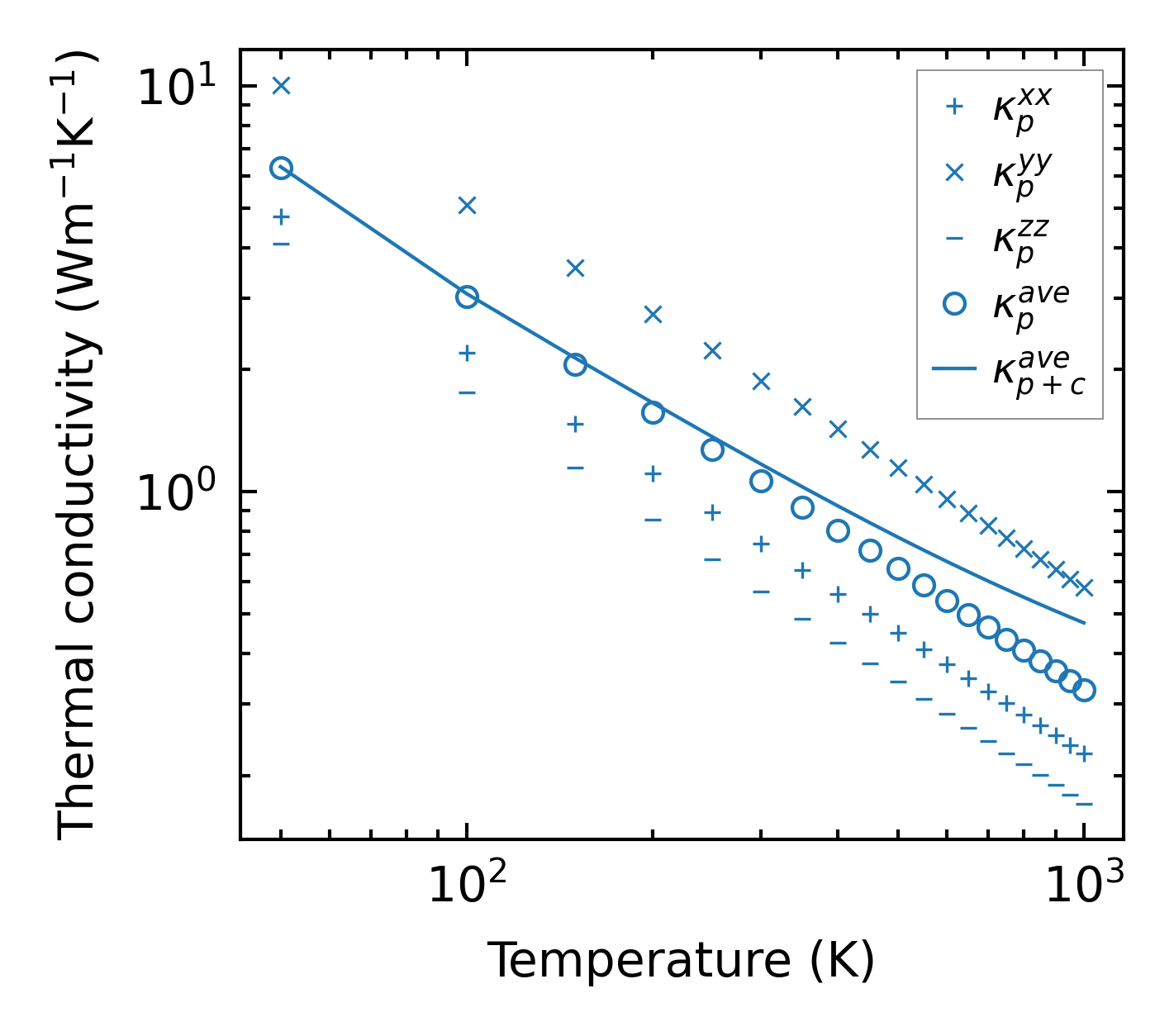

../../_images/fig_kappa11283.png — (a) Temperature-dependent lattice thermal conductivity

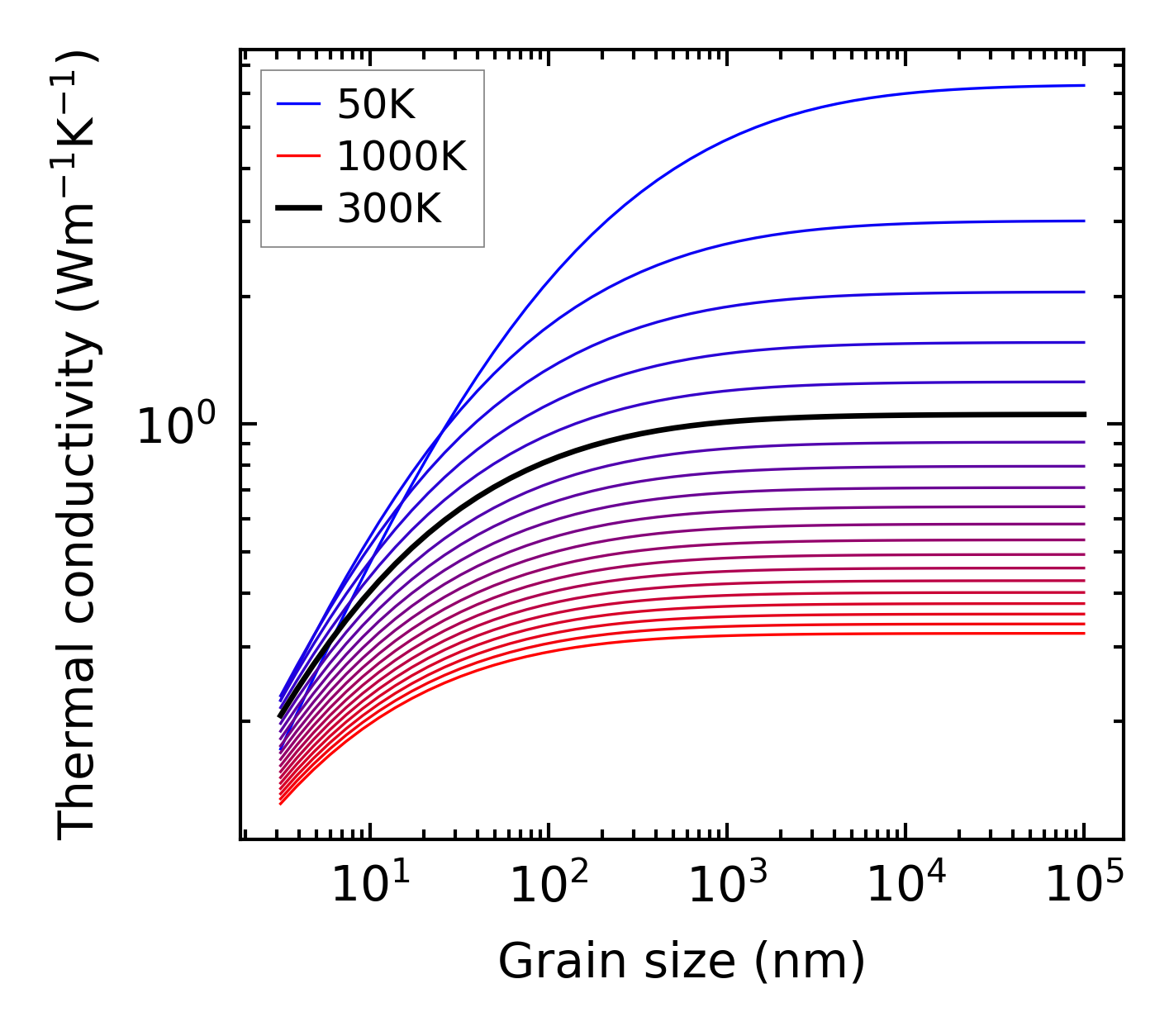

../../_images/fig_kappa_vs_grain_size6072.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

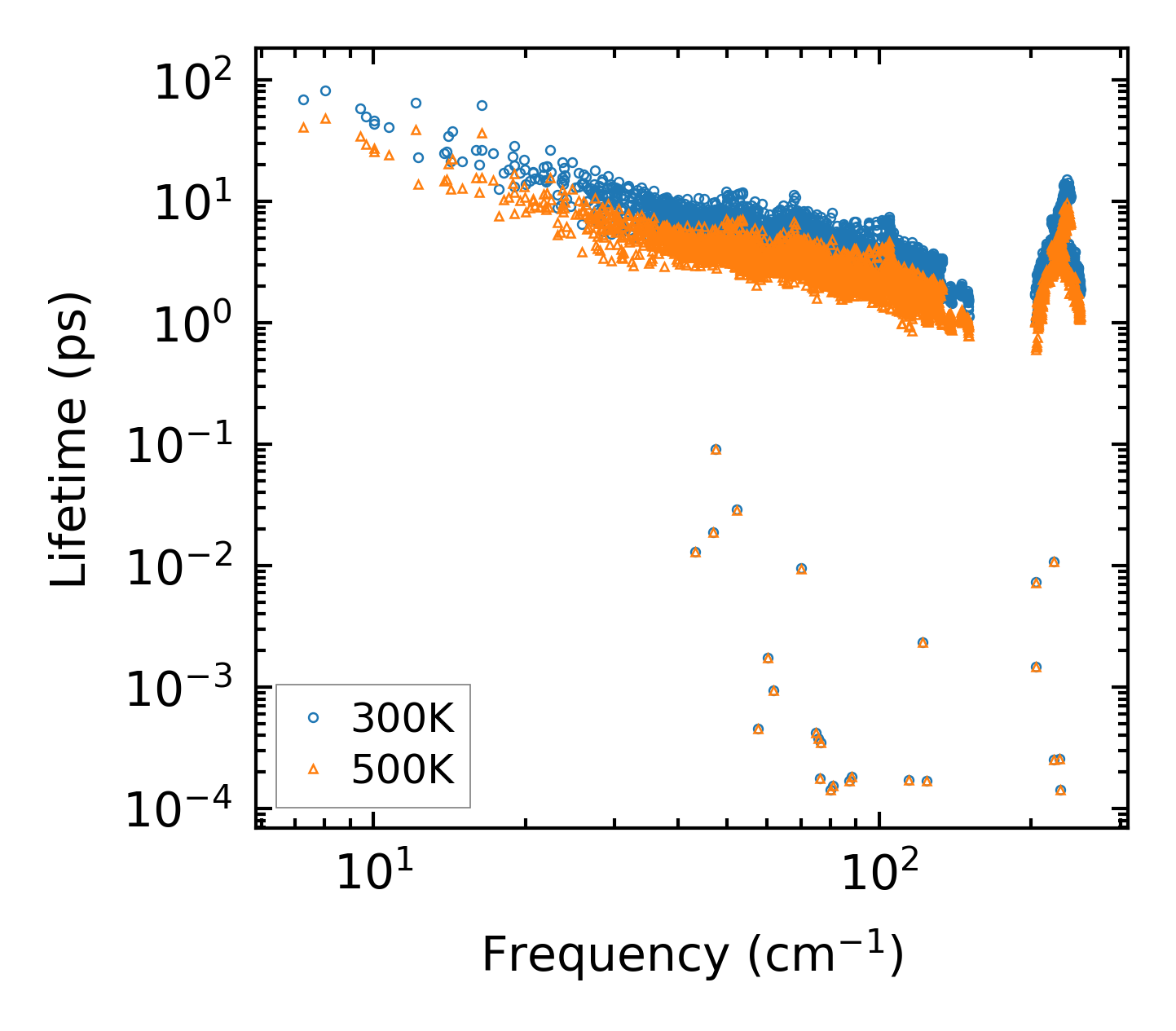

../../_images/fig_lifetime5936.png — (a) Phonon lifetime due to phonon-phonon scattering

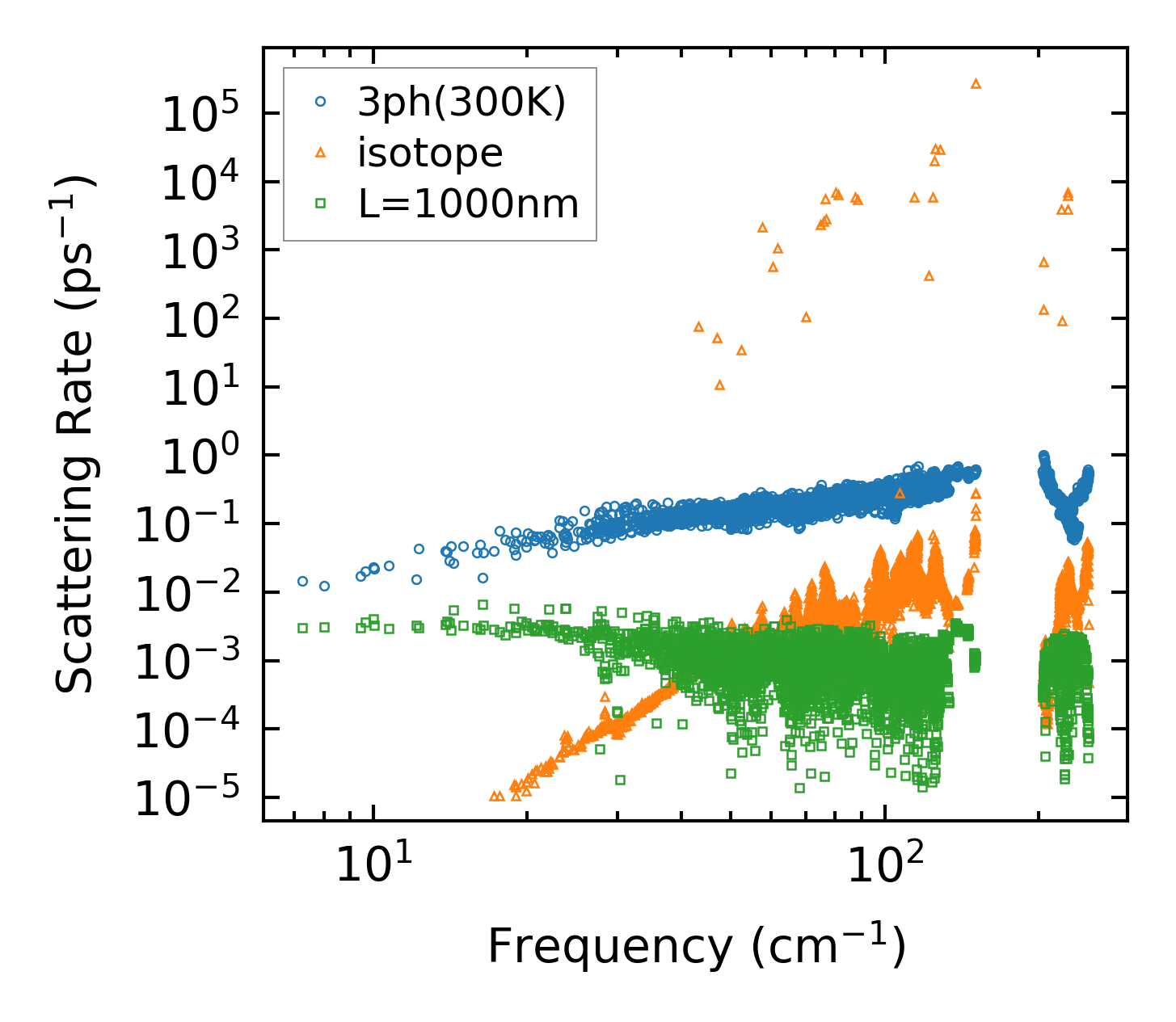

../../_images/fig_scat_rates5935.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

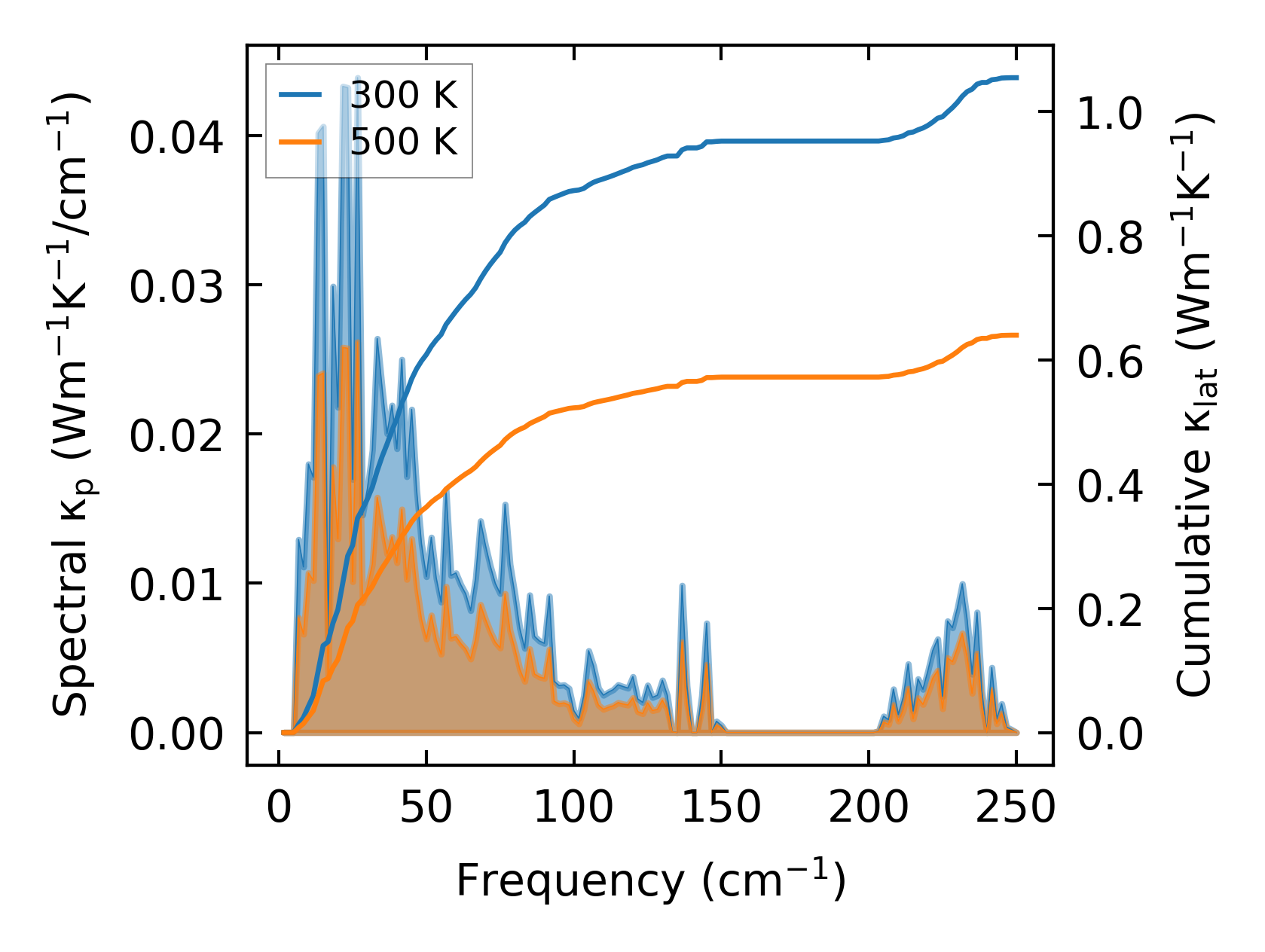

../../_images/fig_cumu_frequency5936.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

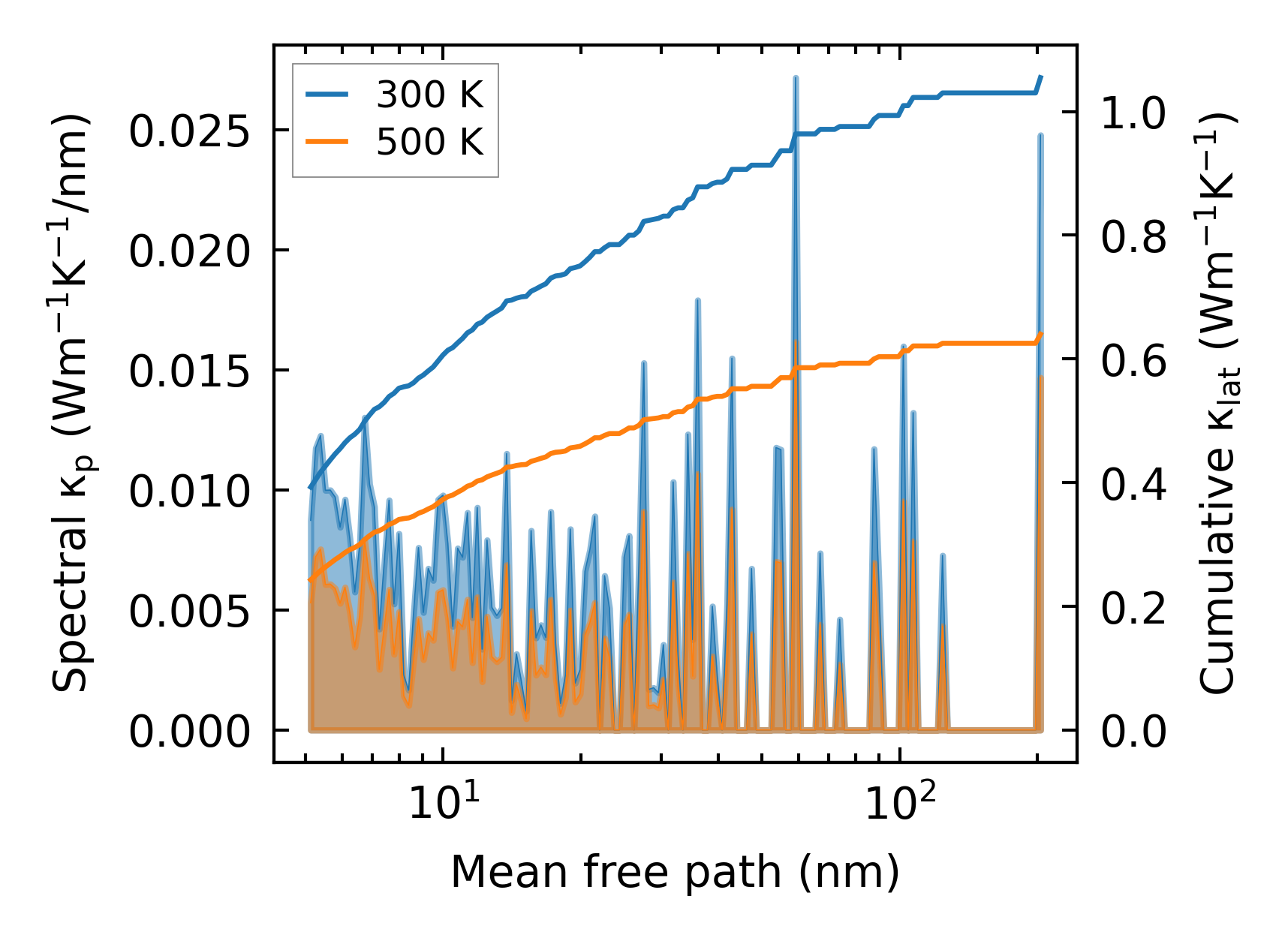

../../_images/fig_cumu_mfp5935.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

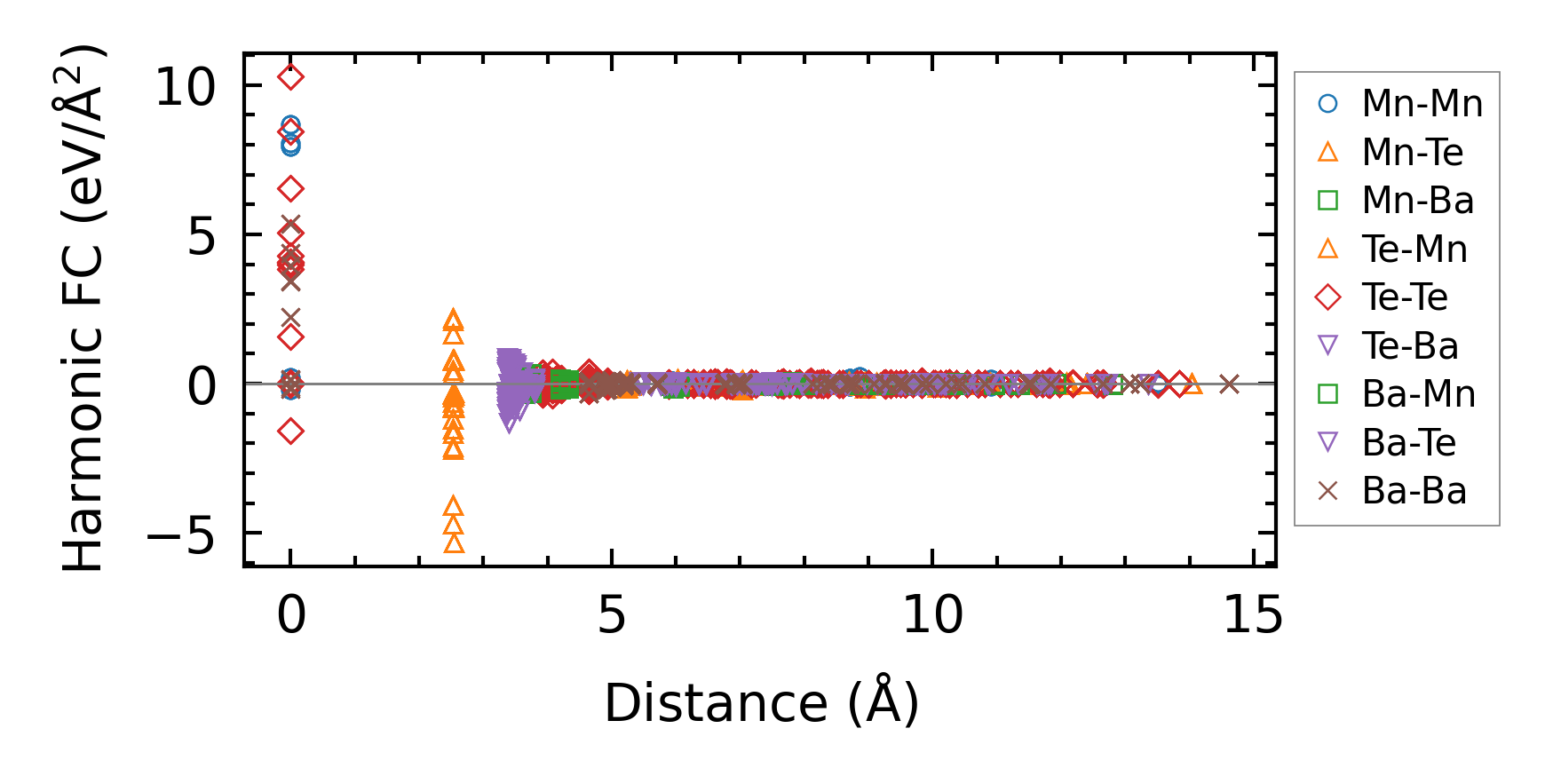

../../_images/fig_fc213748.png — (a) Force constants w.r.t atomic distance

Summary

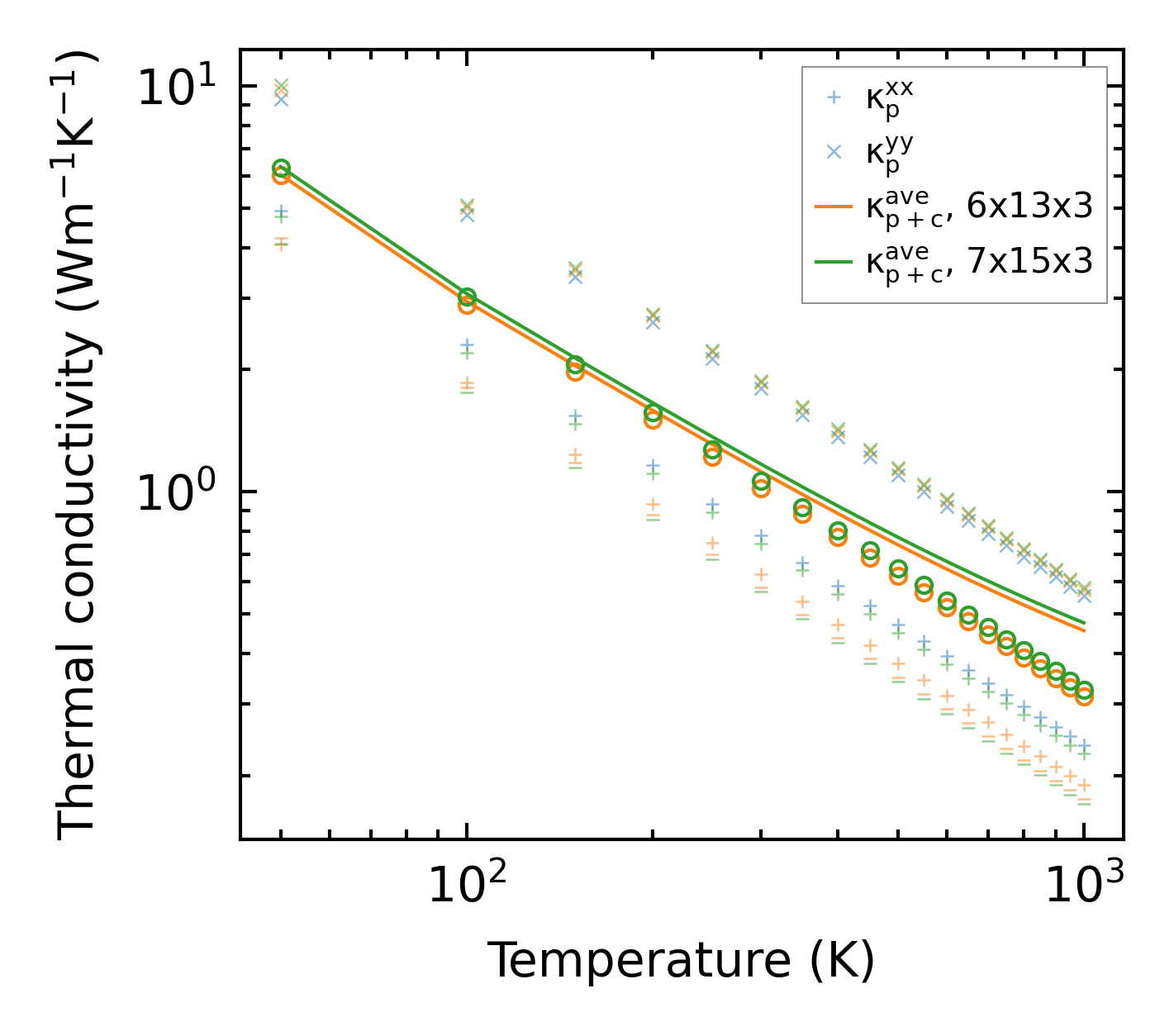

../../_images/fig_kappa11284.png — (a) Temperature-dependent lattice thermal conductivity

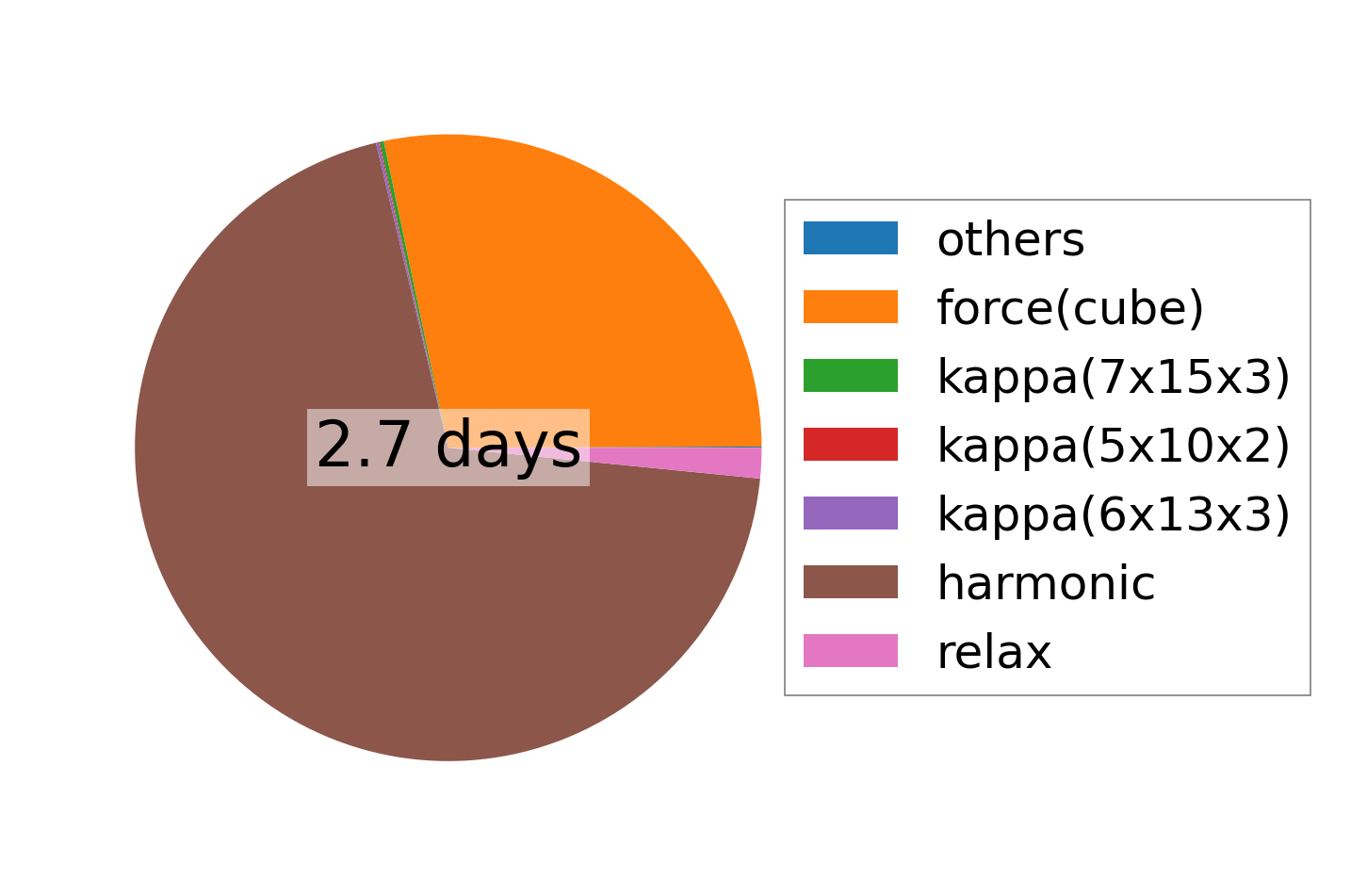

../../_images/fig_times23622.png — (b) Computation time
