mp-16364-2/SnTe/harm

Equation of state

../../_images/fig_bm7210.png

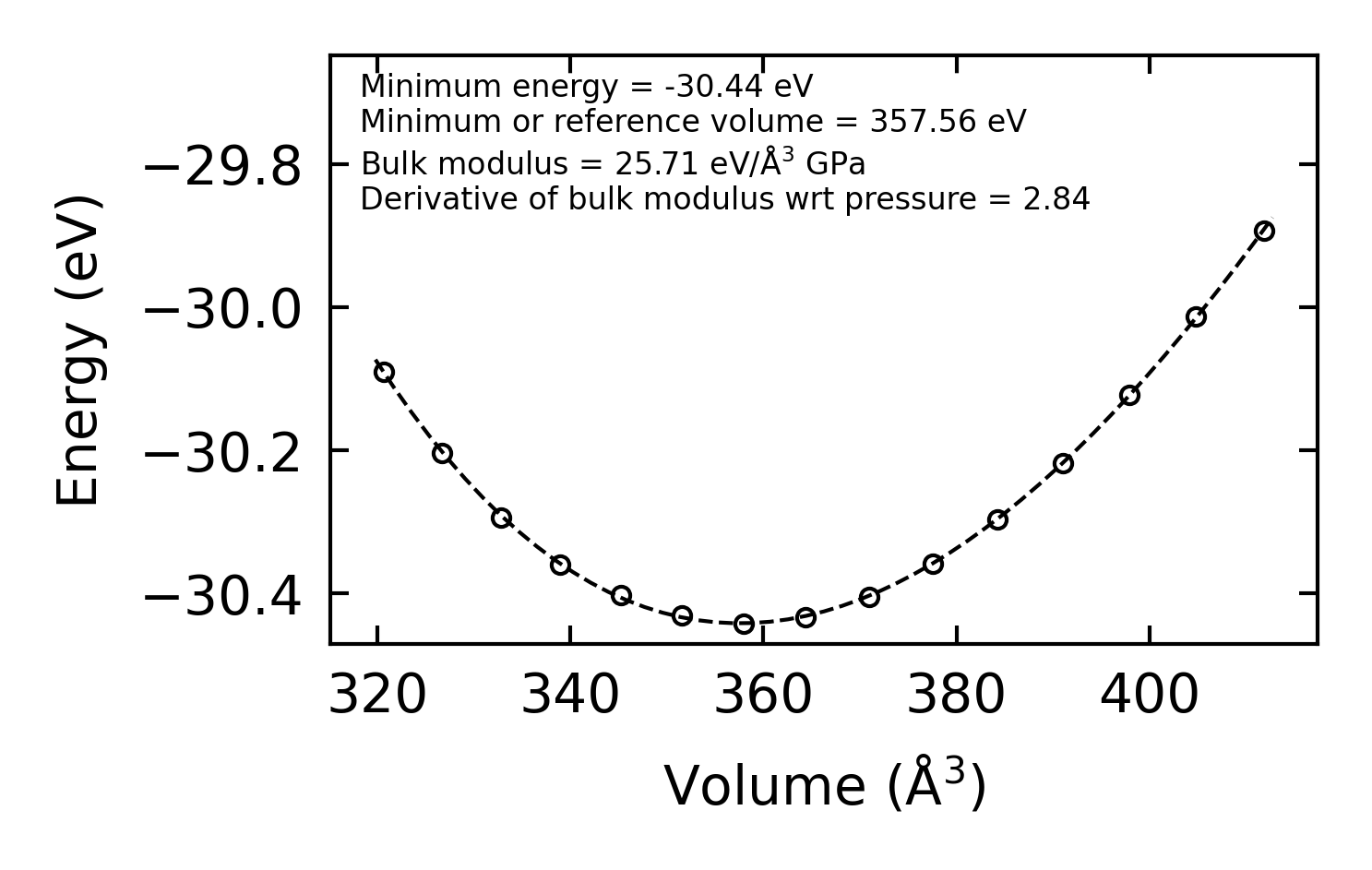

(a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr14428.png

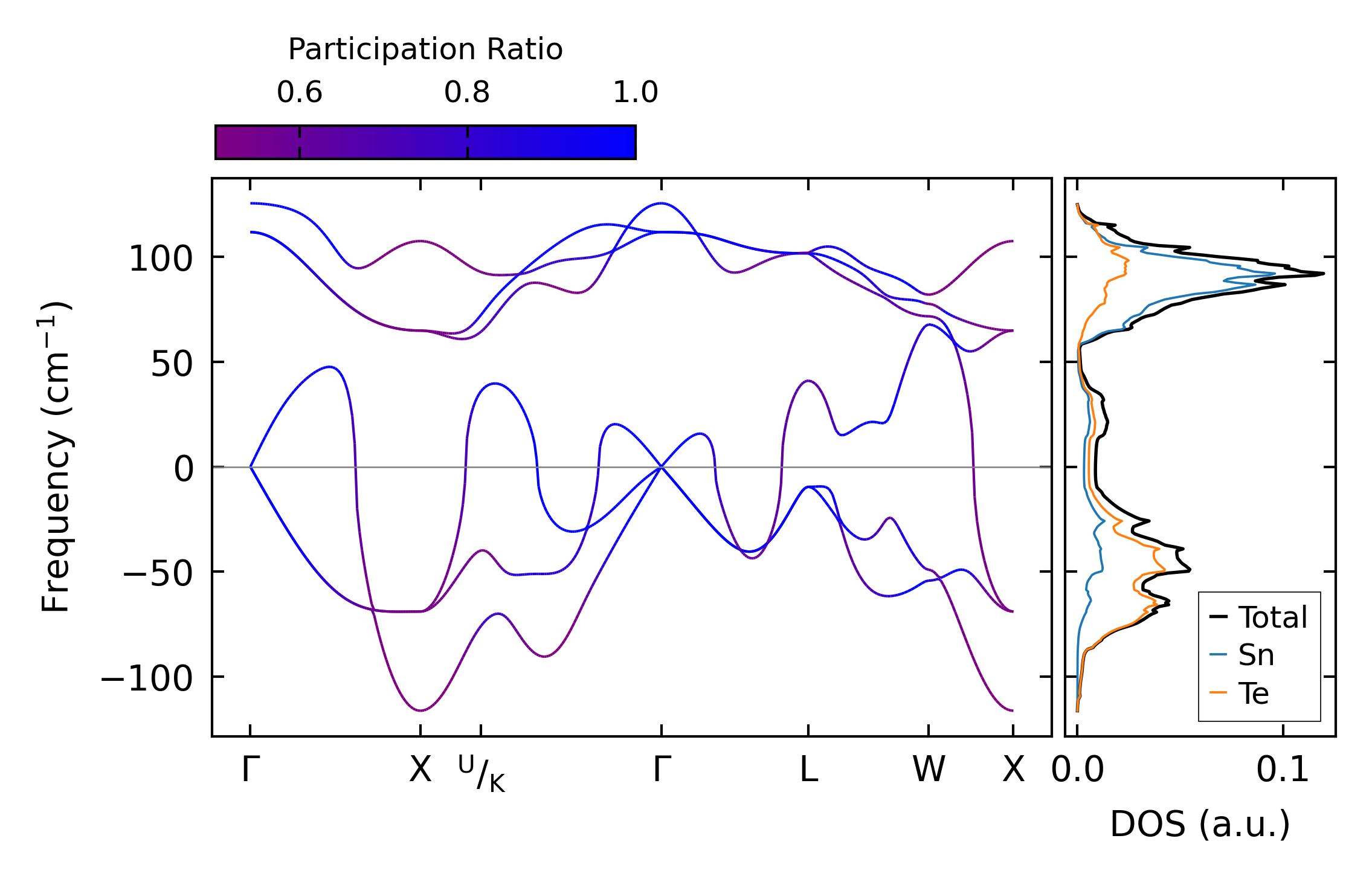

(a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos18788.png

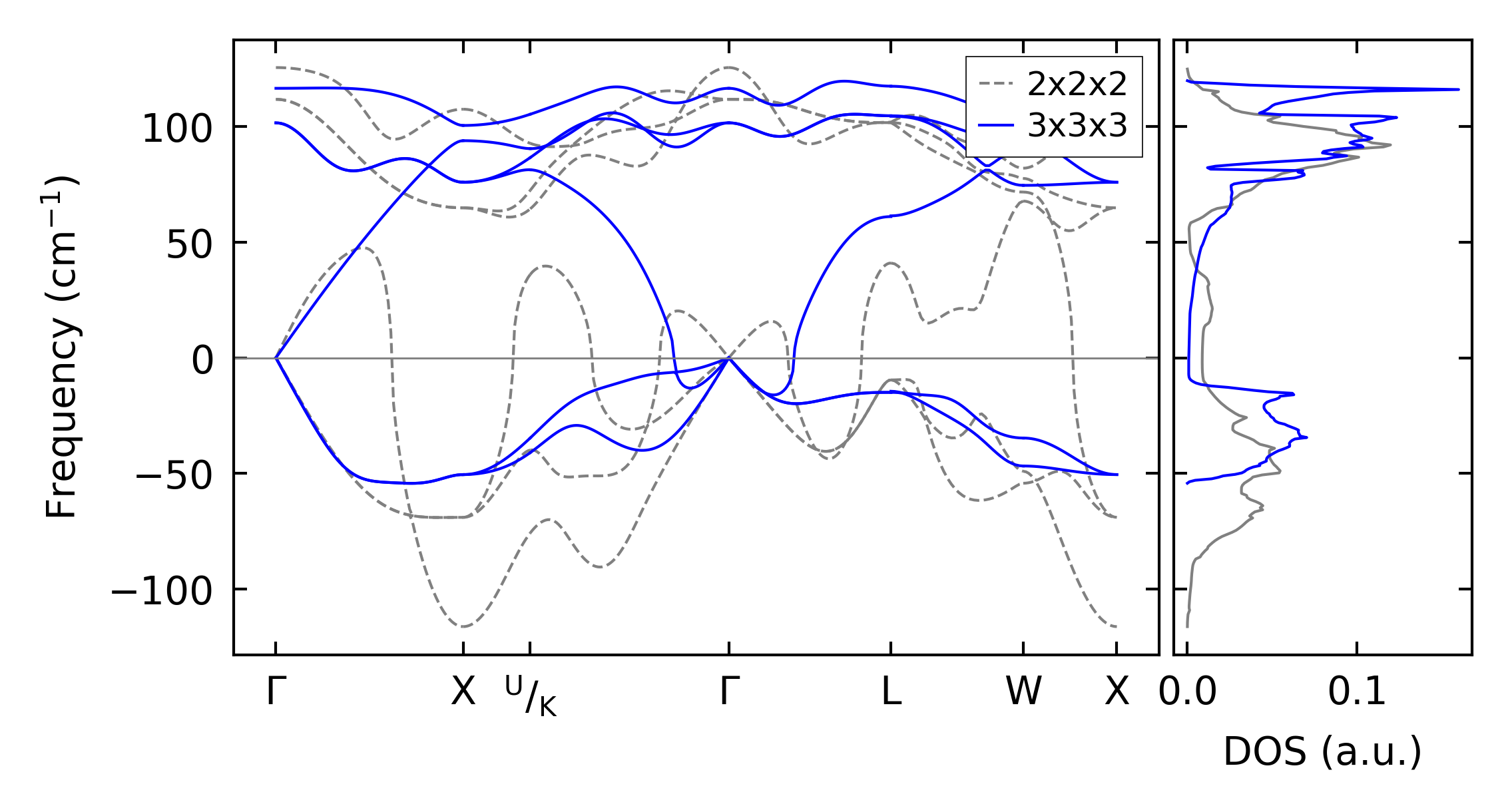

(b) Phonon dispersion and DOS

../../_images/fig_thermo14428.png

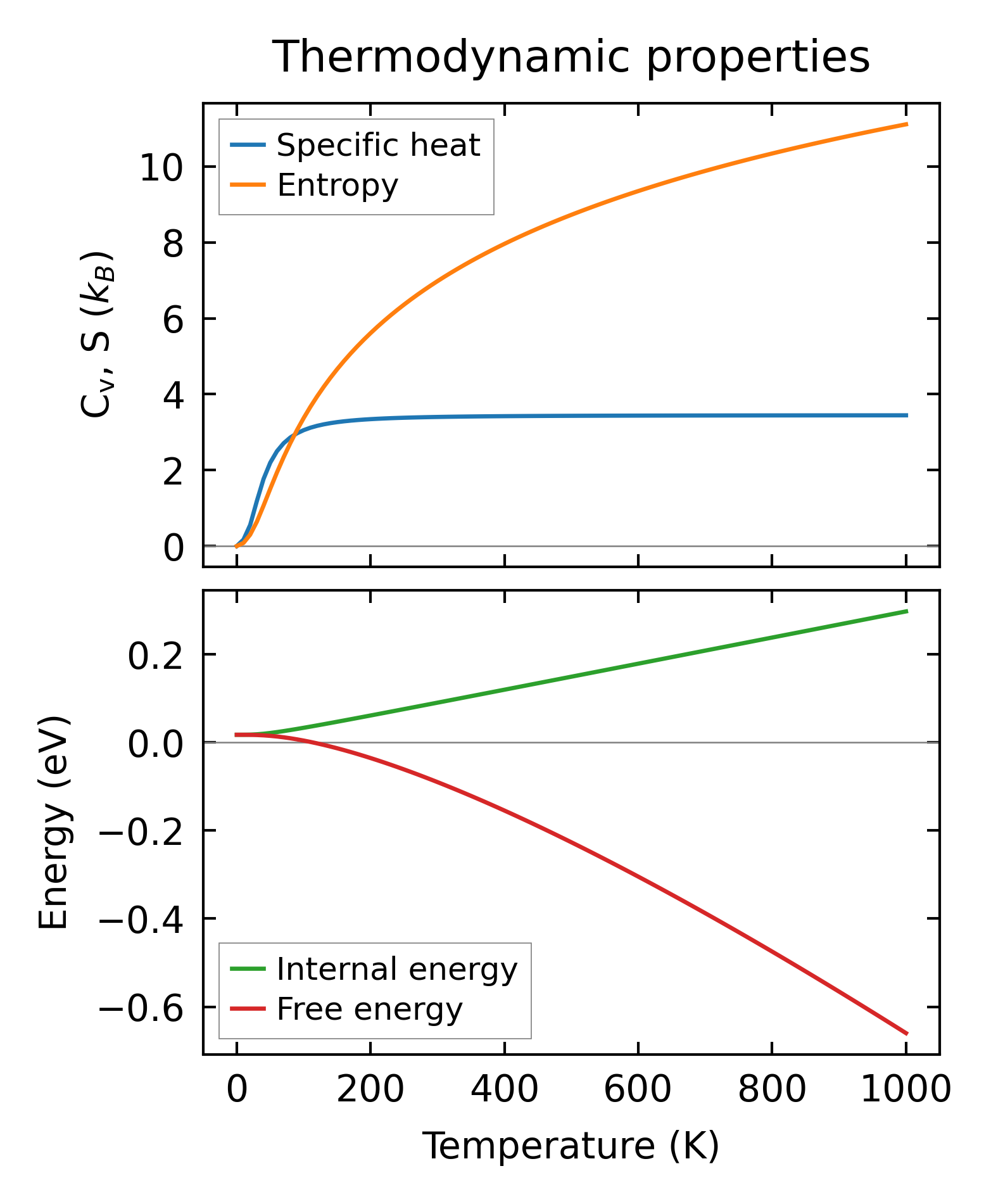

(c) Thermodynamic properties

Force constants

../../_images/fig_fc214049.png

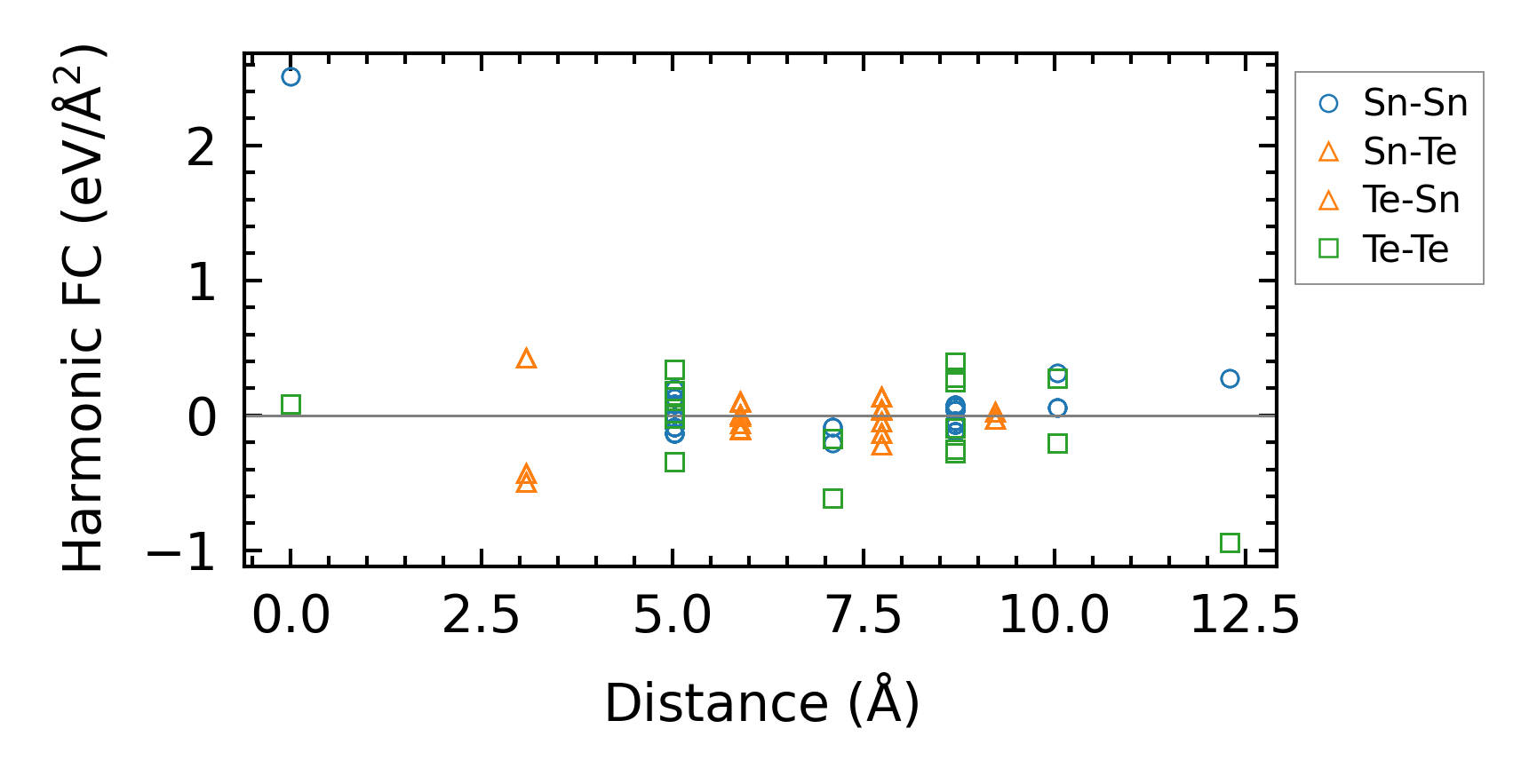

(a) Force constants w.r.t atomic distance

Summary

../../_images/fig_times24036.png

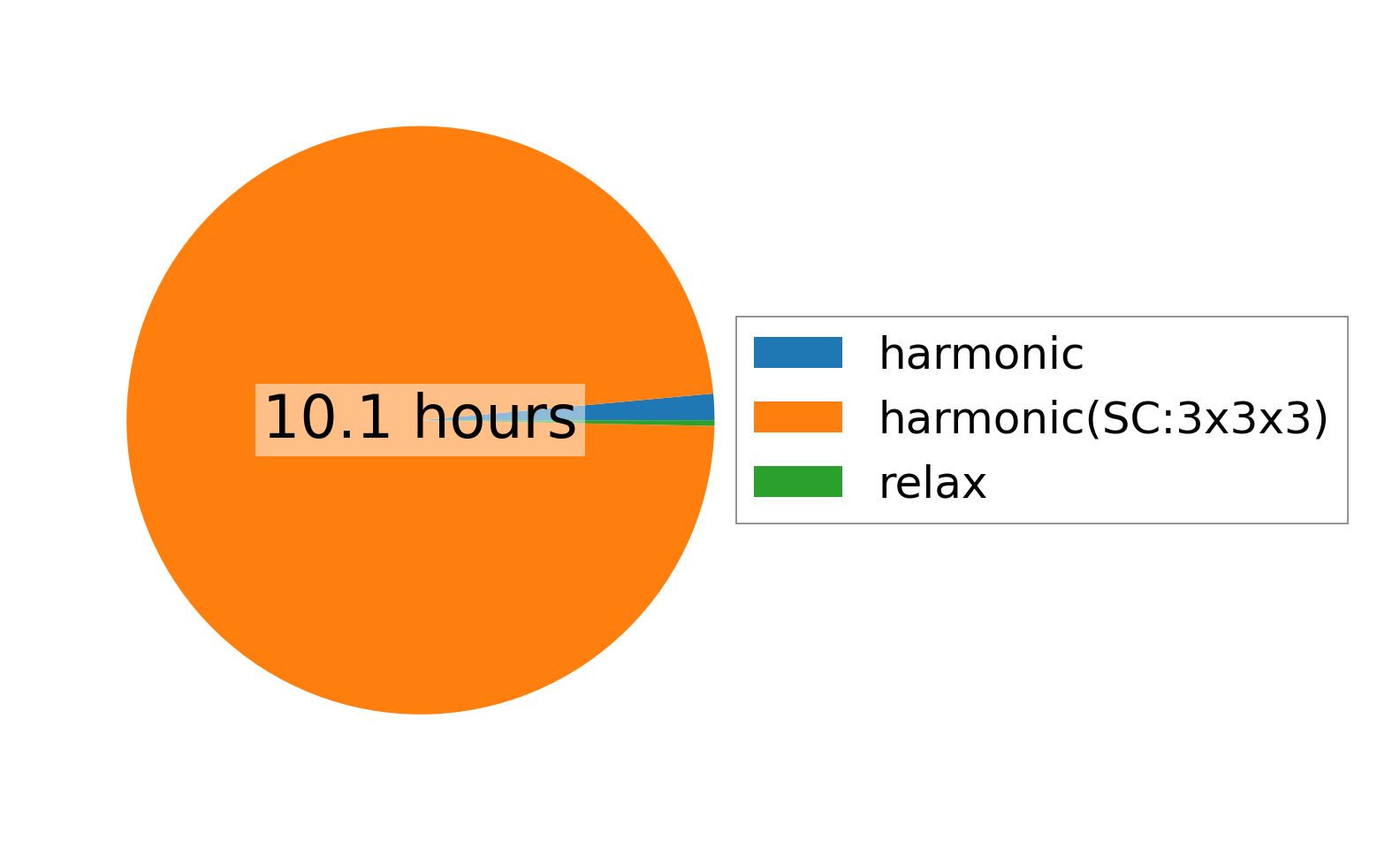

(a) Computation time
