mp-16165/Ho3Si3O10F/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-16165.tar.gz

Harmonic properties

../../_images/fig_bandos_pr14403.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo14403.png — (b) Thermodynamic properties

Grüneisen parameters

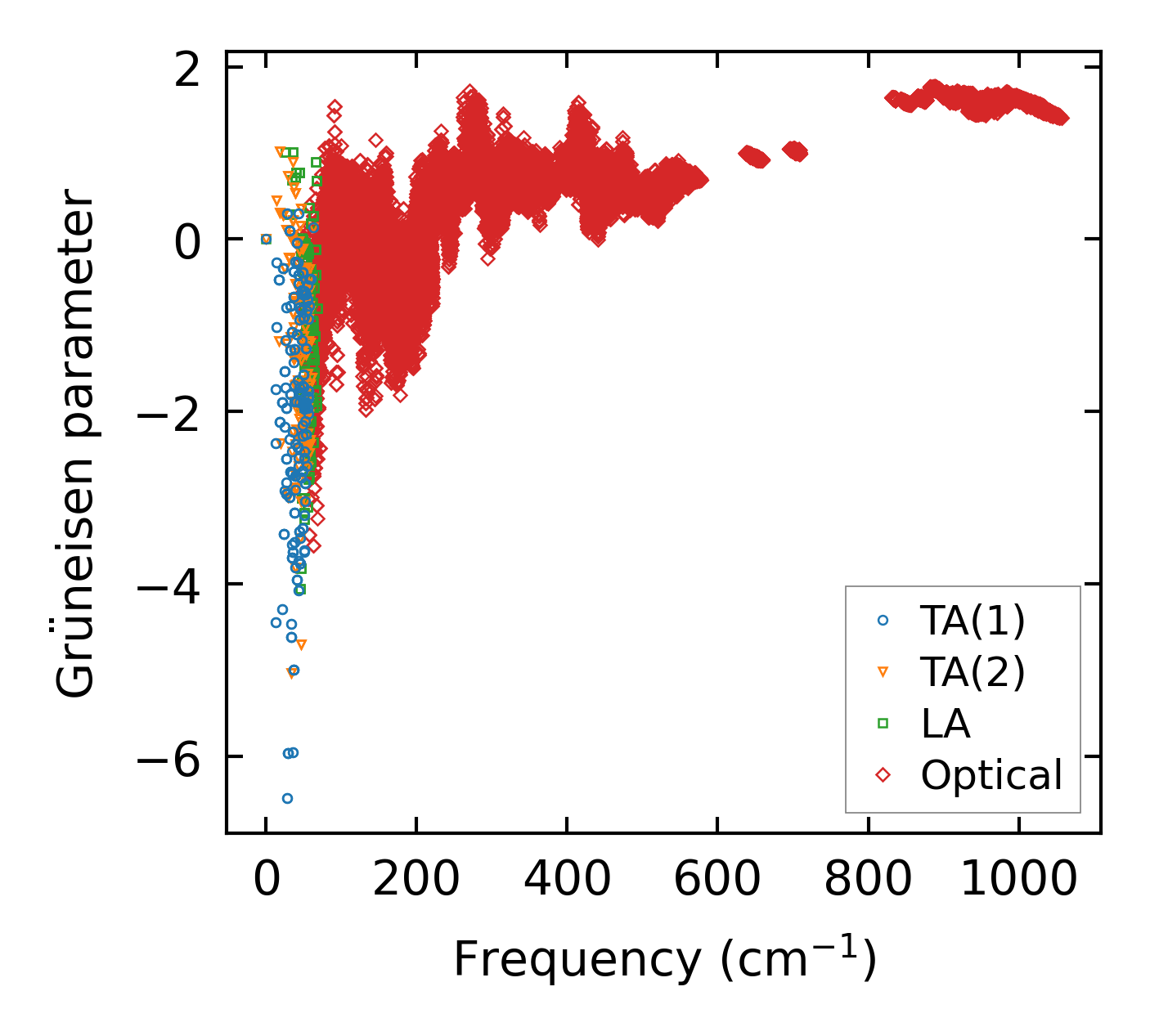

../../_images/fig_gru_all6146.png — (a) Grüneisen parameters

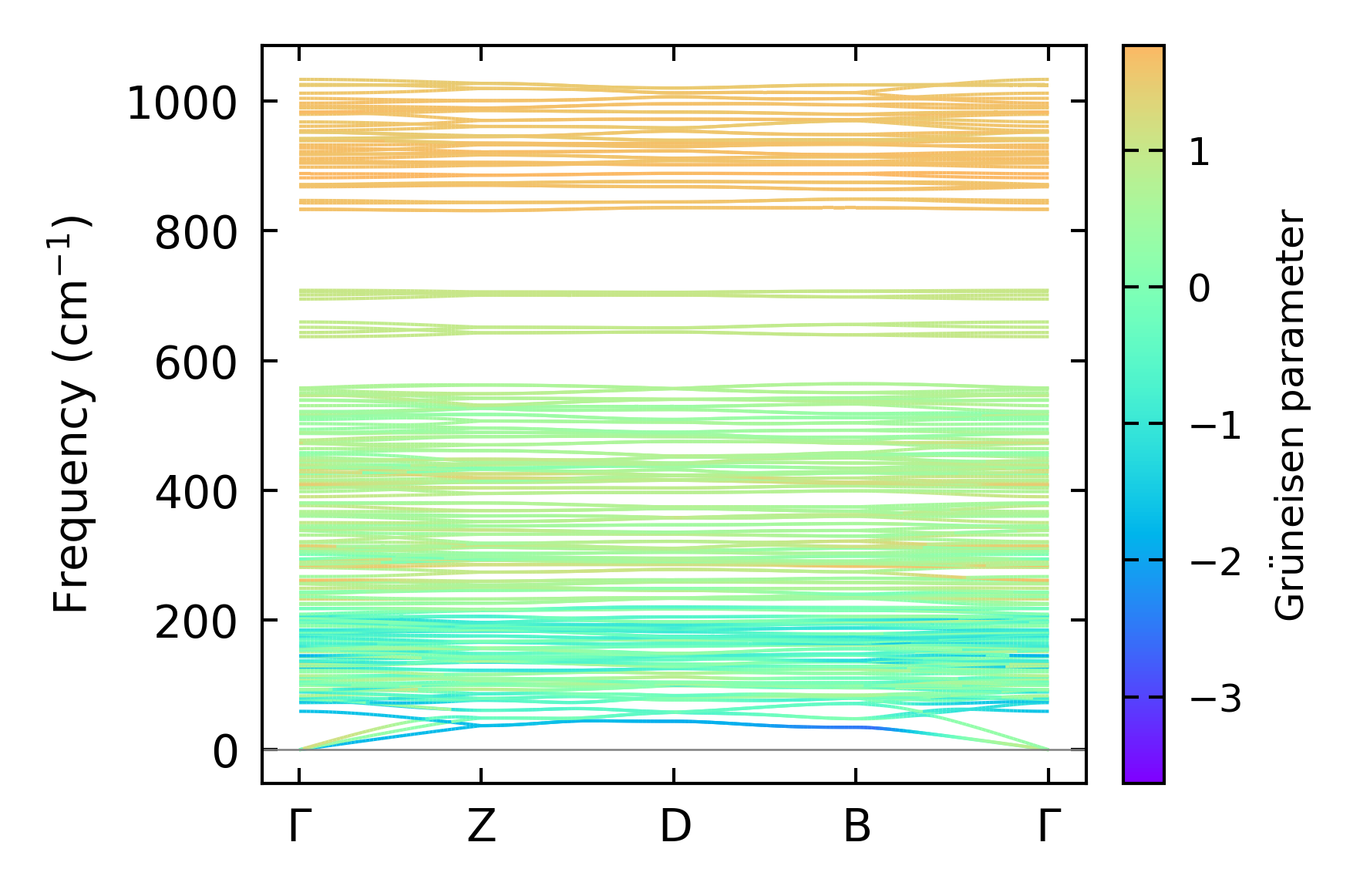

../../_images/fig_gruneisen6146.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x6x6, supercell: 2x1x1

../../_images/fig_kappa11562.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size6224.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

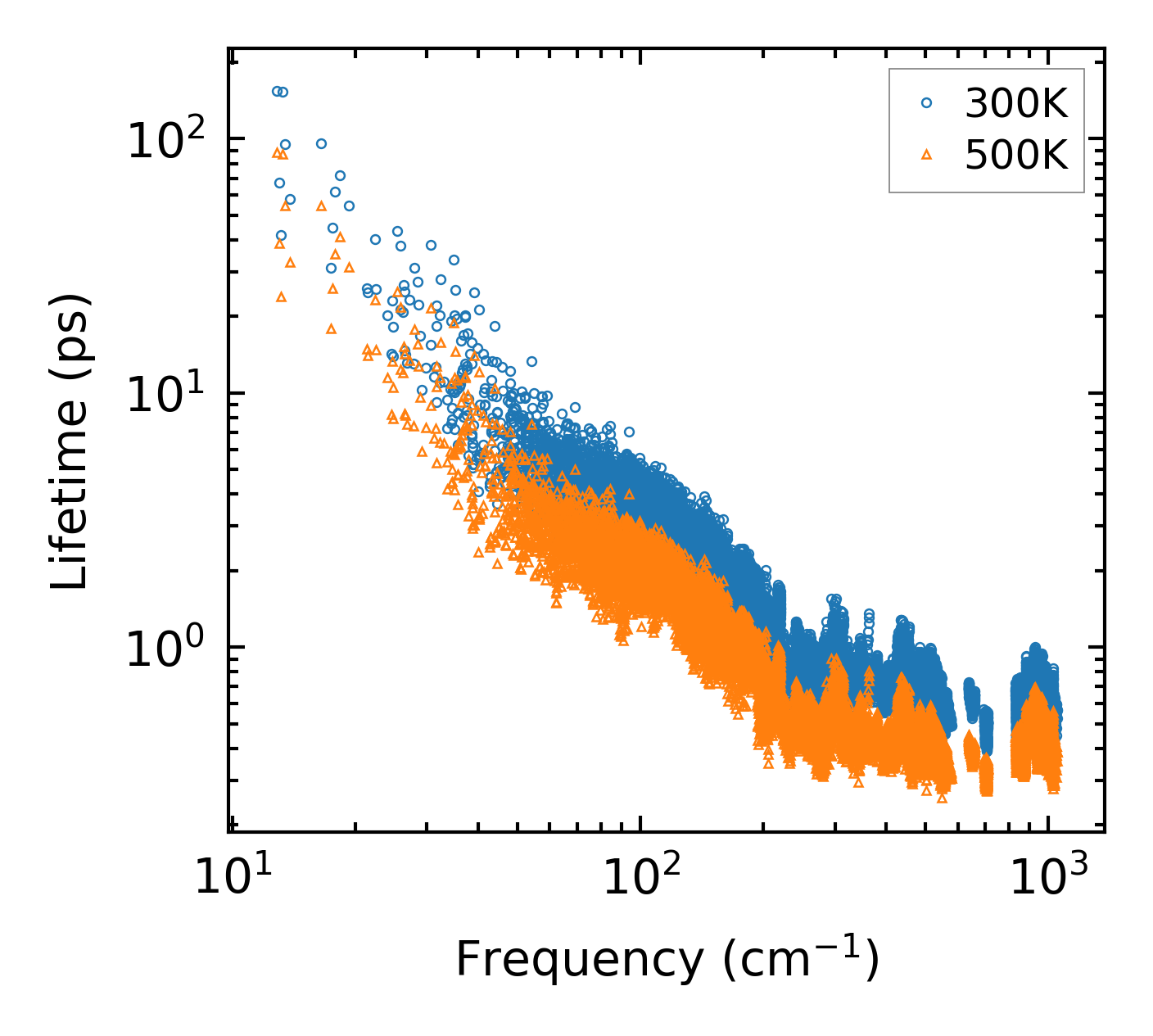

../../_images/fig_lifetime6085.png — (a) Phonon lifetime due to phonon-phonon scattering

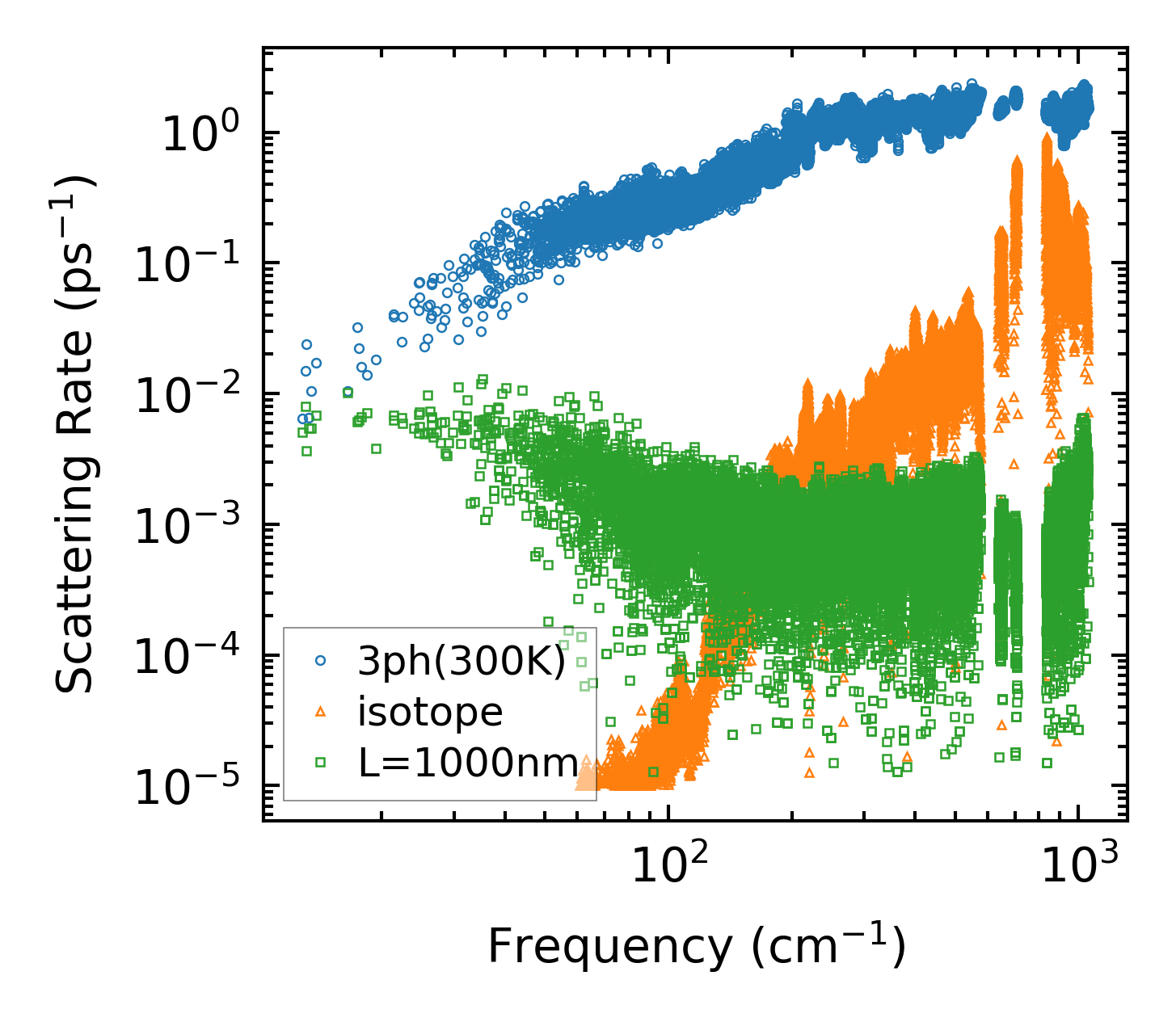

../../_images/fig_scat_rates6084.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

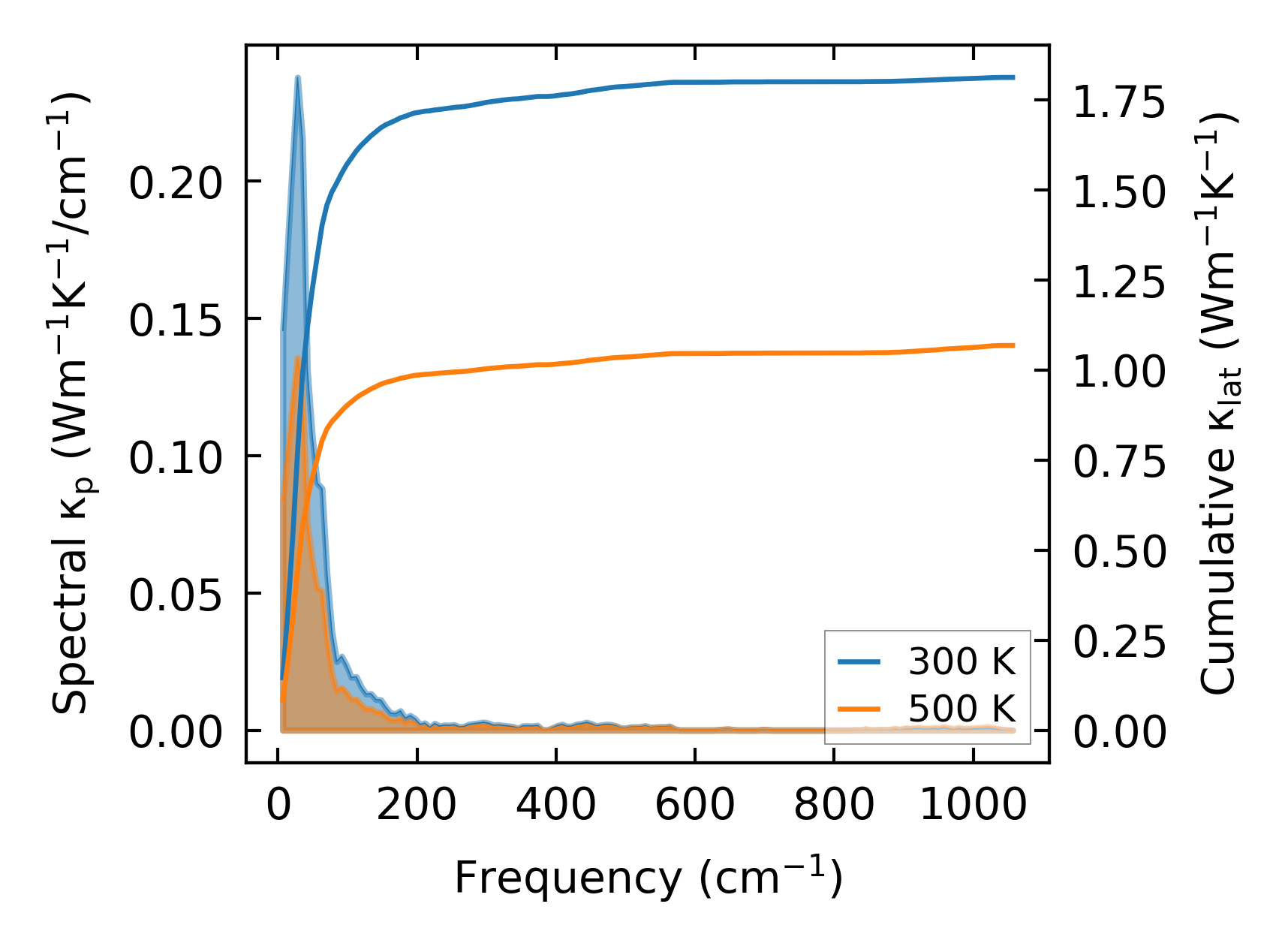

../../_images/fig_cumu_frequency6085.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp6084.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

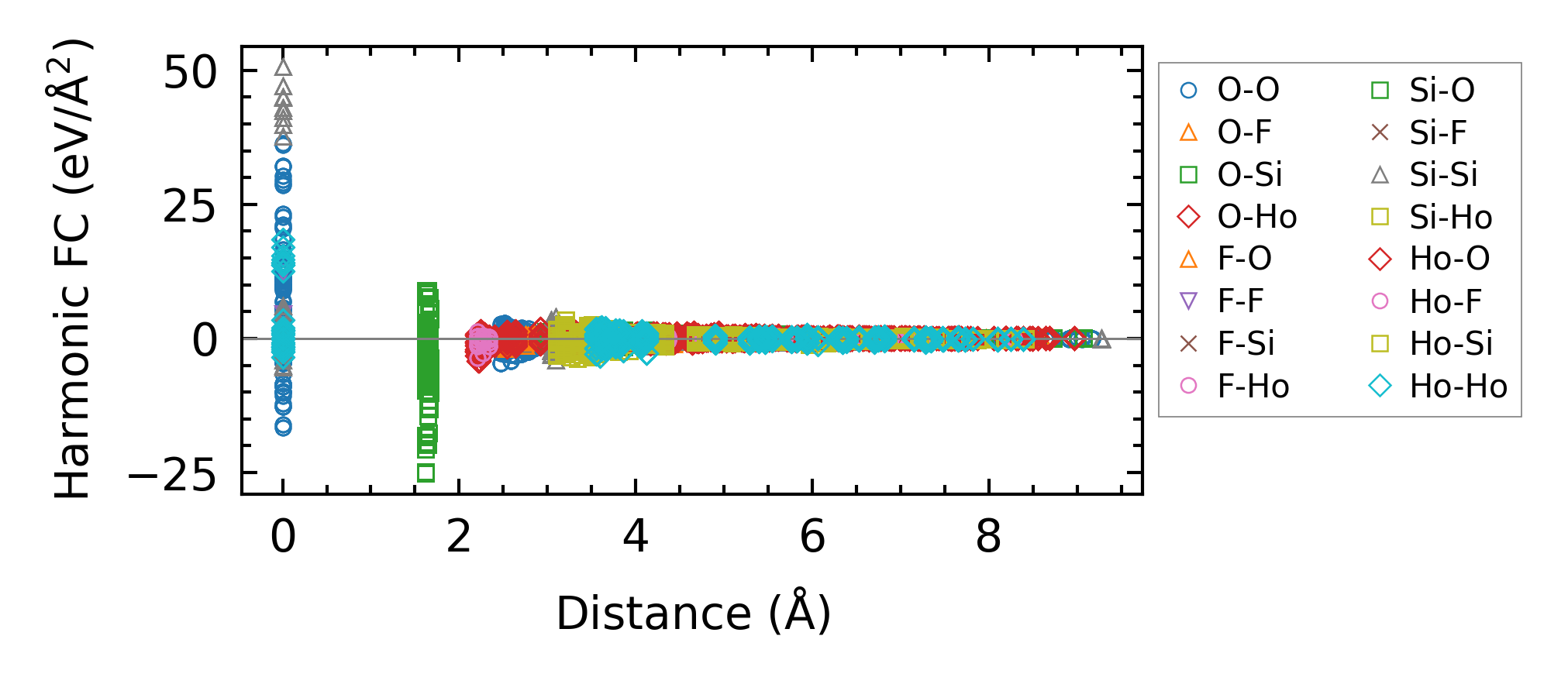

../../_images/fig_fc214028.png — (a) Force constants w.r.t atomic distance

Summary

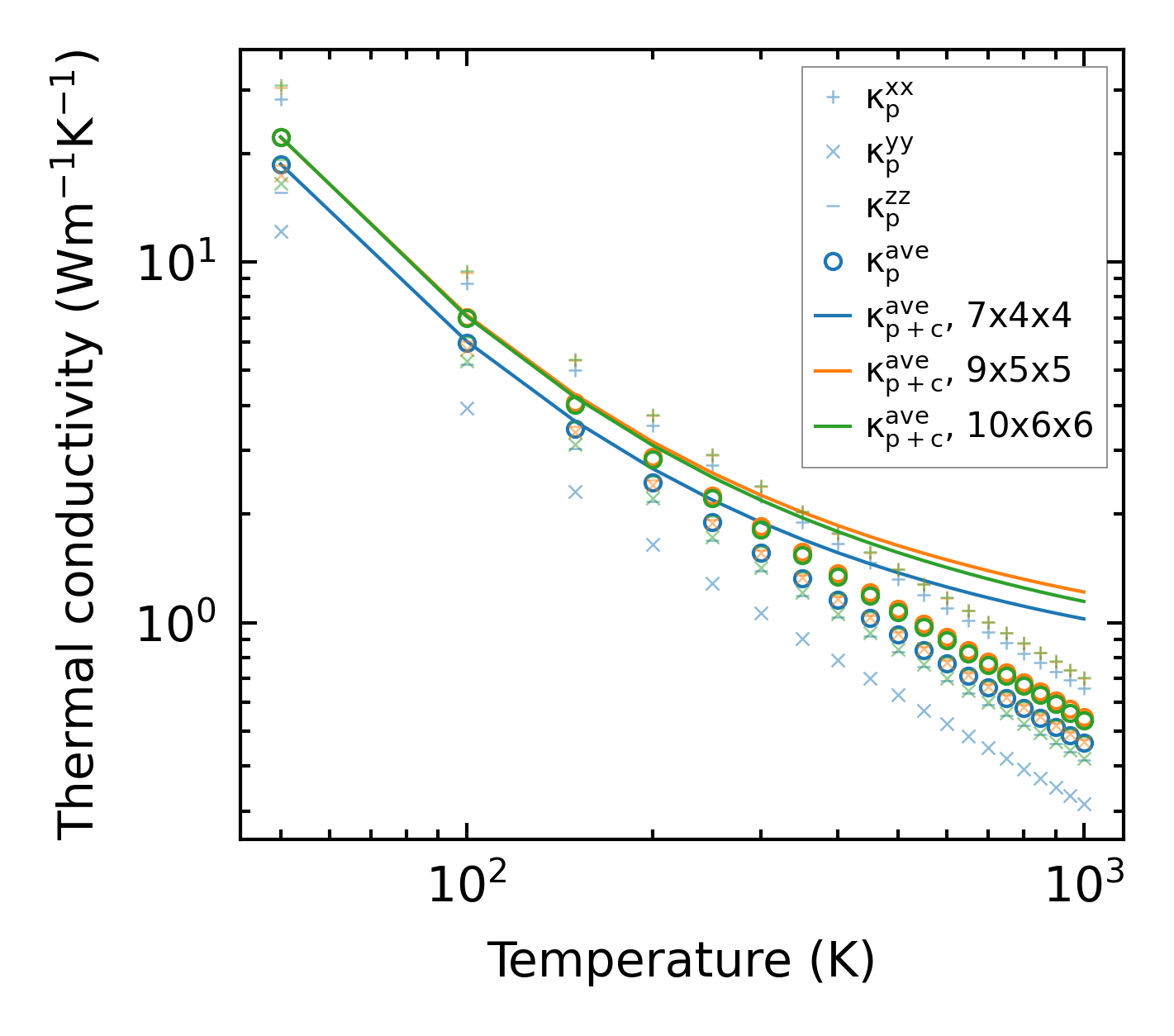

../../_images/fig_kappa11563.png — (a) Temperature-dependent lattice thermal conductivity

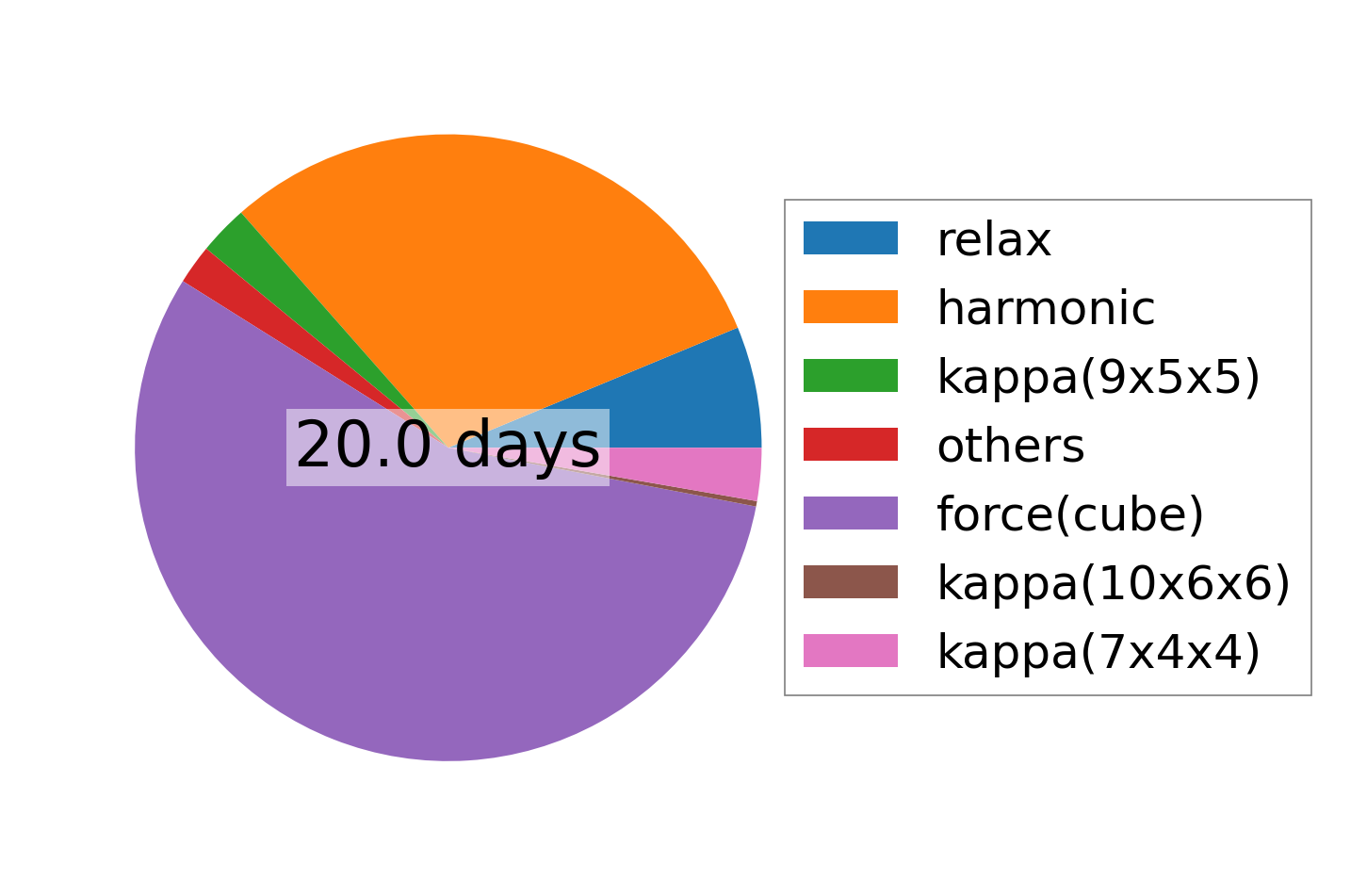

../../_images/fig_times24004.png — (b) Computation time
