mp-16118/RbDy2CuSe4/anharm

Space group: Cmcm (63)
Link: Materials Project
Download: mp-16118.tar.gz

Harmonic properties

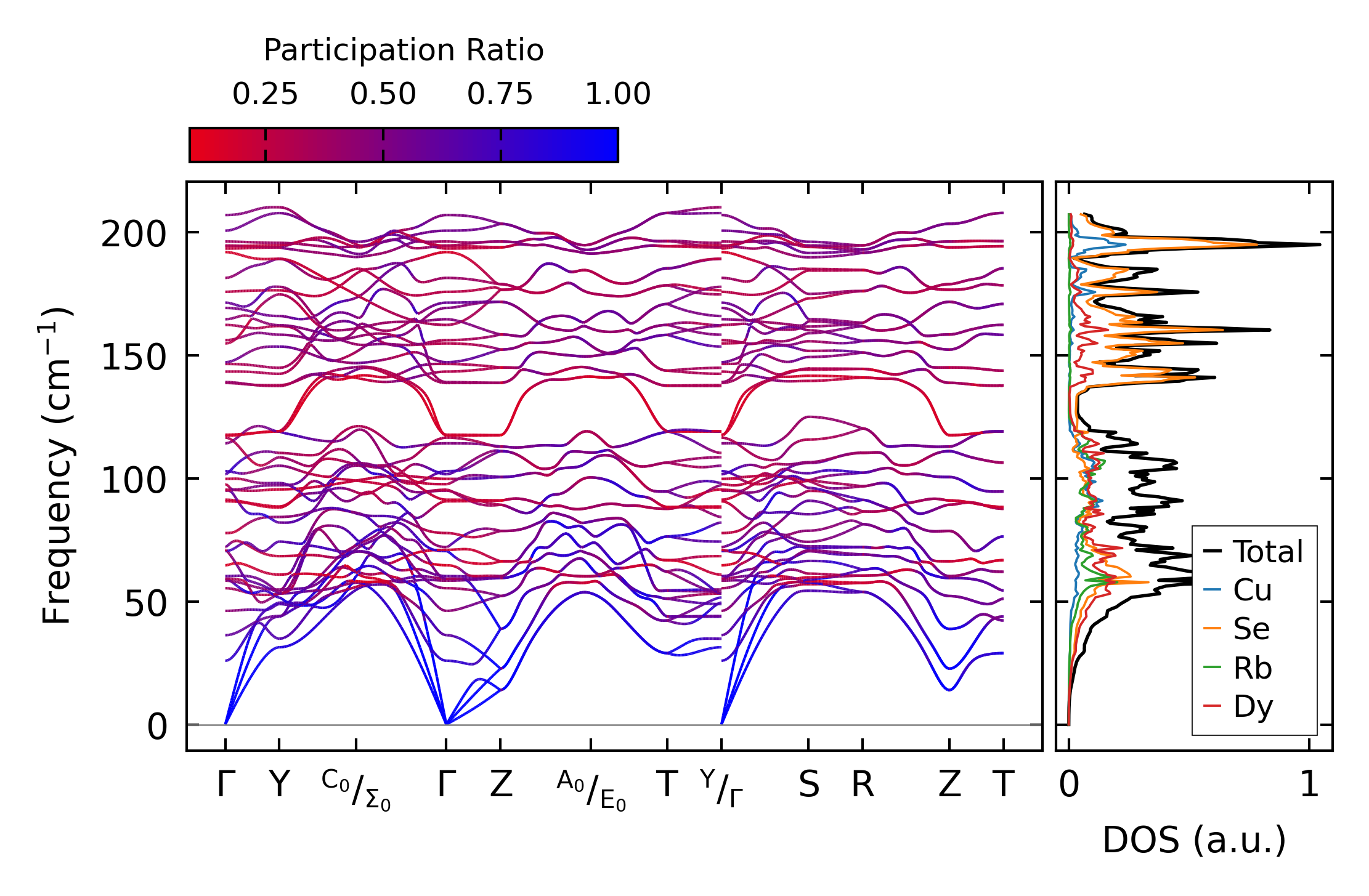

../../_images/fig_bandos_pr14387.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo14387.png — (b) Thermodynamic properties

Grüneisen parameters

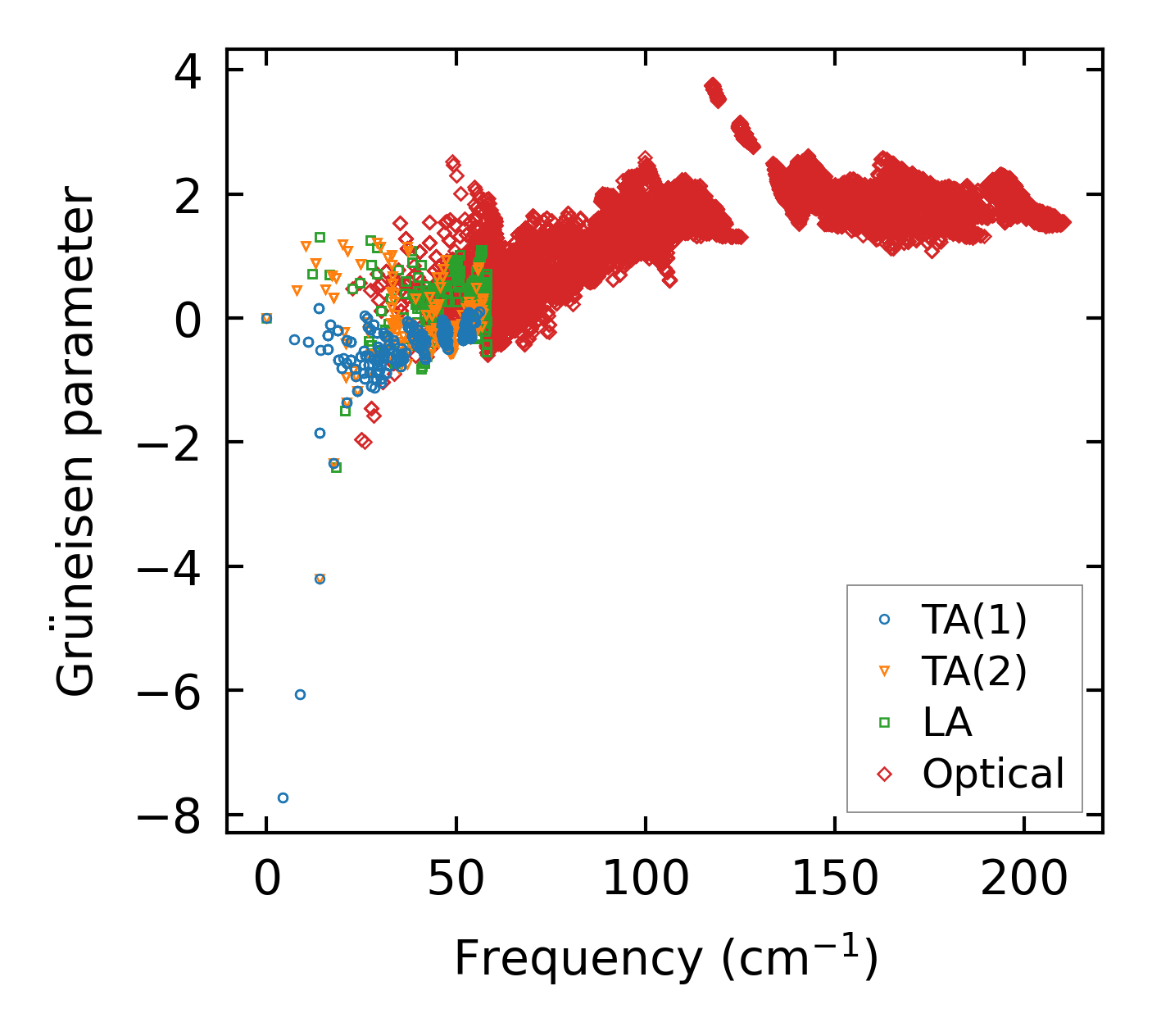

../../_images/fig_gru_all6138.png — (a) Grüneisen parameters

../../_images/fig_gruneisen6138.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x6, supercell: 4x1x1

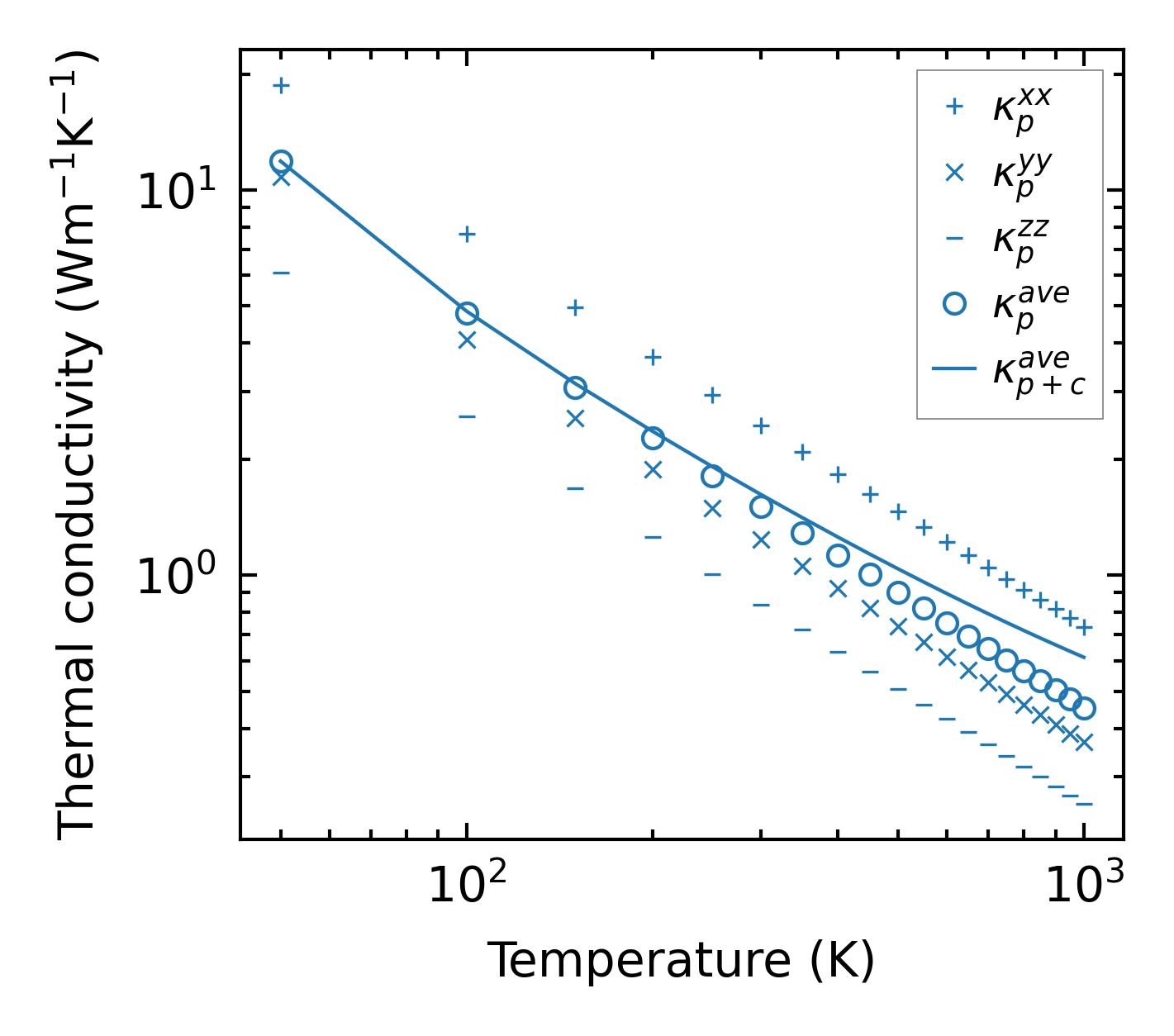

../../_images/fig_kappa11546.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size6216.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

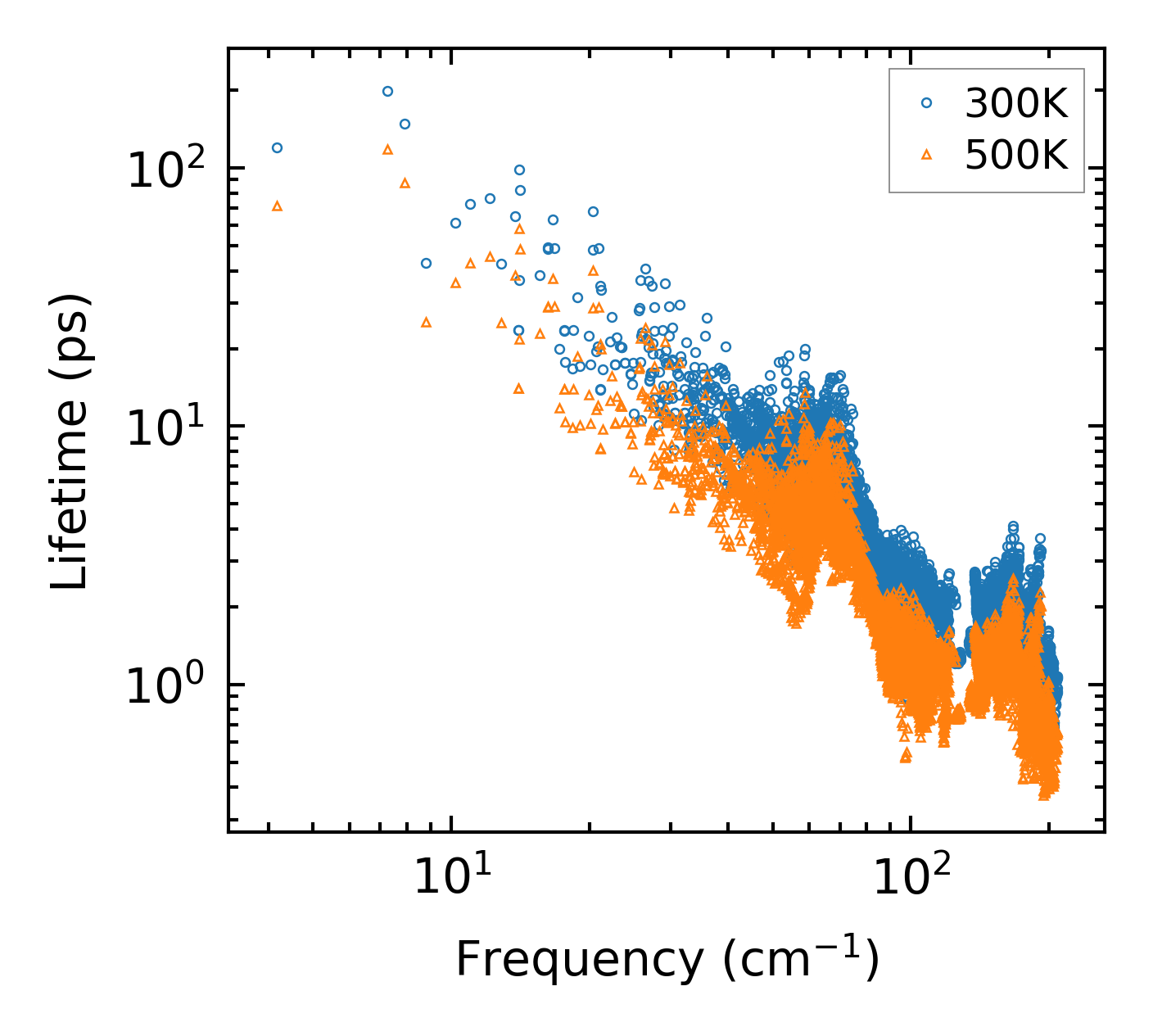

../../_images/fig_lifetime6077.png — (a) Phonon lifetime due to phonon-phonon scattering

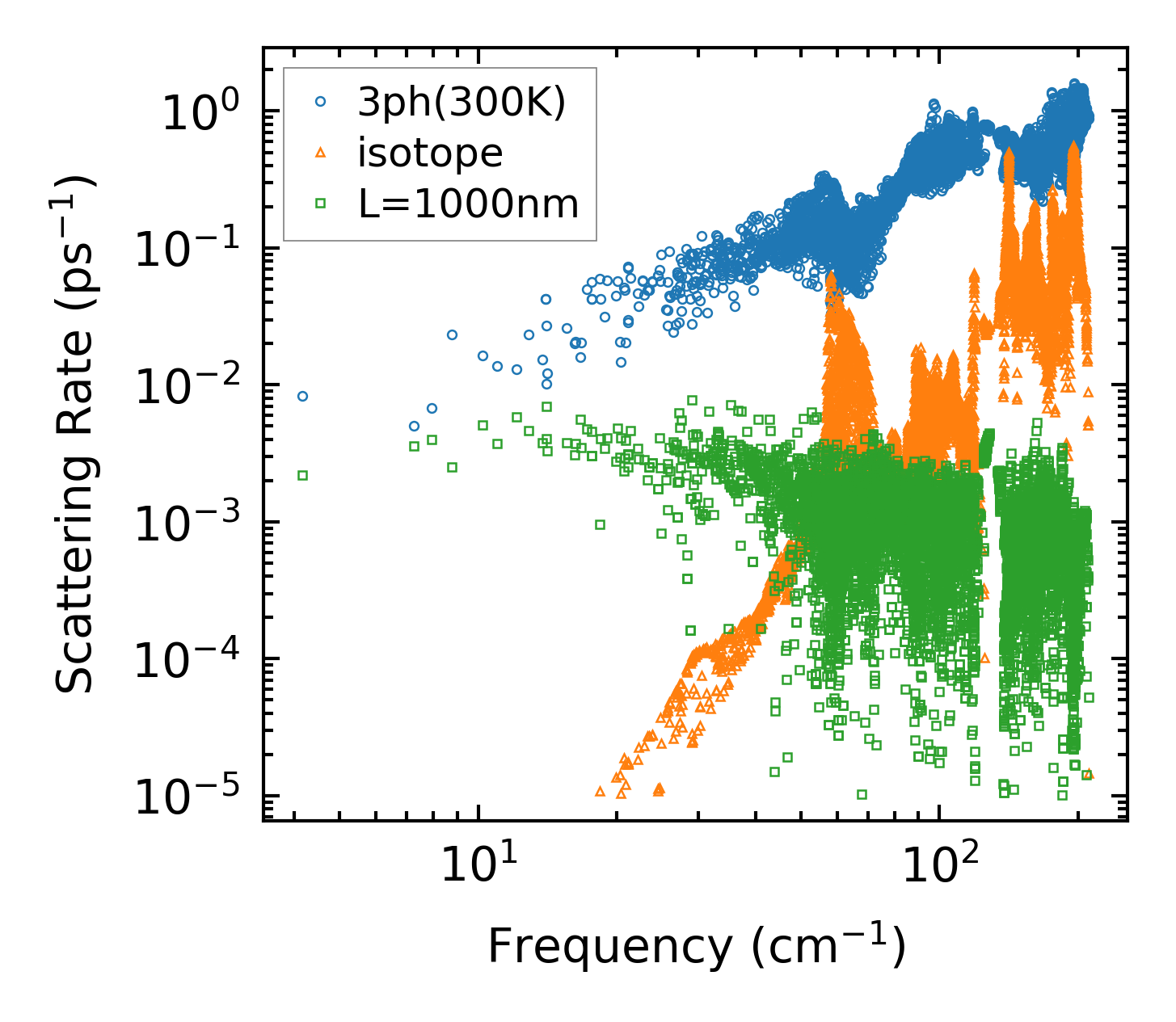

../../_images/fig_scat_rates6076.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency6077.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

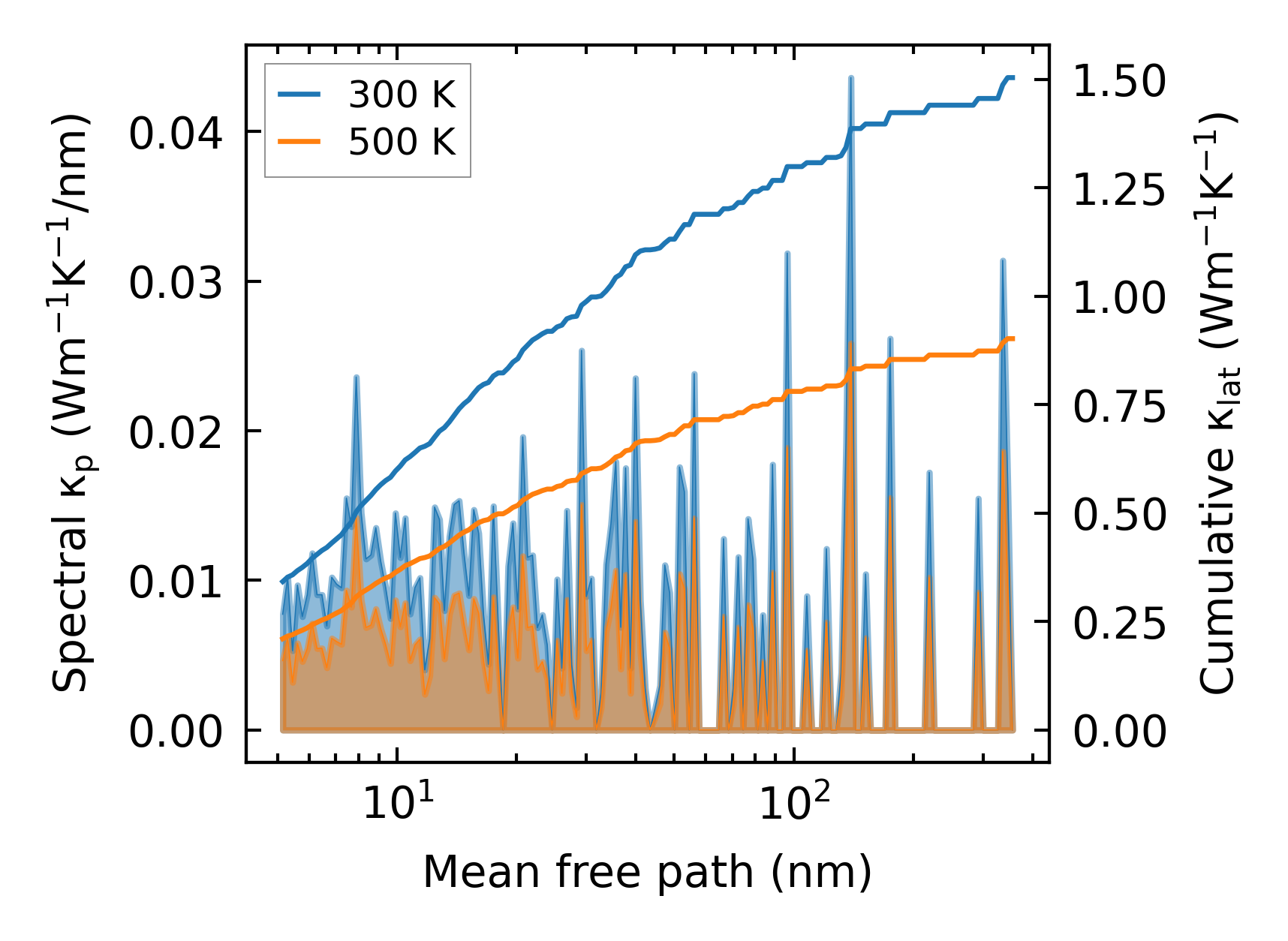

../../_images/fig_cumu_mfp6076.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

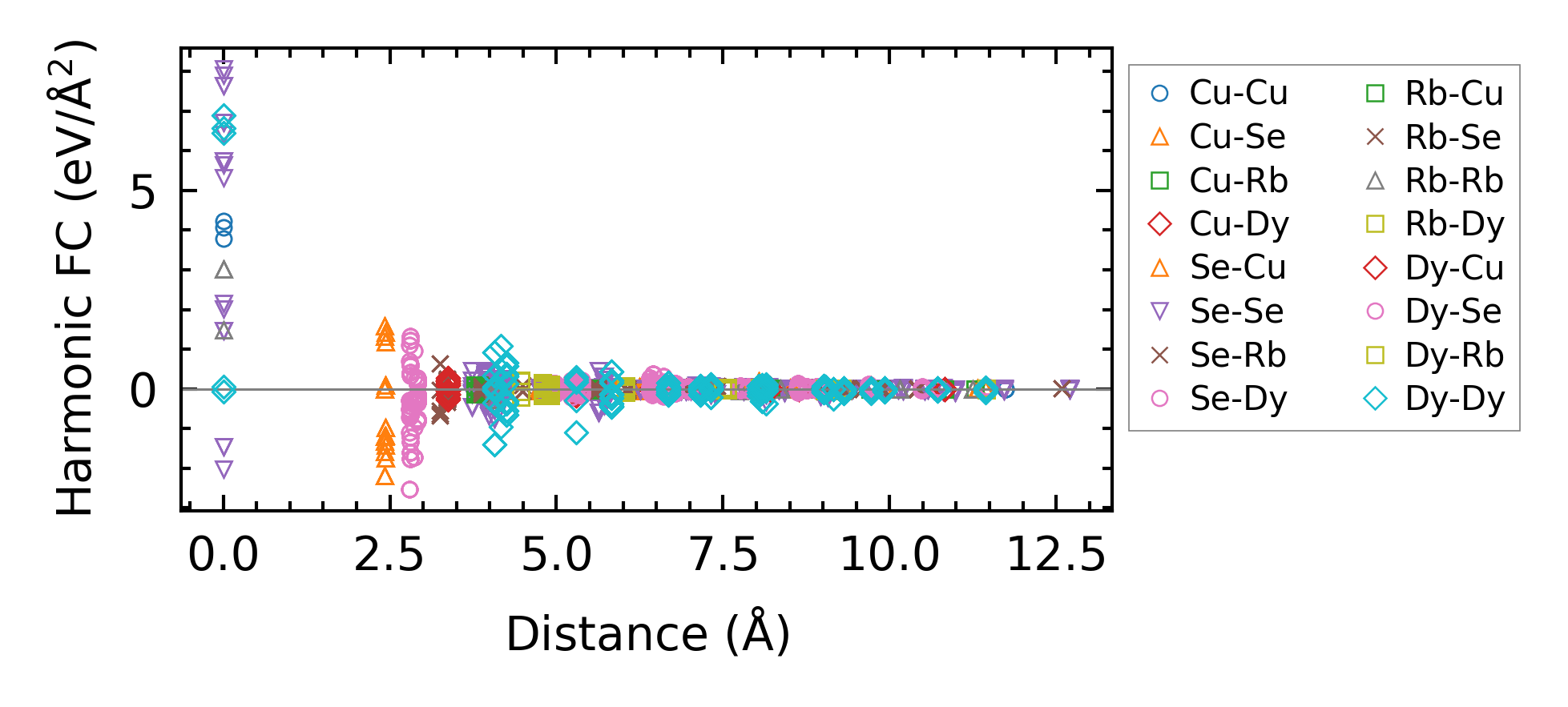

../../_images/fig_fc214012.png — (a) Force constants w.r.t atomic distance

Summary

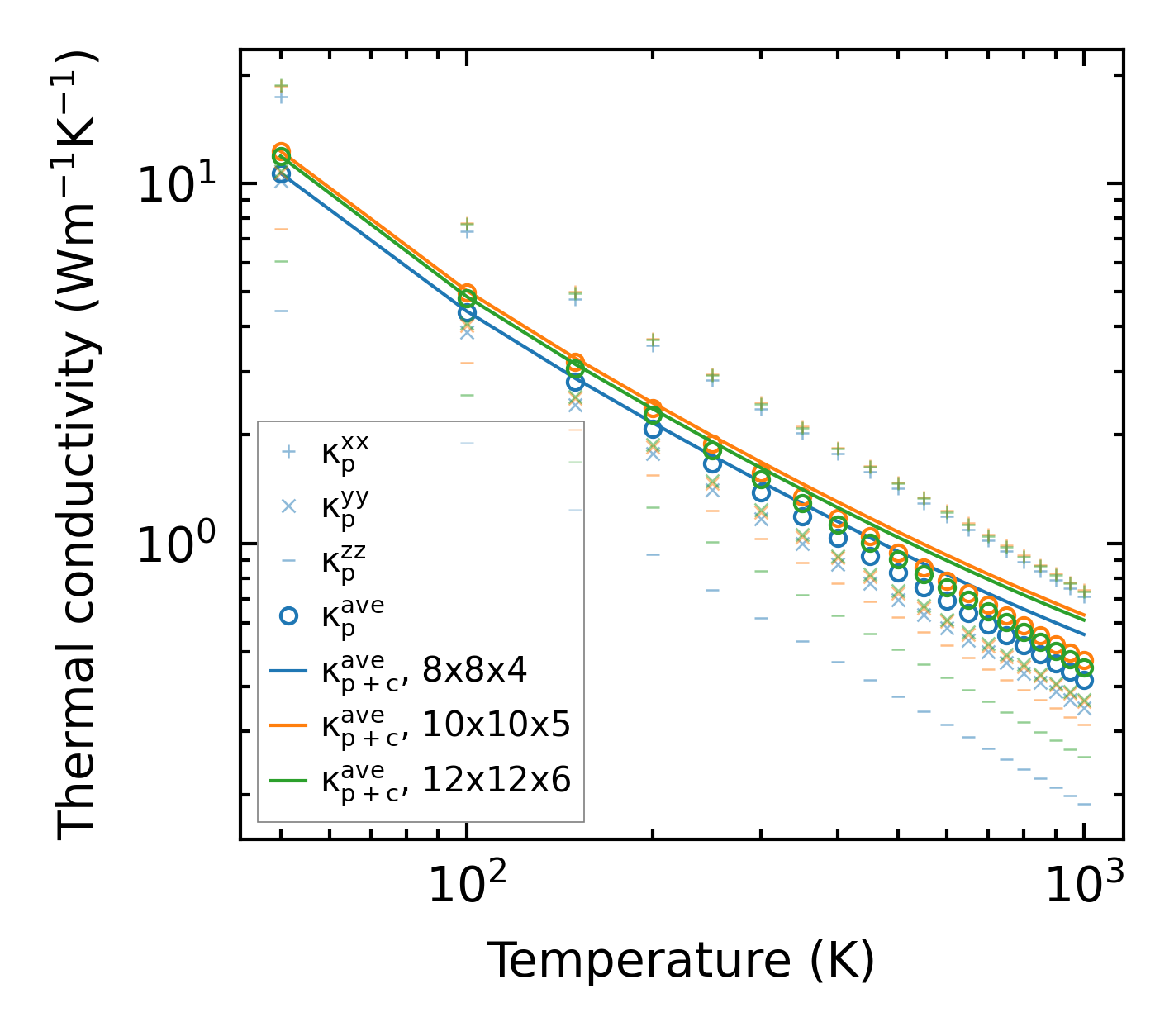

../../_images/fig_kappa11547.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times23986.png — (b) Computation time
