mp-16032/Pr2TeO2/anharm

Space group: I4/mmm (139)
Link: Materials Project
Download: mp-16032.tar.gz

Harmonic properties

../../_images/fig_bandos_pr14374.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo14374.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all6132.png — (a) Grüneisen parameters

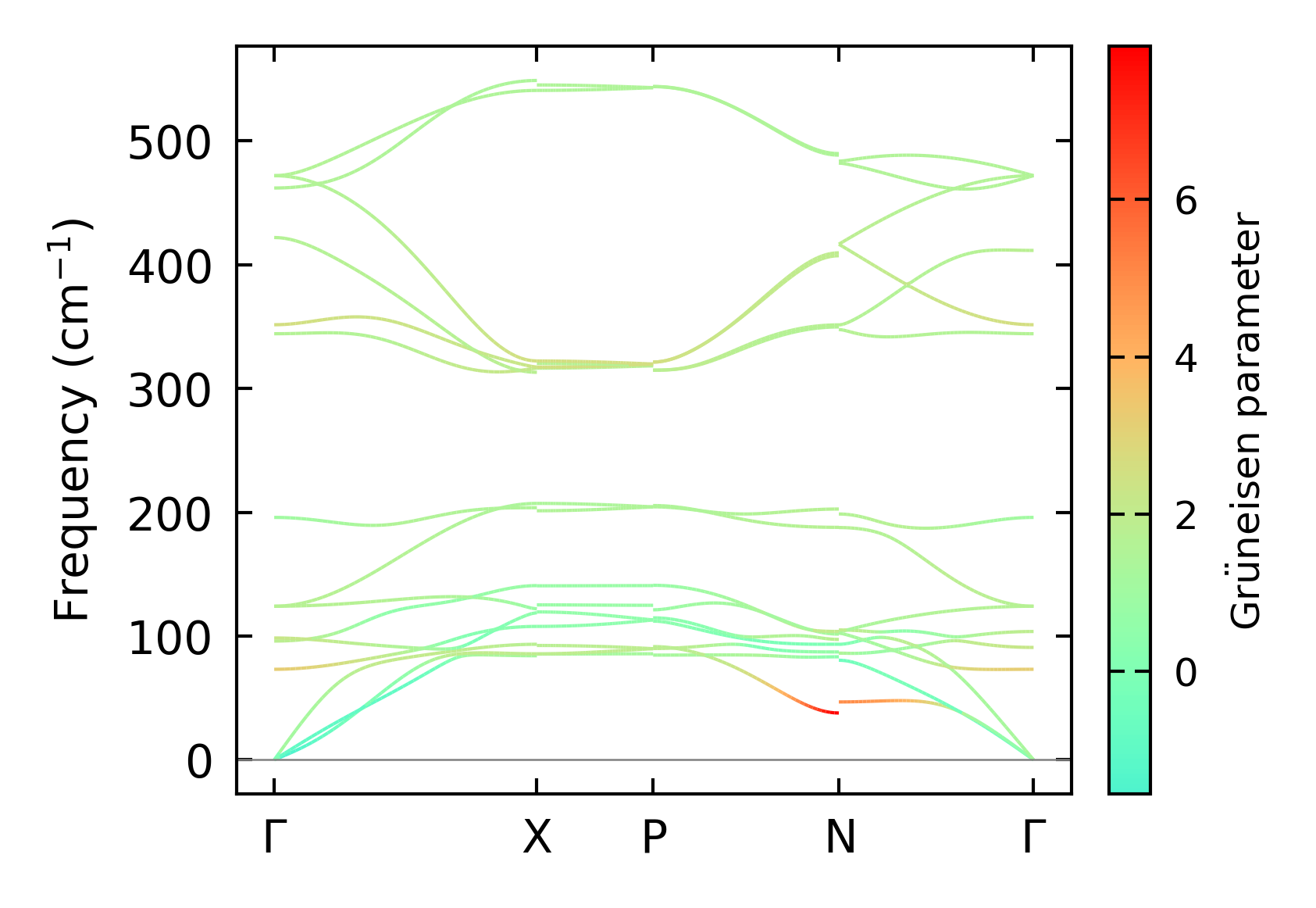

../../_images/fig_gruneisen6132.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 15x15x15, supercell: 3x3x1

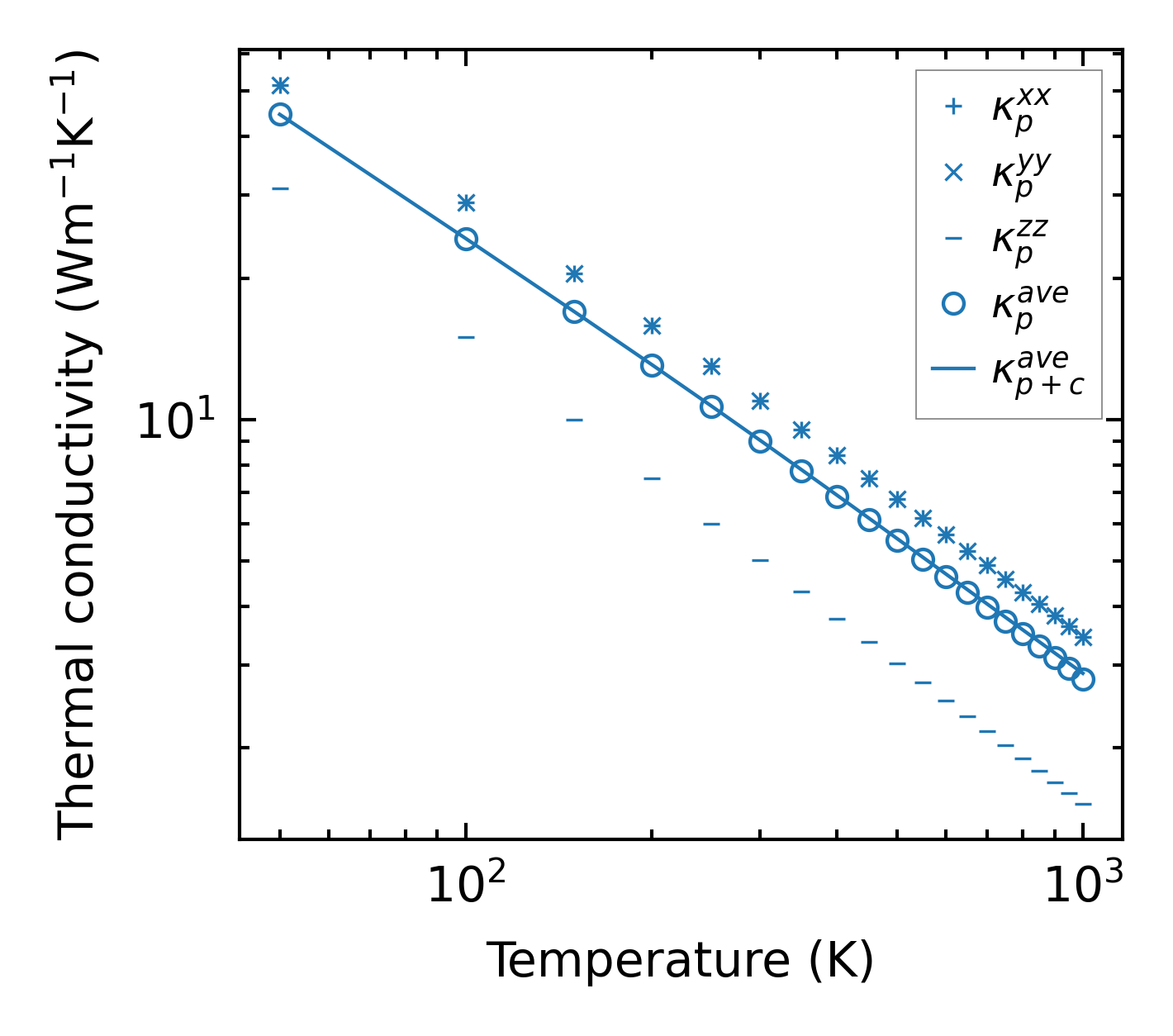

../../_images/fig_kappa11535.png — (a) Temperature-dependent lattice thermal conductivity

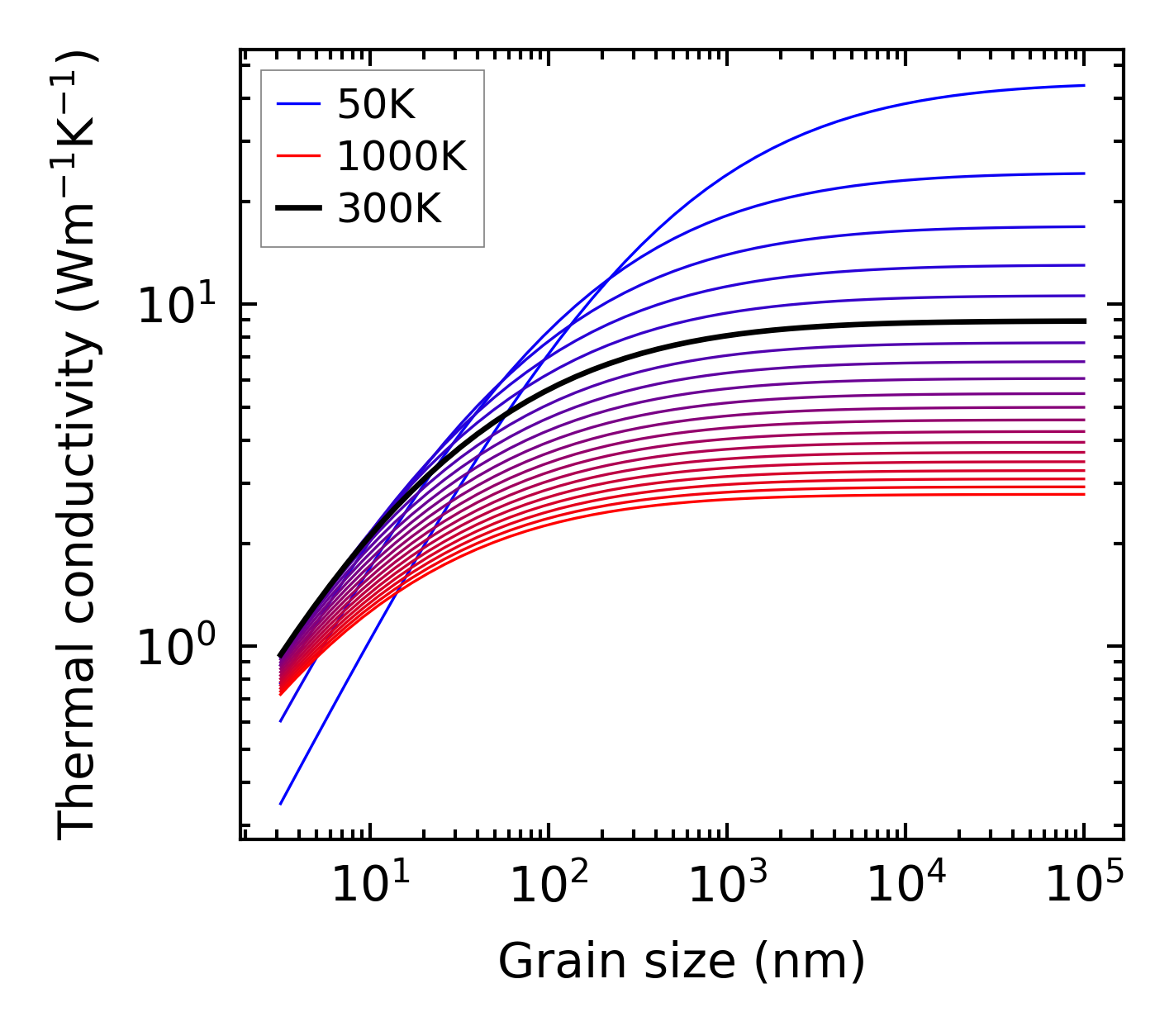

../../_images/fig_kappa_vs_grain_size6210.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

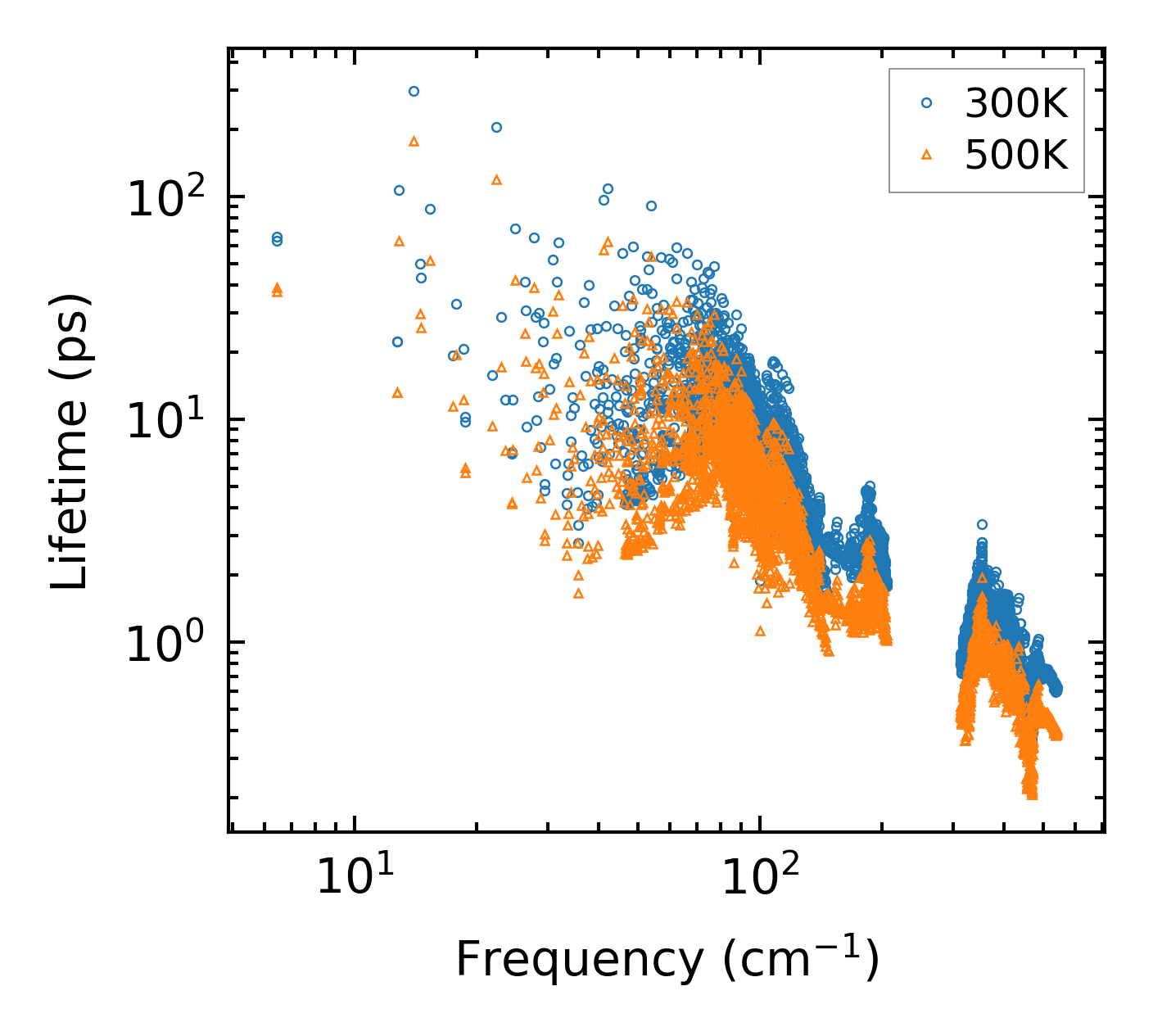

../../_images/fig_lifetime6071.png — (a) Phonon lifetime due to phonon-phonon scattering

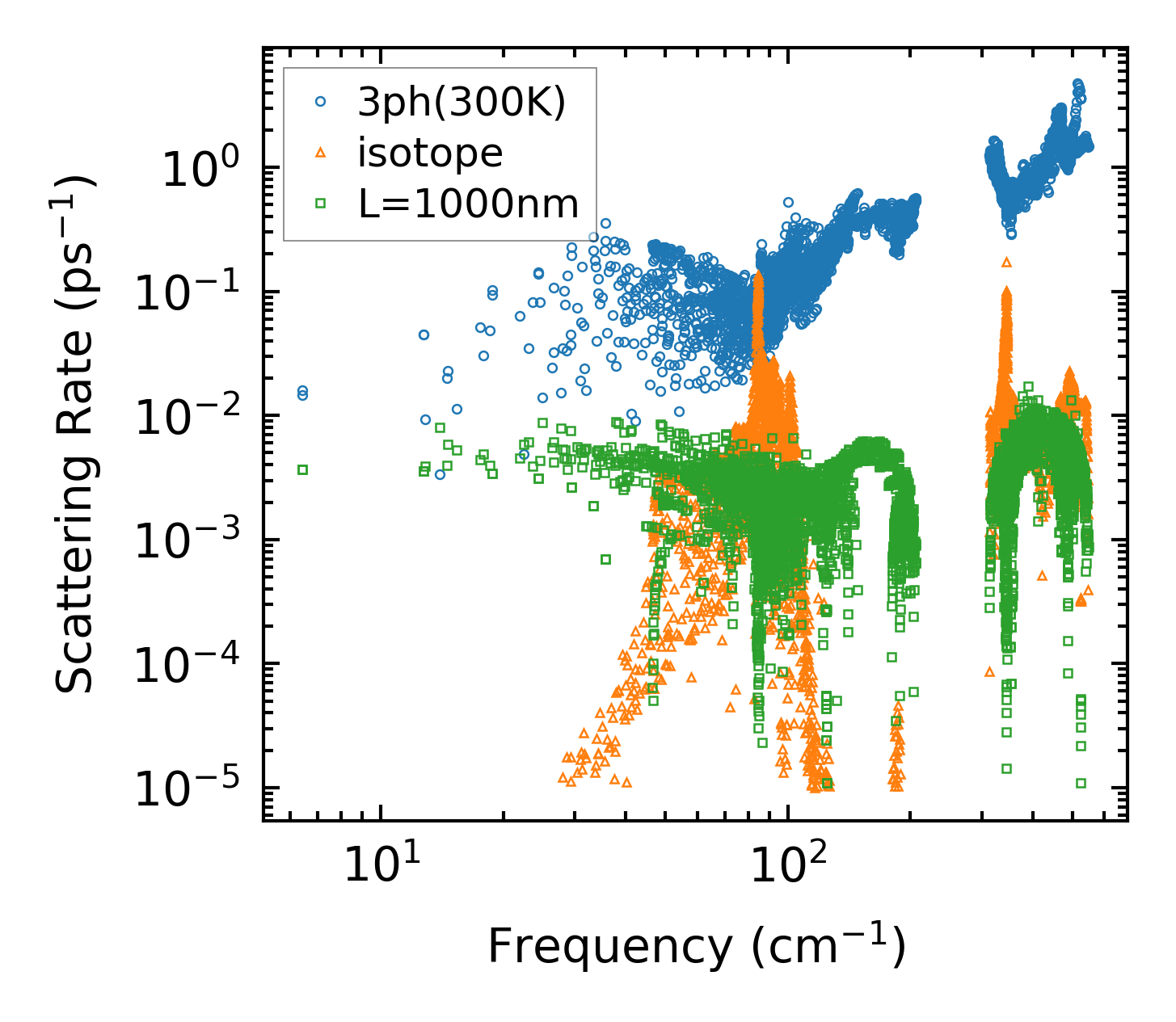

../../_images/fig_scat_rates6070.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

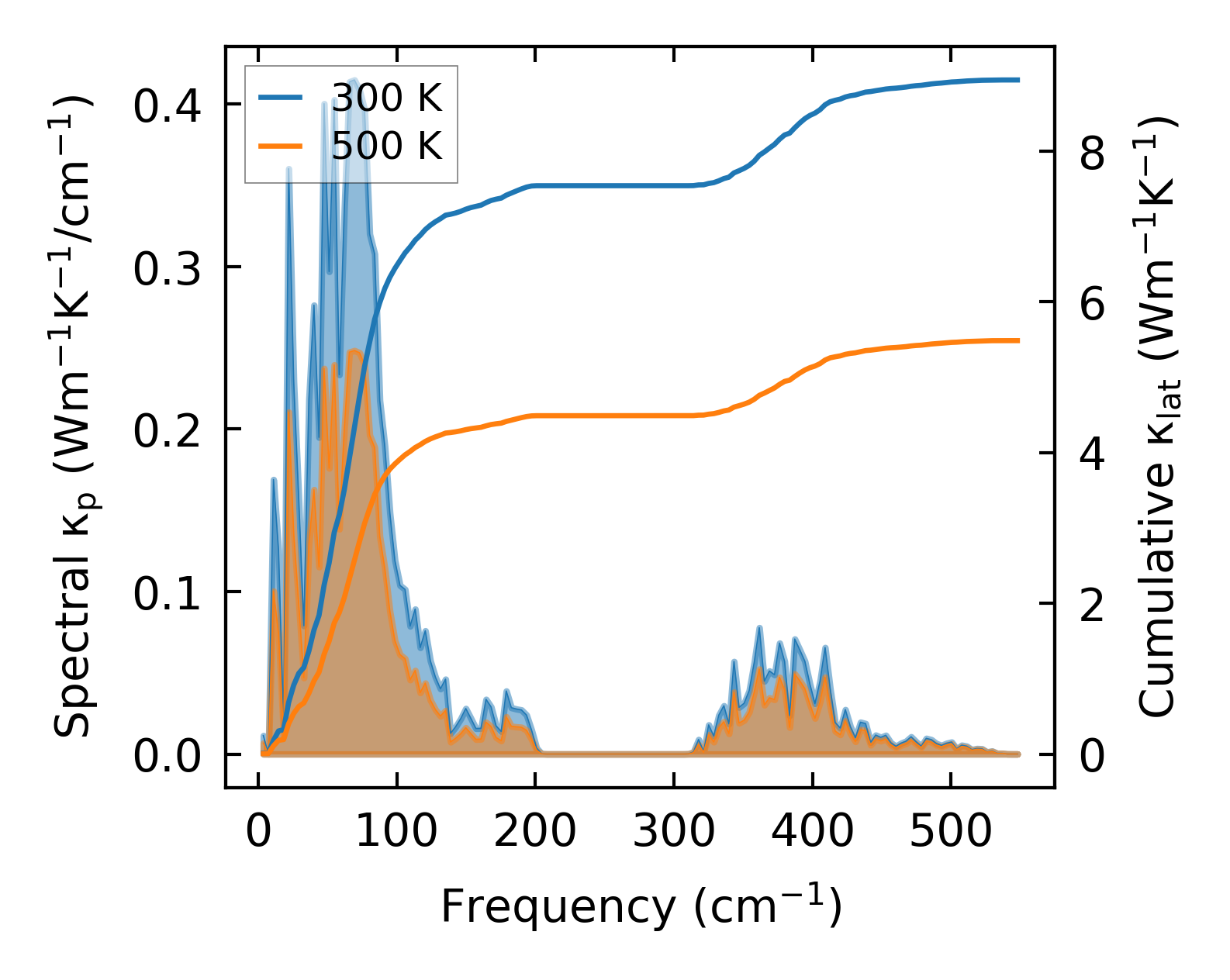

../../_images/fig_cumu_frequency6071.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

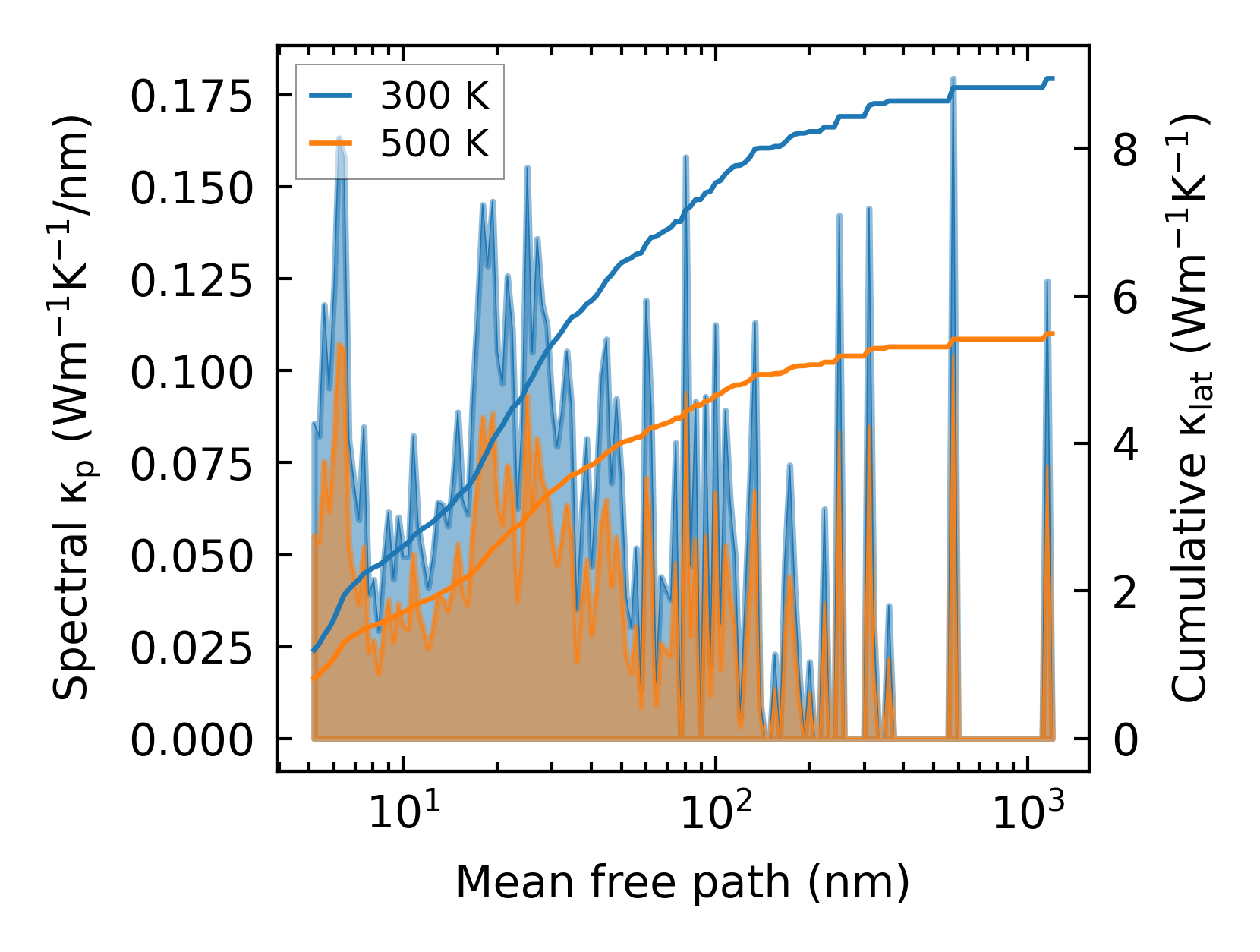

../../_images/fig_cumu_mfp6070.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc213999.png — (a) Force constants w.r.t atomic distance

Summary

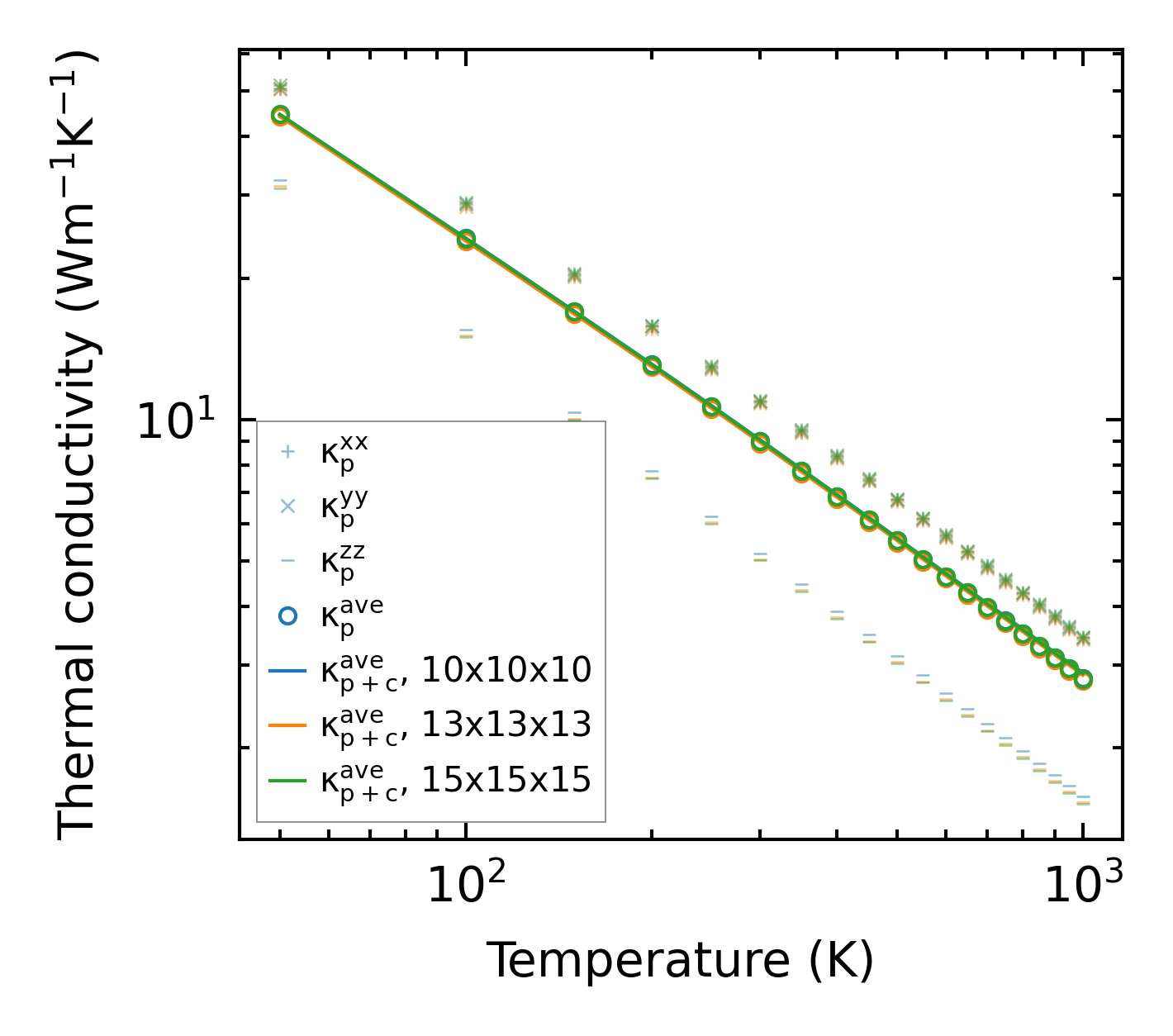

../../_images/fig_kappa11536.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times23969.png — (b) Computation time
