mp-16376/HoSbPt/anharm

Space group: F-43m (216)
Link: Materials Project
Download: mp-16376.tar.gz

Harmonic properties

../../_images/fig_bandos_pr14429.png — (a) Phonon dispersion with participation ratio and DOS

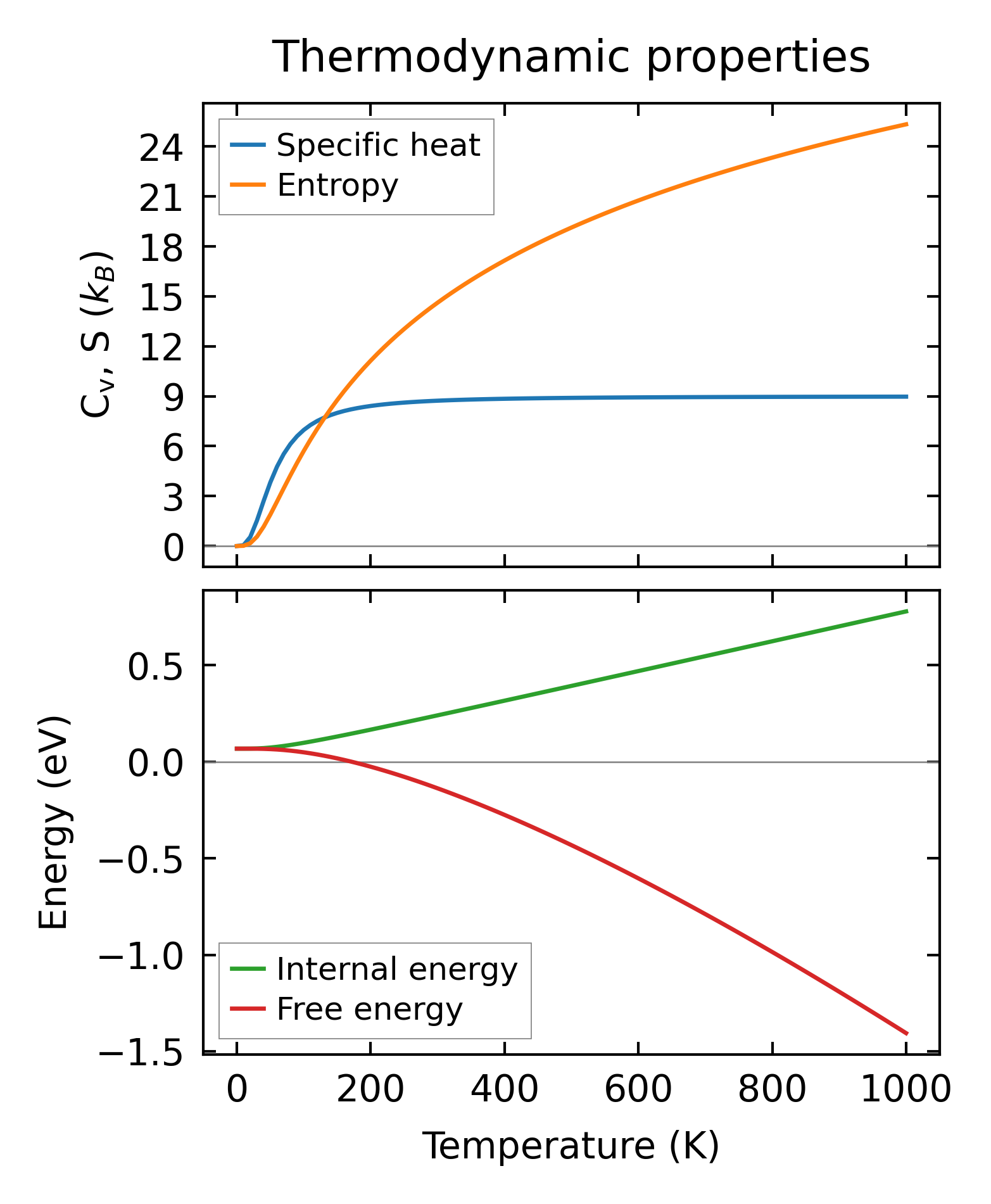

../../_images/fig_thermo14429.png — (b) Thermodynamic properties

Grüneisen parameters

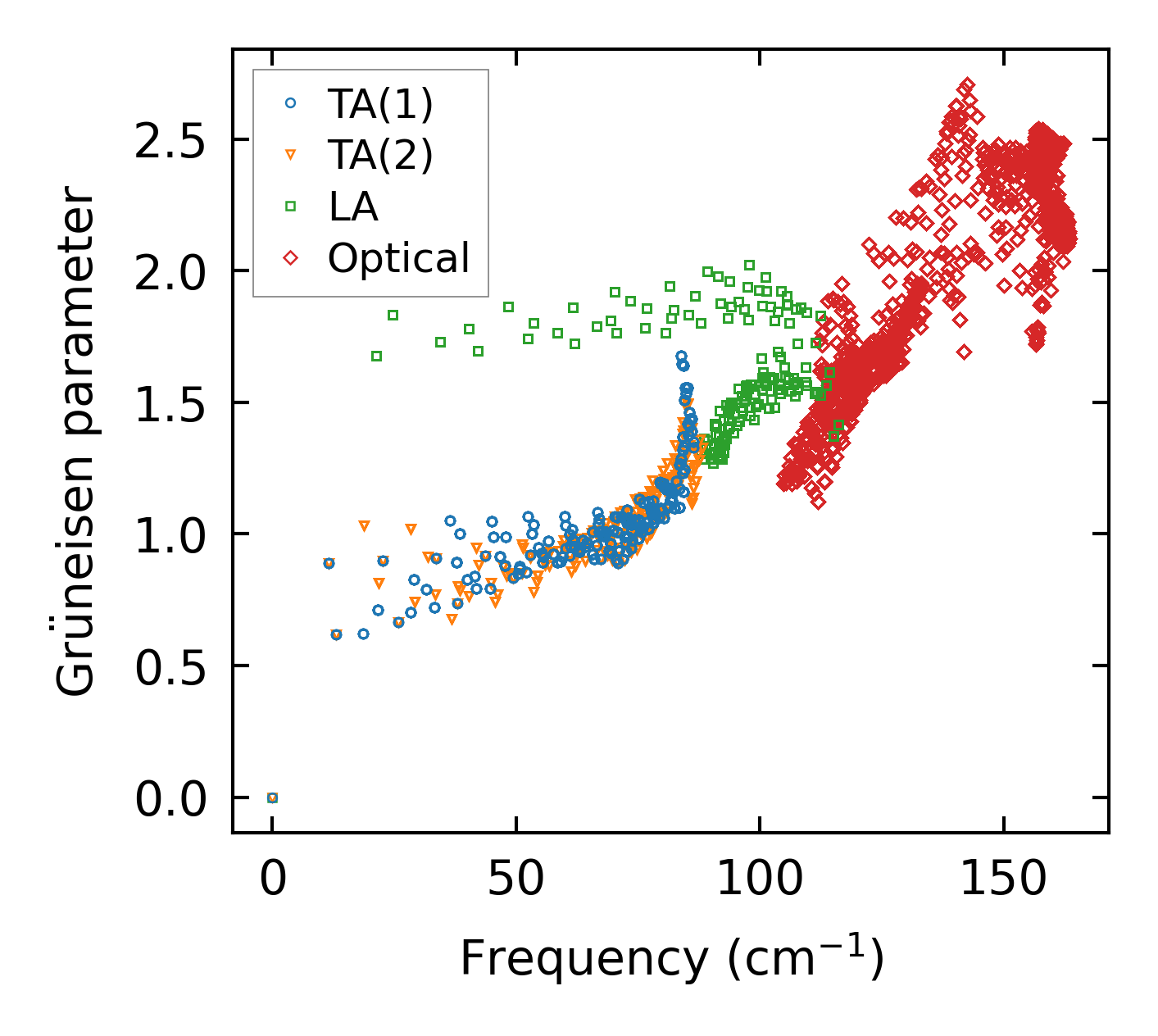

../../_images/fig_gru_all6165.png — (a) Grüneisen parameters

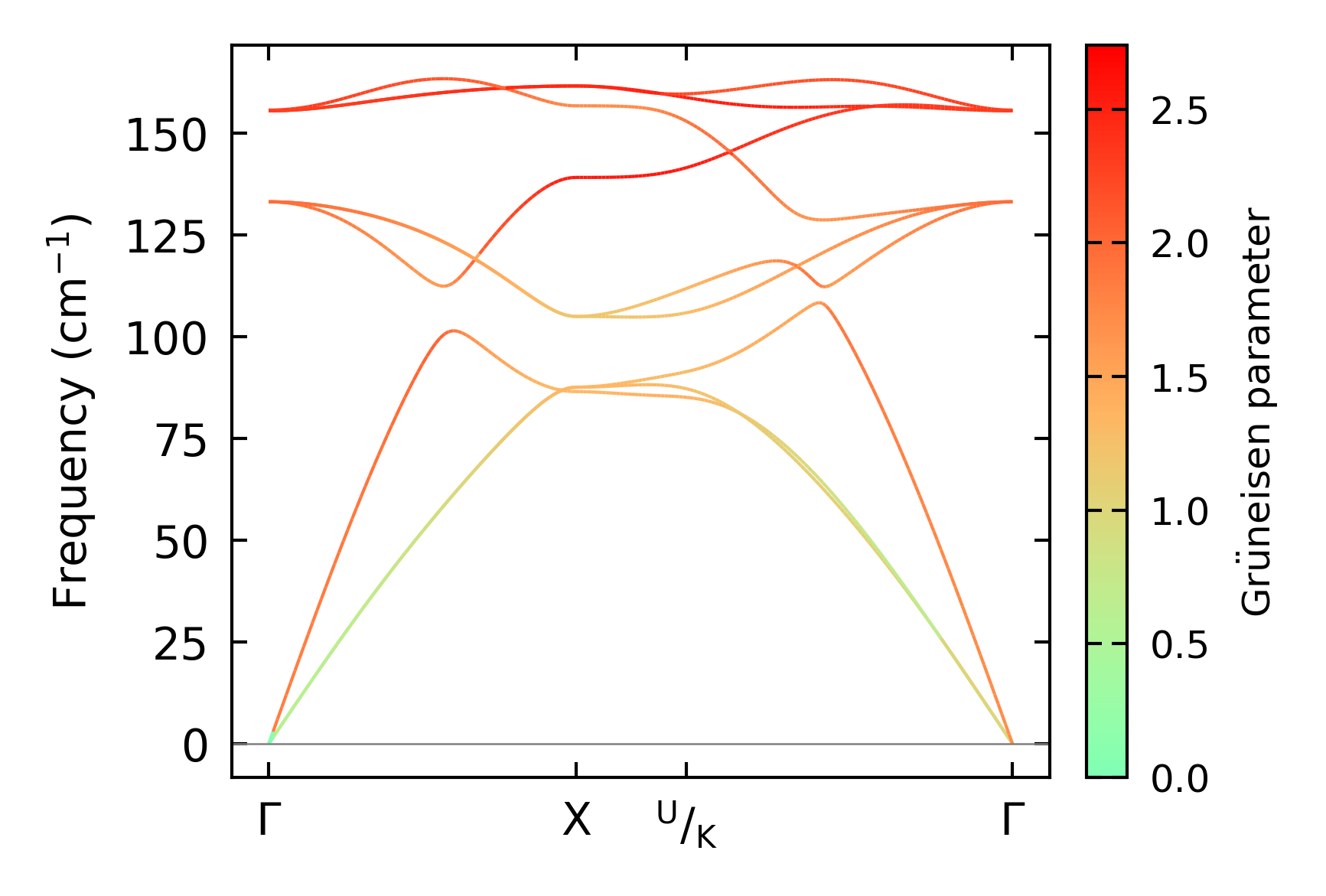

../../_images/fig_gruneisen6165.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon — q-mesh: 17x17x17, supercell: 2x2x2

../../_images/fig_kappa11599.png — (a) Temperature-dependent lattice thermal conductivity

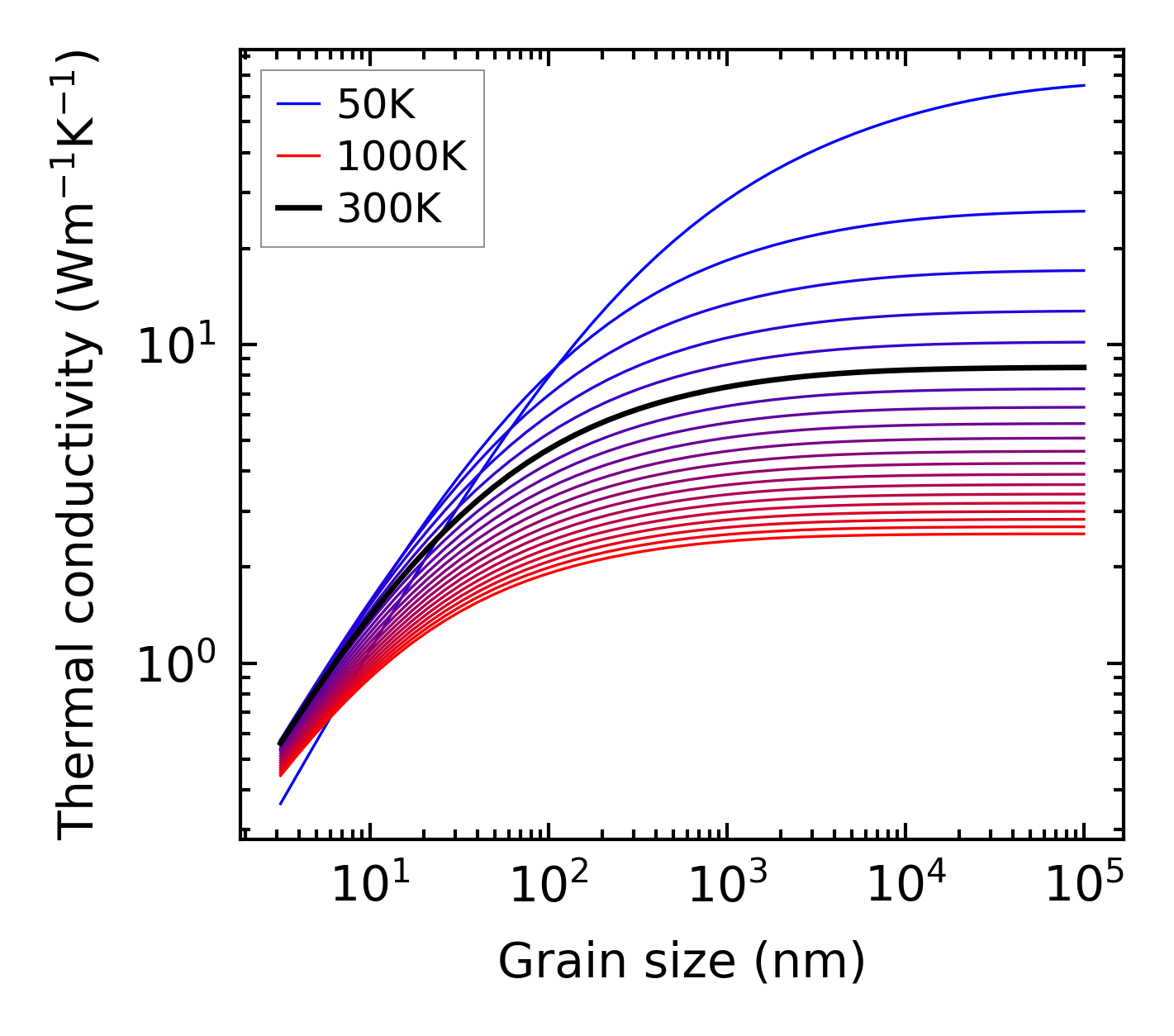

../../_images/fig_kappa_vs_grain_size6243.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

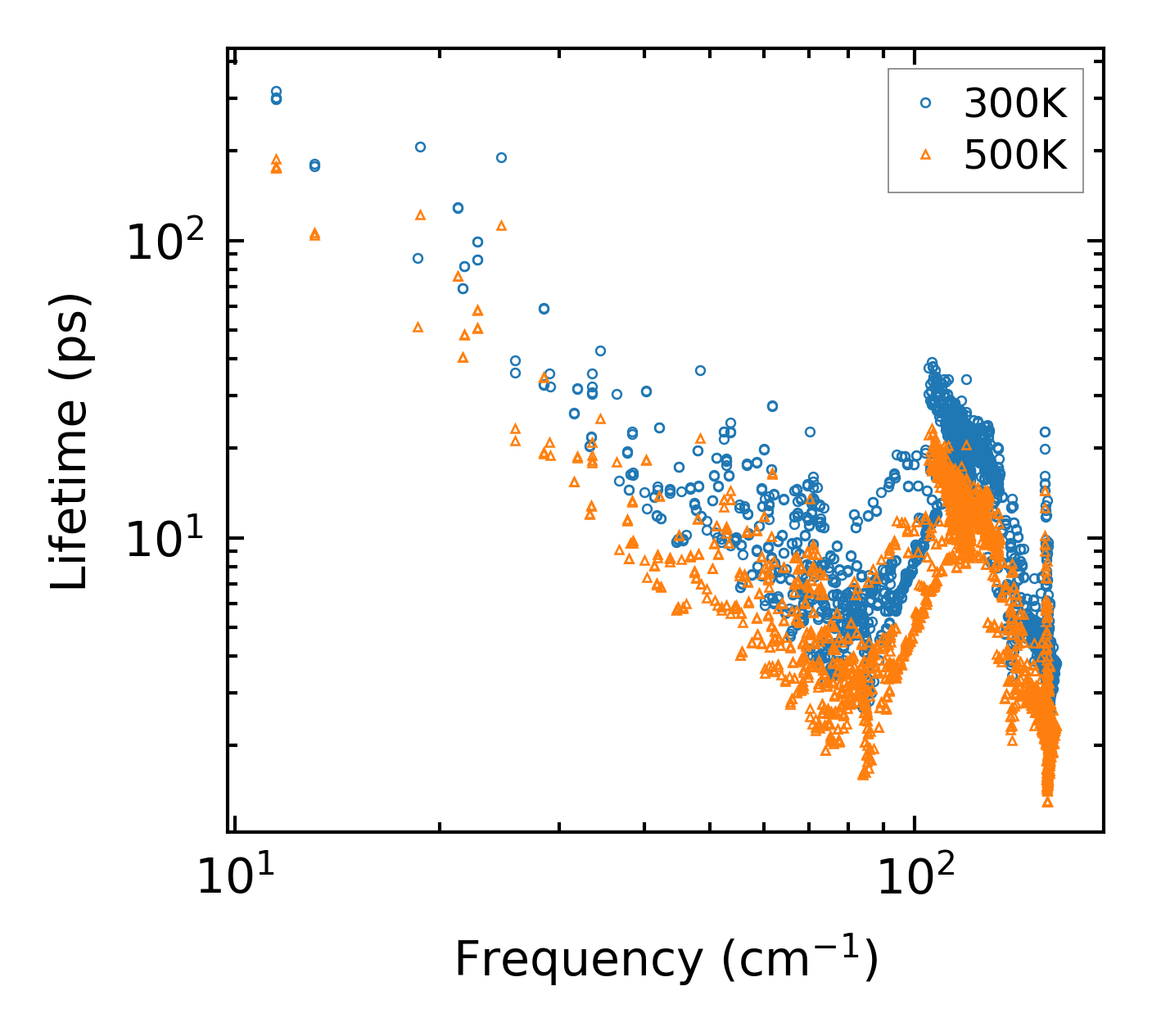

../../_images/fig_lifetime6104.png — (a) Phonon lifetime due to phonon-phonon scattering

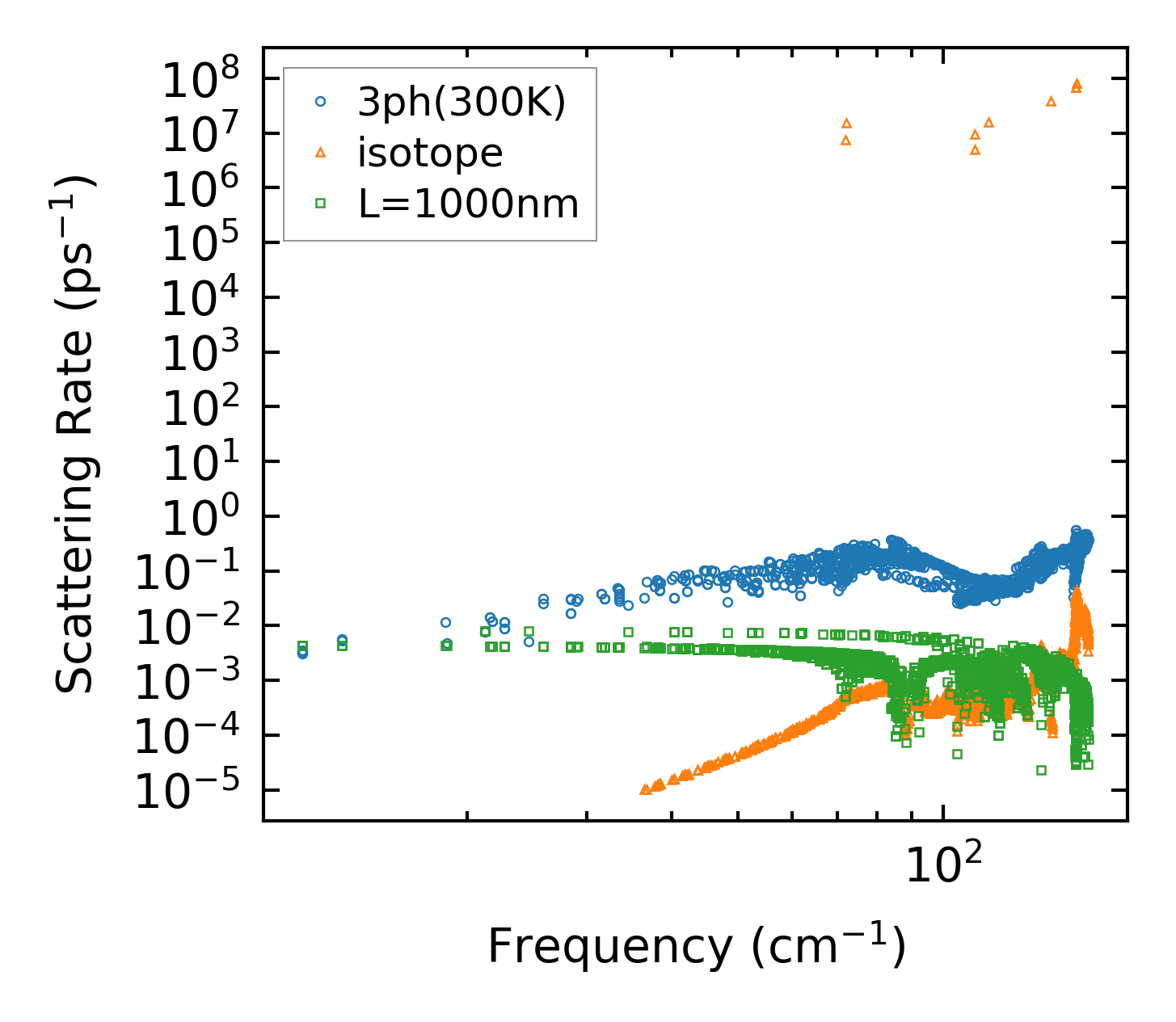

../../_images/fig_scat_rates6103.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

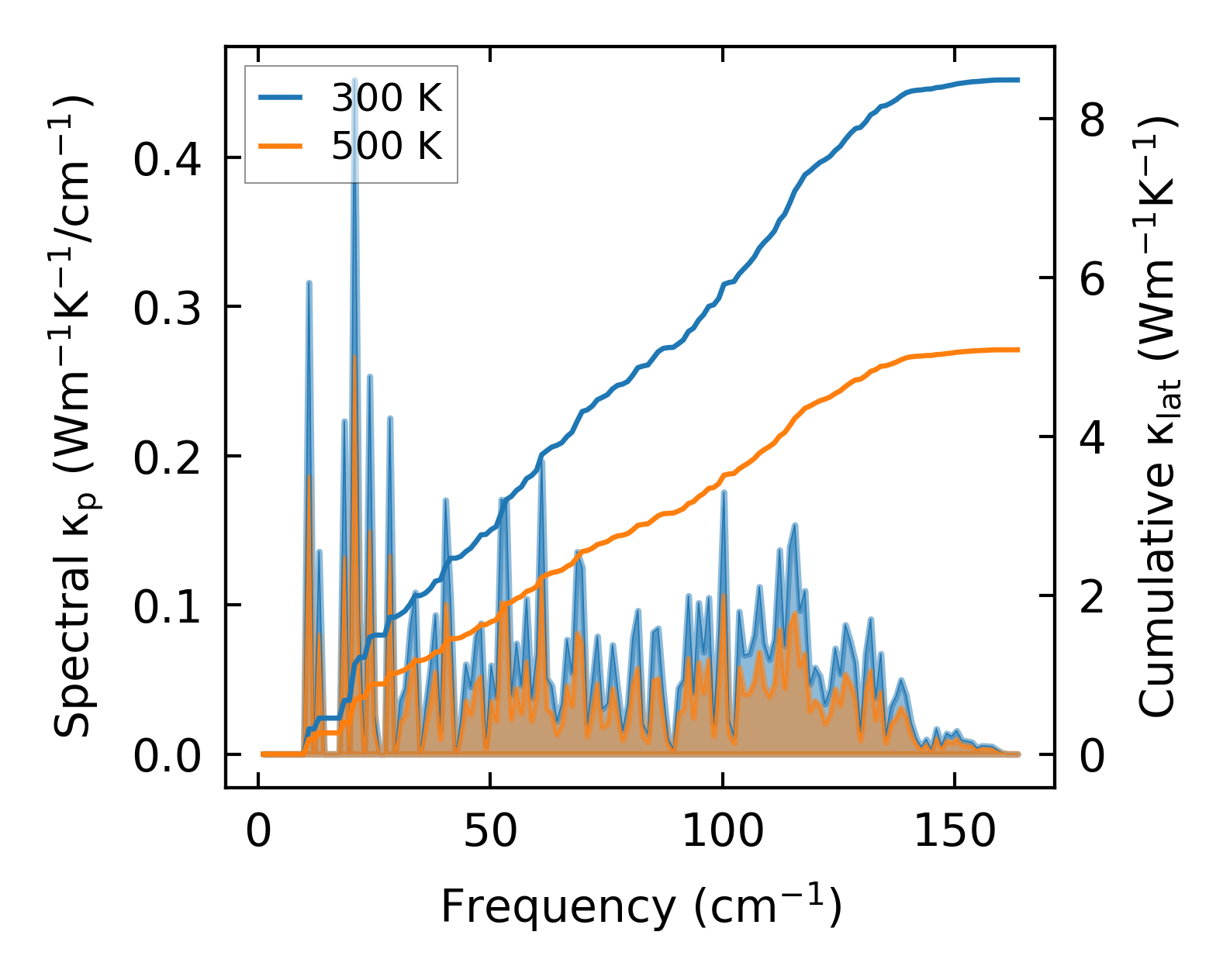

../../_images/fig_cumu_frequency6104.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp6103.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

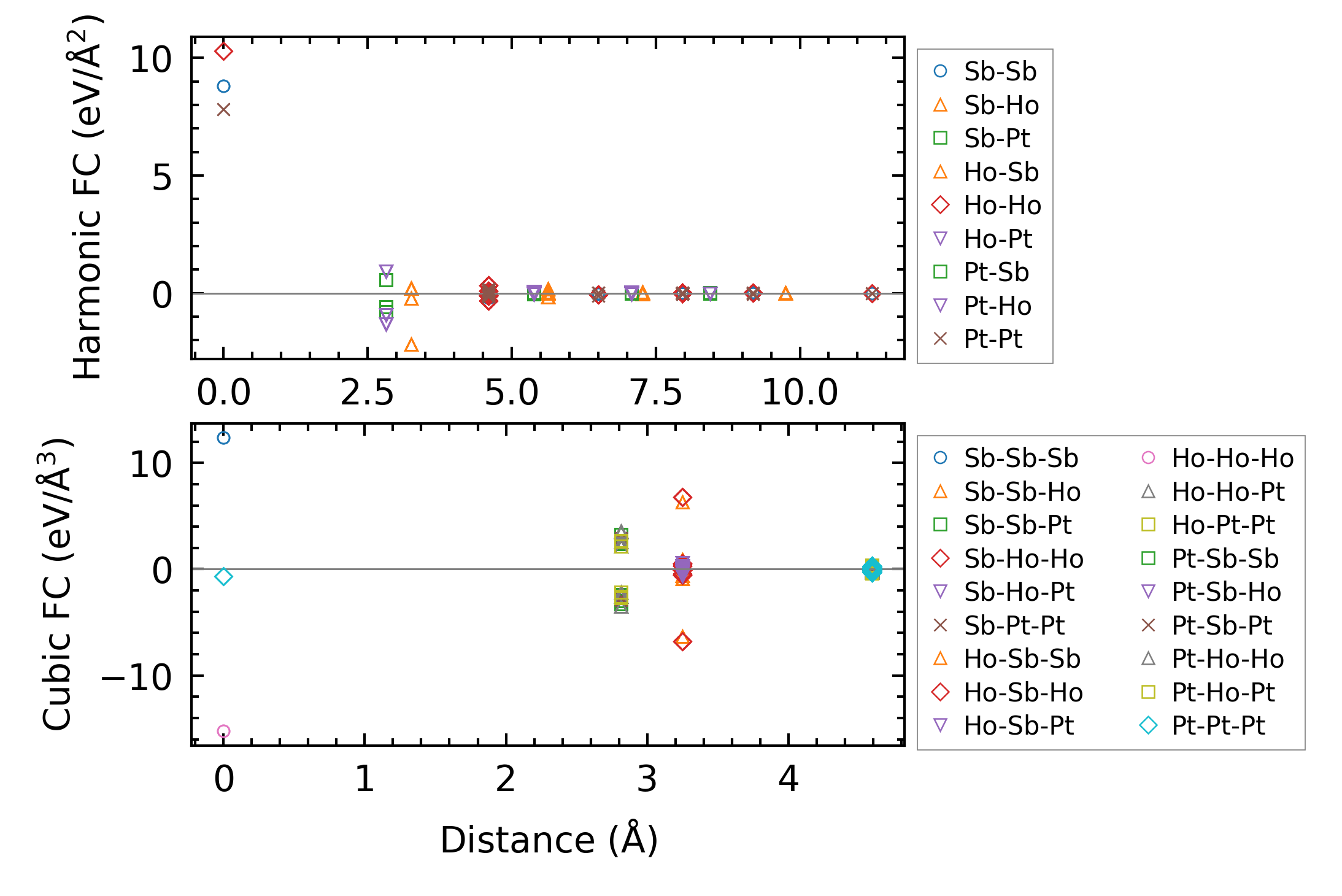

../../_images/fig_fc3380.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa11600.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times24037.png — (b) Computation time
