mp-16124/BaPr2MnS5/anharm

Space group: I4/mcm (140)
Link: Materials Project
Download: mp-16124.tar.gz

Harmonic properties

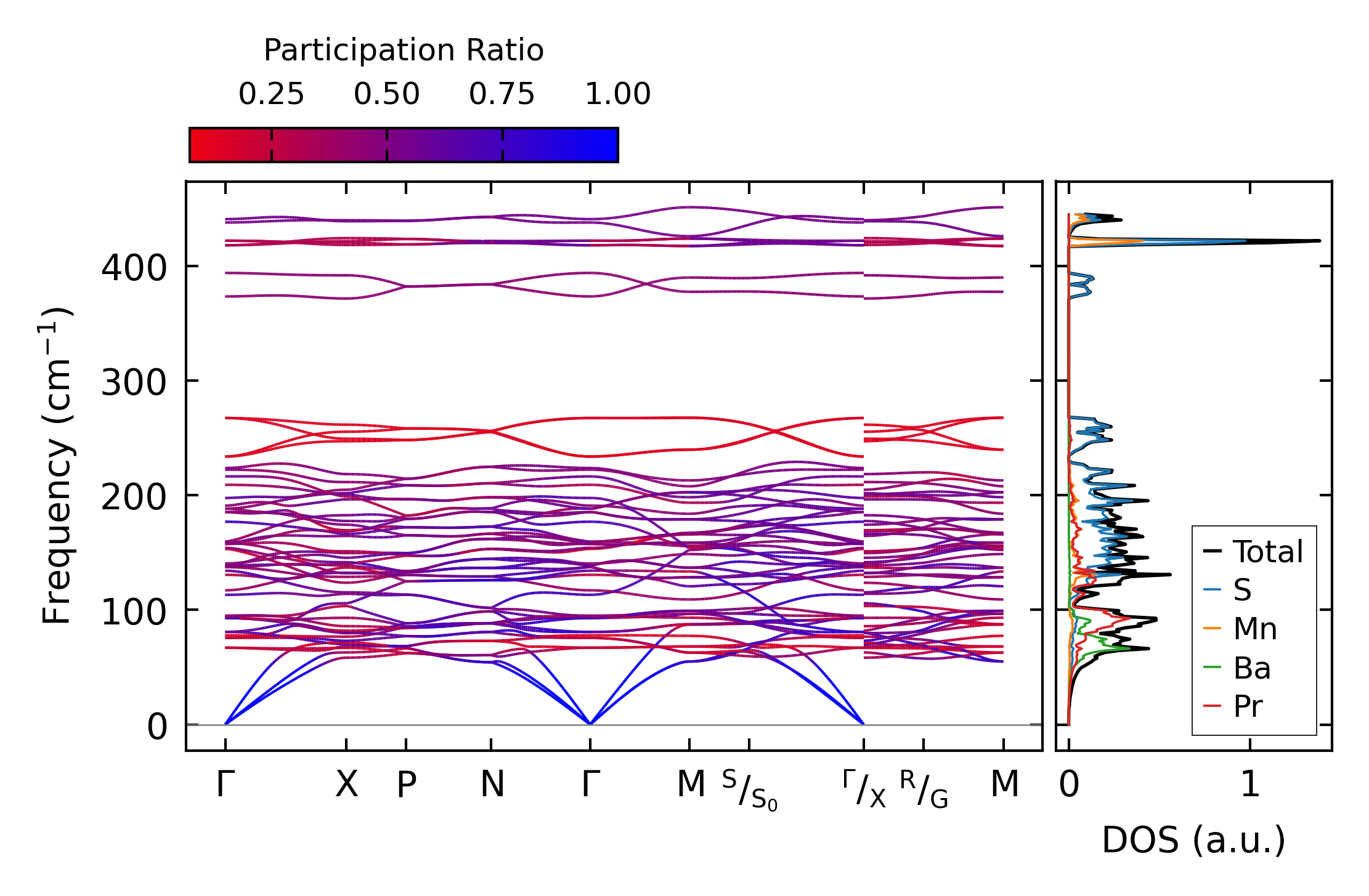

../../_images/fig_bandos_pr14388.png — (a) Phonon dispersion with participation ratio and DOS

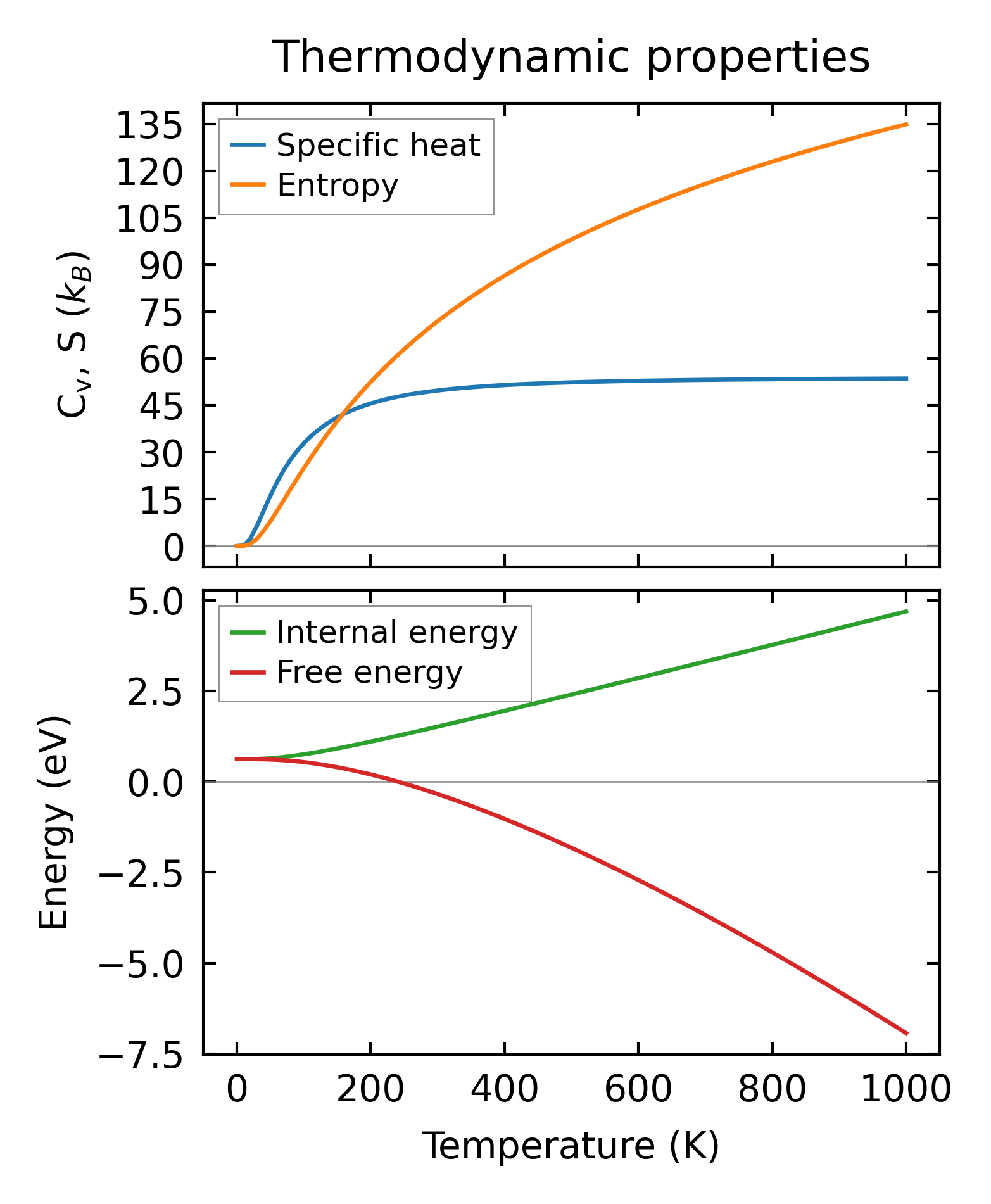

../../_images/fig_thermo14388.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all6139.png — (a) Grüneisen parameters

../../_images/fig_gruneisen6139.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 9x9x9, supercell: 2x2x1

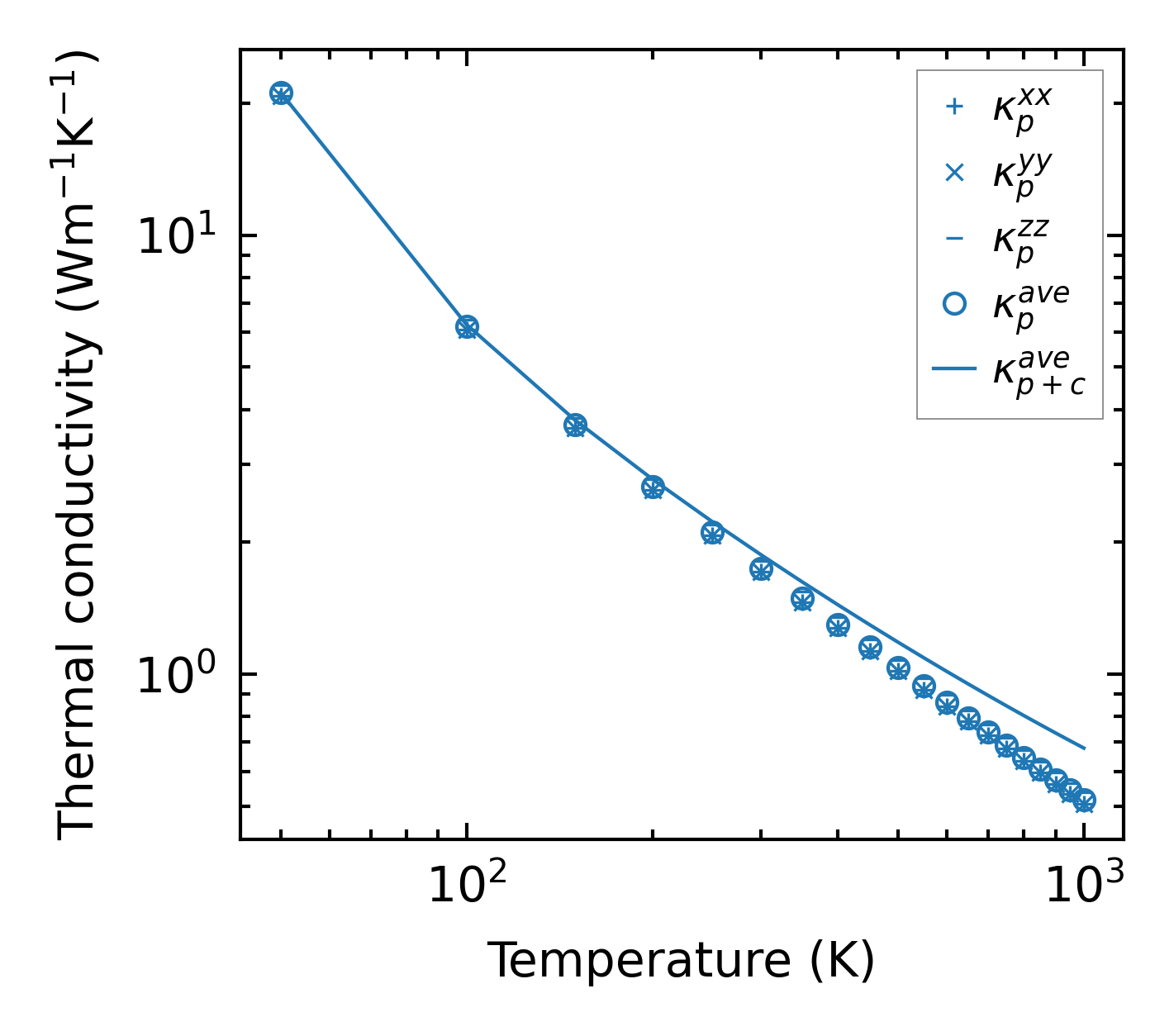

../../_images/fig_kappa11548.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size6217.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

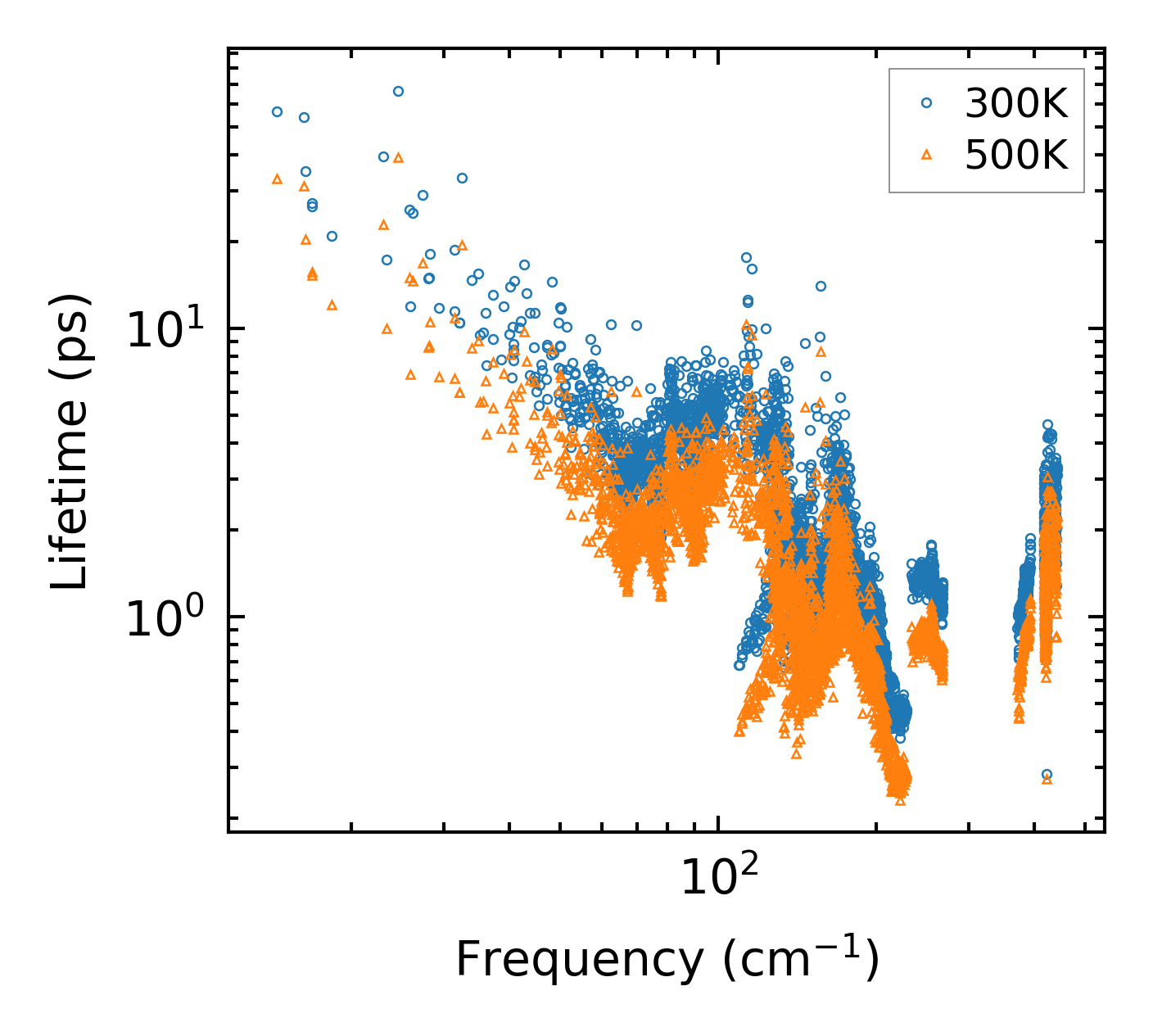

../../_images/fig_lifetime6078.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates6077.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

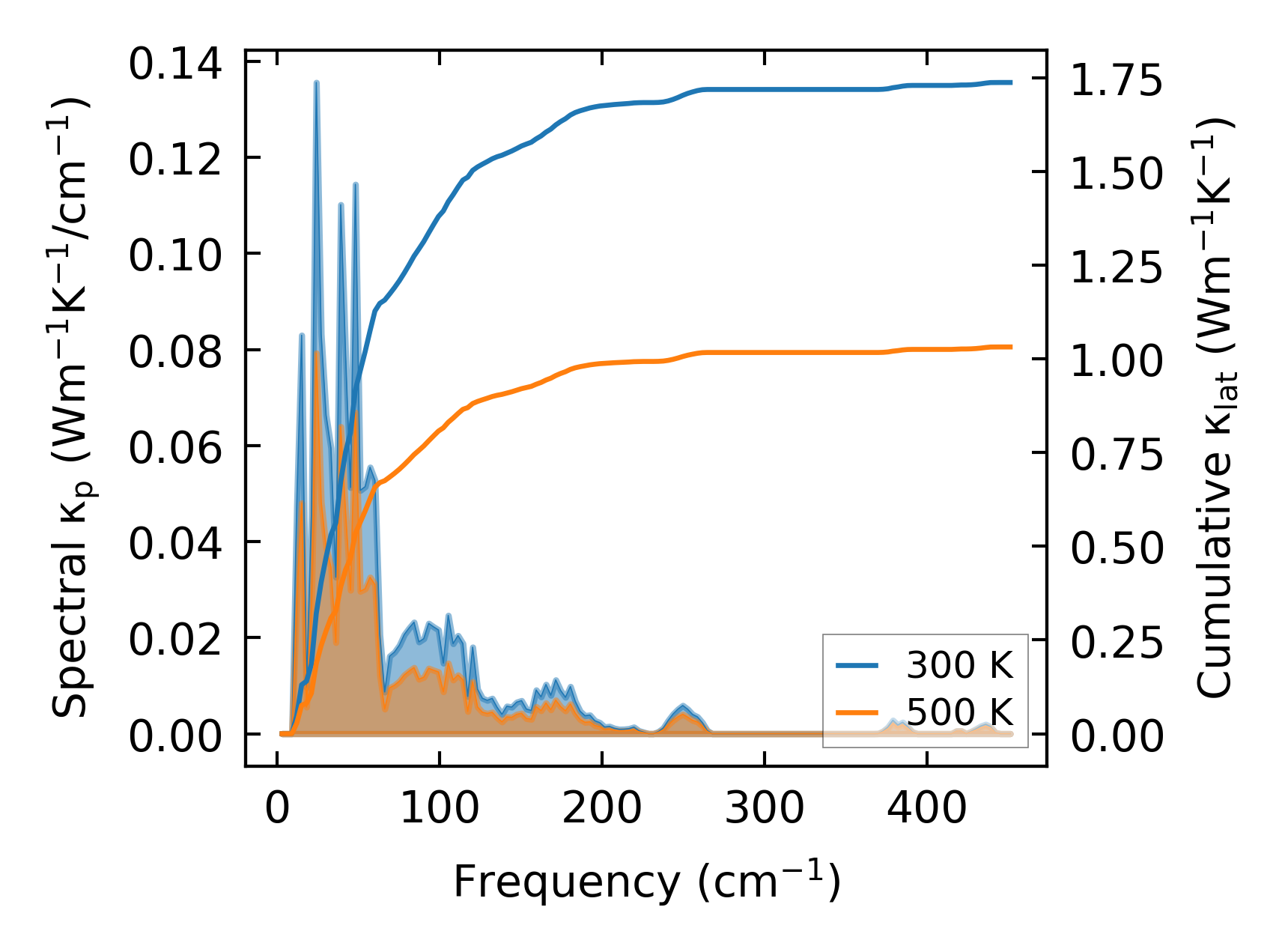

../../_images/fig_cumu_frequency6078.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

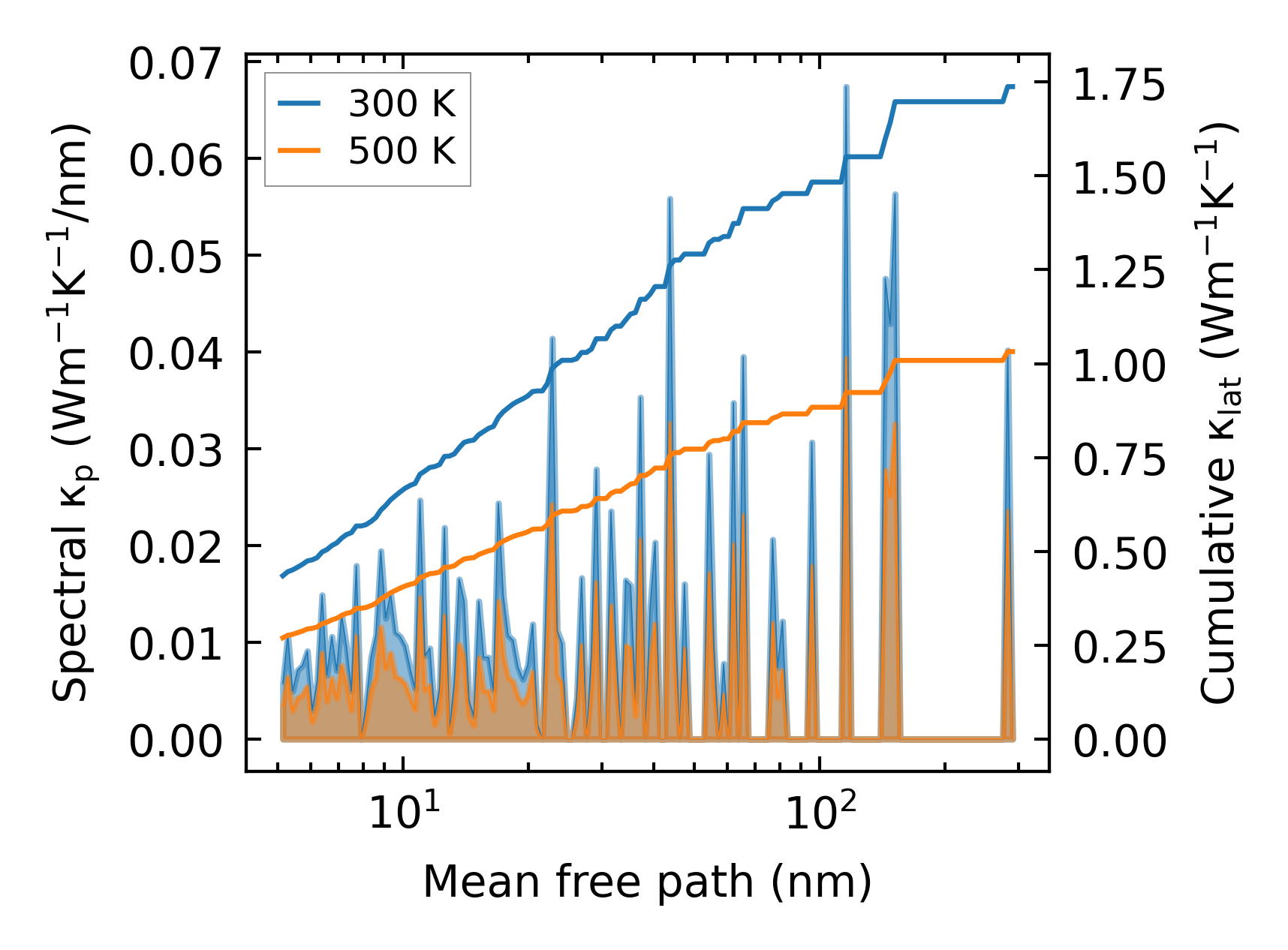

../../_images/fig_cumu_mfp6077.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc214013.png — (a) Force constants w.r.t atomic distance

Summary

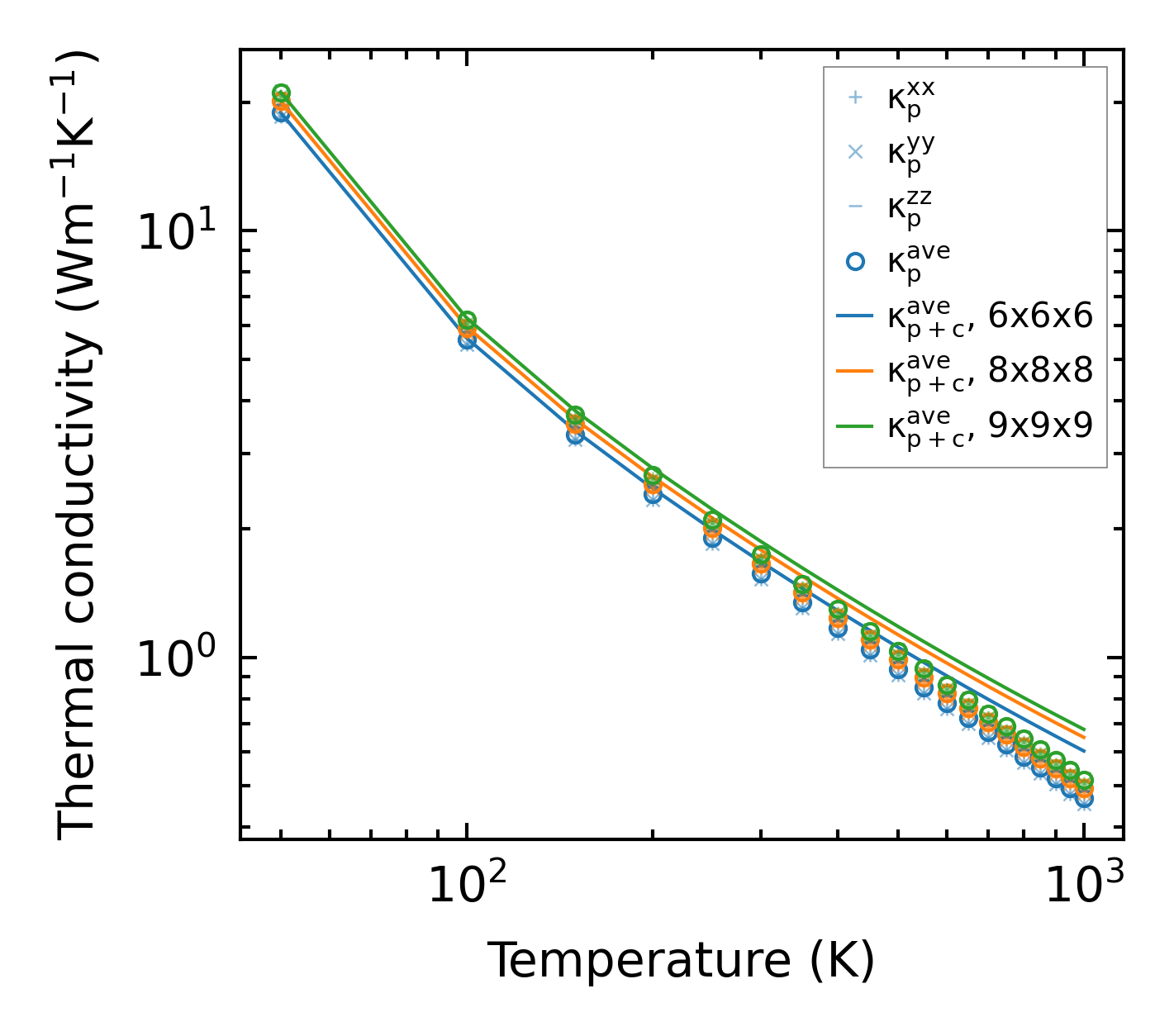

../../_images/fig_kappa11549.png — (a) Temperature-dependent lattice thermal conductivity

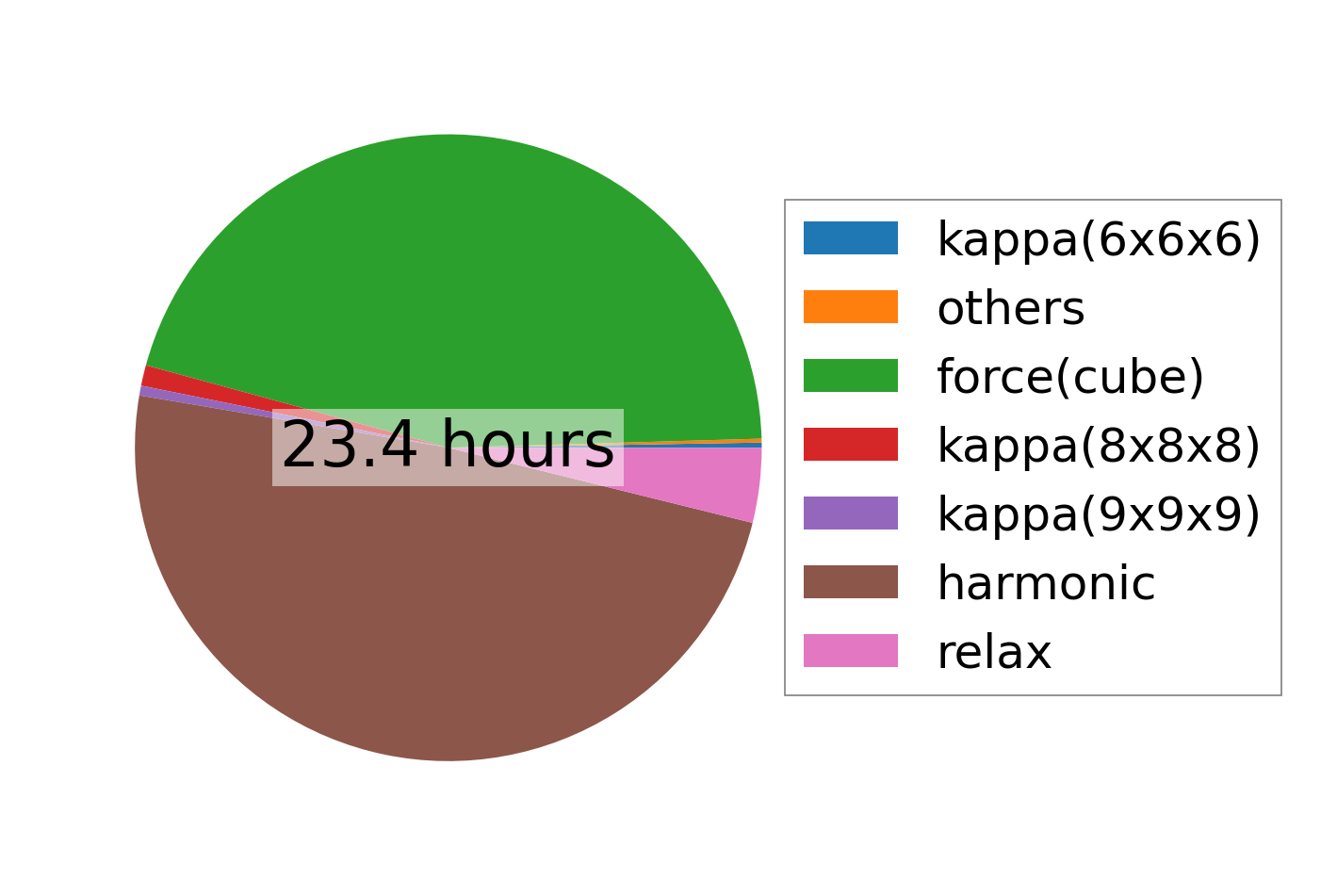

../../_images/fig_times23987.png — (b) Computation time
