mp-16863/Rb3PS4/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-16863.tar.gz

Harmonic properties

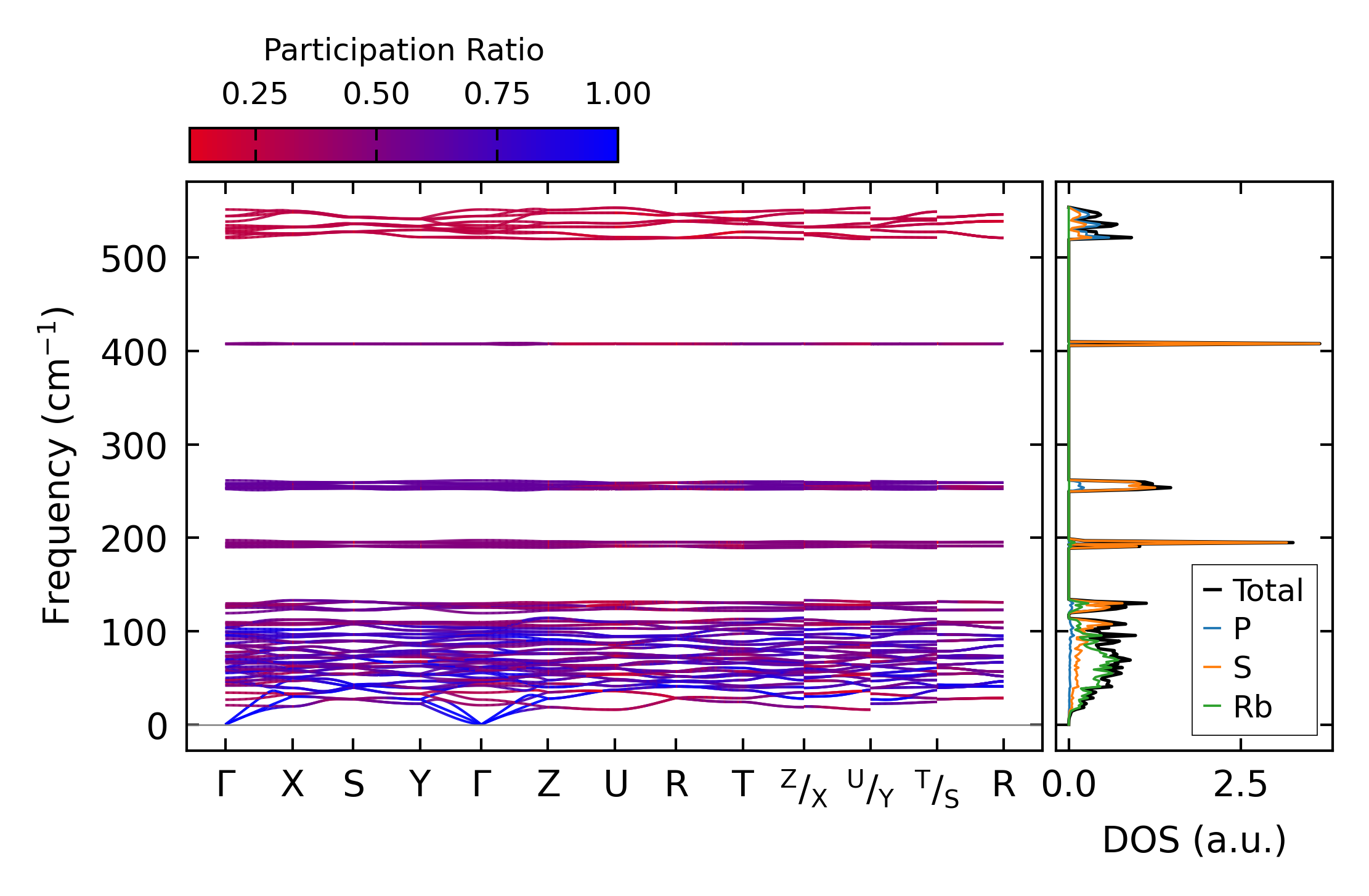

../../_images/fig_bandos_pr14112.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo14112.png — (b) Thermodynamic properties

Grüneisen parameters

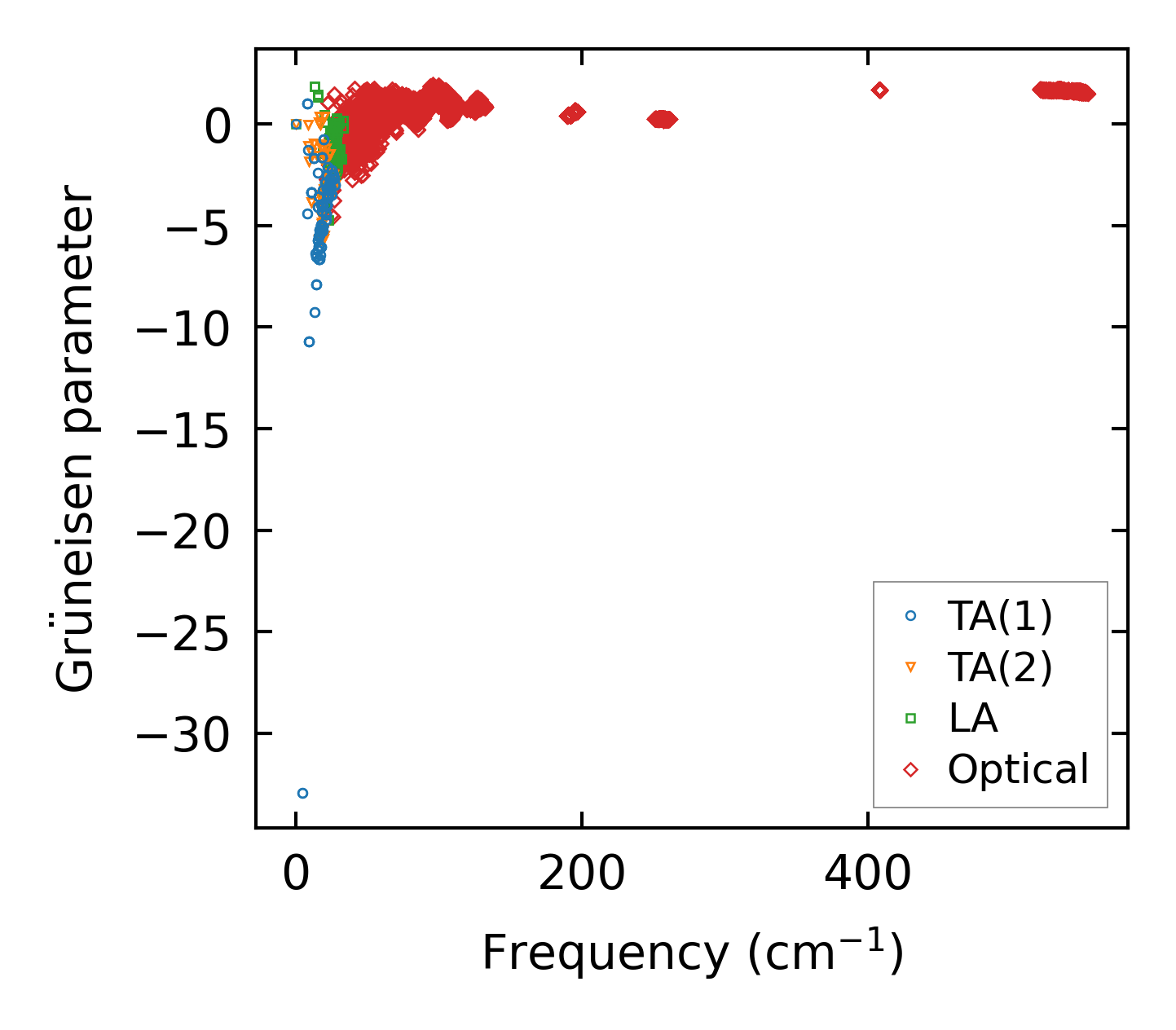

../../_images/fig_gru_all5988.png — (a) Grüneisen parameters

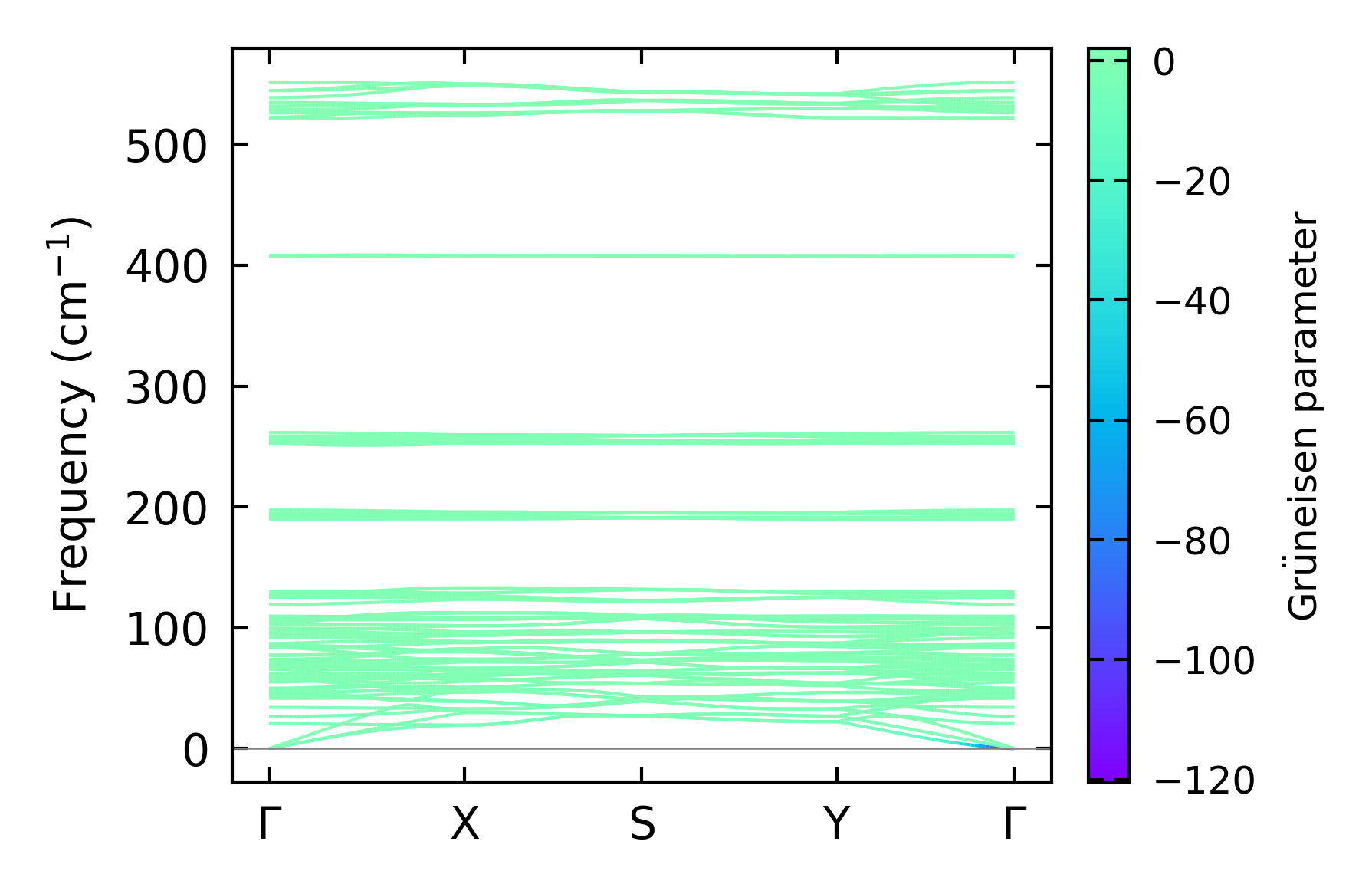

../../_images/fig_gruneisen5988.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x6x7, supercell: 2x1x2

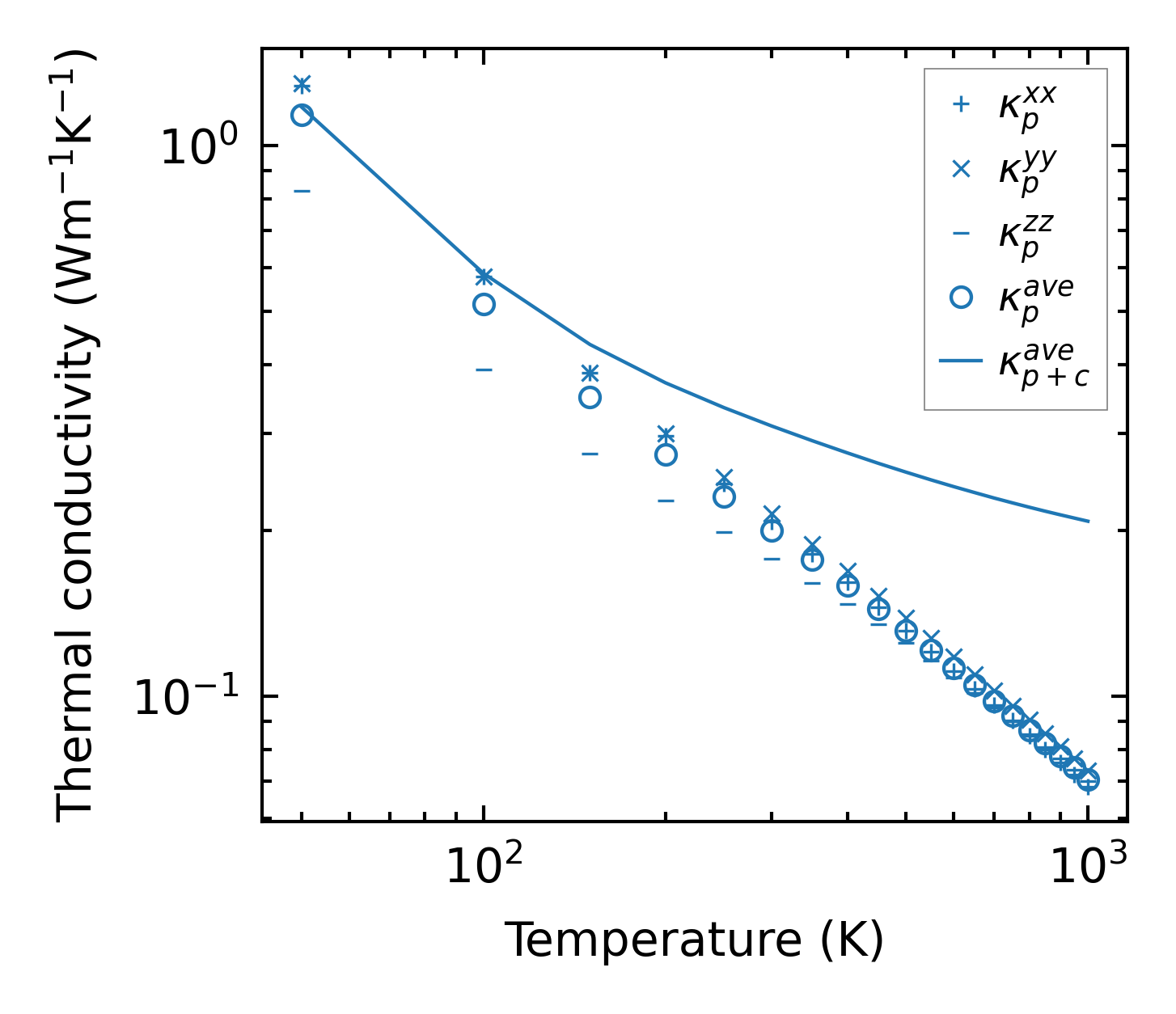

../../_images/fig_kappa11274.png — (a) Temperature-dependent lattice thermal conductivity

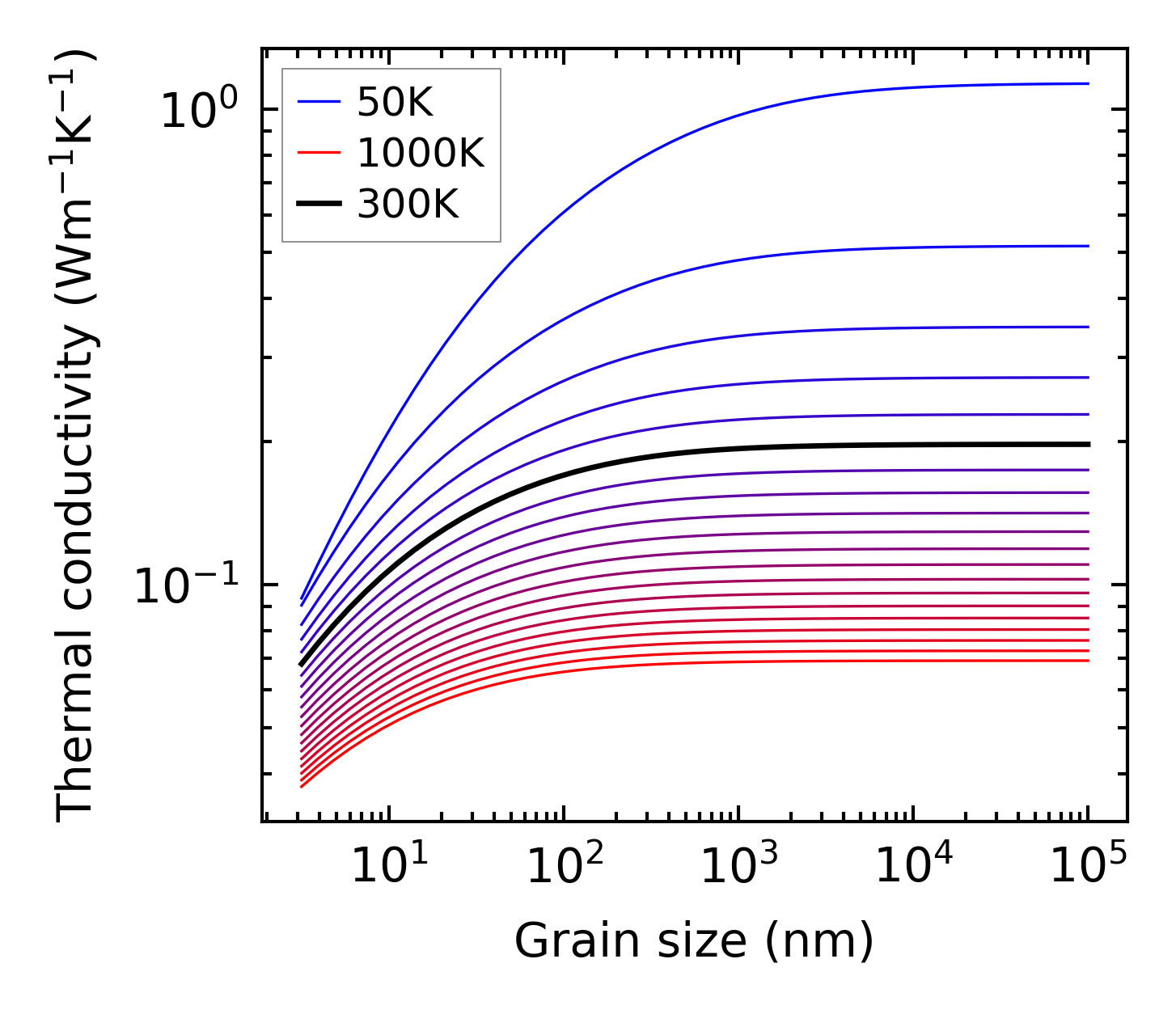

../../_images/fig_kappa_vs_grain_size6067.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

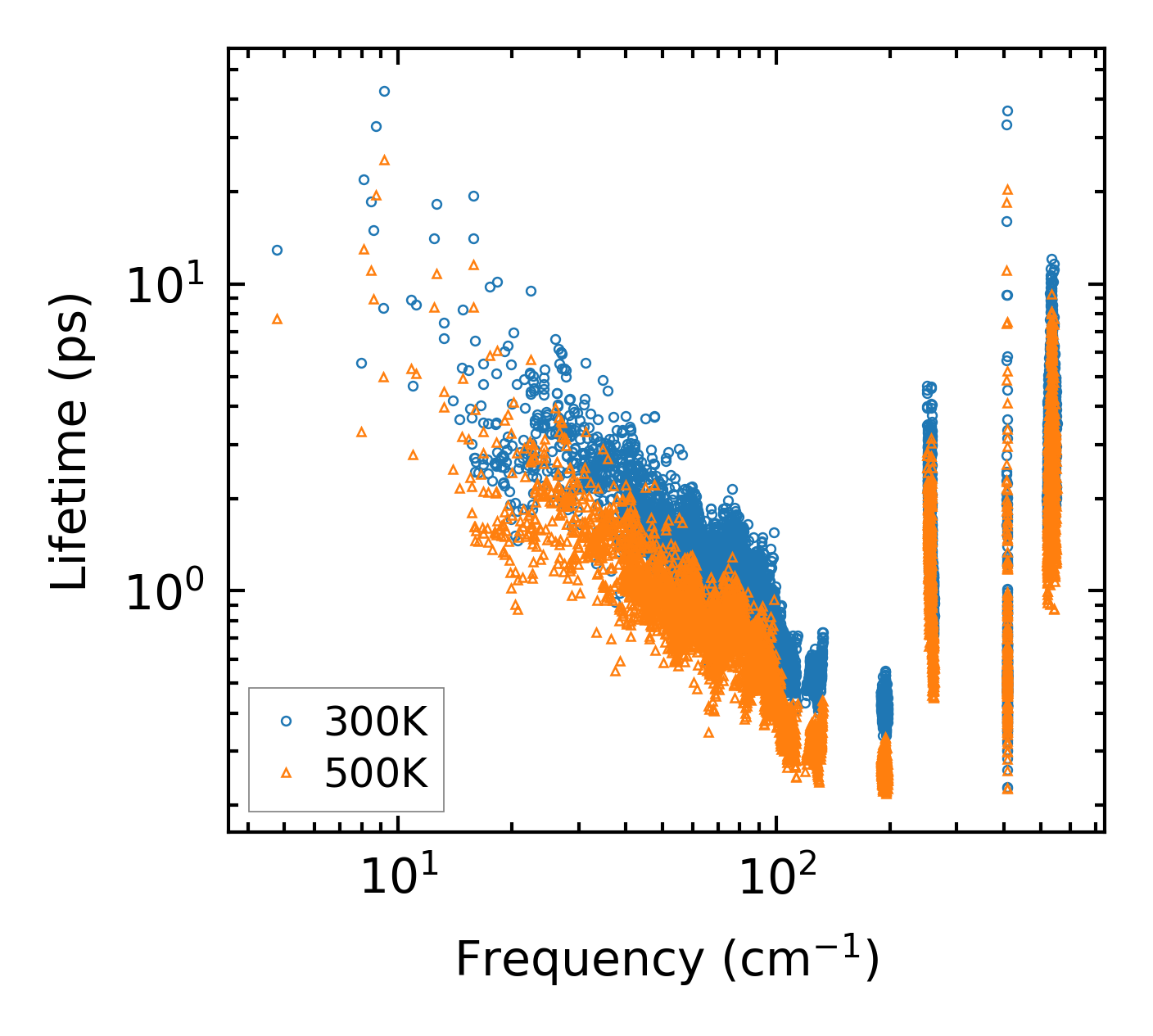

../../_images/fig_lifetime5931.png — (a) Phonon lifetime due to phonon-phonon scattering

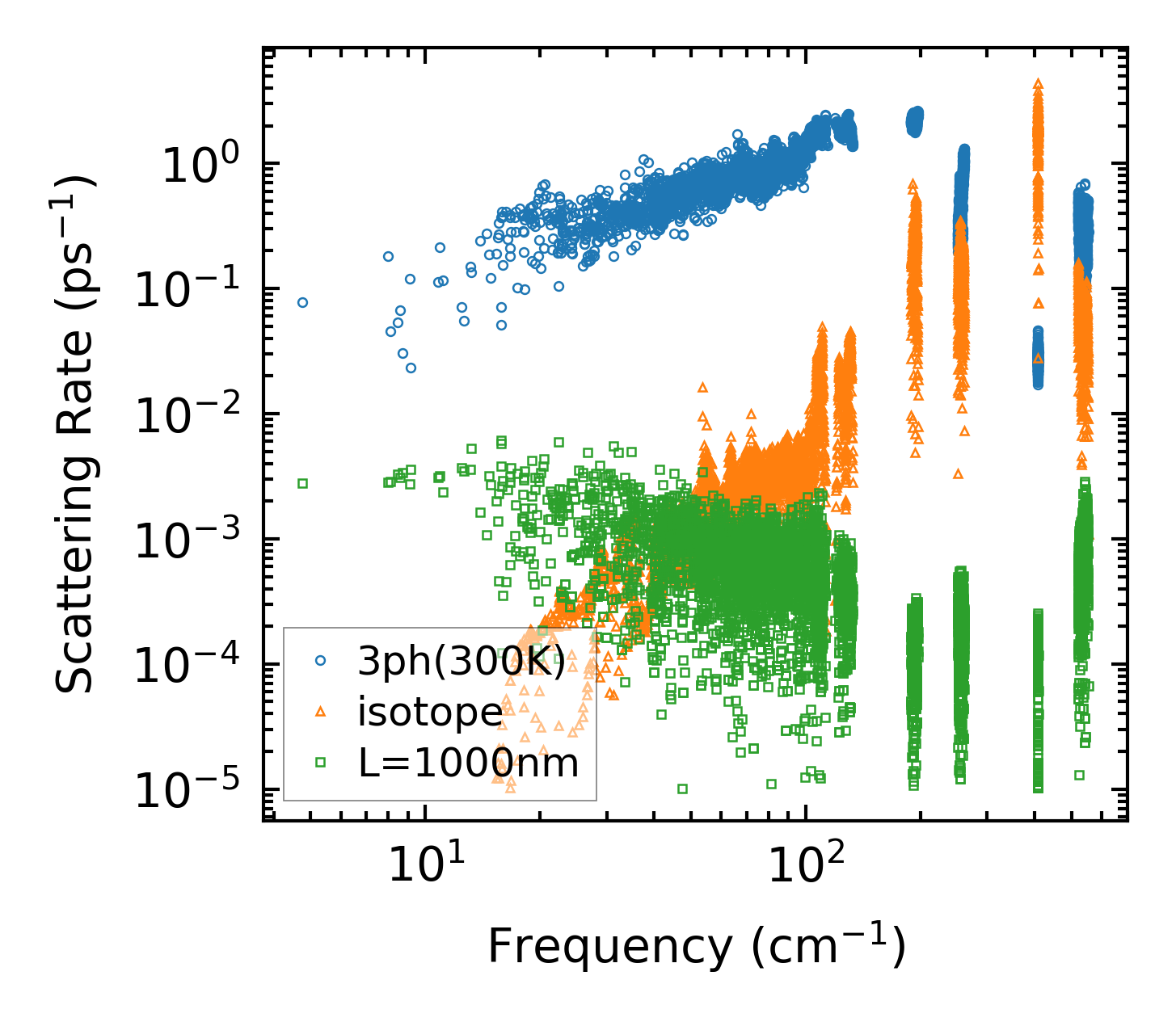

../../_images/fig_scat_rates5930.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

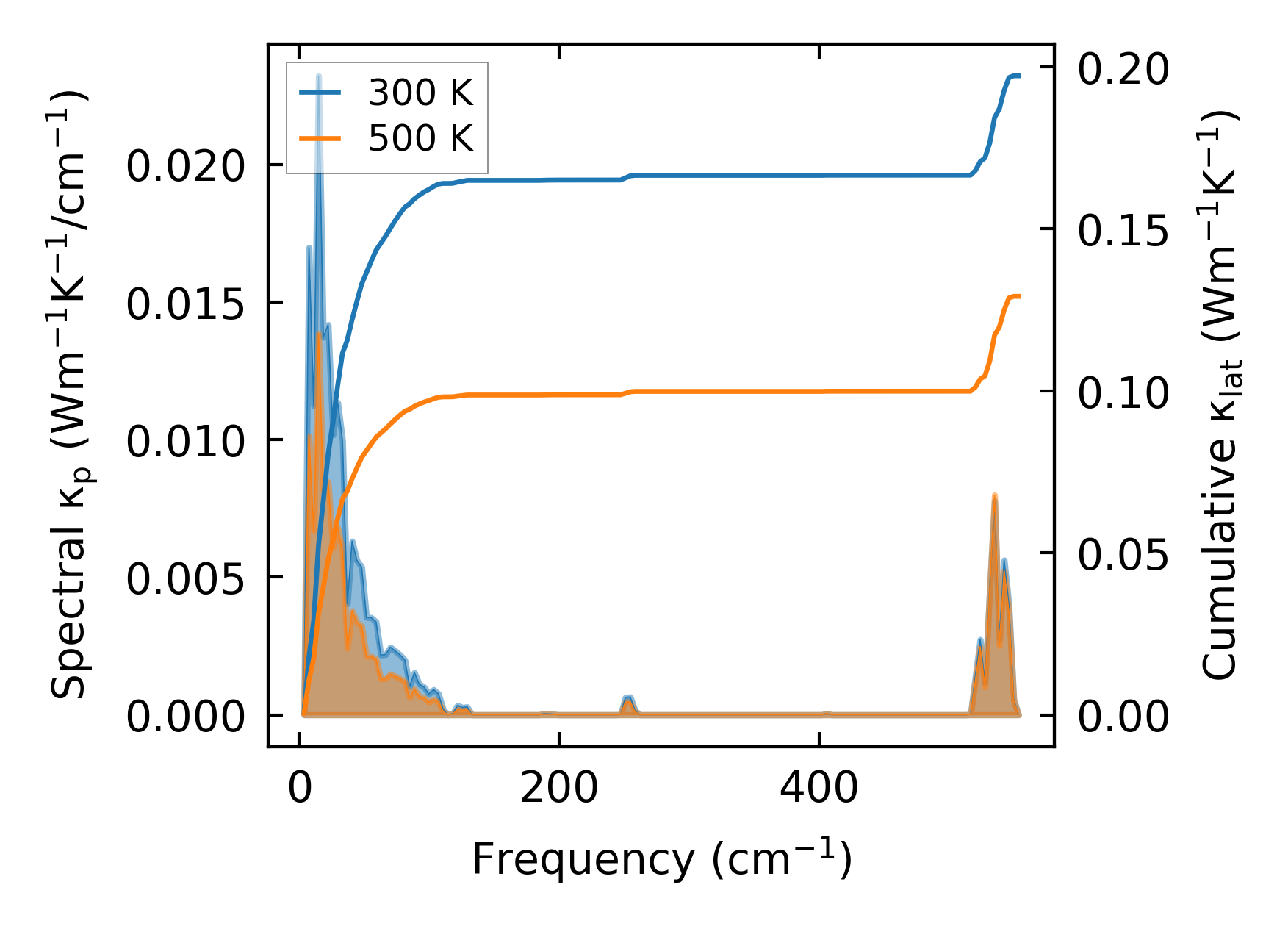

../../_images/fig_cumu_frequency5931.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

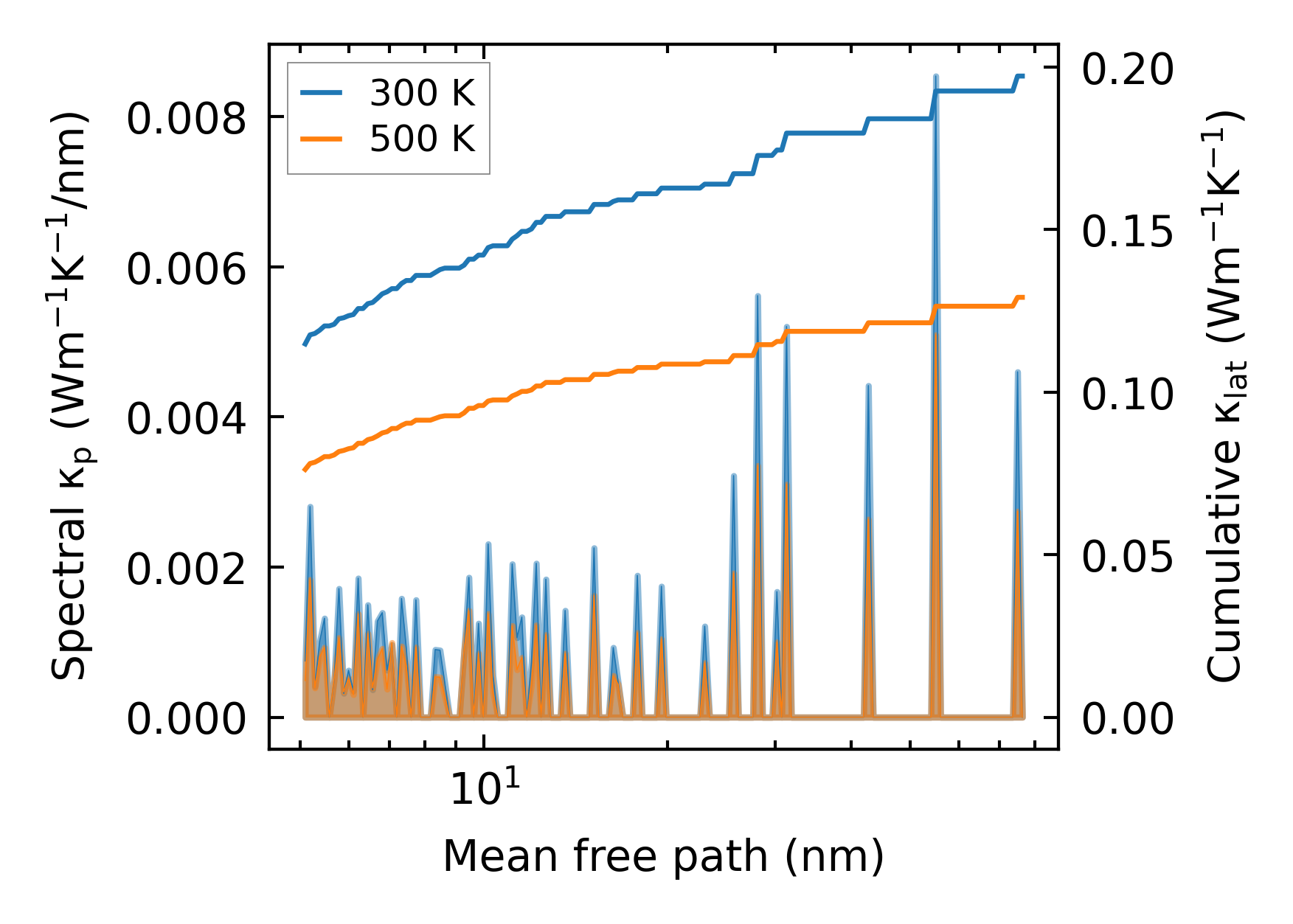

../../_images/fig_cumu_mfp5930.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

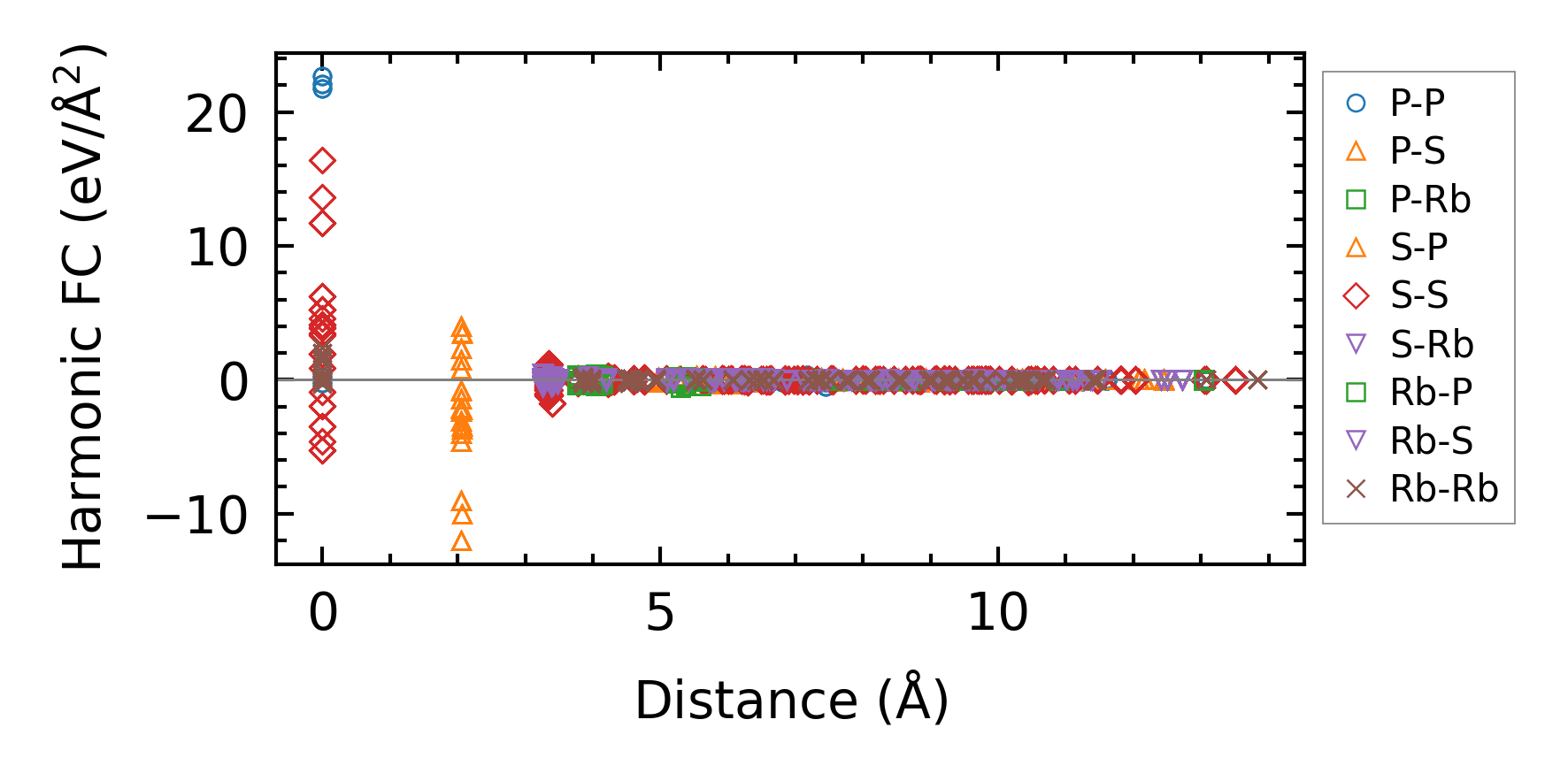

../../_images/fig_fc213740.png — (a) Force constants w.r.t atomic distance

Summary

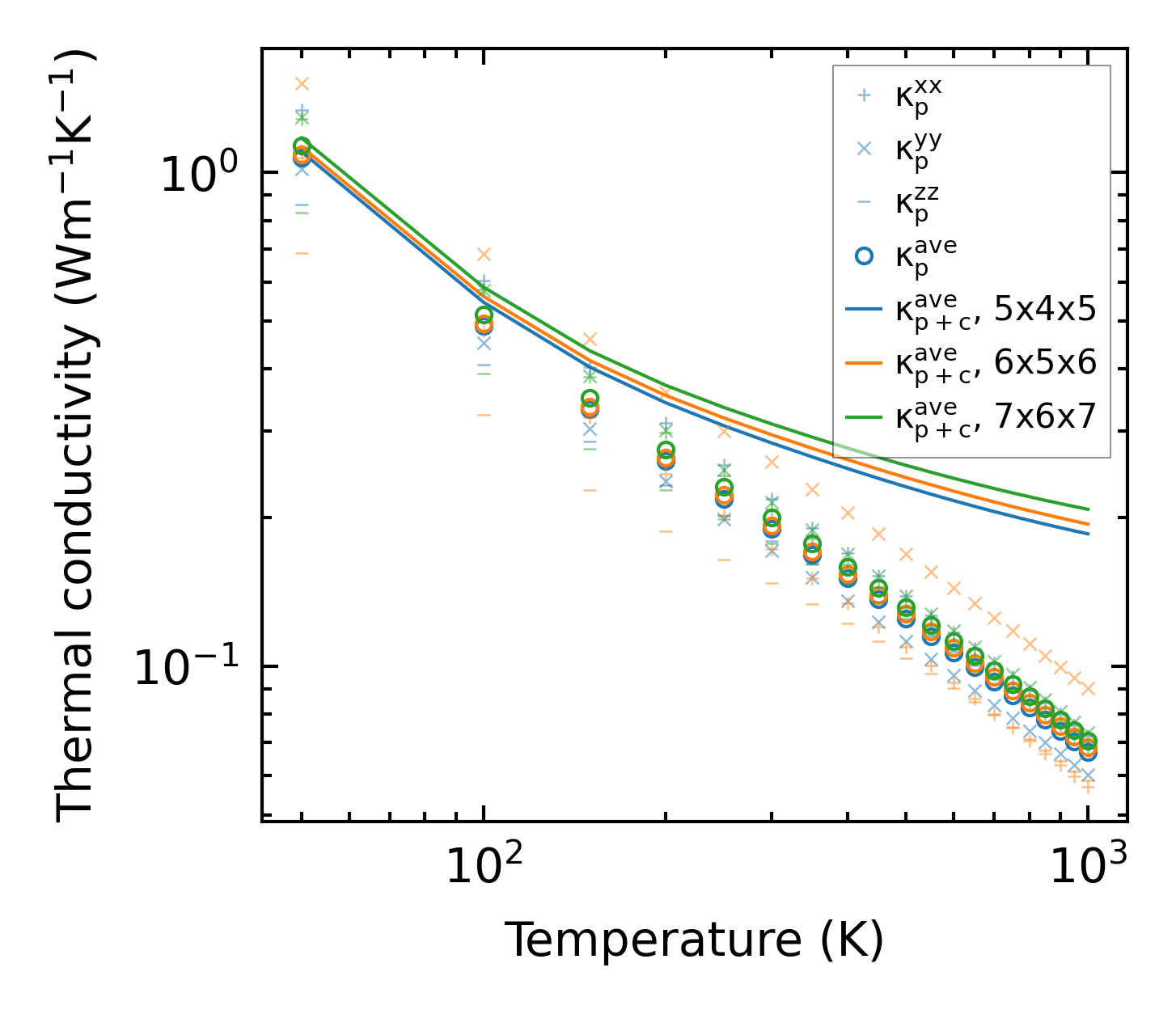

../../_images/fig_kappa11275.png — (a) Temperature-dependent lattice thermal conductivity

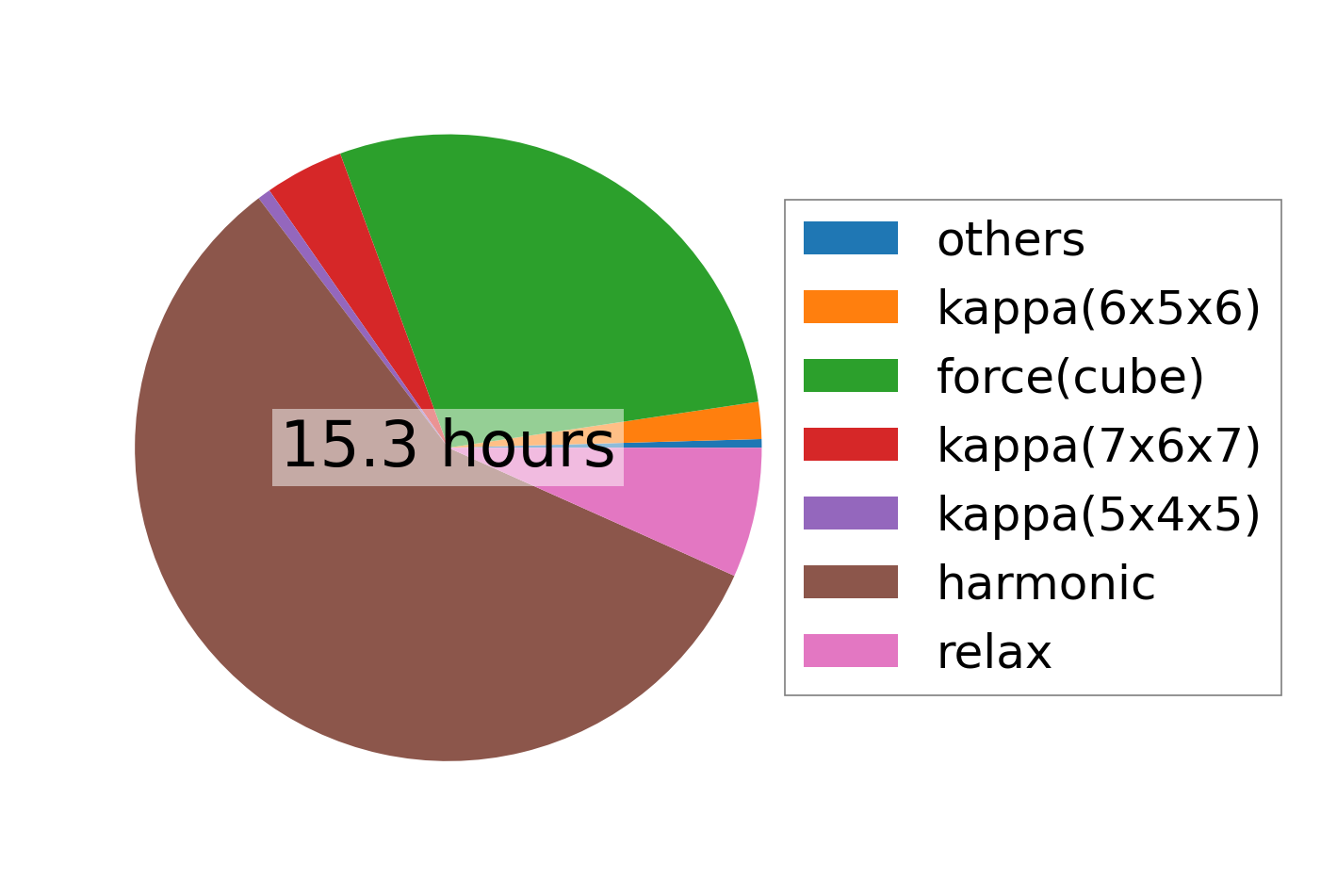

../../_images/fig_times23606.png — (b) Computation time
