mp-16454/BaPr2ZnS5/anharm

Space group: I4/mcm (140)
Link: Materials Project
Download: mp-16454.tar.gz

Harmonic properties

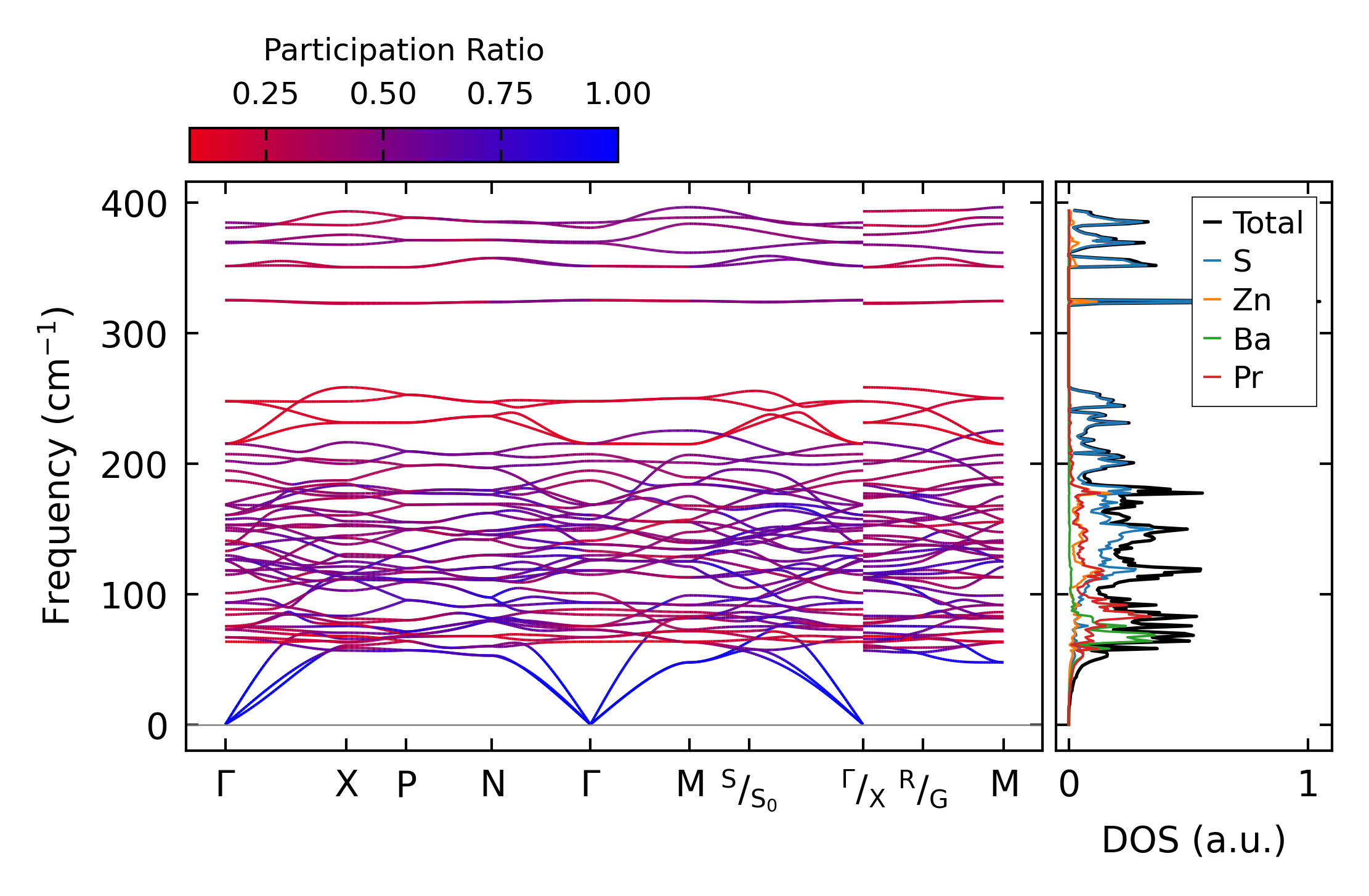

../../_images/fig_bandos_pr14439.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo14439.png — (b) Thermodynamic properties

Grüneisen parameters

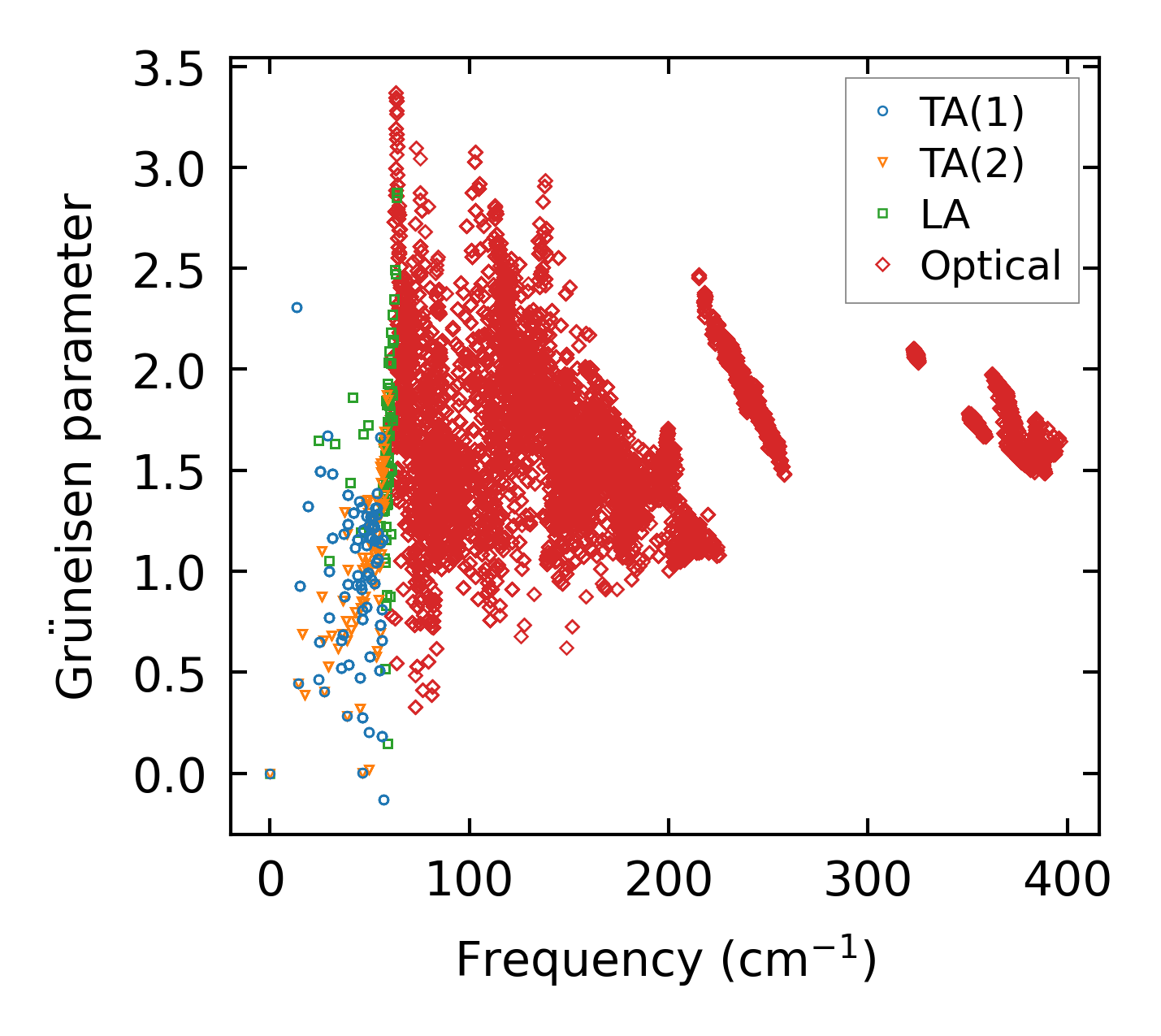

../../_images/fig_gru_all6171.png — (a) Grüneisen parameters

../../_images/fig_gruneisen6171.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 9x9x9, supercell: 2x2x1

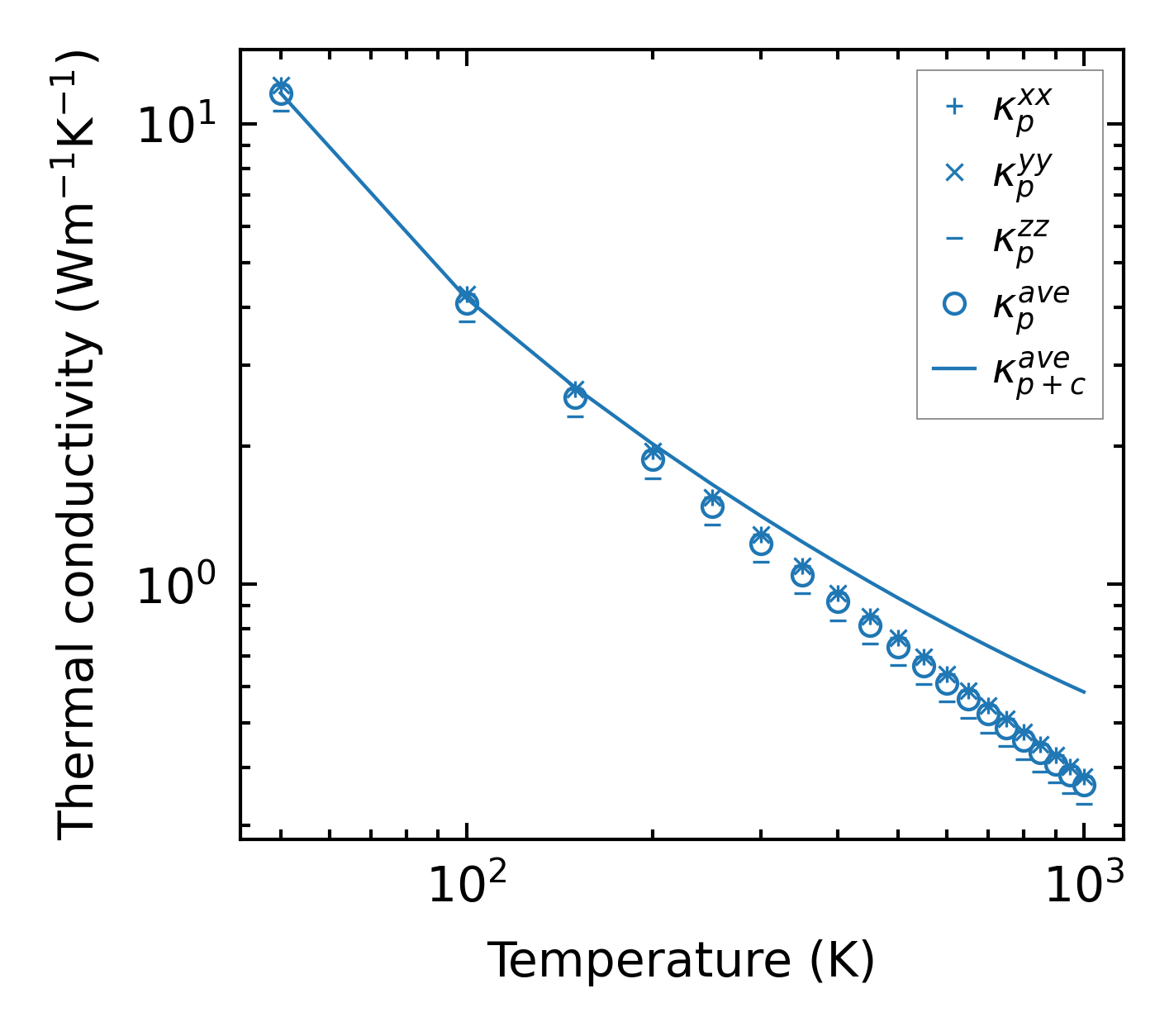

../../_images/fig_kappa11610.png — (a) Temperature-dependent lattice thermal conductivity

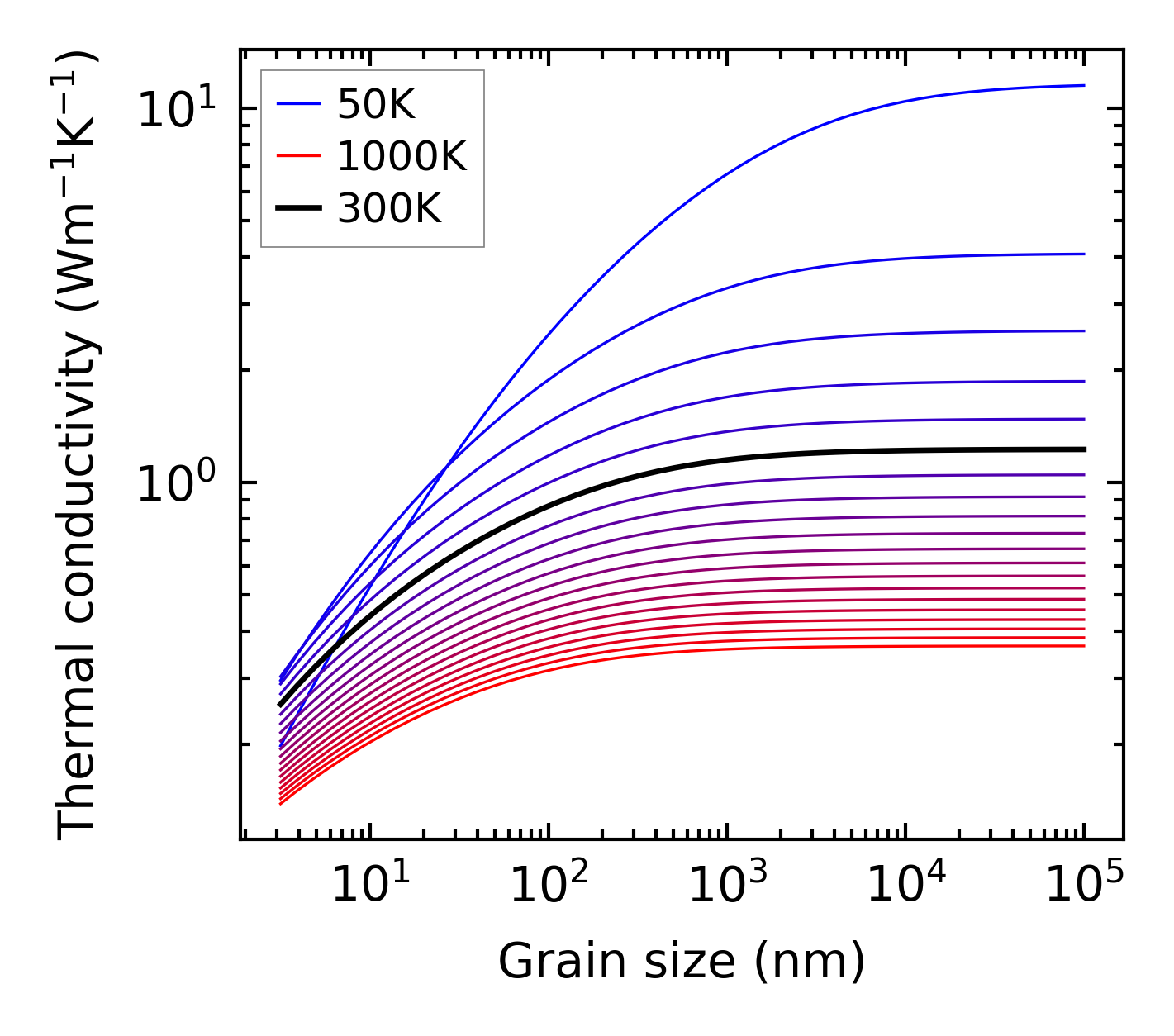

../../_images/fig_kappa_vs_grain_size6249.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

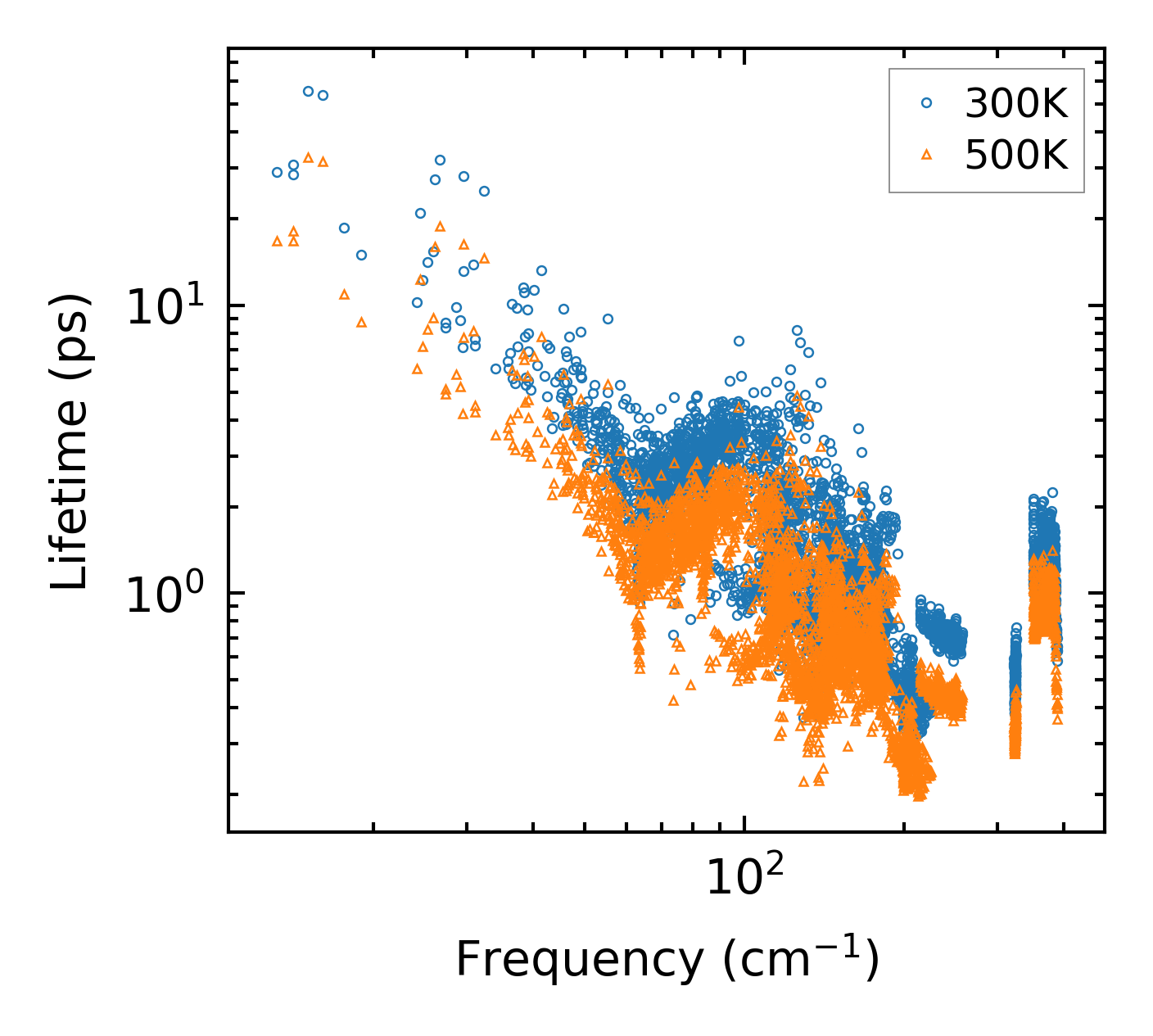

../../_images/fig_lifetime6110.png — (a) Phonon lifetime due to phonon-phonon scattering

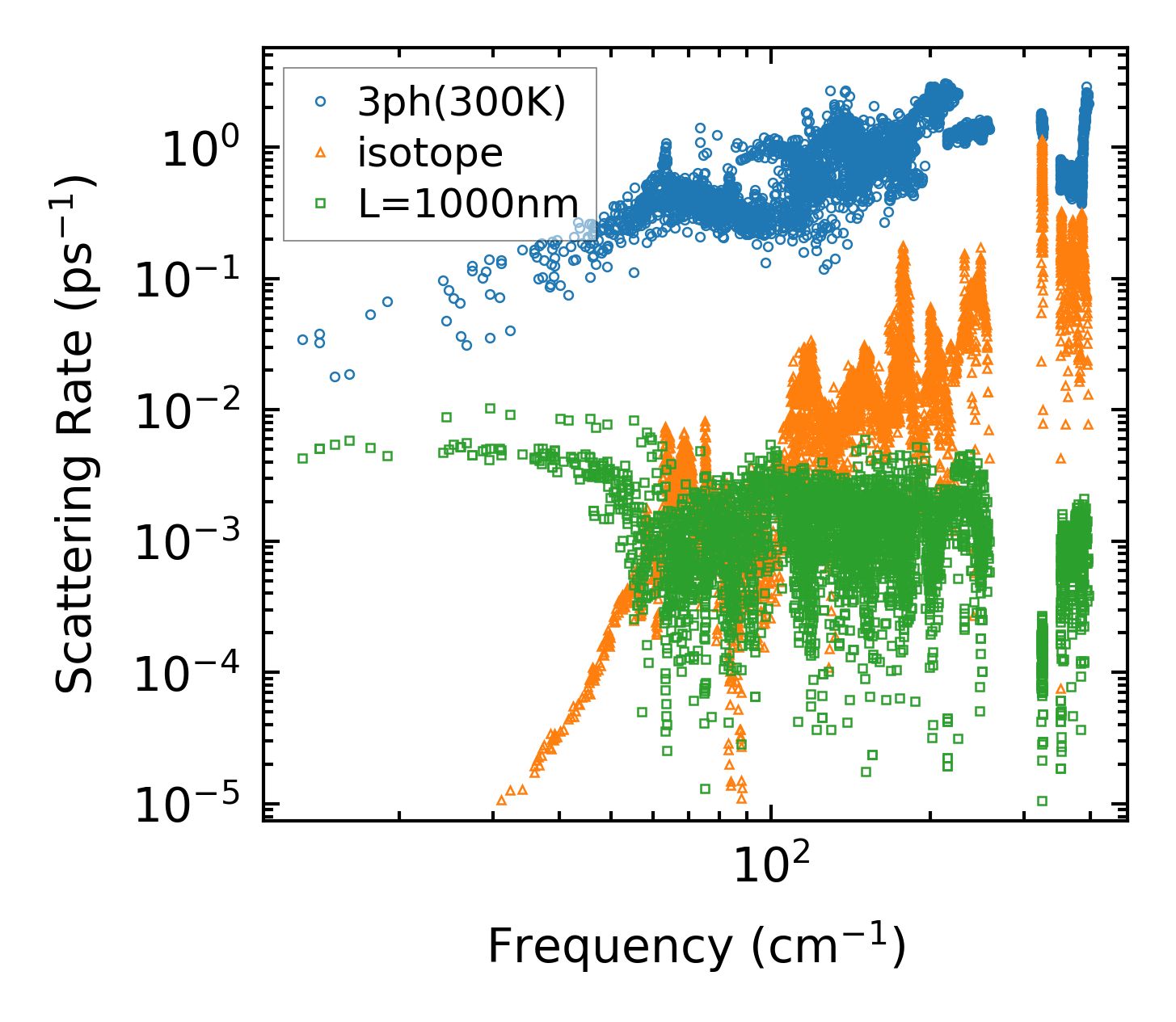

../../_images/fig_scat_rates6109.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency6110.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

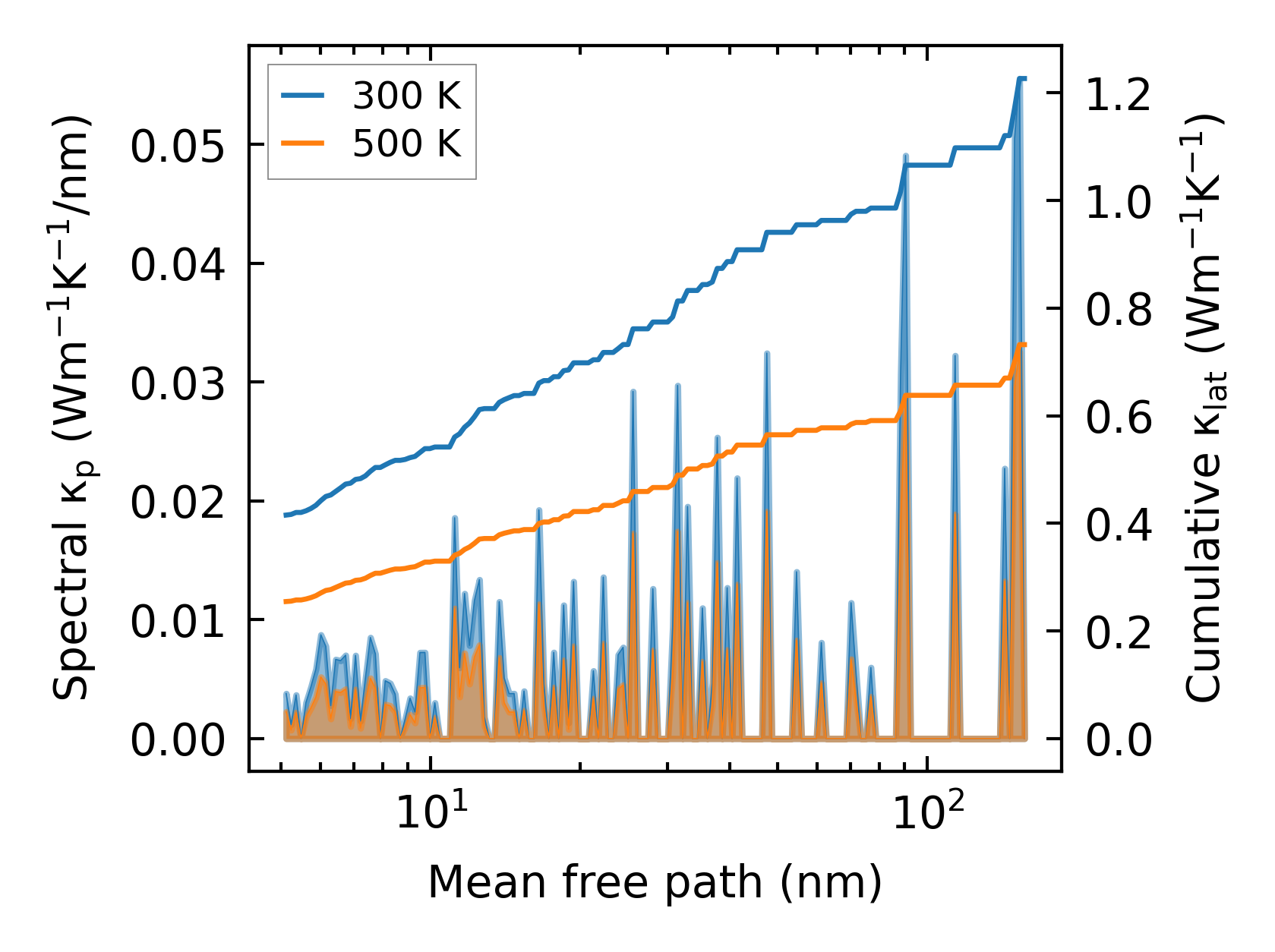

../../_images/fig_cumu_mfp6109.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc214059.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa11611.png — (a) Temperature-dependent lattice thermal conductivity

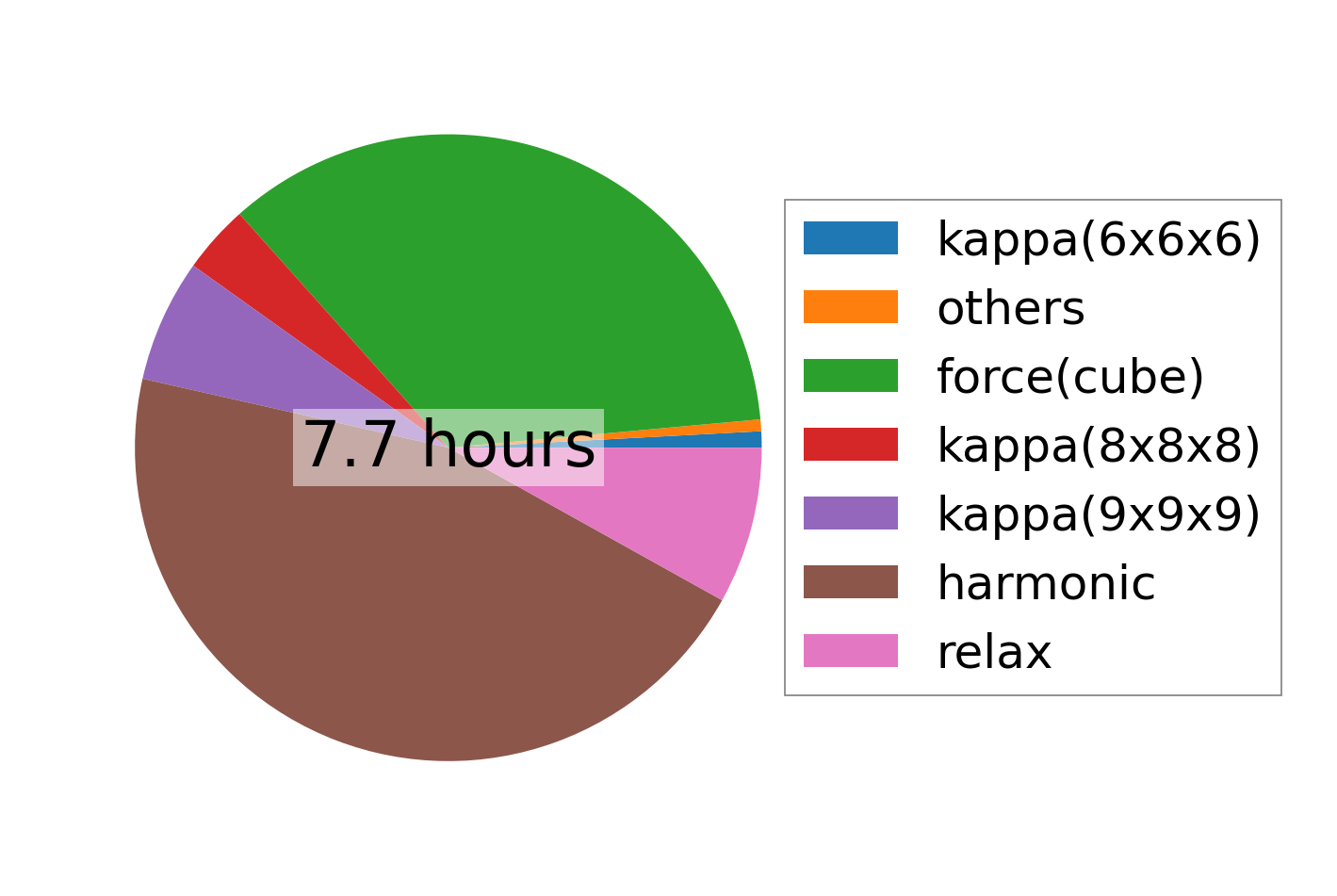

../../_images/fig_times24048.png — (b) Computation time
