mp-24822/Na5Al3H14/anharm

Space group: P4/mnc (128)
Link: Materials Project
Download: mp-24822.tar.gz

Equation of state

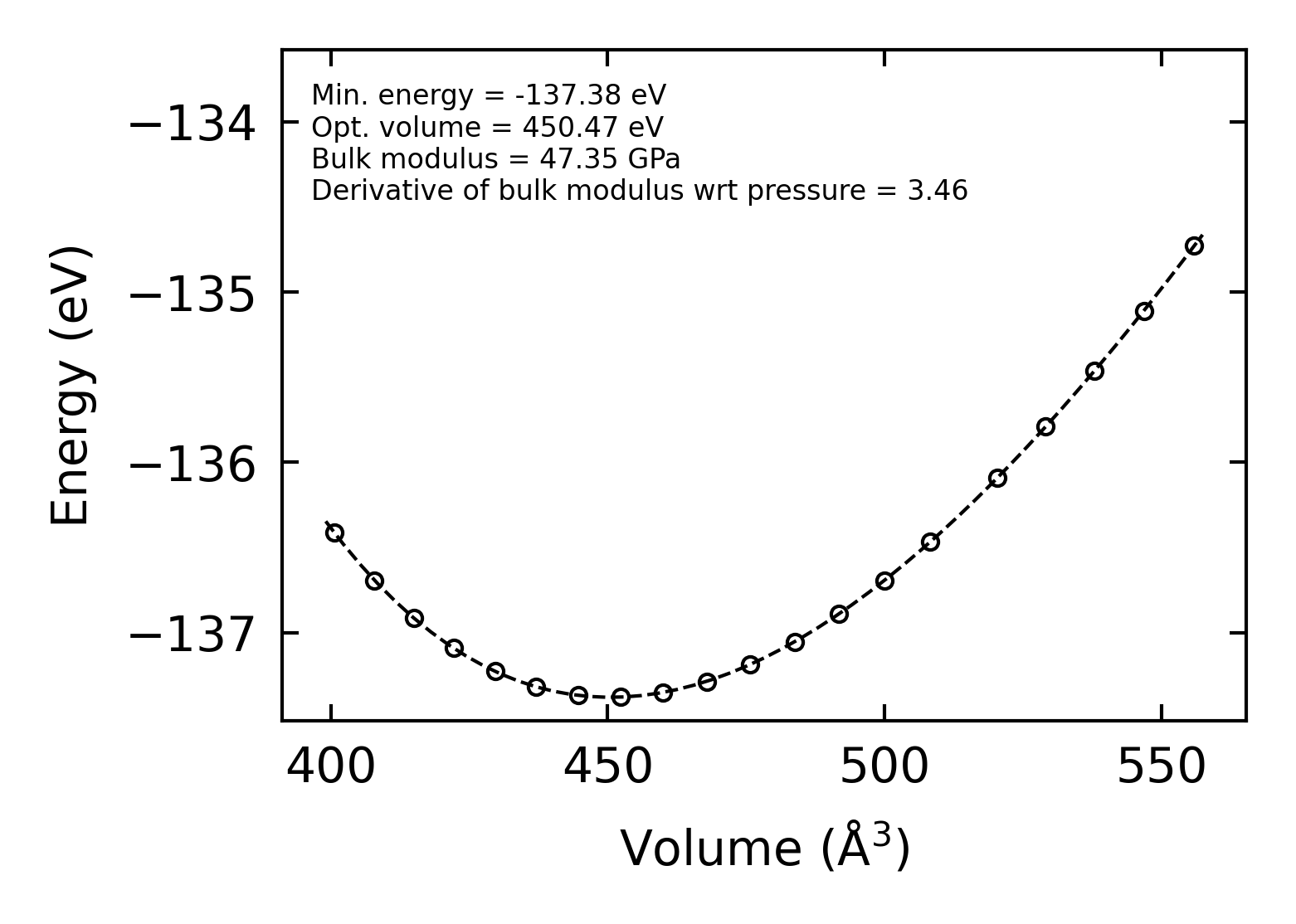

../../_images/fig_bm5996.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr12201.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo12201.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all5096.png — (a) Grüneisen parameters

../../_images/fig_gruneisen5096.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x6, supercell: 1x1x1

../../_images/fig_kappa9591.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size5156.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

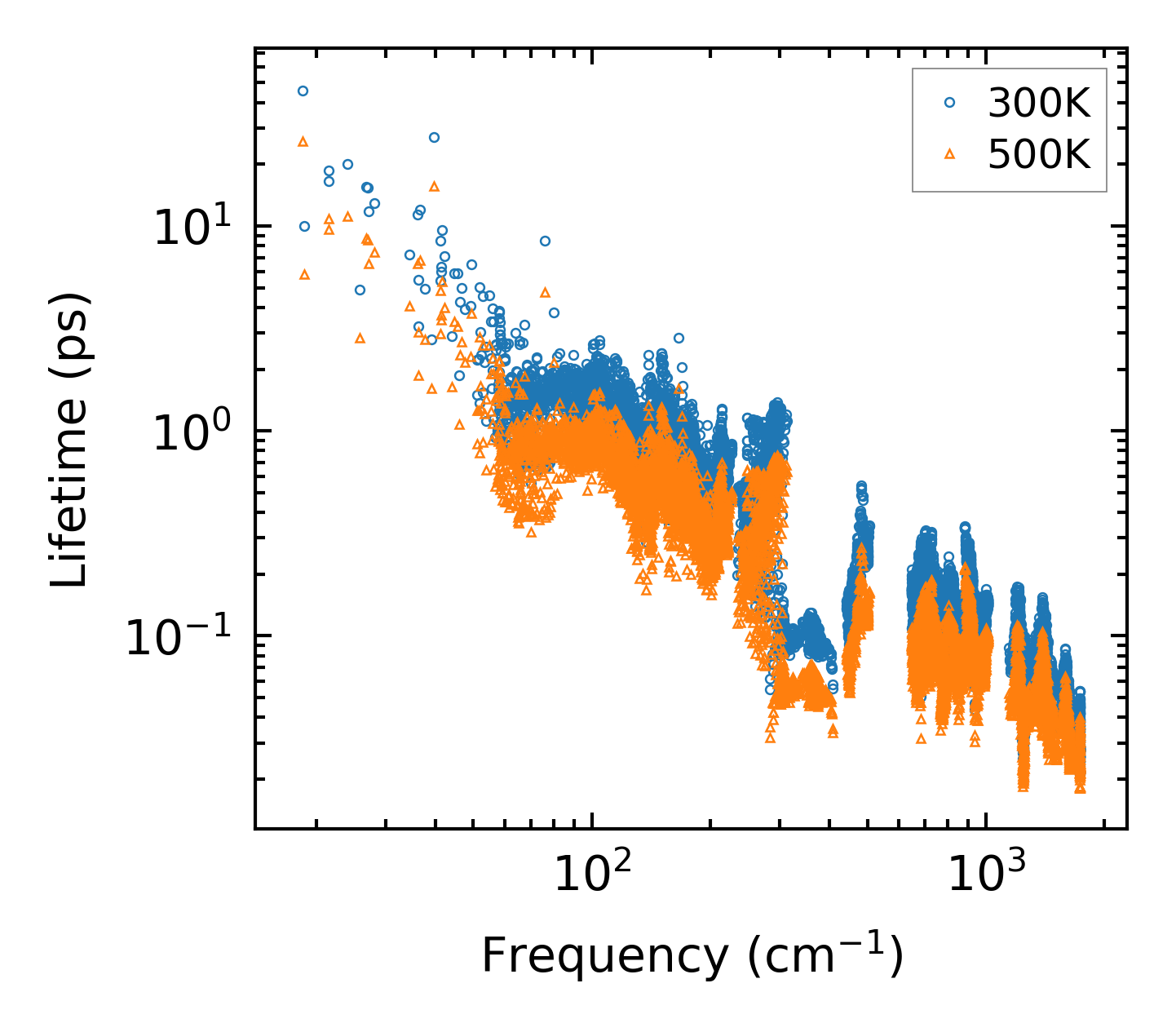

../../_images/fig_lifetime5046.png — (a) Phonon lifetime due to phonon-phonon scattering

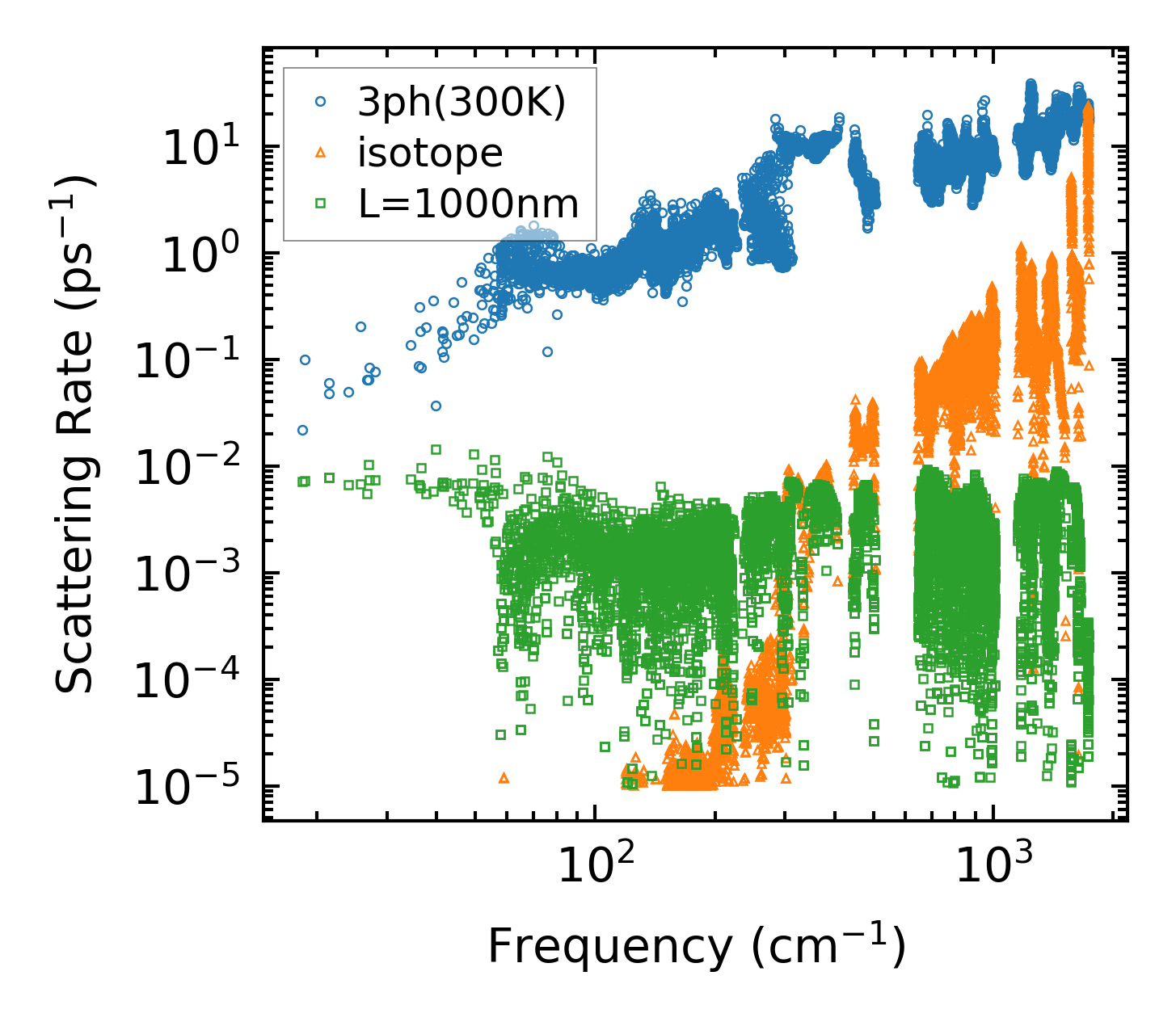

../../_images/fig_scat_rates5045.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

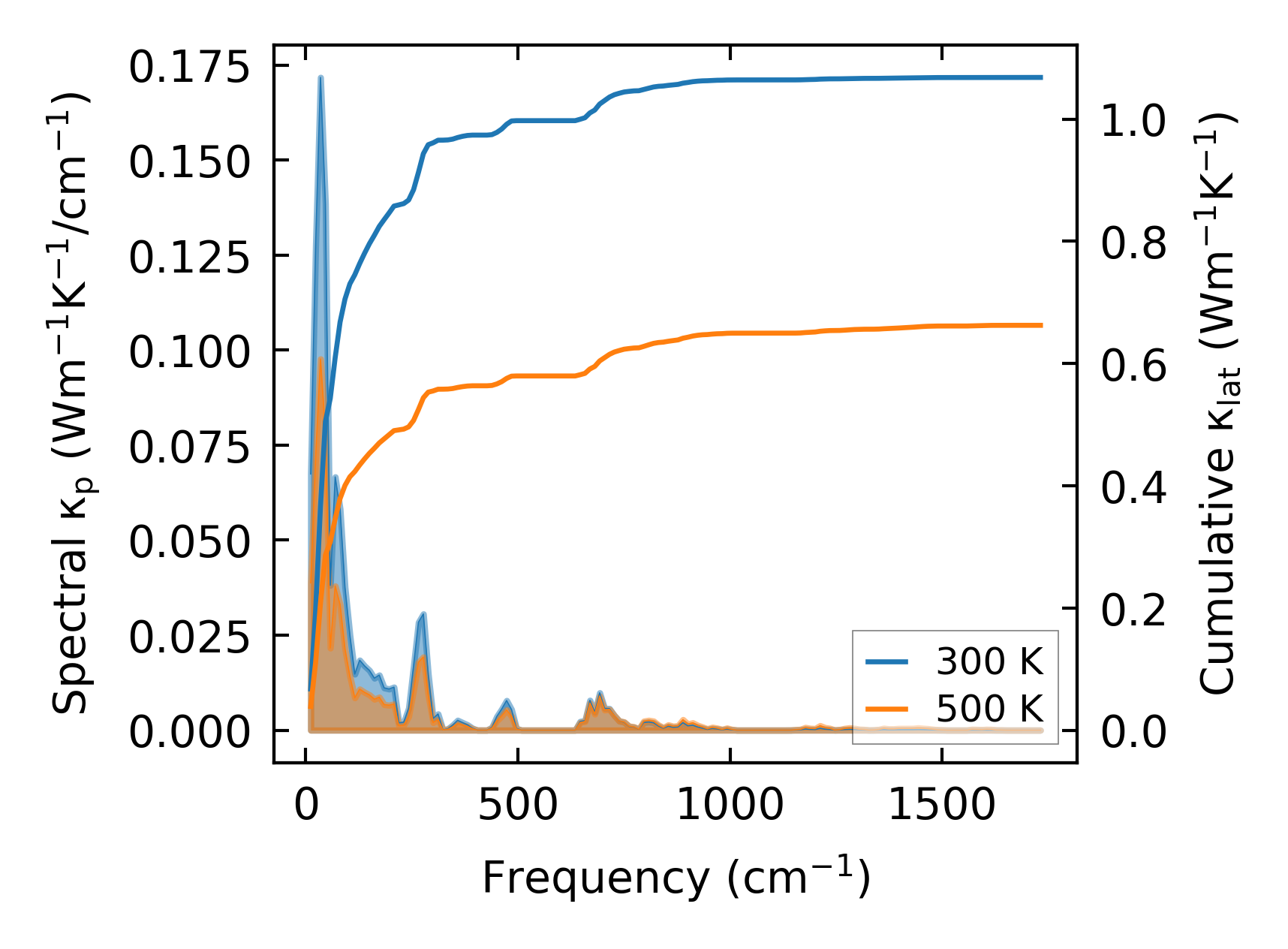

../../_images/fig_cumu_frequency5046.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

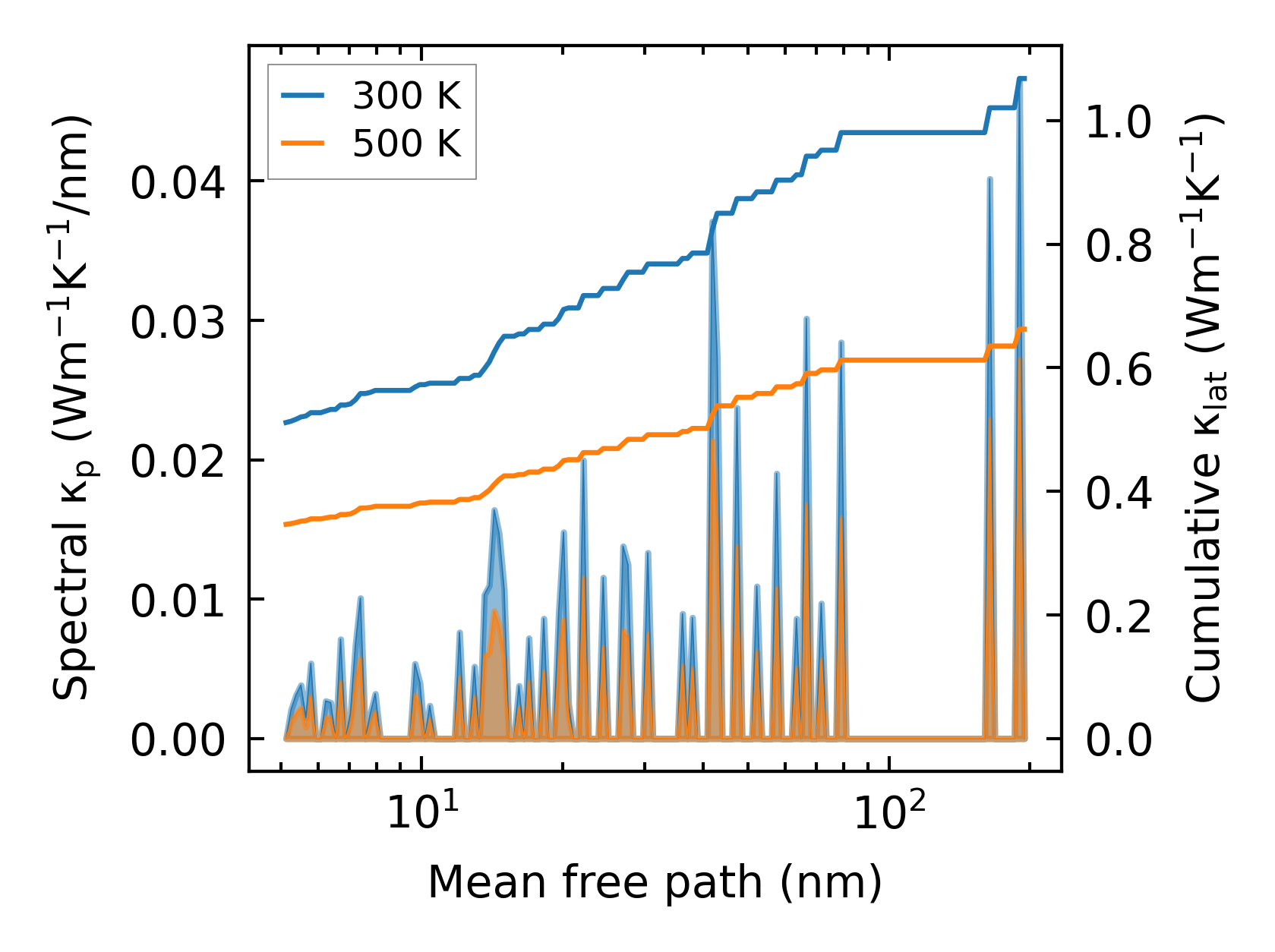

../../_images/fig_cumu_mfp5045.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

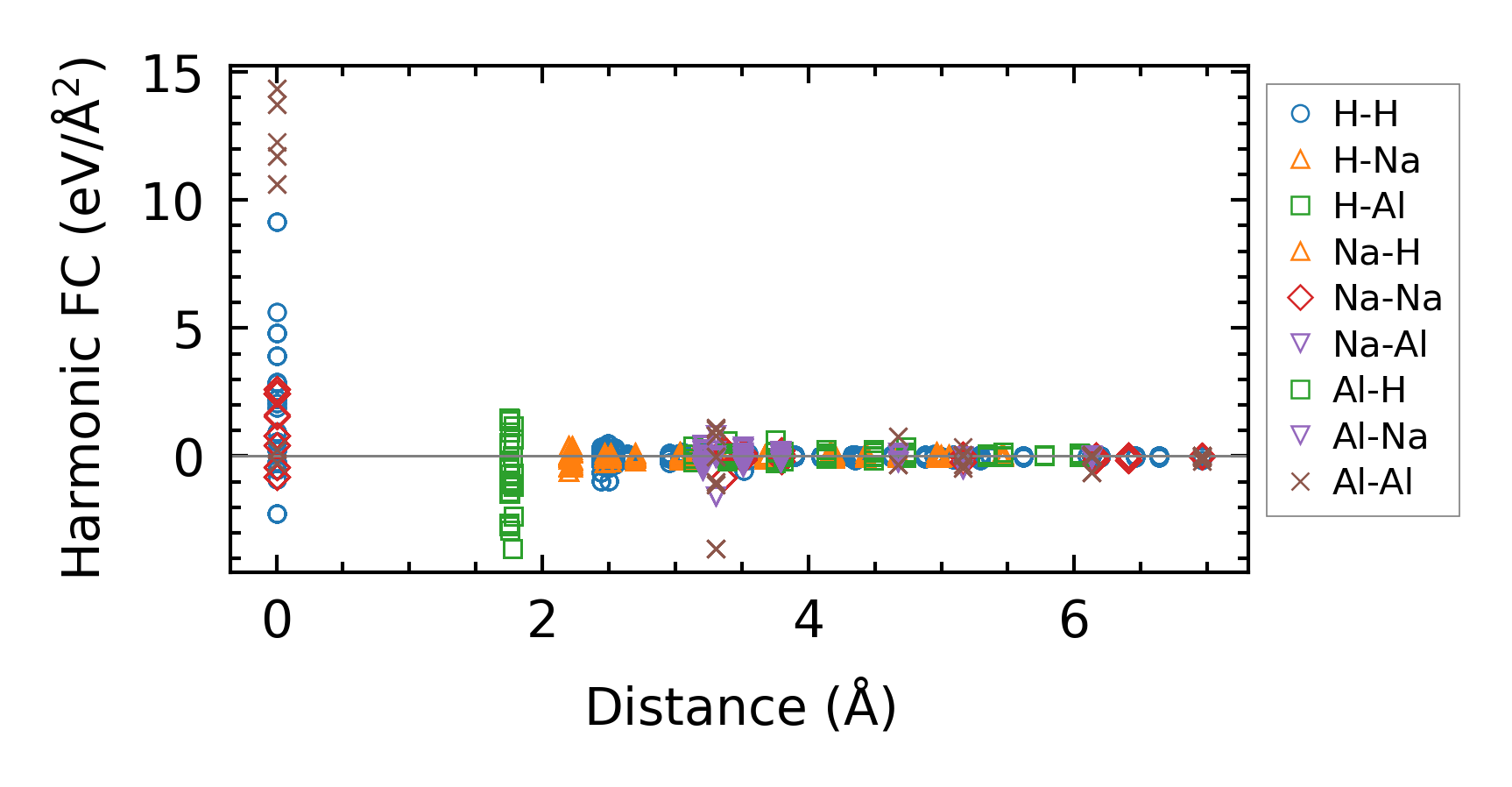

../../_images/fig_fc211900.png — (a) Force constants w.r.t atomic distance

Summary

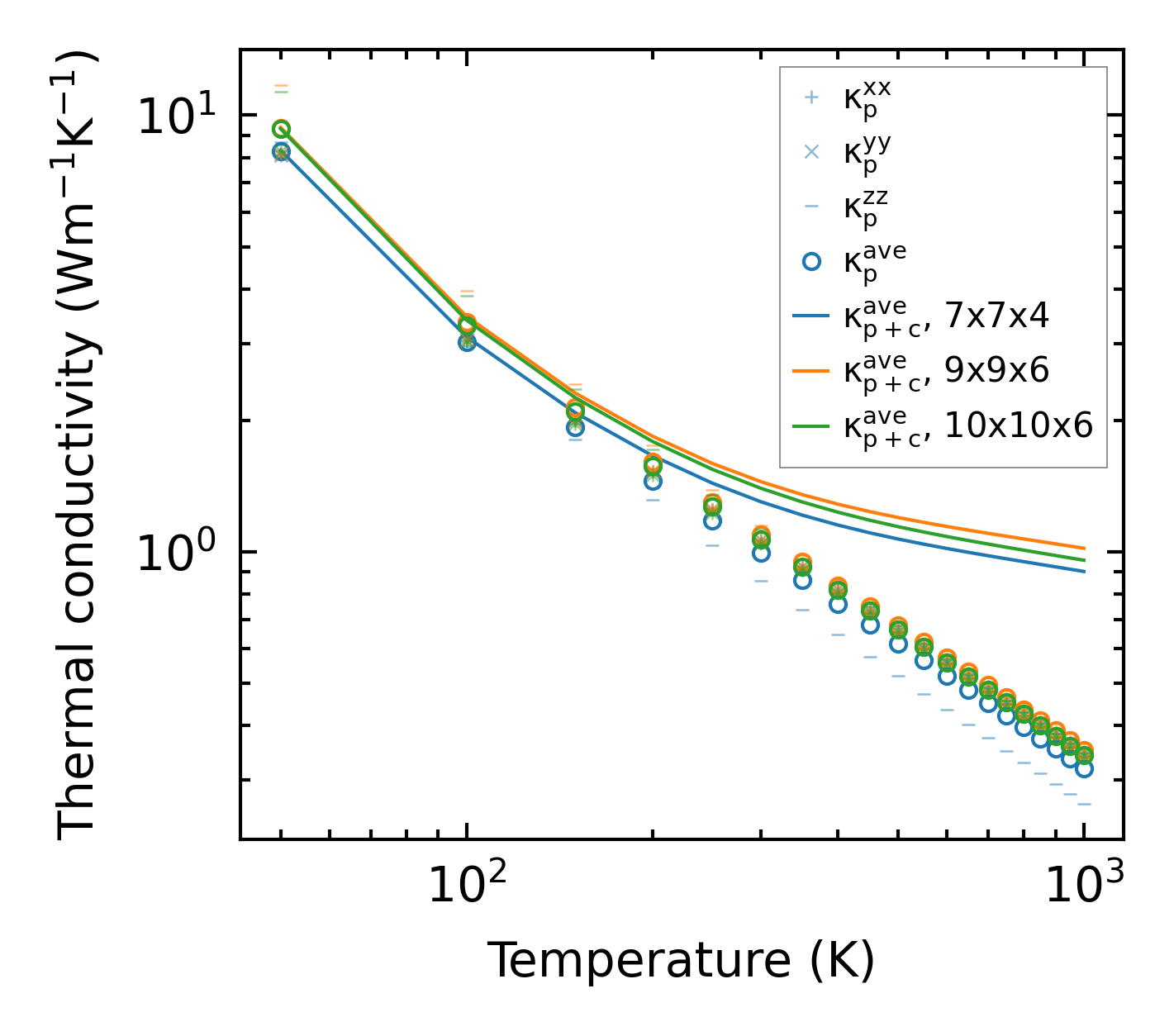

../../_images/fig_kappa9592.png — (a) Temperature-dependent lattice thermal conductivity

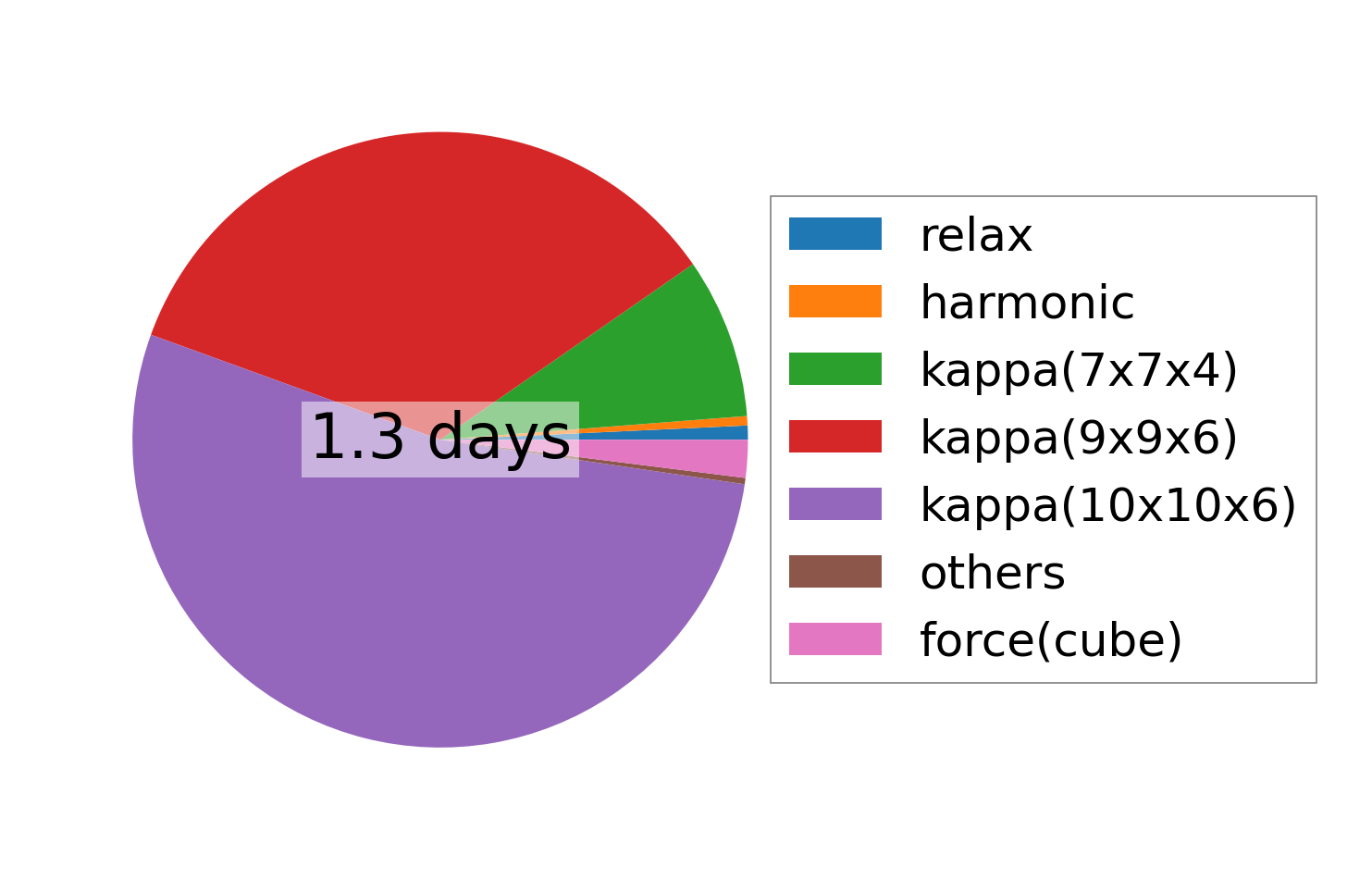

../../_images/fig_times20687.png — (b) Computation time
