mp-24090/BaH4I2O2/anharm

Space group: C2/c (15)
Link: Materials Project
Download: mp-24090.tar.gz

Harmonic properties

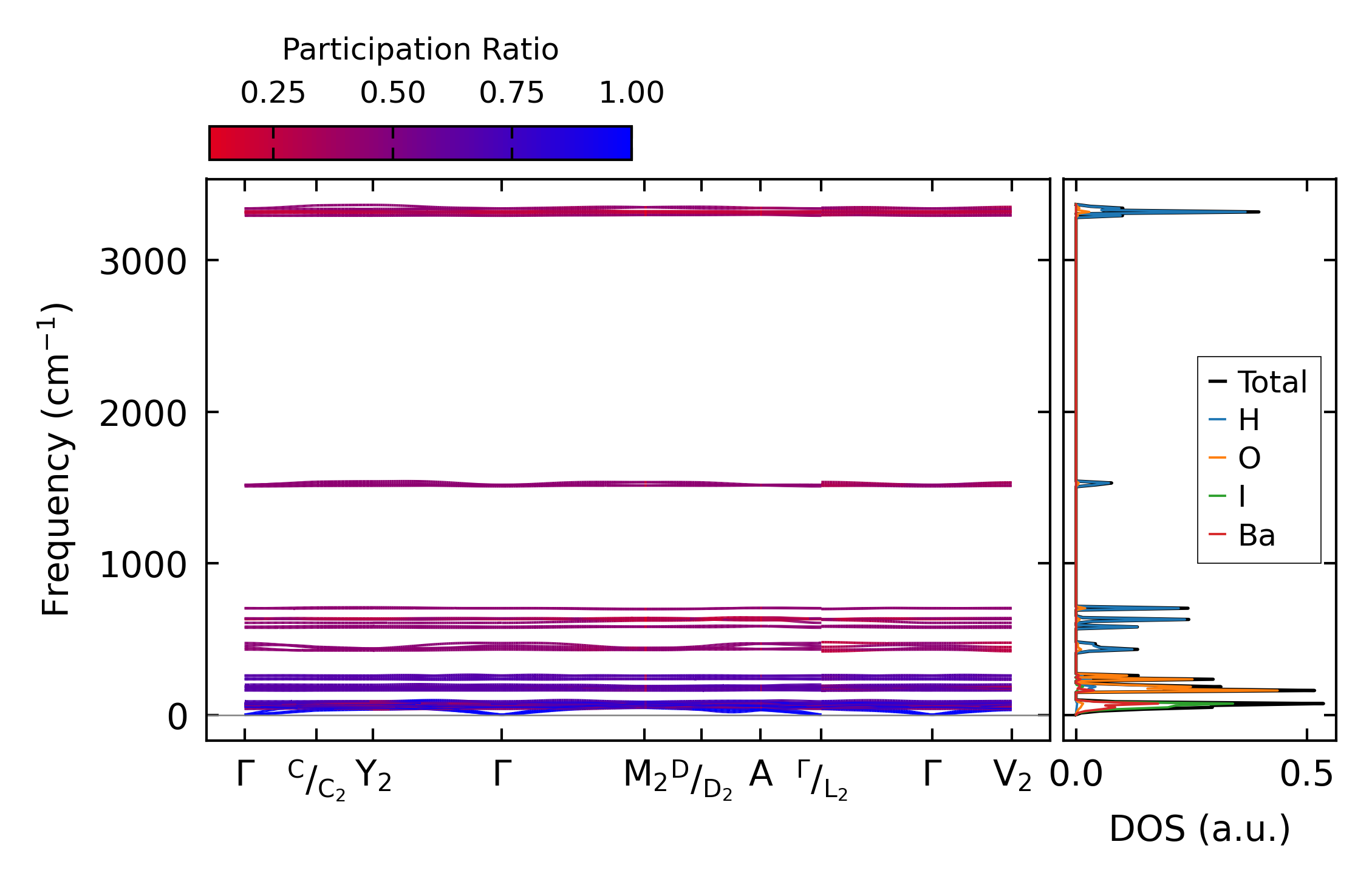

../../_images/fig_bandos_pr12628.png — (a) Phonon dispersion with participation ratio and DOS

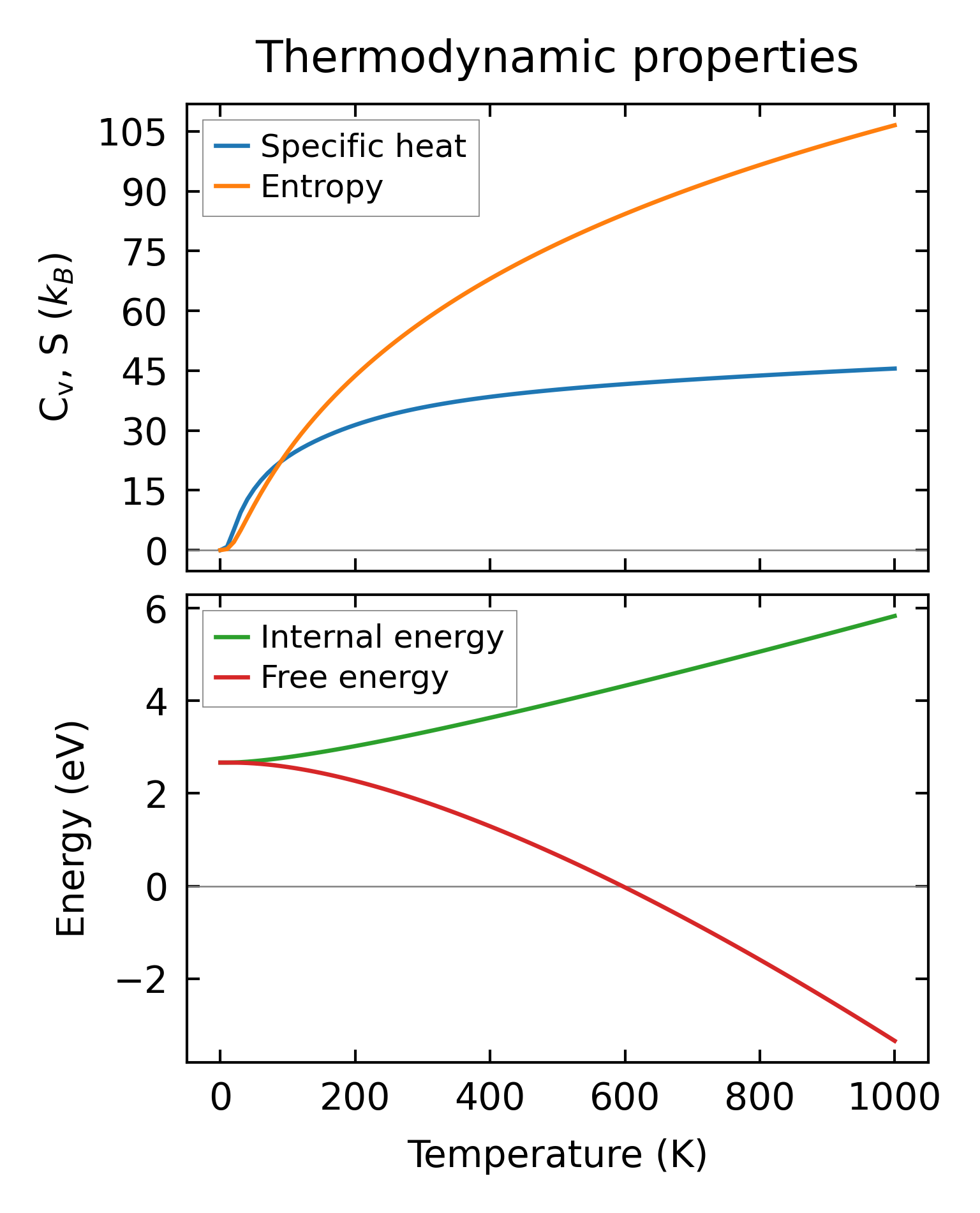

../../_images/fig_thermo12628.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all5230.png — (a) Grüneisen parameters

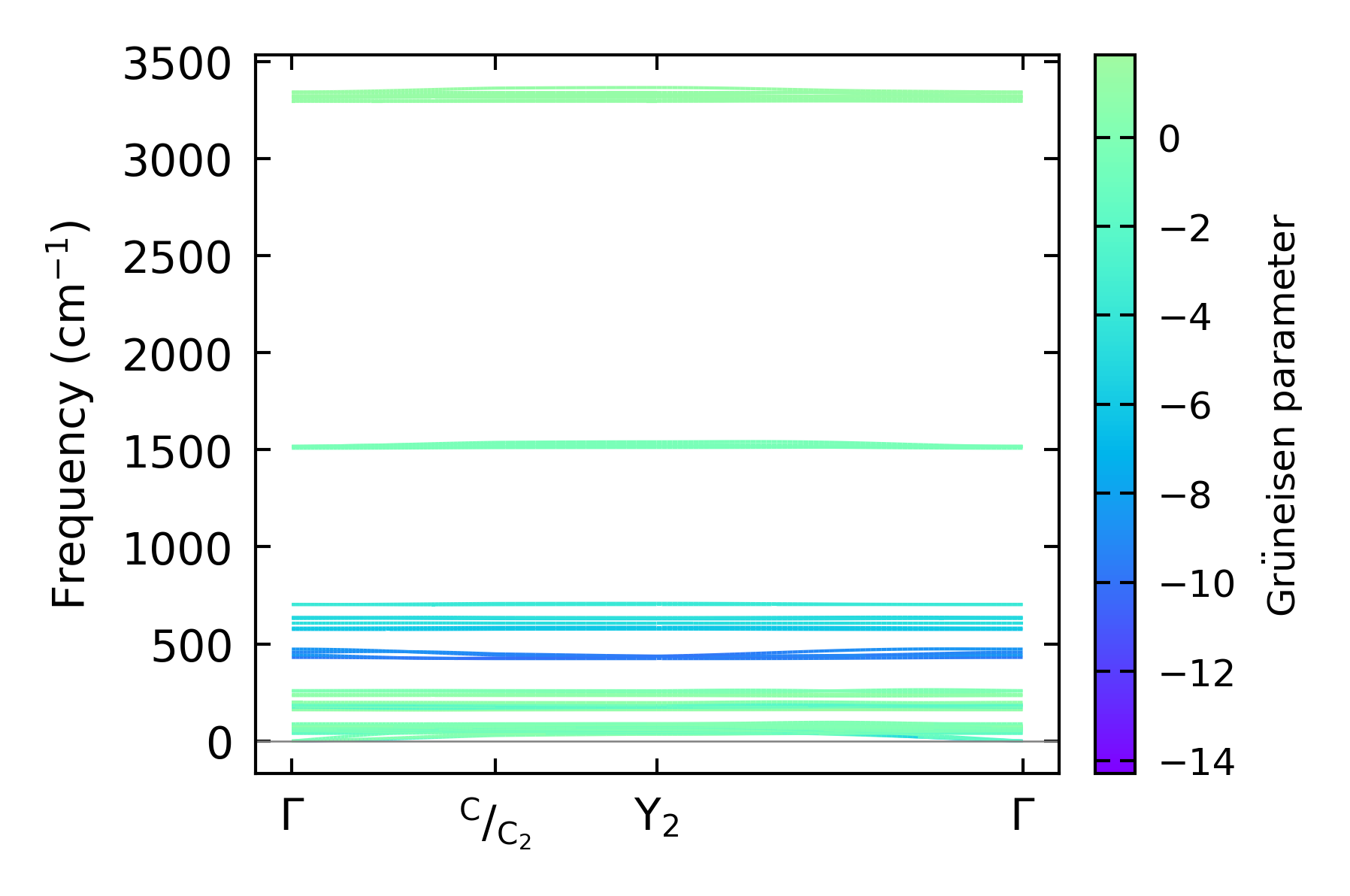

../../_images/fig_gruneisen5230.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x11x8, supercell: 1x2x2

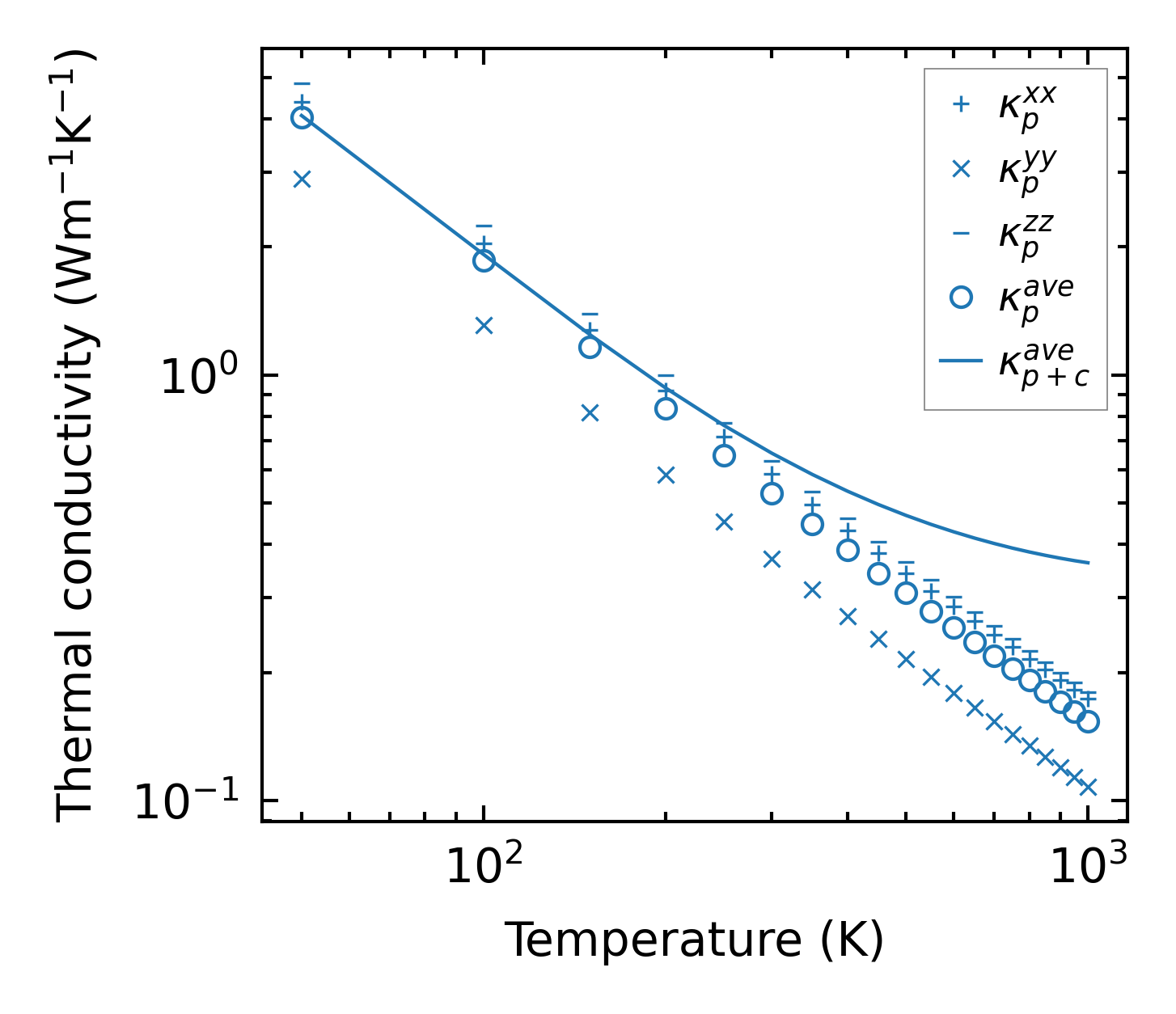

../../_images/fig_kappa9831.png — (a) Temperature-dependent lattice thermal conductivity

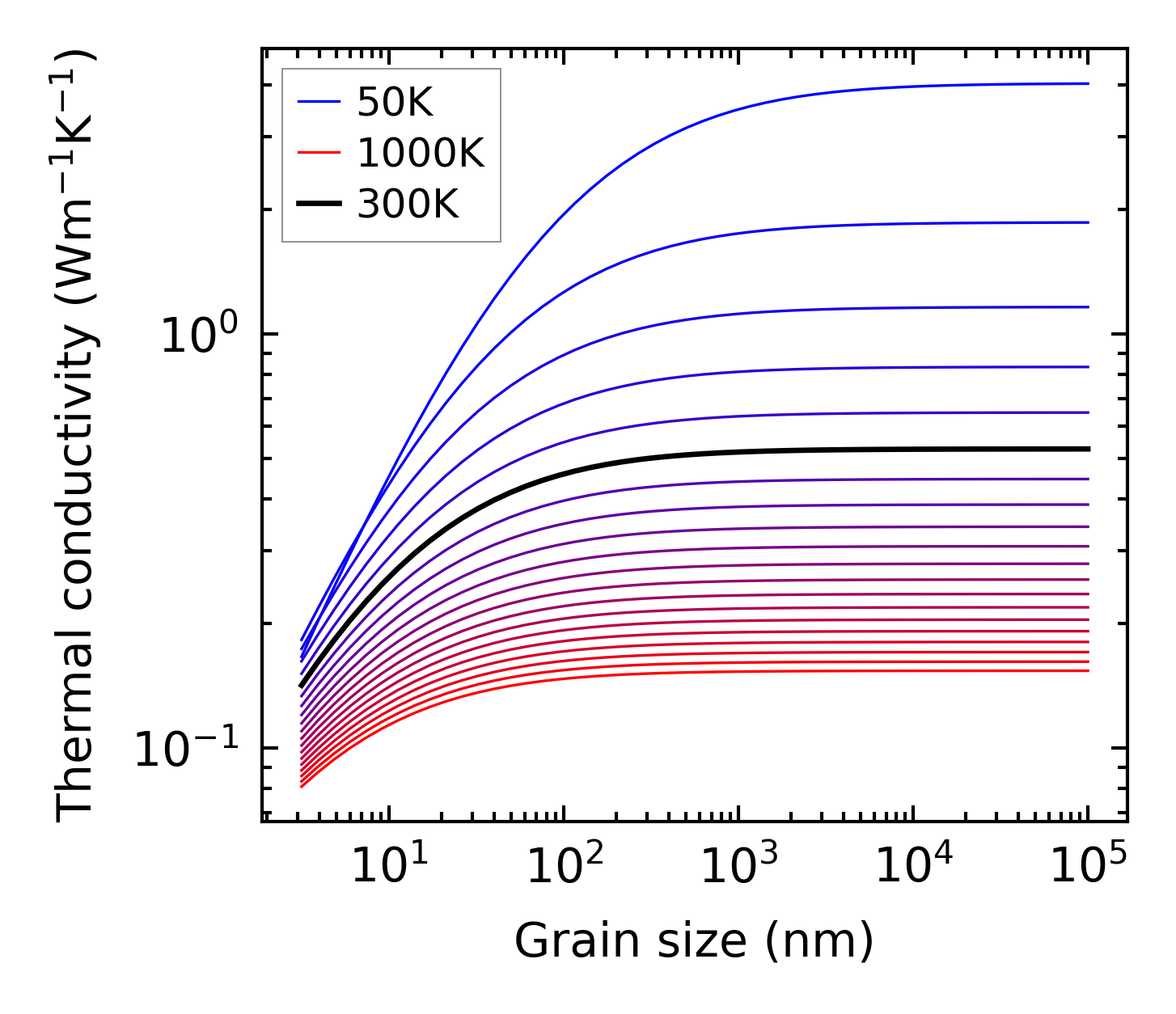

../../_images/fig_kappa_vs_grain_size5292.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

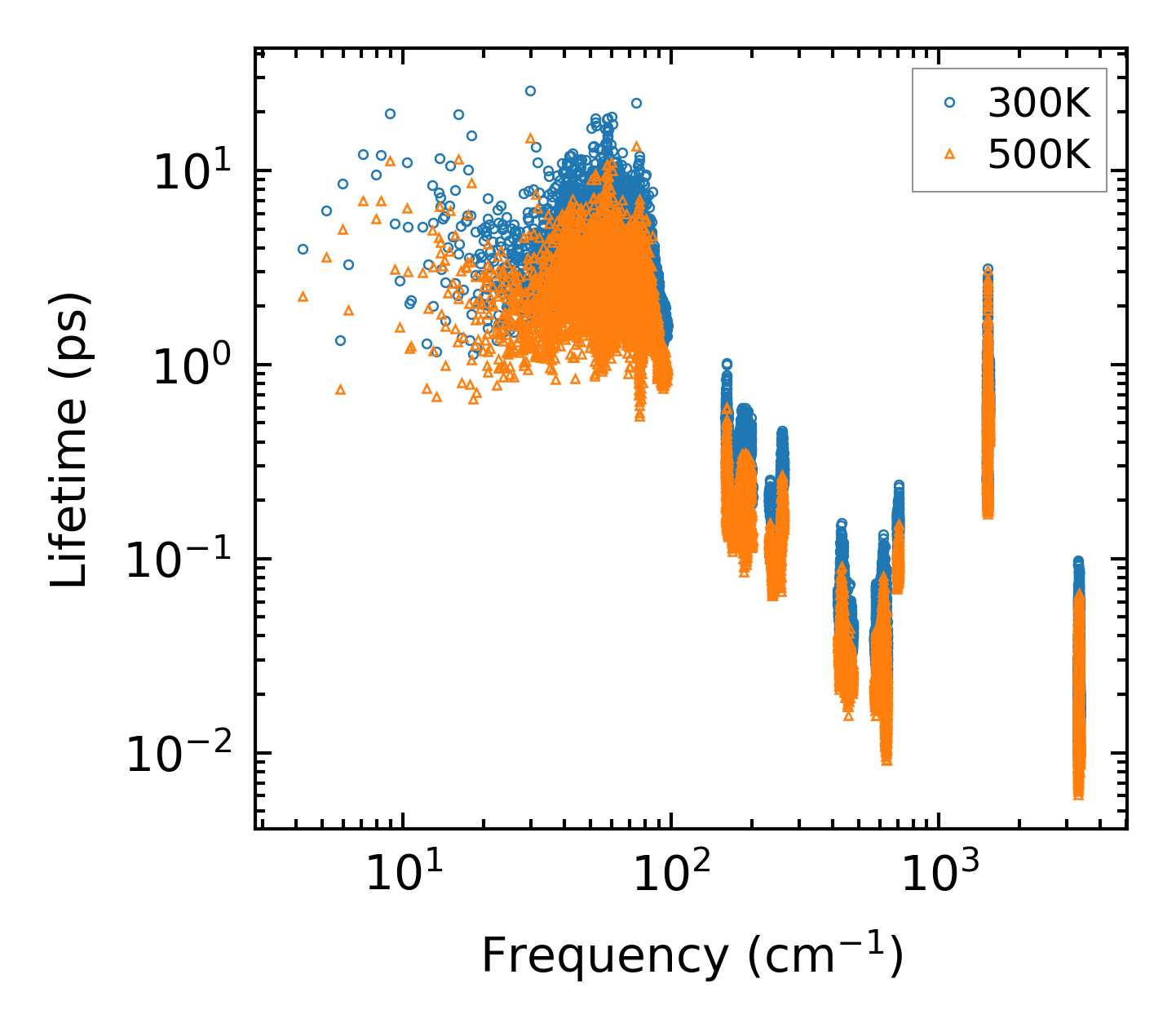

../../_images/fig_lifetime5179.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates5178.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

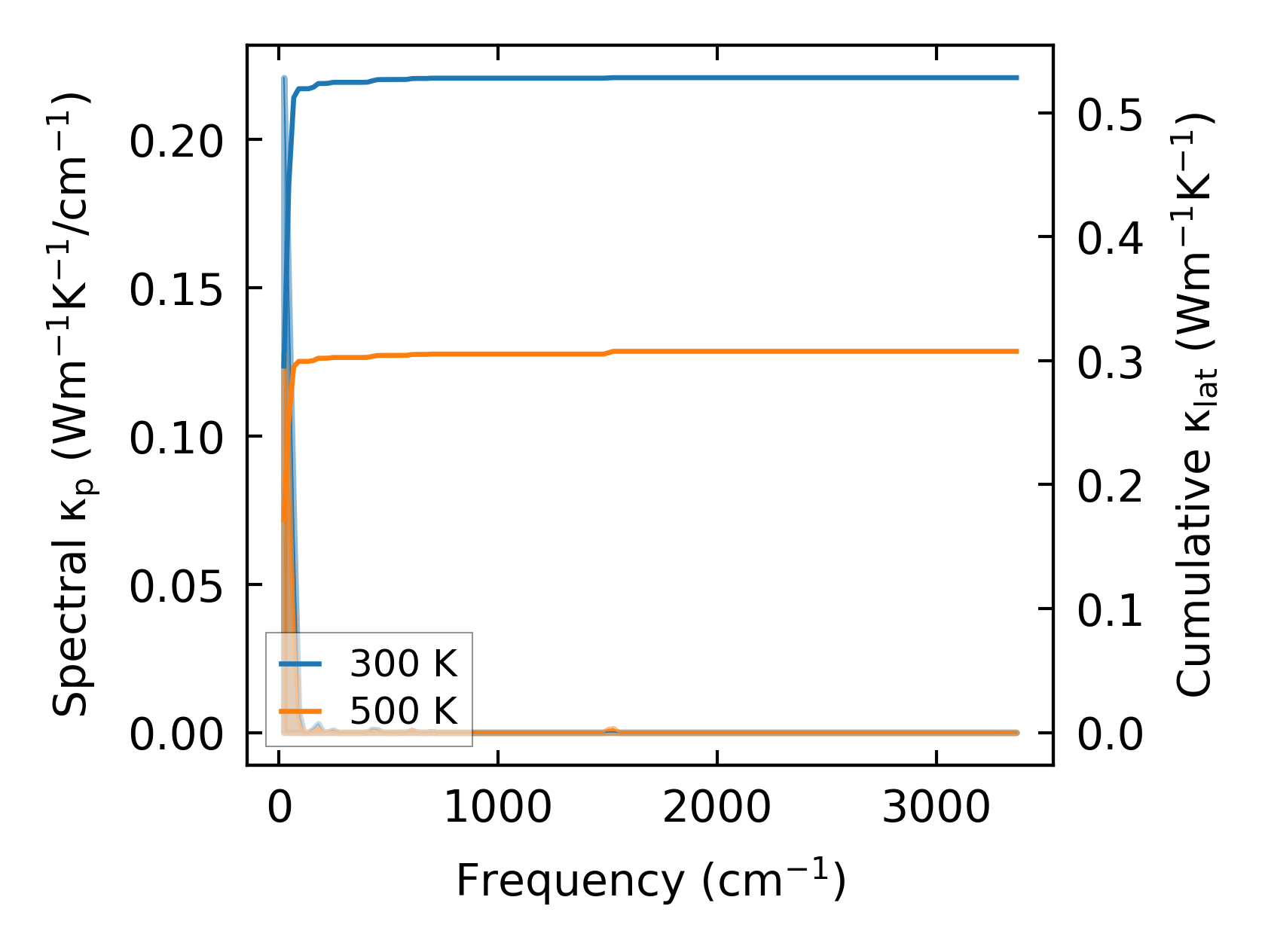

../../_images/fig_cumu_frequency5179.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp5178.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc212325.png — (a) Force constants w.r.t atomic distance

Summary

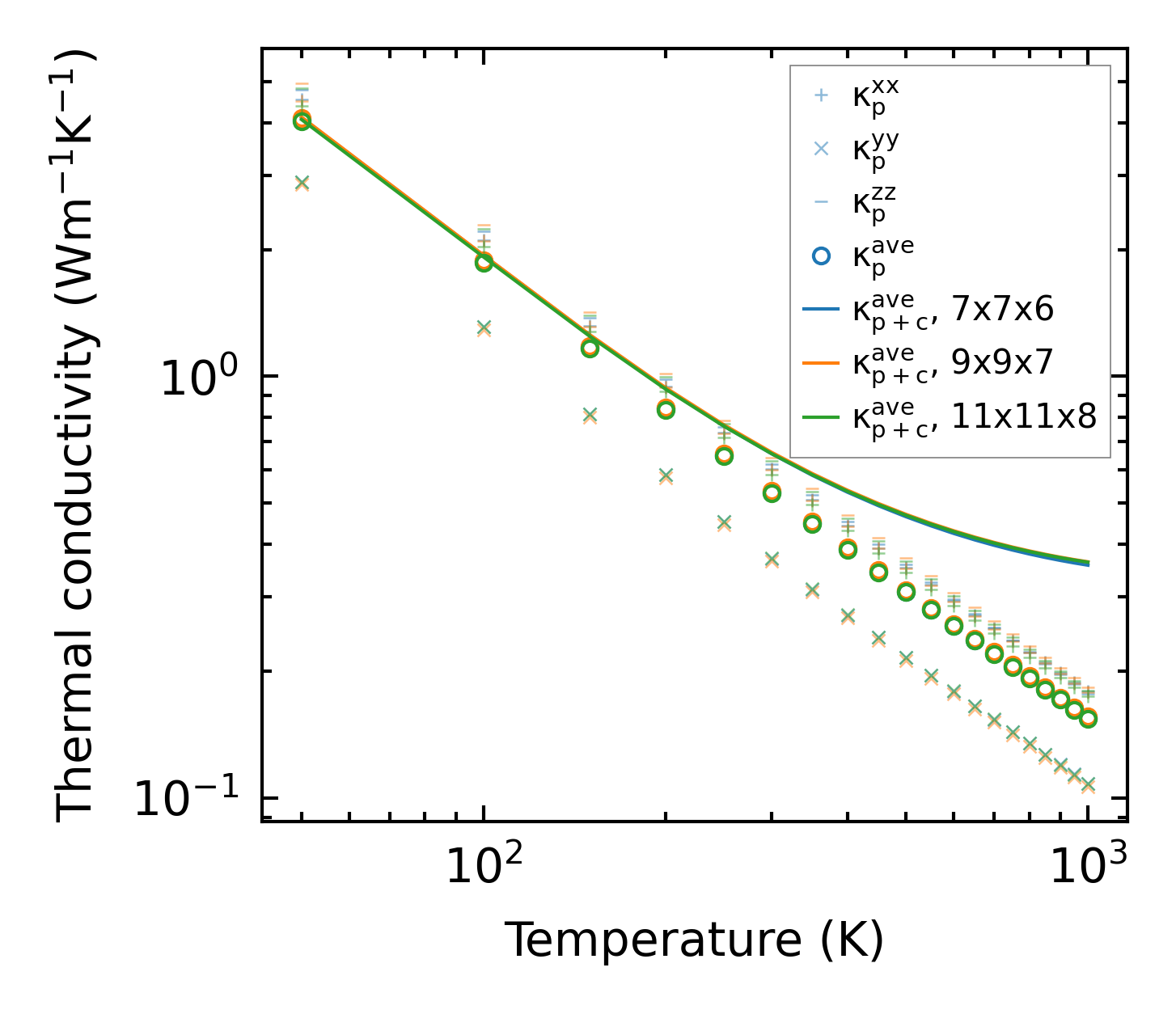

../../_images/fig_kappa9832.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times21456.png — (b) Computation time
