mp-24239/KB6H6/anharm

Space group: Fm-3 (202)
Link: Materials Project
Download: mp-24239.tar.gz

Harmonic properties

../../_images/fig_bandos_pr12377.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo12377.png — (b) Thermodynamic properties

Grüneisen parameters

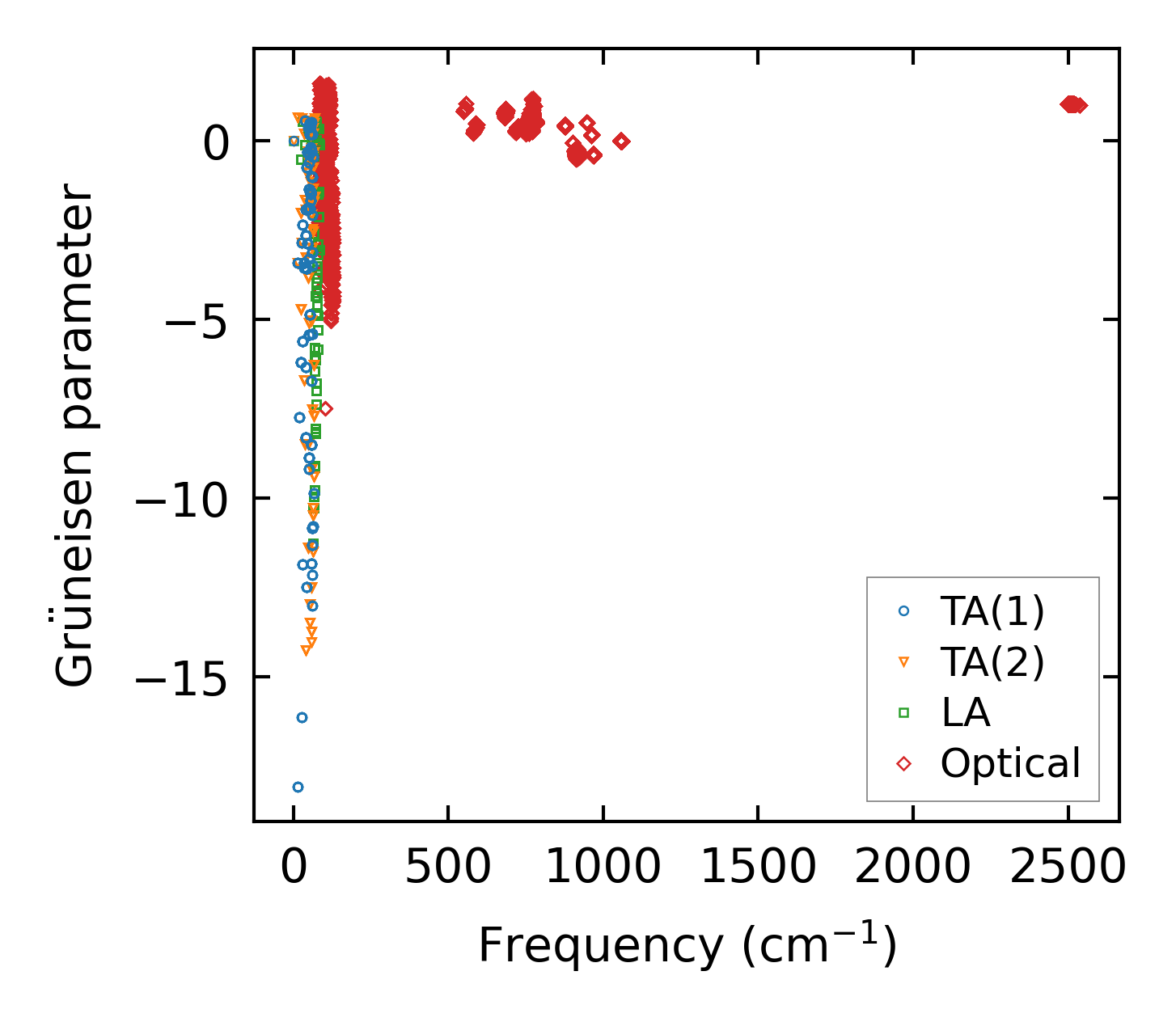

../../_images/fig_gru_all5147.png — (a) Grüneisen parameters

../../_images/fig_gruneisen5147.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x10, supercell: 1x1x1

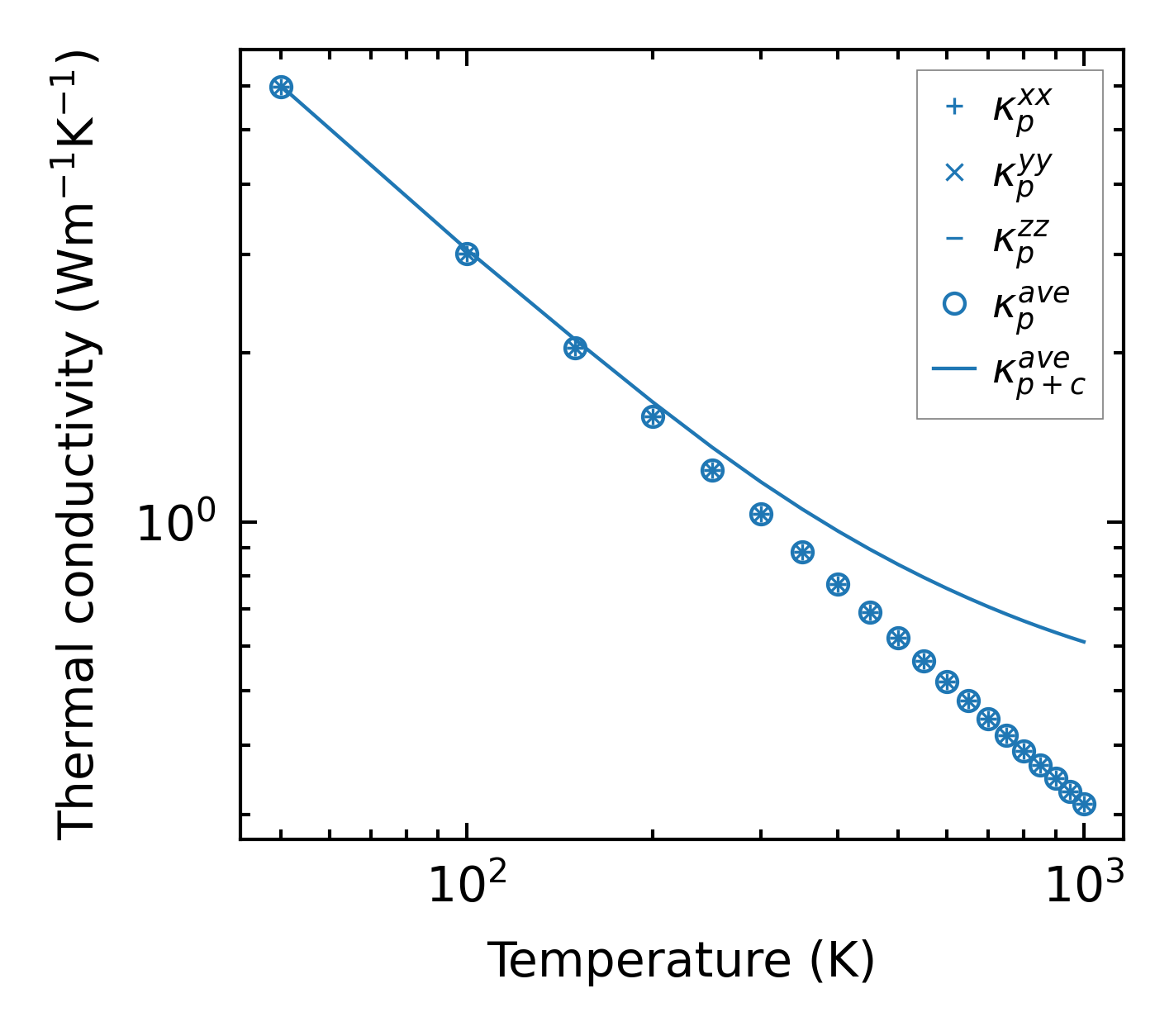

../../_images/fig_kappa9681.png — (a) Temperature-dependent lattice thermal conductivity

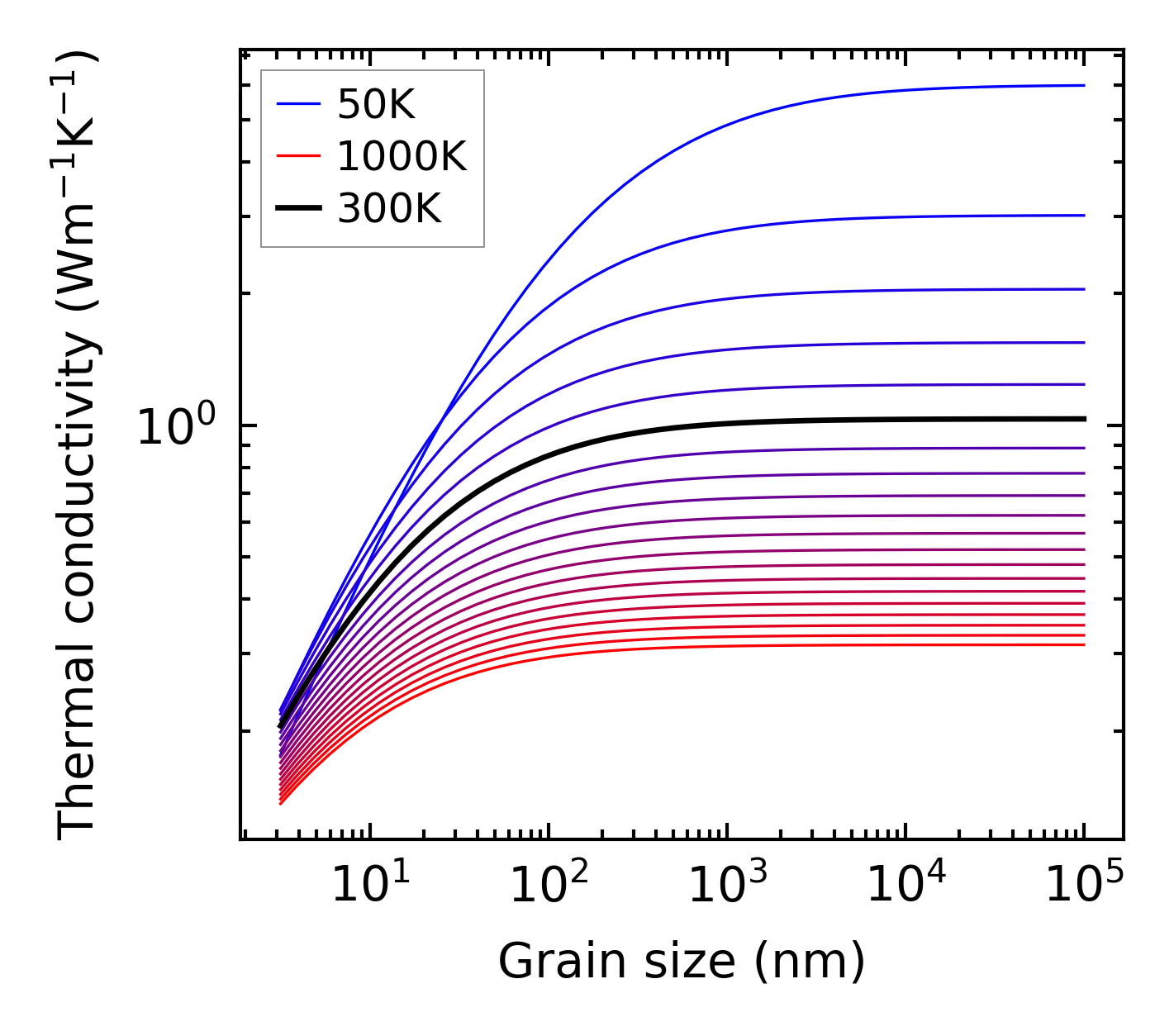

../../_images/fig_kappa_vs_grain_size5207.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

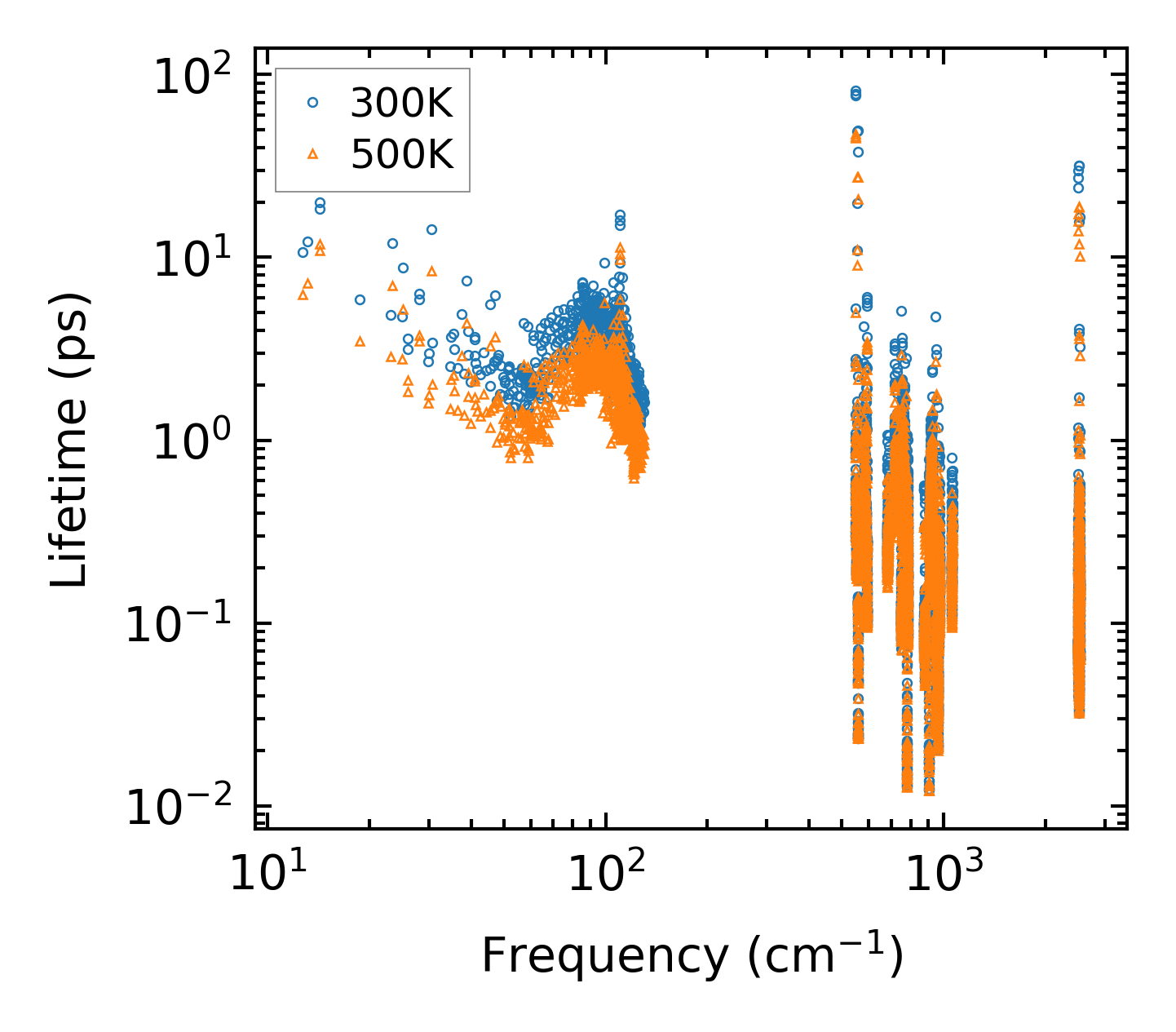

../../_images/fig_lifetime5096.png — (a) Phonon lifetime due to phonon-phonon scattering

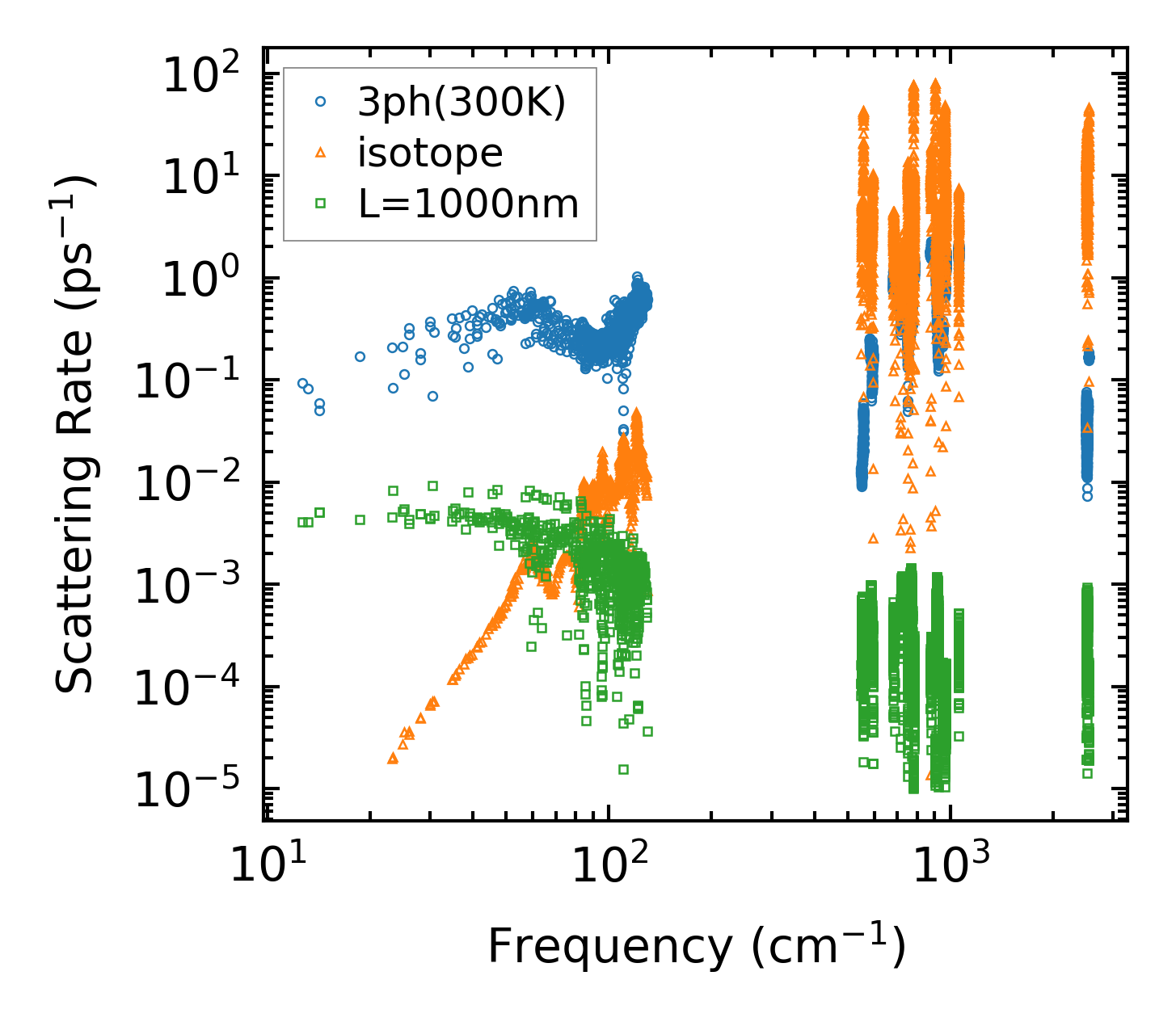

../../_images/fig_scat_rates5095.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency5096.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

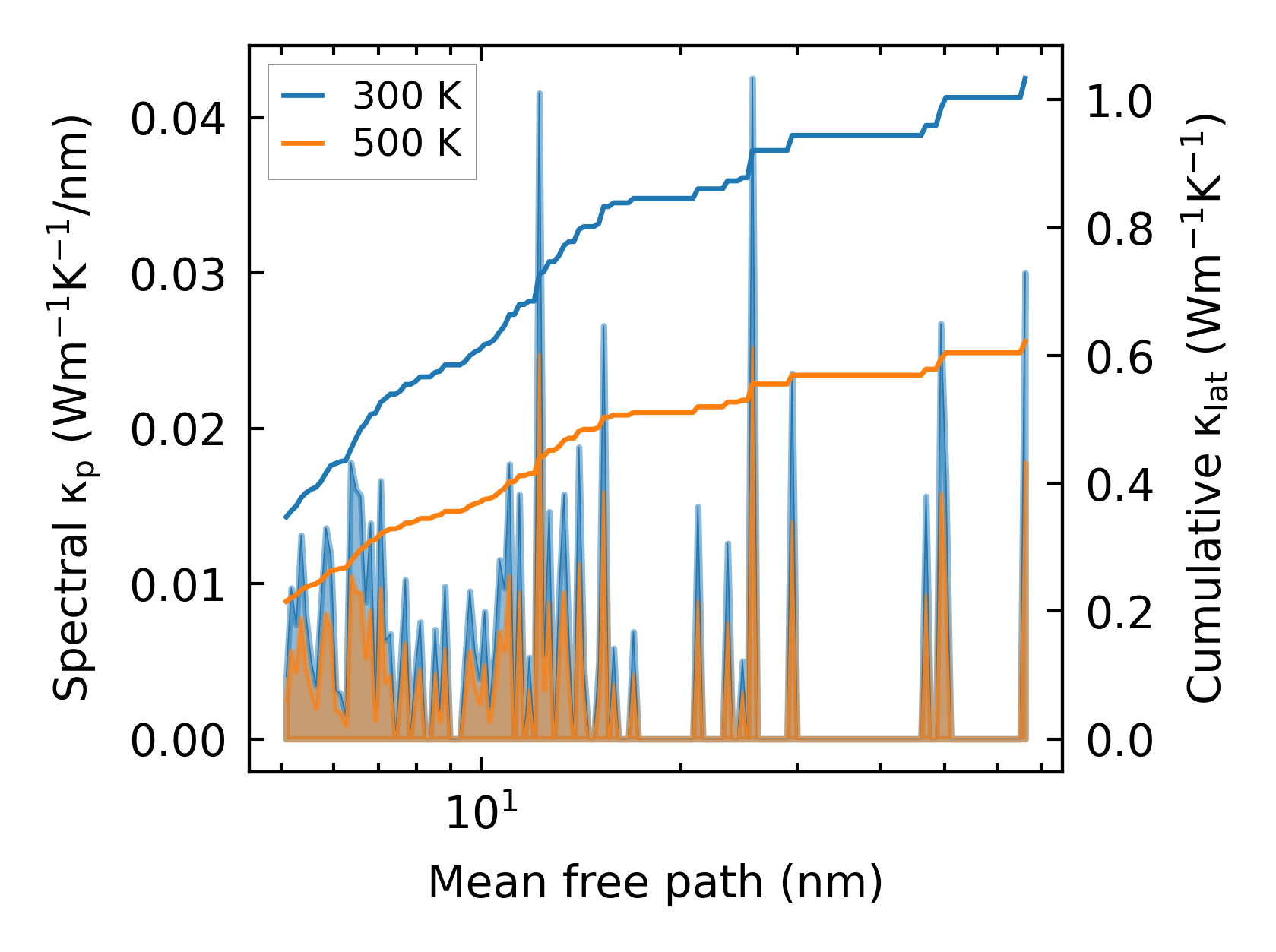

../../_images/fig_cumu_mfp5095.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

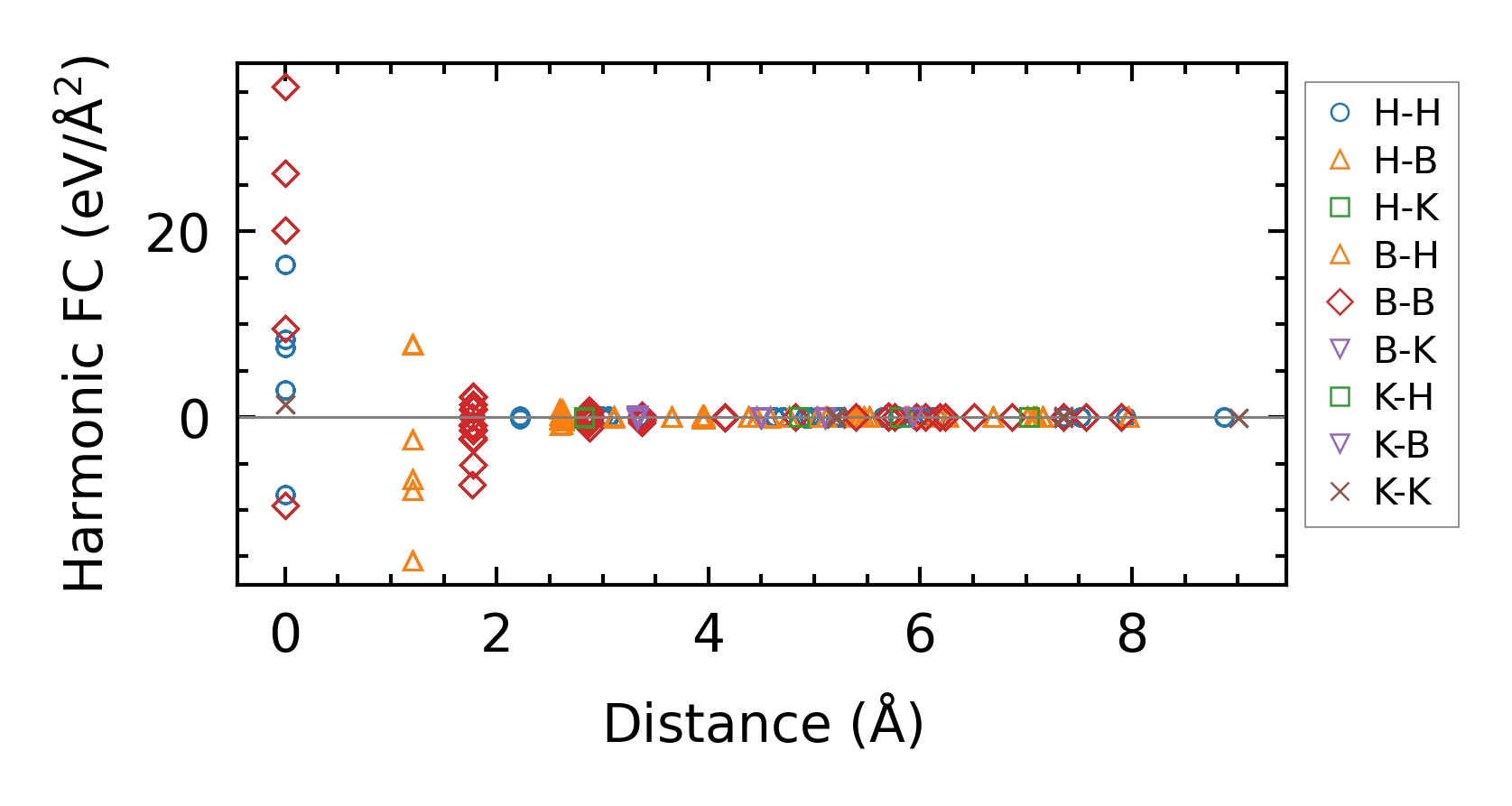

../../_images/fig_fc212076.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa9682.png — (a) Temperature-dependent lattice thermal conductivity

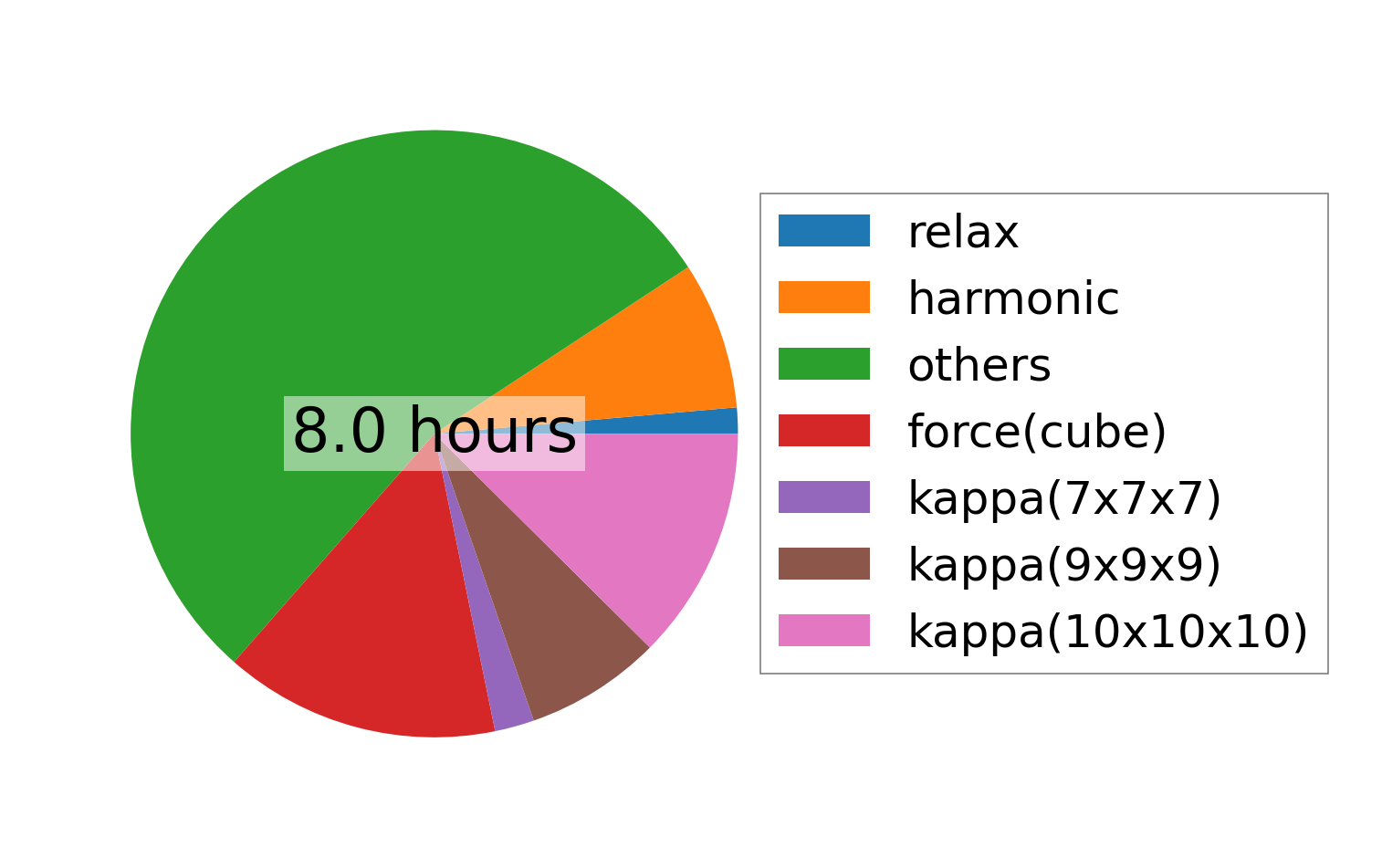

../../_images/fig_times21000.png — (b) Computation time
