mp-24136/CsB6H6/anharm

Space group: Fm-3 (202)
Link: Materials Project
Download: mp-24136.tar.gz

Harmonic properties

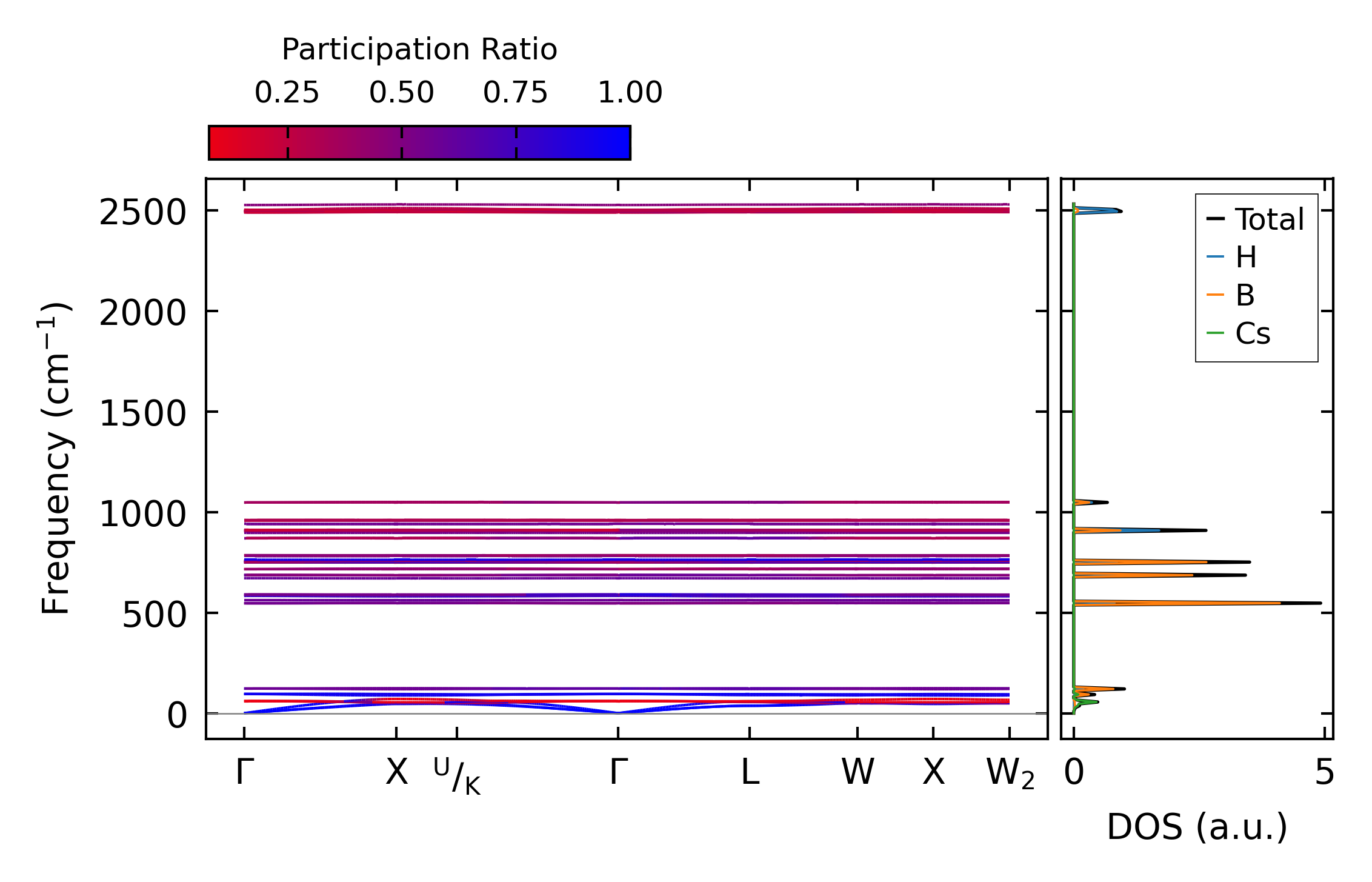

../../_images/fig_bandos_pr12348.png — (a) Phonon dispersion with participation ratio and DOS

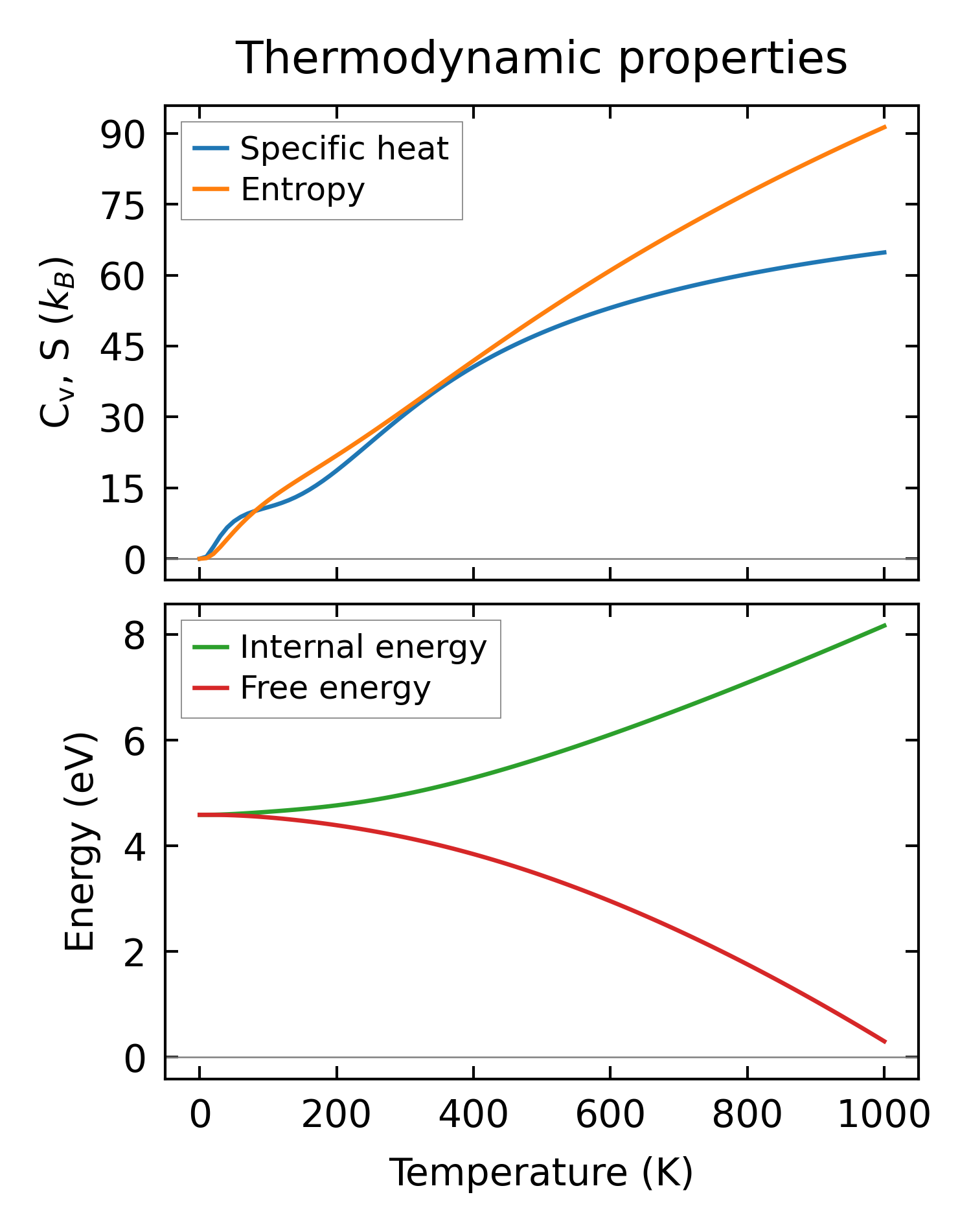

../../_images/fig_thermo12348.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all5137.png — (a) Grüneisen parameters

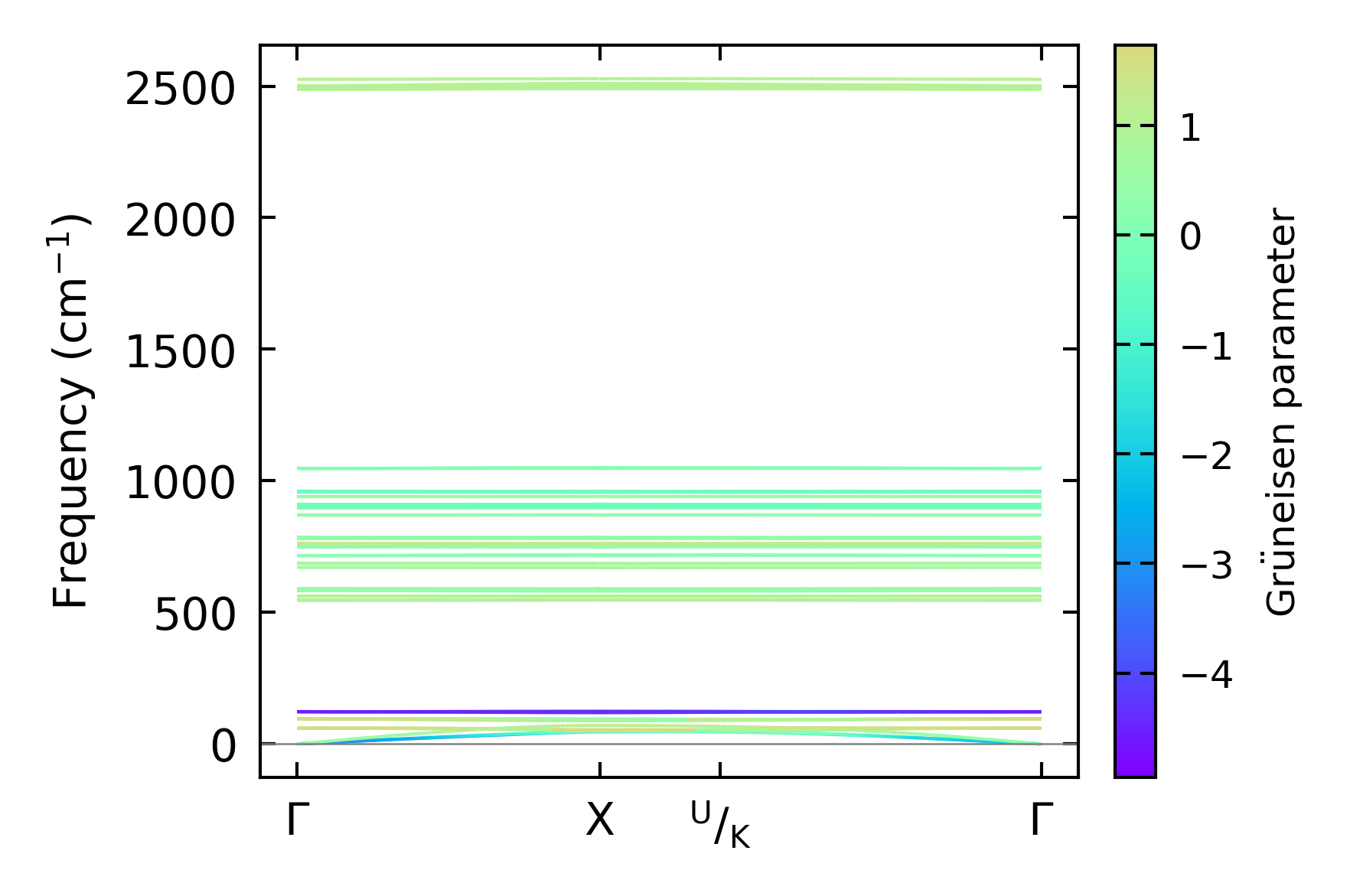

../../_images/fig_gruneisen5137.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x10, supercell: 1x1x1

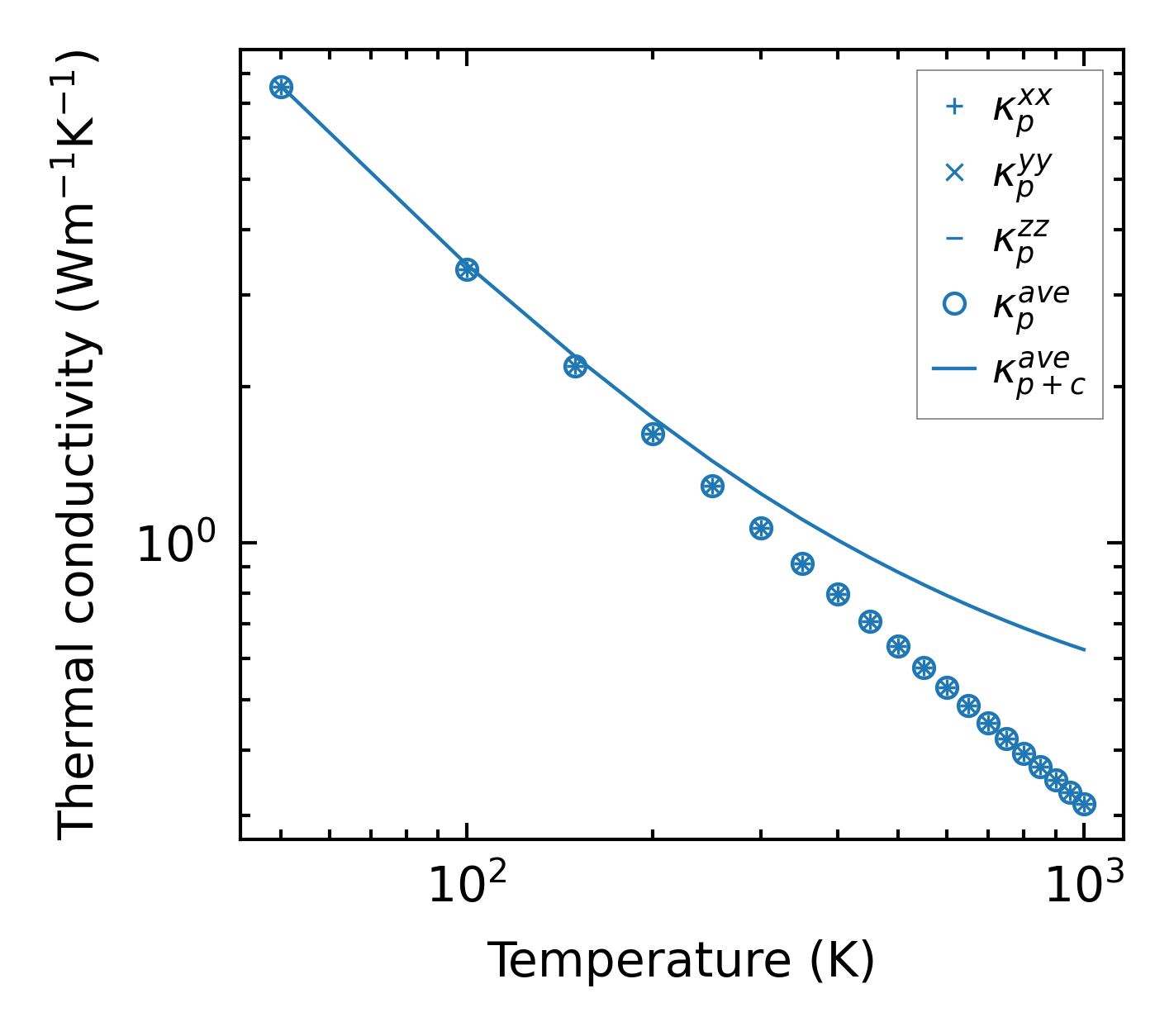

../../_images/fig_kappa9663.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size5197.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

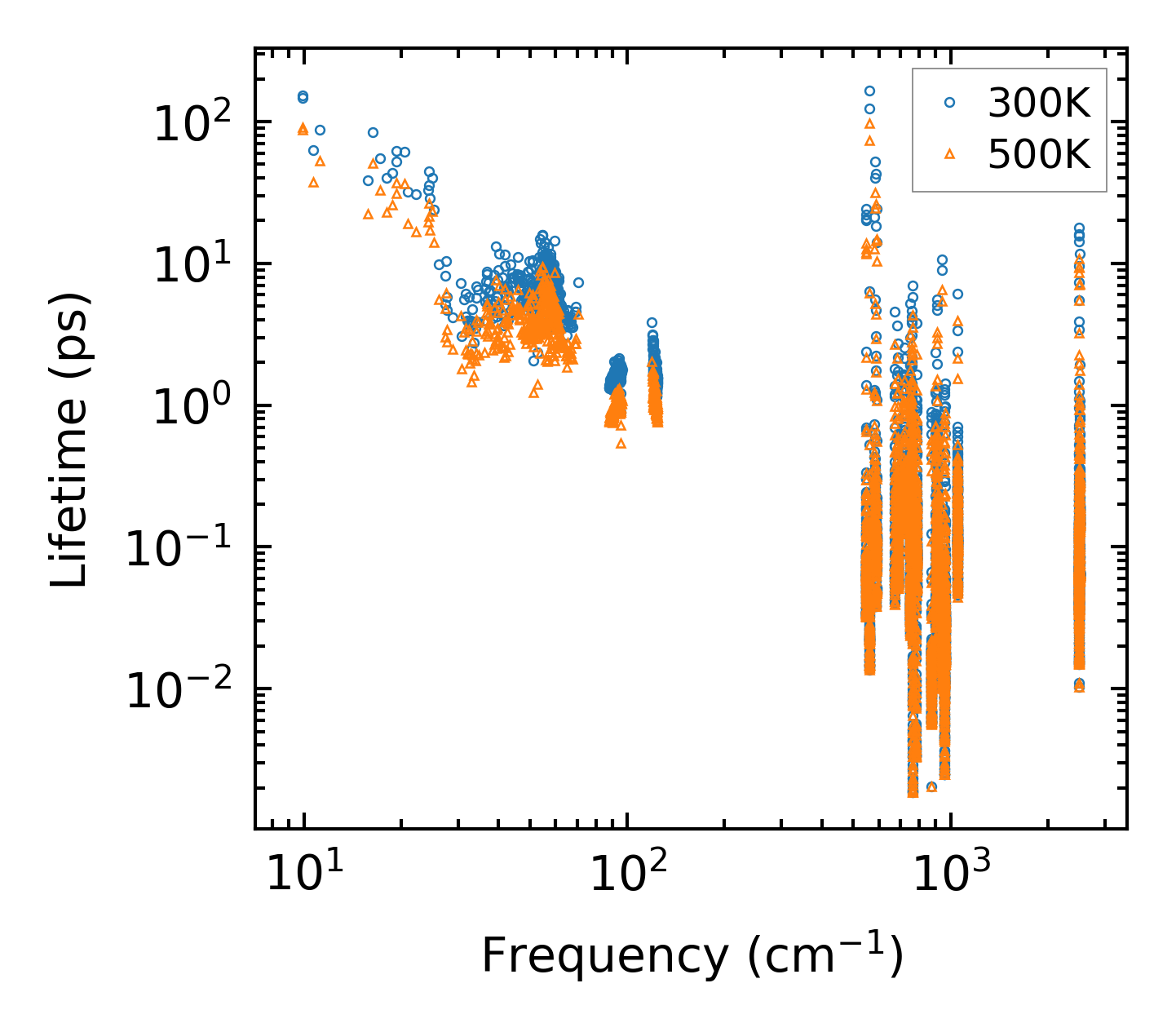

../../_images/fig_lifetime5086.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates5085.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

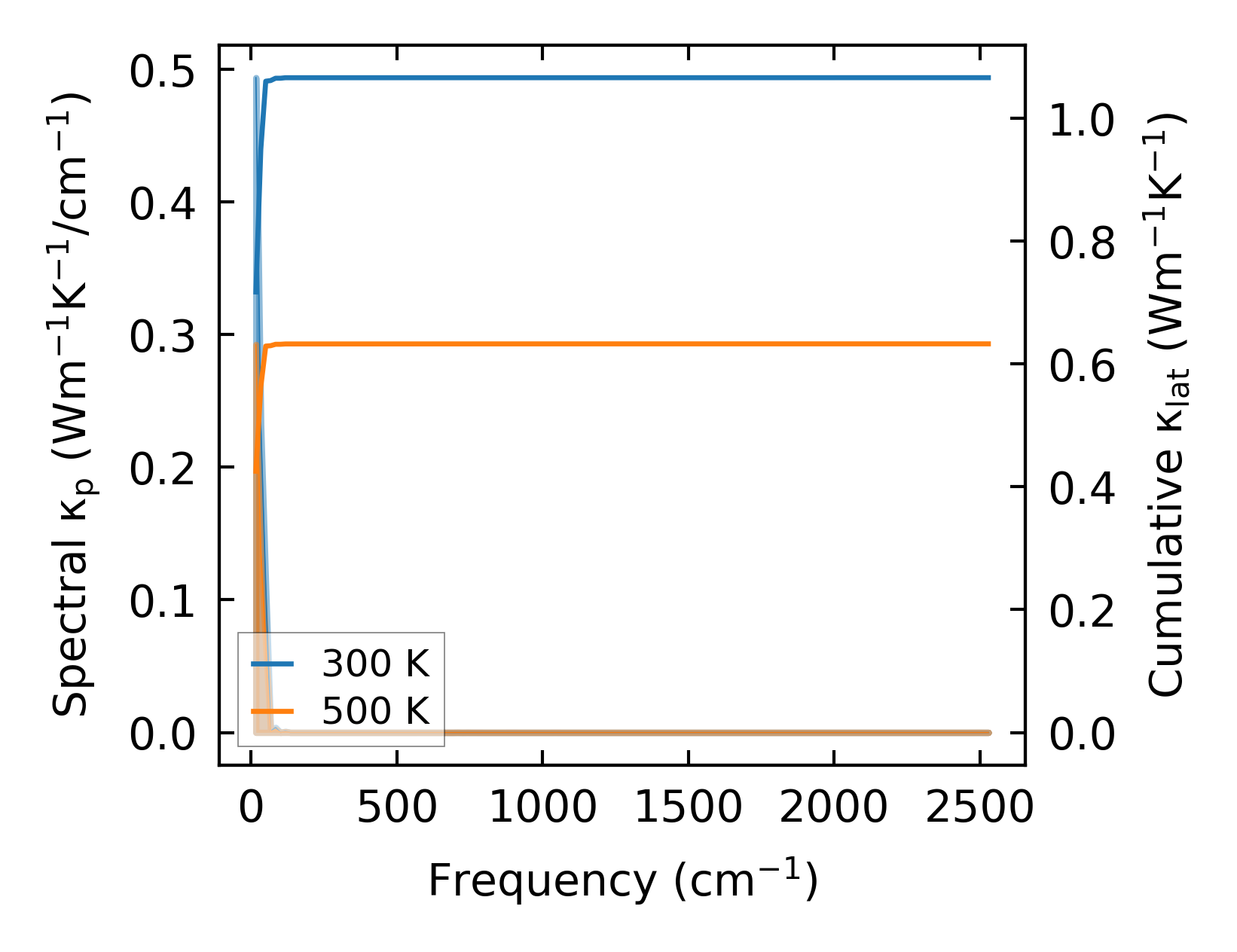

../../_images/fig_cumu_frequency5086.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp5085.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

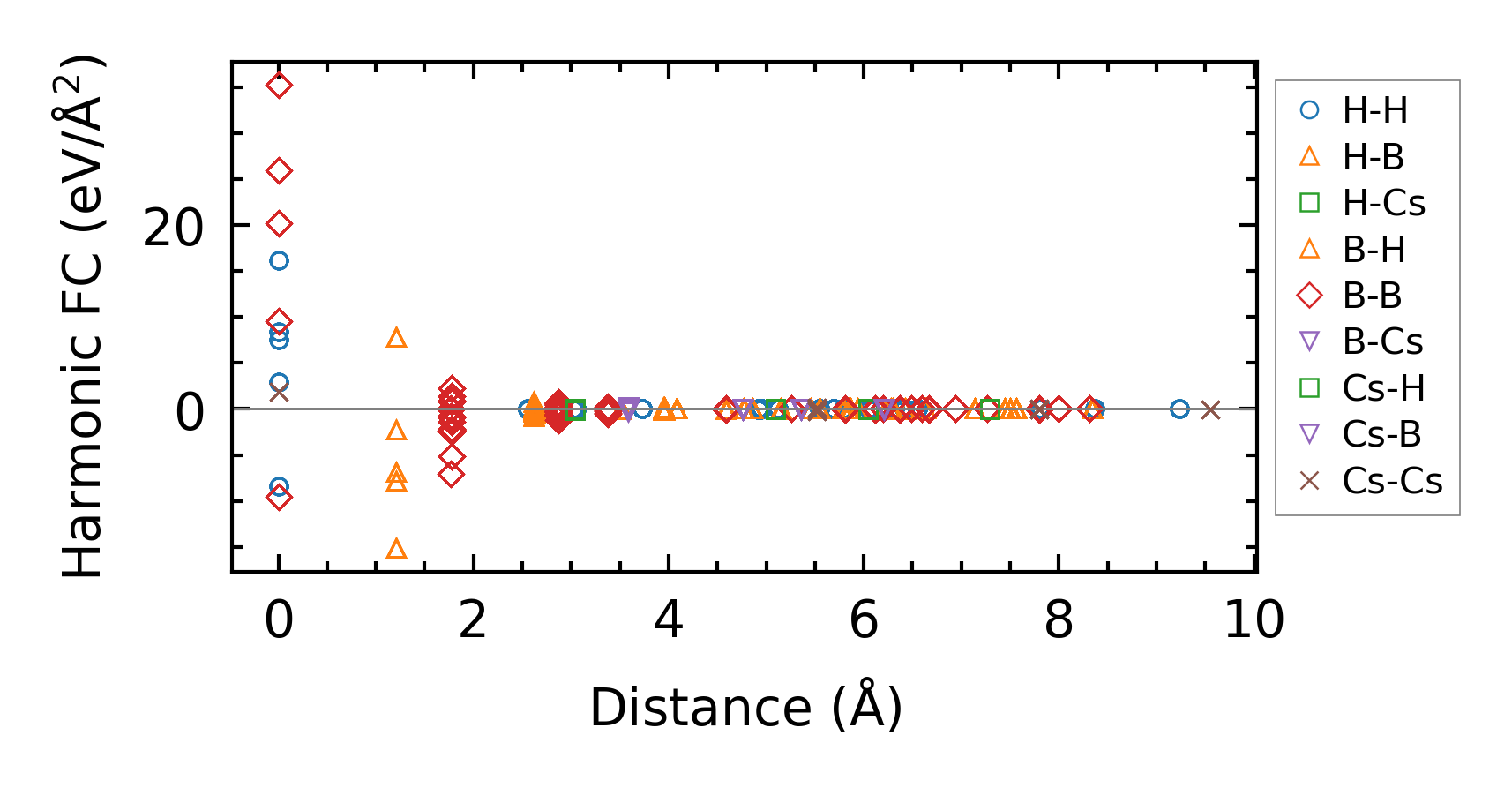

../../_images/fig_fc212047.png — (a) Force constants w.r.t atomic distance

Summary

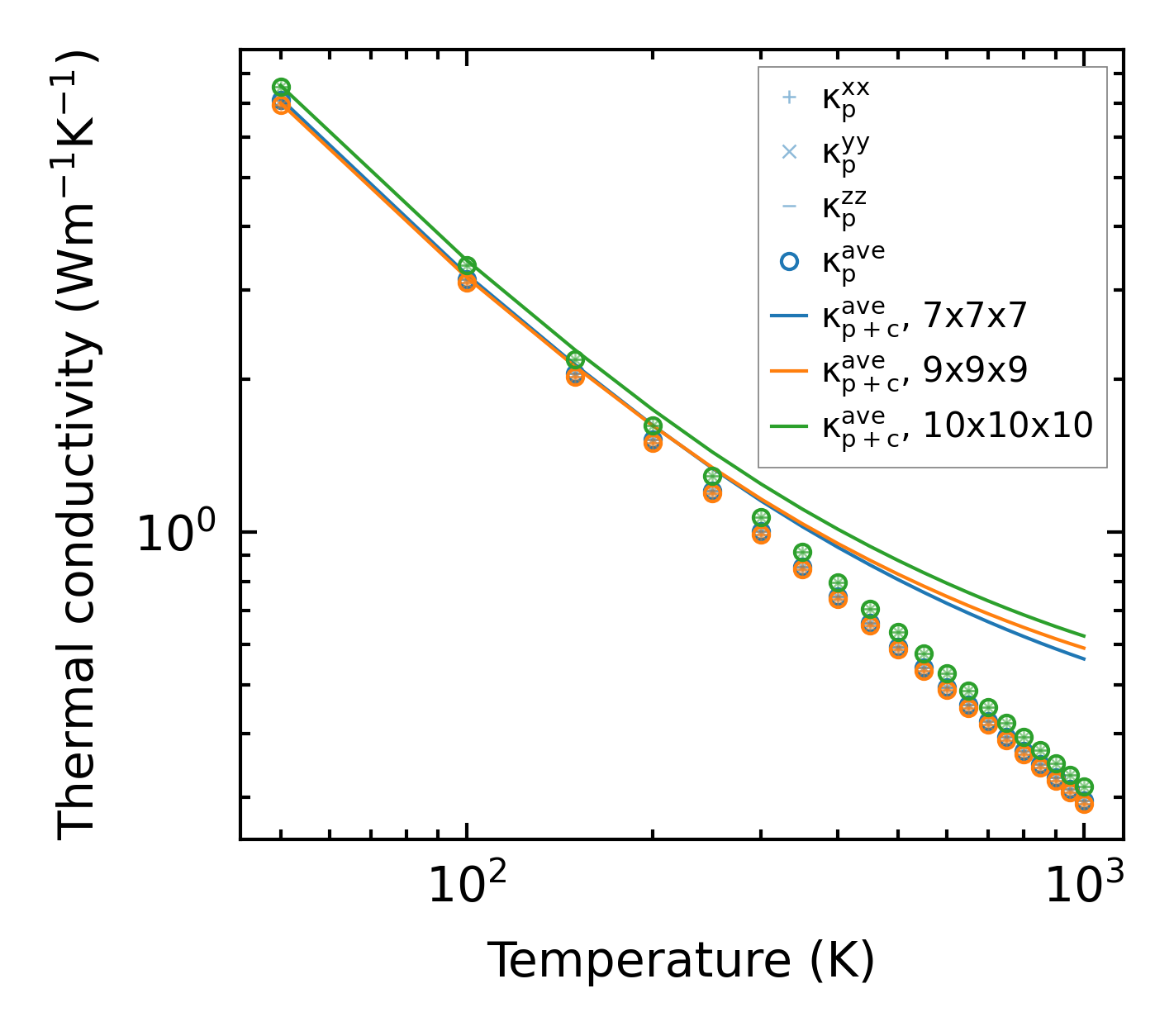

../../_images/fig_kappa9664.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times20952.png — (b) Computation time
