mp-24298/P2H4PbO4/harm

Equation of state

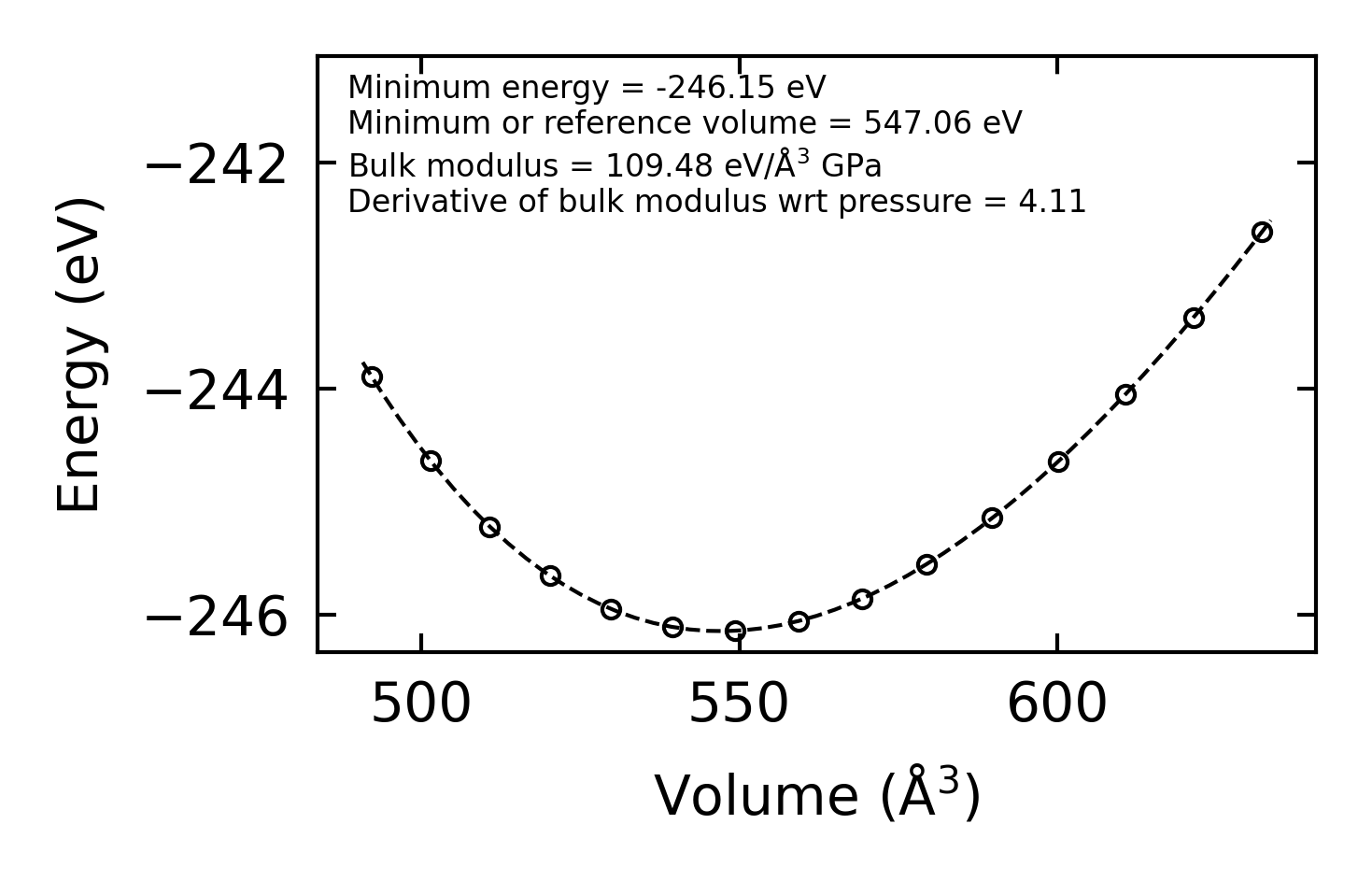

../../_images/fig_bm6125.png

(a) Equation of state

Harmonic properties

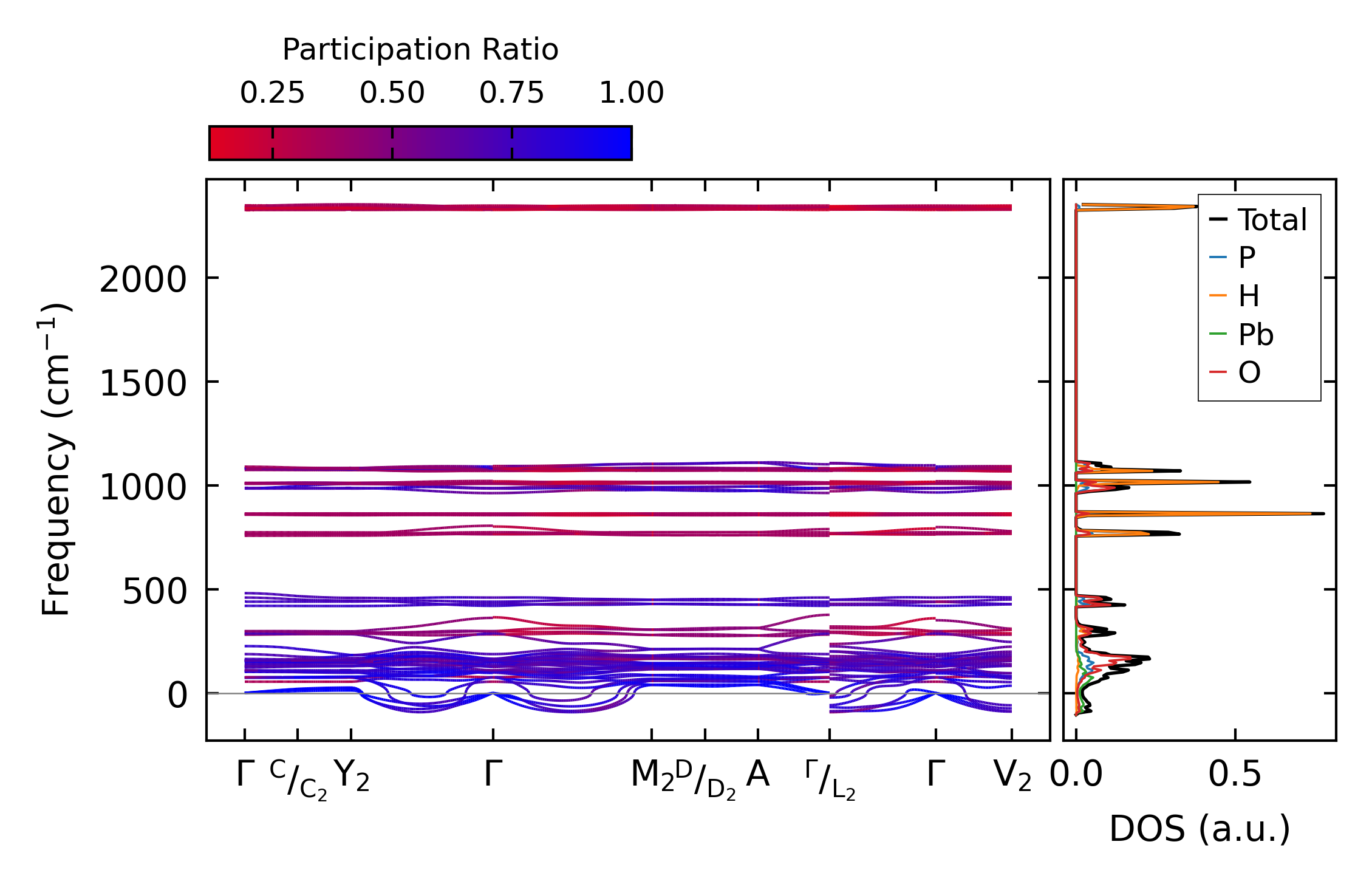

../../_images/fig_bandos_pr12383.png

(a) Phonon dispersion with participation ratio and DOS

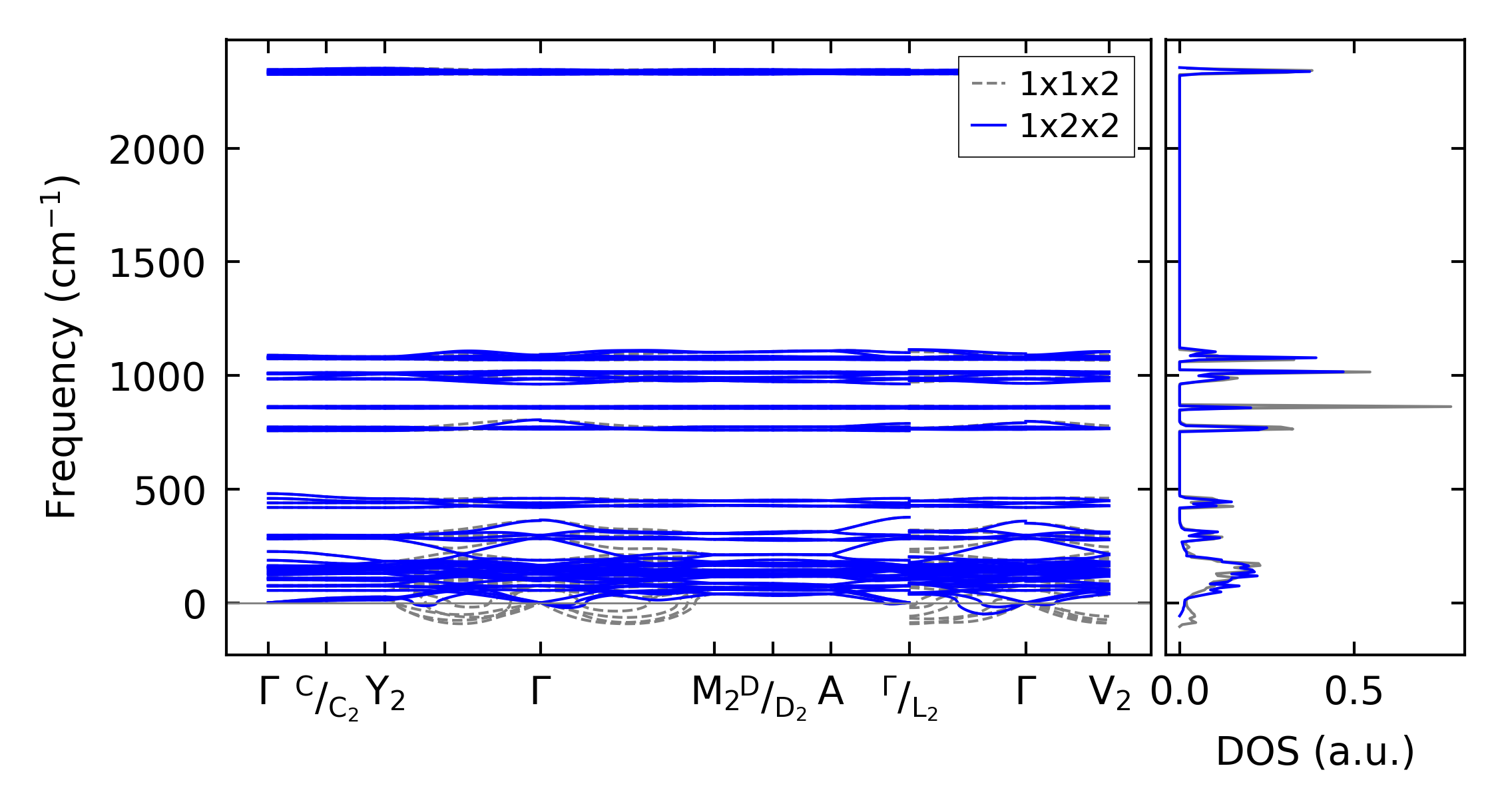

../../_images/fig_bandos16626.png

(b) Phonon dispersion and DOS

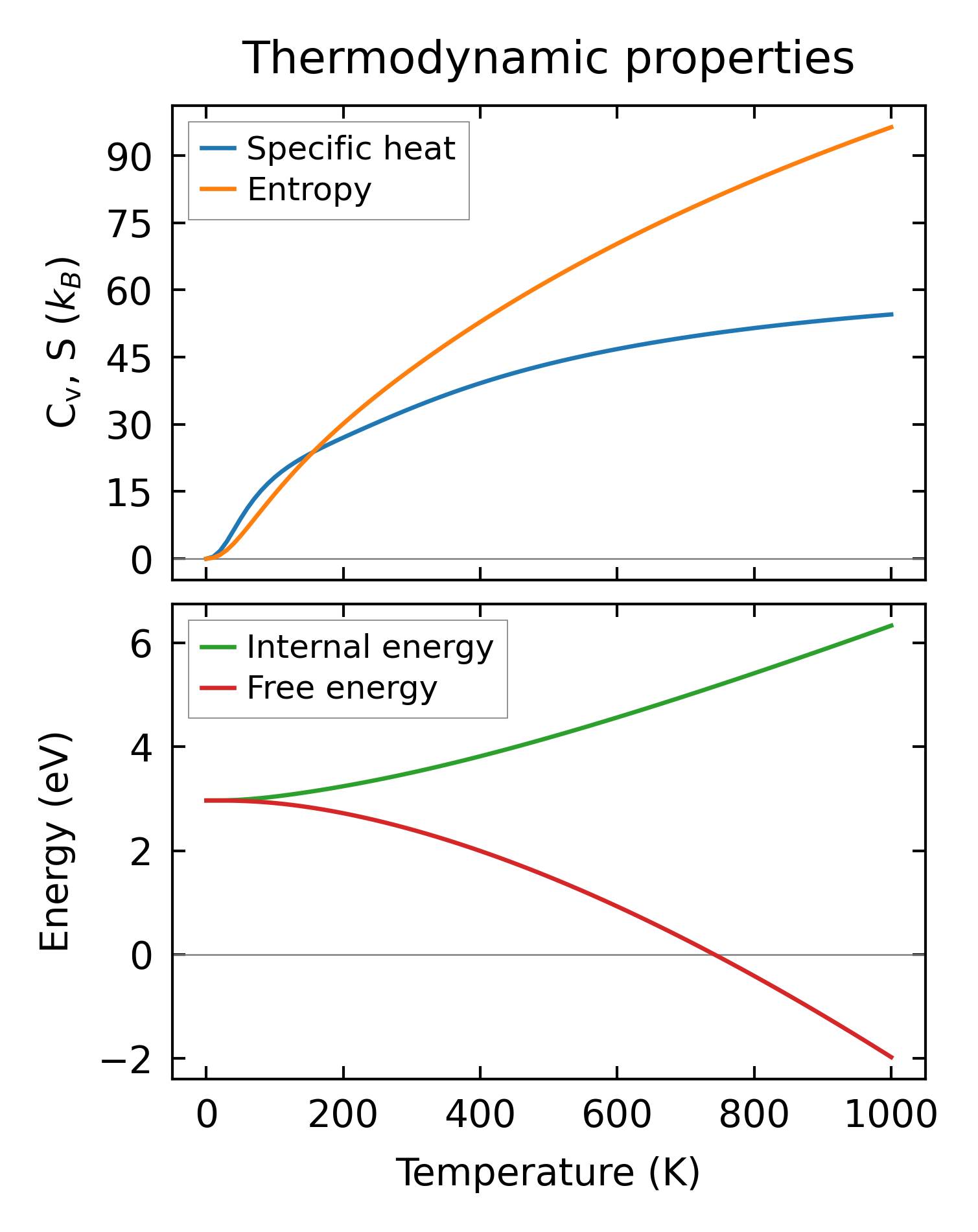

../../_images/fig_thermo12383.png

(c) Thermodynamic properties

Force constants

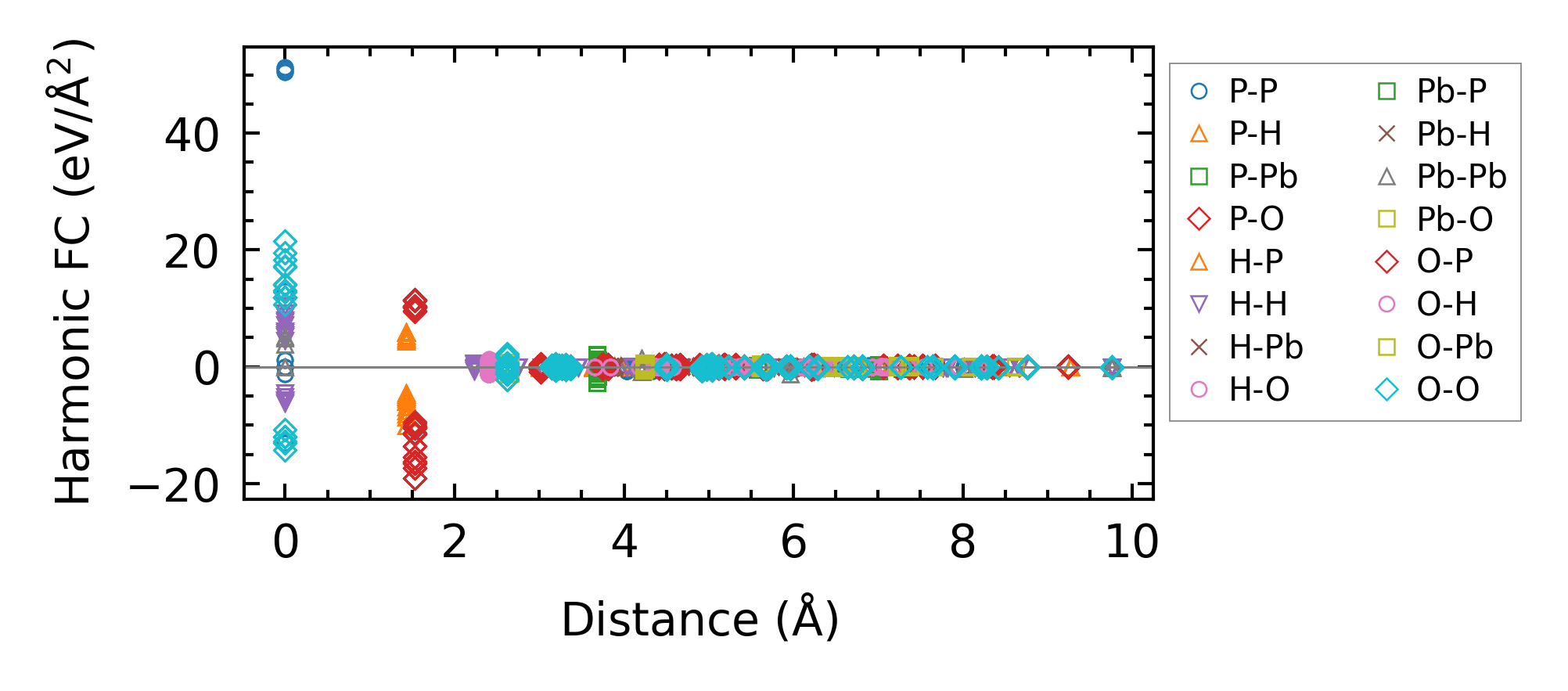

../../_images/fig_fc212082.png

(a) Force constants w.r.t atomic distance

Summary

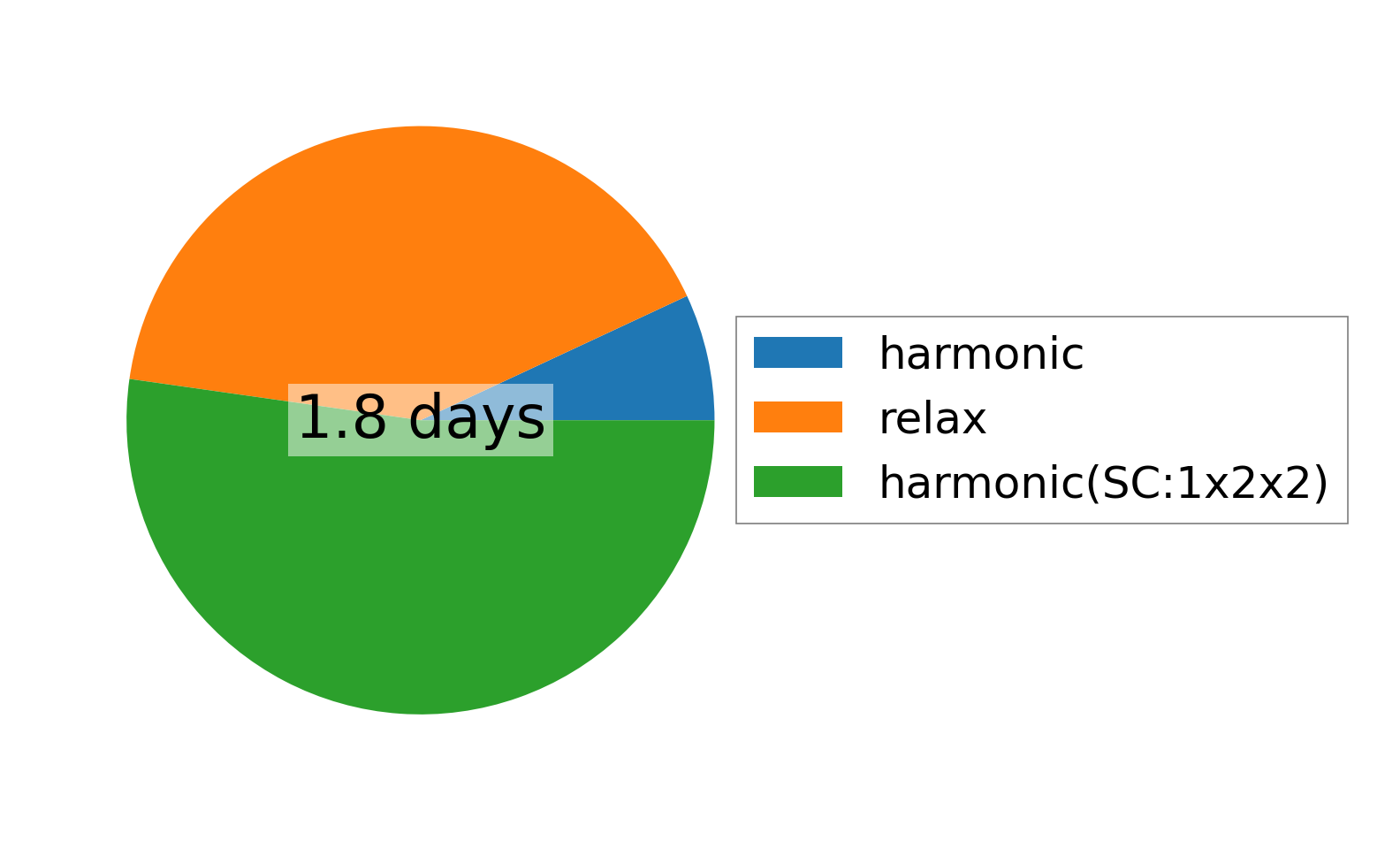

../../_images/fig_times21022.png

(a) Computation time
