mp-24113-2/SnH8N2F6/anharm

Space group: P-3m1 (164)
Link: Materials Project
Download: mp-24113-2.tar.gz

Equation of state

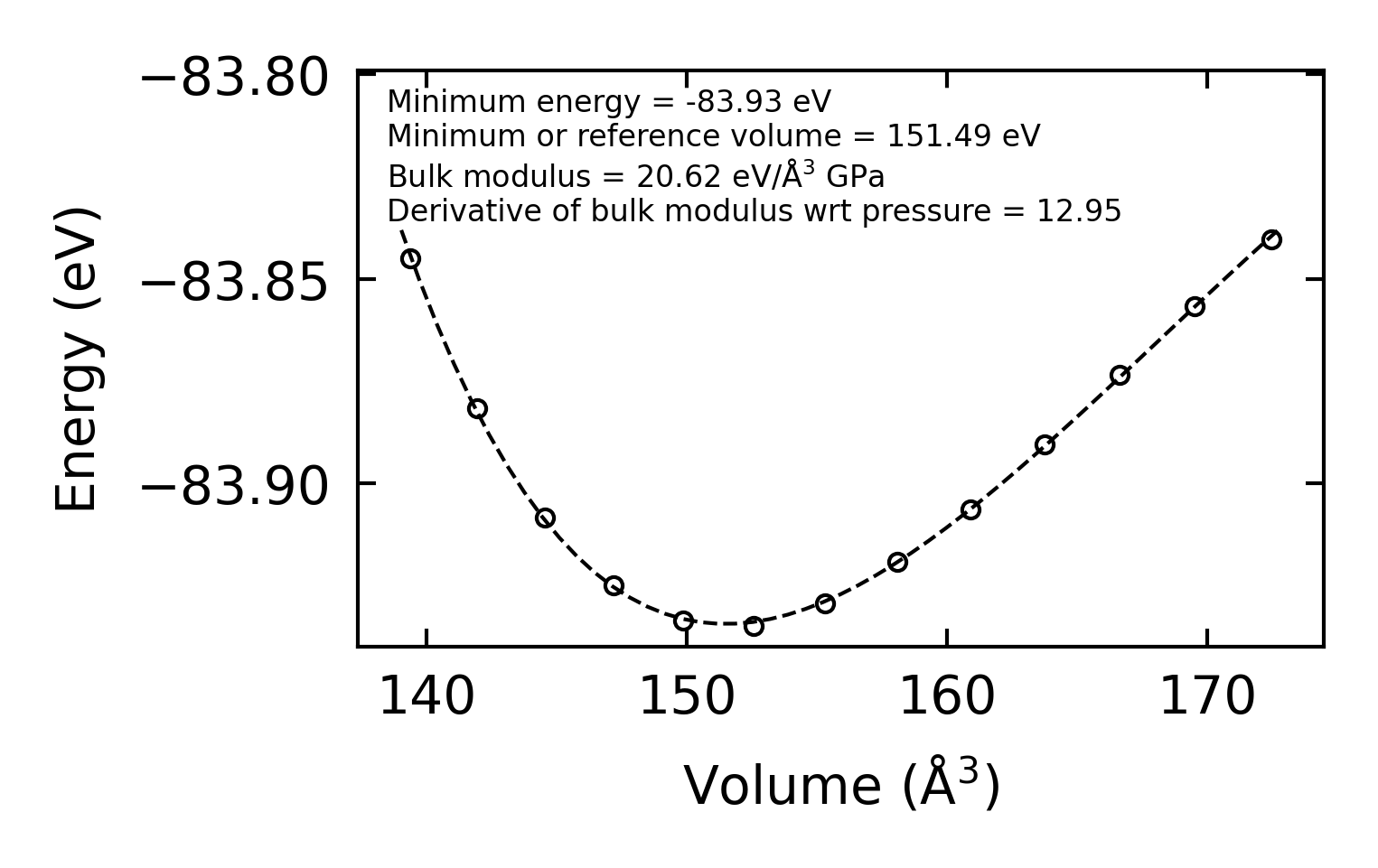

../../_images/fig_bm6092.png — (a) Equation of state

Harmonic properties

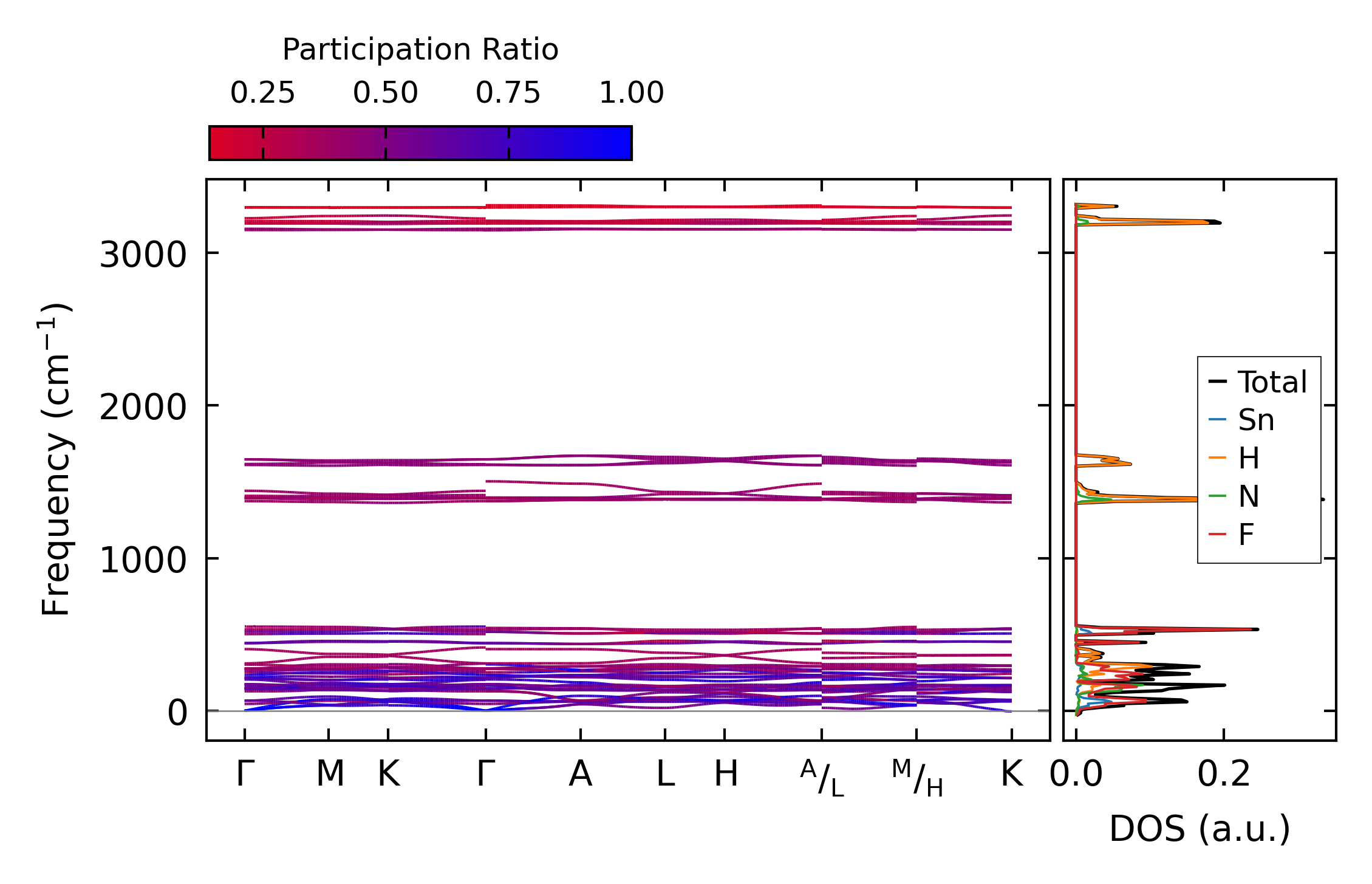

../../_images/fig_bandos_pr12335.png — (a) Phonon dispersion with participation ratio and DOS

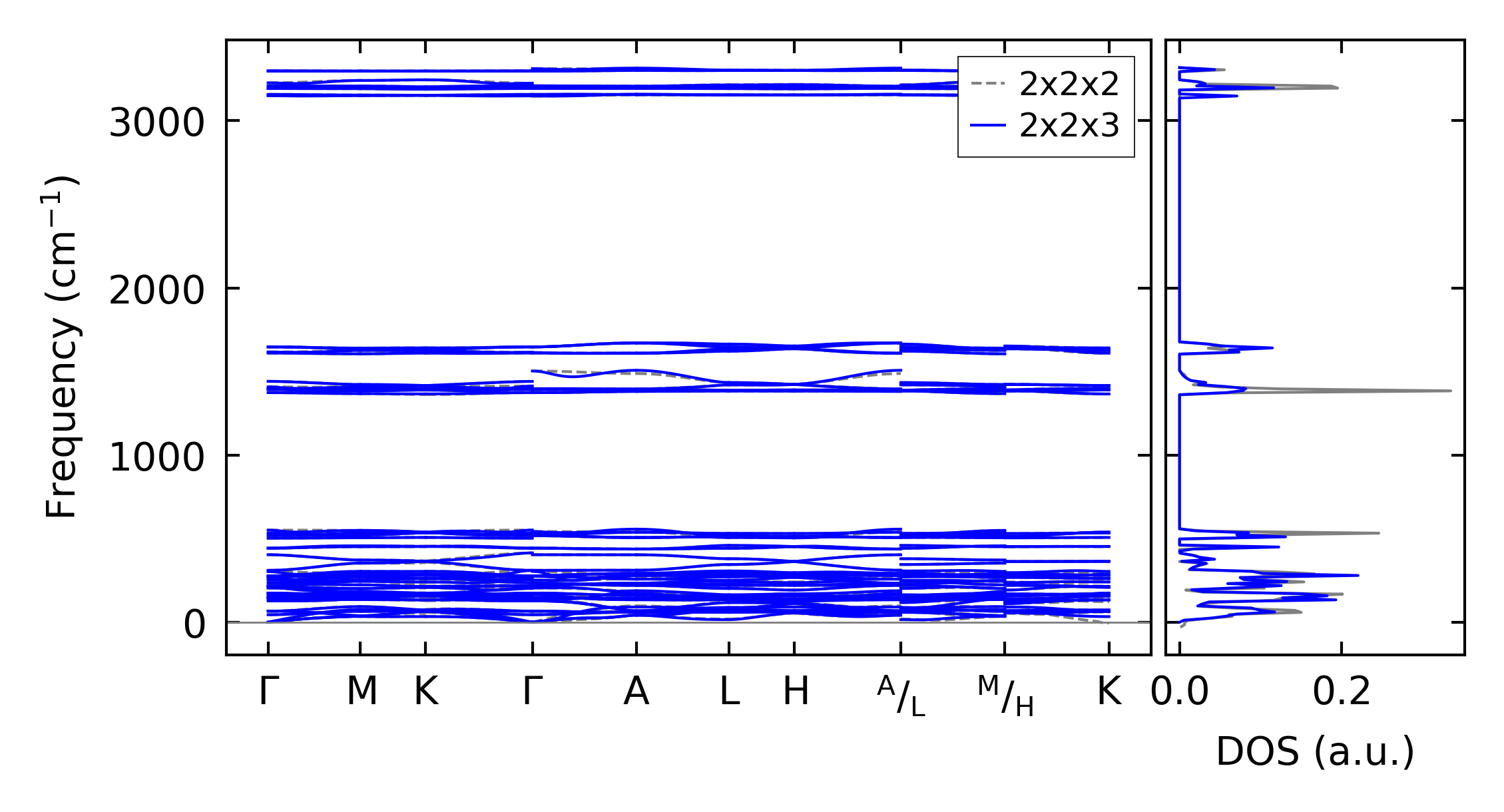

../../_images/fig_bandos16552.png — (b) Phonon dispersion and DOS

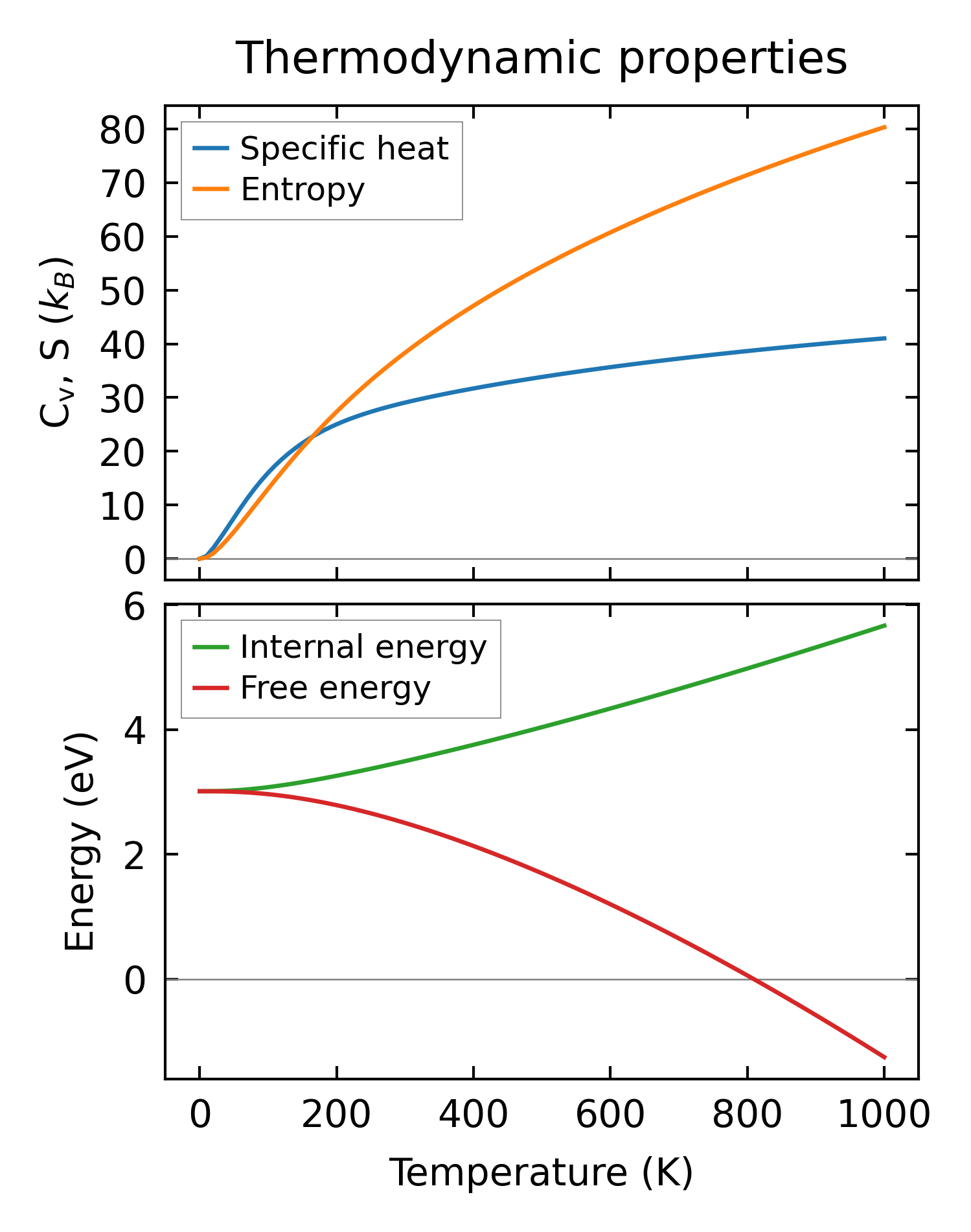

../../_images/fig_thermo12335.png — (c) Thermodynamic properties

Grüneisen parameters

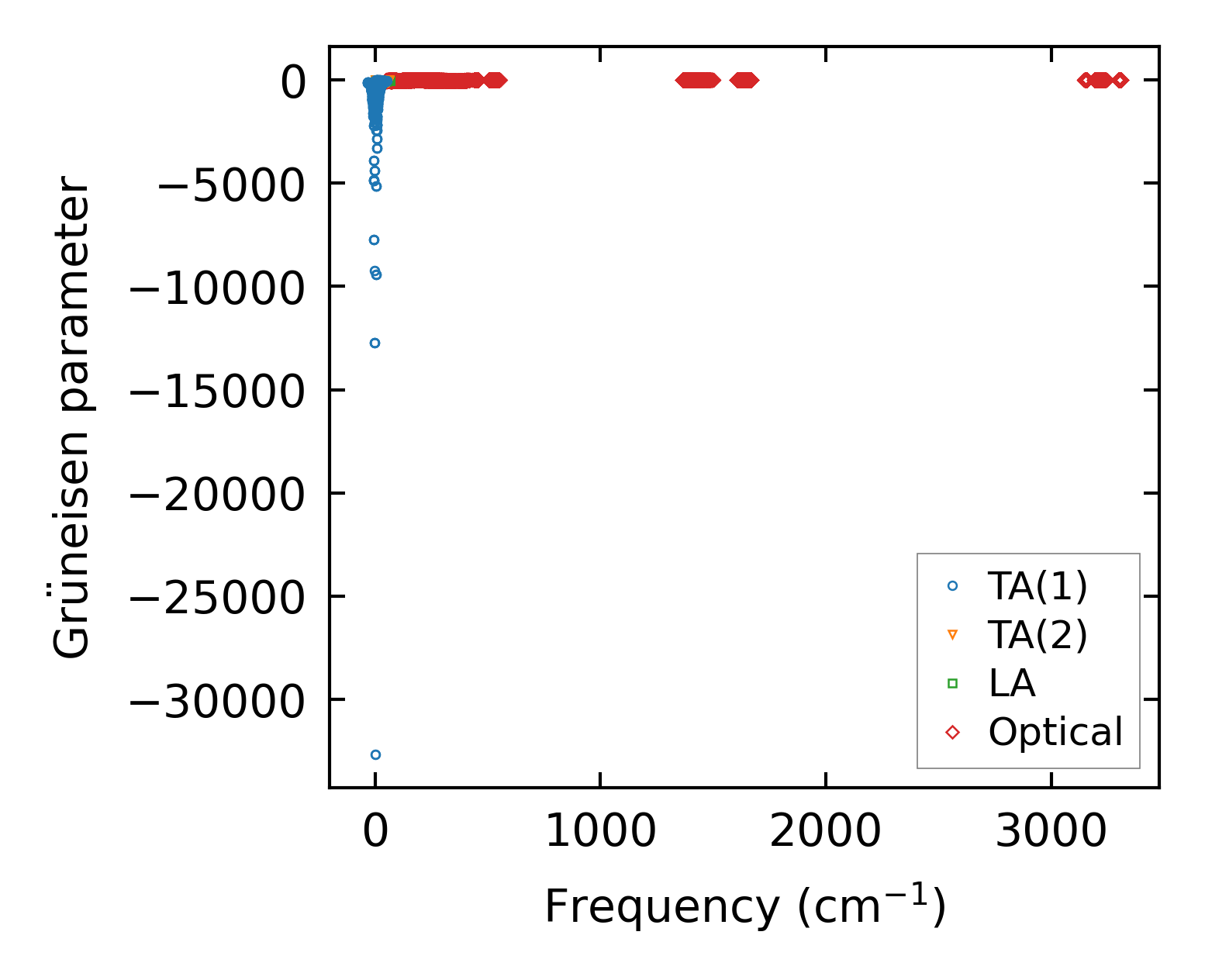

../../_images/fig_gru_all5134.png — (a) Grüneisen parameters

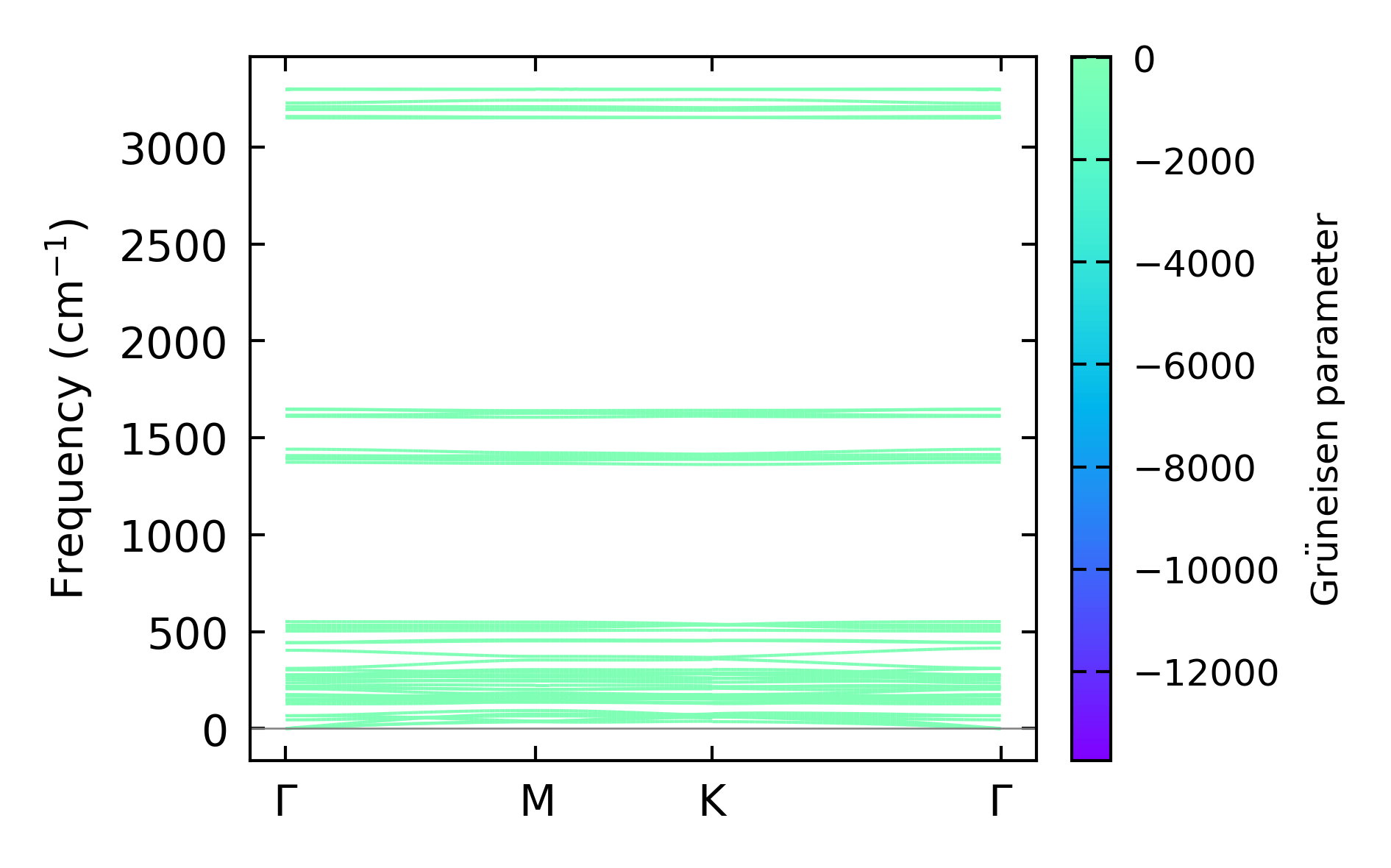

../../_images/fig_gruneisen5134.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x2x3 — q-mesh: 12x12x16, supercell: 2x2x3

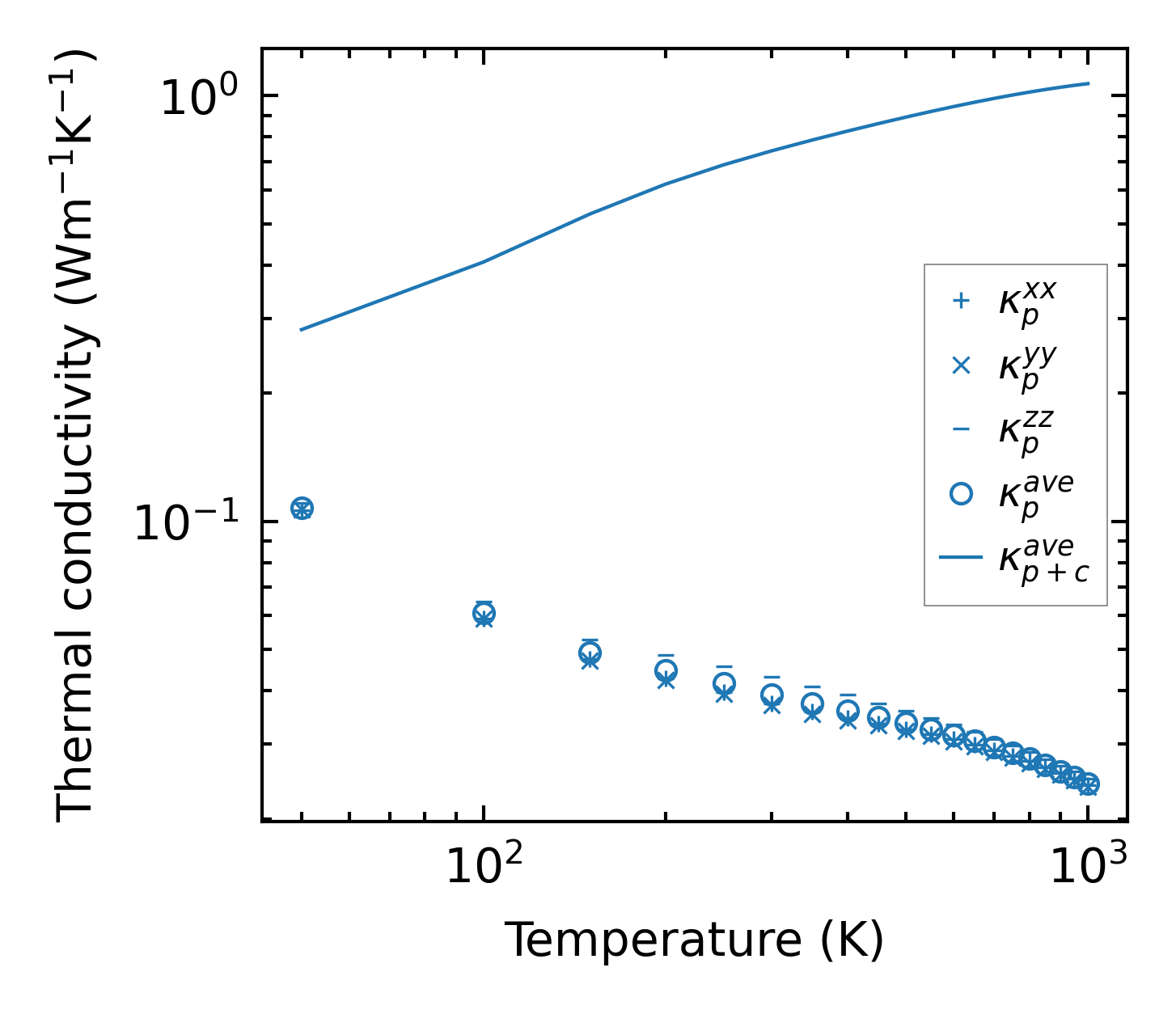

../../_images/fig_kappa9658.png — (a) Temperature-dependent lattice thermal conductivity

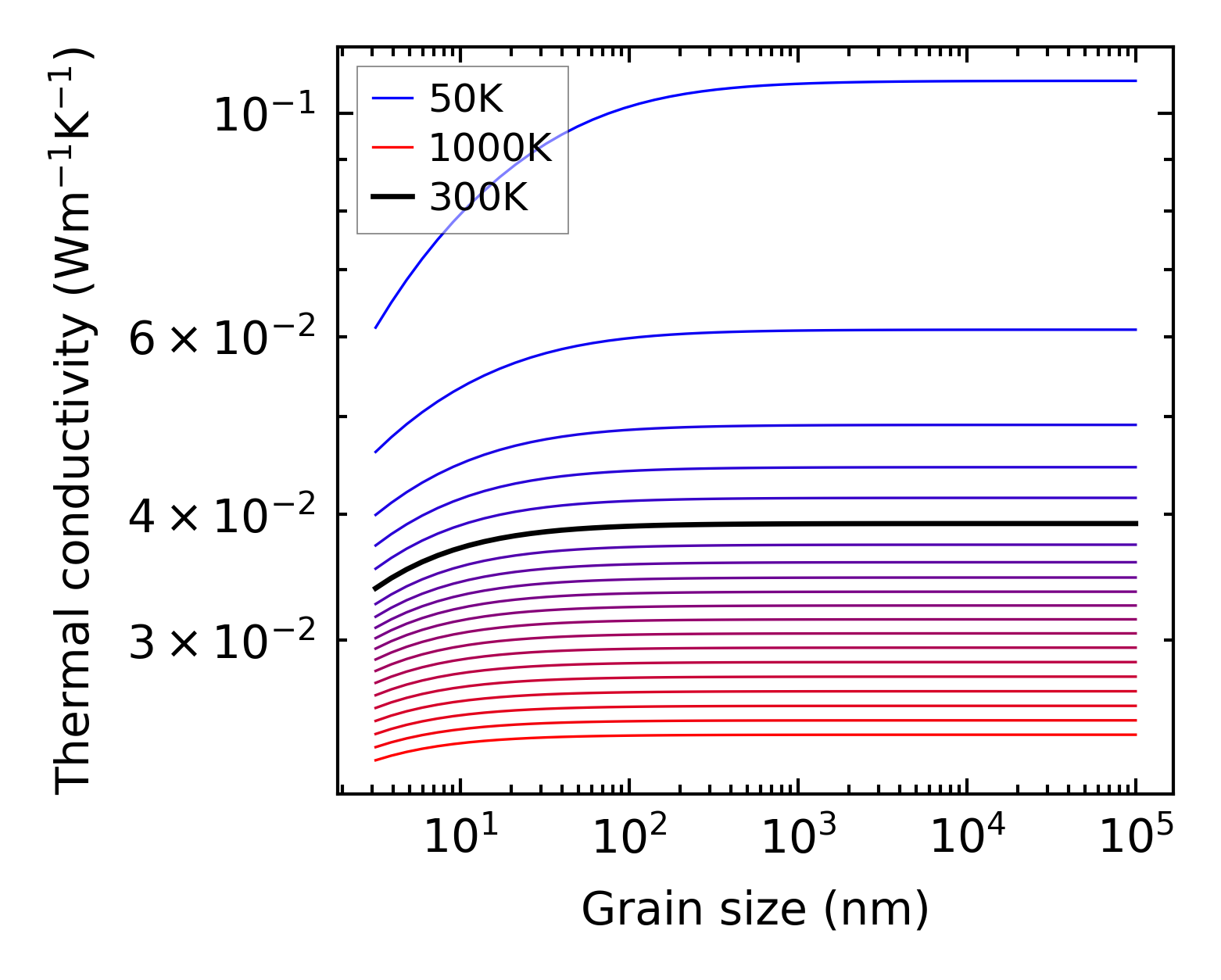

../../_images/fig_kappa_vs_grain_size5194.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

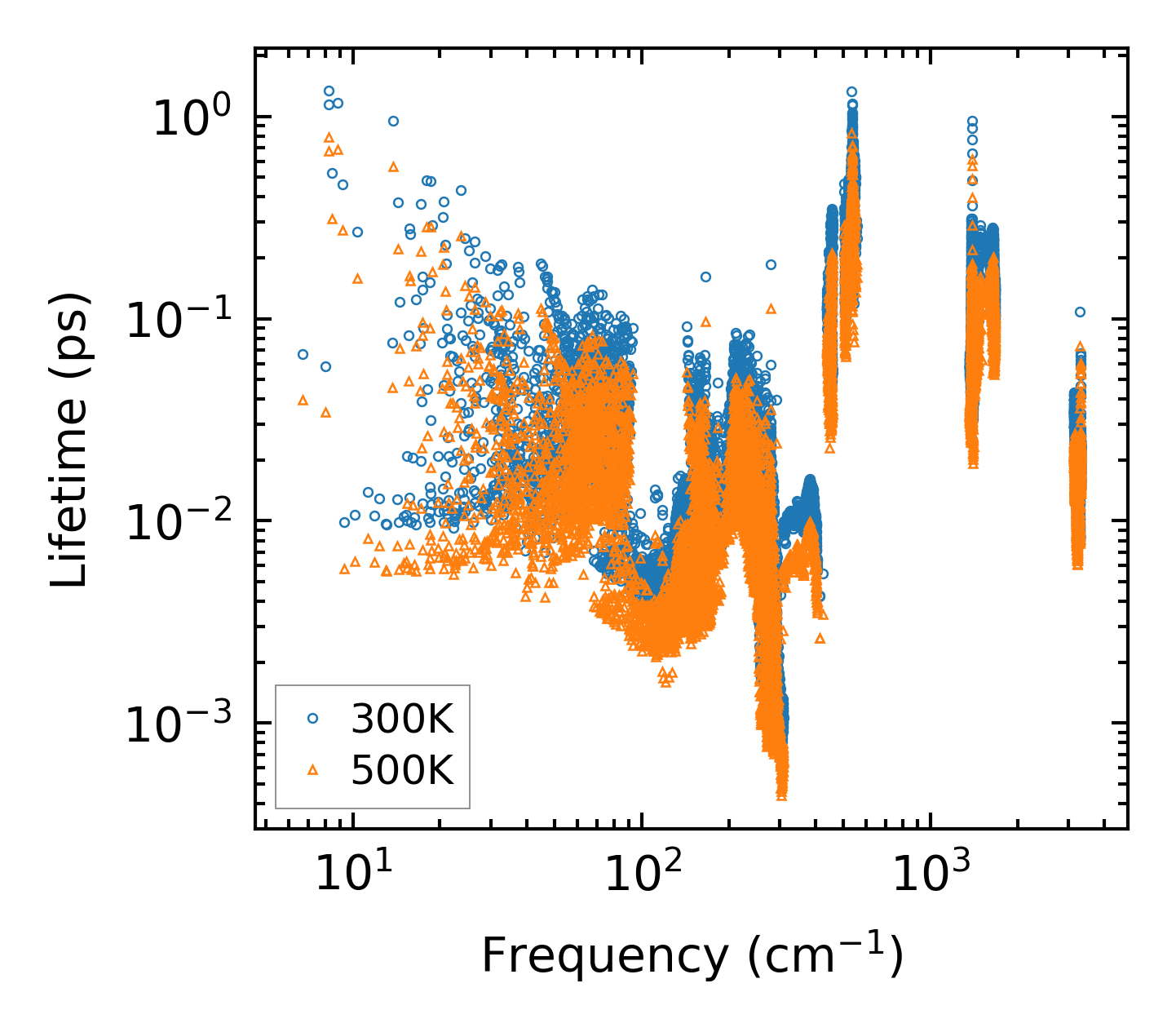

../../_images/fig_lifetime5083.png — (a) Phonon lifetime due to phonon-phonon scattering

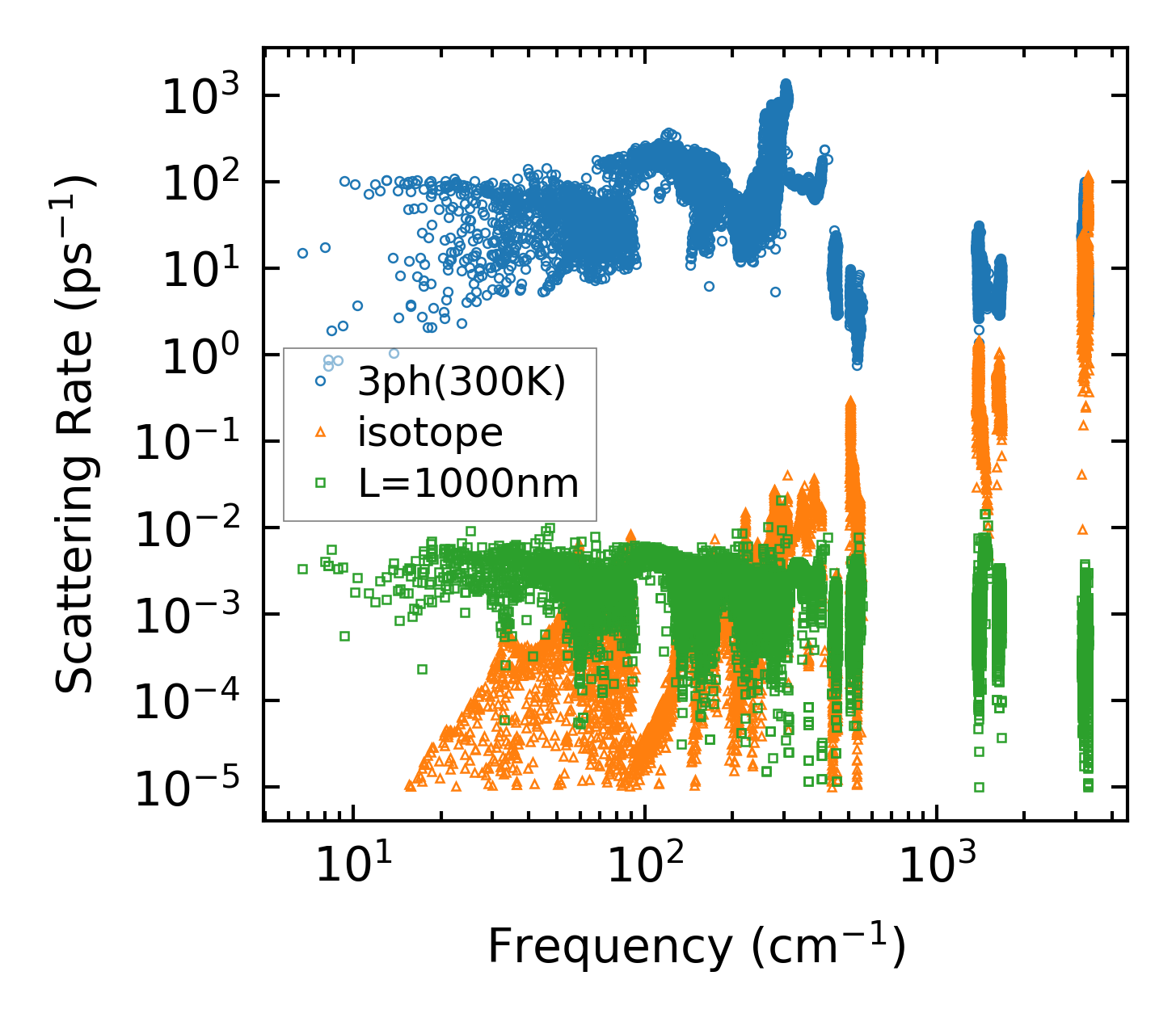

../../_images/fig_scat_rates5082.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

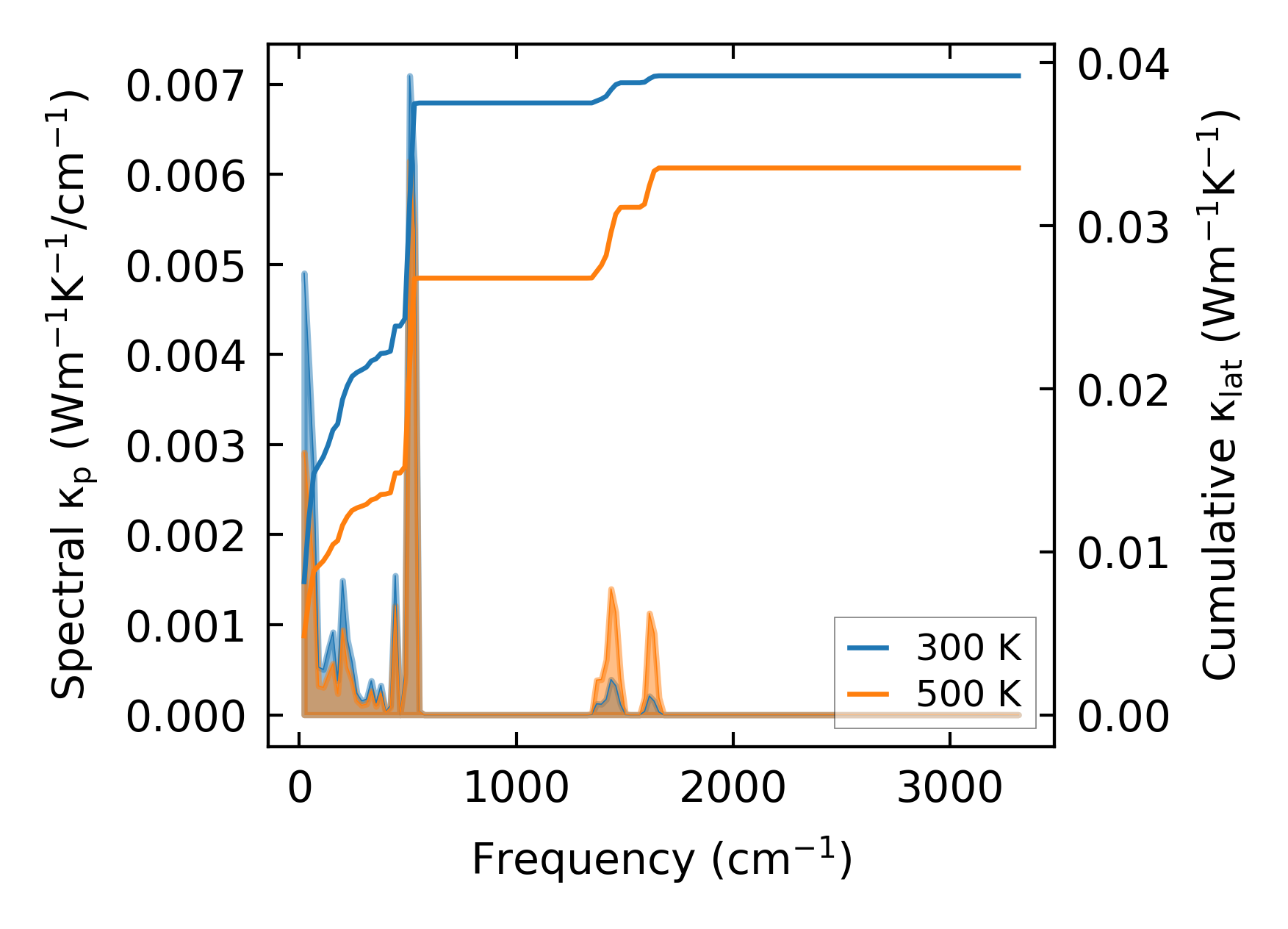

../../_images/fig_cumu_frequency5083.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

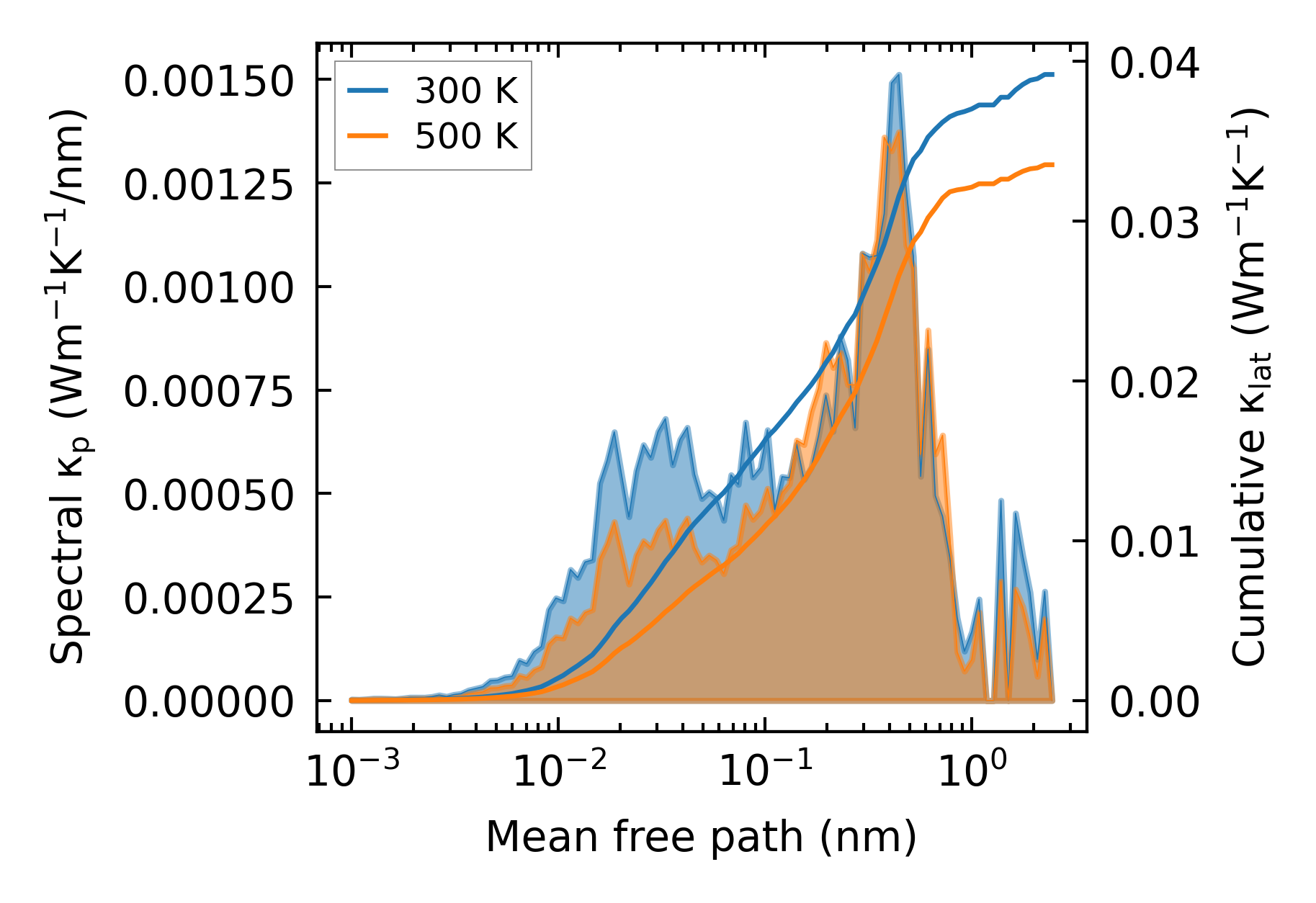

../../_images/fig_cumu_mfp5082.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

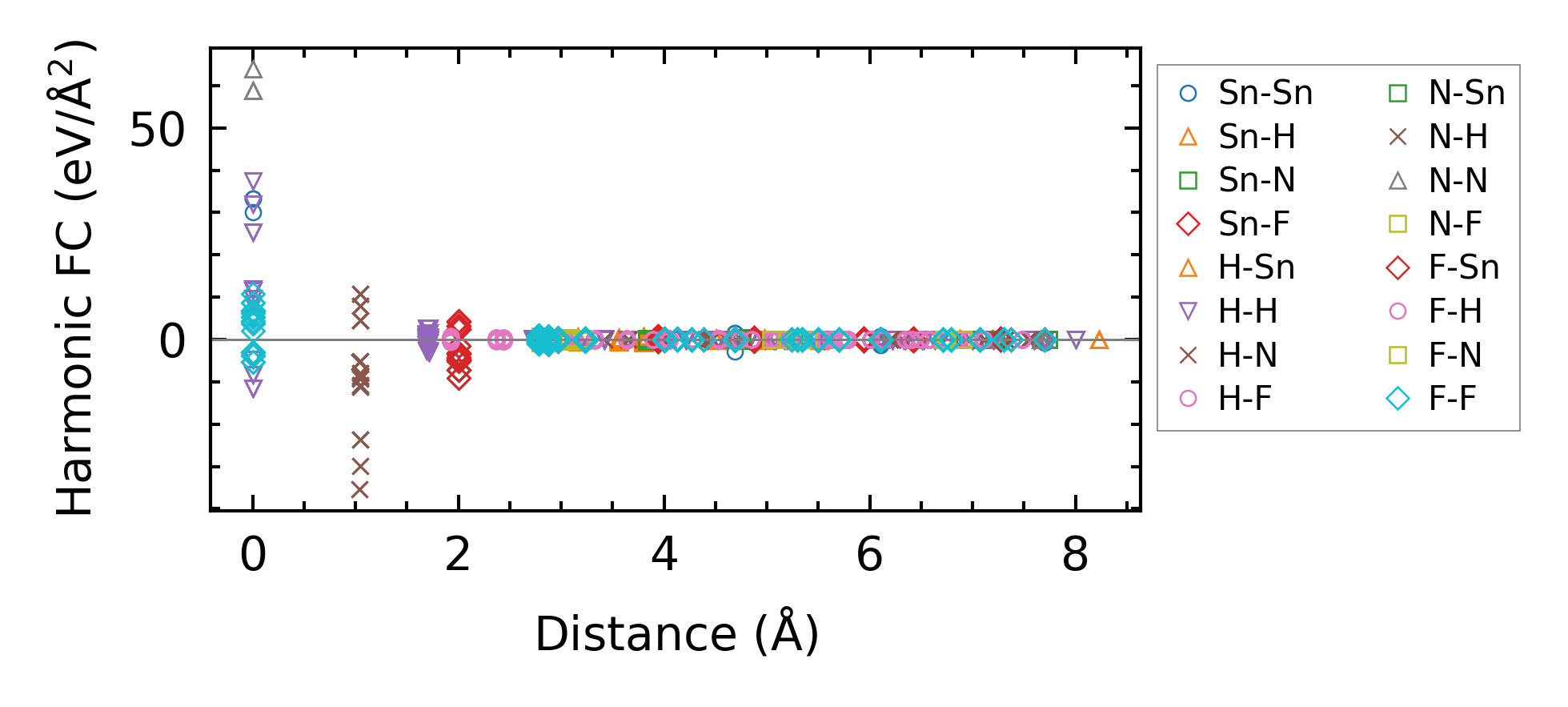

../../_images/fig_fc212034.png — (a) Force constants w.r.t atomic distance

Summary

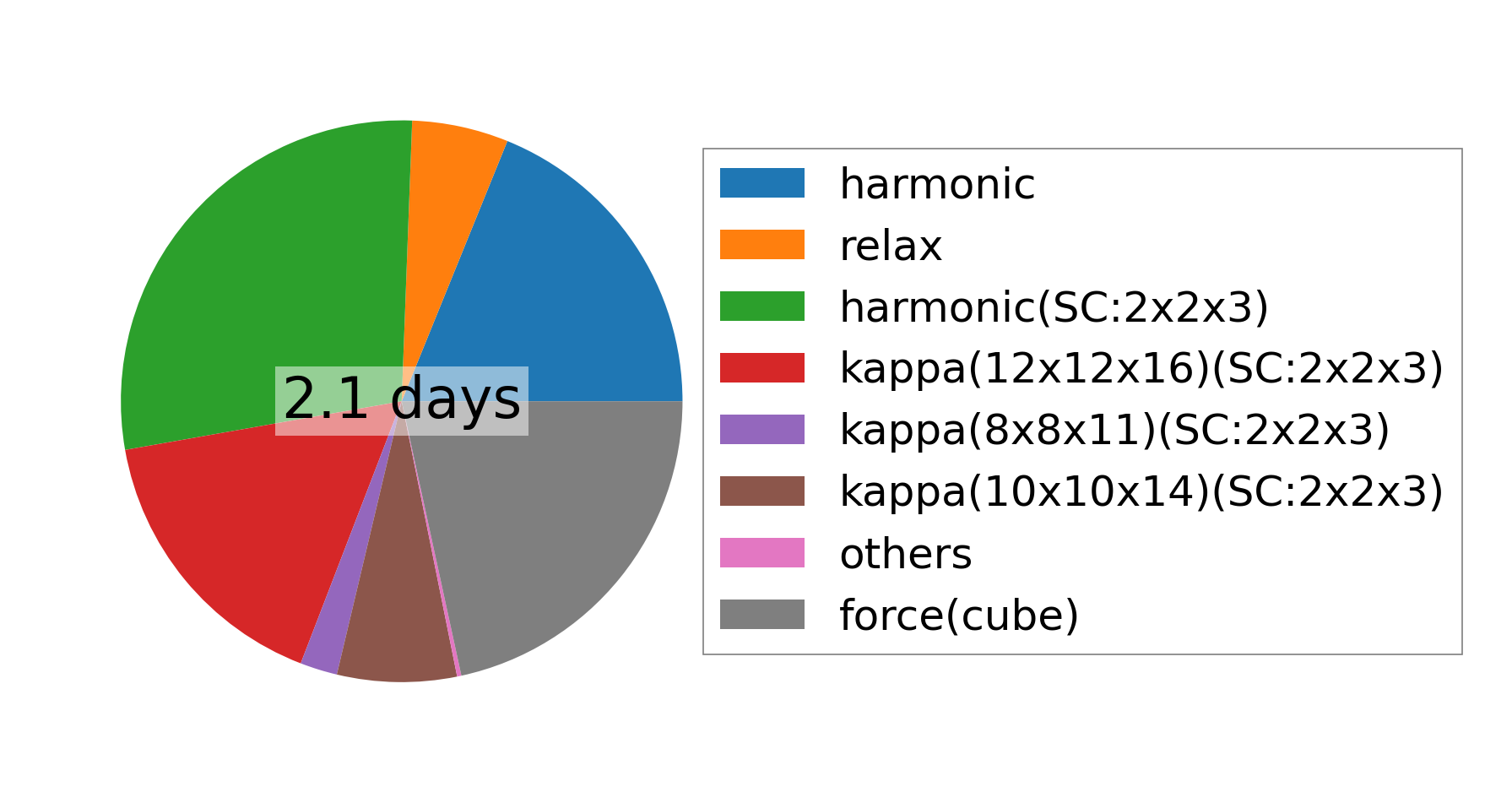

../../_images/fig_times20934.png — (a) Computation time
