mp-24822-2/Na5Al3H14/anharm

Space group: P4/mnc (128)
Link: Materials Project
Download: mp-24822-2.tar.gz

Harmonic properties

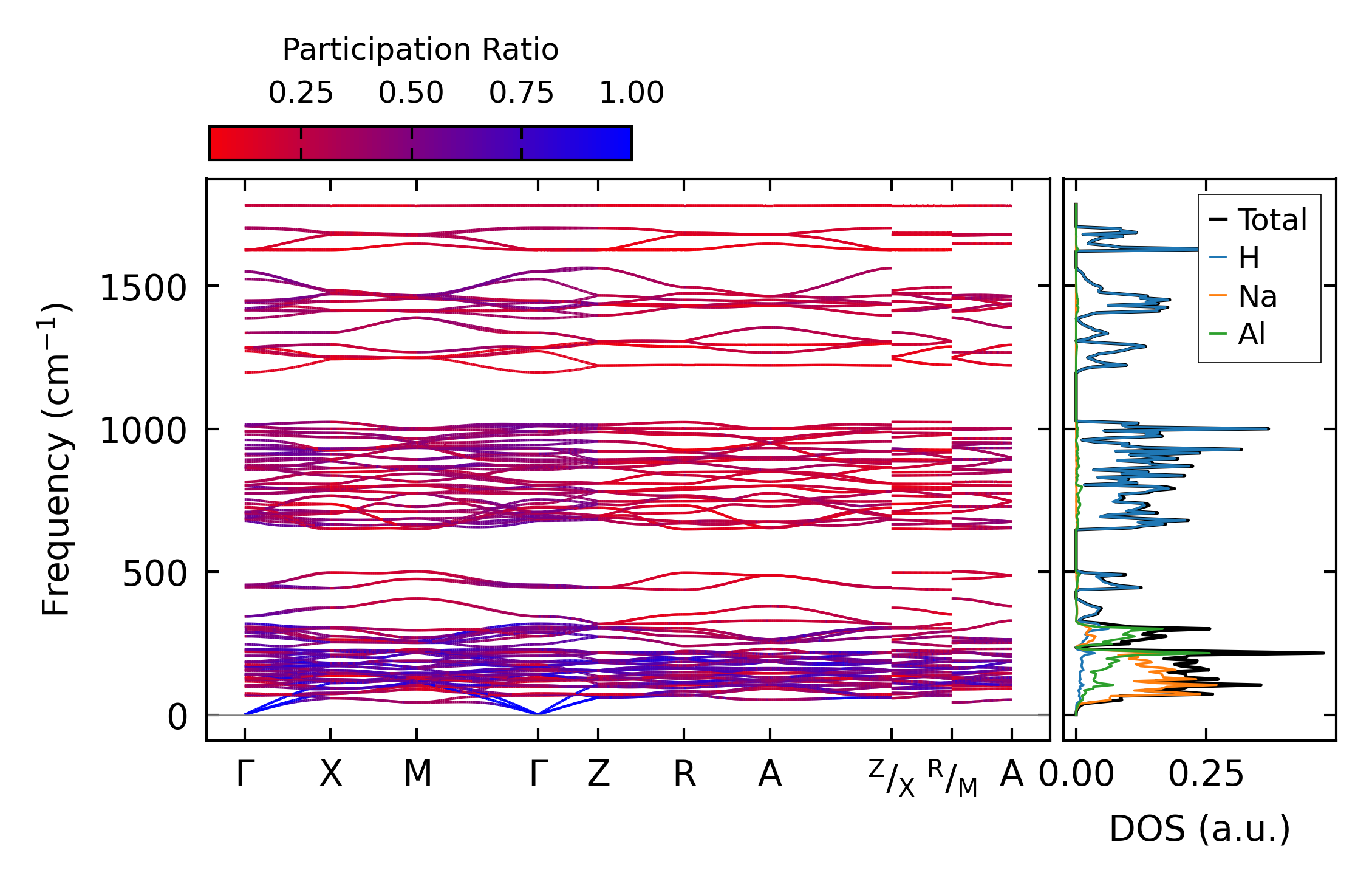

../../_images/fig_bandos_pr12202.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo12202.png — (b) Thermodynamic properties

Grüneisen parameters

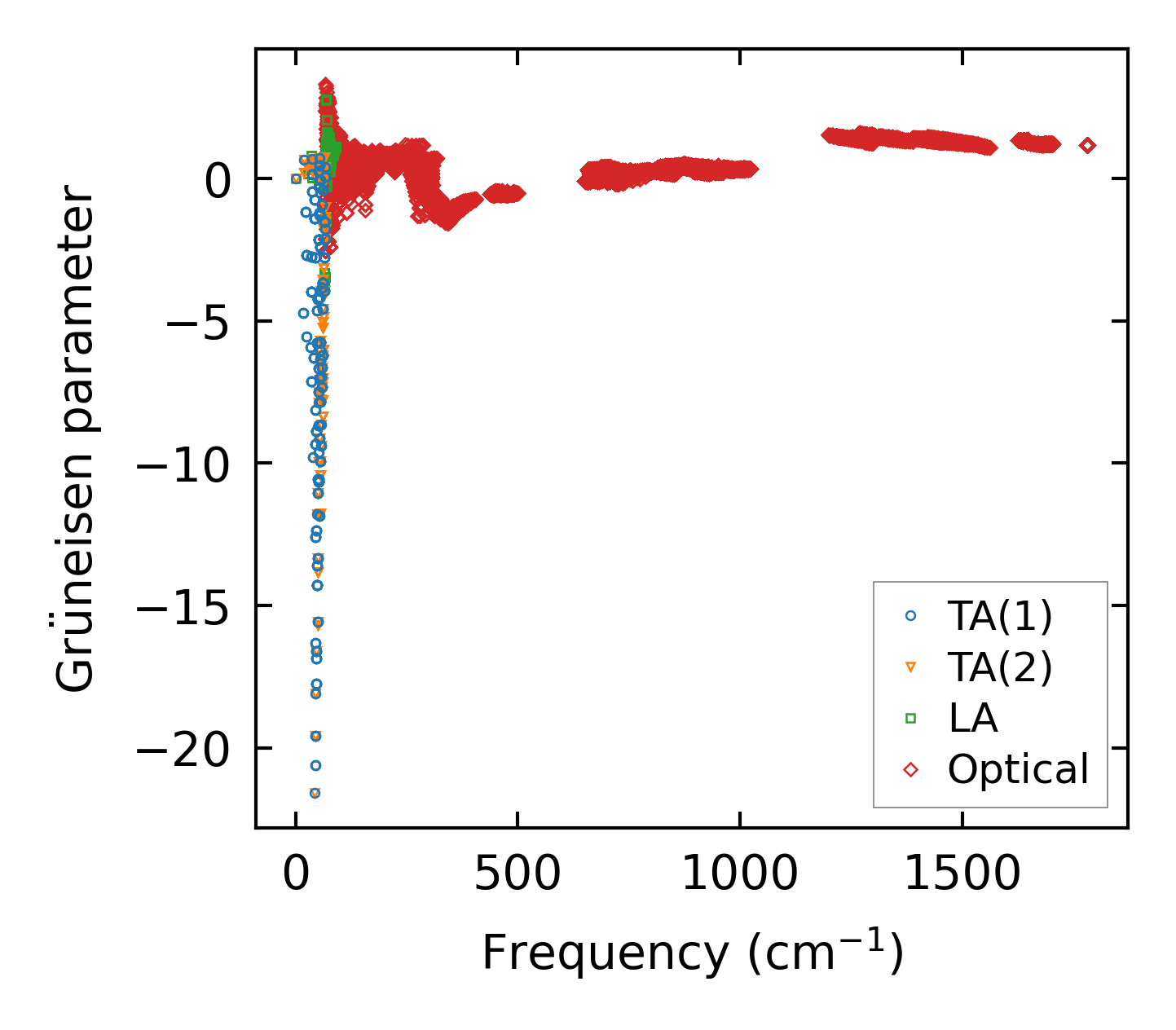

../../_images/fig_gru_all5097.png — (a) Grüneisen parameters

../../_images/fig_gruneisen5097.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x7, supercell: 1x1x1

../../_images/fig_kappa9593.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size5157.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

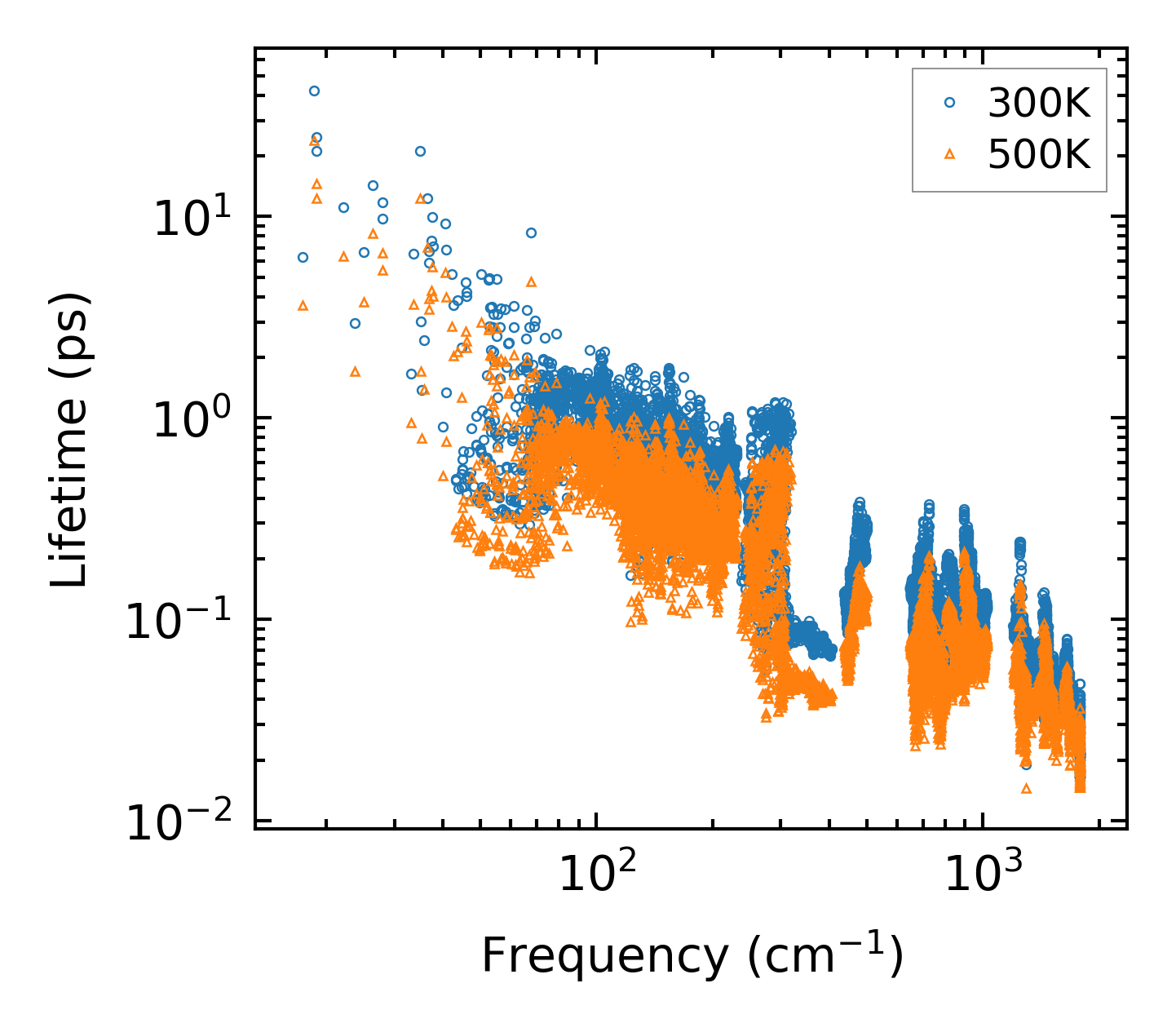

../../_images/fig_lifetime5047.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates5046.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

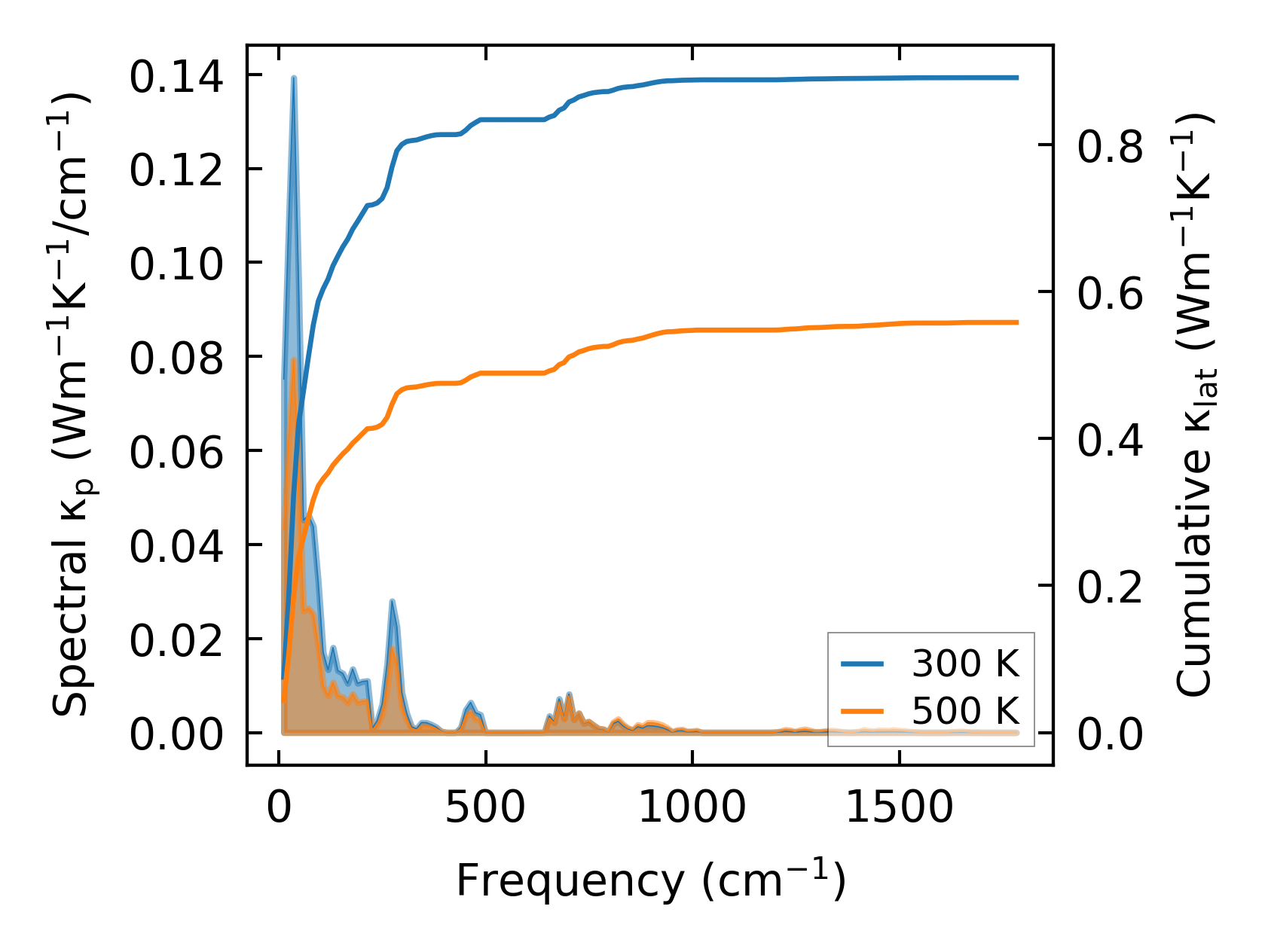

../../_images/fig_cumu_frequency5047.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

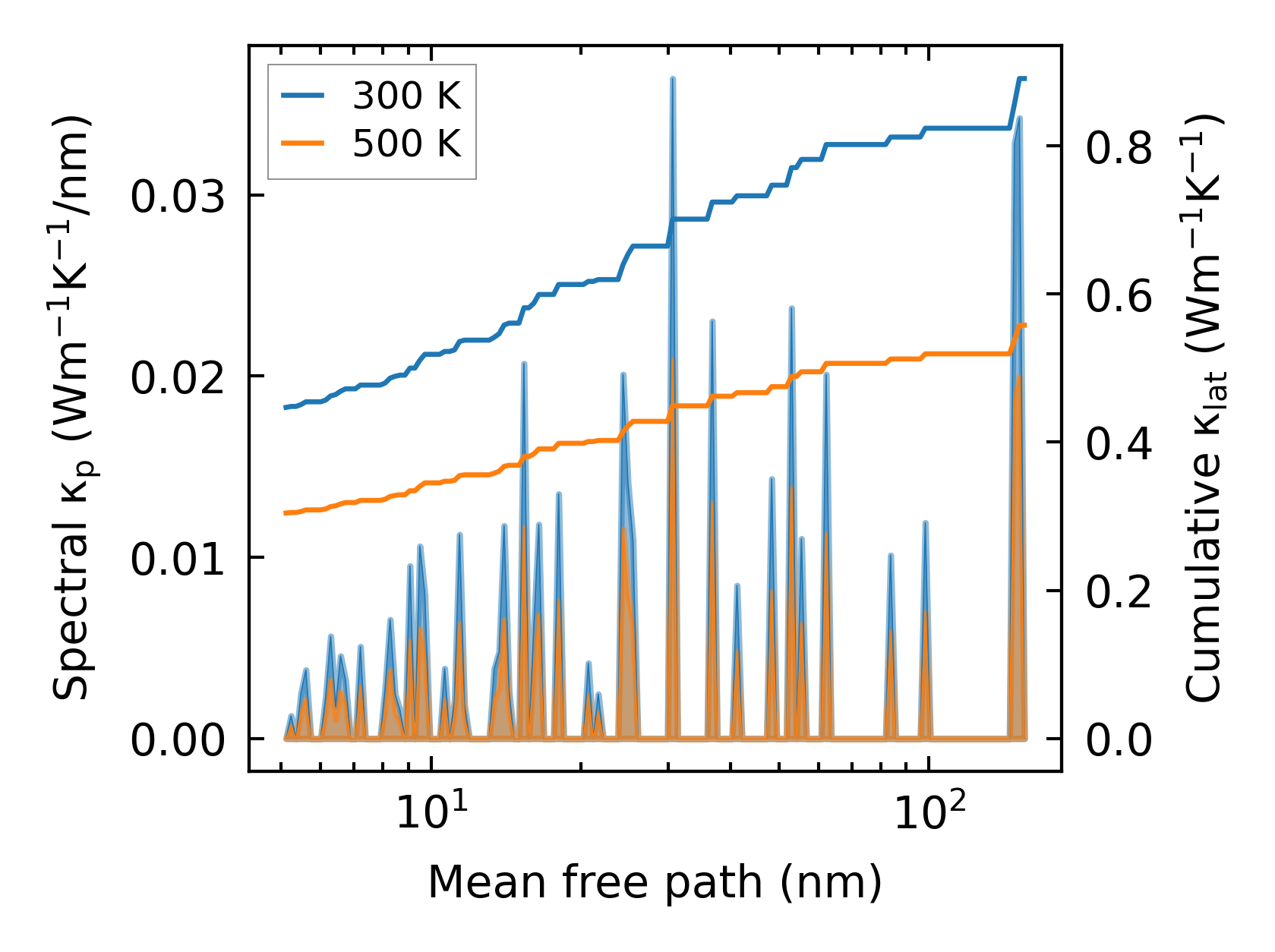

../../_images/fig_cumu_mfp5046.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

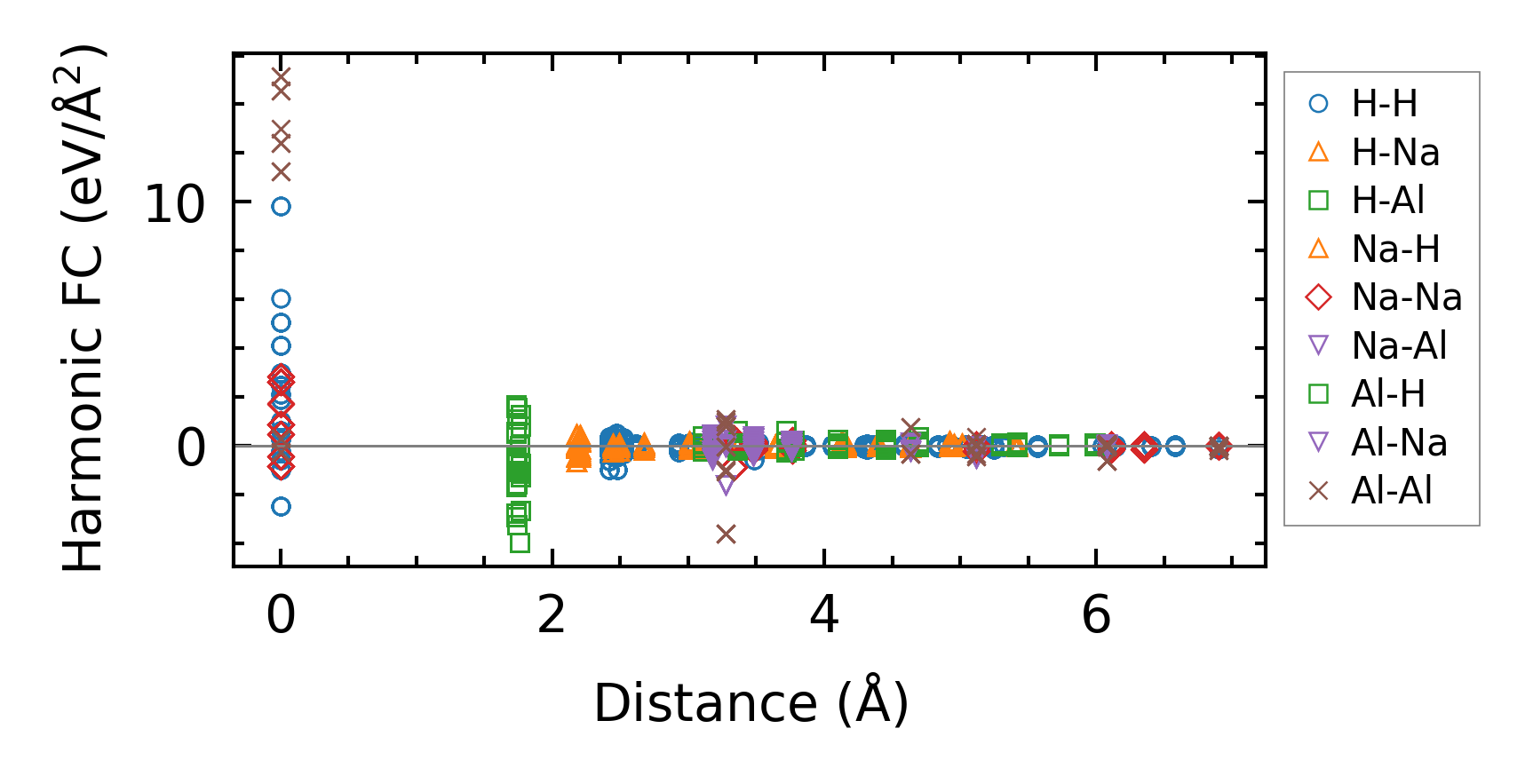

../../_images/fig_fc211901.png — (a) Force constants w.r.t atomic distance

Summary

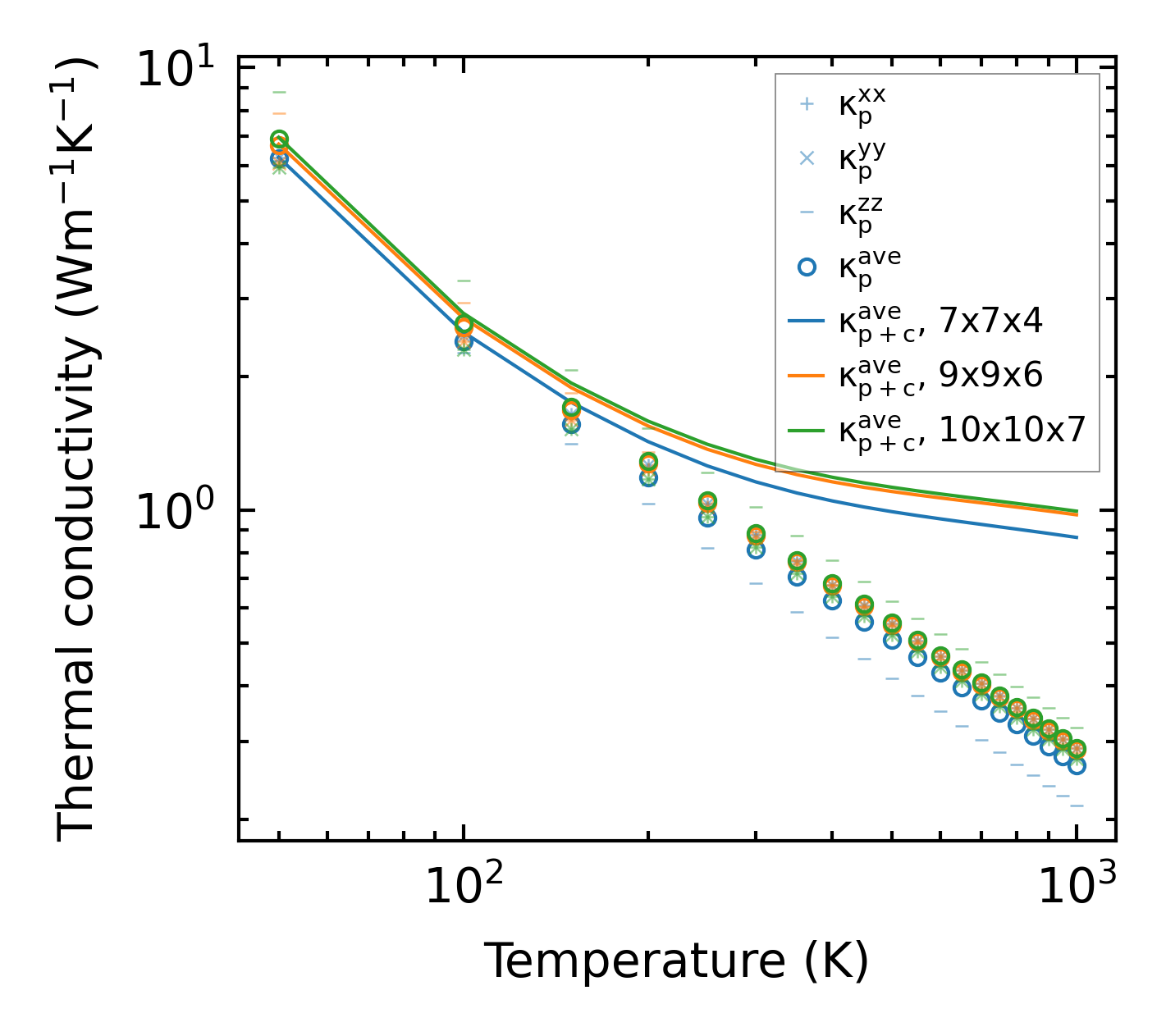

../../_images/fig_kappa9594.png — (a) Temperature-dependent lattice thermal conductivity

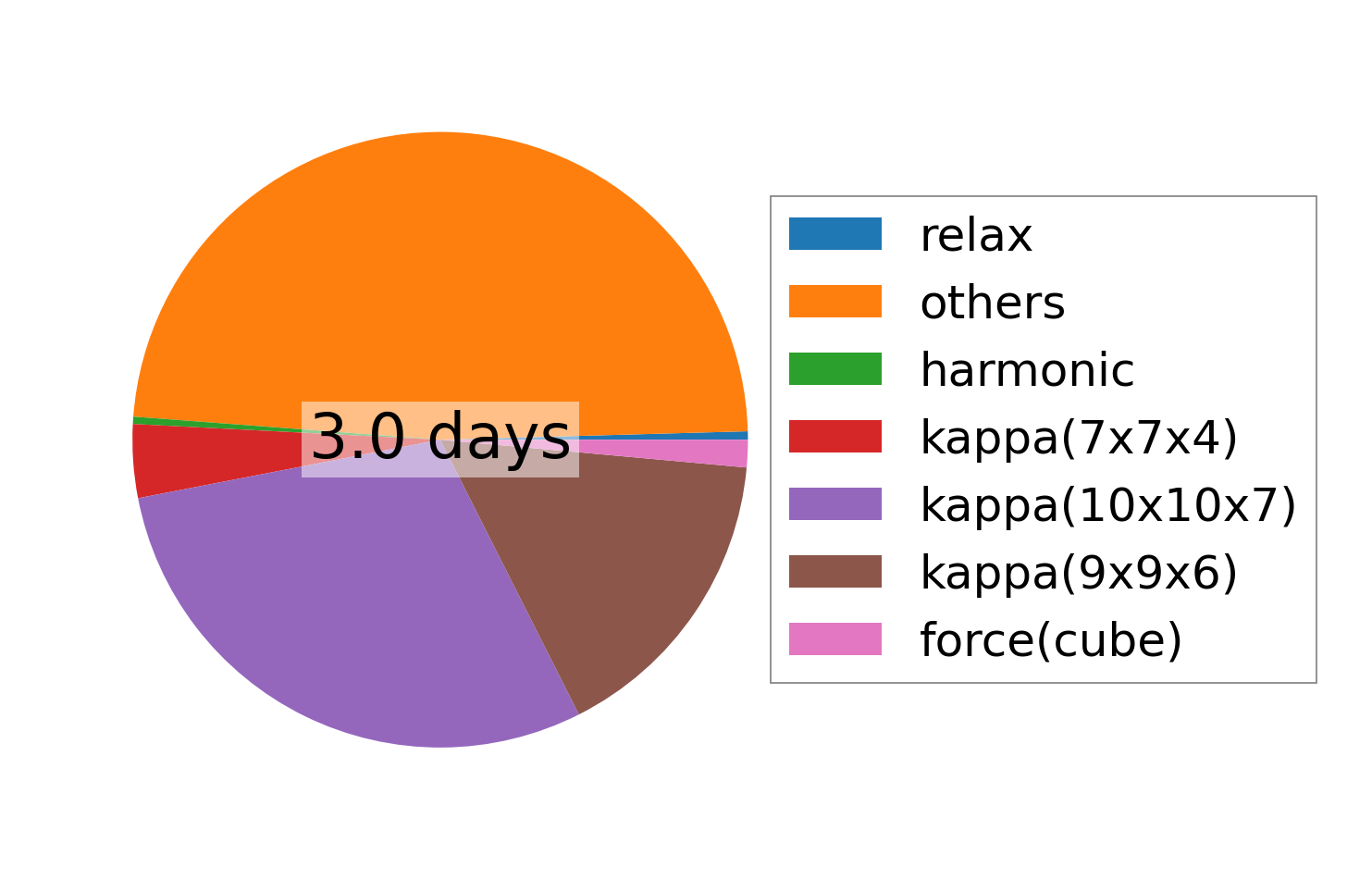

../../_images/fig_times20688.png — (b) Computation time
