mp-24565-2/BaHClO/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-24565-2.tar.gz

Equation of state

../../_images/fig_bm6168.png — (a) Equation of state

Harmonic properties

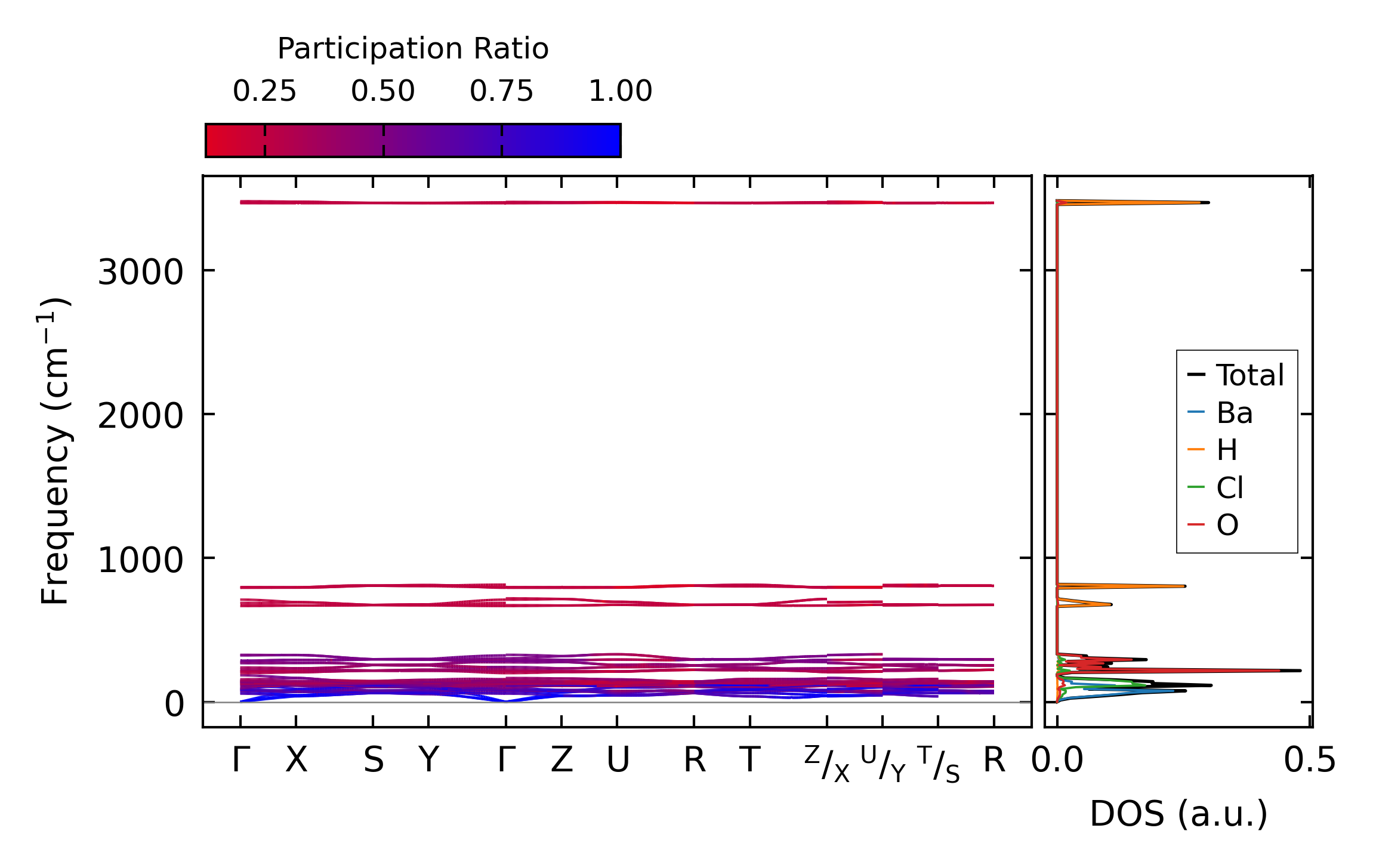

../../_images/fig_bandos_pr12442.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos16732.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo12442.png — (c) Thermodynamic properties

Grüneisen parameters

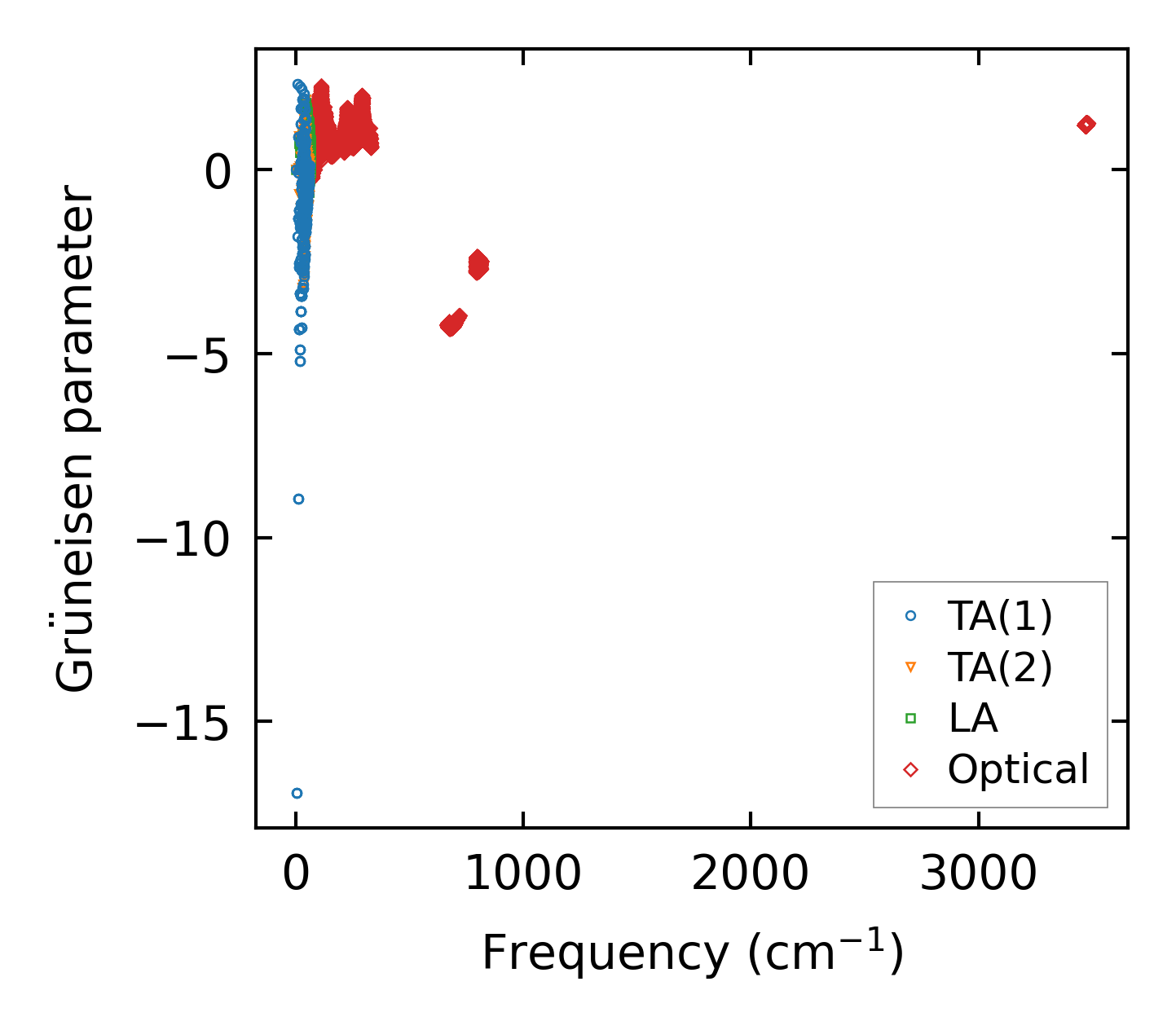

../../_images/fig_gru_all5169.png — (a) Grüneisen parameters

../../_images/fig_gruneisen5169.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 9x14x8, supercell: 2x3x1

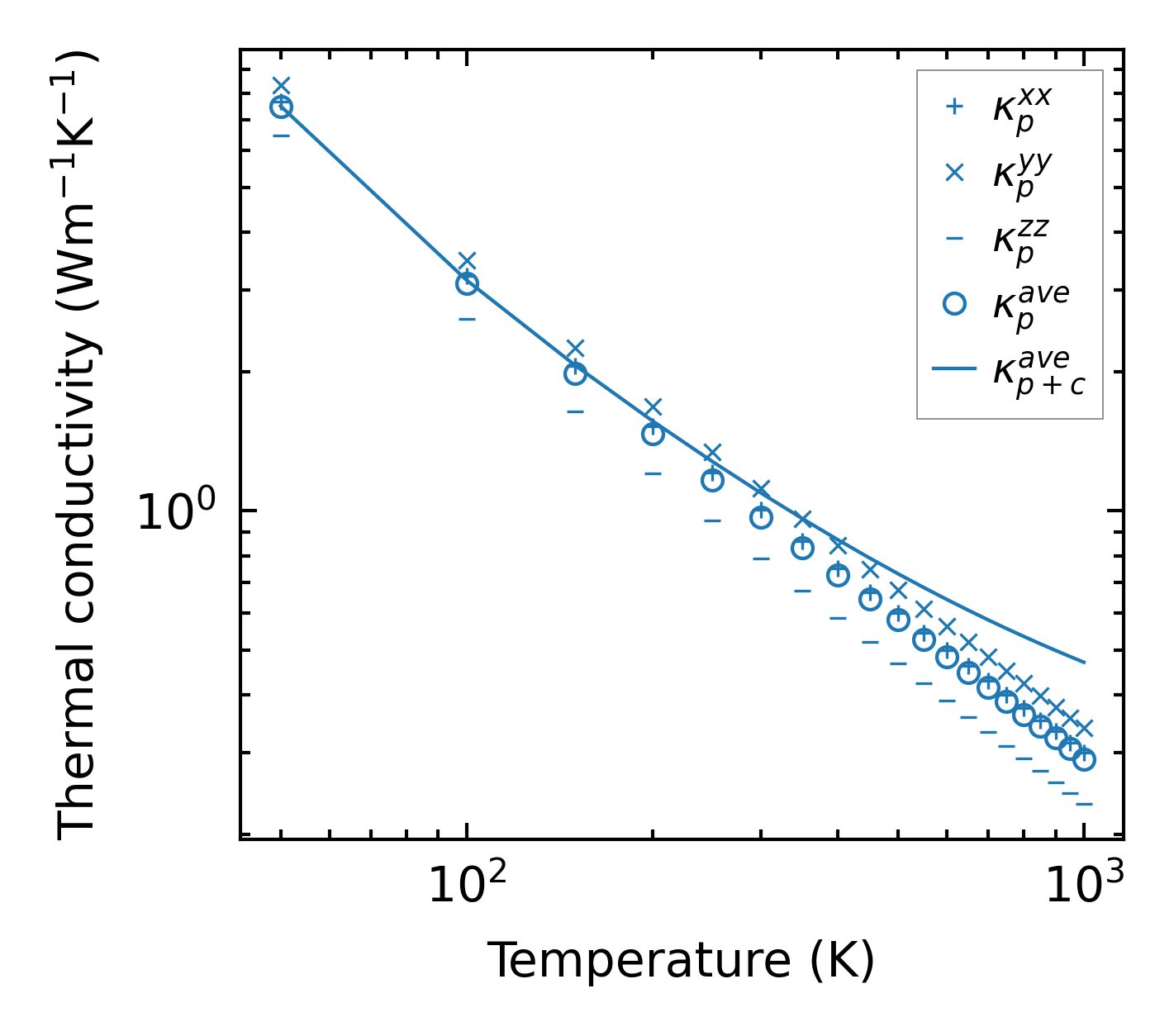

../../_images/fig_kappa9722.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size5229.png — (b) Peierls lattice thermal conductivity w.r.t grain size

3-phonon (LASSO), supercell 2x3x2 — q-mesh: 9x14x8, supercell: 2x3x2

../../_images/fig_kappa9723.png — (a) Temperature-dependent lattice thermal conductivity

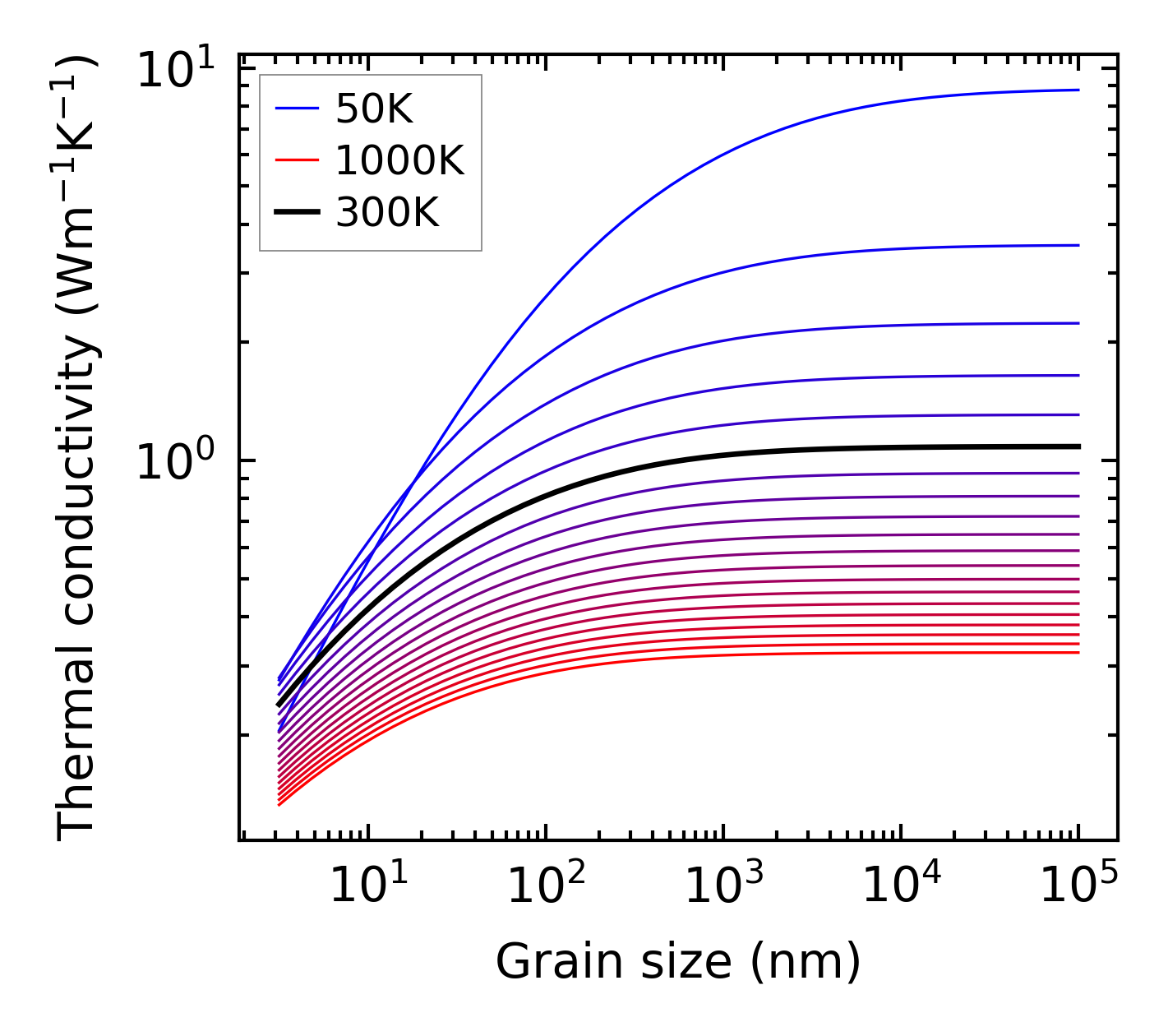

../../_images/fig_kappa_vs_grain_size5230.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

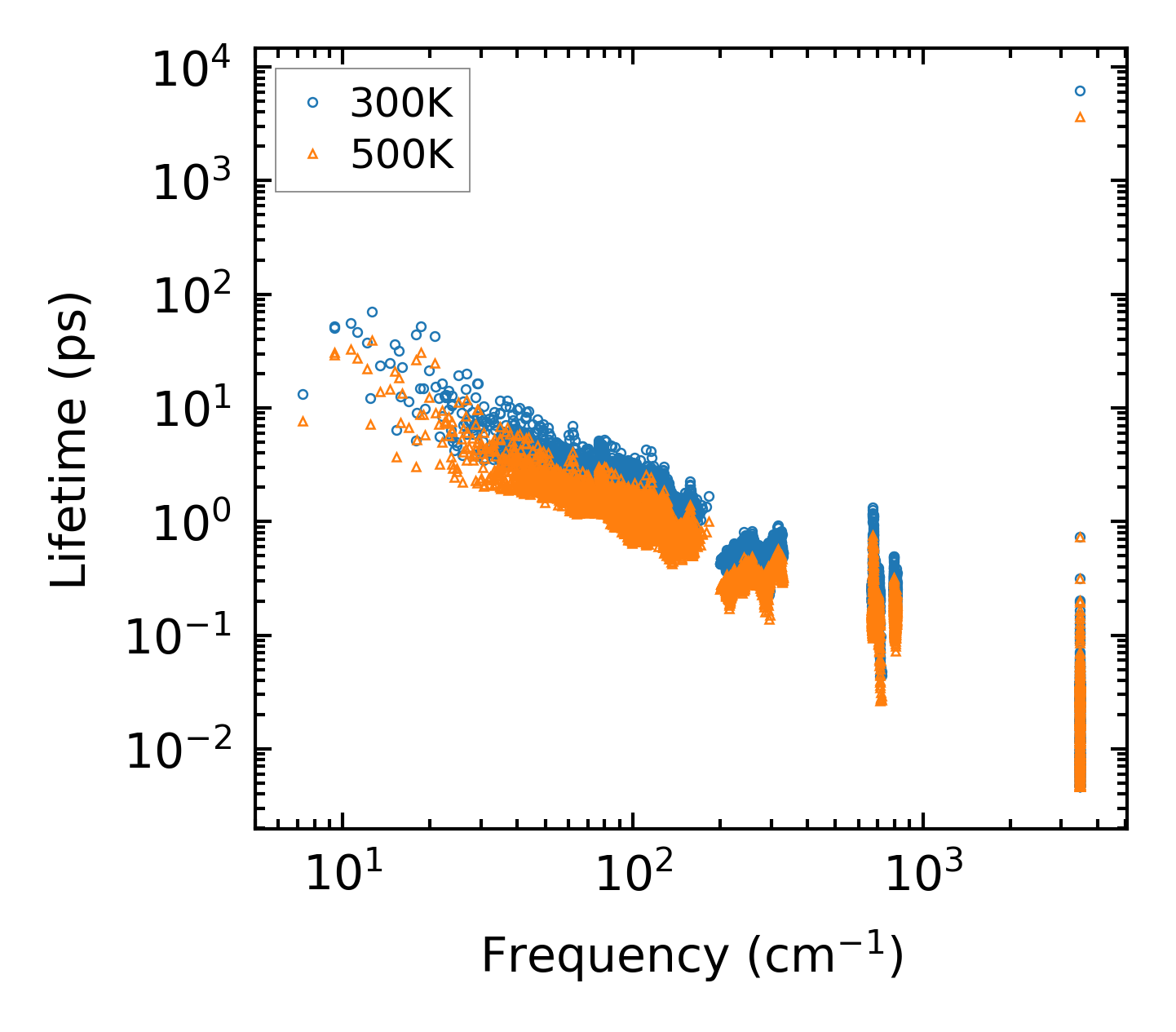

../../_images/fig_lifetime5118.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates5117.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency5118.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

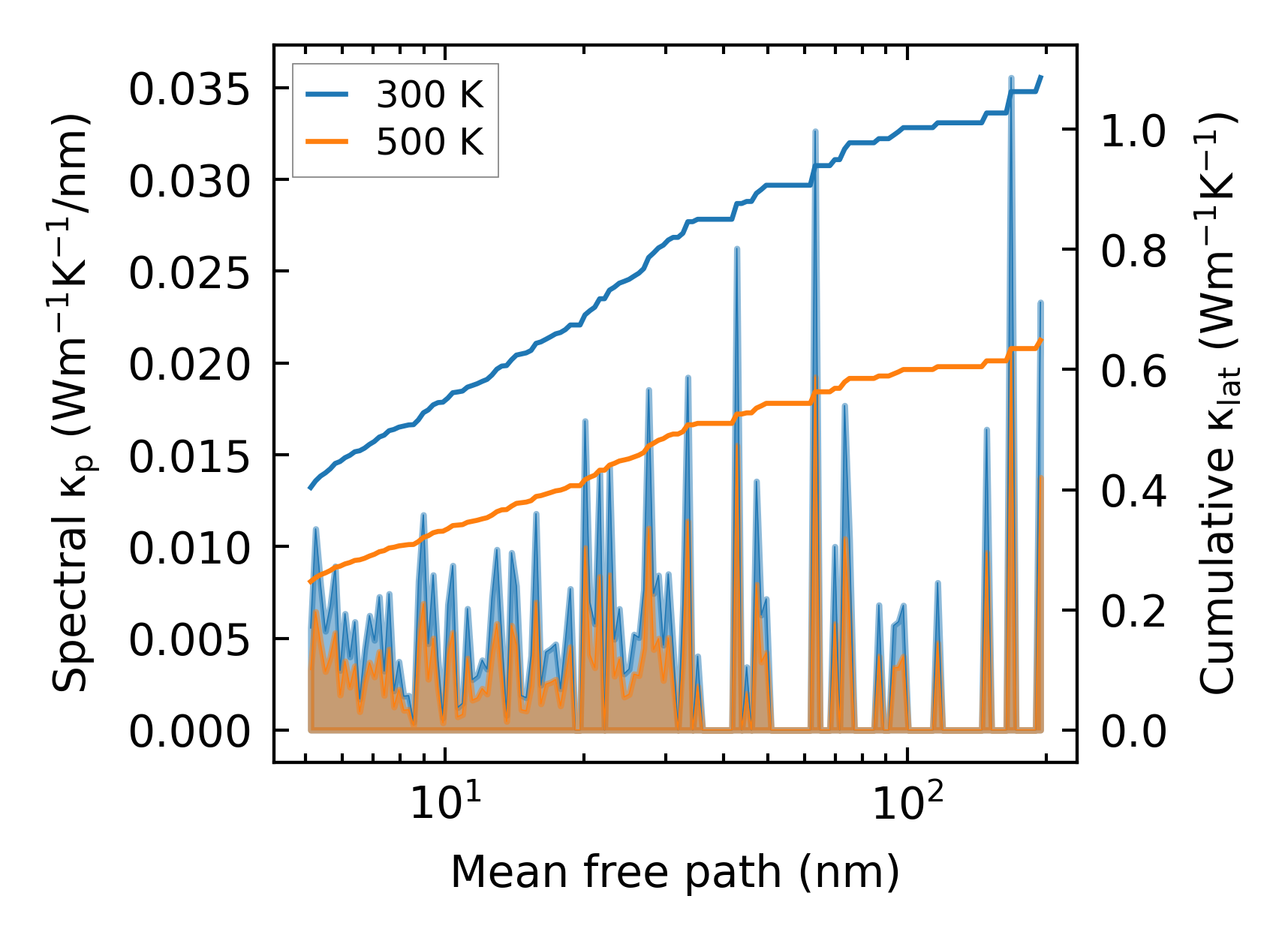

../../_images/fig_cumu_mfp5117.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

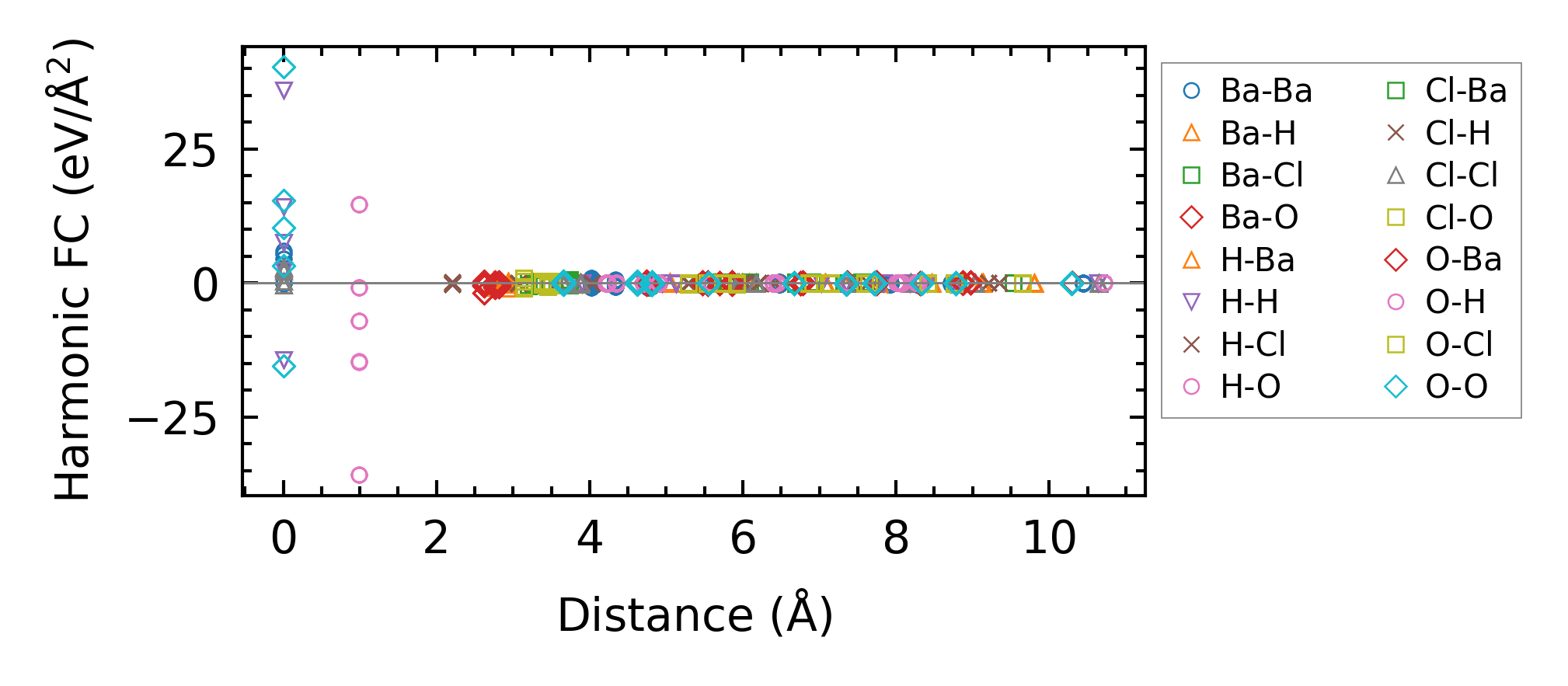

../../_images/fig_fc212141.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa9724.png — (a) Temperature-dependent lattice thermal conductivity

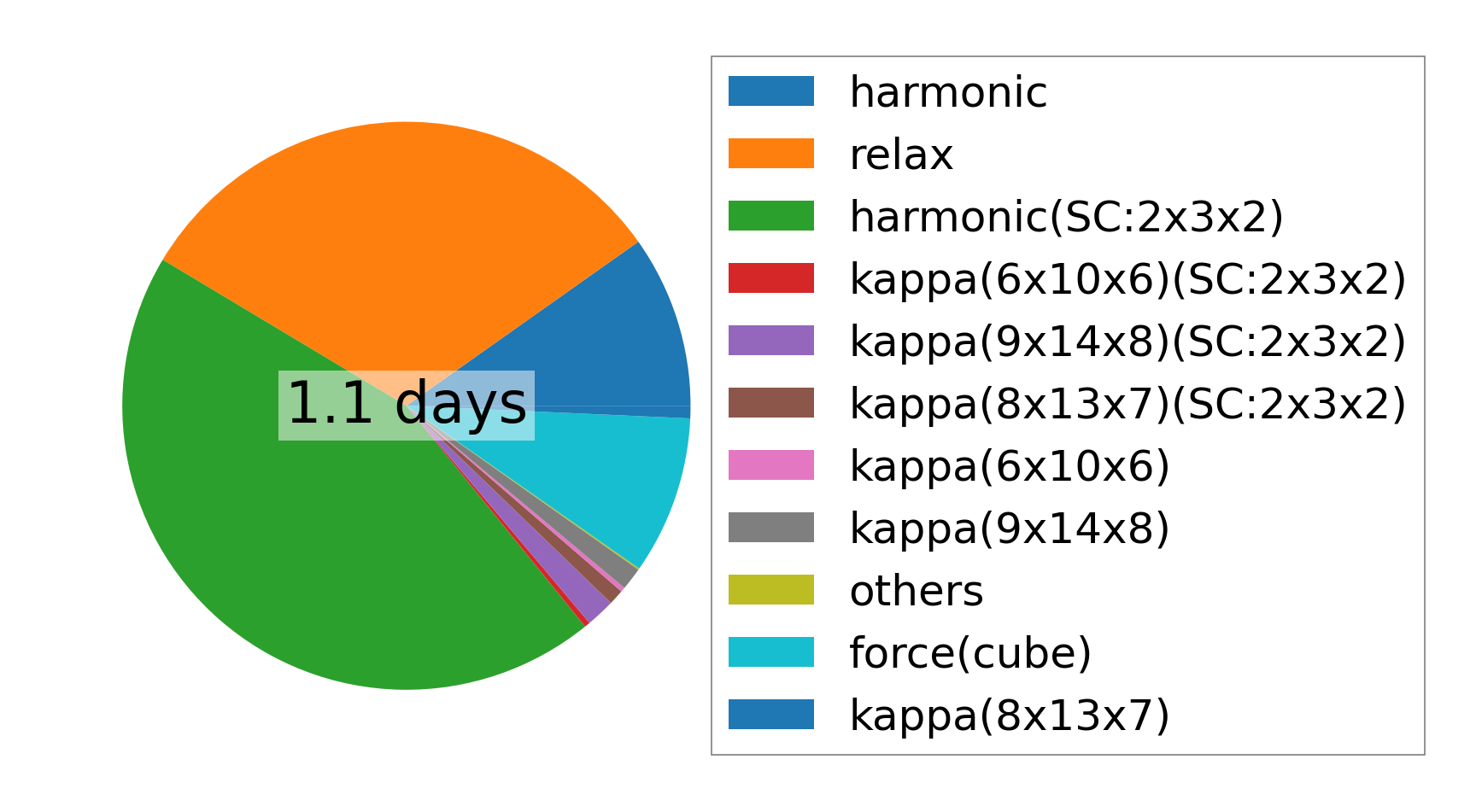

../../_images/fig_times21142.png — (b) Computation time
