mp-24409/PH4I/anharm

Space group: P4/nmm (129)
Link: Materials Project
Download: mp-24409.tar.gz

Harmonic properties

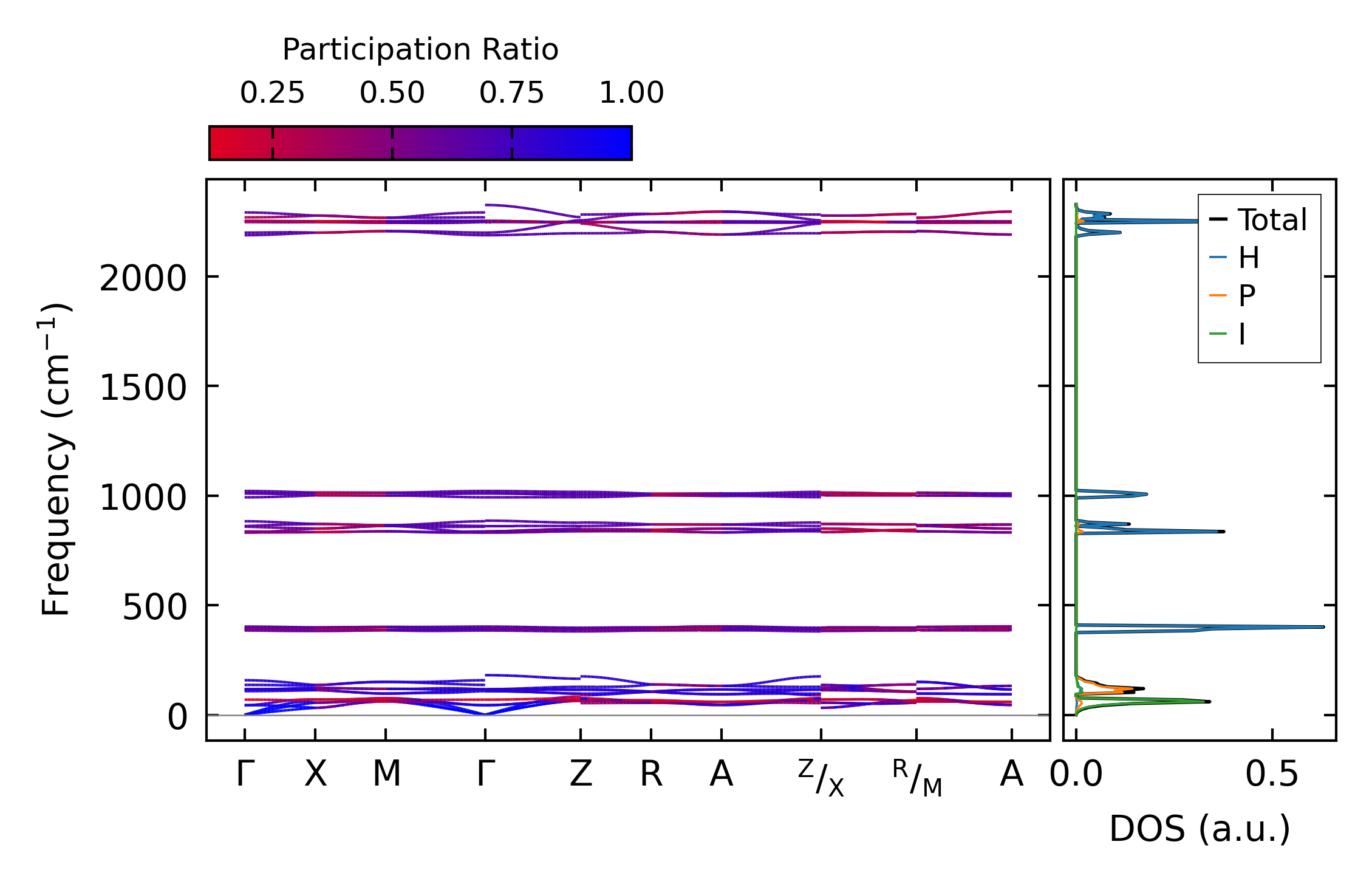

../../_images/fig_bandos_pr12406.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo12406.png — (b) Thermodynamic properties

Grüneisen parameters

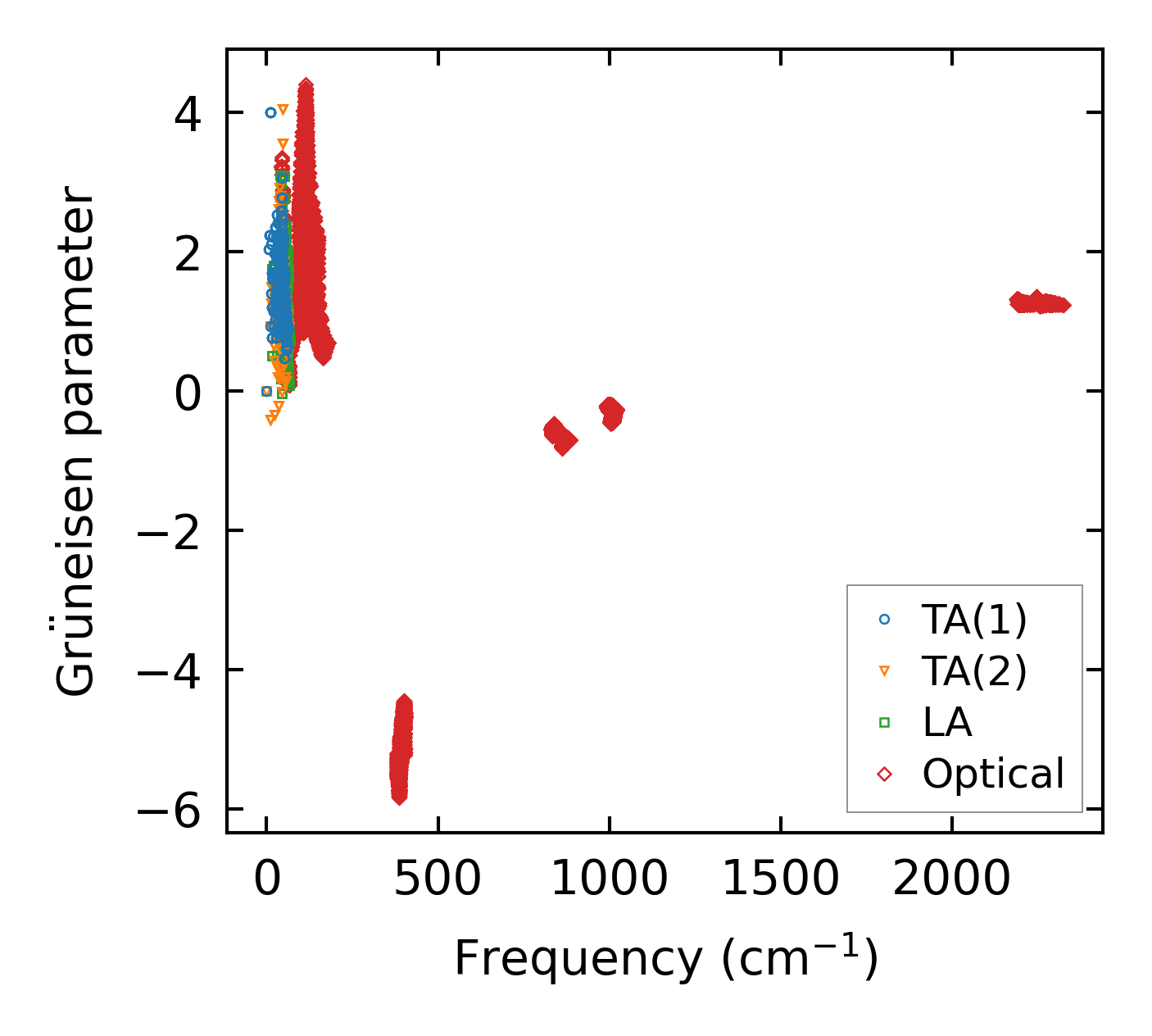

../../_images/fig_gru_all5156.png — (a) Grüneisen parameters

../../_images/fig_gruneisen5156.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x11x16, supercell: 2x2x3

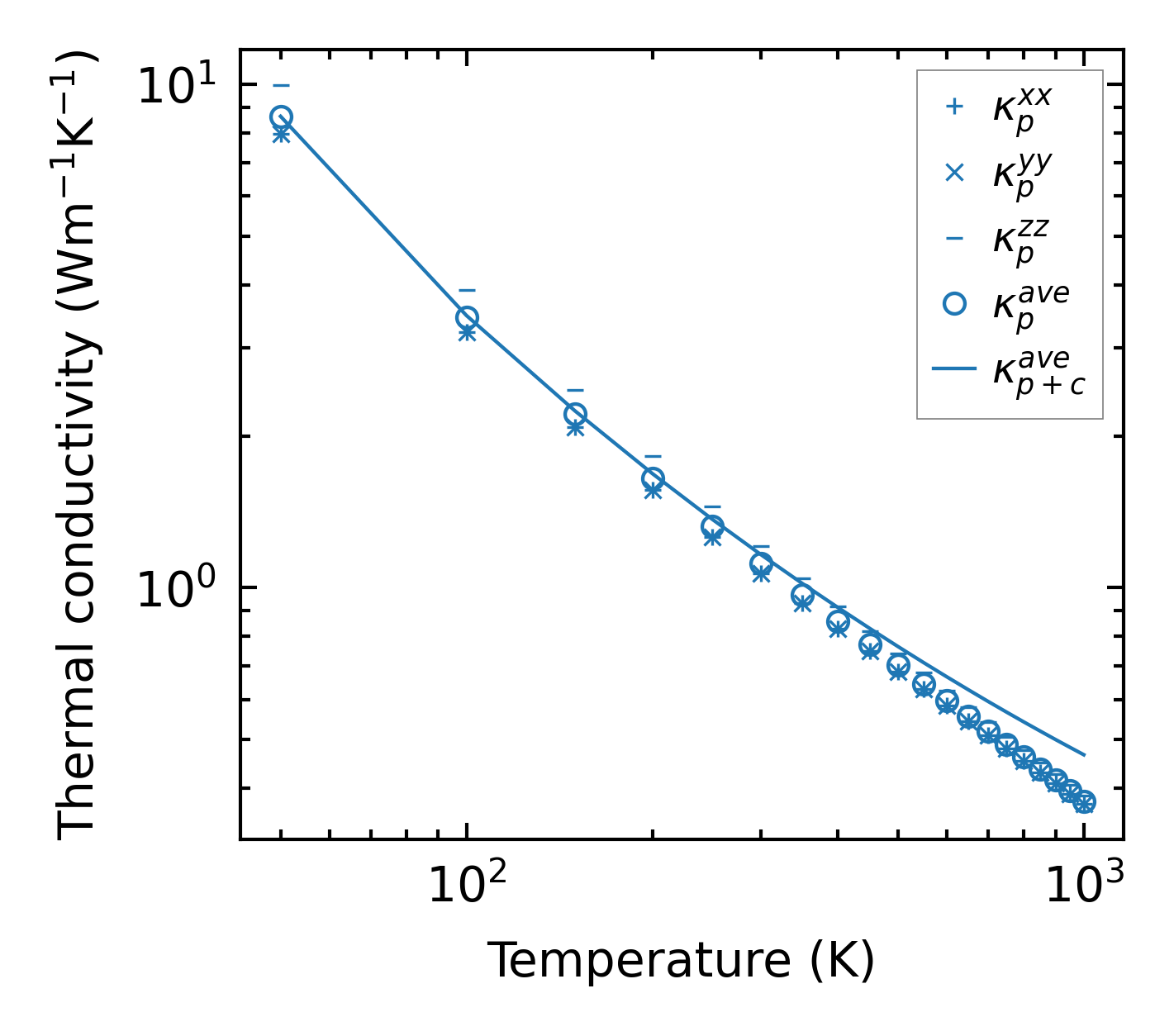

../../_images/fig_kappa9697.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size5216.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

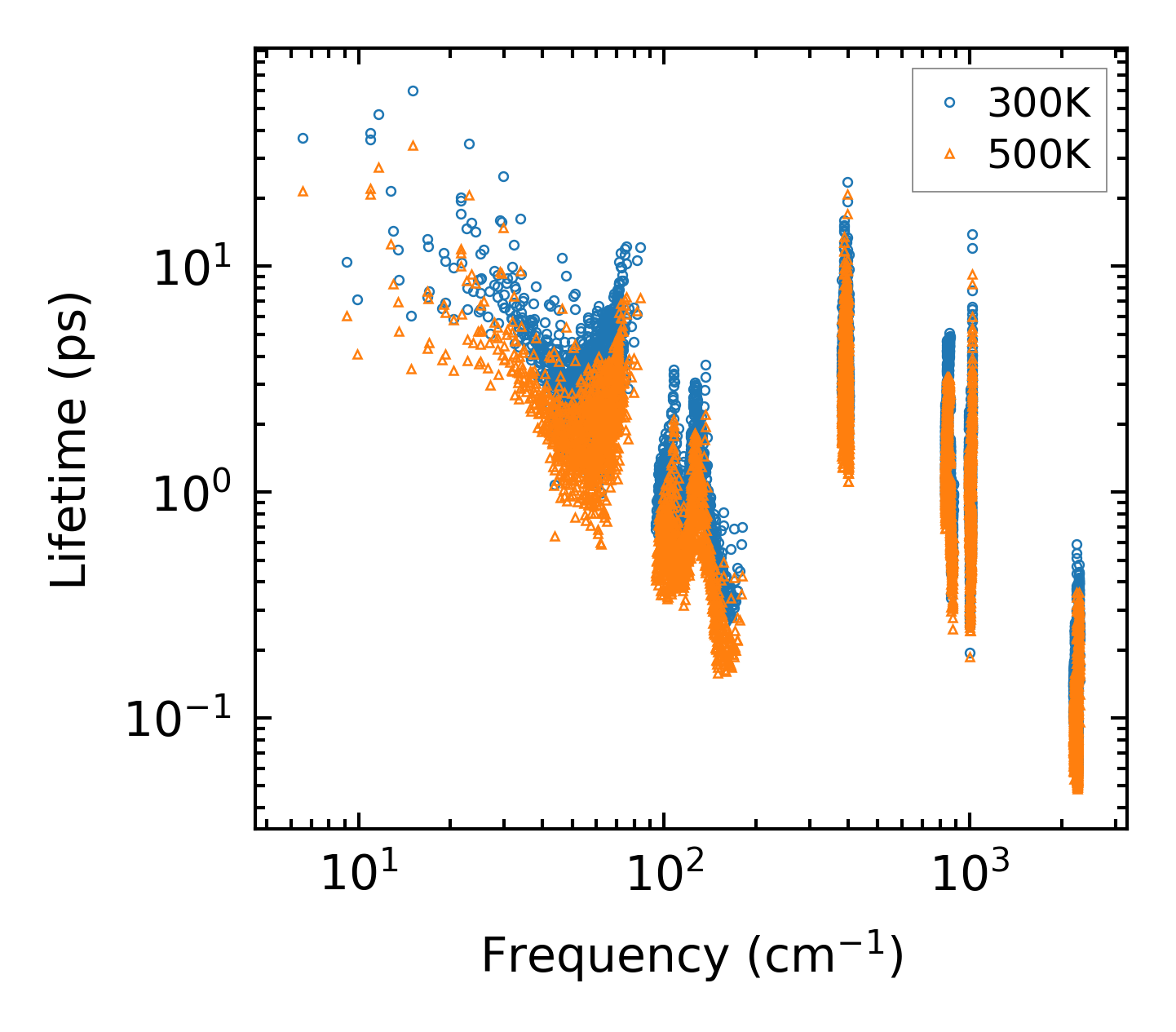

../../_images/fig_lifetime5105.png — (a) Phonon lifetime due to phonon-phonon scattering

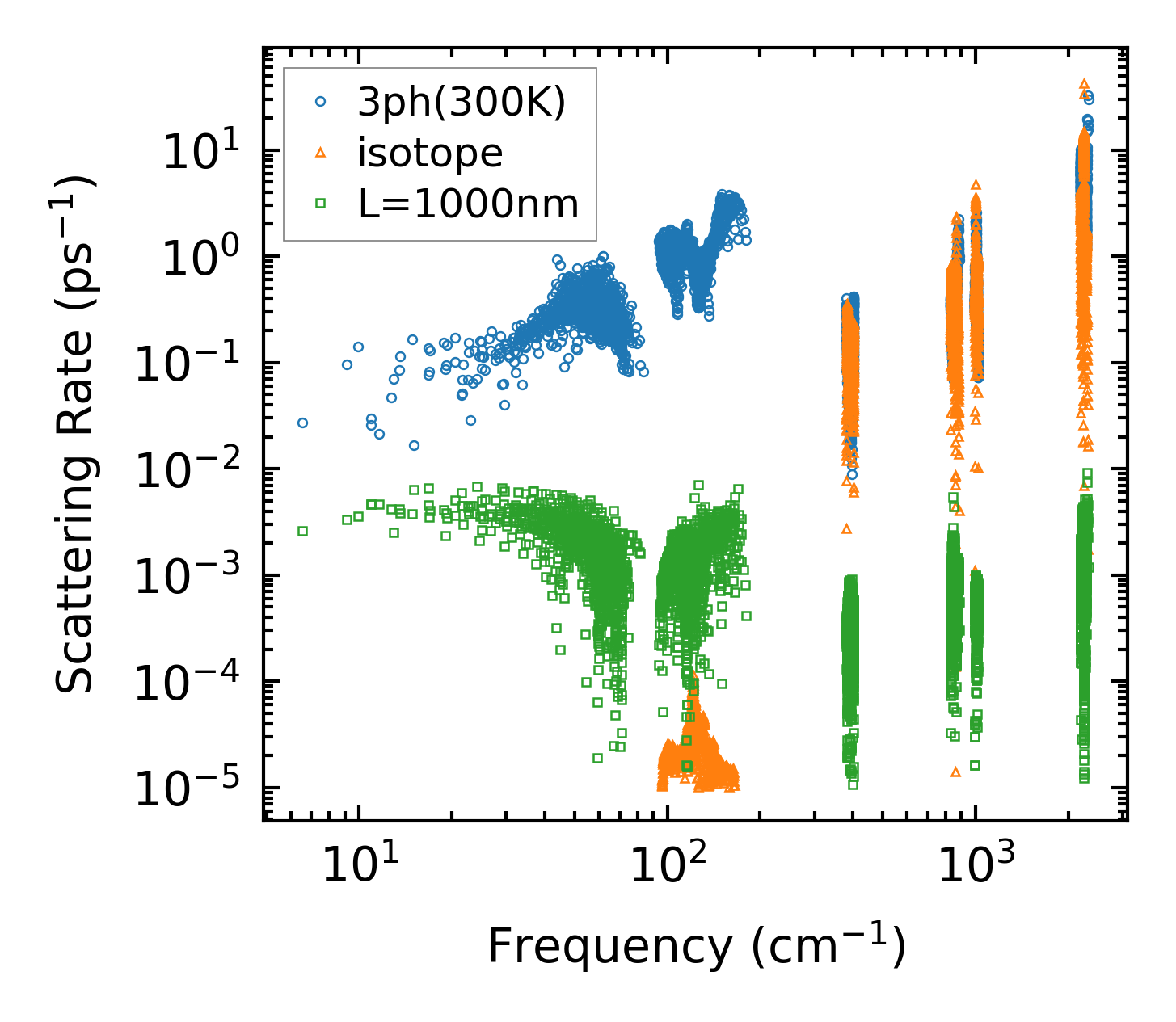

../../_images/fig_scat_rates5104.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

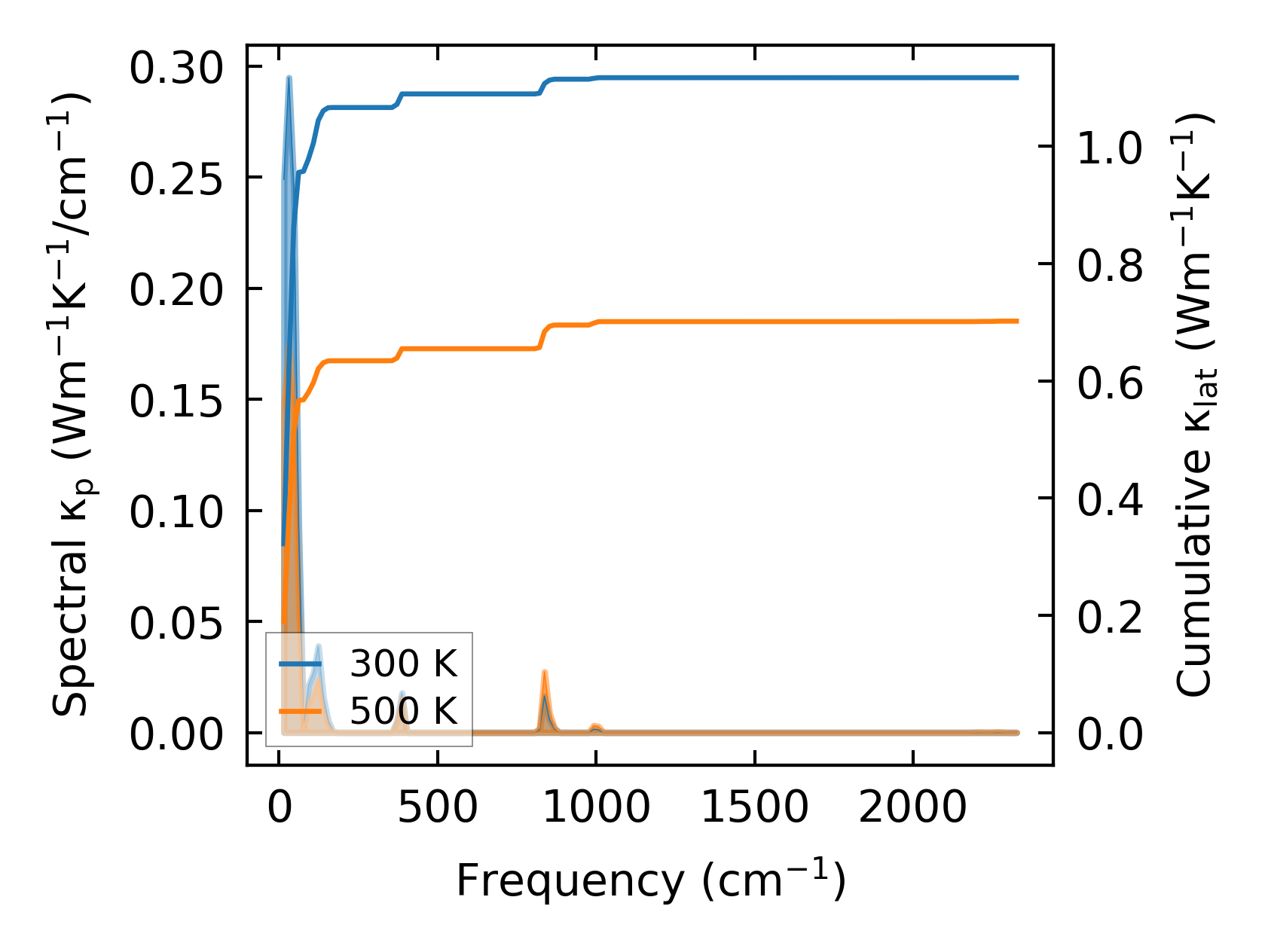

../../_images/fig_cumu_frequency5105.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

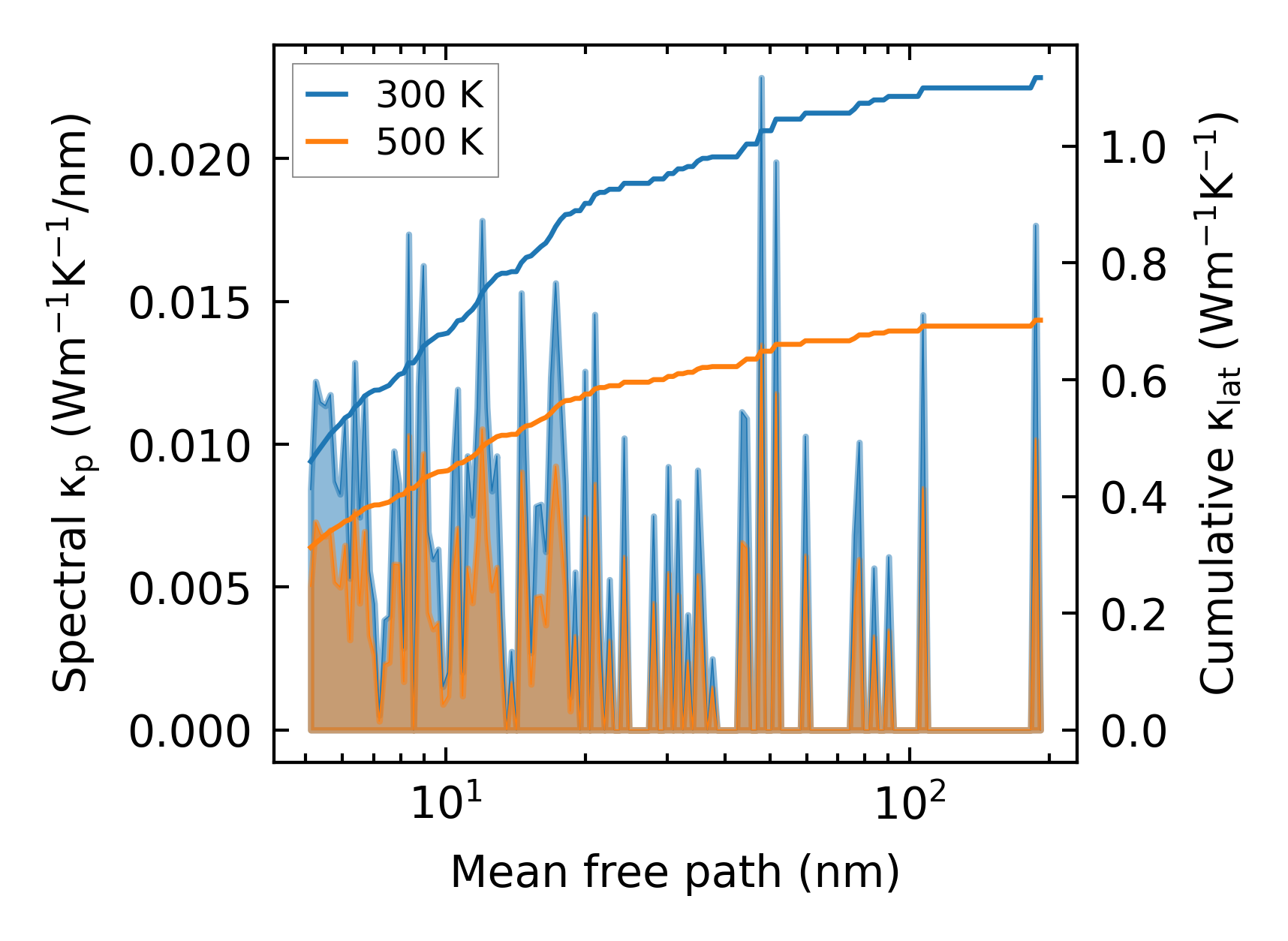

../../_images/fig_cumu_mfp5104.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc212105.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa9698.png — (a) Temperature-dependent lattice thermal conductivity

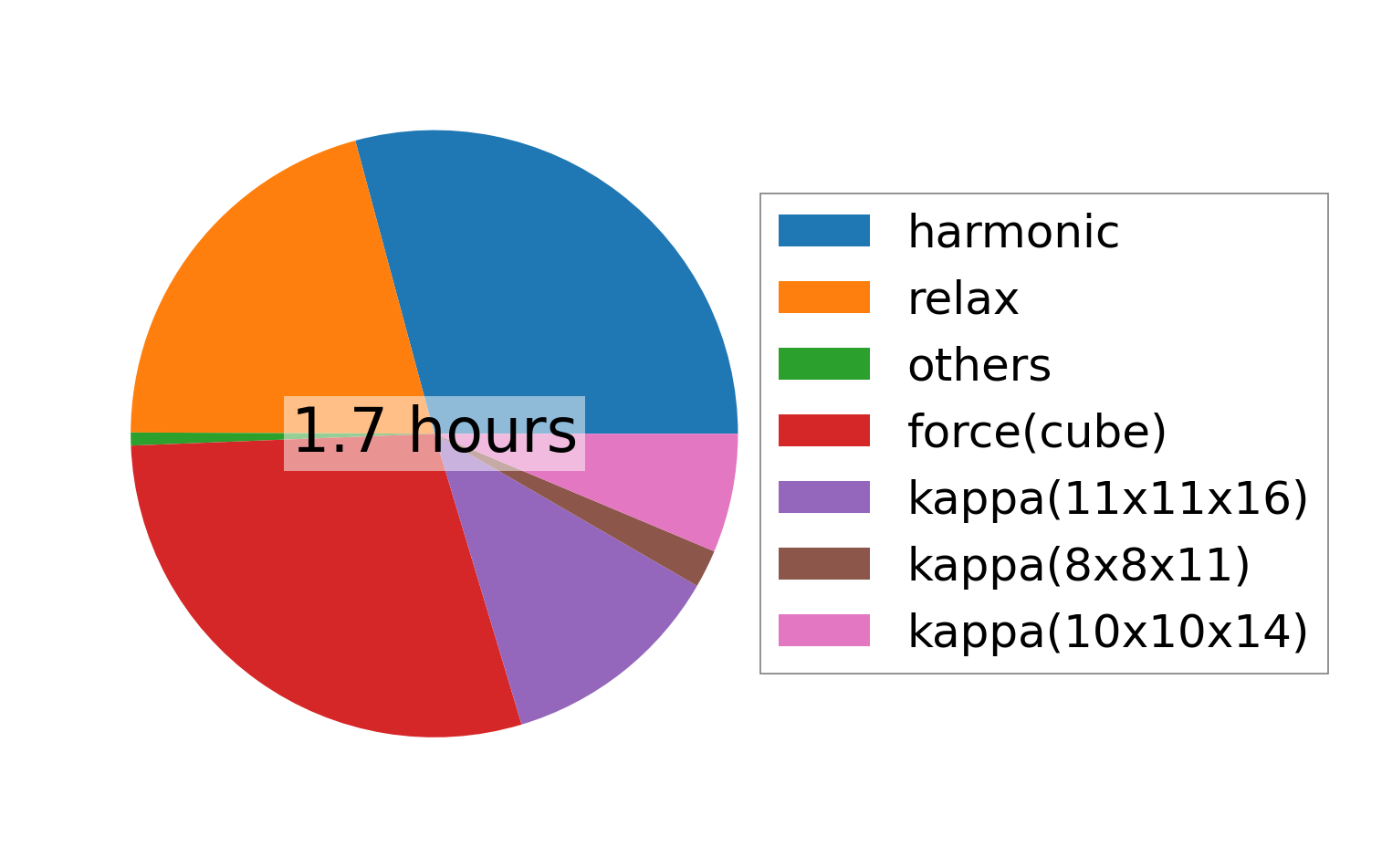

../../_images/fig_times21079.png — (b) Computation time
